Mercia Garden Products 01DTSHCR0707DDFW-V2 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
01DTSHCR0707DDFW-V2
7X7 CORNER SHED
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
01DTSHCR0707DDFW-V2
Overall Dimensions:
Width = 2075mm
Depth = 2075mm
Height = 2006mm
Base Dimensions:
Width = 1958mm
Depth = 1958mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
5
6
432
1
7 8 9 10
11 12
13
14
15
16
17
18
19
20
Door Panel
QTY 1
AI-01S11SHDD1135X1946-V1
Window Panel
QTY 1
AI-01S11SH2CW1135X1946-V1
Large Right Panel
QTY 1
AI-01S11SHPGR952X1947-V1
Large Left Panel
QTY 1
AI-01S11SHPGL952X1947-V1
Plain Panel
QTY 1
AI-S11SHPPTF1135X1946-V1
Small Right Panel
QTY 1
AI-01S11SHPGR980X1897-V1
Small Left Panel
QTY 1
AI-01S11SHPGL980X1897-V1
Floor
745x1959mm
QTY 1
AI-R11MBF745X1958-V1
Angled Floor
1213x1958mm
QTY 1
AI-R11MBAF1213X1958-V1
Roof
1175x2050mm
QTY 1
AI-S11MBPR1175X2050-V1
Angled Roof
875x2050mm
QTY 1
AI-S11MBANGRR875X2050-V1
Door
QTY 2
AI-S11FBMBZBD479X1680-V1
Roof Support Bar - 44X44X1905mm QTY 1
F4444-1905mm
Fascia - 12X95X2050mm QTY 2
S1295-2050mm
Fascia - 12X95X1212mm QTY 3
S1295-1212mm
Cover Trim - 12X40X1918mm QTY6
S1240-1918mm
Upper Window Strip - 12X40X1135mm QTY1
S1240-1135mm
Upright Window Strip - 12X40X518mm QTY 3
S1240-518mm
Rear Panel Frame - 28X28X1905mm QTY 1
FS2828-1905mm
Front Panel Frame - 28X28X1135mm QTY 1
FS2828-1135mm
Rear Roof Frame - 28X28X2050mm QTY 1
FS2828-2050mm
Front Roof Frame - 28X28X1175mm QTY 1
FS2828-1175mm
Panel Joint Frame - 28X28X1806mm QTY 1
FS2828-1806mm
Inner Door Block - 28X28X150mm QTY 4
FS2828-150mm
Door Trim - 12X60X770mm QTY 2
S1260-770mm
21
22
23
24
25
26
27
30mm Screw x 97
50mm Screw x 78
60mm Screw x 6
40mm Screw x 36
Felt Tacks x 100
16mm Screw x 8
28
29
Rear Cover Trim - 12X60X1800mm QTY 2
S1260-1800mm
30
Locating Block - 28X28X240mm QTY 2
FS2828-240mm
31
32
33
Nail Bag
There may be extra screws present in the nail bag
T Hinge QTY 4
PI-02-1043
Plastic Window Cill QTY 1
PI-08-0013
Styrene QTY 2
PI-05-0114
L-Bracket QTY 2
PI-07-0012
Turn Button QTY 4
PI-07-0034
Pad Bolt QTY 1
PI-07-0035
Felt
34

P 3
Please retain product label and instructions for future reference

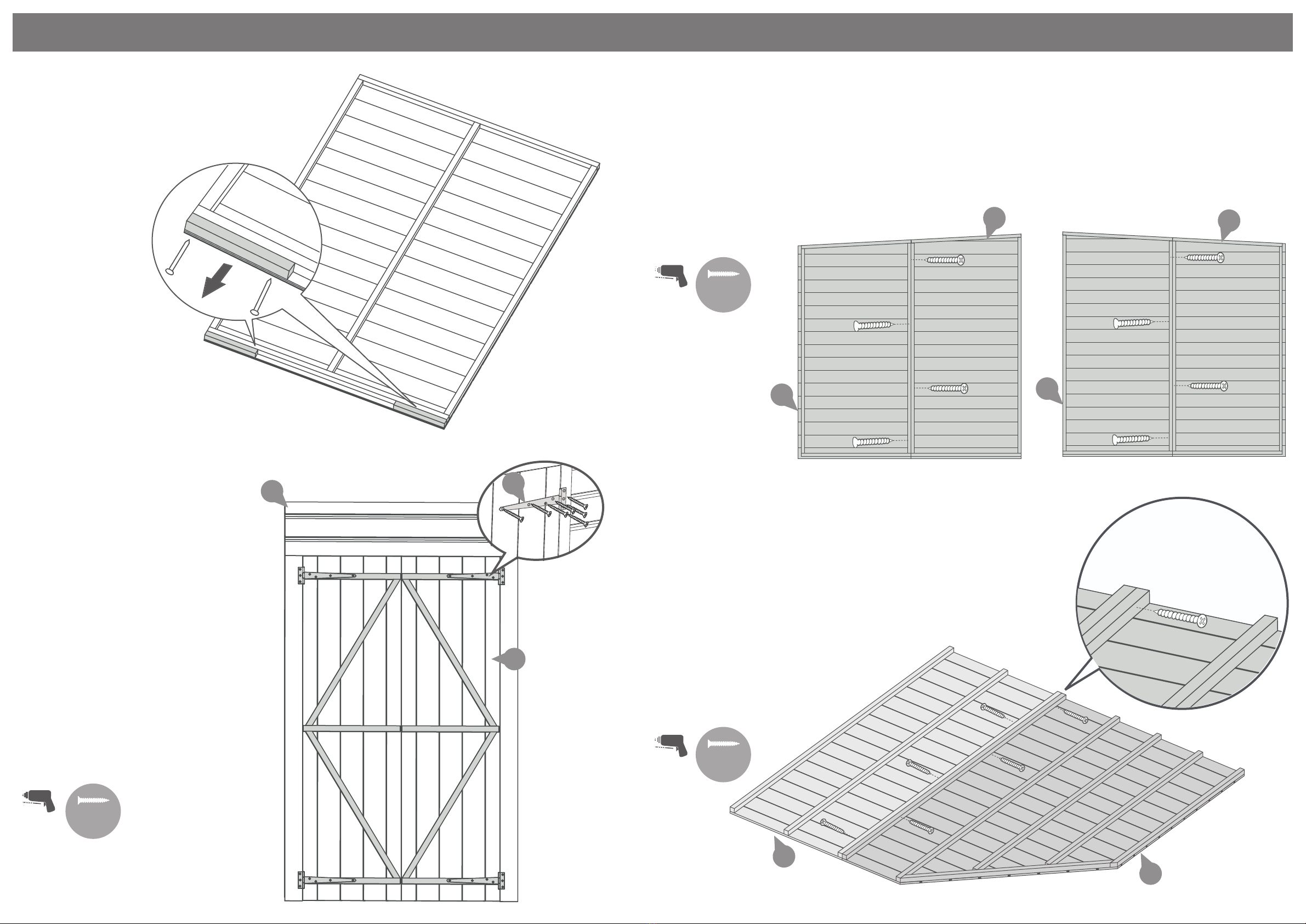

Remove transportation blocks from
the bottom of each panel before
beginning assembly. Each Panel
should have two blocks.
Pre Assembly
1
30
Pre drill
hole
30mm
screw
12
Step 1
Parts needed - No. 1 QTY 1
No. 12 QTY 2
No. 30 QTY 4
Lay the Door Panel (No. 1) on a at surface
and place the doors (No. 12) within the Door
Panel opening. Position the doors so that
they are equally spaced within the opening.
Fix the T Hinges (No. 30) onto the door and
Door Gable using 7x30mm screws per hinge,
as shown. Ensure that the screws go through
the cladding and into the framing behind.
**PLEASE NOTE** Before tting the hinges,
ensure the inner door framing is the correct
way round as shown in the illustration.
28x30mm Screws
50mm
screw
Pre drill
hole
57
6
4
Step 2
Parts needed - No. 4 QTY 1
No. 5 QTY 1
No. 6 QTY 1
No. 7 QTY 1
Fix Large Right Panel (No. 4) to Small Right
Panel (No. 5) and Fix Large Left Panel (No. 6)
to Small Left Panel (No. 7) using 4x50mm
screws per join.
8x50mm Screws
50mm
screw
Pre drill
hole
8
9
Step 3
Parts needed - No. 8 QTY 1
No. 9 QTY 1
Place oors (No. 8 & 9) on a rm and level
base, ensure base has suitable drainage
free from areas where standing water can
collect. (See front page on base
requirements).
Fix the two oor panels (No. 8 & 9)
together as shown using 6x50mm screws
and alternate the positions.
6x50mm Screws

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Please retain product label and instructions for future reference
Pre drill
hole
60mm
screw

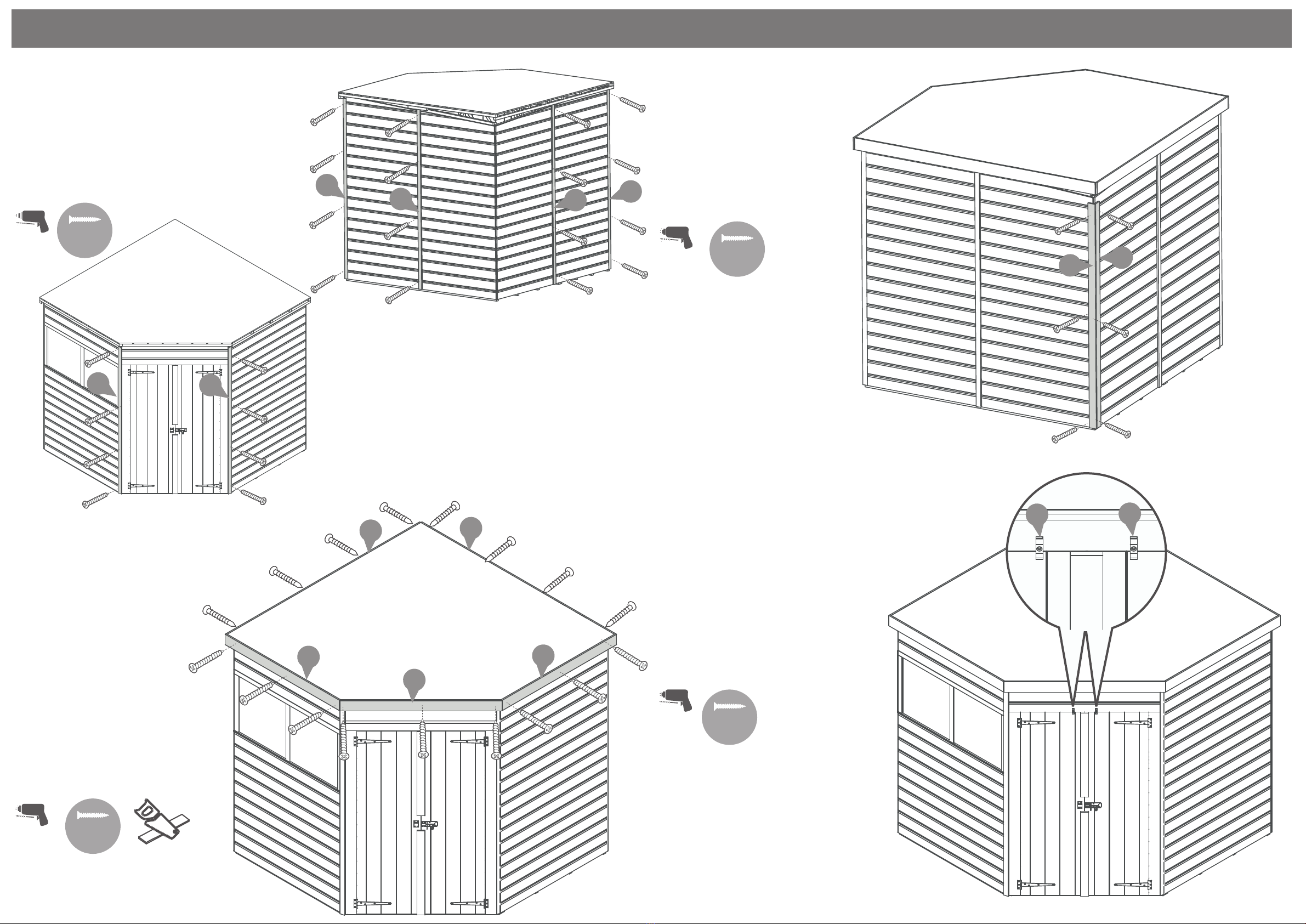

Step 4
Parts needed - No. 1 QTY 1
No. 2 QTY 1
No. 3 QTY 1
Place the Door Panel (No. 1), the
Window Panel (No. 2) and the Plain
Panel (No. 3) (in which layout is
most suitable to yourself) onto the
oor.
Fix the corners with 60mm
screws as shown in the illustration.
Do not secure the building
to the oor until the roof is tted.
6x60mm Screws
2
3
1
Step 5
Parts needed - No. 6 QTY 1
No. 7 QTY 1
No. 27 QTY 1
Place the two already assembled
Left Panels (No. 6 & 7) against
the oor and the Window Panel (or
Plain Panel).
Fix the corners with 3x50mm
screws as shown in the illustration.
Attach the Panel Joint Frame (No. 27)
into place with 3x50mm screws.
Do not secure the building to
the oor until the roof is tted.
6x50mm Screws
6
7
27
50mm
screw
Pre drill
hole
Step 6
Parts needed - No. 4 QTY 1
No. 5 QTY 1
Using the same method outlined in Step
5 place the two already assembled Right
Panels (No. 4 & 5) against the oor and
other Panels securing using 6x50mm
screws.
From the inside x the corners
with 3x50mm screws as shown in the
illustration.
Do not secure the building to
the oor until the roof is tted.
6x50mm Screws
50mm
screw
Pre drill
hole
4
5
13
14
50mm
screw
Pre drill
hole
Step 7
Parts needed - No. 13 QTY 1
No. 14 QTY 1
Place the Rear Panel Framing (No. 13) on
top of the Right Panels and place the Front
Panel Framing (No. 14) on top of the
Window Panel (or Plain Panel). Fix in place
using 3x50mm screws.
7x50mm Screws

P 5
Please retain product label and instructions for future reference
31
Pre drill
hole
30mm
screw
31
Step 8
Parts needed - No. 23 QTY 1
No. 31 QTY 2
Fix an L bracket (No. 31) ush to each end
of the Roof Support Bar (No. 23) using
2x30mm screws for each bracket.
Position the Roof Support Bar (No. 23)
in-between the right gables and the
window panel opposite.
Line the Roof Support Bar (No. 23) up so
it sits centrally at the panel join and x in
place with 2x30mm screws.
Ensure the Roof Support Bar (No. 23) sits
centrally to the window upright shown in
the illustration. Fix in place with 2x30mm
screws.
8x30mm Screws
23
31
23
Step 9
Parts needed - No. 10 QTY 1
No. 11 QTY 1
Layout the Roof Panels (No 10 & 11)
on a at level surface and position
them as shown in diagram. Secure the
panels together using 6x50mm screws
and alternate the positions.
6x50mm Screws
10 11
50mm
screw
Pre drill
hole
16
15
17
40mm
screw
Pre drill
hole
Step 10
Parts needed - No. 15 QTY 1
No. 16 QTY 1
No. 17 QTY 2
Attach the front (No.16) and rear
(No. 15) roof framing to the roof
as shown in the illustration using
6x30mm screws.
*Ensure to x the framing the
opposite direction to the roof
bearers.
Fix the Locating Blocks (No.17)
to the opposing sides to the roof
framing (these blocks are to help
square the roof when tted).
13x40mm Screws
Pre drill
hole
50mm
screw
Step 11
Parts needed - No. 10 QTY 1
No. 11 QTY 1
Place the assembled Roof (No. 10 &
11) on top of the building, ensure
the roof framing slots over each
side equally.
Fix the assembled Roof Panels into
position using 50mm screws,
ensuring that they line up with the
vertical framing inside the building
and along the length of the internal
roof support bar.
19x50mm Screws
10
11

P 6
Please retain product label and instructions for future reference
Step 12
Once the Roof is xed, Secure the building
to the oor.
Fix the panels onto the oor using 50mm
screws in alignment with the oor joists.
*Ensure to screw through the framing into
the oor bearers.
20x50mm Screws
50mm
screw
Pre drill
hole
Felt
tacks
12
50mm
50mm
50mm
3020mm
1000mm
1420mm
50mm
Step 13
Parts needed - No. 34 QTY 1
Cut three strips from the roll of felt (No. 35):
2 x 3020mm (L) X 1000mm (w)
1 x 1420mm (L) X 1000mm (W).
Place the sheets of felt onto the roof panels
working from the back corner and align as
shown in the diagram ensuring strip 3 over
hangs the front by 50mm, with equal
spacing at each corner.
*Ensure strip 1 is the rst piece placed
down then lay sheet 2 and then 3. Make
sure each sheet overlaps the next by at
least 100mm creating a run o.
Use a fascia as a guide to mark out the
angled cuts including 50mm overhang.
Cut the sides as shown in the diagram at the
dotted lines, use a fascia (No.24 or 25)width
as a cutting guide. Cut the triangle with
50mm overhang again using fascia as a
guide.
100 x Felt Tacks
34
Front
Corner
Corner
Triangle
3
HANDLE
WITH CARE
12
3
4

P 7
Please retain product label and instructions for future reference
Step 14
Parts needed - No. 18 QTY 1
No. 19 QTY 3
No. 28 QTY 1
No. 32 QTY 2
a
b
c
a
b
c
Side View
Styrene
Window Cill
Cladding
Pre drill
hole
30mm
screw
*Cut down
trims to t
SILICONE
SEALANT
28
32
32
18
19 19
19
Place the Plastic Window Cill (No. 28) into the
window panel (No. 2) opening as shown in the
illustration. Fix the screws through the cill for extra
support using 3x30mm screws.
Fit the styrene sheets (No. 32) on top of the Plastic
Window Cill (No. 28).
*For added weather protection t your windows
using silicone sealant around the outside edges.
**When positioning the styrene sheets ensure
there is an equal distance on all sides.
Attach the Upper Window Strip (No. 18) along the
top of the window opening. Followed by attaching
the 3 Upright Window Strips (No. 19) to either side
of the window and the centre.
Secure into place using 3x30mm screws per strip.
**You may need to cut these to t.**
15x30mm Screws
Step 15
Parts needed - No. 20 QTY 4
No. 29 QTY 2
29
b
Pre drill
hole
30mm
screw
a
20
20
20
20
a
b
Attach the Inner Door Blocks (No. 20) to the
framing inside the doors (No. 12) using
2x30mm screws, in the positions illustrated.
Screw through the door cladding into the
blocks using 30mm screws.
8x30mm Screws
Fix a turn button (No. 29) to the top and
bottom inner door blocks with 1x30mm
screw per turn button making sure the doors
can be locked to the framing.
*These turn buttons help to keep your
doors straight during high and low levels of
moisture content in the air.*
2x30mm Screws
Step 16
Parts needed - No. 21 QTY 2
No. 33 QTY 1
Pre drill
hole
16mm
screw
33
b
30mm
screw
a
21
Fix the door trims (No. 21) onto
the front of the doors (opposite
door to the turn buttons on the
back) securing each trim with
4x60mm screws.
8x16mm Screws
Fix the pad bolt (No. 33) to the
door using 10x30mm screws.
Ensure to align the pad bolt with
the door’s framing and the bolt
block.
10x30mm Screws
a
b

Please retain product label and instructions for future reference
P 8
30mm
screw
Pre drill
hole
26
26 26 26 26
26
Step 17
Parts needed - No. 26 QTY 6
Fit the Cover Trims (No. 26) over each
panel join and corner of the building as
shown in the illustration using 30mm
screws. Pre drill to avoid splitting.
24x30mm Screws
24 24
25
25
25
Step 18
Parts needed - No. 24 QTY 2
No. 25 QTY 3
Fit the fascias (No. 24 & 25) to
the building over the felt and
secure in place with 40mm
screws as shown. Cut to length
where necessary. Pre drill to
avoid splitting.
Make sure the fascias at the back
of the building t lower than the
roof height to allow water to run
o.
17x40mm Screws
40mm
screw
Pre drill
hole
*Cut down
trims to t
Step 19
Parts needed - No. 22 QTY 2
Fix the rear cover trims (No. 22)
to the back of the building,
aligning with the edge of the
panel.
6x40mm Screws
40mm
screw
Pre drill
hole 22
22
Step 20
Parts needed - No. 29 QTY 2
Fix the Turn Button (No. 29) onto the
Door Panel (No. 1) using 1x30mm
screw for each one.
*These turn buttons help to keep
your doors straight during high
and low levels of moisture content
in the air.*
2x30mm Screws
30mm
screw
Pre drill
hole
29
29

P 9
Please retain product label and instructions for future reference
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back

P 7




















































2





1












3
4














REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
P 8



















¡




1




2























¡



