**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
01DTSHPN0806SDFW-V1
DIP TREATED SHIPLAP PENT 8X6 SINGLE DOOR FIXED WINDOW
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
01DTSHPN0806SDFW-V1
Overall Dimensions:
Width = 2408mm
Depth = 1875mm
Height = 2085mm
Base Dimensions:
Width = 2350mm
Depth = 1753mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
2
1 3 4
56720
8
17
21
25
24
26
22
27
Door Panel QTY 1
AI-01S11SHSD1180X2012-V1
Floor QTY 2
AI-R11MBF1175X1753-V1
Door QTY 1
AI-S11FBMBZBD661X1780-V1
Plain Panel QTY 2
AI-S11SHPP1180X1792-V1
Window Panel QTY 1
AI-01S11SH2CW1180X2012-V1
Roof QTY 2
AI-S11MBPR1856X1192-V1
Left Gable QTY 1
AI-01S11SHPGL1707X2015-V1
Right Gable QTY 1
AI-01S11SHPGR1707X2015-V1
9Ridge Bar 27x44x1152mm QTY 2
F2744-1152mm
10 Door Block 28x28x140mm QTY 1
FS2828-140mm
11 Eaves Framing 28x28x1192mm QTY 4
FS2828-1192mm
12 Window Strips 12x28x554mm QTY 4
S1228-554mm
13 Window Cover Trims 12x40x513mm QTY 3
S1240-513mm
14 Window Cover Trim 12x40x1180mm QTY 1
S1240-1180mm
15 Back Cover Trims 12x40x1792mm QTY 3
S1240-1792mm
16
Front Cover Trims 12x40x2012mm QTY 3
S1240-2012mm
Fascias 12x70x1856mm QTY 2
S1270-1856mm
18
Fascias 12x70x1204mm QTY 4
S1270-1204mm
19 Door Beading Strips 12x28x1720mm QTY 2
S1228-1720mm
5m Green felt QTY 1
PI-01-0013
Turn Button QTY 2
PI-07-0034
Corner Brace QTY 2
PI-07-0012
Styrene QTY 2
PI-05-0114
T-Hinge QTY 3
PI-07-0021
Pad Bolt QTY 1
PI-07-0035
Window Cill QTY 1
PI-08-0013
23
U-Channel QTY 1
PI-07-0013

P 3
Please retain product label and instructions for future reference
50mm Screw x 89
Felt Tacks x 110
30mm Screw x 106
40mm Screw x 18
Nail Bag
There may be extra screws present in the nail bag
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
5
50mm
screw
5

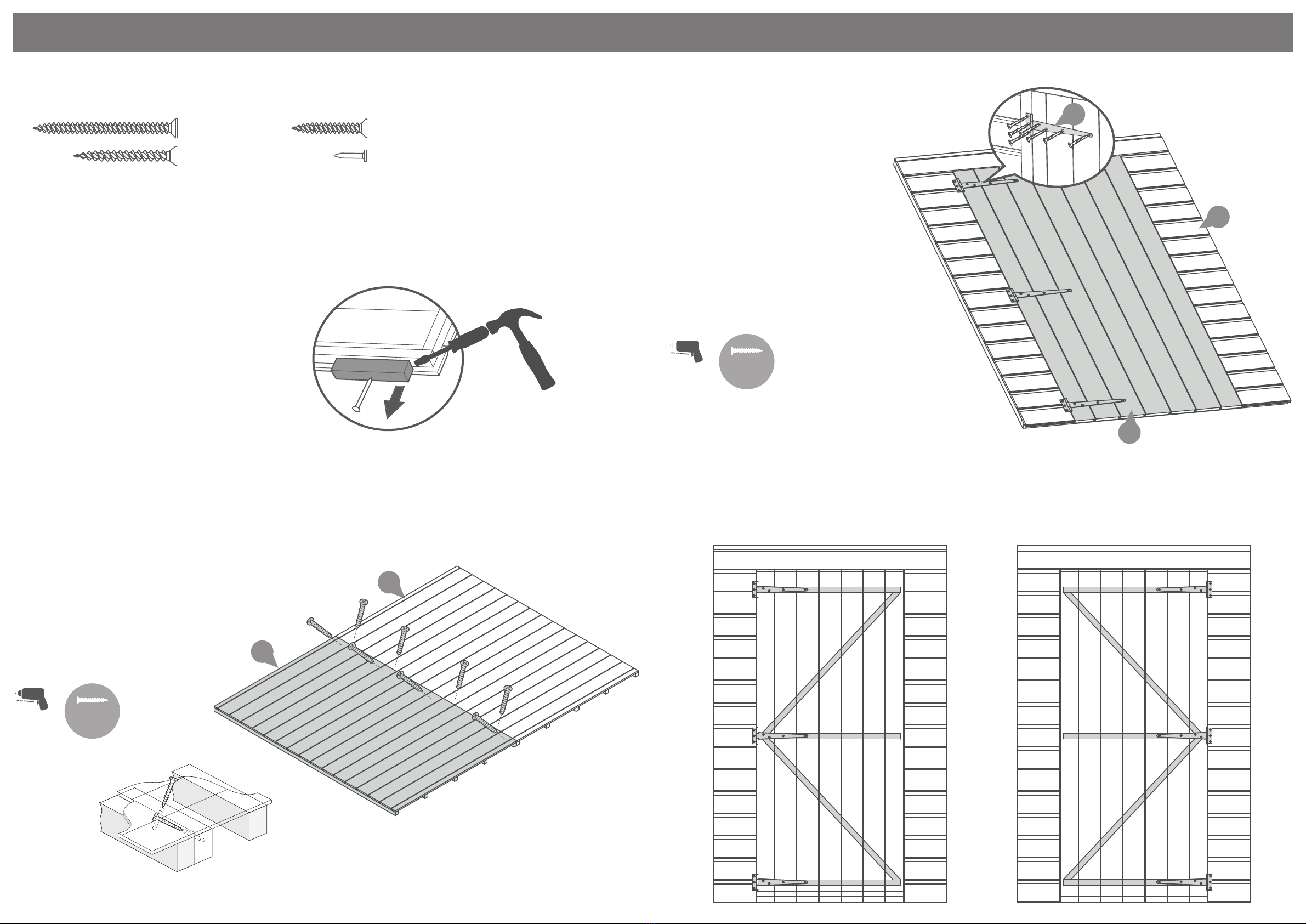

Step 1
Parts needed - No. 5 QTY 2
Place the oor panels (No.5) onto a rm and level
base. Ensure the base has suitable drainage, free
from areas where standing water can collect.
Secure the oors together using 8x50mm screws
through the oor bearers in an alternating
pattern.
8x50mm Screws
25
Pre drill
hole
30mm
screw
1
Opens from the Left Opens from the Right
IMPORTANT: Pre-drill before xing screws.
8
Step 2
Parts needed - No. 1 QTY 1
No. 8 QTY 1
No. 25 QTY 3
Place the door (No.8) within the Door
Panel (No. 1). Fix the T Hinges (No. 25)
onto the door and Door Panel as shown
(taking into account on which side of
the Door Panel opening you want the
Door to open).
Ensure that the screws go through the
cladding and into the framing behind.
21x30mm Screws
**PLEASE NOTE** Before tting the hinges,
ensure the door is in the correct position
depending on which side you want the door to
open. See external illustrations below which
show the doors internal framing.

P 4
Please retain product label and instructions for future reference
64
50mm
screw
Pre drill
hole
Step 3
Parts needed - No. 4 QTY 1
No. 6 QTY 1
Place the Left Gable (No.6) and the Plain
panel (No.4) onto the oor, Fix the panels at
the corner using 3x50mm Screws
Do not secure the building to the oor
until the roof has been tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
3x50mm Screws
a
a
a
a
IMPORTANT: Pre-drill before xing screws.
a
4
50mm
screw
Pre drill
hole
Step 4
Parts needed - No. 2 QTY 1
No. 4 QTY 1
Fix the corners of the Window panel (No.2)
to the Left Gable using 3x50mm screws.
Fix the ends of the Plain panels (No.4)
together using 3x50mm screws.
Do not secure the building to the oor
until the roof has been tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
6x50mm Screws
a
a
a
a
a
a
IMPORTANT: Pre-drill before xing screws.
2
50mm
screw
Pre drill
hole
Step 5
Parts needed - No. 1 QTY 1
No. 7 QTY 1
Fix the corners of the Right Gable (No.7) to
the Plain Panel and the Door Panel (No.1)
using 6x50mm screws.
Fix the end of the Door panel (No.1) to the
Window panel using 3x50mm screws.
Do not secure the building to the oor
until the roof has been tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
9x50mm Screws
a
a
a
a
a
a
a
a
a
a
7
1
IMPORTANT: Pre-drill before xing screws.
11
11
3
Step 6
Parts needed - No. 3 QTY 2
No. 11 QTY 4
40mm
screw
Pre drill
hole
Fix the Eaves framing (No.11) to the roof
(No.9) using 3x30mm screws per eaves
framing, screwing through the eaves
framing and into the roof framing.
Ensure the eaves framing is ush to the
edges of the roof framing before securing
Repeat the above for the second roof
panel
12x50mm Screws
IMPORTANT: Pre-drill before xing screws.
11
11
3

P 5
Please retain product label and instructions for future reference
Step 7
Parts needed - No. 9 QTY 2
No. 22 QTY 2
No. 23 QTY 1
Connect the two Ridge Bars (No.9)
together with the metal U-channel (No.23)
using 10x30mm screws. Ensure the ridge
bar sits into the U-channel with equal
spacing on each side.
Attach the“L”shaped corner braces (No.22)
to each end of the ridge bar with 2x30mm
screws per bracket.
*Ensure the bracket are ush with the
ends of the ridge bar.
14x30mm Screws
9
22
23
9
22
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Pre drill
hole
Step 8
Parts needed - No. 9 QTY 1
No. 22 QTY 2
30mm
screw
Locate the assembled Ridge Bar (No.9)
inbetween the two gable panels,
ensuring the ridge bar is aligned with
the central framing and ush to the top
of the panels framing.
Fix the Ridge Bar (No.9) in place using
the Corner Braces (No.22). Secure using
2x30mm screws per corner brace.
4x30mm Screws
IMPORTANT: Pre-drill before xing screws.
22
9
22
22
9
50mm
screw
Pre drill
hole
Place the Roof Panels (No.3) on top of the
building making sure the framing in the roof
panels sits ush with the gable panels and
there is equal spacing at the front and back of
the building.
Internally: Secure the roof panels together
using 5x50mm screws through the framing as
shown in the diagram.
Secure roofs to the building and ridge bar
using 26x50mm along each side of the roof,
ensuing the screws go through the roof
framing and into the panel framing.
31x50mm Screws
3
3

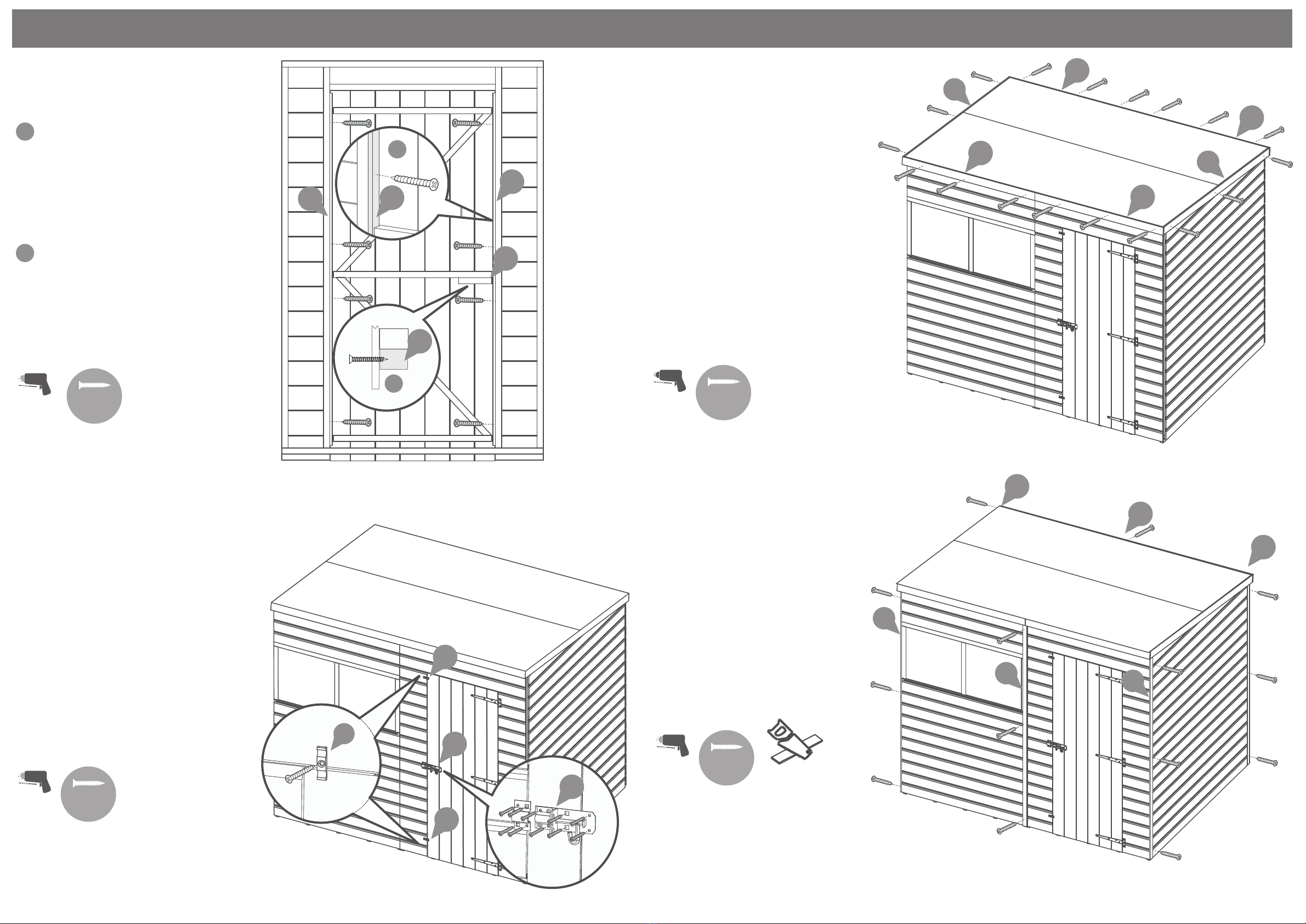

Step 9
Parts needed - No. 3 QTY 2
IMPORTANT: Pre-drill before xing screws.
50mm
screw
Pre drill
hole
Step 10
Once the roof is xed, attach the building
to the oor with 50mm screws.
Ensure the screws go through the panel into
the oor framing
20x50mm Screws
bbb
b
bbb
b
b
IMPORTANT: Pre-drill before xing screws.
b
b
b

P 6
Please retain product label and instructions for future reference
HANDLE
WITH CARE
2
3
4
1
2
20
Pre drill
hole
30mm
screw
Step 11
Parts needed - No. 20 QTY 1

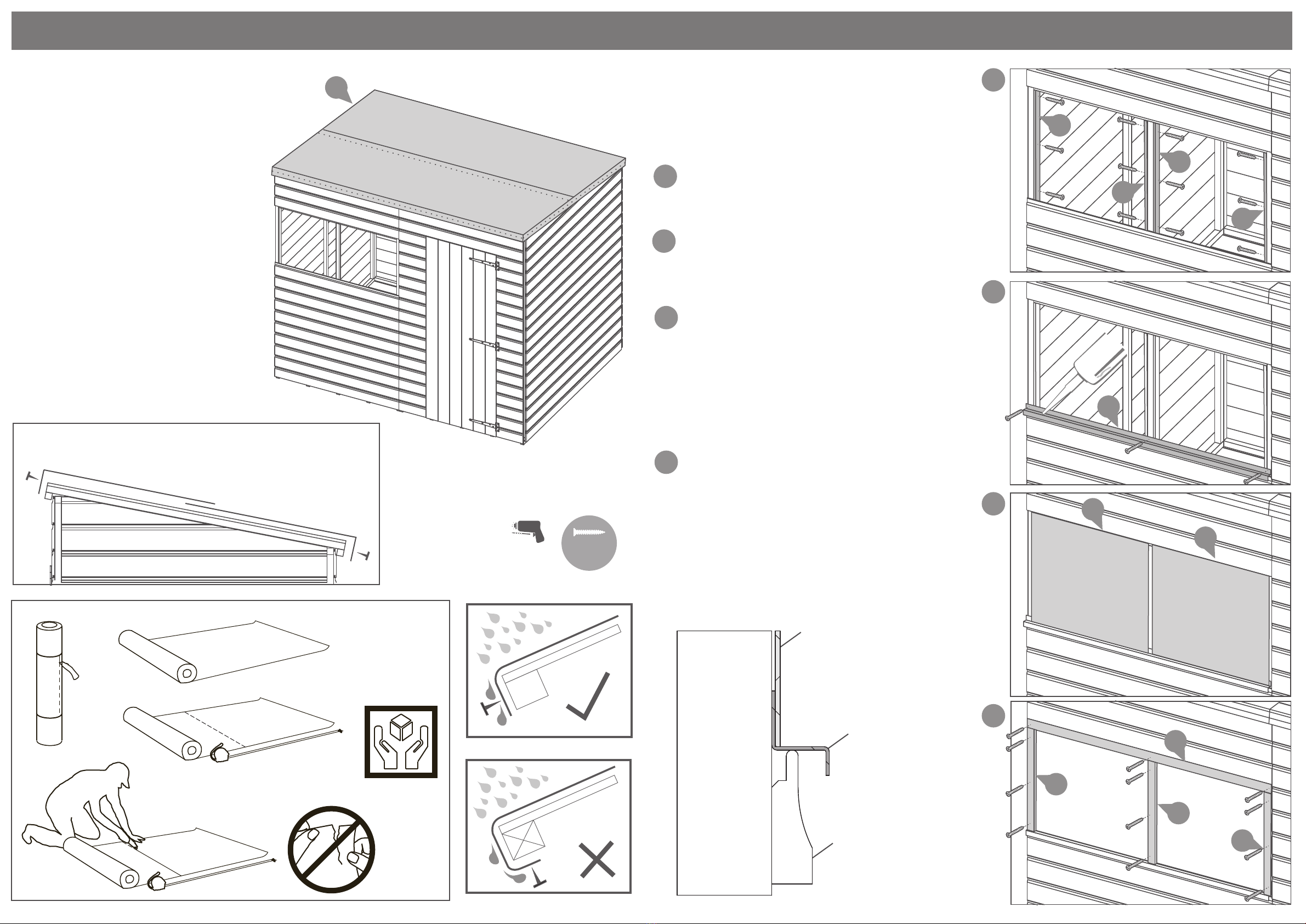

Cut the felt (No. 20) into two sheets at
2500mm. Lay onto roof as shown in
diagram ensuring there is a 50mm
overhang around the sides.
Apply the felt tacks with a 100mm
space per tack.
110 x Felt Tacks
Step 12
Parts needed - No. 12 QTY 4
No. 13 QTY 3
No. 14 QTY 1
No. 24 QTY 2
No. 27 QTY 1
a
b
c
a
b
c
d
d
Side View
Styrene
Window Cill
Cladding
12
12
12
12
SILICONE
SEALANT
27
24
24
13
13
13
14
Fix 4x window strips (No.12) to the framing along
the outside edge of the window gap using
3x30mm screws per strip.
Place the Plastic Window Cill (No.27) into the
window panel (No.2) opening as shown in the
illustration. Fix screws through the cill for extra
support using 3x30mm screws.
Fit the styrene sheets (No.24) on top of the
window cill (No.27).
*For added weather protection t your windows
using silicone sealant around the outside edges.
**When positioning the styrene sheets ensure
there is an equal distance on all sides.
Attach the longer Window cover trim (No.14)
along the top of the window opening.
Followed by attaching 3 shorter window cover
trims (No.13) to either side of the windows and
between the two windows.
Secure into place using 3x30mm screws per strip.
27x30mm Screws

P 7
Please retain product label and instructions for future reference
30mm
screw
Pre drill
hole
19
19
10
10
a
b
19
a
b
Use 4x30mm Screws to x each bead-
ing strips (No. 19) onto the insides of
the door Panel opening. Ensure that
the screw is parallel with the door
frame when xing the strip to the
Door Panel as shown in the close up
view.
Attach the Door Block (No. 10) to the
door using 2x30mm screws, in the
positions illustrated. Screw through
the door cladding into the blocks
using 30mm screws
10x30mm Screws
Step 13
Parts needed - No. 10 QTY 1
No. 19 QTY 2
30mm
screw
Pre drill
hole
21
26
21
26
21
Step 14
Parts needed - No. 21 QTY 2
No. 26 QTY 1
Screw the Pad Bolt (No. 26) on to the door
and the retainer to the door panel using
10x30mm screws. Make sure that you
screw into the framing behind.
Fix the Turn Button (No. 21) onto the Door
Panel using 1x30mm screw for each one.
*These turn buttons help to keep your
doors straight during high and low
levels of moisture content in the air.*
12x30mm Screws.
40mm
screw
Pre drill
hole
18
18
17
17
18
18
Step 15
Parts needed - No. 17 QTY 2
No. 18 QTY 4
Locate the Fascias (No.17) onto the
sides of the building, ensuring to
trap the felt between. Secure using
3x40mm screws per Fascia.
Locate the Fascias (No.18) onto the
front and back of the building,
ensuring to trap the felt between.
Secure using 3x40mm screws per
Fascia.
Pre drill to avoid splitting
18x40mm Screws.
*Cut down
trims to t
30mm
screw
Pre drill
hole
15
16
16 16
15
15
Step 16
Parts needed - No. 15 QTY 3
- No. 16 QTY 3
Fit the Cover trims (No.15 and
No.16) over each panel join and
corner of the building as shown
using 3x30mm screws per cover
trim.
Pre drill to avoid splitting. Cover
trims may need cutting to size
before tting.
18x30mm Screws.

P 7
Please retain product label and instructions for future reference
P 8
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back





















































2





1












3
4

































¡




1




2























¡



