Mercia Garden Products 0634RARE0302ND1SW-V1 Instruction manual

P 1
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
0634RARE0302ND1SW-V1
34MM LOG CABIN, REVERSE APEX, CORNER LODGE (GRANDE), 5M X 3M, HALF GLAZED
DOUBLE DOORS, THREE SHORT WINDOWS.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts
To identify the xings
required for each step use a
measuring tape.

P 2
0634RARE0302ND1SW-V1
82
83
81
84
85
86
87
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Overall Dimensions:
Width = 5088mm
Depth = 3182mm
Height = 2742mm
Base Dimensions:
Width = 4809mm
Depth = 2808mm
Please retain product label and instructions for future reference
Log Board - 34x120x2000mm QTY 27
LB34-B-2000
Finisher Board - 34x66x2000mm QTY 2 (Right handed only)
LB34-BH66-2000 (66mm height board)
Log Board - 34x120x2000mm QTY 1
LB34-BD-2000 (1 x Window Notch cut out)
Log Board - 34x120x625mm QTY 12
LB34-B-625
Log Board - 34x120x232mm QTY 38
LB34-B-232
Bearer - 44x58x1884mm QTY 11
F4458-1884-PT
Roof Purlin - 45x120x3522mm QTY 1
F45120-AE-3522
Roof Board - 16x121x2000mm QTY 32
MB16-2000
Log Board - 34x120x625mm QTY 12
LB34-C-625
Finisher Board - 34x80x70mm QTY 2
LB34RG80-C-70
Finisher Board - 34x80x886mm QTY 4
LB34RG80-C-886
Floor Board - 16x121x2736mm QTY 19
MB16-2736
**All components and the nail bag from 3m x 3m corner
cabin (0634CSNE0303HGDD2SW-V1)
will be required to construct the 5m x 3m corner lodge.**
These components are shown in the 3m x 3m corner cabin
instructions.
75
76
77
78
79
80
88
Double Storm Brace - 16x120x2110mm QTY 4
S16120-2110
5x3 Log Cabin Contents:
Left Handed
Right Handed
Starter Board - 34x66x232mm QTY 2 (Right Handed only)
LB34RT66-B-232
Starter Board - 34x66x2000mm QTY 2 (Left handed only)
LB34RT66-B-2000
89
**Please note;
The components you have been provided with will allow you to construct your
cabin to be either left handed or right handed, however not all components are
needed for both.
Depending if you construct your cabin to be left handed or right handed, you will
have some parts left over that are not needed for your cabin.

P 3
Please retain product label and instructions for future reference
41
48
64
67
68
66
Log Board - 34x120x3000mm QTY 1 - Combined Total Required x 41
LB34-A-3000
Roof Truss - 40x140x1604mm QTY 6 - Combined Total Required x 11
AI-06LOGC3RTA-V1
Bearer - 44x58x2808mm QTY 2 - Combined Total Required x 3
F4458-2808-PT
Storm Brace - 27x44x2000mm QTY 4 - Combined Total Required x 12
F2744-2000
Closure Trim - 16x28x2400mm (approx length) QTY 4 - Combined Total Required x 18
S1628-2400
Fascia - 16x120x2000mm QTY 2 - Combined Total Required x 4
SR16120-2000
Felt
Gable QTY 1 - Combined Total Required x 2
AI-0634LOGC3-G-V1
53
*Please note
The components listed below are featured in both contents lists for the 3m x 3m Corner Cabin
(0634CSNE0303HGDD2SW) as well as the 5m x 3m Corner Lodge.
The component numbers listed below are the same component numbers as listed in the 3m x 3m
Corner Cabin instructions, some numbers may be out of chronological order or skipped to satisfy this.
Please see the total combined quantity required for the 5m x 3m Corner Lodge
(3m x 3m Corner + 3m x 2m Pack B) listed next to the components below.
74
6
Rain Guard QTY 1 - Combined Total Required x 3
RG2844-710 (28x44x710mm)
2
1
3
4
Window QTY 1 - Combined Total Required x 3
AI-06LOGDGW684X1244-V3
5
Window Frame Left Upright - 71x70x1412mm QTY 1 - Combined Total Required x 3
AI-0634LOGWUFL-V3
Window Frame Right Upright - 71x70x1412mm QTY 1 - Combined Total Required x 3
AI-0634LOGWUFR-V3
Window Frame Top - 84x125x805mm QTY 1 - Combined Total Required x 3
AI-0634LOGWTF-V3
Window Frame Bottom - 71x70x805mm QTY 1 - Combined Total Required x 3
AI-0634LOGWBF-V3
7
8
Roof Spacers QTY 5 - Combined Total Required x 10
PI-07-0208 (20x100x2mm)
69
Casement Stay QTY 1 - Combined Total Required x 3
PI-07-0187
Flag Hinge QTY 2
- Combined Total Required x 6
PI-07-0211
39 Finisher Board - 34x64x3000mm QTY 1 - Combined Total Required x 2 (Left handed only)
LB34-AH64-3000 (64mm high board)

P 4
Please retain product label and instructions for future reference

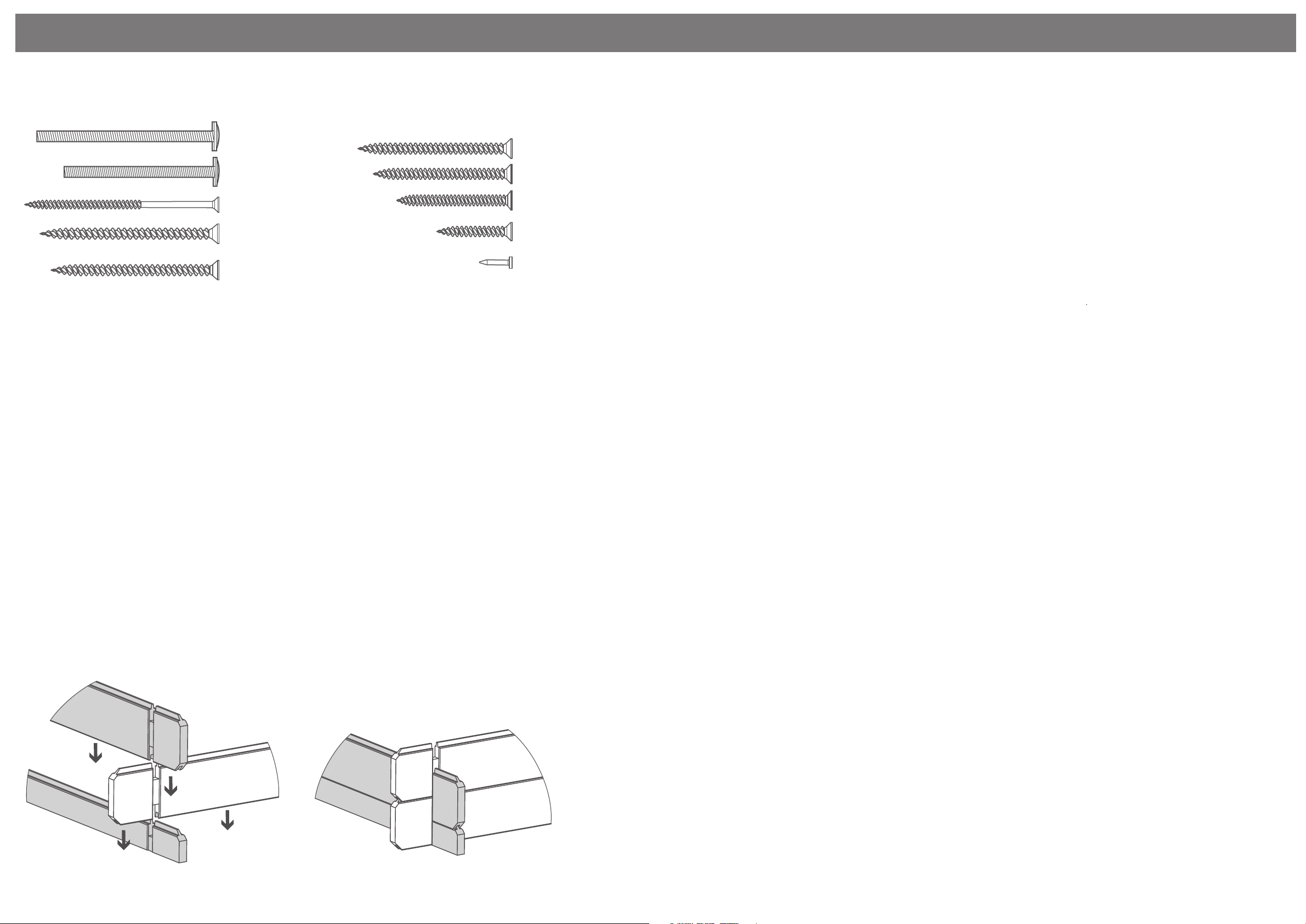

Felt Tacks x 850
90mm Screw x 64
Nail Bag
40mm Screw x 397
30mm Screw x 30
120mm Screw x 8
70mm Screw x 18
80mm Bolt Set x 24
There may be extra screws present in the nail bag
80mm Screw x 8
90mm Bolt Set x 8
60mm Screw x 26
Pre-assembly
*Please note:
Each board interlocks at either end in a staggered pattern.
Before securing ensure that the boards are tted properly in their respective
tongues and grooves.
Pre - Assembly
*Please note
To construct the 5m x 3m Corner Lodge, all components
from the 3m x 3m Corner Cabin (0634CSNE0303HGDD2SW)
will be required as well as all components from this set of
instructions.
Components for the 3m x 3m Corner Cabin can be found in
the contents of the 3m x 3m Corner Cabin instructions.
**DO NOT CONSTRUCT USING THE 3M X 3M CORNER CABIN
INSTRUCTIONS IF YOU ARE CONSTRUCTING THE 5M X 3M
CORNER LODGE.**

P 5
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Please retain product label and instructions for future reference

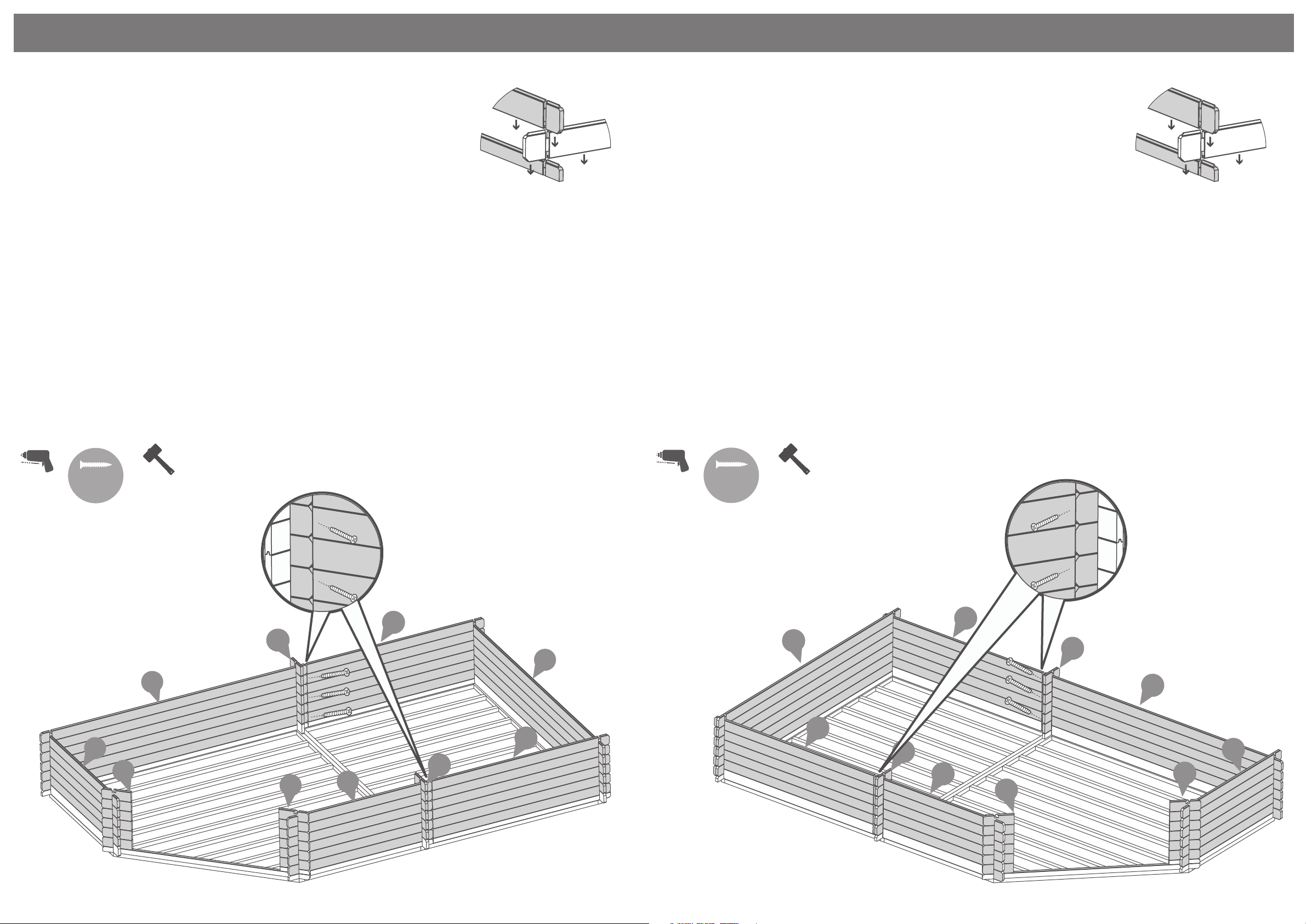

Pre drill
hole
90mm
screw
Step 1
Parts needed - No. 53 QTY 1
No. 54 QTY 1
No. 59 QTY 1
No. 60 QTY 1
No. 61 QTY 1
Lay the bearers (No. 53, 54, 59, 60 &
61) onto a rm and level surface (free
from areas where standing water can
collect) as shown in the illustration.
*Ensure the 58mm side of the bearer
is laying on the base, so that you can
screw the bearers together on the
44mm side.
Fix the bearers together at each
corner using 2x90mm screws,
ensuring the frame is ush.
Once fully assembled, ensure the
bearers are square by measuring from
corner to corner, as illustrated, making
sure they are an equal measurement.
If the bearers are not alligned equally,
unscrew and adjust and re-align
accordingly.
10x90mm Screws
IMPORTANT: Pre-drill before xing screws.
Example picture
2 screws per bearer per end.
54
53
60 59
61
36
Pre drill
hole
90mm
screw
Step 2
Parts needed - No. 54 QTY 5
No. 55 QTY 1
No. 56 QTY 1
No. 57 QTY 1
No. 58 QTY 1
Arrange the remaining framing
(No. 54, 55, 56, 57, 58) as shown in
the illustration.
*Ensure there is an equal amount
of space between each frame.
Secure each of the frames in place
using 2x90mm screws for each end
of each bearer, ensuring the bearers
remains level.
36x90mm Screws
IMPORTANT: Pre-drill before xing screws.
54
54
54
54
54
55
56
57
58
54
35

P 6
Please retain product label and instructions for future reference
Pre drill
hole
90mm
screw

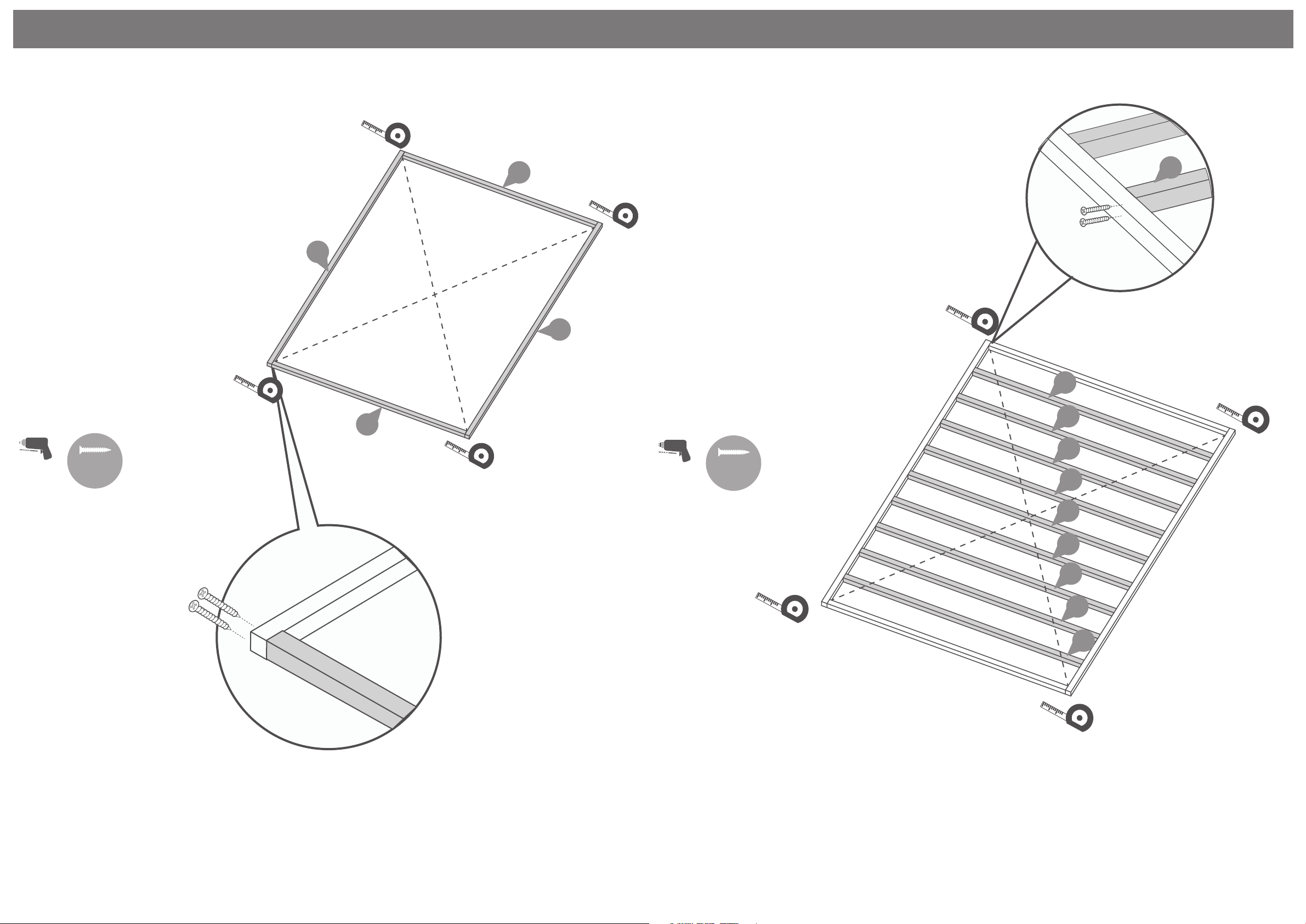

Step 3
Parts needed - No. 53 QTY 2
No. 86 QTY 2
Lay the bearers (No. 53 & 86) onto a
rm and level surface as shown in the
illustration.
Fix the bearers together at each
corner using 2x90mm screws,
ensuring the frame is ush.
Once fully assembled, ensure the
bearers are square by measuring from
corner to corner, as illustrated, making
sure they are an equal measurement.
If the bearers are not alligned equally,
unscrew, adjust and re-align
accordingly.
8x90mm Screws
Example picture
2 screws per bearer per end.
86
53
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
53
86
Step 4
Parts needed - No. 86 QTY 9
Arrange the remaining bearers (No. 86)
inside the assembled frame.
*Ensure there is an equal amount of space
between each frame.
Secure each of the frames in place using
2x90mm screws for each end of each
bearer, ensuring the bearers remain
level.
Once fully assembled, ensure the
bearers are square by measuring from
corner to corner, as illustrated, making
sure they are an equal measurement.
If the bearers are not alligned equally,
unscrew, adjust and re-align
accordingly.
36x90mm Screws
86
86
86
86
86
86
86
86
86
86
Pre drill
hole
90mm
screw

P 7
Please retain product label and instructions for future reference
Step 5
** Please Note:
Your log cabin can be either Right
Handed or Left Handed, dependant on
your wants and needs. (See Contents
for image reference)
Please ensure to construct your Log
Cabin by following either the ‘Left
Handed’ or ‘Right Handed’ instructions
dependant on which side you choose.
Align the two bases together by the
longest bearer as shown in the
illustration.
Secure the base sections together using
10x90mm screws, ensuring to stagger
the screws so they do not collide.
10x90mm Screws
Pre drill
hole
70mm
screw
Left Handed
Right Handed

P 8
Please retain product label and instructions for future reference
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
Left Handed
40
41
76
76
78
78
36
22 32
*Ensure boards sit ush
40
36
22
41
32
77
75
75
77
Pre drill
hole
Step 6 - Right Handed
Parts Needed - No. 22 QTY 1
No. 32 QTY 1
No. 36 QTY 1
No. 40 QTY 1
No. 41 QTY 1
No. 75 QTY 2
No. 77 QTY 2
Place the starter boards (No. 22, 32, 40 & 75) on to the assembled base frame and place the rst four log boards
(No. 36, 41 & 77) sitting in the notches as shown.
Ensure the boards sit square on the base using the same method used in Step 1. Measure from corner to corner
and ensure they are equal in measurement.
Once the boards are square, x the starter boards (No. 22, 32, 40 & 75) in place, lift up the log boards (No. 36, 41
& 77) and x each starter board in place using 1x70mm screw per notch.
Fix the log boards to the starter boards by screwing through the notch into the frame with 1x70mm screw as
shown in the illustration.
Secure board (No.77) in place by screwing at an angle through the side of the log board into the end of the next
log board (No.41), as shown in the illustration.
8x70mm Screws
70mm
screw
Right Handed
*Ensure boards sit ush
IMPORTANT: Pre-drill before xing screws.
22
32
22
32
Rubber Mallet
may be required
to t parts.
Rubber Mallet
may be required
to t parts.
Step 6 - Left Handed
Parts Needed - No. 22 QTY 1
No. 32 QTY 1
No. 36 QTY 1
No. 40 QTY 1
No. 41 QTY 1
No. 76 QTY 2
No. 78 QTY 2
Place the starter boards (No. 22, 32, 40 & 76) on to the assembled base frame and place the rst three log boards
(No. 36, 41 & 78) sitting in the notches as shown.
Ensure the boards sit square on the base using the same method used in Step 1. Measure from corner to corner and
ensure they are equal in measurement.
Once the boards are square, x the starter boards (No. 22, 32, 40 & 76) in place, lift up the log boards (No. 36, 41 &
78) and x each starter board in place using 1x70mm screw per notch.
Secure board (No.76) in place by screwing at an angle through the side of the starter board into the bearer below,
as shown in the illustration.
Fix the log boards to the starter boards by screwing through the notch into the frame with 1x70mm screw as shown
in the illustration.
8x70mm Screws
76
40
78
75
41
77

P 9
Please retain product label and instructions for future reference
Step 7
Parts needed - No. 25 QTY 1
Make the log cabin level by
adding another board (No. 25)
as shown in the diagram. Fix
using 1x70mm screw.
**Ensure to stagger the screws
so as not to collide with the
previous screw.
1x70mm Screws
Pre drill
hole
70mm
screw
25
IMPORTANT: Pre-drill before xing screws.
Right Handed
Left Handed
25
Rubber Mallet
may be required
to t parts.

P 10
Step 8 - Left Handed
Parts needed - No. 23 QTY 6
No. 24 QTY 6
No. 33 QTY 6
No. 36 QTY 5
No. 41 QTY 11
No. 77 QTY 12
No. 78 QTY 12
Lay the rst 6 boards (No. 23, 24, 33, 36, 41, 77 & 78) onto the starter boards to create your rst level,
following the method as shown in the illustrated.
Please note the right hand side of the door will be slightly higher. This will even out when the rest has
been assembled.
*Ensure that the boards are level and ush with each other as you lay each one.
Ensurethe boards (No.77) are level, ush and in line with the boards next to them.
Secure every other board (No. 77) in place at the front and back of the cabin by screwing through the
side of the board at an angle into the end of the board next to it (No. 41 & 33), using 1x60mm screw
per board.
6x60mm Screws
41
24
23
41
36
33
77
78
78
77
Right HandedLeft Handed
41
41
24
23 33
77
78
78
77
36
Step 8 - Right Handed
Parts needed - No. 23 QTY 6
No. 24 QTY 6
No. 33 QTY 6
No. 36 QTY 5
No. 41 QTY 11
No. 77 QTY 10
No. 78 QTY 12
Lay the rst 6 boards (No. 23, 24, 33, 36, 41, 77 & 78) onto the starter boards to create your rst level,
following the method as shown in the illustrated.
Please note the right hand side of the door will be slightly higher. This will even out when the rest has
been assembled.
*Ensure that the boards are level and ush with each other as you lay each one.
Ensure the boards (No.77) are level, ush and in line with the boards next to them.
Secure every other board (No. 77) in place at the front and back of the cabin by screwing through the
side of the board at an angle into the end of the board next to it (No. 41 & 36), using 1x60mm screw
per board.
6x60mm Screws
Rubber Mallet
may be required
to t parts.
Pre drill
hole
60mm
screw Rubber Mallet
may be required
to t parts.
Pre drill
hole
60mm
screw
IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws.
Please retain product label and instructions for future reference

P 11
Step 9
Parts Needed - No. 11 QTY 1
No. 12 QTY 1
No. 13 QTY 1
No. 14 QTY 1
For the Double Door Frame, arrange the left,
right, top & bottom door frames (No’s. 11, 12,
13 & 14) onto a level surface.
Secure the top and bottom frames to the
uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
13
14
11
12
IMPORTANT : Pre-drill before xing screws.
The internal lip of the door
frame should be positioned on
the inside of the building.
14 12
17a
Pre drill
hole
30mm
screw
9
10
17
Step 10
Parts Needed - No. 9 QTY 1
No. 10 QTY 1
No. 17 QTY 6
The Adjustable Door Hinge (No.17) comes
in three parts.
Fasten No. 17a into 17b as shown in the
illustration.
Place the master and secondary doors
(No.9 & 10) into the assembled double door
frame and x 3 x Adjustable door hinges
(No.17c) to each door using 3x30mm screws
per hinge.
Fix 3 x Adjustable Door Hinges (No. 17a&b)
onto the door frame using 4x30mm screws per
hinge.
*Ensure the hinges are tted to the external
of the door frame so the doors open outwards
from the log cabin.
Locate the doors into the hinges Place the
doors on the hinges ensuring there is equal
spacing on each side between the door and
door frame, and the doors open & close freely
without restriction.
It is important to t the doors within the frames
at this stage soi that you can establish the posi-
tion of the hinges. The hinges come in three
parts. Remove th doors from the frme after
tting.
*Ensure to screw into the framing and not
into the channel.
42x30mm Screws
17b
a
b
a
b
IMPORTANT : Pre-drill before xing screws.
Secondary Door Master Door
Please retain product label and instructions for future reference

P 12
Please retain product label and instructions for future reference
17a
Step 11

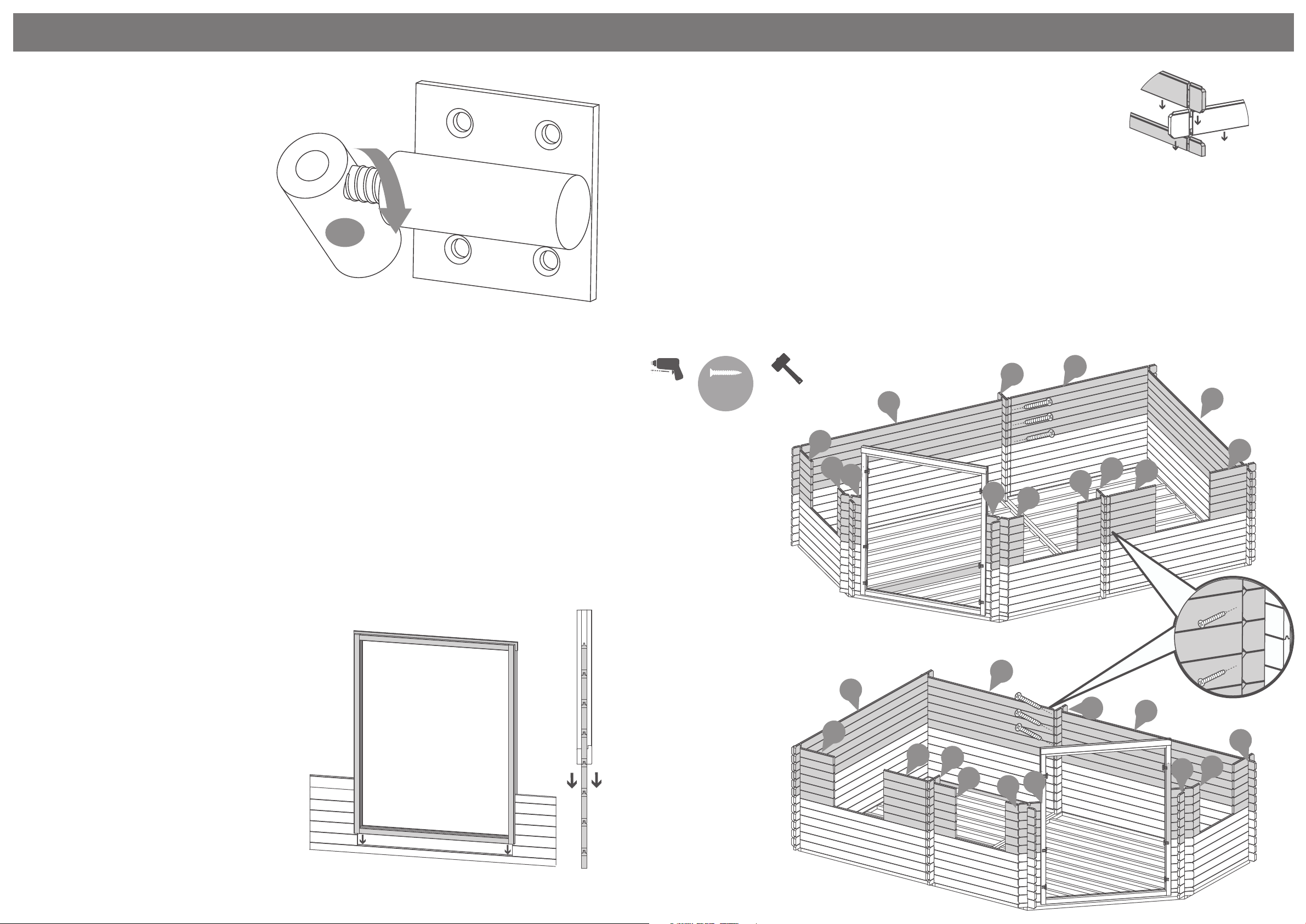

To adjust and align your doors:
1.Lift up the doors to separate the two
parts of the hinge.
2. Turn the rotating barrel (No.17a) in /
out to move the postion of the doors
either in or away from each other.
3. You can then place the door(s) back
on to the hinge and check the whether
they require more / less adjustments, if
further adjustments are required repeat
number 2.
Step 12
Once you have laid 6 log boards (o of the starter)
up the door section, slide the assembled door
frames over the boards resting the frame on top
of the starter board
(if you have not yet assembled the door frame
refer to steps 9)
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(regarding door position). Nevertheless the
process of tting the door frame is the same.
Step 13
Parts needed - No. 23 QTY 6
No. 24 QTY 6
No. 29 QTY 12
No. 30 QTY 6
No. 31 QTY 6
Lay the next 6 boards (No. 23, 24, 29, 30, 31, 41, 77, 78, 79 & 80) onto the log cabin to create your second level,
following the method as shown in the illustration.
*Ensure that the boards are level and ush with each other as you lay each one.
Ensure the boards (No.77 & 80) are level, ush and in line with the boards next to them.
Secure every other board (No. 77 & 80) in place (internally) by screwing through the side of the board at an
angle into the end of the board next to it (No. 29 & 41), using 1x60mm screw per board.
6x60mm Screws
41
41
24
23
29
29
30 31
77
78
78
79
80
Right Handed
Left Handed
41
41
24
23
29
29
30
31
77
78
78 79
80
No. 41 QTY 12
No. 77 QTY 6
No. 78 QTY 12
No. 79 QTY 6
No. 80 QTY 6
Rubber Mallet
may be required
to t parts.
Pre drill
hole
60mm
screw
IMPORTANT : Pre-drill before xing screws.

P 13
Please retain product label and instructions for future reference
2
4
IMPORTANT : Pre-drill before xing screws.
Step 14
Parts Needed - No. 2 QTY 3
No. 3 QTY 3
No. 4 QTY 3
No. 5 QTY 3
Arrange the left, right, top & bottom window
frames (No’s. 2, 3, 4,& 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the window framing.
Use this method to construct 3 window
frames.
24x80mm Screws
80mm
screw
5
3
53
The internal lip of the window
frame should be positioned on
the inside of the building.
6
Pre drill
hole
30mm
screw
1
7
7
7
Step 15
Parts Needed - No. 1 QTY 2
No. 7 QTY 4
Position the window (No. 1) so that it
sits centrally within the window
frame. Fix the female part of the ag
hinge (No. 7) to the window using
4x30mm screws, attach the male part
of the ag hinge (No. 7) to the
window frame using 4x30mm screws
ensuring that the window can open
and close freely.
Repeat this method for both windows
It is important to t the windows
within the frame at this stage so that
you can establish the position of the
hinges. The hinges came in two parts.
Remove the widnows from the frame
after tting.
*Ensure to attach the hinge to the
horizontal frame of the window*
32x30mm Screws
IMPORTANT : Pre-drill before xing screws.
Step 16
Once you have laid the second level
of boards onto the log cabin slide
the windows between the smaller
boards and rest on to the longer
board (if you have not yet
assembled the window frames
refer to step 14 & 15)
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may dier
from your choice in product
(regarding window position).
Nevertheless the process of tting the
window is the same

P 14
Please retain product label and instructions for future reference
Step 17
Parts needed - No. 23 QTY 6
No. 24 QTY 5
No. 29 QTY 12
No. 30 QTY 6
No. 31 QTY 6
Lay the next 6 boards (No. 23, 24, 29, 30, 31, 41, 77, 78, 79 & 80) onto the log cabin, following
the method as shown in the illustration.
Please note when you get to the top of the boards the right hand boards will be slightly
lower.
**Ensure that the boards are level and ush with each other as you lay each one.
Ensure the boards (No.77 & 80) are level, ush and in line with the boards next to them.
Secure every other board (No. 77 & 80) in place (internally) by screwing through the side of the
board at an angle into the end of the board next to it (No. 29 & 41), using 1x60mm screw per
board.
6x60mm Screws
Left Handed
41
41
24
29
30
31
77 78
78
79
80
41
41
24
29
29
30
31
77
78
79
80
23
29
23
78
Rubber Mallet
may be required
to t parts.
No. 41 QTY 12
No. 77 QTY 6
No. 78 QTY 12
No. 79 QTY 6
No. 80 QTY 6
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
60mm
screw
Step 18
Parts needed - No. 26 QTY 1
Make the log cabin level by
adding another right hand
board (No. 26) as shown in the
illustration.
26
Right Handed
Left Handed
26
Rubber Mallet
may be required
to t parts.
Right Handed

P 15
Step 19 - Left Handed
Parts needed - No. 28 QTY 1
No. 35 QTY 1
No. 37 QTY 1
No. 41 QTY 3
No. 77 QTY 1
No. 81 QTY 1
Lay the next layer of boards (No. 28,
35, 37, 41, 77, & 81) onto the log
cabin, following the method as shown
in the illustration.
*Ensure that the boards are level and
ush with each other as you lay each
one.
41
41
28 35
81
77
37
Left Handed
41
41
41
28
35
81
77
37
78
78
Step 19 - Right Handed
Parts needed - No. 28 QTY 1
No. 35 QTY 1
No. 37 QTY 1
No. 41 QTY 2
No. 77 QTY 1
No. 78 QTY 2
No. 81 QTY 1
Lay the next layer of boards (No. 28,
35, 37, 41, 77, 78 & 81) onto the log
cabin, following the method as shown
in the illustration.
*Ensure that the boards are level and
ush with each other as you lay each
one.
Right Handed
Rubber Mallet
may be required
to t parts.
Rubber Mallet
may be required
to t parts.
41
41
36 27
34
Step 20
Parts needed - No. 27 QTY 1
No. 34 QTY 1
No. 36 QTY 1
No. 41 QTY 2 (Right Handed QTY 3)
No. 77 QTY 2
Lay the remaining boards (No. 27, 34, 36, 41 & 77) onto the log cabin, following the
method as shown in the illustration, bringing the board level above the window and
doors.
*Ensure that the boards are level and ush with each other as you lay each one.
Ensure the boards (No.77) are level, ush and in line with the boards next to them.
Secure every other board (No. 77) in place (internally) by screwing through the side of the
board at an angle into the end of the board next to it, using 1x60mm screw per board.
2x60mm Screws
41
77
77
Right Handed
Left Handed
41
36
27 34
41
77
77
Rubber Mallet
may be required
to t parts.
Pre drill
hole
60mm
screw
IMPORTANT : Pre-drill before xing screws.
Please retain product label and instructions for future reference

P 16
Step 21 - Left Handed
Parts needed - No. 38 QTY 1
No. 39 QTY 2
Lay the nisher boards (No. 38 & 39)
onto the front of the log cabin.
Fix the top boards into position by
screwing through the notches using
2x70mm screws.
*Ensure that the boards are level
and ush with each other as you lay
each one.
6x70mm Screws
39
IMPORTANT: Pre-drill before xing screws.
38
Pre drill
hole
70mm
screw
82
82
39
38
Left Handed
Step 21 - Right Handed
Parts needed - No. 38 QTY 1
No. 39 QTY 1
No. 82 QTY 2
Lay the last four boards (No. 38, 39 &
82) onto the front of the log cabin.
Fix into position by screwing
through the notches using 2x70mm
screws.
*Ensure that the boards are level
and ush with each other as you lay
each one.
6x70mm Screws
Pre drill
hole
70mm
screw Right Handed
39
Rubber Mallet
may be required
to t parts.
Rubber Mallet
may be required
to t parts.
Step 22
Parts needed - No. 89 QTY 2
Place the double storm braces (No.89) on either side of the log cabin, (externally and internally) ensuring to
locate them centrally over where the middle log boards sit ush, as shown in the illustration.
*Ensure the storm braces are secured at the highest point possible on each side.
The storm braces will need to be altered during the buildings life as the moisture content within the log boards
changes. The boards will expand during periods of high moisture (Winter) and shrink during periods of low
moisture (Summer.)
**Storm braces will help your building expand and contract properly.
***It is important that each bolt is tightened using a washer so as not to damage the log boards.
Secure the double storm braces into position from the inside of the cabin using 4x90mm bolts per 2 storm
braces (2 at the top, 2 at the bottom), making sure the washer & nut are tightened from the outside of the log
cabin. Ensure the bolts go through both the internal and external double storm brace.
8x90mm Bolts
Pre drill
hole
90mm
bolt
IMPORTANT: Pre-drill before xing screws.
89
89
Right Handed
Left Handed
89
89
89
89
89
Please retain product label and instructions for future reference

P 17

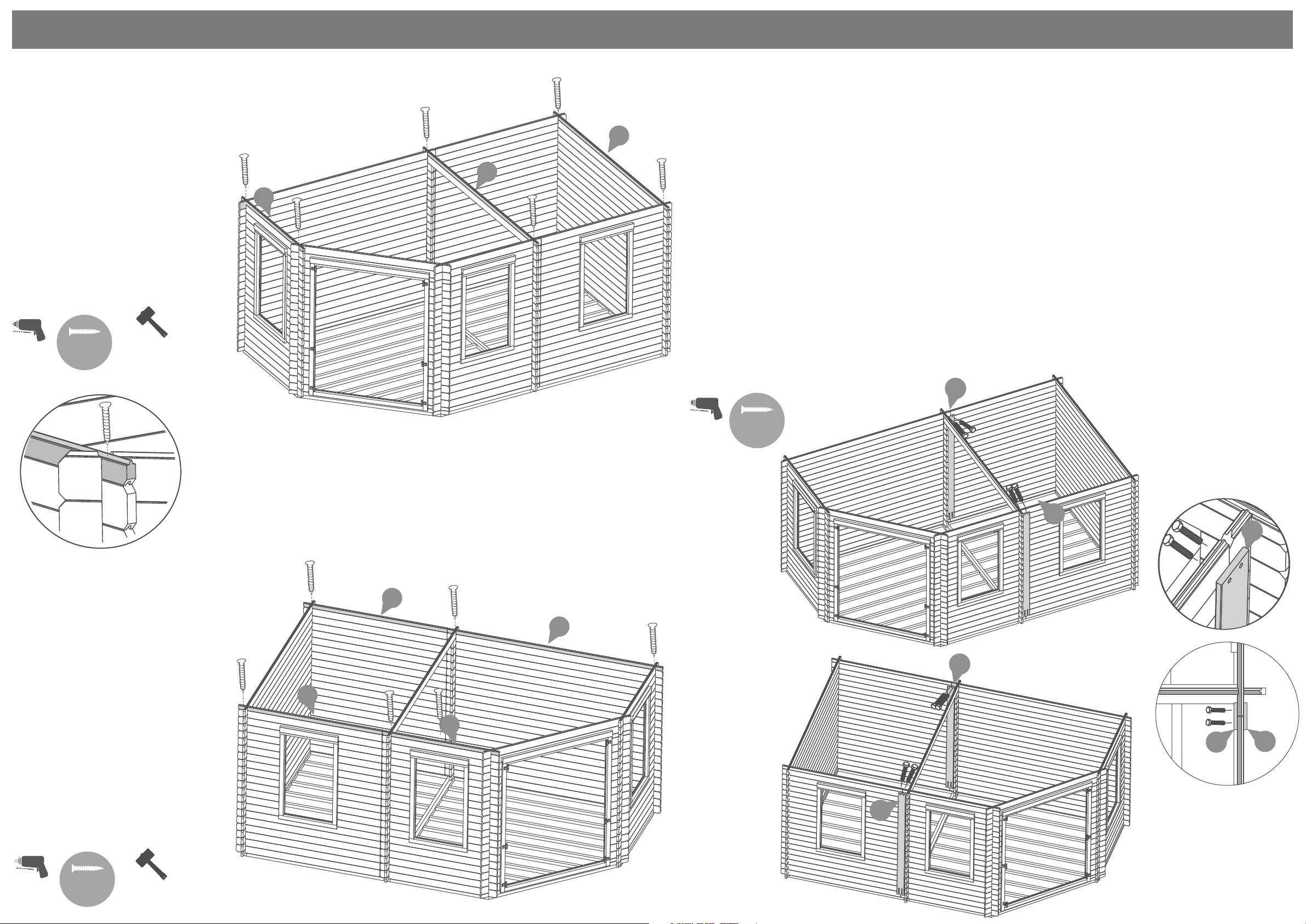

Step 23
Parts needed - No. 74 QTY 2
Place the gable tops (No. 74) onto the assembly.
Fix into position by screwing through the notches as shown in the
illustration.
*Ensure that the boards are level and Flush with each other as you
lay each one.
**Ensure to stagger the screws so as not to collide with the previous
screws.
4x120mm Screws
Pre drill
hole
120mm
screw
74
Right Handed
Left Handed
74
74
74
Rubber Mallet
may be required
to t parts.

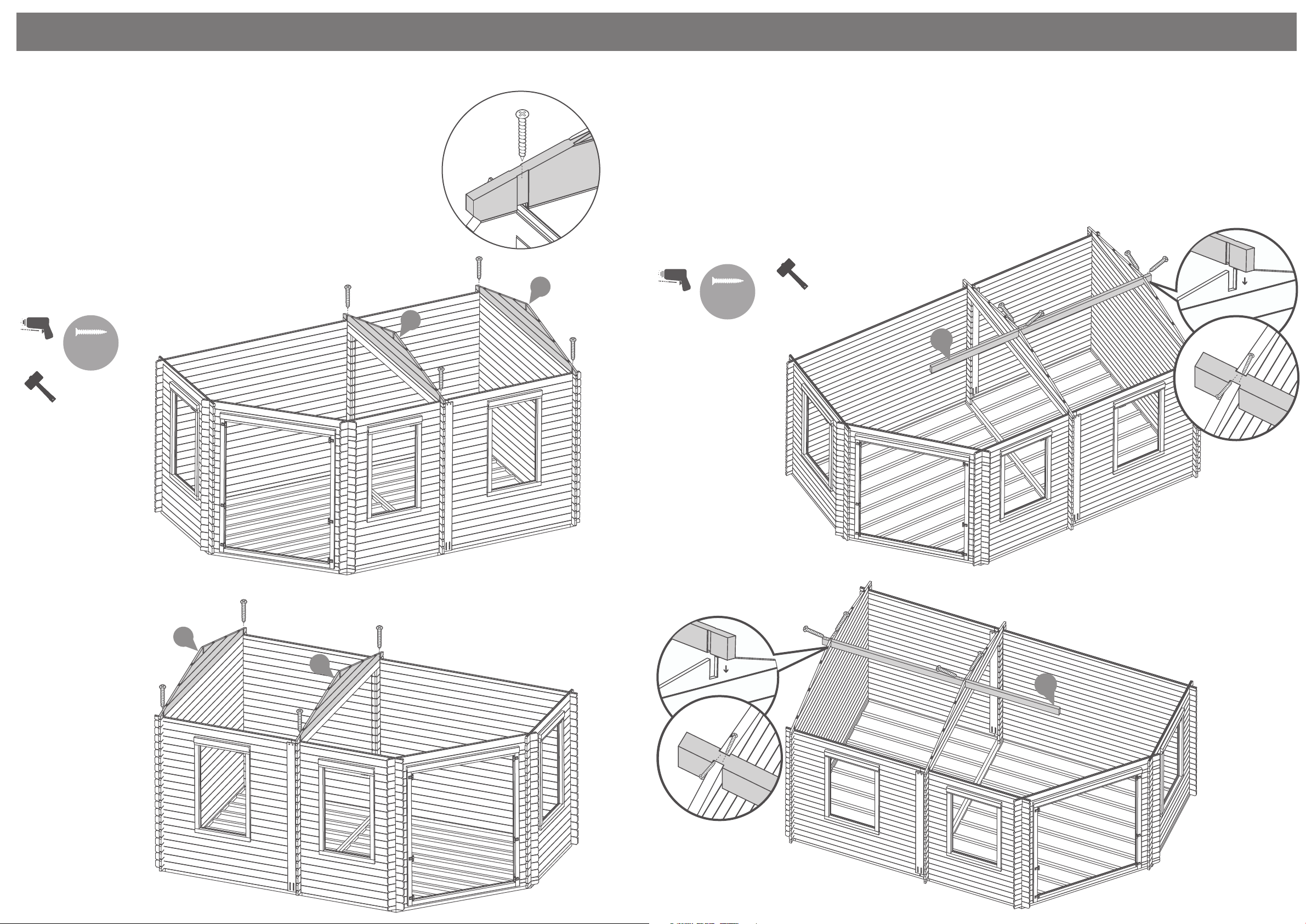

Step 24
Parts needed - No. 50 QTY 1
No. 51 QTY 1
No. 85 QTY 1
Align the Roof Purlin (No. 85) into the cut out slots on
the gables, ensuring the purlin interlocks the boards.
Secure the Roof Purlin in place by screwing through
the purlin into the gable using 4x90mm screws.
4x90mm Screws
Pre drill
hole
90mm
screw
IMPORTANT: Pre-drill before xing screws.
85
Right Handed
Left Handed
85
IMPORTANT: Pre-drill before xing screws.
Rubber Mallet
may be required
to t parts.
Please retain product label and instructions for future reference

P 18
Right Handed
Left Handed
Please note: You can adjust the
blocks attached to the roof
truss’ if necessary.
Step 25 - Left Handed
Parts needed - No. 48 QTY 1
No. 50 QTY 1
No. 51 QTY 1
Place the Central roof Truss Roof Truss
C(No.50) ush to the end of the roof
purlin (No. 85)
Place Roof Truss D (No.51) and Roof
Truss A (No.48) onto either side of the
Roof Purlin (No.85) ensuring hey sit
ush to the end, creating a ’T’shape as
shown in the illustration.
Fix in place by screwing through the
truss into the Purlin at an angle, as
shown in the illustration using
1x90mm screw per truss.
3x90mm Screws
IMPORTANT: Pre-drill before xing screws.
Step 25 - Right Handed
Parts needed - No. 48 QTY 1
No. 50 QTY 1
No. 51 QTY 1
Place the Central roof Truss ‘ Roof
Truss D (No.51) ush to the end of the
roof purlin (No. 85)
Place Roof Truss C (No.50) and Roof
Truss A (No.48) onto either side of the
Roof Purlin (No.85) ensuring hey sit
ush to the end, creating a ’T’ shape as
shown in the illustration.
Fix in place by screwing through the
truss into the Purlin at an angle, as
shown in the illustration using
1x90mm screw per truss.
3x90mm Screws
Pre drill
hole
90mm
screw Rubber Mallet
may be required
to t parts.
Pre drill
hole
90mm
screw Rubber Mallet
may be required
to t parts.
85
48
51
50
51
50
85
48
85
48
51
50
51
50
85
48
Right Handed
Left Handed
Step 26
Parts needed - No. 49 QTY 1
Place ‘Roof Truss B’(No. 49) between Roof Truss A (No.48) and the Central
Roof Truss (Truss D for Roof Assembly 1, and Truss C for Roof Assembly 2)
as shown in the illustartion.
Fix in place by screwing into the purlin at an angle as shown in the
illustration using 1x90mm screw.
1x90mm Screws
IMPORTANT: Pre-drill before xing screws.
49
90mm
screw
Pre drill
hole
50 51
48
49
Please note: You can adjust the
blocks attached to the roof
truss’ if necessary.
49
51
50
49
48
Rubber Mallet
may be required
to t parts.
Please retain product label and instructions for future reference

P 19

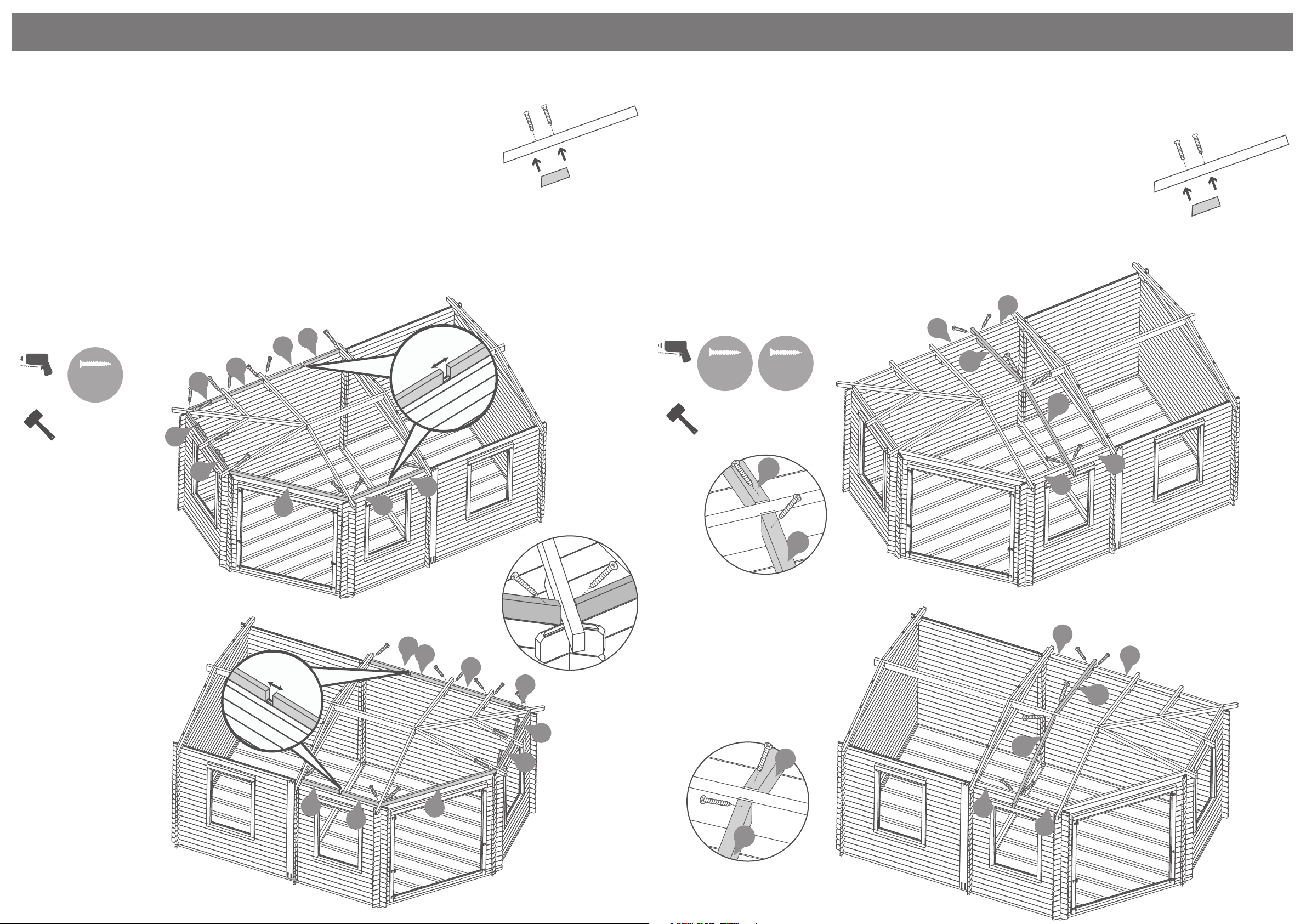

Step 27
Parts needed - No. 48 QTY 4
Place 2x ‘Roof Truss A’ (No. 48) ush to the inside of the back gable and 2x
‘Roof Truss A’ (No. 48) to the inside of the gable in the middle of the log cabin.
Fix the Truss’ in place by screwing into the purlin at an angle as shown in the
illustration using 1x90mm screws per Roof Truss.
4x90mm Screws
90mm
screw
48
48
48
48
Pre drill
hole
Right Handed
Left Handed
Please note: You can adjust
the blocks attached to the
roof truss’if necessary.
48
48
48
48
IMPORTANT: Pre-drill before xing screws.
48
48
48
48
Rubber Mallet
may be required
to t parts.
IMPORTANT: Pre-drill before xing screws.
Step 28
Parts needed - No. 46 QTY 1
No. 47 QTY 1
Secure the shortest Roof Truss’(No. 46 & 47) to‘Roof Truss B’(No.32) as shown
in the illustration using 1x70mm screws per truss.
*Ensure the angled side of the short truss is ush with the side of the long
truss. Then make sure the block under the short truss is ush against the
wall of the building.
2x90mm Screws
Pre drill
hole
90mm
screw
46
47
Right Handed
Left Handed
Please note: You can adjust the blocks
attached to the roof truss’ if necessary.
46
47
46
47
46
47
Rubber Mallet
may be required
to t parts.
Please retain product label and instructions for future reference

P 20
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
Step 29
Parts needed - No. 42 QTY 1
No. 43 QTY 1
No. 44 QTY 1
No. 45 QTY 6
Place the nisher boards (No. 42, 43, 44 & 45) around the front of the log cabin,
locating each board ush to the truss’.
*Please Note: there should be a gap between boards No. 45 & 45 on either side of the
log cabin, with enough space to locate a Roof Truss.
Some adjustment may be required to ensure the roof structure rests correctly.
Secure each board by screwing through the board into the Roof Truss using
70mm screws, ensuring to stagger the screws to avoid colliding.
14x70mm Screws
Pre drill
hole
70mm
screw
Right Handed
Left Handed
45
42
44
45
45
45
Please note: You can adjust the blocks
attached to the roof truss’ if necessary.
42
45
43
4545
45
45
45
45
43
42mm
45
44
42mm
Rubber Mallet
may be required
to t parts.
Pre drill
hole
Please note: You can adjust the blocks
attached to the roof truss’ if necessary.
Right Handed
Left Handed
90mm
screw
Step 30
Parts needed - No. 48 QTY 2
Locate two ‘Roof Truss A’ (No. 48) into the gaps between the nisher boards on either
side of the log cabin, as shown in the illustration.
Some adjustment may be required to ensure the roof structure rests correctly.
Fix the Truss’ in place by screwing into the purlin at an angle as shown in the
illustration using 1x90mm screws per Roof Truss.
Secure each Finisher board (No.45) in place by screwing through the board into the
Roof Truss using 70mm screws, ensuring to stagger the screws to avoid
colliding.
2x90mm Screws

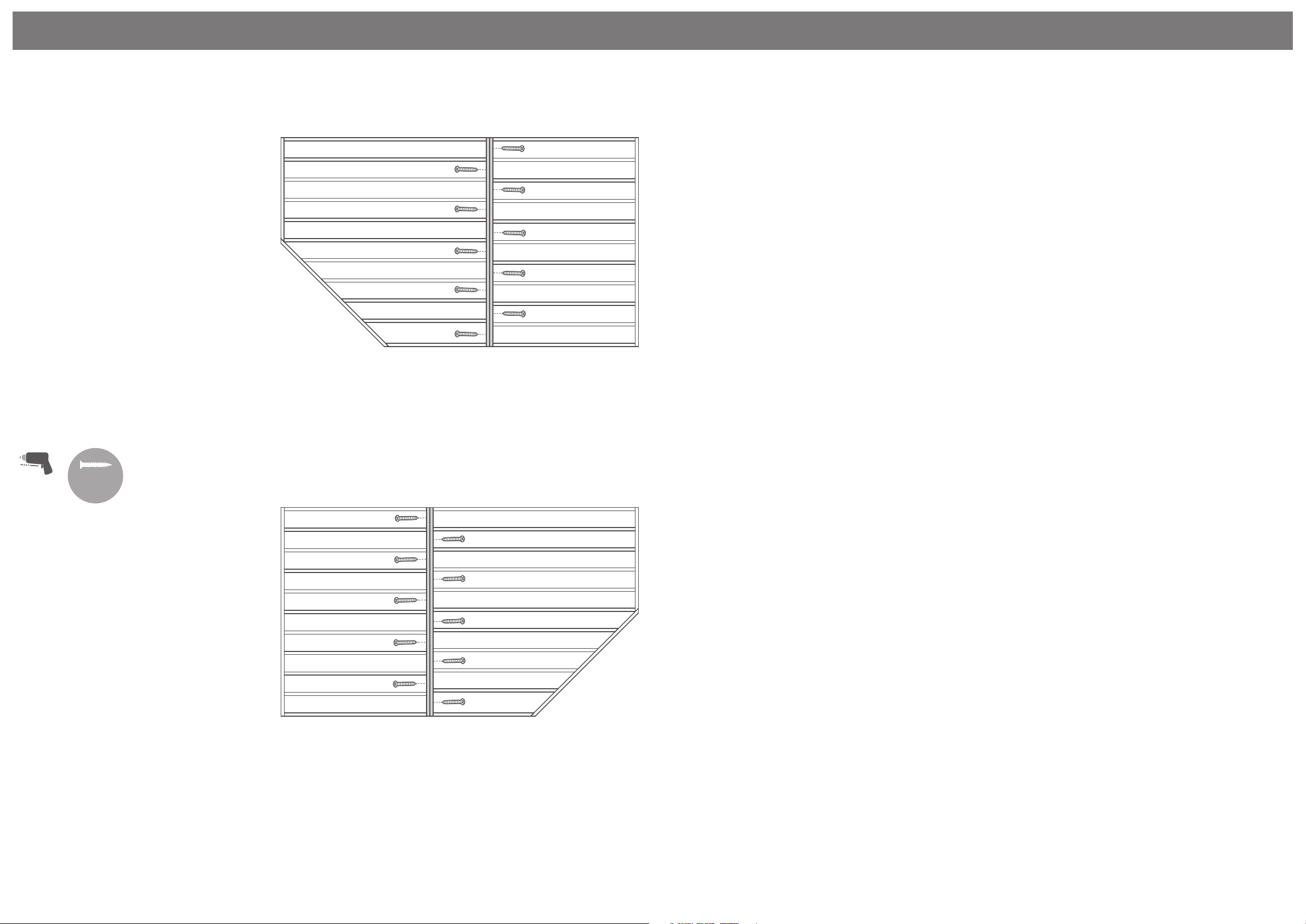

4x70mm Screws
48
48
48
48
70mm
screw
45
45
45
48
45
48
45
45
48
48
45
45
Rubber Mallet
may be required
to t parts.
