Mercia Garden Products 03DTSHPN1006FGD2TW-V1 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building has been treated by the
correct application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
03DTSHPN1006FGD2TW-V1
DIP TREATED SHIPLAP PENT 10FT X 6FT FULLY GLAZED DOUBLE 2 TALL WINDOW
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

1 2 3 4
567
Door Panel
AI-03S11SHDD1180X2075-V1
Twin Window Panel
AI-03S11SH2TFWC1738X2075-V1
Back Panel QTY 2
AI-S11SHPP1459X2015-V1
Floor QTY 2
AI-R11MBF1456X1753-V1
Roof QTY 3
AI-S21MBPR1001X2305-V1
Contents
Right Panel
AI-03S11SHPGR1707X2119-V1
Left Panel
AI-03S11SHPGL1707X2119-V1
P 2
03DTSHPN1006FGD2TW-V1
Overall Dimensions:
Width = 3028mm
Depth = 2343mm
Height = 2170mm
Base Dimensions:
Width = 2912mm
Depth = 1753mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
8
9 10 11
27
28
17
21
Butt Hinge QTY 6
PI-07-0066
Door Handle QTY 2
PI-07-0081
Turn Button QTY 2
PI-07-0034
18
19
20
23
22
Press Lock
PI-07-0162
Barrel Bolt QTY 2
PI-07-0114
Window Beading Block
QTY 16
PI-07-0011
Fitted Window QTY 2
AI-FW653X1582-V1
Felt
Cover Trim - 12 x 40 x 2070mm QTY 3
S1240-2070mm
Cover Trim - 12 x 40 x 2035mm QTY 3
S1240-2035mm
Fascia - 12 x 95 x 2306mm QTY 2
S1295-2306mm
Fascia - 12 x 95 x 1514mm QTY 4
S1295-1514mm
Under Roof Panel QTY 2
AI-S11MBURF1499X484-V1
Master Door
AI-STDFGMD475X1715-V1
Secondary Door
AI-STDFGSD475X1715-V1
15
16
Door Frame Strip - 12 x 40 x 1740mm QTY 2
S1240-1740MM
Door Frame Strip - 12 x 40 x 996mm QTY 1
S1240-996MM
Eaves Frame - 28 x 28 x 1001mm QTY 3
FS2828-1001mm
24
25
26
Rain Guard - 990mm QTY 1
RG2844-990mm
Rain Guard - 1354mm QTY 1
RG2844-1354mm
12
13
14
Finial QTY 1
SHED DIAMOND FINIAL

P 3
Please retain product label and instructions for future reference
Nail Bag
There may be extra screws present in the nail bag
40mm Screw QTY 18
Felt Tacks QTY 125
25mm Screw QTY 22
30mm Screw QTY 130
50mm Screw QTY 108
35mm Bolt QTY 4
10mm Screw QTY 12

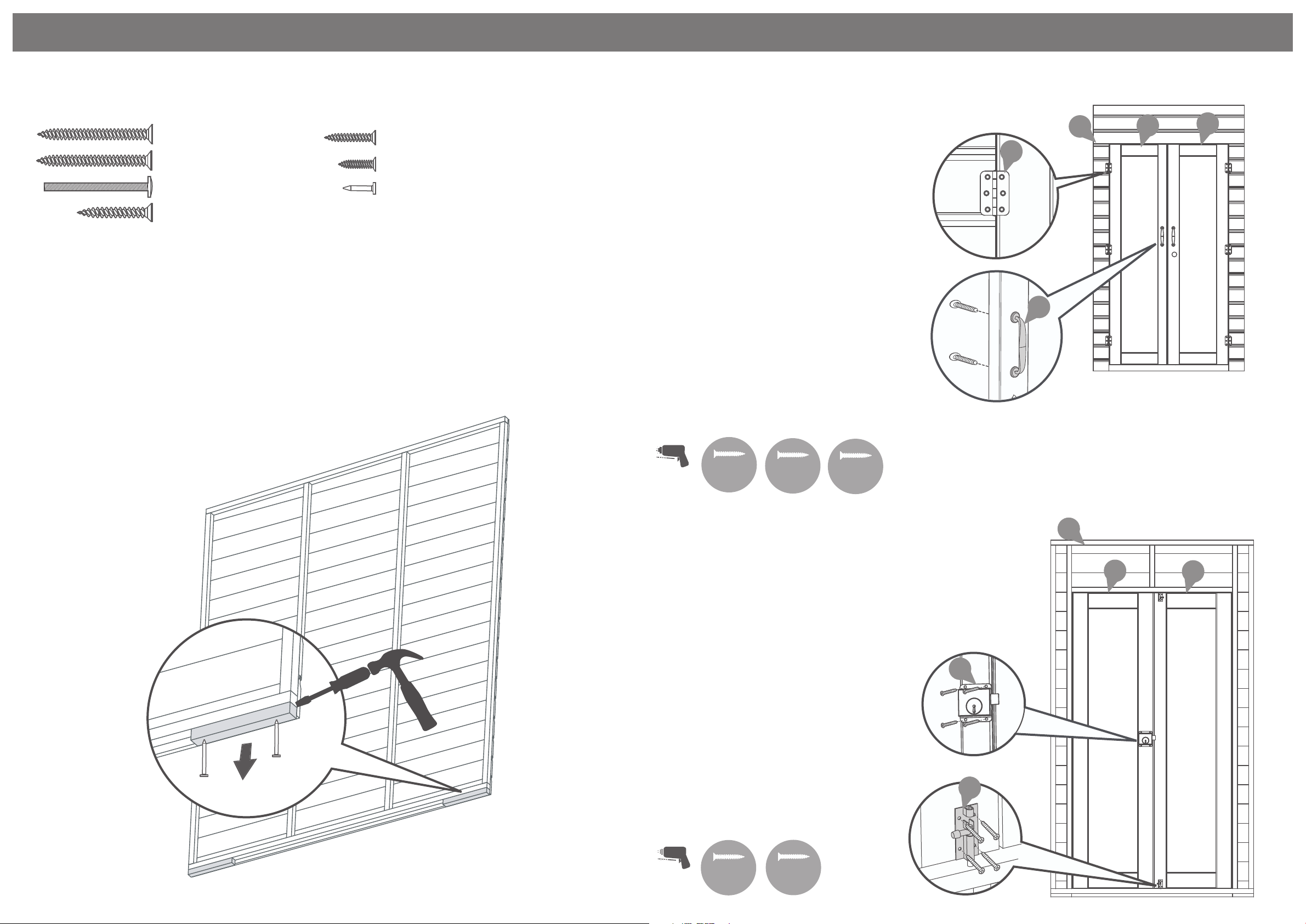

Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
Step 1
Parts needed - No. 1 QTY 1
- No. 9 QTY 1
- No. 10 QTY 1
- No. 22 QTY 6
- No. 27 QTY 2
Fix the hinges to the master (No. 9) and
secondary (No. 10) doors and to the door
panel (No. 1) using 3x butt hinges (No. 22)
per door. Ensure to predrill holes.
* Fix to the door using 3x25mm screws &
3x30mm screws to the Door Panel per
hinge, ensure the doors open freely.
Fix the door handles (No. 27) to the outside
of the master and secondary door using
the 35mm bolts provided.
4x35mm Bolts
18x25mm Screws
18x30mm Screws
Pre drill
hole
25mm
screw
30mm
screw
35mm
bolt
22
27
19
10
Step 2
Parts needed - No. 21 QTY 1
- No. 26 QTY 2
Secure the barrel bolts (No. 26) to the
top & bottom of the secondary door using
6x10mm screws. Pre-drill the holes
beforehand. Drill a hole in the framing
above and below the door for the barrel
bolt to x into.
Attach the press lock (No. 21) to the
master door with 4x25mm screws, aligning
the barrel with the key hole.
*Ensure the key turns and locks properly
before xing to the door.
12x10mm Screws
4x25mm Screws
Pre drill
hole
10mm
screw
25mm
screw
10
9
26
1
21

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Please retain product label and instructions for future reference
Pre drill
hole
50mm
screw
6
6
Place the assembled oor panels
(No. 6) upside down onto a rm and
level base. Ensure the base has
suitable drainage, free from areas
where standing water can collect.
Secure the oors together using
10x50mm screws through the oor
bearers in an alternating pattern.
Once xed together turn the oor
back the right way up.
10x50mm Screws
Step 3
Parts needed - No. 6 QTY 2
Fix the corners with 50mm
screws as shown in the
illustration.
Do not secure the building
to the oor until the roof
is tted.
4x50mm Screws
Pre drill
hole
50mm
screw
Step 4
Parts needed - No. 4 QTY 1
- No. 5 QTY 1
Join the Left Panel (No. 4) together with
Back Panel (No. 5) as shown in the illustration.
*Please note that the back panel is
is shorter than the side panels
5
4
Step 5
Parts needed - No. 3 QTY 1
- No. 5 QTY 1
Connect the Back Panel (No 5.) to the
already standing Back Panel. Followed by
adding the Right Panel (No.3).
*Please note that the back panel is
is shorter than the side panels
Fix the corners with 50mm
screws as shown in the
illustration.
Do not secure the building
to the oor until the roof
is tted.
8x50mm Screws
Pre drill
hole
50mm
screw
53
Step 6
Parts needed - No. 2 QTY 1
Connect the Twin Window Panel (No. 2)
with Right Panel (No. 3).
*Please note that the twin window panel
is shorter than the side panels
Fix the corners with 50mm
screws as shown in the
illustration.
Do not secure the building
to the oor until the roof
is tted.
4x50mm Screws
Pre drill
hole
50mm
screw
45
3
2

P 5
Please retain product label and instructions for future reference
Step 7
Parts needed - No. 1 QTY 1
Fix the Door Panel (No. 1) between the
Twin Window Panel (No. 2) and the Left
Panel (No. 4) using 50mm screws in
alternating directions.
*Please note that the Door panel is
shorter than the side panels.*
Fix the panels together with
50mm screws as shown in the
illustration.
Do not secure the building
to the oor until the roof
is tted.
8x50mm Screws
Pre drill
hole
50mm
screw
1
4
2
Step 8
Parts needed - No. 7 QTY 3
- No. 20 QTY 3
50mm
screw
Pre drill
hole
Fix the Eaves framing (No.20) to the
roof (No.7) using 4x50mm screws per
eaves framing, screwing through the
eaves framing and into the roof
framing.
Ensure the eaves framing is ush
to the edges of the roof framing
before securing
12x50mm Screws
7
20
7
20
7
20
Step 9
Parts needed - No. 7 QTY 3
Place the Roof Panels (No. 7) onto the top
of the building. Align the three Roof Panels
so they sit square before xing into postion.
The roof eaves frames (No. 20) should sit at
the back of the building.
*The roof panels should sit on top of the
left and right panels, the roof panels
framing should sit on top of the back,
door and twin window panels.*
Do not secure the building to the Floor
until the roof is tted.
777
20
Step 10

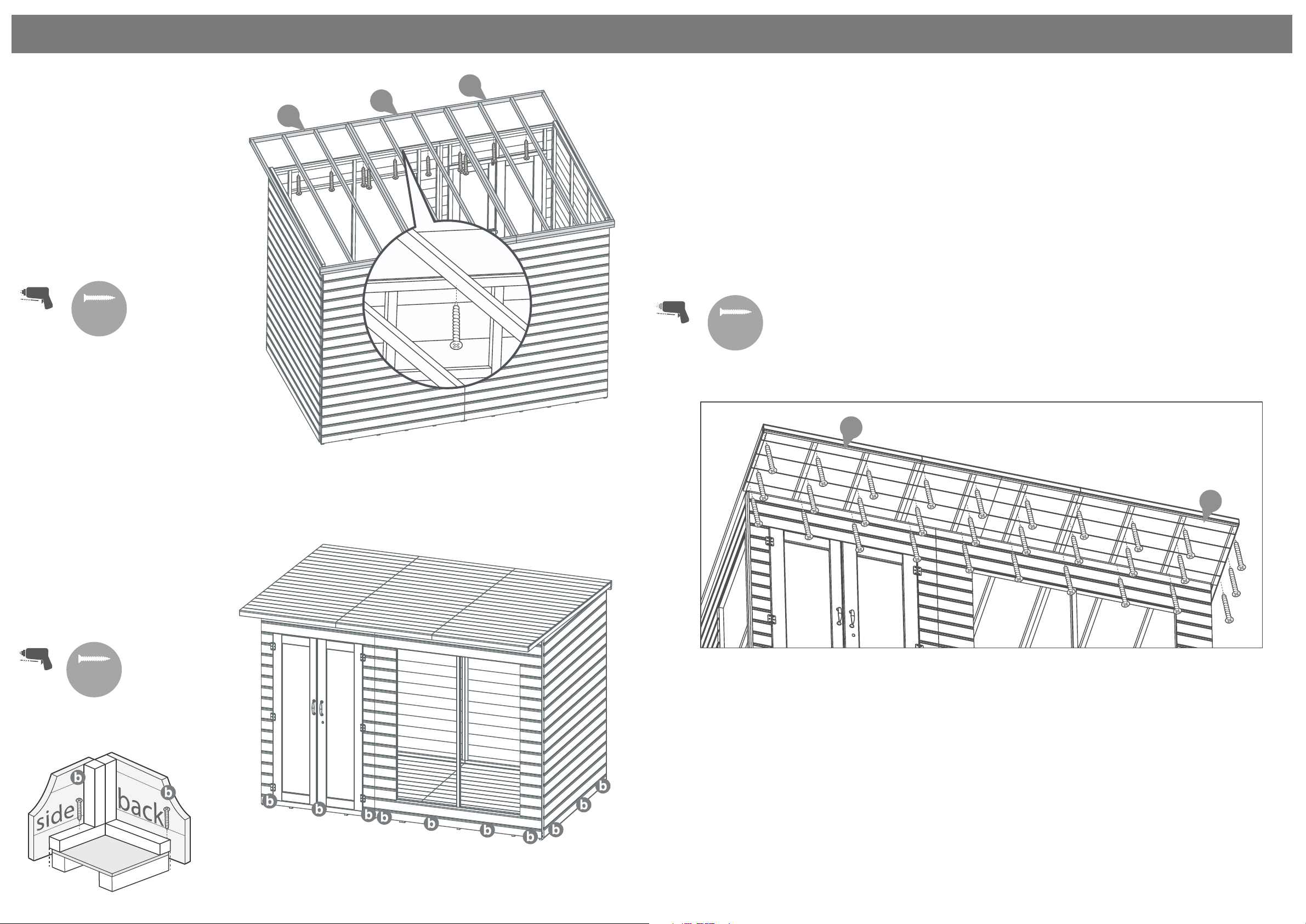

Fix the three Roof Panels (No. 7)
together using 50mm screws. Oset
the screws from each other as shown
in the diagram.
*Roof boards not shown for
illustration purposes.
Do not secure the building to
the Floor until the roof is
tted.
16x50mm Screws
Pre drill
hole
50mm
screw
777

P 6
Please retain product label and instructions for future reference
Step 12
Once the Roof is aligned and secure the
Floor can be xed into postion.
Fix the building into place by screwing
through the panel into the oor making
sure to screw into the oor bearers.
20x50mm Screws
Pre drill
hole
50mm
screw
Step 13
Parts needed - No. 8 QTY 2
One at a time place the Under Roof Panels
(No. 8) into position, making sure they are
ush to the front of the building. Using a
pencil mark on the under roof panel where
the roof panel framing is to use as a guide
for xing into place.
Fix in place making sure to screw through
in to the Roof framing. Pre-drill holes rst.
30x30mm Screws
Pre drill
hole
30mm
screw
8
8
Step 11
Screw internally with 10x50mm screws
securing the roof panels (No. 7) at
the front and back of the building.
*Roof boards not shown for
illustration purposes.
Do not secure the building to the
Floor until the roof is tted.
20x50mm Screws
Pre drill
hole
50mm
screw
7
7
7

P 7
Please retain product label and instructions for future reference
HANDLE
WITH CARE
12
3
4
Step 14
Parts needed - No. 24 QTY 1
Cut the Felt (No. 24) into 3 sheets at 3110mm
each and lay onto the roof. Starting at the
back and working towards the front.
*Ensure there is approximately 50mm of
overhang around the building.
Fix into place using 125x felt tacks at
100mm intervals.
125x Felt tacks Felt Length 3110mm
Felt
tacks
1.
2.
3.
24
Step 15
Parts needed - No. 16 QTY 2
- No. 17 QTY 4
Fix the fascias (No. 16 & 17) to the
front, back and sides of the building
using 18x40mm screws.
Ensure the fascia xed to the back of
the roof nishes ush with the top to
enable water to run o.
18x40mm Screws
Pre drill
hole
40mm
screw
16
16
17
17
17
17

Please retain product label and instructions for future reference
P 8
Pre drill
hole
30mm
screw

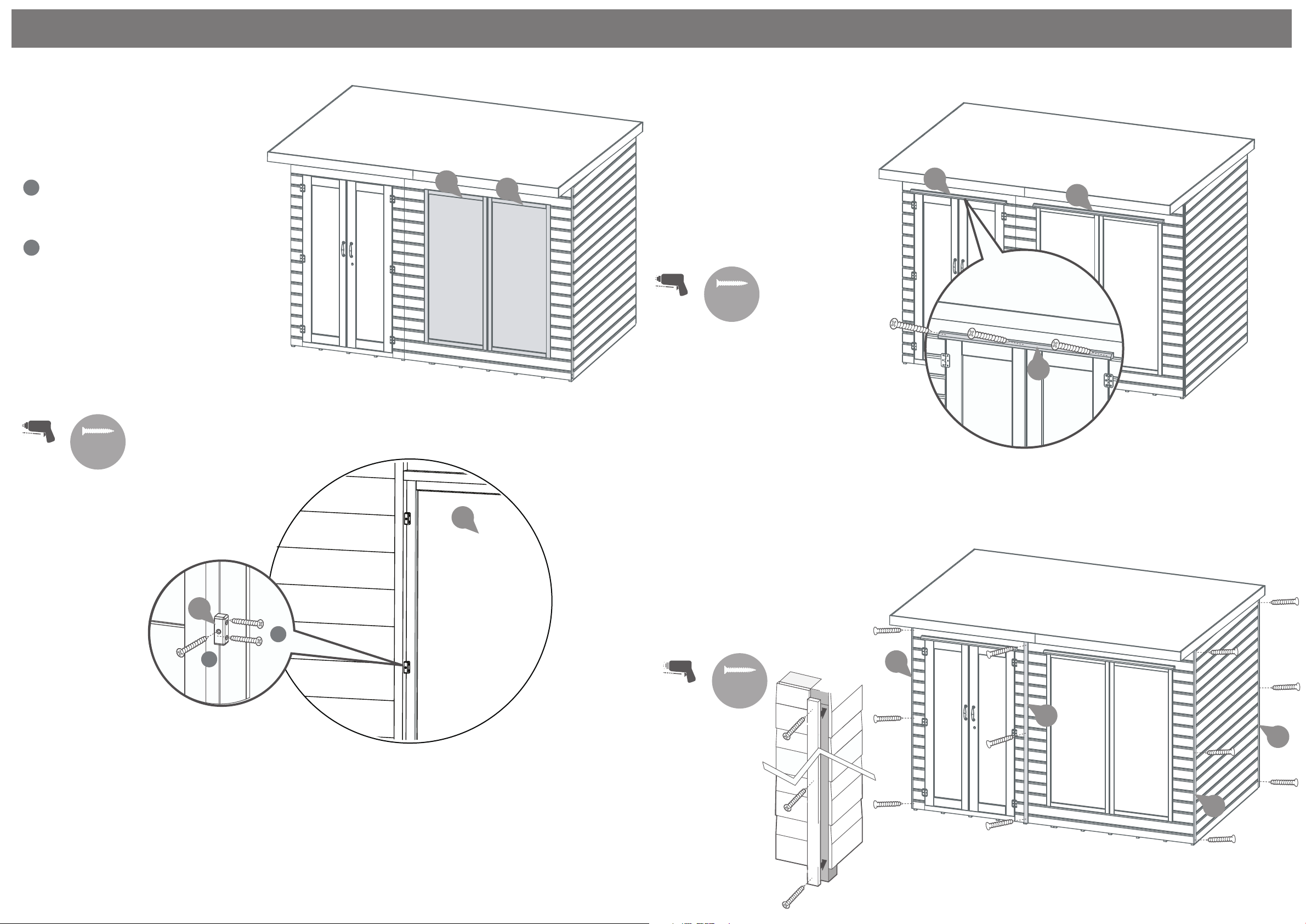

Step 16
Parts needed - No. 11 QTY 4
- No. 23 QTY 16
Position the windows (No. 11) central into
the window opening.
Fix eight Window Blocks (No. 23) to the
Window, four down each side and x
with 1x30mm screw.
Place the Window into the window panel
and x by screwing though the Window
Block (No. 23) with 2x30mm screws as
shown.
Fix the window beading blocks (No. 23) to
the window before tting the window into
the panel.
48x30mm screws.
11
c
d
11 11
d
c
23
Step 17
Parts needed - No. 12 QTY 1
- No. 13 QTY 1
Fix a rain guard above the double
doors (No. 12) and one rain guard
above the two front windows (No. 13).
Secure in place using 3x50mm screws
per guard, ensuring to screw through
the framing at an angle.
6x50mm Screws
Pre drill
hole
50mm
screw
12
13
12
15
14
14
Step 18
Parts needed - No. 14 QTY 3
- No. 15 QTY 3
Attach the cover trims (No. 14 at
the front) and (No. 15 at the rear)
to each corner of the building and
over panel joins. Use 3x30mm
screws per cover trim.
18x30mm Screws
Pre drill
hole
30mm
screw
14

P 9
Please retain product label and instructions for future reference

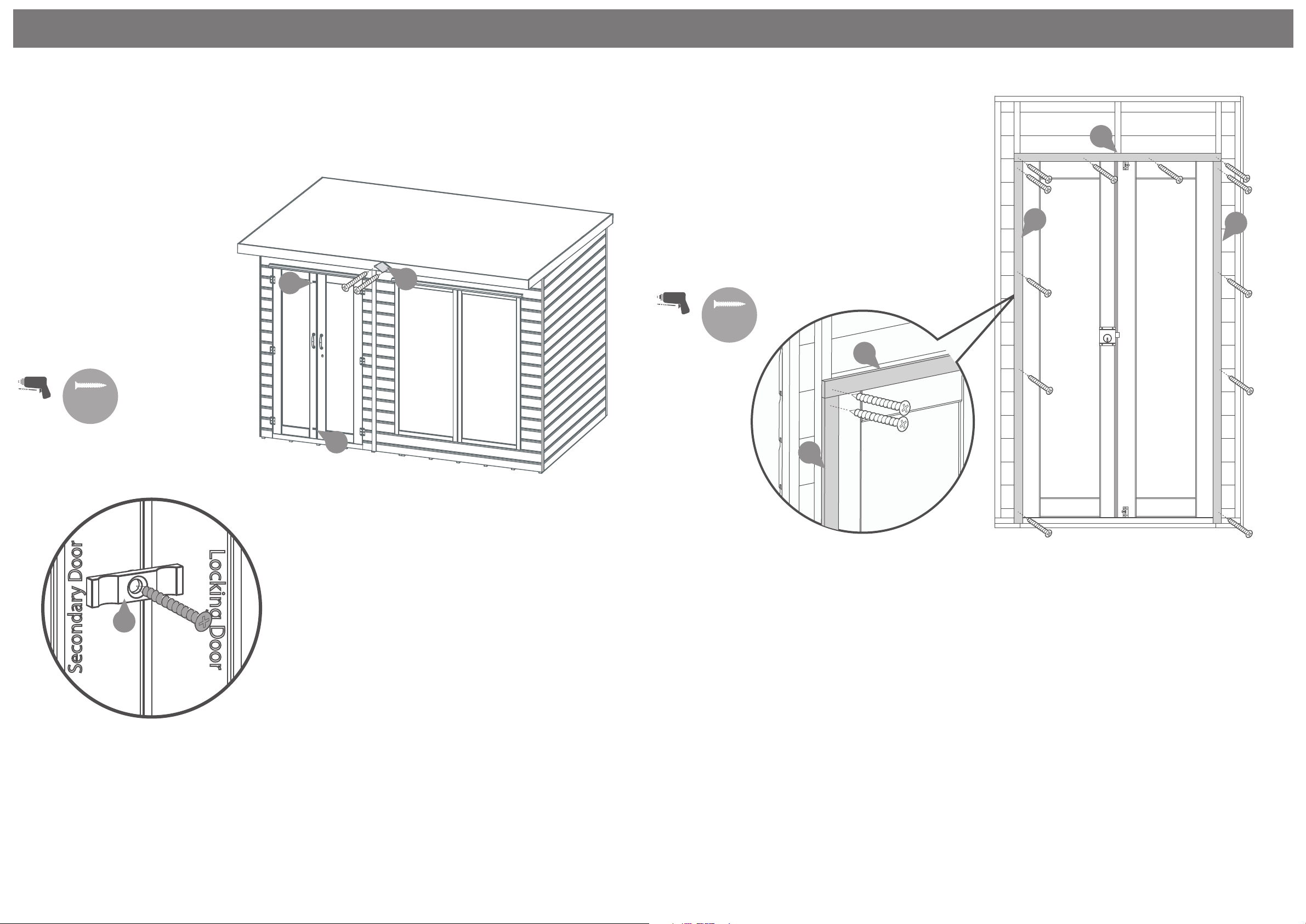

Step 19
Parts needed - No. 25 QTY 2
- No. 28 QTY 1
Attach the two turn buttons (No. 25)
to the secondary door at the top and
bottom using 2x30mm screws.
Attach the Finial (No. 28) centrally
over the two front fascias using
2x30mm screws.
4x30mm Screws
*These turn buttons help to keep
your doors straight during high &
low levels of moisture content in
the air.
Pre drill
hole
25
25 28
25
30mm
screw
Step 20
Parts needed - No. 18 QTY 2
- No. 19 QTY 1
On the inside of the building x
the Door Frame Strips (No. 18
& 19), to the top and sides of
the doors frames. Make sure
that the edges are ush with
the edge of the framing. Fix
with 4x30mm screws per strip.
12x30mm Screws
Pre drill
hole
30mm
screw
19
18 18
19
18

Please retain product label and instructions for future reference
P 10
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefully peel
covering back
SILICONE
SEALANT
Step 21
It is recommended that after the
construction, treatment and the
removal of the protective window
cover that sealant is used to
keep the building weather tight.
1. Treat the building
2. Remove lm from the windows
3. Add sealant around the windows.

P 7




















































2





1












3
4














REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
P 8



















¡




1




2























¡



