Mercia Garden Products 01DTOVAX10DDNWGP-V1 User manual
2mm Drill bit
x2
¡
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN

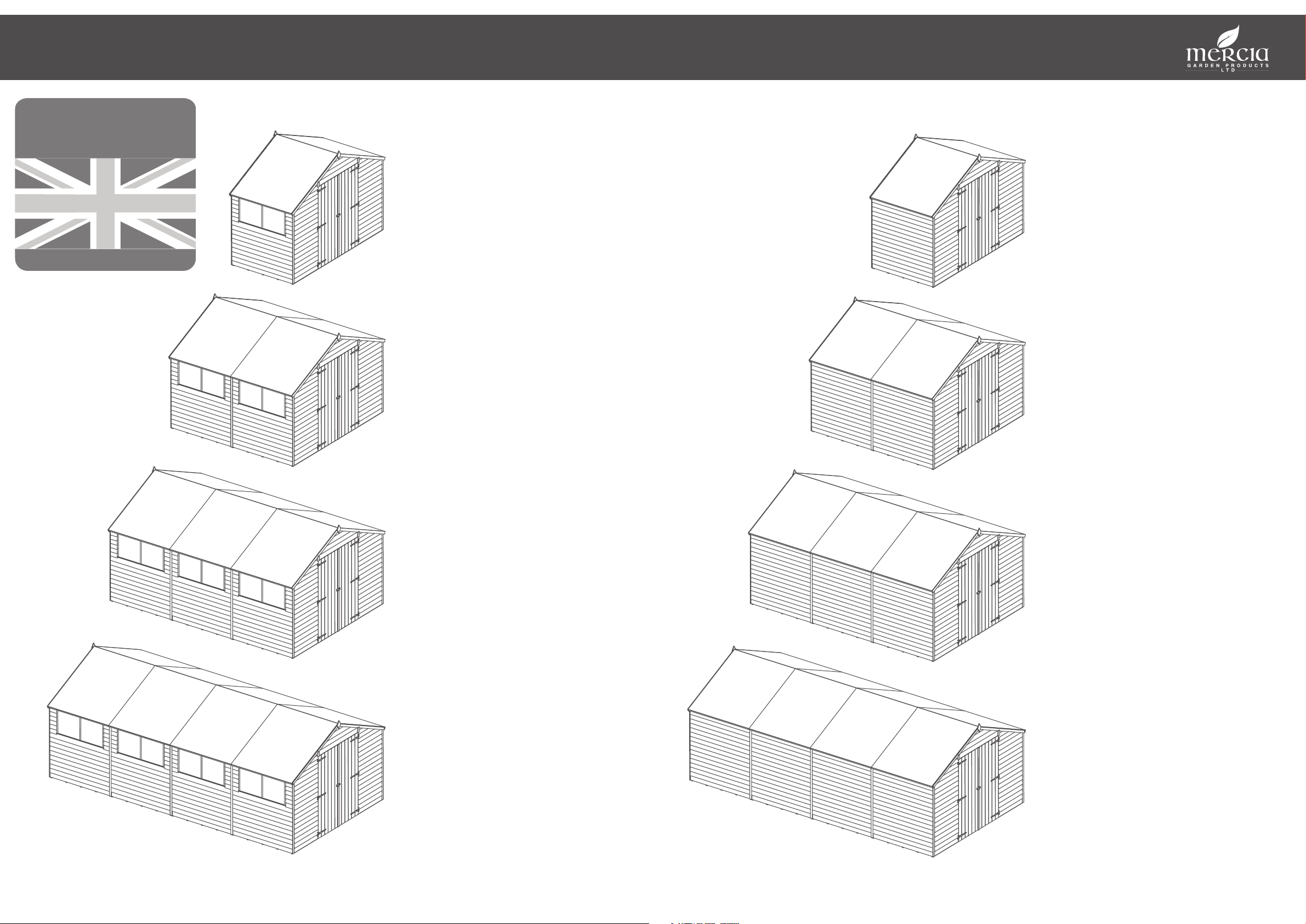

Overall Dimensions:
Width = 3099mm
Depth = 1537mm
Height = 2321mm
Base Dimensions:
Width = 2970mm
Depth = 1456mm
5X10 Apex With Windows
Overall Dimensions:
Width = 3099mm
Depth = 1537mm
Height = 2321mm
Base Dimensions:
Width = 2970mm
Depth = 1456mm
5X10 Apex No Windows
Overall Dimensions:
Width = 3099mm
Depth = 2998mm
Height = 2321mm
Base Dimensions:
Width = 2970mm
Depth = 2912mm
5X10 Apex With Windows
Overall Dimensions:
Width = 3099mm
Depth = 2998mm
Height = 2321mm
Base Dimensions:
Width = 2970mm
Depth = 2912mm
5X10 Apex No Windows
Overall Dimensions:
Width = 3099mm
Depth = 4459mm
Height = 2321mm
Base Dimensions:
Width = 2970mm
Depth = 4368mm
5X10 Apex With Windows
Overall Dimensions:
Width = 3099mm
Depth = 4459mm
Height = 2321mm
Base Dimensions:
Width = 2970mm
Depth = 4368mm
5X10 Apex No Windows
Overall Dimensions:
Width = 3099mm
Depth = 5920mm
Height = 2321mm
Base Dimensions:
Width = 2970mm
Depth = 5824mm
5X10 Apex With Windows
Overall Dimensions:
Width = 3099mm
Depth = 5920mm
Height = 2321mm
Base Dimensions:
Width = 2970mm
Depth = 5824mm
5X10 Apex No Windows
Pack Requirements:
01DTOVAX10DDNWGP-V1 QTY 1
01DTOVAX0510FWPB-V1 QTY 1
Pack Requirements:
01DTOVAX10DDNWGP-V1 QTY 1
01DTOVAX0510FWPB-V1 QTY 2
Pack Requirements:
01DTOVAX10DDNWGP-V1 QTY 1
01DTOVAX0510FWPB-V1 QTY 3
Pack Requirements:
01DTOVAX10DDNWGP-V1 QTY 1
01DTOVAX0510FWPB-V1 QTY 4
Pack Requirements:
01DTOVAX10DDNWGP-V1 QTY 1
01DTOVAX0510NWPB-V1 QTY 1
Pack Requirements:
01DTOVAX10DDNWGP-V1 QTY 1
01DTOVAX0510NWPB-V1 QTY 2
Pack Requirements:
01DTOVAX10DDNWGP-V1 QTY 1
01DTOVAX0510NWPB-V1 QTY 3
Pack Requirements:
01DTOVAX10DDNWGP-V1 QTY 1
01DTOVAX0510NWPB-V1 QTY 4
¡
50mm Screw x 57
40mm Screw x 33
20mm Screw x 7
30mm Screw x 90

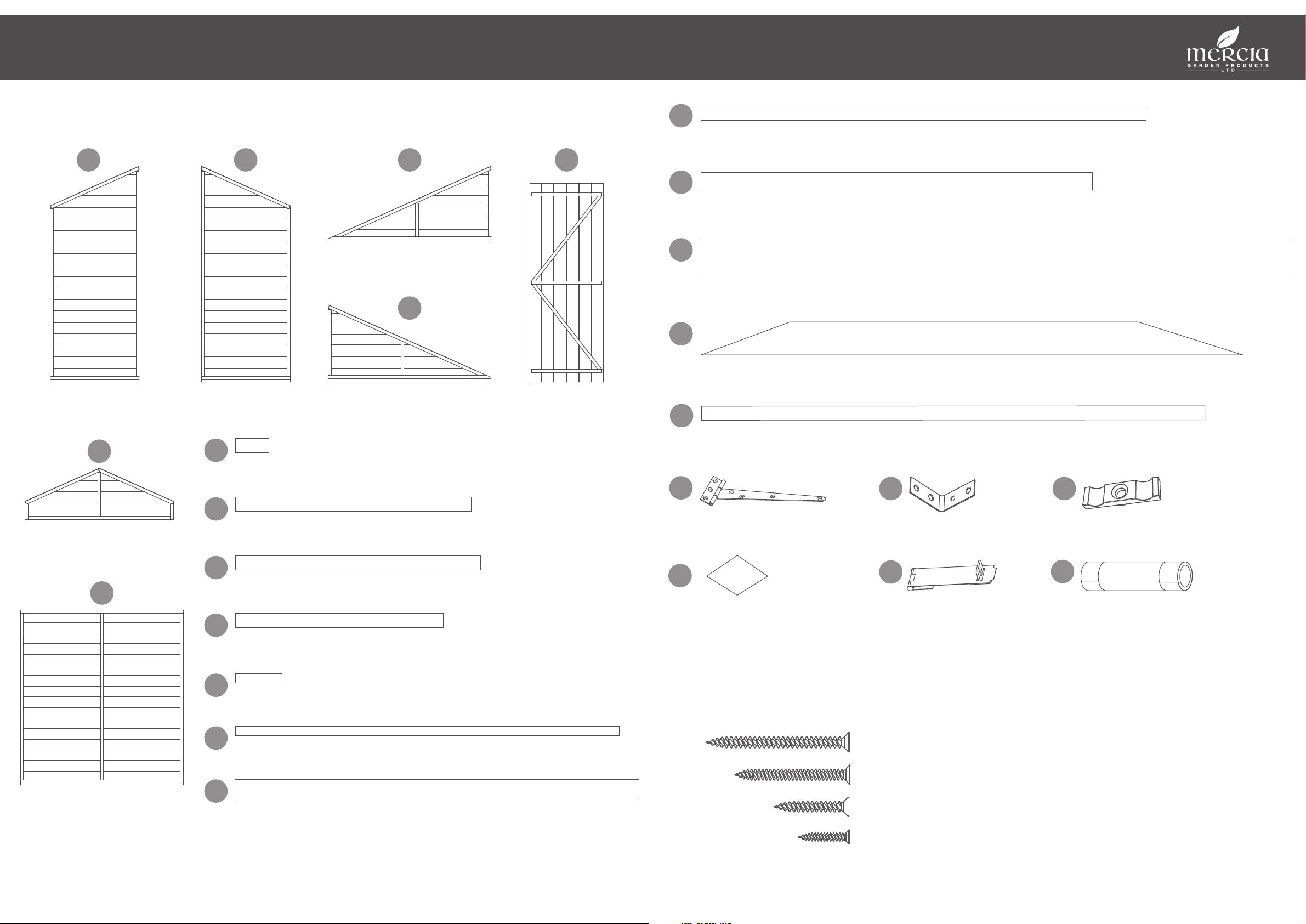

1
Front Gable Right QTY 1
AI-01R11OVPGL796X1934-V1
Building Contents- Gable Pack
01DTOVAX10DDNWGP-V1
2
Front Gable Left QTY 1
AI-01R11OVPGL796X1934-V1
7
Plain Panel QTY 2
AI-R11OVPP1461X1567-V1
4
Back Gable Top Left QTY 1
AI-R11OVHAGTL692X1461-V1
3
Back Gable Top Right QTY 1
AI-R11OVHAGTR692X1461-V1
5
Door QTY 2
AI-R11FBMBZBD661X1780-V1
6
Gable Top QTY 1
AI-R11OVAGT1330X455-V1
22
Turn Button QTY 2
PI-07-0034
20
T Hinge QTY 6
PI-07-0021
24
Hasp and Staple QTY 1
PI-07-0207
21
Corner Brace QTY 2
PI-07-0012
8
Front Panel Cover Strip 12x45x115mm QTY 2
S1245-115mm
9
Door Strip 12x45x848mm QTY 1
S1245-848mm
10 Door Strip 12x45x876mm QTY 1
S1245-876mm
11
Back Cover Trim 12x45x635mm QTY 1
S1245-635mm
15
Fascias 12x56x1671mm QTY 4
S1256-1671mm
16
Cover Trim 12x45x1542mm QTY 5
S1245-1542mm
12 Door Block 28x28x150mm QTY 4
F2828-150mm
13 Door Framing 28x28x1330mm QTY 1
F2828-1330mm
14
Ridge Bar 27x70x1405mm QTY 1
F2770-1405mm
17
Back Gable Cover Strip 7x125x2090mm QTY 1
OVLP7125-2090mm
18
Front Gable Cover Strip 7x125x1876mm QTY 1
OVLP7125-P-1876mm
19
Door Beading Strip 12x28x1700mm QTY 2
S1228-1700mm
23
Shed Diamond Finial QTY 2
Shed Diamond Finial
25
Felt
Nail Bag
There may be extra screws present in the nail bag
50mm Screw x 42
40mm Screw x 19
Felt Tacks x 100
30mm Screw x 62
50mm Screw x 42
40mm Screw x19
Felt Tacks x 100
30mm Screw x 44
34
U Channel QTY 1
PI-07-0013
35
Styrene QTY 2
PI-05-0114
36
Window Cill QTY 1
PI-08-0013
7
Plain Panel QTY 1
AI-R11OVPP1461X1567-V1
Window Panel QTY 1
AI-01R11OV2CW1461X1567-V1
26
Floor QTY 2
AI-R11OSBF1485X1456-V1
27
Building Contents- Window Pack
01DTOVAX0510FWPB-V1
Building Contents- No Window Pack
01DTOVAX0510NWPB-V1
Roof Sheet QTY 2
PI-03-0383
28
Cover Trim 12x45x1542mm QTY 2
S1245-1542mm
16
Floor Blocks
28x28x400mm QTY 4
F2828-400mm
38
Window Strips
12x27x546mm QTY 5
S1227-546mm
33
Eaves Framing 28x28x1473mm QTY 2
F2828-1473mm
29
Truss Support 27x44x1850mm QTY 2
F2744-G-1890mm
30
Truss Support
44x44x345mm QTY 1
F4444-G-385mm
37
Ridge Bar 27x70x1444mm QTY 1
F2770-1444mm
31
Truss Block
27x44x140mm QTY 2
F2744-G-160mm
39
Truss Framing 44x44x1602mm QTY 2
F4444-G-1642mm
32
7
Plain Panel QTY 2
AI-R11OVPP1461X1567-V1
Floor QTY 2
AI-R11OSBF1485X1456-V1
27
Roof Sheet QTY 2
PI-03-0383
28
34
U Channel QTY 1
PI-07-0013
Cover Trim 12x45x1542mm QTY 2
S1245-1542mm
16
Floor Blocks
28x28x400mm QTY 4
F2828-400mm
38
Eaves Framing 28x28x1473mm QTY 2
F2828-1473mm
29
Truss Support 27x44x1850mm QTY 2
F2744-G-1890mm
30
Truss Support
44x44x345mm QTY 1
F4444-G-385mm
37
Ridge Bar 27x70x1444mm QTY 1
F2770-1444mm
31
Truss Block
27x44x140mm QTY 2
F2744-G-160mm
39
Truss Framing 44x44x1602mm QTY 2
F4444-G-1642mm
32
Nail Bag
There may be extra screws present in the nail bag Nail Bag
There may be extra screws present in the nail bag

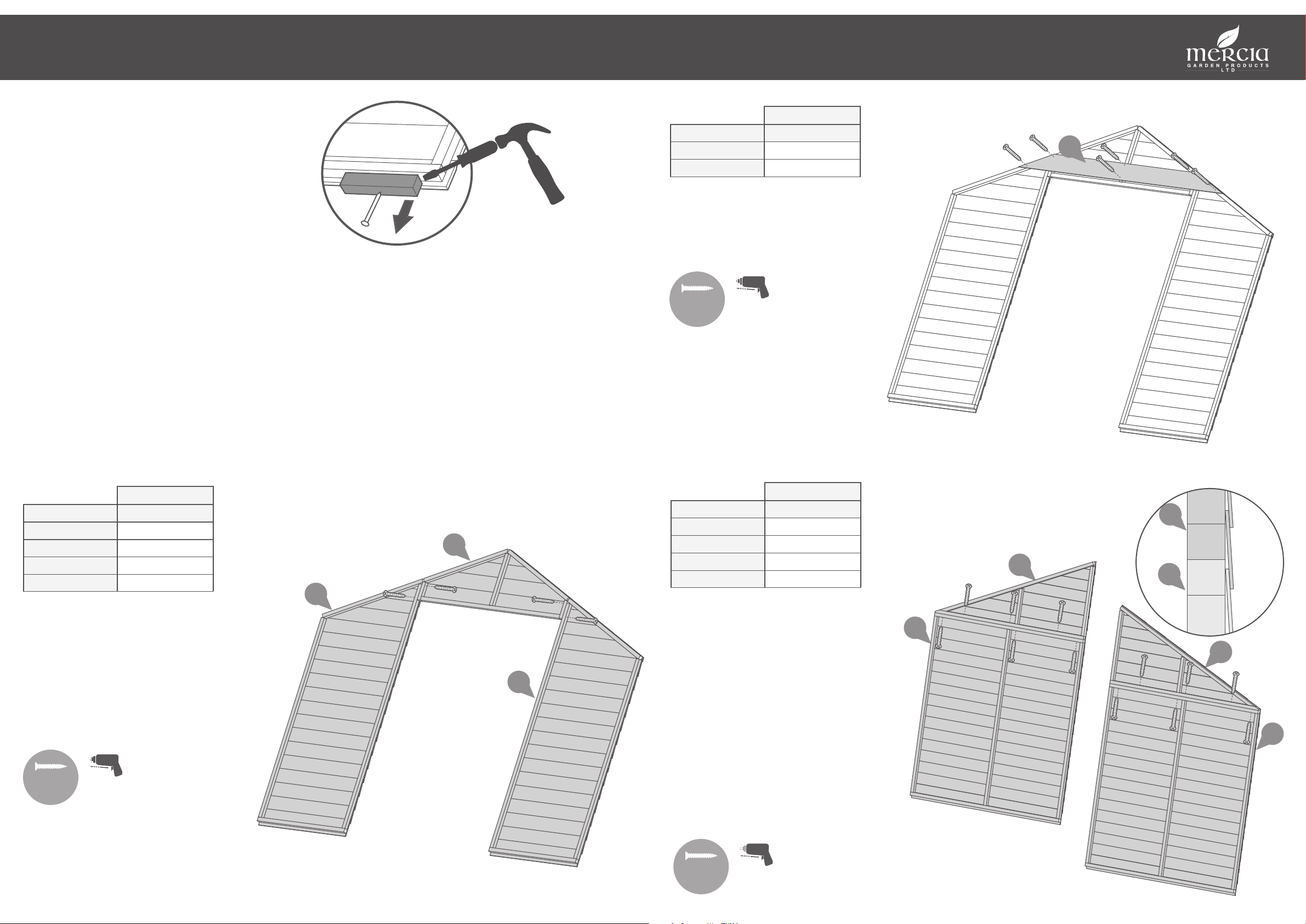

Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
1
2
6
Pre drill
hole
50mm
screw
Lay the Front Gable Right and Left (No.1
and No.2) and the Gable top (No.6) onto a
level Floor.
Place them along side each other and
ensure they are ush along the top of the
panels. Secure the panels using 2x50mm
screws along each join in an alternating
pattern.
Step 1
Parts Needed
No.1
No.2
No.6
50mm Screws
Building Size
All Sizes
QTY 1
QTY 1
QTY 1
QTY 4
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
40mm
screw
Lay the Front Gable Cover Strip (No.18) onto
the assembled front gable, align the edges
of the strip with the top of the gable and
secure using 6x40mm screws, ensuring to
go through the strip and into the framing .
Parts Needed
No.18
40mm Screws
Building Size
All Sizes
QTY 1
QTY 6
Step 2
18
IMPORTANT: Pre-drill before xing screws.
3
4
7
7
3
7
Parts Needed
No.3
No.4
No.7
50mm Screws
Building Size
All Sizes
QTY 1
QTY 1
QTY 2
QTY 12
Lay the Back Gable Top Right (No.3) and a
Plain Panel (No.7) onto a level Floor.
Place to Back Gable top onto the plain
panel, ensuring the gable top cladding
slots over the plain panel as shown in the
illustration. The Back Gable top should sit
ush with the plain panel framing.
Secure the the Back Gable top to the plain
panel using 6x50mm screws in an
alternating pattern.
Repeat this step with the Back Gable top
Left to create a left side assembly.
Pre drill
hole
50mm
screw
Step 3 IMPORTANT: Pre-drill before xing screws.
Lay the assembled Back Panels along side
each other, ensure they are ush at the
bottom and secure using 10x50mm screws
in an alternating pattern.
Parts Needed
50mm Screws
Building Size
All Sizes
QTY 10
Pre drill
hole
50mm
screw
34
7
7
Step 4 IMPORTANT: Pre-drill before xing screws.
Lay the Back Gable Cover Strip (No.17) onto
the assembled front gable, align the edges
of the strip with the top of the gable and
secure using 5x40mm screws, ensuring to
go through the strip and into the framing.
Pre drill
hole
40mm
screw
Step 5
Parts Needed
No.17
40mm Screws
Building Size
All Sizes
QTY 1
QTY 5
17
IMPORTANT: Pre-drill before xing screws.
Parts Needed
Building Size
5x10 10x10 15x10 20x10
No.27
No.38
QTY 2
QTY 4
QTY 16
QTY 4
QTY 8
QTY 32
QTY 6
QTY 12
QTY 48
QTY 8
QTY 16
QTY 64
30mm Screws

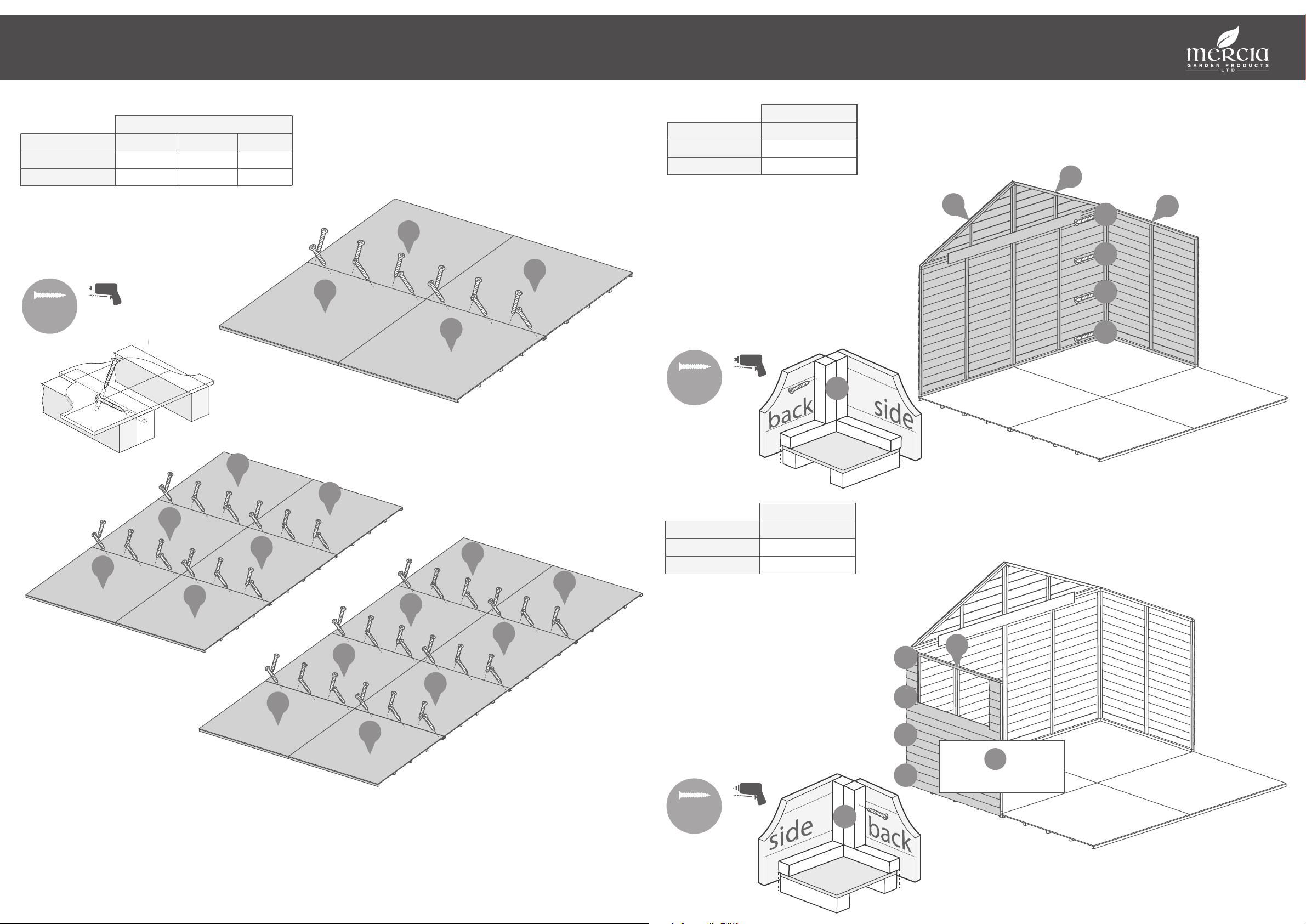

Place the oors (No.27) along side
each other as shown in the diagram,
locate the Floor blocks (No.38)
between the oors, equally spaced.
Secure the blocks to the oors using
4x30mm screws per block, going
through the oor OSB and into the
blocks below.
Repeat this step to create the
remaining oor assemblies.
Pre drill
hole
30mm
screw
Step 6
38
38
38
38
27
27
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
38
27
27
27
27
27
27
27
27
27
15x10
20x10
10x10
5x10
IMPORTANT: Pre-drill before xing screws.
Parts Needed
Building Size
10x10 15x10 20x10
No.27
40mm Screws
QTY 4
QTY 12
QTY 6
QTY 24
QTY 8
QTY 36
Step 7
Place the assembled oors (No.27) along
side each other as shown in the diagram,
Secure the oors together using 12x40mm
screws per join. Ensure to go through the
oor cladding and into the framing.
Pre drill
hole
40mm
screw
27
27
27
27
10x10
27
27
27
27
27
27
15x10
27
27
27
27
27
27
27
27
20x10
*For 5x10 Buildings, please move onto Step 8 IMPORTANT: Pre-drill before xing screws.
a

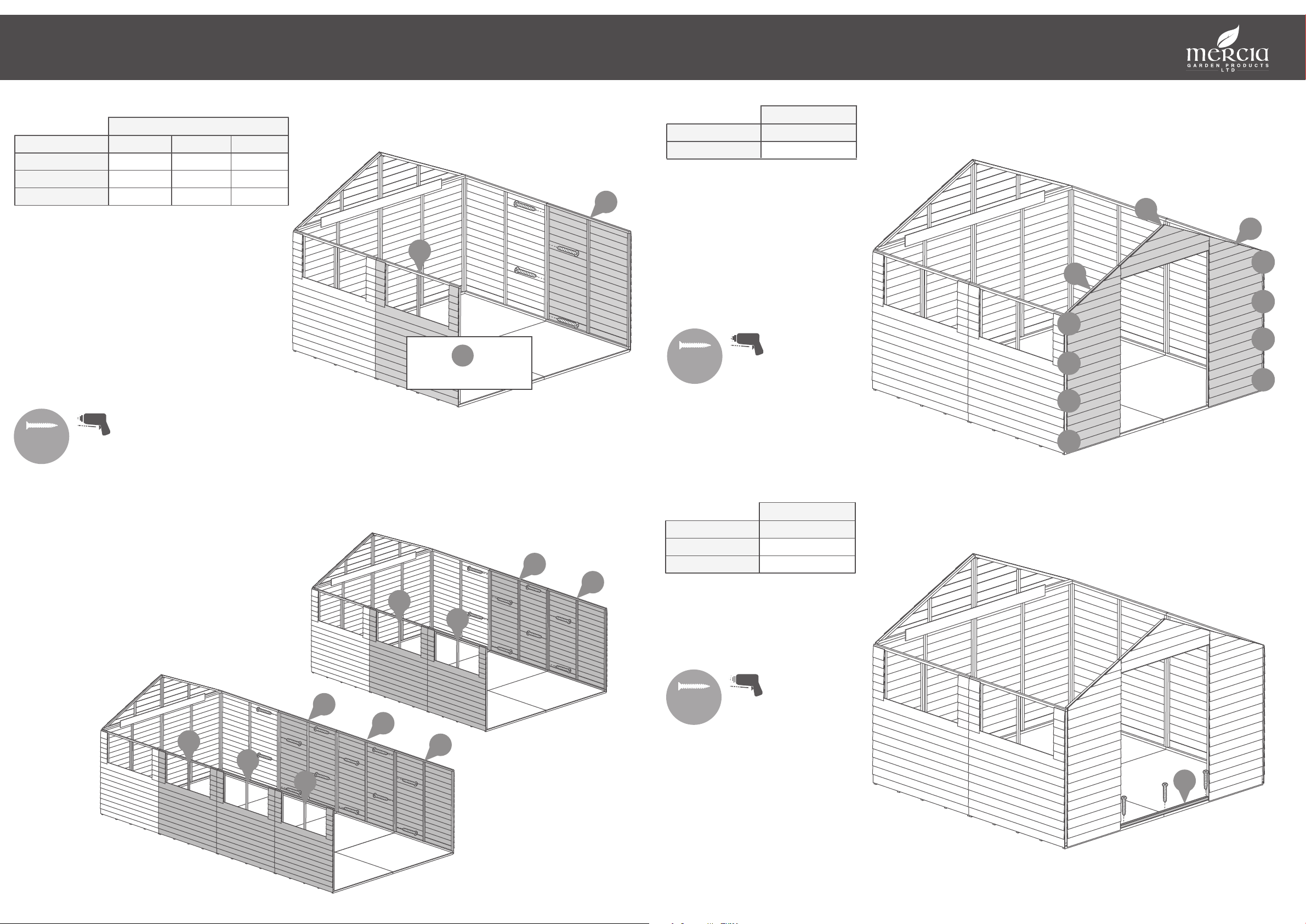

*Please note: Whether you have purchased the with windows
building or no windows building, the Window panel and plain panel
are interchangeable. Decide which works best before assembly.**
Parts Needed
No.7
50mm Screws
Building Size
All Sizes
QTY 1
QTY 4
7
Locate the Plain Panel (No.7) onto the oor.
Fix to the Back Gable Assembly at the
corner with 4x50mm screws as shown in
diagram.
Do not secure the building to the oor until
the roof is tted.
Position the panels so there is equal spacing
between the oor and cladding on all sides.
Pre drill
hole
50mm
screw
Step 8
a
a
a
a
3
4
IMPORTANT: Pre-drill before xing screws.
Parts Needed
No.26
50mm Screws
Building Size
All Sizes
QTY 1
QTY 4
Locate either the Window Panel (No.26)
or the Plain Panel (No.7) onto the oor.
Fix to the Back Gable Assembly at the
corner with 4x50mm screws as shown in
diagram.
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing between the oor and cladding
on all sides.
Pre drill
hole
50mm
screw
Step 9 *Please note: Whether you have purchased the with windows
building or no windows building, the Window panel and plain panel
are interchangeable. Decide which works best before assembly.**
Use for no
window buildings
7
a
a
a
a
26
a
IMPORTANT: Pre-drill before xing screws.
¢
7
26
7
26
7
26
7
26
7
26
Parts Needed
Building Size
10x10 15x10 20x10
No.7
No.26
QTY 1
QTY 1
QTY 8
QTY 2
QTY 2
QTY 16
QTY 3
QTY 3
QTY 24
50mm Screws
15x10
20x10
*For 5x10 Buildings, please move onto Step 11
Step 10
Using the same method continue to x either
Window Panels (No.26) or Plain Panels (No.7)
on to your shed. Fix at the joins using 4x50mm
screws per join in an alternating pattern as
shown in the diagram.
Ensure to position the panel so there is equal
spacing between the oor and cladding on
each side.
Do not secure the building to the oor until
the roof is tted.
**Please note: Whether you have purchased the with windows
building or no windows building, the Window panel and plain panel
are interchangeable. Decide which works best before assembly.**
Use for no
window buildings
7
Pre drill
hole
50mm
screw
7
26
IMPORTANT: Pre-drill before xing screws.
Parts Needed
50mm Screws
Building Size
All Sizes
QTY 8
Step 11
Locate the front Gable assembly onto
the oor and secure at the corners
using 4x50mm screws at each corner.
Ensure to position the panel so there
is equal spacing between the oor
and cladding on each side.
Do not secure the building to the
oor until the roof is tted.
Pre drill
hole
50mm
screw
a
a
a
a
a
a
a
a
6
2
1
IMPORTANT: Pre-drill before xing screws.
13
Parts Needed
No.13
50mm Screws
Building Size
All Sizes
QTY 1
QTY 3
Step 12
Fit the Door Framing (No.13)
between the Front Gable Left and
Right. Fix to the oor using 3x50mm
screws making sure the screws go
through to the oor framing.
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.

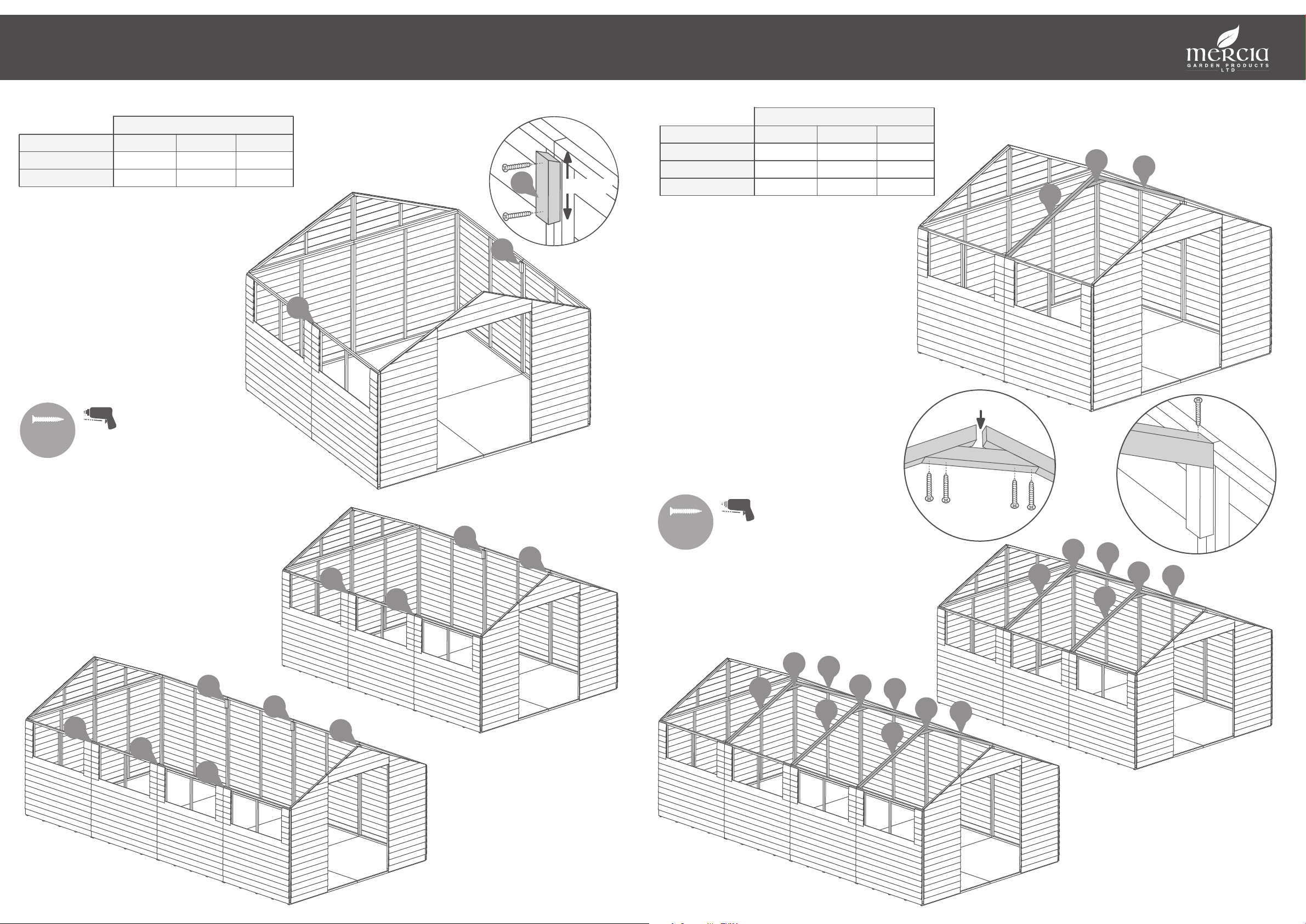

15x10
20x10
10x10
*For 5x10 Buildings, please move onto Step 16
Parts Needed
Building Size
10x10 15x10 20x10
No.39
50mm Screws
QTY 2
QTY 4
QTY 4
QTY 8
QTY 6
QTY 12
Step 13
Position the truss block (No.39) at
the top of the side panels framing,
The base of the truss block should be
spaced 164mm away from the top of
the panel framing.
Aligning the block centrally along the
join between the panels. Fix in place
by screwing through the block into
the panel framing using 2x50mm
screws.
Repeat for remaining blocks.
Pre drill
hole
50mm
screw
164mm
39
39
39
39
39
39
39
39
39
39
39
39
39
IMPORTANT: Pre-drill before xing screws.
Parts Needed
Building Size
10x10 15x10 20x10
No.32
No.37
QTY 1
QTY 1
QTY 6
QTY 2
QTY 2
QTY 12
QTY 3
QTY 3
QTY 18
50mm Screws
Step 14
Locate the Truss framing (No.32) onto the
truss blocks, secure using 1x50mm screw
going down through the truss framing and
into the truss block.
Once the truss framing is in place, locate the
truss support (No.37) to the underside of the
truss framing, ensuring it is ush on both
sides.
*Note: there should be a 28mm gap
between the truss framing at the top
Secure the truss support using 4x50mm
screws going through the support and into
the framing.
Repeat for each truss assembly.
Pre drill
hole
50mm
screw
37 32
32
37 32
32 37 32
32 37 32
32
37 32
32 37 32
32
28mm
IMPORTANT: Pre-drill before xing screws.

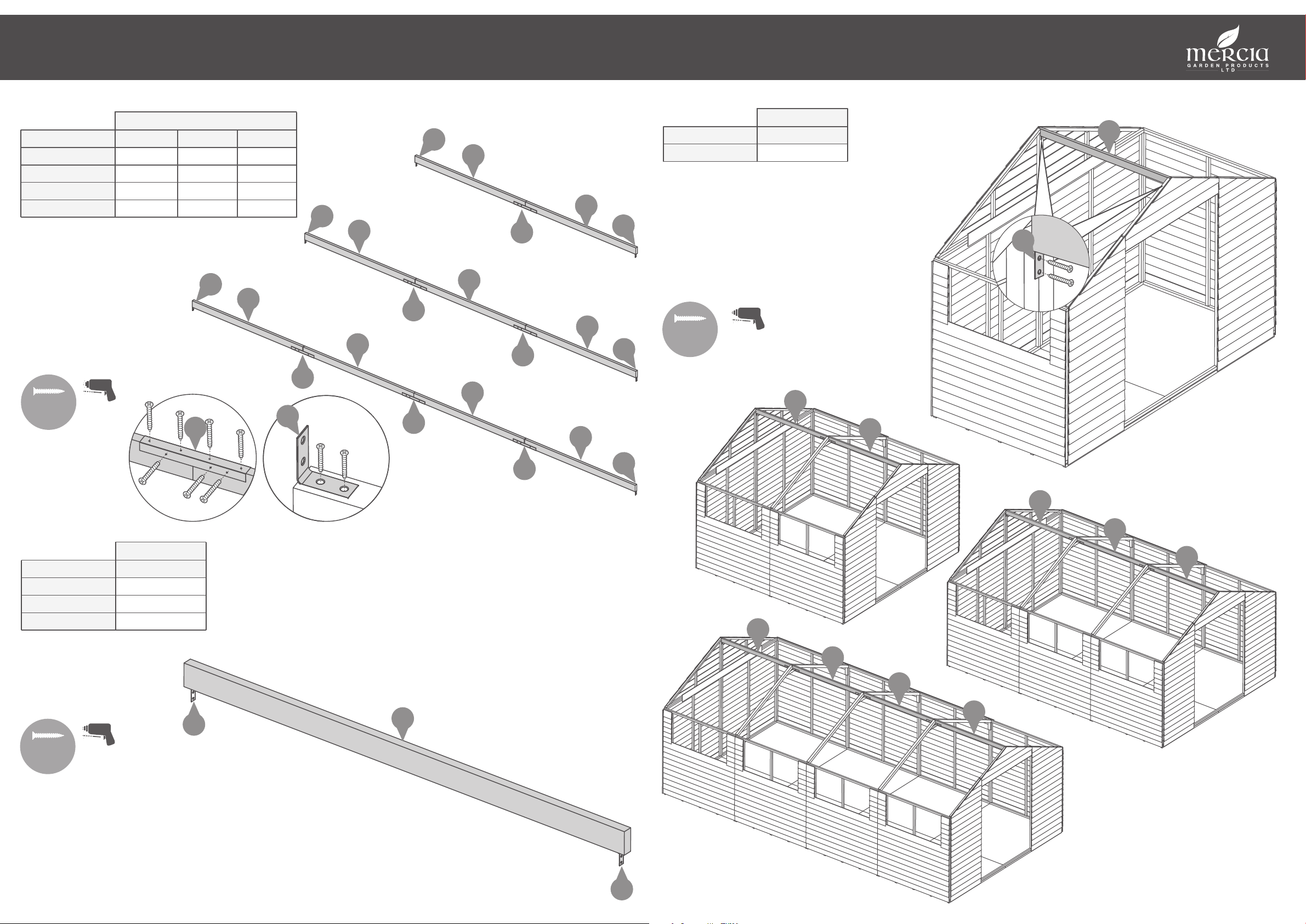

Parts Needed
Building Size
10x10 15x10 20x10
No.21
No.31
QTY 2
QTY 2
QTY 1
QTY 2
QTY 3
QTY 2
QTY 2
QTY 4
QTY 3
No.34
Pre drill
hole
30mm
screw
Step 15
31
31
31
31
31
31
31
31
31
34
34
34
34
34
34
10x10
15x10
20x10
34
QTY 14 QTY 24 QTY 34
30mm Screws
Position the two Ridge Bars
(No.31 or 41) within the U
channel (No.11) Secure using
10x30mm screws.
Secure a corner brace (No.9)
to either end of the ridge bar
using 2x30mm screws per
brace.
21
21
21
21
21
21
21
*For 5x10 Buildings, please move onto Step 16 IMPORTANT: Pre-drill before xing screws.
Secure a corner brace (No.9)
to either end of the ridge
bar (No.14) using 2x30mm
screws per brace.
14
21
21
Pre drill
hole
30mm
screw
Parts Needed
Building Size
5x10 Only
No.14
No.21
QTY 2
QTY 2
QTY 4
Step 16
30mm Screws
IMPORTANT: Pre-drill before xing screws.
Place the assembled ridge bar in between
the front and back Gables. Ensure the top
corners of the support bar are ush with
each top point of the Gable.
Secure the corner brace (No. 9) onto both
the Gables framing using 2x30mm screws
per corner brace.
Pre drill
hole
30mm
screw
21
14
31
31
31
31
31
31
31
31
31
Parts Needed
Building Size
5x10 Only
30mm Screws QTY 4
Step 17 IMPORTANT: Pre-drill before xing screws.
30
30
30
30
30
30
30
30
15x10
20x10
10x10
Parts Needed
Building Size
10x10 15x10 20x10
No.30
50mm Screws
QTY 2
QTY 8
QTY 4
QTY 16
QTY 6
QTY 24
Step 18
Position the truss supports (No.30)
onto either side of the truss framing,
ensuring they are ush at the top of
the framing and level.
Secure using 4x50mm screws per
Truss support, ensuring the screws
locations are staggered to avoid
collision.
Repeat for remaining Truss supports.
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
29
28
Parts Needed
Building Size
5x10 10x10 15x10 20x10
No.28
No.29
QTY 2
QTY 2
QTY 8
QTY 4
QTY 4
QTY 16
QTY 6
QTY 6
QTY 24
QTY 8
QTY 8
QTY 32
Place the Eaves framing (No.29) to the
Bottom of the Roof Sheet (No.28), ensuring
they are ush with the edge of the Roof
sheet. Secure using 4x30mm screws going
through the Roof sheet and into the eaves
framing.
Repeat this step to create the remaining
roof panel assemblies.
Step 19
30mm Screws
Pre drill
hole
30mm
screw
Parts Needed
Building Size
5x10 10x10 15x10 20x10
No.28
50mm Screws
QTY 2
QTY 8
QTY 4
QTY 16
QTY 6
QTY 24
QTY 8
QTY 32
15x10
20x10
5x10
10x10
Step 20
Pre drill
hole
50mm
screw
28
28
28
28
28
28
28
28
Place the Roof sheets (No.28) on top of
the building. From the top, x directly
through the roof sheet and into the
ridge bar below using 4x50mm screws
per roof sheet.
Note: You may require another person
pushing the ridge bar up from below to
achieve this.
28
28
28
28
28
28
28
28
28
28
28
28
IMPORTANT: Pre-drill before xing screws.
Parts Needed
Building Size
5x10 10x10 15x10 20x10
30mm Screws
40mm Screws QTY 16
QTY 8
QTY 24
QTY 16
QTY 32
QTY 24
QTY 40
5x10
15x10
20x10
10x10
Step 21
Fix the roof sheets to the panels
using 40mm screws, ensuring to go
through to the panel framing.
Fix the roof sheets to the Truss
framing using 4x30mm screws per
join in an alternating pattern.
*Note: for the 5x10, screw into
panel framing only
Pre drill
hole
30mm
screw
*For 5x10 Buildings, please move onto Step 22
40mm
screw
IMPORTANT: Pre-drill before xing screws.
¡
15x10
20x10
5x10
10x10
a
aa
a
aa
a
a
aa
a
a
a
a
aaaaaa
aa
aa
aa
aaaaaa
aa
aaaa
aaaa
aaaa
aaaa
aaaa
aaa
Parts Needed
Building Size
5x10 10x10 15x10 20x10
50mm Screws QTY 28 QTY 36 QTY 44
QTY 20
Step 22
Once the roof is fully xed, attach the
panels to the oor using 50mm
screws.
Ensure the screws go through the
panel into the oor framing.
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
a
Parts Needed
Building Size- Window Pack Only
5x10 10x10 15x10 20x10
No.33
No.35
QTY 5
QTY 2
QTY 1
QTY 10
QTY 4
QTY 2
QTY 15
QTY 6
QTY 3
QTY 20
QTY 8
QTY 4
No.36
QTY 18 QTY 36 QTY 54 QTY 72
30mm Screws
Step 23
33
33
a
b
c
d
a
b
c
IMPORTANT : Pre-drill before xing screws.
Fix 2 window strips (No.33) to the framing that sits
either side of the window, using 3x30mm screws
per trim.
Place the plastic window cill (No.36) onto the
Window Panel as shown in the illustration Fix
screws through the cill for extra support using
3x30mm screws.
Fit the styrene sheets (No.35) on top of the
window cill (No.36).
*For added weather protection t your windows
using silicone sealant around the outside edges.
**When positioning the styrene sheets ensure
there is an equal distance between them and
either side of the windows.
Locate the Window strips (No.33) onto the Window
Panel, one either side of the styrene slot in the
panel and one in the centre of the two pieces of
styrene, as shown in the illustration.
Fix in place using 3x30mm screws per Trim,
ensuring the screws enter the framing of the
window panel and not the styrene.
Repeat for remaining windows
d
SILICONE
SEALANT
35
35
Styrene
Window Cill
Cladding
Side View
36
33
33
33
Pre drill
hole
30mm
screw
20
Parts Needed
No.5
No.20
30mm Screws
Building Size
All Sizes
QTY 2
QTY 6
QTY 42
Step 24
Fix the T Hinges (No.20) onto the doors
(No.5) and door gable using 4x30mm
screws per hinge as shown.
Ensure that the screws go through the
cladding and into the framing behind.
Fix the Doors to the front gable using
3x30mm screws per hinge.
20
20
20
20
20
20
55
Door Framing View
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Parts Needed
No.12
No.19
No.22
30mm Screws
Building Size
All Sizes
QTY 4
QTY 2
QTY 2
QTY 18
Step 25
Place the door blocks (No.12) on top of
the internal framing on the top and
bottom of the doors and align the ends
to the centre.
Fix with 2x30mm screws per block by
screwing through the matchboard door
into the block.
Locate the Door Beading Strip (No.19)
into the gaps on either side of the
doors, between the gables and door.
Fix in place using 4x30mm screws per
strip. Ensure that the screw is parallel
with the door frame when xing the
strip to the gables as shown in the
illustration.
Attach one turn button (No.22) to the
top and bottom door blocks with
1x30mm screw per turn button.
Pre drill
hole
30mm
screw
19
12
22
22
22 12
12
12 12
12
12
19
19
IMPORTANT : Pre-drill before xing screws.
5x10
1570mm (L) X 1000mm (W)
15x10
4520mm (L) X 1000mm (W)
20x10
5990mm (L) X 1000mm (W)
10x10
3050mm (L) X 1000mm (W)
Step 26
Cut four strips of felt (No.25) to the
dimensions stated for your building size
and place onto the roof. Place the felt
at onto the roof in the order that is
stated on the diagram below.
*Ensure there is approximately 50mm
of overhang on each side.
Once the sheets are laid out, x them
onto the roof with felt tacks spaced
100mm apart.
HANDLE
WITH CARE
12
3
4
Felt
tacks
Parts Needed
Building Size
5x10 10x10 15x10 20x10
No.25-Size Required
Felt Tacks
3050mm
QTY 150
4520mm
QTY 225
5990mm
QTY 300
1570mm
QTY 75
25
1
2
3
4
100mm
Parts Needed
No.9
No.10
No.24
20mm Screws
Building Size
All Sizes
QTY 1
QTY 1
QTY 1
QTY 6
30mm Screws QTY 7
30mm
screw Pre drill
hole
Step 27
Locate the Door cover strips (No.9 and
No.10) onto the two doors, the longer
strip (No.9) at the bottom, ensuring it
is ush with the bottom of the doors,
and the shorter strip (No.10) at the
top, ensuring it is ush to the top of
the doors.
Fix the strips to one door (the right
hand door) using 20mm screws.
Fix the Hasp and Staple (No.24) to the
door using 7x30mm screws,ensuring
to go through the door cladding and
into the door blocks.
20mm
screw
24
10
9
24
15x10
20x10
5x10
10x10
16
16
Step 28
Place the panel cover trims (No.20) onto
each corner and panel join of the
building, secure using 3x30mm screws
per cover trim.
Pre drill
hole
30mm
screw
Parts Needed
Building Size
5x10 10x10 15x10 20x10
No.16
30mm Screws
QTY 7
QTY 21
QTY 9
QTY 27
QTY 11
QTY 33
QTY 5
QTY 15
16
16
16
16
16
16
16
16
16 16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
16
IMPORTANT : Pre-drill before xing screws.
11
Step 29
Locate the Back cover trim (No.11)
on the back of the building. Secure
in place using 3x30mm screws.
Pre drill
hole
30mm
screw
Parts Needed
No.11
30mm Screws
Building Size
All Sizes
QTY 1
QTY 3
IMPORTANT : Pre-drill before xing screws.
8
8
Step 30
Fit the Front panel Cover strip
(No.8) onto the front gable, so they
cover where the panels join
together.
Secure in place using 2x30mm
screws per cover trim.
Pre drill
hole
30mm
screw
Parts Needed
No.8
30mm Screws
Building Size
All Sizes
QTY 2
QTY 4
IMPORTANT : Pre-drill before xing screws.
Step 31
Fit the fascias (No.15) to the roof over
the felt and secure into place with
40mm screws as shown. Predrill to
avoid splitting.
Followed by adding the Finials
(No.23) over the fascias using
2x40mm screws per nial.
Pre drill
hole
40mm
screw
Parts Needed
No.15
No.23
40mm Screws
Building Size
All Sizes
QTY 4
QTY 2
QTY 16 15
15
23
15
15
23
IMPORTANT : Pre-drill before xing screws.
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
¡
¡
¡
¡
¡
¢
¡
¡¡
¢
£
¢
£
¤¥
¢
¤
1
2
3
4
5
6
7
8
9
Table of contents
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products Groundsman Dutch Barn 8x8 Instruction manual
Mercia Garden Products
Mercia Garden Products 06LOG003-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DDPENT1408-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN0407DSHSA-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVRA1006SDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 0644PNNE4256LBDDHGSD1SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX0705SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTOSBRA1008SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01RAW2010DDOW-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX0806SDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01PTOSBA0806SDFW-V2 User manual
Mercia Garden Products
Mercia Garden Products 01PTSHPMOW4803-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 03HEL1010DDFW-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 06LOG171SG-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634LOG174-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHRA1008FGC42TW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0619PNNE0324HGDD2SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01GRODB1008-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHAX0608FGD4MW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHPN0806PA-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01TDM0604SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products GROUNDSMAN 10 X 8 User manual
Mercia Garden Products
Mercia Garden Products 0619LOG003-V5 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVAX0806DDFW-V1 User manual
Popular Garden House manuals by other brands
Yardmaster
Yardmaster 66 ZGEY Assembly instructions
Lemeks
Lemeks Palmako PA120-5930-6 Assembly, installation and maintenance manual
Rion
Rion Hobby Gardener Assembly instructions
Select
Select ISAAC E9682 Assembly manual
Palmako
Palmako Saale installation manual
Palmako
Palmako Roger FR44-5953-2 installation manual
Lemeks
Lemeks Palmako Grace PM56-4529 Assembly, installation and maintenance manual
Shire
Shire Salcey Assembly
Pergola kits USA
Pergola kits USA PREMIUM VINYL PAVILION Assembly manual
G21
G21 Boston 882 manual
Rutland County
Rutland County Burley 6ft Assembly instructions
Palmako
Palmako Roger 27,7 installation manual
Gartenhaus-King
Gartenhaus-King Valery manual
Lemeks
Lemeks Palmako Kira EL16-3623 Assembly, installation and maintenance manual
Lemeks
Lemeks Palmako PA120-5930-9 Assembly, installation and maintenance manual
Lemeks
Lemeks Palmako PM70-6436 Assembly, installation and maintenance manual
Lemeks
Lemeks Palmako PM56-4435 Assembly, installation and maintenance manual
Lemeks
Lemeks 106214 Assembly, installation and maintenance manual
