Mercia Garden Products 0628RANE0504FGDD2TW1SW-V1 User manual

P 1
0628RANE0504FGDD2TW1SW-V1 (4x5m)
0628RANE0504FGDD2TW1SW-V1: 28mm Log Cabin, Reverse Apex, No Extras, 5x4, Fully Glazed Double Door, Two Tall Windows, One
Short Window.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions, The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.

Double Door Contents
Window Contents
P 2
0628RANE0504FGDD2TW1SW-V1
Overall Dimensions:
Width = 5036mm
Depth = 4141mm
Height = 2688mm
Base Dimensions:
Width = 4808mm
Depth = 3808mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Window QTY 1
AI-06LOGDGW684X1244-V3
Window QTY 2
AI-06LOGDGW684X1905-V3
2
1
3
4
5
Window Frame Left Upright - 71x70x1412mm QTY 1
AI-0628LOGWUFL-V3
Window Frame Right Upright - 71x70x1412mm QTY 1
AI-0628LOGWUFR-V3
Window Frame Top - 84x125x805mm QTY 1
AI-0628LOGWTF-V3
Window Frame Bottom - 71x70x805mm QTY 1
AI-0628LOGWBF-V3
15
16
17
Mortice Lock
QTY 1
PI-07-0017
Key Plate
QTY 1
PI-07-0017
Handles (Pair)
QTY 1
PI-07-0188
Adjustable Hinge QTY 6 PI-07-0209
Tower Bolt
QTY 2
PI-07-0114
Master Door QTY 1
(Morticed for lock)
AI-06LOGDGFGMD750X1900-V3
18
19
20
22
22a 22c
23 24 25 26
Secondary Door QTY 1
AI-06LOGDGFGSD750X1900-V3
Door Frame Left Upright - 71x70x2065mm QTY 1
AI-0628LOGDUFL-V3
Door Frame Right Upright - 71x70x2065mm QTY 1
AI-0628LOGDUFR-V3
Door Frame Top - 84x125x1632mm QTY 1
AI-0628LOGDDTF-V3
Door Frame Bottom - 71x70x1508mm QTY 1
AI-0628LOGDDBF-V3
Door Strip - 16x60x1880mm QTY 1
S1660-1880mm
14
21
Rain Guard QTY 1
RG2844-1520 (28x44x1520mm)
22b
11
12
13
Rain Guards QTY 3
RG2844-710 (28x44x710mm)
7
6
8
9
10
Window Frame Left Upright - 71x70x2065mm QTY 2
AI-0628LOGDUFL-V3
Window Frame Right Upright - 71x70x2065mm QTY 2
AI-0628LOGDUFR-V3
Window Frame Top - 81x125x808mm QTY 2
AI-0628LOGTWTF-V3
Window Frame Bottom - 71x70x688mm QTY 2
AI-0628LOGTWBF-V3
Flag Hinge QTY 2
PI-07-0211
Casement Stay Qty 1
PI-07-0187
Short Window Contents
Tall Window Contents

Felt
5
29
28
30
31
32
33
Main Buildings Contents
P 3
Storm Brace - 27x44x2000mm QTY 8
F2744-2000
44
45
46
42
43
Closure Trim - 16x28x2400mm (approx length) QTY 16
SI628-2400 (Bevelled)
Pre-assembly
*Please note:
Each board interlocks at
either end in a staggered pattern.
Before securing ensure that the boards
are tted properly in their respective
tongues and grooves.
Felt Tacks x 420
70mm Screw x156
80mm Screw x64
Nail Bag
40mm Screw x 932
30mm Screw x 172
70mm Bolt Set x16
Roof Spacers QTY 5
PI-07-0208 (20x100x2mm)
47
Please retain product label and instructions for future reference
Log Board - 28x120x4000mm QTY 25
LB28-A-4000
Log Board - 28x120x1625mm QTY 24
LB28-B-1625
Log Board - 28x120x734mm QTY 36
LB28-B-734
Log Board - 28x120x232mm QTY 36
LB28-C-232
34
35
Roof Board - 16x121x2114mm QTY 92
MB16-2114
Floor Board - 16x121x3752mm QTY 44
MB16-3752
36
Bearer - 44x44x2316mm QTY 26
F4444-2316-PT
37
Bearer - 44x44x3808mm QTY 4
F4444-3808-PT
38
Purlin - 45x120x5004mm QTY 5
F45120-A-5004
39
Fascia - 16x120x2118mm QTY 4
S16120-G-2118 (angled)
40
Fascia - 16x120x2518mm QTY 4
S16120-2518
41
Eaves Frame - 27x44x2502mm QTY 4
F2744-2502
Starter Board - 28x66x5000mm QTY 2
LB28RT66-A-5000
Log Board - 28x120x5000mm QTY 19
LB28-A-5000
Log Board - 28x120x4000mm QTY 1
LB28-AD-4000
Log Board - 28x120x5000mm QTY 1
LB28-AD-5000
Gable - 4000mm
QTY 2
AI-0628RANE0504-G-V1
27

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
IMPORTANT: Pre-drill before xing screws.
39
39
38
38
Pre drill
hole
70mm
screw
Step 1
Parts needed - No. 38 QTY 2
No. 39 QTY 2
Lay the bearers (No’s 38 & 39) onto a
rm and level surface (free from
areas where standing water can
collect) as shown in the illustration.
Fix the bearers together at each
corner using 8x70mm screws,
ensuring the frame is ush.
Once fully assembled, ensure the
bearers are square by measuring from
corner to corner as illustrated, making
sure the measurements are equal.
If the bearers are not aligned equally,
unscrew, adjust and re-align accord-
ingly.
8x70mm Screws
Example picture
2 screws per bearer per end.
=
=
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
38
38
Pre drill
hole
70mm
screw
Step 2
Parts needed- No. 38 QTY 11
Following the same method
arrange the remaining bearers (No.
38) inside the assembled frame.
*Ensure there is an equal
amount of space between each
frame.
Secure each of the bearers in
place using 2x70mm screws
for each side of the bearer,
ensuring the framing remains
level.
44x70mm Screws
38 38 38 38 38 38 38 38 38 38 38
Pre drill
hole
70mm
screw
Step 3
Parts needed- No. 38 QTY 13
No. 39 QTY 2
Repeat Steps 1 & 2 to create the
second base section.
*Ensure there is an equal
amount of space between each
frame.
Once built secure both base
sections together using 70mm
screws as shown in the
illustration.
64x70mm Screws
Please retain product label and instructions for future reference

P 5
28
Pre drill
hole
70mm
screw
Step 4
Parts needed - No. 28 QTY 2
No. 29 QTY 2
Place the starter boards (No.
28) and the rst two log boards
(No. 29) in the notch as shown
onto the assembled base frame
along the longest sides.
Ensure the boards sit square on
the base using the same
method used in Step 1. Meas-
ure corner to corner, making
sure the measurements are
equal.
Once the boards are square, lift
up the log boards (No. 29) and
x the starter boards in place
(No. 28).
Fix each of the starter boards to
the frame by screwing through
the notch into the frame as
shown in the illustration.
4x70mm Screws
IMPORTANT: Pre-drill before xing screws.
29
29
28
28
Step 5
Parts needed - No. 29 QTY 10
No. 32 QTY 12
No. 33 QTY 12
No. 34 QTY 6
Following the same method
outlined in Pre-Assembly, lay the
required boards (No’s. 29, 32,
33 & 34) onto the starter boards
to create your rst level.
*Ensure that the boards are
level and ush with each other
as you lay each one.
33
33
32
29
34 29
32
Rubber Mallet
may be required
to t parts.
IMPORTANT : Pre-drill before xing screws.
7
10
Step 6
Parts Needed - No. 7 QTY 2
No. 8 QTY 2
No. 9 QTY 2
No. 10 QTY 2
Arrange the left, right, top & bottom tall
window frames (No’s. 7, 8, 9, & 10) onto a rm
and level surface. Secure the top and bottom
frames to the uprights using 2x80mm screw per
corner, ensuring the screws do NOT protrude
through the front of the door framing.
Using the method outlined above, assemble the
two window frames.
16x80mm Screws
Pre drill
hole
80mm
screw
10 8
9
The internal lip of the window
frame should be positioned on
the inside of the building.
8
Please retain product label and instructions for future reference

P 6
IMPORTANT: Pre-drill before xing screws.IMPORTANT : Pre-drill before xing screws.
6
Step 7
Parts Needed - No. 6 QTY 2
Rest each window (No. 6) into the
assembled window frames as shown
in the illustration, and secure into
position by screwing through the
framing into the window. Use this
method to assemble the two windows.
*Place the frame & window at onto
a level surface to help x into place.
Use this method to assemble the two
windows.
32x80mm Screws
Pre drill
hole
80mm
screw
Step 8
Once you have laid rst level of
boards onto the log cabin, slide the
windows between the smaller
boards and rest on to the longer
board (if you have not yet
assembled the window frames refer
to step 6 & 7)
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may dier
from your choice in product
(regarding window position).
Nevertheless the process of tting the
window is the same
Step 9
Parts Needed - No. 16 QTY 1
No. 17 QTY 1
No. 18 QTY 1
No. 19 QTY 1
Arrange the left, right, top & bottom door
frames (No’s. 16, 17, 18 & 19) onto a level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the door framing.
8x80mm Screws
Pre drill
hole
80mm
screw
The internal lip of the door
frame should be positioned on
the inside of the building.
19 17
19
16
18
17
Please retain product label and instructions for future reference

P 7
IMPORTANT: Pre-drill before xing screws.
22a
Pre drill
hole
30mm
screw
15
14
22
Step 10
Parts Needed - No. 14 QTY 1
No. 15 QTY 1
No. 22 QTY 6
The Adjustable Door Hinge (No.22)
comes in three parts.
Fasten No. 22a into 22b as shown in the
illustration.
Once the framing is enclosed, place
the secondary and master doors
(No. 14 & 15) into the assembled frame
Fix the Adjustable door hinge (No.22c) to
the doors using 3x30mm screws per hinge.
Fix 3 x Adjustable Door Hinges (No.
22a&b) into position onto the door frame
using 4x30mm screws per hinge.
*Ensure the hinges are tted to the exter-
nal of the door frame so the doors open
outwards from the log cabin.
Locate the doors into the hinges ensuring
there is equal spacing on each side
between the doors and door frame, and
that the doors open and close freely with-
out restriction.
It is important to t the doors within the
frames at this stage so that you can estab-
lish the position of the hinges. The hinges
come in three parts. Remove the doors
from the framing after tting.
*Ensure to screw into the framing
and not into the channel.
42x30mm Screws
a
b
22b
a
b
Secondary Door Master Door
22
Step 11
To adjust and align your doors:
1. Lift up the doors to seperate the two
parts of the hinge.
2. Turn the rotating barrel (No.22a) in /
out to move the postion of the doors
either in or away from each other.
3. You can then place the door(s) back
on to the hinge and check whether they
require more / less adjustments, if
further adjustments are required repeat
number 2.
22a
Please retain product label and instructions for future reference
Step 12
Once you have laid 6 log boards (on top of the
starter board) up the door section, slide the
assembled door frame (without main doors)
over the boards resting the frame on top of the
starter board.
Please refer to steps 9 to construct your door
frame assembly.
*Please note: This image is for illustrative purposes
and may dier from your choice in product
(regarding door position). Nevertheless the
process of tting the door frame is the same.

P 8
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
2
4
Step 14
Parts Needed - No. 2 QTY 1
No. 3 QTY 1
No. 4 QTY 1
No. 5 QTY 1
Arrange the left, right, top & bottom window
frames (No’s. 2, 3, 4,& 5) onto a rm and level
surface. Secure the top and bottom frames to
the uprights using 2x80mm screw per corner,
ensuring the screws do NOT protrude through
the front of the window framing.
8x80mm Screws
Pre drill
hole
80mm
screw
5
3
53
Step 13
Parts needed - No. 29 QTY 6
No. 31 QTY 12
No. 32 QTY 12
No. 33 QTY 12
No. 34 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the next 6 boards (No’s. 29, 31, 32,
33 & 34) onto the log cabin to
create your second level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
29
31
31
34
33
33
32
32
Rubber Mallet
may be required
to t parts.

P 9
Please retain product label and instructions for future reference
Step 18
Parts needed - No. 29 QTY 1
No. 30 QTY 1
No. 34 QTY 1
No. 35 QTY 1
Following the same method
outlined in Pre-Assembly, lay
board (No. 29) and the board
that goes above the window
(No. 30). Afterwards add board
(No. 34) and the board that
goes above the door (No. 35)
onto the log cabin.
*Ensure that the boards are
level and ush with each
other as you lay each one.
30
29
34
35
Rubber Mallet
may be required
to t parts.
Step 17
Parts needed - No. 29 QTY 6
No. 31 QTY 12
No. 32 QTY 12
No. 33 QTY 12
No. 34 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the remaining boards (No’s. 29,
31, 32, 33 & 34) onto the
log cabin to bring the board
level to the top of the window
and door frames.
*Ensure that the boards are
level and ush with each
other as you lay each one.
*Doors can be hung once the
boarding has enclosed the
door frame.
31
31
34 29
32
33
33
32
Rubber Mallet
may be required
to t parts.
Step 16
Once you have laid the second level
of boards onto the log cabin slide the
windows frame (without main
window) between the boards (if you
have not yet assembled the window
frame refer to step 14.)
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may dier
from your choice in product
(regarding window position).
Nevertheless the process of tting the
window is the same.
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 15
Parts Needed - No. 1 QTY 1
No. 12 QTY 2

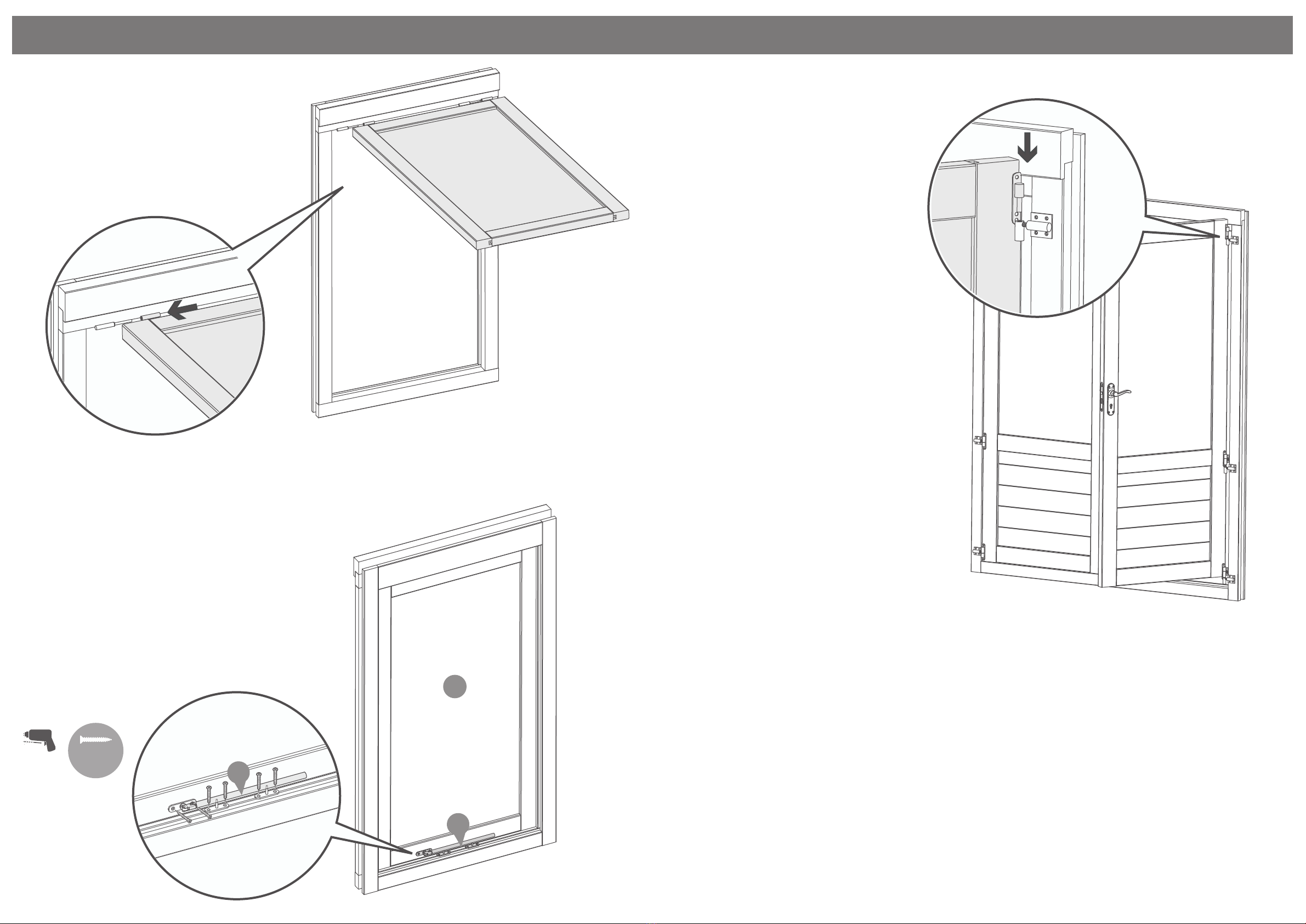

Position the window (No. 1) so that it
sits centrally within the window
frame. Fix the female part of the ag
hinge (No. 12) to the window using
4x30mm screws, attach the male part
of the ag hinge (No. 12) to the
window frame using 4x30mm screws
ensuring that the window can open
and close freely.
It is important to t the windows
within the frame at this stage so that
you can establish the position of the
hinges. The hinges come in two
parts. Remove the window from the
frame after tting.
*Ensure to attach the hinge to the
horizontal frame of the window*
16x30mm Screws
1
12
12
12

P 10
Please retain product label and instructions for future reference
Step 19
Parts needed - No. 27 QTY 2
Place the gable tops (No. 27) onto
the log cabin. Fix into position by
screwing through the notches
as shown in the illustration.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
27
27
Rubber Mallet
may be required
to t parts.
Pre drill
hole
Step 20
Parts needed - No. 40 QTY 5
Align the Purlin(s) (No. 40)
into the cut out slots on each gable
top ensuring each purlin
interlocks the boards.
Secure the Purlins at each
end by screwing through the bars
into the boards (ensure to pre-drill
to avoid the boards splitting)
using 4x70mm screws per purlin.
*Please note: The gable shown is for
illustrative purposes and may dier
in width from your choice in product.
Nevertheless, despite any dierences
the process of xing the purlins
is the same.
20x70mm Screws
70mm
screw
IMPORTANT: Pre-drill before xing screws.
a
b
a
40
b
40
40
40
40
40
40
Rubber Mallet
may be required
to t parts.

P 11
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
Step 21
Parts needed - No. 36 QTY 92
Place the rst two roof board’s
(No. 36) onto the log cabin on
each side, making sure the boards
are ush to the end of the roof
purlin. Once in position x to each
purlin using 4x40mm screws.
*Ensure the roof boards meet
at the top of the apex and leave
an overhang at the bottom.
Ensure the roof boards are not laid too
close together, use the spacers (No. 47)
provided to create a 2mm gap. Adjusting
the spacing between the boards allows
the wood to swell in damp weather.
*Please note that you have been
issued with 92 roof boards.
However, in reality you may only
need to use 90.
Continue adding the roof boards
along the roof, xing each one into
position using 4x40mm screws,
making sure that each board is
interlocked, ush at the bottom &
meet at the top of the apex.
The last board on each
side will overhang: Using a
straight edge and a pencil mark
out a line as a guide.
Cut along the pencil mark and
remove the excess. Place the
cut down board’s back onto the
roof and secure into place
using 4x40mm screws per
board.
*Please Note: This image is for illustrative
purposes and may dier from your choice in
product. Nevertheless the process of cutting
and tting the last roof boards is the same.
368x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
a
b
7
b
23b 36
36
a
Step 22
Parts needed - No. 43 QTY 4
Ensuring the roof boards are
ush at the overhanging side
and meet at the apex, x the
Eaves Frames (No. 43) to the
underside of the roof boards
using 9x40mm screws as shown
in the illustration.
*Please Note: This image is for
illustrative purposes and may
dier from your choice in
product. Nevertheless the process
of xing the eaves frames is the
same.
36x40mm Screws
40mm
screw
Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
28
43

P 12
Please retain product label and instructions for future reference
23
23
45
45
30mm
screw
Pre drill
hole
*Cut to t
Step 25
Parts needed - No. 45 QTY 8
Once the oor has been laid arrange the
closure trim (No. 45) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm spaced equally along the board
as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
48x30mm Screws
Roof
Closure Trim
Internal
23
*Measure and cut the
closure trims to
t the internal space.
Roof
Closure Trim
Internal
45
*Measure and cut the
closure trims to
t the internal space.
Pre drill
hole
30mm
screw
*trim to t
Step 24
Parts needed - No. 45 QTY 8
Inside the building place the closure
trim (No. 45) against the boarding
and align with the roof as shown in
the illustration.
Once in position x each trim
into place by pre drilling a pilot hole
and using 6x30mm screws per trim,
equally spacing them along the face
of the board.
48x30mm Screws
Step 23
Parts needed - No. 37 QTY 44
Place the rst Floor Board (No. 37)
inside the building ush to the log
board on one side. Continue adding
the oor boards (internally) making
sure to interlock each individual
board.
*Do NOT secure the boards until
the last board has been measured
and cut.
*Please note that you have been
issued with 44 oor boards. However,
in reality you may only need to use
43.
Following the same method outlined
previously measure the gap between
the bottom of the tongue (on the last
board placed) and the log board.
Using a straight edge mark out the
measurement onto the last oor
board (No. 37) and cut along the
length removing the excess.
**Please note: Mark the nal board
2mm under the measurement; This
will allow the timber to expand and
contract correctly.
Once all the oor boards are in
position secure each board into
position using 11x40mm screws.
***Please Note: Ensure to screw
through each of the oor boards
into the oor bearers.
484x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
37

P 13
Please retain product label and instructions for future reference
IMPORTANT : Pre-drill before xing screws.
Pre drill
hole
30mm
screw
Step 27
Parts Needed - No. 8 QTY 1
Fix the casement stay (No. 13) onto the
window (No. 1) and the casement stay pins
to the window framing using 6x30mm
screws.
*Ensure the casement stay is centralised on
the window.
Use this method to t the casement stays to
both the windows.
6x30mm Screws
1
13
13
Step 28
Lift each door onto the already existing
hooks on the door frame, ensuring the hook
and bands connect.
*Some adjustment may be required to
align properly.
Step 26
Lift each window onto the already existing
hooks on the window frame, ensuring the
hook and bands connect.
*Some adjustment may be required to
align properly.

P 14
Please retain product label and instructions for future reference
a
b
c
Step 30
Parts Needed - No. 20 QTY 1
No. 26 QTY 2
Attach the Door Strip (No. 20) to the
back of the secondary door using
4x40mm screws as shown.
Once xed, place the Tower
Bolts (No. 26) roughly into
position and with a pencil
mark the around the bolt.
After marking the bolt onto
the frame, drill a hole for the
barrel bolt to locate into.
Following the hole being
drilled, place the tower bolts
into position and secure using
the screws provided.
12x40mm Screws
Pre drill
hole
40mm
screw
IMPORTANT : Pre-drill before xing screws.
c
26
b
a20
Pre drill
hole
Step 29
Parts Needed - No. 23 QTY 1
No. 24 QTY 1
No. 25 QTY 1
Fit the Mortice lock (No. 24 into the
recess in the master door (No. 15) and
secure using the screws provided. Attach
the Key plate (No. 25) to the secondary door
(No. 14) with 4x30mm screws.
Fit the door handles (No. 23) and
connect with the metalbar to the mortice
lock using 8x30mm screws. Ensure the lock
mechanism closes correctly. If not, remove
the lock and turn the catch around by
pulling the spring loaded latch and turning
it 180 degrees.
*Please note: This image is for illustrative
purposes and may dier from your choice in
product (regarding ironmongery). Neverthe-
less the process of xing the frames is the
same.
Once components have been tted, try closing
doors to ensure the doors can be closed and
the lock works.
If your doors do need adjusting please look at
step 11.
12x30mm Screws
a
b
30mm
screw
The Mortice Lock is Reversible
a
b
25 24
14 15
23

P 15
Please retain product label and instructions for future reference
HANDLE
WITH CARE
12
3
4
1. 2.
3. 4.
5.
Felt
tacks
Step 31
Parts needed - No. 46
Cut the felt (No. 46) into ve strips &
lay onto the roof in the order shown
in the illustration.
*Ensure there is approximately
50mm of overhanging felt each
side.
Once the felt is laid out x to the
roof using felt tacks at 100mm
intervals.
*Felt size: 5140mm
420x Felt Tacks
46
46
Pre drill
hole
70mm
bolt
44
44
Step 32
Parts needed - No. 44 QTY 8
Arrange the storm braces (No. 44) around
the building (internally). Place 2x storm
braces per side xing into place using 2x
70mm bolts per brace making sure the
washer & nut are tightened from the
outside of the building.
*Ensure the storm braces are secured at
the highest point possible on each side.
The storm braces will need to be altered
during the buildings life as the moisture
content within the log boards changes.
The boards will expand during periods of
high moisture (Winter) and shrink during
periods of low moisture (Summer.)
**Storm braces will help your building
expand and contract properly.
***It is important that each bolt is
tightened using a washer so as not to
damage the log boards.
16x70mm Bolt Sets

P 16
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
Please retain product label and instructions for future reference
IMPORTANT : Pre-drill before xing screws.
Step 33
Parts Needed: No. 11 QTY 3
No. 21 QTY 1
Attach the Rain Guards (No. 11) to the
Window frame, xing in place onto
the framing above the window using
3x70mm screws per guard.
Attach the Rain Guard (No. 21) to the
Door frame, xing in place onto the
framing above the Door using
3x70mm screws.
12x70mm Screws.
70mm
screw
Pre drill
hole
11
11
11
11 21
Step 34
Parts needed - No. 41 QTY 4
No. 42 QTY 4
Align the shorter Fascia’s
(No. 41) with the sides of the
roof and x using 4x40mm
screws per fascia. Do the
same with the longer Fascia’s
(No. 42) to the front and back
of the roof. Ensure to screw
through the fascia into the
roof purlins and eaves frame.
*Ensure the angled cuts
meet at the top of the apex.
32x40mm Screws
Pre drill
hole
40mm
screw
41
42
42
41
41
42
42
41
IMPORTANT: Pre-drill before xing screws.
