Mercia Garden Products 03BRN0705-V5 Instruction manual

P 1
03BRN0705-V5
7X5 BOURNEMOUTH SUMMERHOUSE
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All building’s should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy or
extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treatment
to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions,
The base should be slightly smaller than the external measurement of the building, i.e. The cladding should overlap
the base, creating a run o for water. It is also recommended that the oor be at least 25mm above the surrounding
ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Refer to the instructions pages for your specic product code
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:

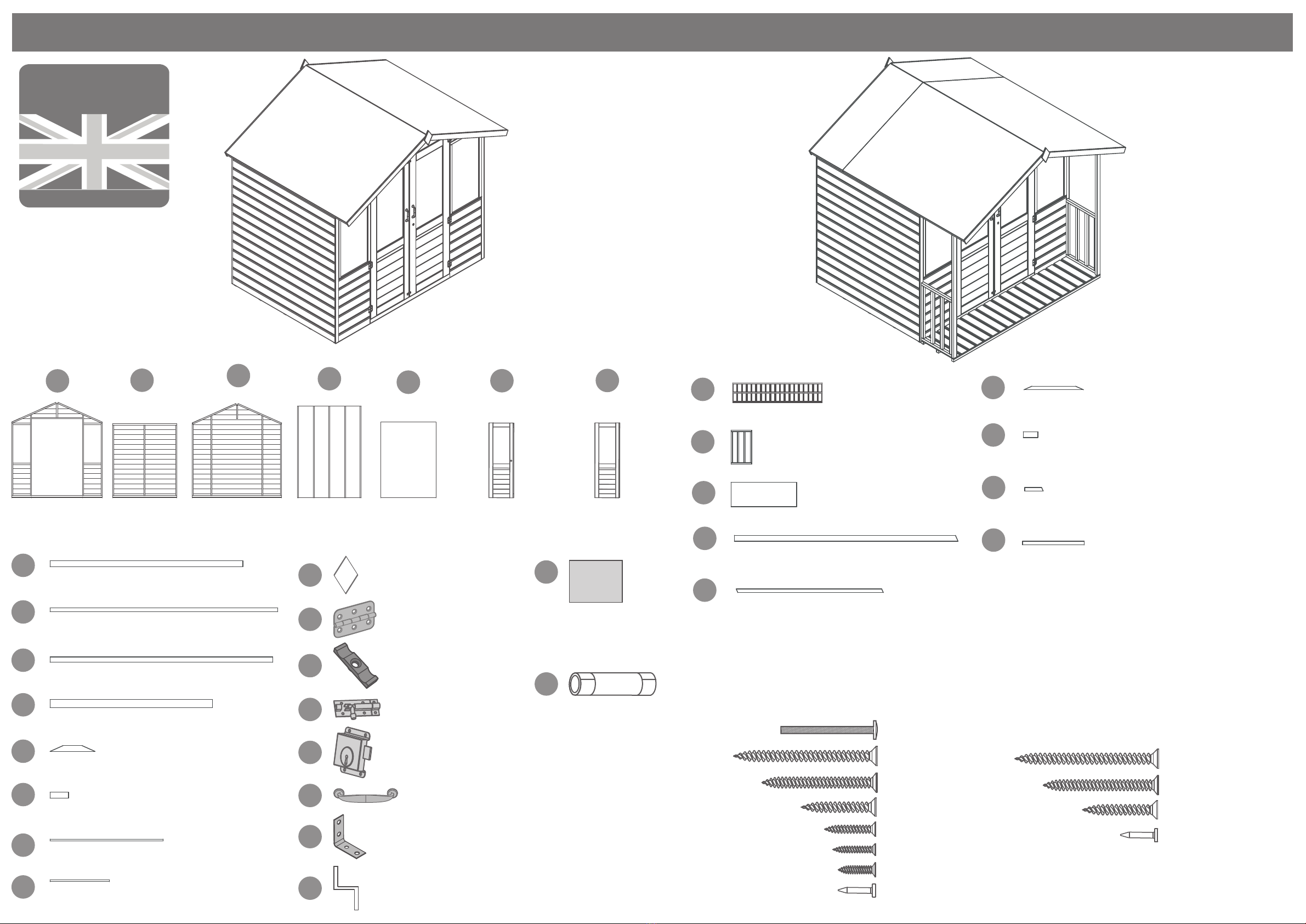

P 2
03BRN0705-V5
Overall Dimensions:
Length = 1768mm
Width = 2291mm
Height = 2181mm
Base Dimensions:
Length = 1448mm
Width = 2082mm
Overall Dimensions:
Length = 2233mm
Width = 2291mm
Height = 2181mm
Base Dimensions:
Length = 1939mm
Width = 2082mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
12345
8
9
567
Door Gable
AI-03BRN0705DG-V5
Plain Side
QTY 2
AI-03BRN0705PS-V4
Plain Gable
AI-03BRN0705PG-V5
Veranda Floor
AI-03BRN0702VF-V1
Veranda Side Rail QTY 2
AI-03BRN0702CR-V1
Floor
AI-03BRN0705F-V4 Roof Sheet
QTY 2
PI-03-0019
Ridge Bar - 27x44x1457mm
F2744-1457mm
Veranda Frame - 27x44x1690mm QTY 2
F2744-G-1710mm
Roof Truss - 27x44x1111mm QTY 2
F2744-G-1151mm
Eaves Frame - 28x28x465mm QTY 2
FS2828-465mm
Roof Truss Block A - 27x44x110mm QTY 2
F2744-110mm
Roof Truss Block B - 27x44x160mm QTY 2
F2744-G-160mm
Roof Truss Support - 27x44x490mm
F2744-G-490mm
Felt
Eaves Frame - 28x28x1720mm QTY 2
FS2828-1720mm
Cover Trim - 12x40x1682mm QTY 4
S1240-1682mm
Fascia - 12x60x1227mm QTY 4
S1260-1227mm
Angled Fascia Block - 44x44x340mm
F4444-G-380mm
Fascia Block - 27x44x140mm QTY 2
F2744-140mm
Finial QTY 2
Shed Diamond Finial
Butt Hinge QTY 6
PI-07-0066
Turn Button QTY 2
PI-07-0034
Tower Bolt QTY 2
PI-07-0114
Presslock
PI-07-0162
Door Handle QTY 2
PI-07-0081
Master Door
AI-03HGMD569X1720-V1
Slave Door
AI-03HGD569X1720-V1
Window Strip - 12x30x855mm QTY 4
S1230-855mm
Window Strip - 12x30x449mm QTY 2
S1230-449mm
12
13
14
15
16
17
20
21
22
24
26
29
30
31
32
33
25
34
27
28
18
19
10
11
0705 Pack A
Purchased Pack component list
7x5 7x7
0702 Pack B
Purchased Pack component list
Window Cill 449mm QTY 2
PI-08-0024
Styrene QTY 2
PI-05-0232
40mm screws x 24
50mm screws x 30
30mm screws x 62
25mm screws x 36
16mm screws x 6
10mm screws x 8
35mm bolt x 4
Nail Bag
There may be extra screws present in the nail bag
Pack A Pack B
Felt Tacks x 75
Roof Sheet QTY 2
PI-03-0377
40mm screws x 18
50mm screws x 16
30mm screws x 18
Felt Tacks x 45
Pack A Pack A & Pack B
Corner Bracing QTY 2
PI-07-0012
23

P 3
Please retain product label and instructions for future reference
Pre Assembly
Remove the transportation blocks
from the bottom of each panel
before beginning the assembly.
Step 1
Parts needed - No. 4 QTY 1
Place the oor onto a rm and
level base. Ensure the base has
suitable drainage & is free from
areas where standing water can
collect.
4
Step 2
Parts needed - No. 1 QTY 1
No. 23 QTY 2
No. 24 QTY 2
Place the Door Gable (No. 1) on the oor.
Place the plastic window cill (No. 23) onto
the external lip of the window panel.
Lay the styrene (No. 24) on top of both
openings so that it overlaps the surrond-
ing framing equally on both sides as per
the diagram.
24 24
Styrene Styrene
1
23 23
Side View
Styrene
Window Cill
Cladding
Pre drill
hole
30mm
screw
Step 3
Parts needed - No. 14 QTY 4
No. 15 QTY 2
Attach the window strips (No. 14 & 15)
using 30mm screws as per the diagram.
Ensure the framing does not protude the
width of the window frame.
Ensure you screw into the window strips
to the side of where the styrene meets
the window frame.
18x30mm screws
Styrene
Styrene
1515
14 14
Pre drill
hole
25mm
screw
17
6
7
Step 4
Parts needed - No. 6 QTY 1
No. 7 QTY 1
No. 17 QTY 6
Attach the doors (No. 6 & 7)
to the door gable with 3x butt
hinges (No. 17)per door using 36x25mm
screws.
Ensure to screw the hinges (No. 17)
into the Door Gable (No. 1) framing.
**DO NOT SCREW INTO THE
WINDOW STRIPS.**
36x25mm Screws
1

P 4
Please retain product label and instructions for future reference
For assistance please contact customer care on: 01636 880514
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Pre drill
hole
50mm
screw

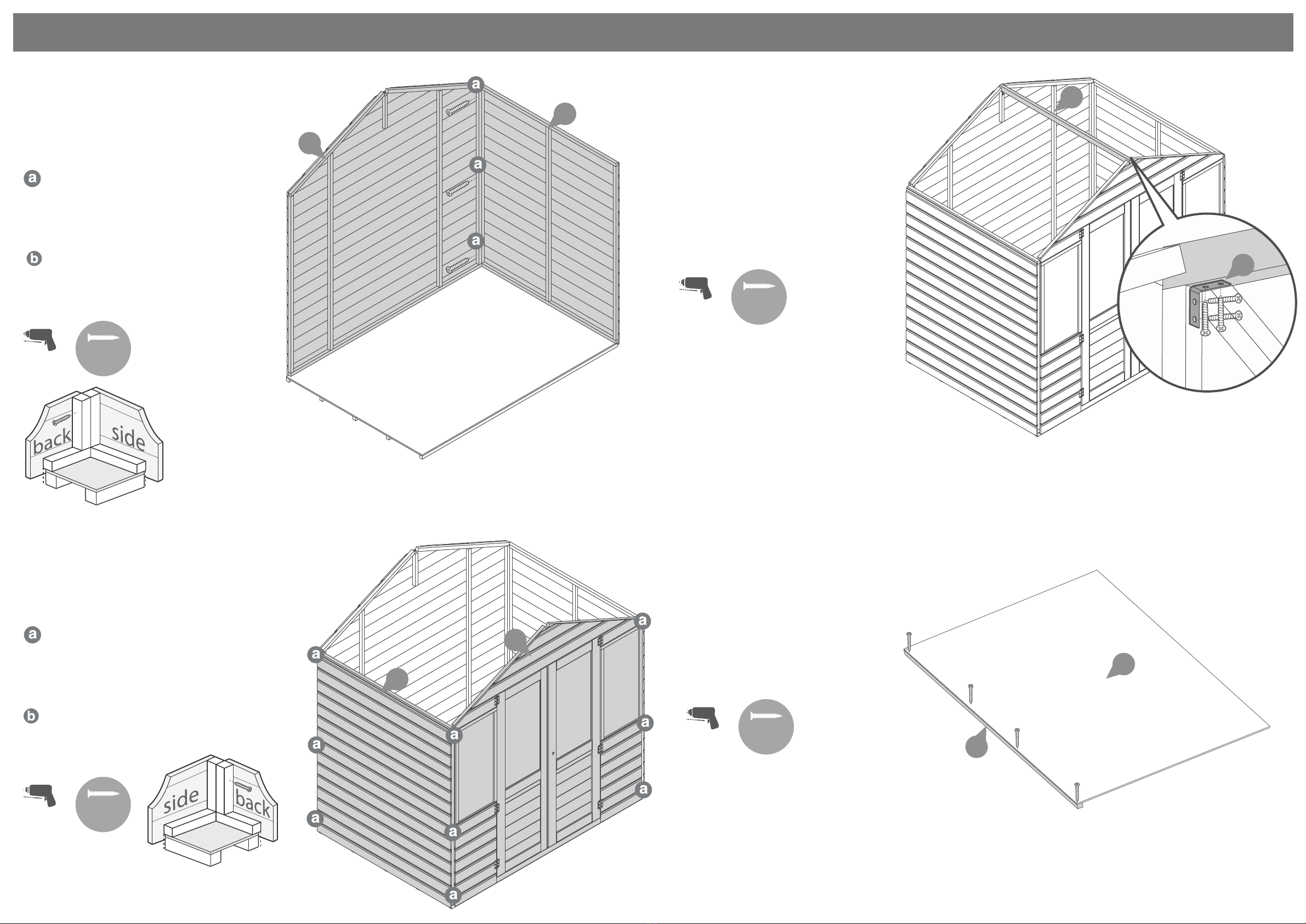

Step 5
Parts needed - No. 2 QTY 1
No. 3 QTY 1
Place the Plain Gable (No. 3) and the rst Plain
Side (No. 2) onto the oor.
Fix the corners with 50mm screws
as shown in the illustration,
making sure the gable sits inside
the panel.
Do not secure the building to the
oor until the roof is tted.
3x50mm Screws
3
2
1
Pre drill
hole
50mm
screw
Step 6
Parts needed - No. 1 QTY 1
No. 2 QTY 1
Place the door gable (No. 1) and the second plain
side (No. 2) onto the oor.
Fix the corners with 50mm screws
as shown in the illustration,
making sure the gable sits inside
the panel.
Do not secure the building to the
oor until the roof is tted.
9x50mm Screws
2
Step 7
Parts needed - No. 8 QTY 1
No. 22 QTY 2
Place the Ridge Bar (No. 8) inbetween
the gables, resting on top of the blocks.
Secure to the gables using a Corner
Brace (No. 22) at each end using
4x30mm screws per brace.
8x30mm Screws
Pre drill
hole
30mm
screw
8
22
Step 8
Parts needed - No. 5 QTY 2
No. 9 QTY 2
Fix an eaves frame (No. 9) to the
edge of each roof sheet (No. 5)
with 4x30mm screws per
frame. Repeat the process to
create both sides of the roof.
8x30mm Screws
Pre drill
hole
30mm
screw 9
5

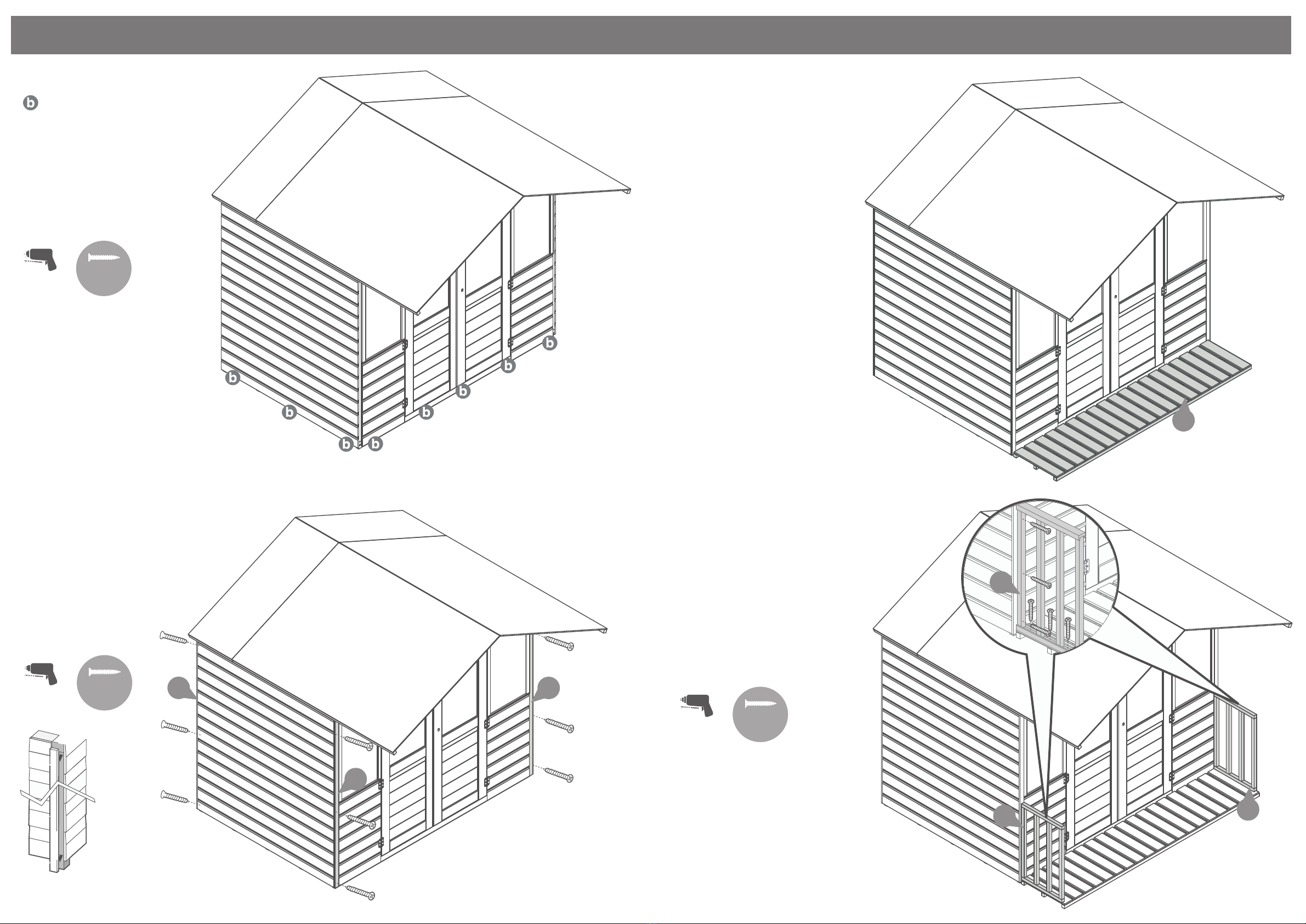

**If you have purchased a 7x7 Summer House with Pack B extension
then skip to step 8a**

P 5
Please retain product label and instructions for future reference
Step 9
Place the assembled roof panels
onto the building as shown in
the illustration.
Fix into place using 8x30mm
screws per side, ensuring the
roofs are ush with the top of
the gables.
*The roof panels should be level
with the back of the building
leaving an overhang over the
front.
16x30mm Screws
Pre drill
hole
30mm
screw
Step 10
Once the roof is xed in place,
secure the building to the oor
using 18x50mm screws.
*Ensure to screw through the
framing into the oor bearers.
18x50mm Screws
Pre drill
hole
50mm
screw
Step 11
Parts needed - No. 10 QTY 4
Attach the cover trims (No. 10)
to each corner of the building
using 3x30mm screws per
cover trim.
12x30mm Screws.
Pre drill
hole
30mm
screw
10
10
10
12 13
13
Step 12
Parts needed - No. 12 QTY 1
No. 13 QTY 2
Fit the angled fascia block (No. 12)
to the apex of the roofs, making
sure it is ush with the roof
sheet, securing in place with
4x40mm screws.
Attach the rectangular blocks
(No. 13) approximately half way
along each roof sheet, xing into
place with 2x40mm screws
per block.
8x40mm Screws
Pre drill
hole
40mm
screw

P 6
Please retain product label and instructions for future reference
Felt
tacks
HANDLE
WITH CARE
12
3
4

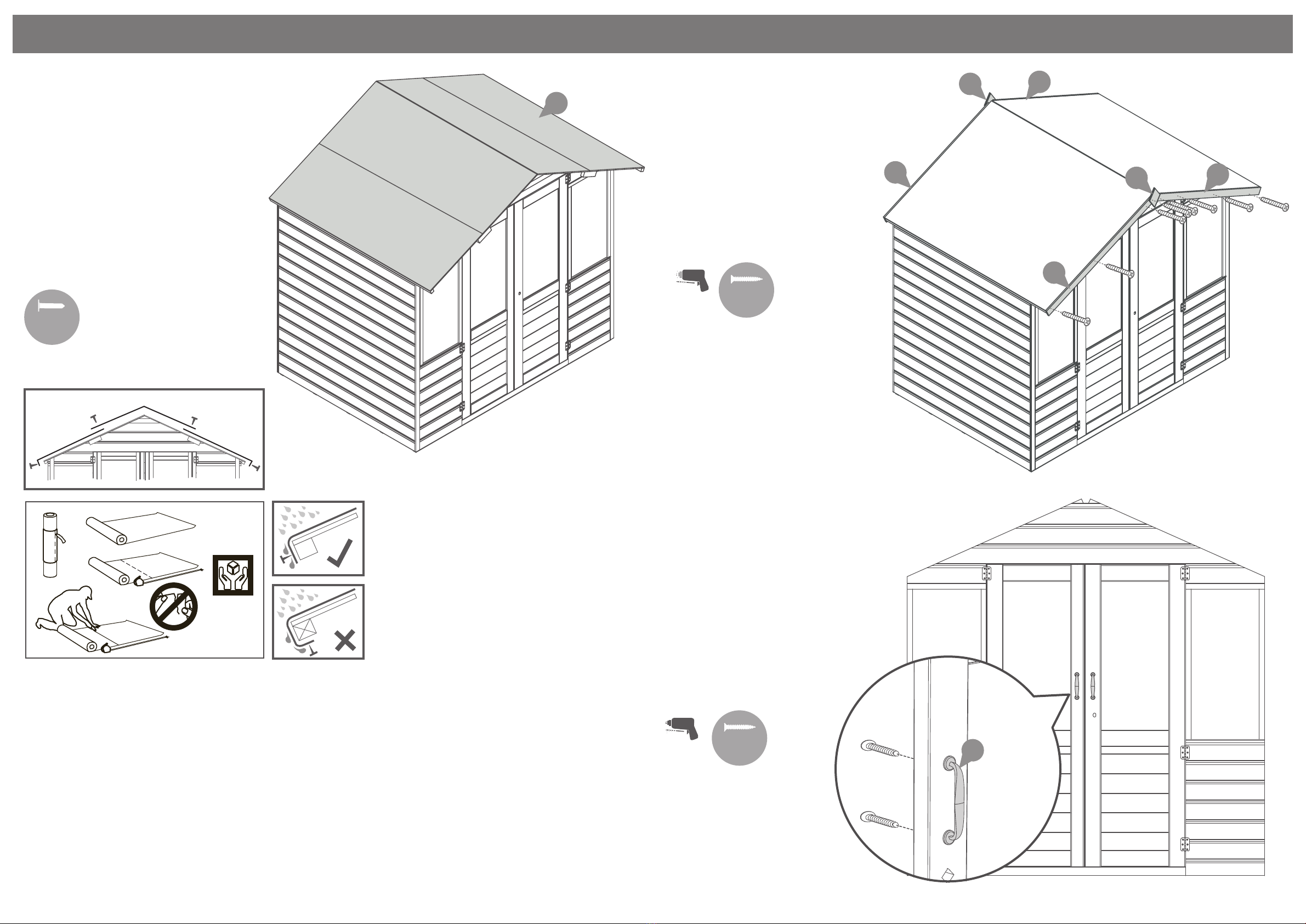

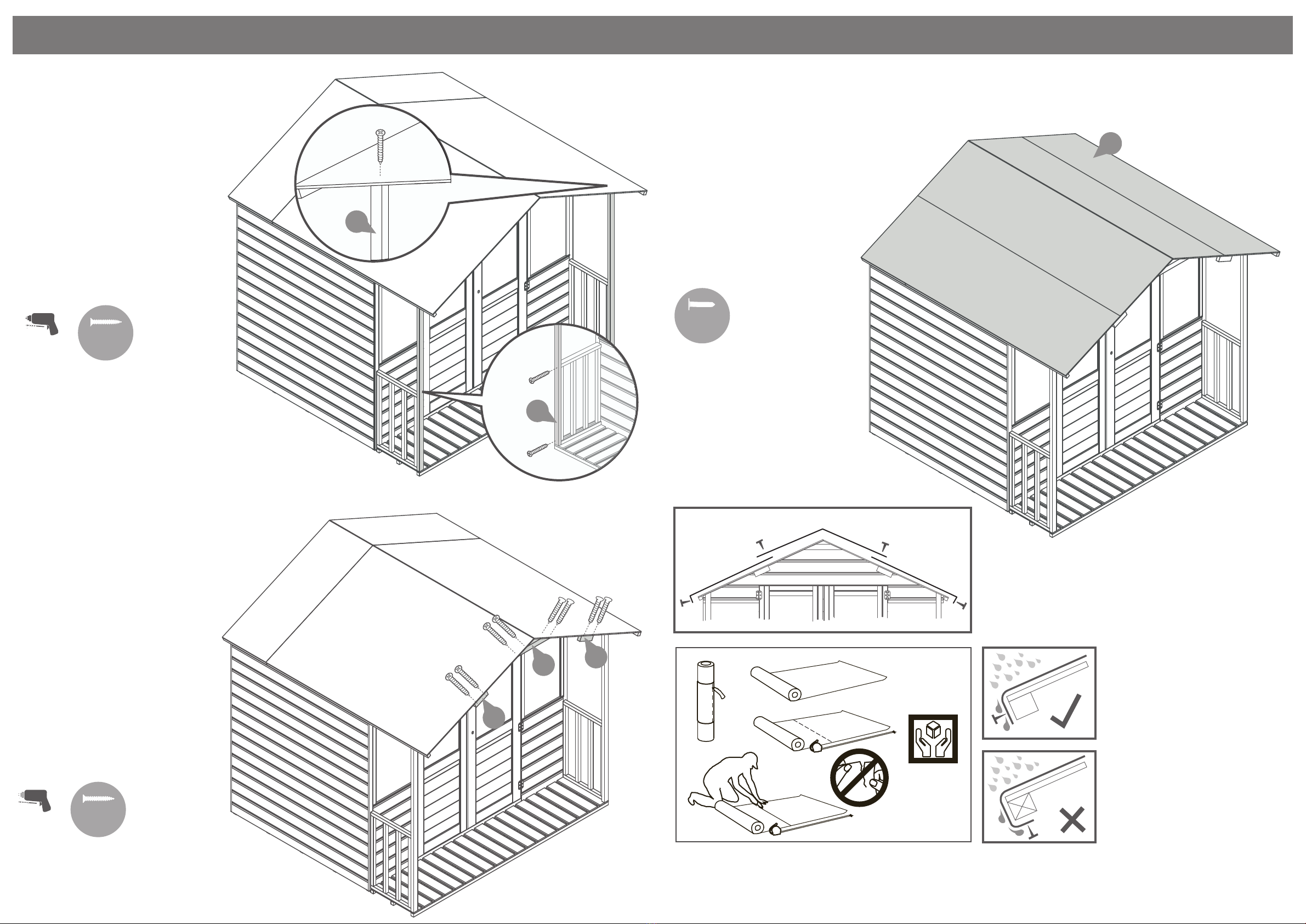

Step 13
Parts needed - No. 25 QTY 1
Cut the felt (No. 25) into 3 sheets and lay onto
the roof as shown in the illustration
ensuring there is approximately 50mm
of overhang around the building.
Fix onto the building using 75x felt tacks
at 100mm intervals.
75x Felt Tacks
*Felt size: 1870mm
25
Step 14
Parts needed - No. 11 QTY 4
No. 16 QTY 2
Fix the fascias (No. 11) and nials
(No. 16) to the building using 6x40mm
screws per side (3 screws per fascia
and 2 screws per nial), ensuring to
screw through the boards into the
fascia blocks.
16x40mm Screws
Pre drill
hole
40mm
screw
11
11 11
11
16
16
Step 15
Parts needed - No. 21 QTY 2
Attach the door handles (No. 21)
to the doors using the 35mm bolts
included with the door handle.
Pre drill a hole approximately
3mm and x the handle from
the inside with the provided
bolts
4x35mm Bolt
Pre drill
hole
35mm
bolt 21

P 7
Please retain product label and instructions for future reference
20
Step 16
Parts needed - No. 20 QTY 1
Fix the presslock (No. 20) to the inside of
the master door, making sure to align the
barrel and the key hole.
Secure to the master door with
4x16mm screws.
*Ensure the key turns fully without
any restrictions.
4x16mm Screws
Pre drill
hole
16mm
screw
Step 17
Parts needed - No. 19 QTY 2
Attach to the tower bolts (No. 19)
to the top and bottom of the slave
door using 4x10mm screws per bolt.
*Mark the position of the bolt
with a pencil on the framing
and drill a hole to site the
bolts.
8x10mm Screws 19
Pre drill
hole
10mm
screw
Step 18
Parts needed - No. 18 QTY 2
Fix the turn buttons (No. 18) into
place at the top and bottom of
door as shown in the diagram.
The turn buttons help to keep the
doors alligned during high and
low levels of moisture.
2x16mm Screws
Pre drill
hole
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
16mm
screw
Slave Door
Locking Door
18

Please retain product label and instructions for future reference
Step 9a
Parts needed - No. 30 QTY 2
No. 31 QTY 1
Fix Roof Truss (No. 30) to the Roof Truss
Block B (No. 33) and ridge bar (No. 8)
with 8x40mm screws. Attach the Roof
Truss support (No. 31) to the trusses
with 4x40mm screws
**Do NOT x to the base
framing until the Roof is
secured**
12x40mm Screws
Pre drill
hole
40mm
screw
33
30
30
30
30
30
31
31
Pre drill
hole
30mm
screw
34
28
5
9
Step 10a
Parts needed - No. 5 QTY 2
No. 9 QTY 2
No. 28 QTY 2
No. 34 QTY 2
Fix the Eaves Frames (No. 9) to the long-
est side of the Roof OSB (No. 5) with
4x30mm screws per Eaves frame.
Fix eaves frame (No. 34) to shortest side
of Roof OSB (No. 28) with 2x30mm
screws per Eaves frame . Repeat the
process to create both sides of the roof.
**Ensure you x the eaves frame to the
roof before you place the roof on the
building.
**Do NOT x to the base framing
until the Roof is secured**
12x30mm screws.
Step 11a
Place the assembled roof panels
onto the building as shown in
the illustration.
Fix into place using 14x30mm
screws per side, ensuring the
roofs are ush with the top of
the truss and gables.
*The roof panels should be level
with the back of the building
leaving an overhang over the
front.
28x30mm Screws
Pre drill
hole
30mm
screw
P 8
400mm
33
32
Step 8a
Parts needed - No. 32 QTY 2
No. 33 QTY 2
Place Roof Truss Block A (No. 32) under the
top framing of Plain side (No. 2). Measure
400mm from the edge of the roof truss blocks
to the back wall framing. Fix the block by
screwing through from the outside of the
panel with a 30mm screw.
Then Place Roof Truss Block B (No. 33) to
have the bottom ush with the bottom of
Roof Truss Block A (No. 32). Fix to the plain
side using 2x50mm screws.
**Do NOT x to the base framing until the
Roof is secured**
2x30mm Screws
4x50mm Screws
Pre drill
hole
30mm
screw
50mm
screw
32

Please retain product label and instructions for future reference
Step 12a
Once the roof is xed in place,
secure the building to the oor
using 18x50mm screws.
*Ensure to screw through the
framing into the oor bearers.
18x50mm Screws
Pre drill
hole
50mm
screw
Step 13a
Parts needed - No. 10 QTY 4
Attach the cover trims (No. 10)
to each corner of the building
using 3x30mm screws per
cover trim.
12x30mm Screws.
10
10
10
Pre drill
hole
30mm
screw
Step 15a
Parts needed - No. 27 QTY 2
Align the Veranda Side Rails (No. 27)
against the door gable and ush to
ends of the veranda oor, secure to
the building and to veranda oor
with 6x50mm screws per side as
shown in the illustration.
12x50mm Screws
Pre drill
hole
50mm
screw
27
27
27
Step 14a
Parts needed - No. 26 QTY 1
Place the Veranda Floor (No. 26) on
the ground ush to the door gable
as shown in the illustration.
*Ensure the veranda oor sits
centrally to the building.
26
P 9

P 10
Please retain product label and instructions for future reference
29
29
Step 16a
Parts needed - No. 29 QTY 2
Place the Veranda Frame (No. 29)
underneath the roof overhang, aligning
the frame ush to edge of the veranda
rail.
Secure to the veranda rail and to the
roof using 3x40mm screws per frame.
*Ensure the framing follows the
same direction as the roof.
6x40mm Screws
Pre drill
hole
40mm
screw
Step 17a
Parts needed - No. 12 QTY 1
No. 13 QTY 2
Fit the angled fascia block (No. 12)
to the apex of the roofs, making
sure it is ush with the roof
sheet, securing in place with
4x40mm screws.
Attach the rectangular blocks
(No. 13) approximately half way
along each roof sheet, xing into
place with 2x40mm screws
per block.
8x40mm Screws
Pre drill
hole
40mm
screw
12
13
13
Felt
tacks
HANDLE
WITH CARE
12
3
4
Step 18a
Parts needed - No. 25 QTY 1
Cut the felt (No. 25) into 3 sheets and lay
onto the roof as shown in the illustration
ensuring there is approximately 50mm
of overhang around the building.
Fix onto the building using 75x felt tacks
at 100mm intervals.
120x Felt Tacks
*Felt size: 2333mm
25

P 11
Please retain product label and instructions for future reference
11
Step 19a
Parts needed - No. 11 QTY 4
No. 16 QTY 2
Fix the fascias and nials to the
building using 8x40mm screws
per side (3 screws per fascia and
2 screws per nial), ensuring to
screw through the boards into
the fascia blocks.
16x40mm Screws
Pre drill
hole
40mm
screw
16
16
11
11
Step 20a
Parts needed - No. 21 QTY 2
Attach the door handles (No. 21)
to the doors using the 35mm bolts
included with the door handle.
Pre drill a hole approximately
3mm and x the handle from
the inside with the provided
bolts
4x35mm Bolt
Pre drill
hole
35mm
bolt 21
20
Step 21a
Parts needed - No. 20 QTY 2
Fix the presslock (No. 20) to the inside of
the master door, making sure to align the
barrel and the key hole.
Secure to the master door with
4x16mm screws.
*Ensure the key turns fully without
any restrictions.
4x16mm Screws
Pre drill
hole
16mm
screw
Step 22a
Parts needed - No. 19 QTY 2
Attach to the tower bolts (No. 19)
to the top and bottom of the slave
door using 4x10mm screws per bolt.
*Mark the position of the bolt
with a pencil on the framing
and drill a hole to site the
bolts.
8x10mm Screws
Pre drill
hole
10mm
screw
19

P 12
Please retain product label and instructions for future reference
It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
AFTER TREATMENT:
score around protective
cover on glazing and
carefuly peel
covering back
Step 23a
Parts needed - No. 18 QTY 2
Fix the turn buttons (No. 18) into
place at the top and bottom of
door as shown in the diagram.
The turn buttons help to keep the
doors alligned during high and
low levels of moisture.
2x16mm Screws
Pre drill
hole
16mm
screw
Slave Door
Locking Door
18





















































2





1












3
4














REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:



















¡




1




2























¡



