Mercia Garden Products 01DTPRMSHDB1008DDOP-V1 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
**Protim Aquatan T5 (621)**
Your building has been dip treated with Aquatan.
Aquatan is a water-based concentrate which is diluted with water, the building as been treated by the correct
application of Aquatan solution and then allowed to dry.
Aquatan is a decorative nish to colour the wood, which is applied industrially to timber fence panels and
garden buildings.
Aquatan undiluted contains: boric acid, sodium hydroxide 32% solution, aqueos mixture of sodium dioctyl
sulphosuccinat and alcohols: 2, 4, 6-trichlorophenol.
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
01DTPRMSHDB1008DDOP-V1
DIP TREATED PREMIUM SHIPLAP DUTCH BARN 10X8 DOUBLE DOOR OPENING WINDOW
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
P 1
Please retain product label and instructions for future reference
General Instructions

P 2
01DTPRMSHDB1008DDOP-V1
Overall Dimensions:
Width = 2539mm
Depth = 2970mm
Height = 2626mm
Base Dimensions:
Width = 2350mm
Depth = 2912mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
4
13
2
28
Gable Strip 12x121x2090mm QTY 2
WB-2090MM
36
Butt Hinge QTY 4
PI-07-0066
37
Felt QTY 2
PI-01-0015
15 Door Cloaking Strip 27x44x1670mm QTY 1
F2744-1670MM
16 Door Strip 12x45x1449mm QTY 1
S1245-1449MM
17 Door Strip 12x45x1772mm QTY 2
S1245-1772MM
18 Window Strip 12x56x1037mm QTY 2
S1256-1037MM
19 Cover Trims 12x56x1790mm QTY 7
S1256-1790MM
24
Barge Board 12x95x678mm QTY 1
S1295-G-678MM
26
Barge Board 12x95x734mm QTY 2
S1295-G-734MM
25
Fascia 12x95x900mm QTY 4
S1295-G-900MM
27
Fascia 12x95x662mm QTY 4
S1295-G-662MM
32
Casement Stay QTY 2
PI-07-0007
33
T Hinge QTY 6
PI-07-0021
34
Tower Bolt QTY 2
PI-07-0030
35
Turn Button QTY 2
PI-07-0034
39
Hasp and Staple
Lock QTY 1
PI-07-0221
38
Weatherproof Lock QTY 1
PI-07-0222
30 Door Blocks
27x44x150mm QTY 2
F2744-150MM
31 Truss Blocks
27x44x100mm QTY 2
F2744-G-120MM
23 Bottom Door Framing 27x44x1336mm QTY 1
F2744-1336MM
29 Truss Brace 27x44x1640mm QTY 2
F2744-G-1680MM
40
U Channel QTY 4
PI-07-0013
41
Joining Plates QTY 6
PI-07-0220
14
1311 12
Top Roof QTY 4
AI-S21MBDBR1473X654-V1
Bottom Roof QTY 4
AI-S21MBDBR1473X898-V1
Window QTY 2
AI-FW1000X540-V1
Floor Blocks
27x44x400mm QTY 10
F2744-400MM
568
7
9
Front Panel QTY 2
AI-S21SHPPTOV512X1761-V1
Door QTY 2
AI-S21FBMBZBD676X1770-V1
Gable Top Left QTY 2
AI-S22HDBGTL1180X817-V1
Gable Top Right QTY 2
AI-S22HDBGTR1180X817-V1
Lower Truss QTY 2
AI-S22HDBTF800X88-V1
10
Upper Truss QTY 2
AI-S22HDBTF629X88-V1
Window Panel QTY 2
AI-01S21SH1LFW1417X1814-V1
Floor QTY 4
AI-S21MBF1456X1175-V1
Back Panel
Width 1180mmQTY 2
AI-S21SHPP1180X1796-V1
Side Panel
Width 1417mm QTY 2
AI-S21SHPP1417X1814-V1
20 Gable Cover Trims
12x56x710mm QTY 1
S1256-710MM
22 Top Door Framing 44x44x1800mm QTY 1
F4444-1800MM
21 Top Door Framing
44x44x280mm QTY 2
F4444-280MM

50mm Screw x 95
Felt Tacks x 155
16mm Screw x 24
30mm Screw x 251
60mm Bolt x 8
20mm Screw x 9
60mm Screw x 8
40mm Screw x 48
100mm Screw x 2
P 3
Please retain product label and instructions for future reference
Nail Bag
There may be extra screws present in the nail bag
Pre Assembly
Before assembling remove the transportation
blocks from the bottom of each panel.
Take care removing the blocks as to not damage
the panels. Tap with a at headed screwdriver
and hammer.
Dispose of the blocks once removed.
1
Pre drill
hole
50mm
screw
1
1
Step 1
Parts Needed- No.1 QTY 4
Place the oor panels (No.1) onto a rm
and level base. Ensure the base has
suitable drainage, free from areas where
standing water can collect.
Secure the oors together using 8x50mm
screws through the oor bearers in an
alternating pattern.
Repeat the step to create two oor
assemblies.
16x50mm Screws
1
1
14
14
14
14
14
14
14
14
Pre drill
hole
40mm
screw
Step 2
Parts Needed- No.14 QTY 10
Locate the Floor Blocks (No.14) between
the oor framing, ensuring they are
spaced equally.
Secure to the oor using 2x40mm screws
per block, going through the oor
cladding and into the oor blocks below.
20x40mm Screws
1
14
14
1
Step 3
Pre drill
hole
40mm
screw
Locate the second oor assembly along
side the rst oor assembly.
Secure to the oor using 2x40mm screws
per block, going through the oor
cladding and into the oor blocks below.
20x40mm Screws 1
FRONT
BACK

P 4
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Please retain product label and instructions for future reference
2
3
Pre drill
hole
50mm
screw
Step 4
Parts Needed- No.2 QTY 1
- No.3, (or 4) QTY 1
**Please note: These side panels are
interchangeable. Decide which layout
works best for you before assembly.**
Locate the Back Panel (No.2) and the Side
panel (No.3) (or Window Panel) onto the
oor, secure the panels at the corner
using 3x50mm screws.
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing.
**Please note: The Side Panels are
slightly higher than the back panels.**
3x50mm Screws
a
a
a
FRONT
BACK
a
BACK
PANEL
SIDE
PANEL
Pre drill
hole
50mm
screw
Locate the Second Back Panel (No.2) and
Side panel (No.3) (or Window Panel) onto
the oor, secure the panels at the joins
using 3x50mm screws per join in an
alternating pattern.
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing.
**Please note: The Side Panels are
slightly higher than the back panels.**
6x50mm Screws
2
3
Step 5
Parts Needed- No.2 QTY 1
- No.3, (or 4) QTY 1
FRONT
BACK
BACK
PANEL
SIDE
PANEL
4
Pre drill
hole
50mm
screw
Step 6
Parts Needed- No.4, (or 3) QTY 1
Locate the Window Panel (No.4) (or Side
Panel) onto the oor, secure the panels at
the corner using 3x50mm screws.
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing.
**Please note: The Side Panels are
slightly higher than the back panels.**
3x50mm Screws
a
a
a
a
BACK
PANEL
SIDE
PANEL
BACK
FRONT
4
Pre drill
hole
50mm
screw
Locate the Second Window Panel (No.4)
(or Side Panel) onto the oor, secure the
panels at the joins using 3x50mm screws
per join in an alternating pattern.
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing.
**Please note: The Side Panels are
slightly higher than the back panels.**
3x50mm Screws
Step 7
Parts Needed- No.4, (or 3) QTY 1
a
a
a
BACK
PANEL
SIDE
PANEL
BACK
FRONT

P 5
Please retain product label and instructions for future reference
Pre drill
hole
50mm
screw
Locate the Front Panels (No.6) onto the
oor, secure the panels at the corners
using 3x50mm screws per join.
Do not secure the building to the oor
until the roof is tted.
Position the panels so there is equal
spacing.
**Please note: The Front Panels are
slightly lower than the side panels.**
6x50mm Screws
Step 8
Parts Needed- No.6 QTY 2
a
a
a
6
6
a
a
a
a
FRONT
PANEL
SIDE
PANEL
22
23
Pre drill
hole
Locate the Top Door Framings (No.21 and
No.22) onto the top of the front panels,
the framing should be really ush to the
back edges of the framing within front
panels.
Secure the framing using 8x60mm screws,
ensuring to go through the top door
framing, and into the front panel framing.
Locate the Bottom Door Framing (No.23)
between the front panels. Do Not secure
the Bottom Door Framing to the oor until
the roof is tted.
**Please note: The Front Panels are
slightly lower than the side panels.**
8x60mm Screws
Step 9
Parts Needed- No.21 QTY 2
- No.22 QTY 1
- No.23 QTY 1
60mm
screw
21
21
FRONT
PANEL
SIDE
PANEL
Pre drill
hole
50mm
screw
Lay the Gable tops (No.7 and No.8) along
side each other, ensure they are ush at
the bottom. Secure together using
4x50mm screws in an alternating pattern.
Repeat step to create a second assembly.
8x50mm Screws
Step 10
Parts Needed- No.7 QTY 2
- No.8 QTY 2
78
78
Pre drill
hole
50mm
screw
Locate the Gable tops (No.7 and No.8)
onto the top of the front and back panels.
Slot the groove of the boarding within
the Gable Tops on to the tongues within
the plain panels below. Secure the gable
tops from above using 6x50mm screws
per gable top.
Ensure the gable tops are ush with the
ends of the panels as shown in the
diagram.
Do not secure the building to the oor
until the roof is tted.
12x50mm Screws 8
7
8
8
7
Step 11

P 6
Please retain product label and instructions for future reference
Pre drill
hole
30mm
screw
Locate the Gable Strips (No.28) onto the
join of the gable tops and front/back
panels, secure the gable strips using
4x30mm screws per strip in an alternating
pattern. Do not x into the gap between
the panels.
8x30mm Screws
Step 12
Parts Needed- No.28 QTY 2
28
28
Pre drill
hole
40mm
screw
30mm
screw

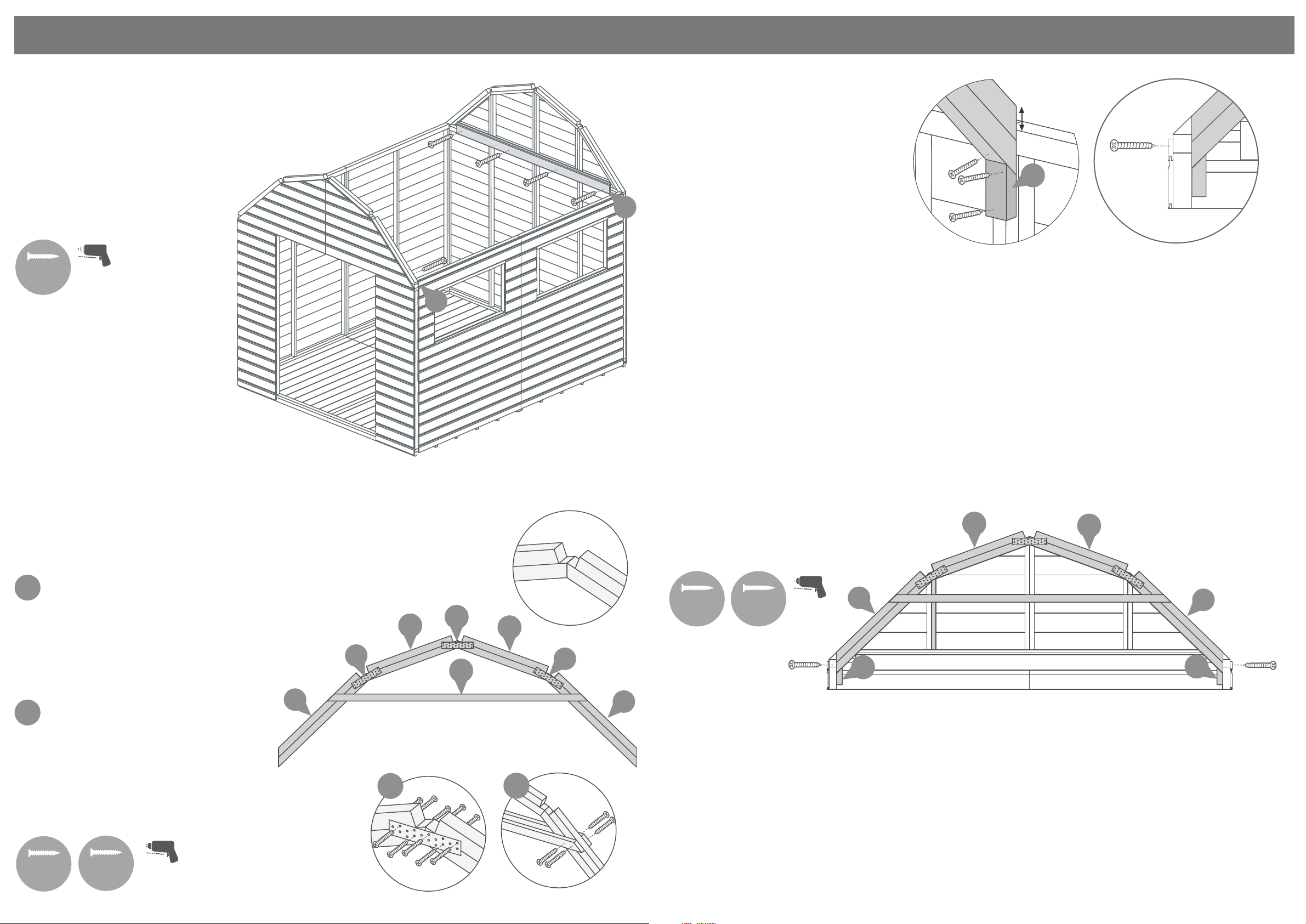

Place all of the required parts together on
the oor in the correct layout as shown in
the illustration. Secure the Joining plates
(No.41) to both sides of the truss along
the framing joins with 5x30mm screws
per plate, ensuring the screws are
staggered to avoid collision.
Secure the Truss Brace (No.29) to both
sides of the Lower Trusses, making sure to
stagger the 4x40mm screws at each end.
The truss brace should nish ush with
the edge of the lower truss.
30x30mm Screws
8x40mm Screws
Step 13
Parts Needed- No.9 QTY 2
- No.10 QTY 2
- No.29 QTY 2
- No.41 QTY 6
41
41 41
ab
a
b99
10 10
29
99
Pre drill
hole
50mm
screw
100mm
screw
Measure and mark 42mm from the top
corner of the truss.
Place the Truss in position with a 42mm
gap from the top corner of the truss to
the top of the side panel.
Locate the Truss Blocks (No.31) onto each
side of the building, then use the
measurement made when together with
the truss to determine the height of the
Truss blocks and mark the position.
Secure the truss blocks in an alternating
pattern using 2x50mm screws per block,
ensuring to go through to the panel
framing behind. Do not x into the gap
between the panels.
Fix the truss to the side panels using
1x50mm screw per side making sure that
you go into the panel framing behind.
Fix a further 100mm screw to each side
from the exterior of the building into the
truss on the inside.
6x50mm Screws
2x100mm Screws
Step 14
Parts Needed- No.31 QTY 2
10 10
31 31
31
42mm

P 7
Please retain product label and instructions for future reference
Step 15
Parts Needed- No.12 QTY 4
- No.40 QTY 2

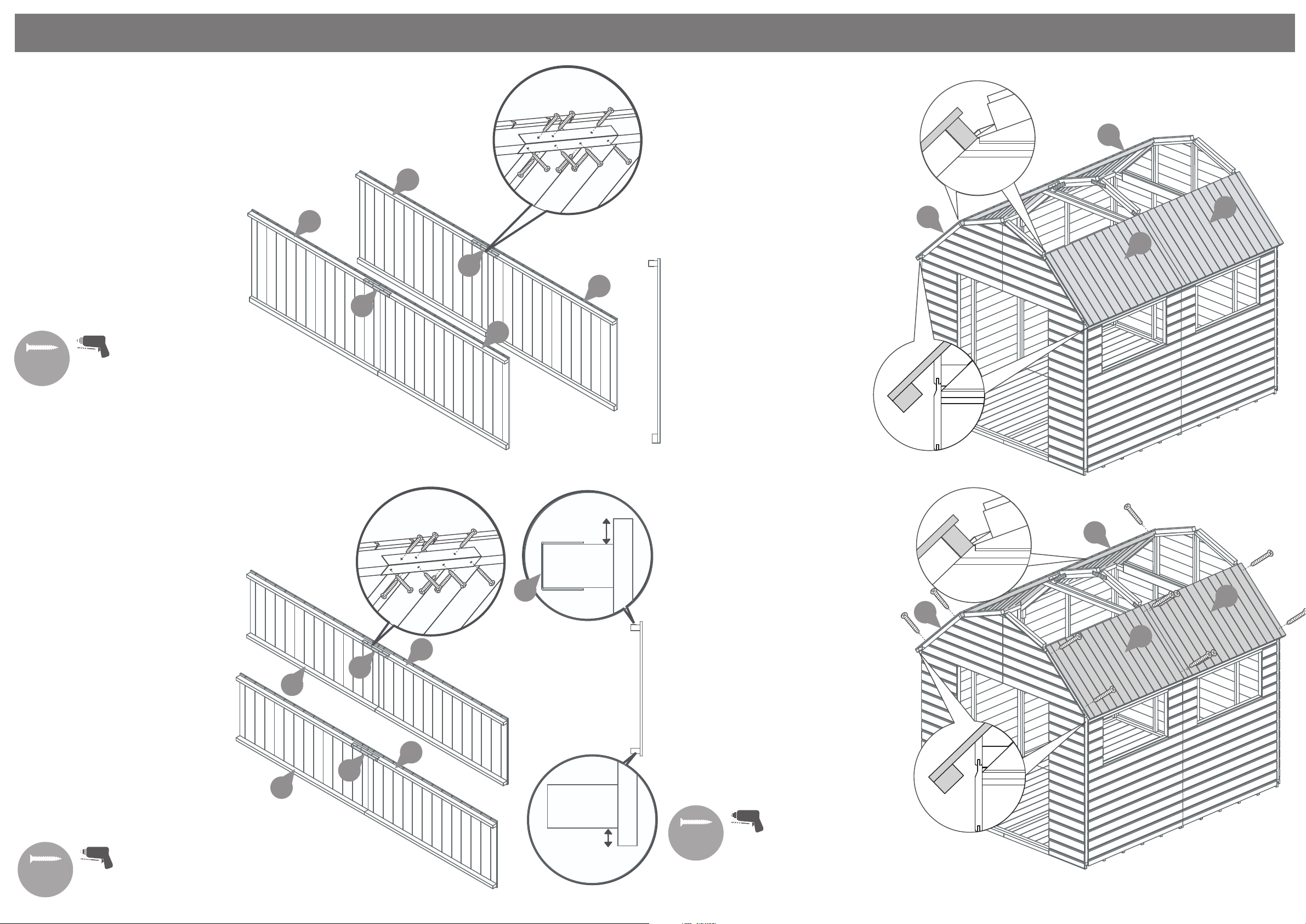

Locate the Bottom roof panels (No.12)
and secure the roof panels together using
a U channel (No.40) on to the top framing
pieces. Ensure the U channel (No.40) is
equally spaced over the roof panel
framing. Secure the U channels using
10x30mm screws per channel.
Repeat the step to create a second
assembly.
20x30mm Screws
Pre drill
hole
30mm
screw
Top
Bottom
12
12
40
12
12
40
Step 16
Parts Needed- No.11 QTY 4
- No.40 QTY 2
Locate the Top roof panels (No.11) and
secure the roof panels together using a
U channel (No.40) on to the top
framing pieces.
Make sure that the U channel is on the
framing within the roof panel where
there is the 16mm gap between the
top of the framing and the edge of the
roof cladding. Ensure the U channel
(No.40) is equally spaced over the roof
panel framing. Secure the U channels
using 10x30mm screws per channel.
Repeat the step to create a second
assembly.
20x30mm Screws
Pre drill
hole
30mm
screw
Top
Bottom
11mm
16mm
11
11
40
11
11
40
40
Place the Bottom roof panels (No.12) on
top of the gables and truss, ensuring they
are correctly orientated with the U channel
slotted into the roof truss.
Step 17
12 12
12
12
Pre drill
hole
30mm
screw
Secure the Roofs using 4x30mm screws
per roof, ensuring to go through the
roof cladding and into the gable top
framing and the truss framing below.
Position the panels so there is equal
spacing.
**Make sure that the edges of the
framing within the roof panels are
ush with the outer cladding on the
front and back panels.**
Do not secure the building to the oor
until the roof is tted.
16x30mm Screws
Step 18
12
12
12
12

Please retain product label and instructions for future reference
P 8
Place the Top Roof Panels (No.11) on top
of the gables and truss, ensuring they are
correctly orientated with the U channel
slotted into the top of the roof truss.
Step 19
11
11
11
11
16mm
11mm
Pre drill
hole
30mm
screw
Secure the Roofs using 4x30mm screws
per roof, ensuring to go through the
roof cladding and into the gable top
framing below and the truss framing
below.
Position the panels so there is equal
spacing.
**Make sure that the edges of the
framing within the roof panels are
ush with the outer cladding on the
front and back panels.**
Do not secure the building to the oor
until the roof is tted.
16x30mm Screws
Step 20
11
11
11
11
16mm
11mm
b
b
b
b
Pre drill
hole
50mm
screw
Once the roof is xed, attach the
building to the Floor with 50mm
screws.
Ensure the screws go through the
panel into the Floor framing.
28x50mm Screws
Step 21
bb
b
b
bb
b
b
bb
Pre drill
hole
50mm
screw

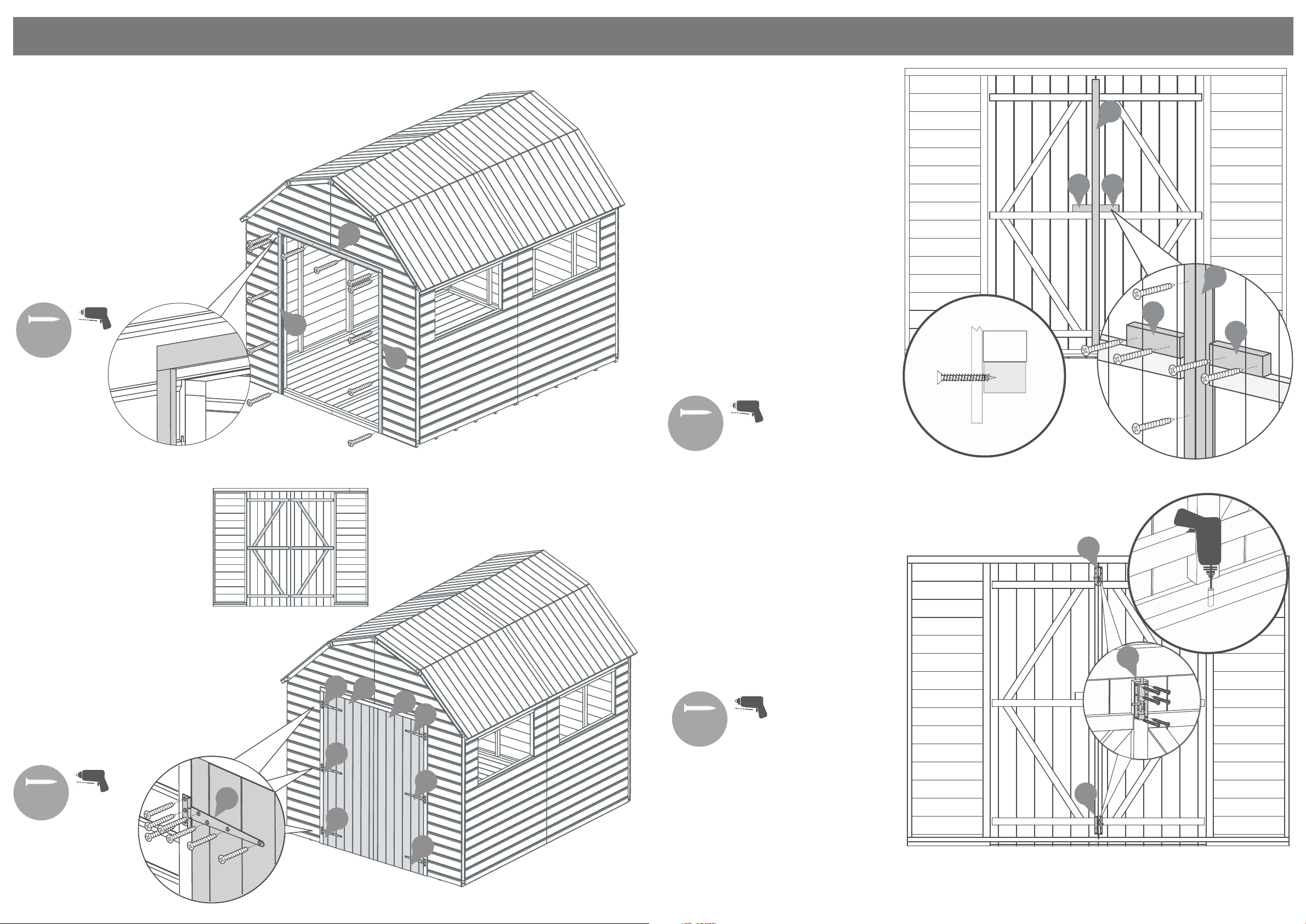

Make sure that the Bottom Door
Framing (No.23) is ush with the
framing within the front panels. Fix
the Bottom Door Framing to the
oor ensuring that you go into the
framing below.
4x50mm Screws
Step 22
23

P 9
Please retain product label and instructions for future reference
33
33
33
33
33
33
33
55
Pre drill
hole
30mm
screw
Fix 3 Hinges (No.33) to each Door
(No.5) securing with 4x30mm
screws per hinge and position as
shown.
Fix each Door to the building with
3x30mm screws per hinge. Make
sure that the inside view of the door
looks like it does on the illustration.
Ensure the doors open and close
freely.
42x30mm Screws
Step 24
Parts Needed- No.5 QTY 2
- No.33 QTY 6
*Inside View*
SECONDARY PRIMARY
Pre drill
hole
30mm
screw
Place the Door Blocks (No.30) onto the
top of the door framing and ensure that
they are ush with the ends of the
framing. Secure using 2x30mm screws
per block, going through the front of
the door cladding and into the door
block.
Locate the Door Cloaking Strip (No.15)
between the door framing and ensure
that it is equally spaced. Secure to the
secondary door using 4x30mm screws,
going through the front of the door
cladding and into the Door Cloaking
Strip.
8x30mm Screws
Step 25
Parts Needed- No.15 QTY 1
- No.30 QTY 2
30
30
15
15
30 30
30mm
screw
17
17
16
Pre drill
hole
Locate the Door Strips (No.16 & No.17)
around the door opening and ensure
they are ush with the framing.
There should be a gap between the
strips and the door opening as shown.
Secure each strip with 4x30mm screws,
going through the strips and into the
door panel cladding.
12x30mm Screws
Step 23
Parts Needed- No.16 QTY 1
- No.17 QTY 2
Step 26
Parts Needed- No.34 QTY 2
Pre drill
hole
30mm
screw
34
34
Align the tower bolts (No.34) onto
the door cloaking strip, secure the
bolts to the top and bottom using
6x30mm screws per tower bolt.
Mark the position of the bolt
& drill a hole above and below for
the bolt to catch in to.
12x30mm Screws
34

P 10
Please retain product label and instructions for future reference
P 7
Step 27
Parts Needed- No.39 QTY 2
Pre drill
hole
60mm
Bolts
Align the lock (No.39) to the door, ensuring
equal spacing across the doors and in line
with the door framing.
Measure and mark the holes of the lock
(No.39) and drill through the boards and
through the framing and door blocks.
Fix the lock onto the door using 8x60mm
Carriage Bolts and Nuts
8x60mm Carriage Bolts
39
35
35
Step 28
Parts Needed- No.35 QTY 2
Pre drill
hole
30mm
screw
Attach the turn buttons (No.35) to the
secondary door at the top and bottom
using 1x30mm screw per turn button.
2x30mm Screws
35
18
30mm
16mm
Opening Window
Fixed Window
30mm
screw
16mm
screw
Place the Window Strip (No.18) 11mm above
the window gap in the window panel and x
with 3x30mm screws per strip.
6x30mm Screws
If you would like the windows to be opening
use the Butt Hinges (No.36) to attach to the
window strip and the Window (No.13)
together. Use 30mm screws to x the butt
hinge to the Window Strip and 16mm screws
to x it to the Window.
12x30mm Screws
12x16mm Screws
If you want to x the windows, instead of
xing butt hinges to the opening window,
use 4x30mm screws to attach the window
(No.13) to the window side panel as shown
in the diagram.
8x30mm Screws
13
13
Pre drill
hole
36

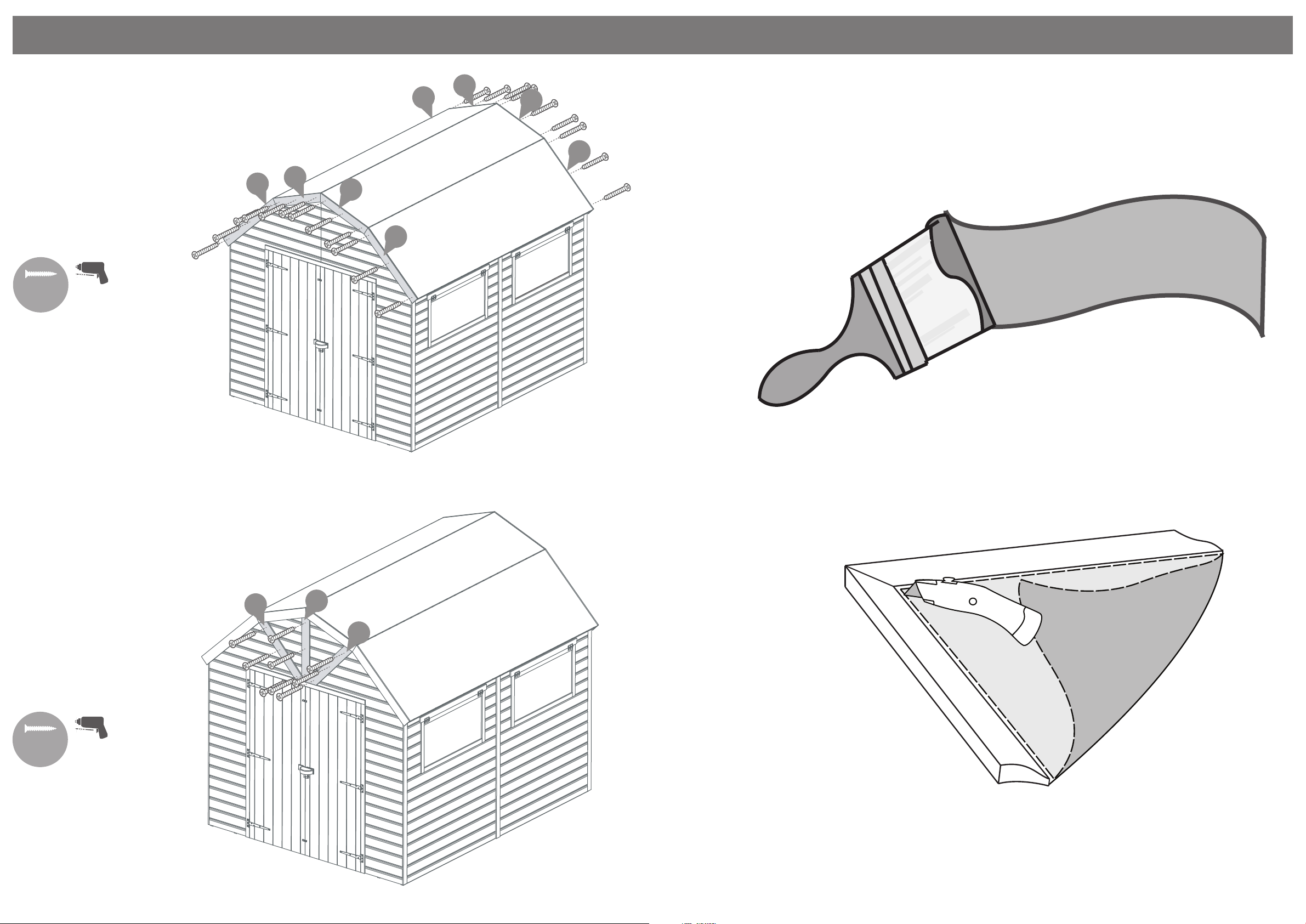

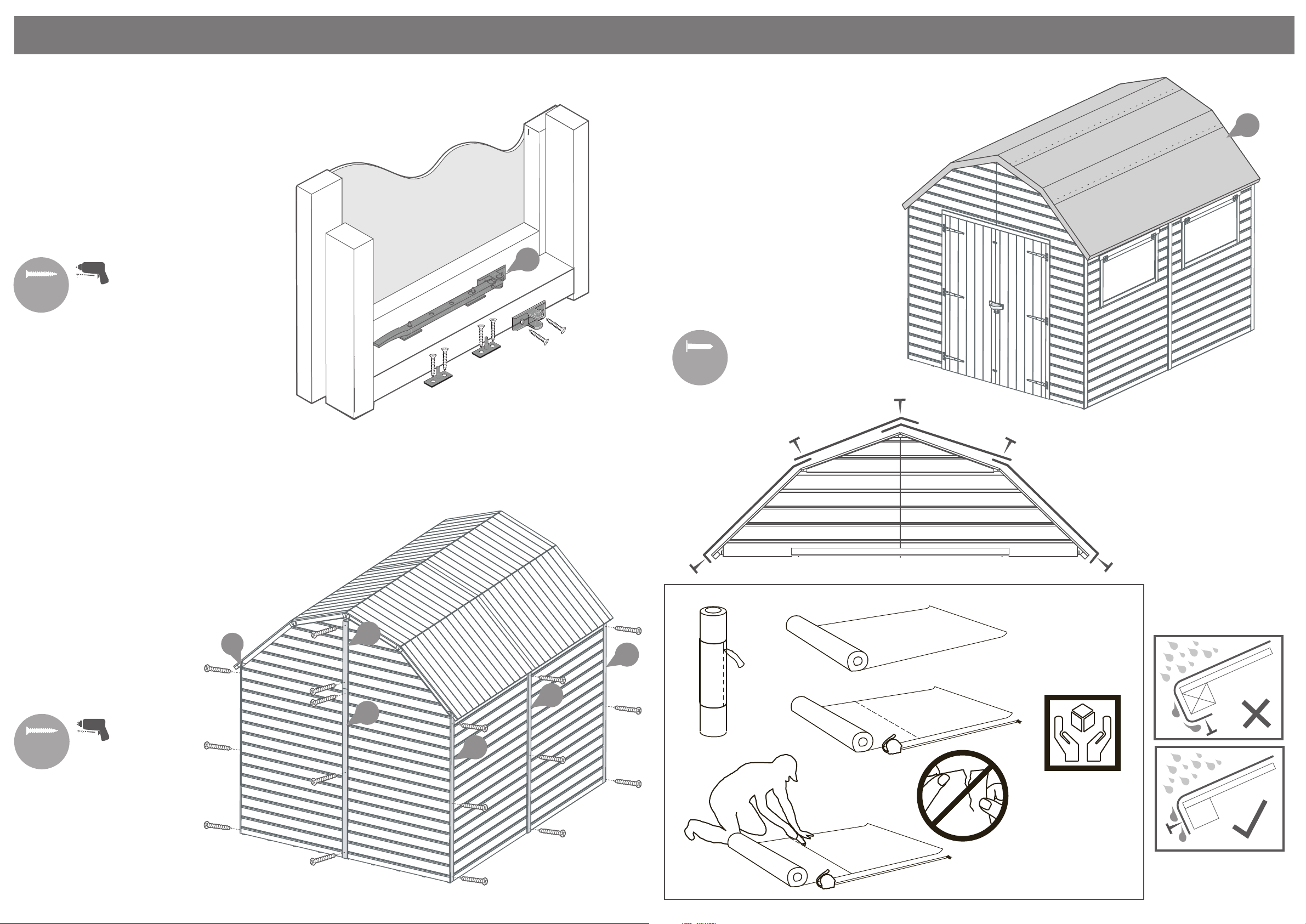

Step 29
Parts Needed- No.13 QTY 2
- No.18 QTY 2
- No.36 QTY 4
36
36
