Mercia Garden Products 10DTBARK0804-V1 User manual
2mm Drill bit
x2
¡
¢
¡
8x4
Overall Dimensions:
Width = 2330mm
Depth = 1252mm
Height = 1256mm
Base Dimensions:
Width = 2258mm
Depth = 1126mm
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
10x4
Overall Dimensions:
Width = 2896mm
Depth = 1252mm
Height = 1256mm
Base Dimensions:
Width = 2823mm
Depth = 1126mm
12x4
Overall Dimensions:
Width = 3483mm
Depth = 1252mm
Height = 1256mm
Base Dimensions:
Width = 3388mm

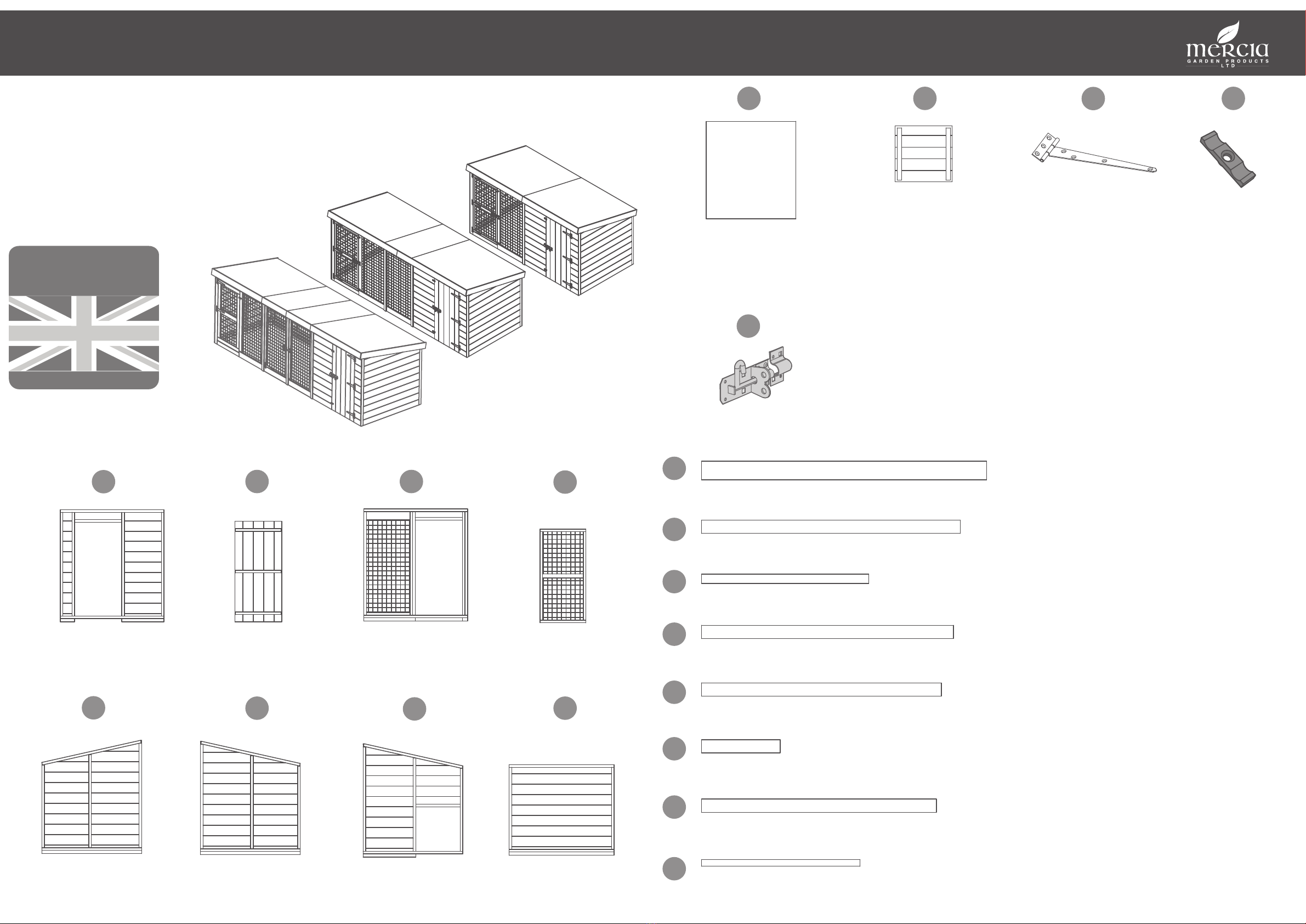

Depth = 1126mm Turn button QTY 4
PI-07-0034
Pad bolt QTY 2
PI-07-0035
6”T-hinge QTY 6
PI-07-0082
Door Panel QTY 1
AI-10BARK1130X1220-V1DP
Door QTY 1
AI-10BARK510X1095-V1D
Run Door Panel QTY 1
AI-10BARK1130X1220-V1RP
Mesh Door QTY 1
AI-10BARK499X1021-V1MD
Right Gable QTY 1
AI-10BARK1074X1218-V1RG
Left Gable QTY 1
AI-10BARK1074X1218-V1LG
Centre Gable QTY 1
AI-10BARK1074X1218-V1CG
Back Panel QTY 2
AI-10BARK1130X974-V1BP
OSB A
PI-03-0352
QTY - 8x4 -2
10x4 -2
12x4 -3
Floor Tile QTY 4
AI-10BARK548X535-V1F
Fascia - 12x95x1270mm QTY 4
S1295-1250mm
Cover Trim - 12x40x1218mm QTY 6
S1240-1218mm
Eaves Frame - 28x28x1153mm QTY 4
FS2828-1153mm
Base Frame A - 44x44x1126mm QTY 3
F4444-1126mm
Base Frame B - 44x44x1066mm QTY 1
F4444-1066mm
Base Frame D - 44x44x1060mm QT Y 1
F4444-1060mm
Base Frame C - 44x44x519mm QTY 2
F4444-519mm
Pack A
Pack A + Pack B
Pack A + Pack B x2
2
134
567
17
8
911 12
13
14
15
16
10
18
19
20
Centre Framing - 28x28x1085mm QTY 1
FS2828-1085mm
21
Contents:
50mm Screw x76
40mm Screw x98
20mm Screw x44
30mm Screw x198
Felt Tacks x105
70mm Screw x25
Small Back Panel QTY 1
AI-10BARK564X974-V1SBP
Mesh Panel QTY 1
AI-10BARK565X1220-V1MP
OSB B QTY 1
PI-03-0353
Cover Trim - 12x40x1218mm QTY 2
S1240-1218mm
25
24
23
22
26
27
Eaves Frame B - 28x28x565mm QTY 2
FS2828-565mm
Roof support - 27x44x1085mm QTY 1
F2744-1085mm
Roof Block - 27x44x100mm QTY 2
F2744-100mm
Nail Bag
28
Framing - 44x44x563mm QTY 2
F4444-563mm
Framing - 28x28x1623mm QTY 1
F2828-1623mm
29
30
Strip - 12x95x565mm QTY 1
S1295-565mm
31
Pack B
*If you have purchased a 12x4 building then you will have double the amount of
each item in pack B*
Pre Assembly

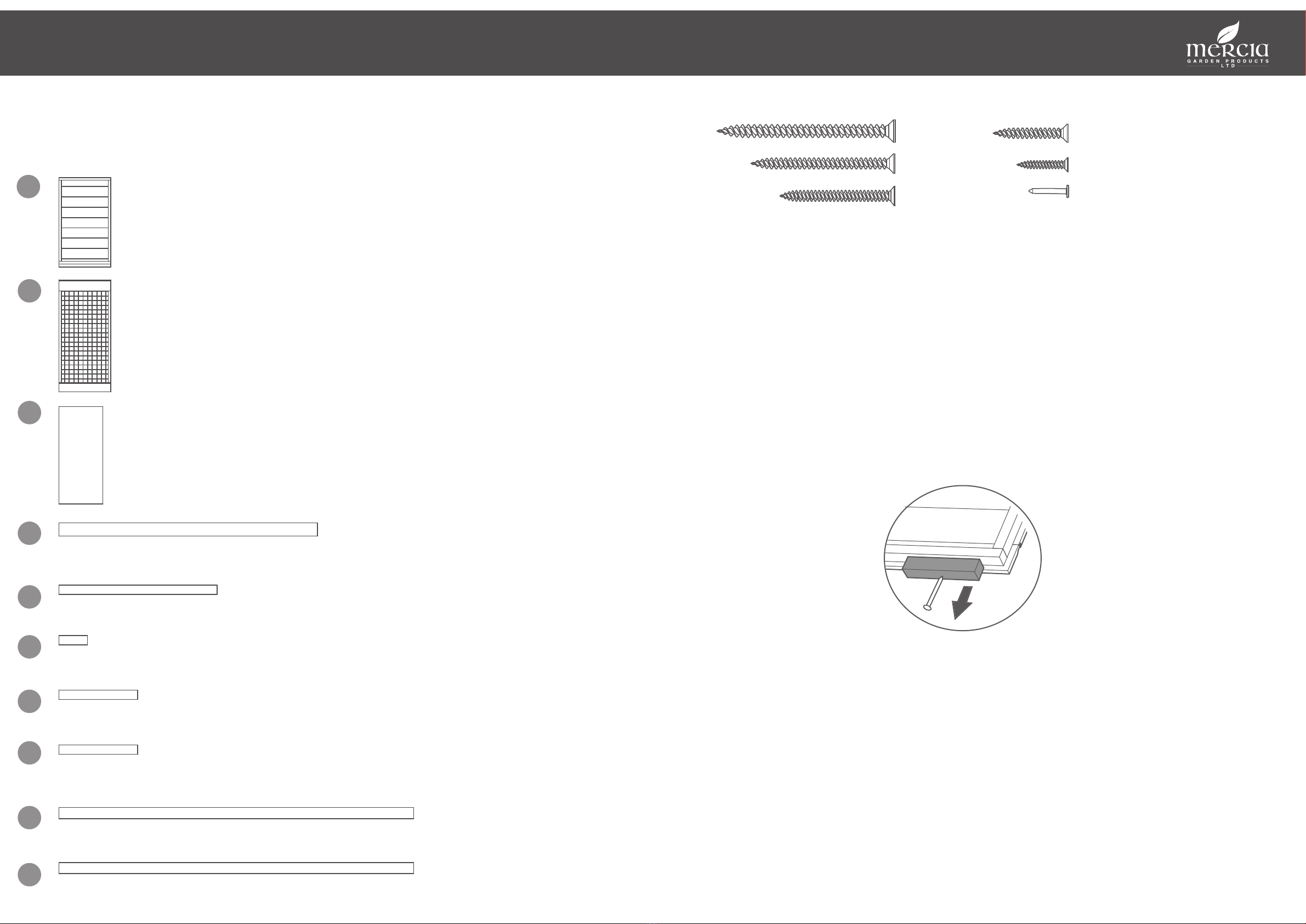

Remove the transportation blocks
from the bottom of each panel before
assembling the building.
17
*If you have purchased a 10x4 dog run with pack B extension then skip to step 12*
*If you have purchased a 12x4 dog run with 2 x pack B extension then skip to step 21*
Step 1
Parts Needed: No. 17 QTY 2
No. 18 QTY 1
No. 19 QTY 1
Construct the Base using Base Framing A
(No. 17), B (No. 18) & C (No. 19). This will
create a base for the Kennel area.
Fix the Framing together with 2x70mm
screws per corner.
6x70mm screws.
Pre drill
hole
70mm
screw
19
18
17
IMPORTANT: Pre-drill before xing screws.
8
Step 2
Parts Needed: No. 5 QTY 1
No. 8 QTY 1
Place the Right Gable (No. 5) and the Back
Panel (No. 8) onto the the base framing
and x together with 3x40mm screws.
**Do NOT x to the base framing until
the Roof is secured**
3x40mm screws.
Pre drill
hole
40mm
screw
5
IMPORTANT: Pre-drill before xing screws.
Step 3
Parts Needed: No. 1 QTY
Fix the Door Panel (No. 1) with 3x40mm
scews.
3x40mm screws.
Pre drill
hole
40mm
screw
1
IMPORTANT: Pre-drill before xing screws.
20
19
8x4 Run
Step 4
Parts Needed: No. 17 QTY 1
No. 19 QTY 1
No. 20 QTY 1

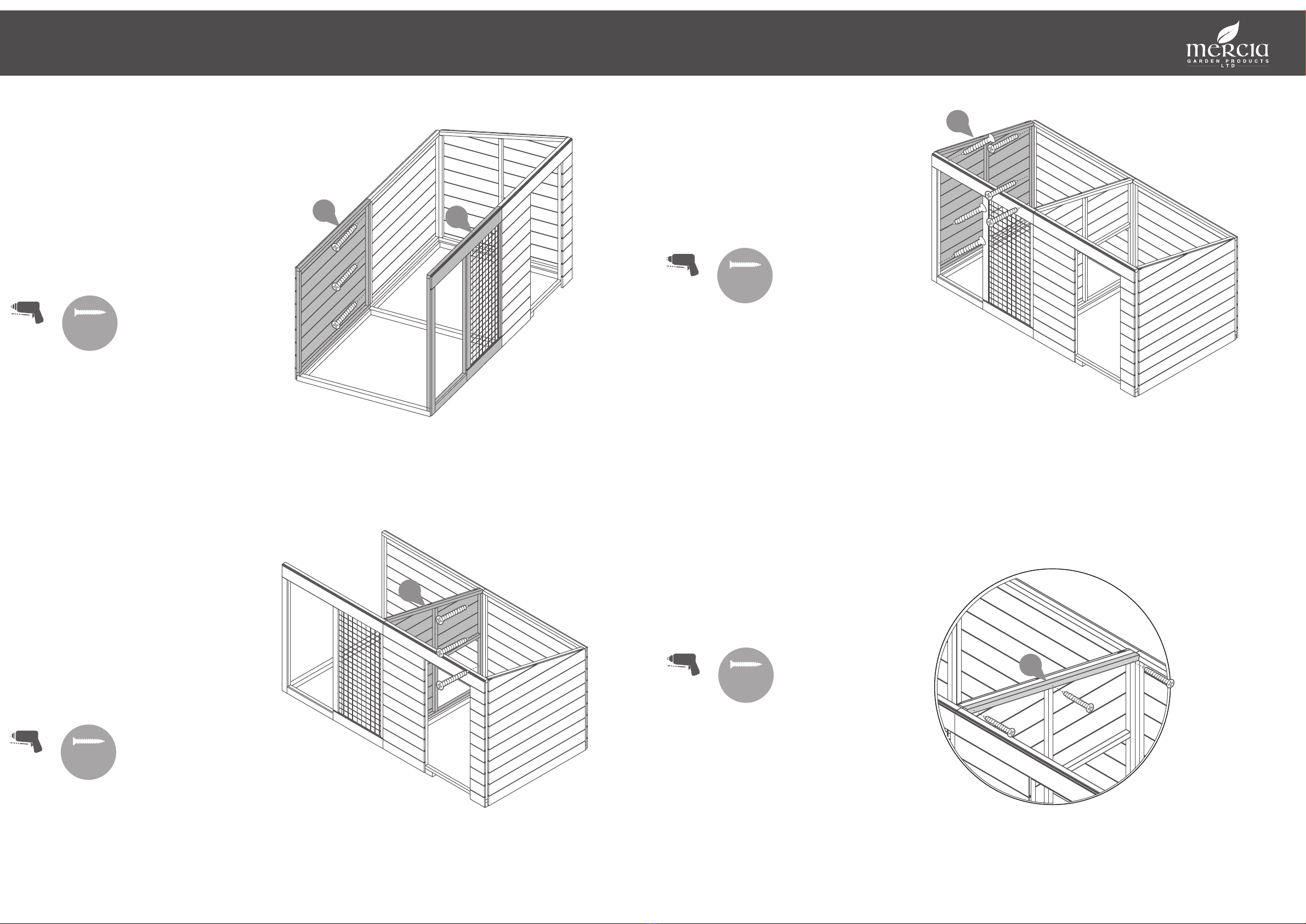

Place the remaining Base Framing (No.
17, No. 19 & No. 20) into position and
secure to each with 2x70mm screws.
*The Run base framing does not x to
the Kennel area*
**Do NOT x to the base framing until
the Roof is secured**
4x70mm screws.
Pre drill
hole
70mm
screw
17
IMPORTANT: Pre-drill before xing screws.
Back Panel QTY 2
AI-10BARK1130X974-V1BP
IMPORTANT: Pre-drill before xing screws.
8
Step 5
Parts Needed: No. 3 QTY 2
No. 8 QTY 1
Fix the remaining Back Panel (No. 8) and
the Run Door Panel (No. 3) into position
and secure with 3x40mm screws per
panel.
**Do NOT x to the base framing until
the Roof is secured**
6x40mm screws.
Pre drill
hole
50mm
screw
3
Step 6
Parts Needed: No. 7 QTY 1
Place the Central Gable (No. 7) into
position and secure with 3x40mm
screws per side.
*The Central Gable xes to the fram-
ing of the panels that make up the
Run area.*
**Do NOT x to the base framing
until the Roof is secured**
6x40mm screws.
Pre drill
hole
40mm
screw
7
IMPORTANT: Pre-drill before xing screws.
Step 7
Parts Needed: No. 6 QTY 1
Place the Left Gable (No. 6) into position
and secure with 3x40mm screws per side.
**Do NOT x to the base framing until
the Roof is secured**
6x40mm screws.
Pre drill
hole
40mm
screw
6
IMPORTANT: Pre-drill before xing screws.
Step 8
Parts Needed: No. 21 QTY 1
Fix the Centre Framing (No. 21) to the
Centre Gable with 3x40mm screws.
**Do NOT x to the base framing until
the Roof is secured**
3x40mm screws.
Pre drill
hole
40mm
screw
21
IMPORTANT: Pre-drill before xing screws.
¡
Step 9
Parts Needed: No. 9 QTY 2
No. 16 QTY 4
Fix the Eaves Frames (No. 16) to the back
and front of the Roof OSB (No. 9) with
3x30mm screws per Eaves frame.
**Do NOT x to the base framing until
the Roof is secured**
12x30mm screws.
Pre drill
hole
30mm
screw
9 16
IMPORTANT: Pre-drill before xing screws.

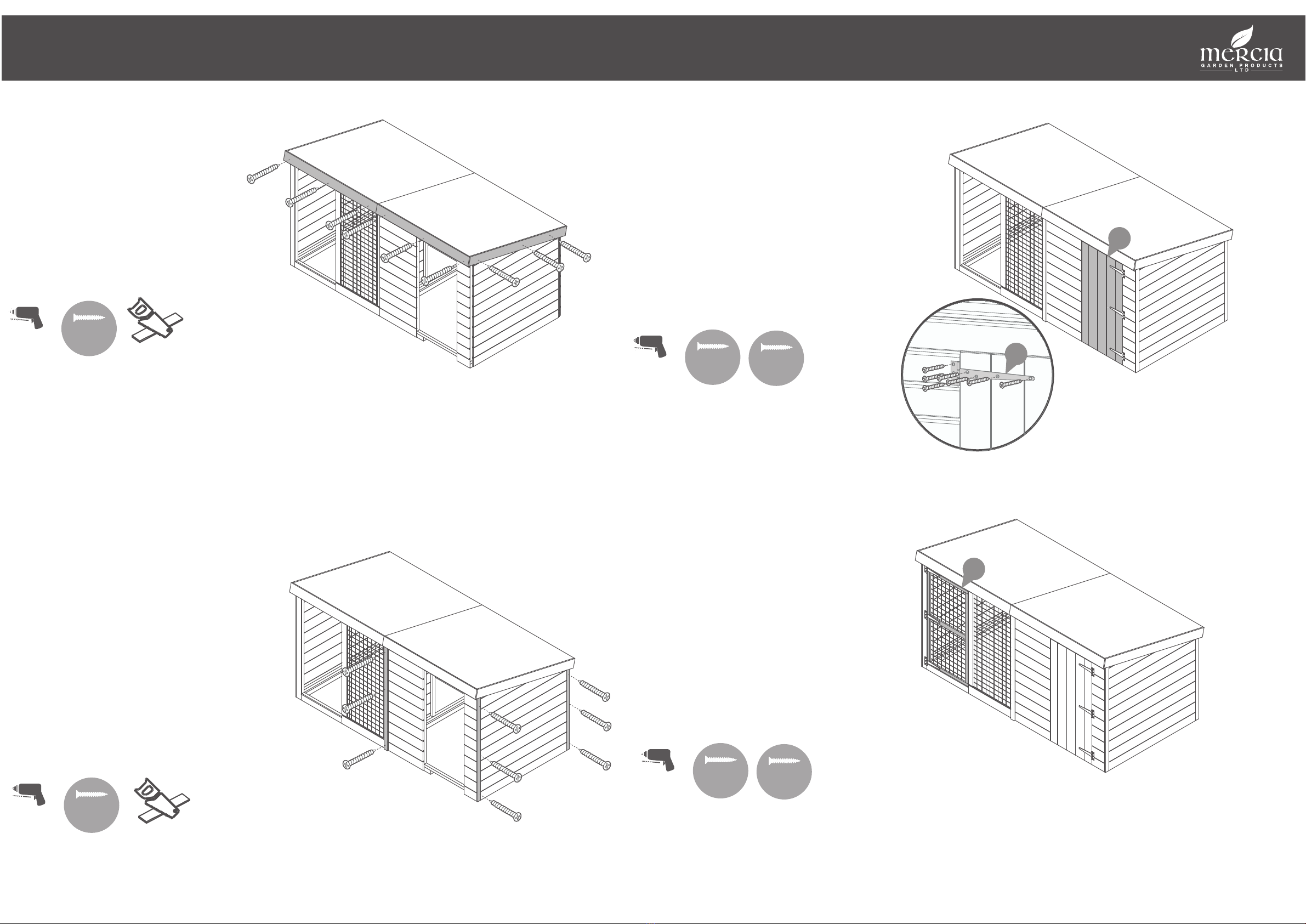

Step 10
Fix the assembled roof panels to the
building with 12x30mm screws per roof
sheet.
**Do NOT x to the base framing until
the Roof is secured**
Pre drill
hole
30mm
screw
IMPORTANT: Pre-drill before xing screws.
Step 11
Fix the building to the Base Framing with
50mm screws evenly spaced.
24x50mm screws.
Pre drill
hole
50mm
screw
IMPORTANT: Pre-drill before xing screws.
b
b
b
b
b
b
b
b
bb
b
b
IMPORTANT: Pre-drill before xing screws.

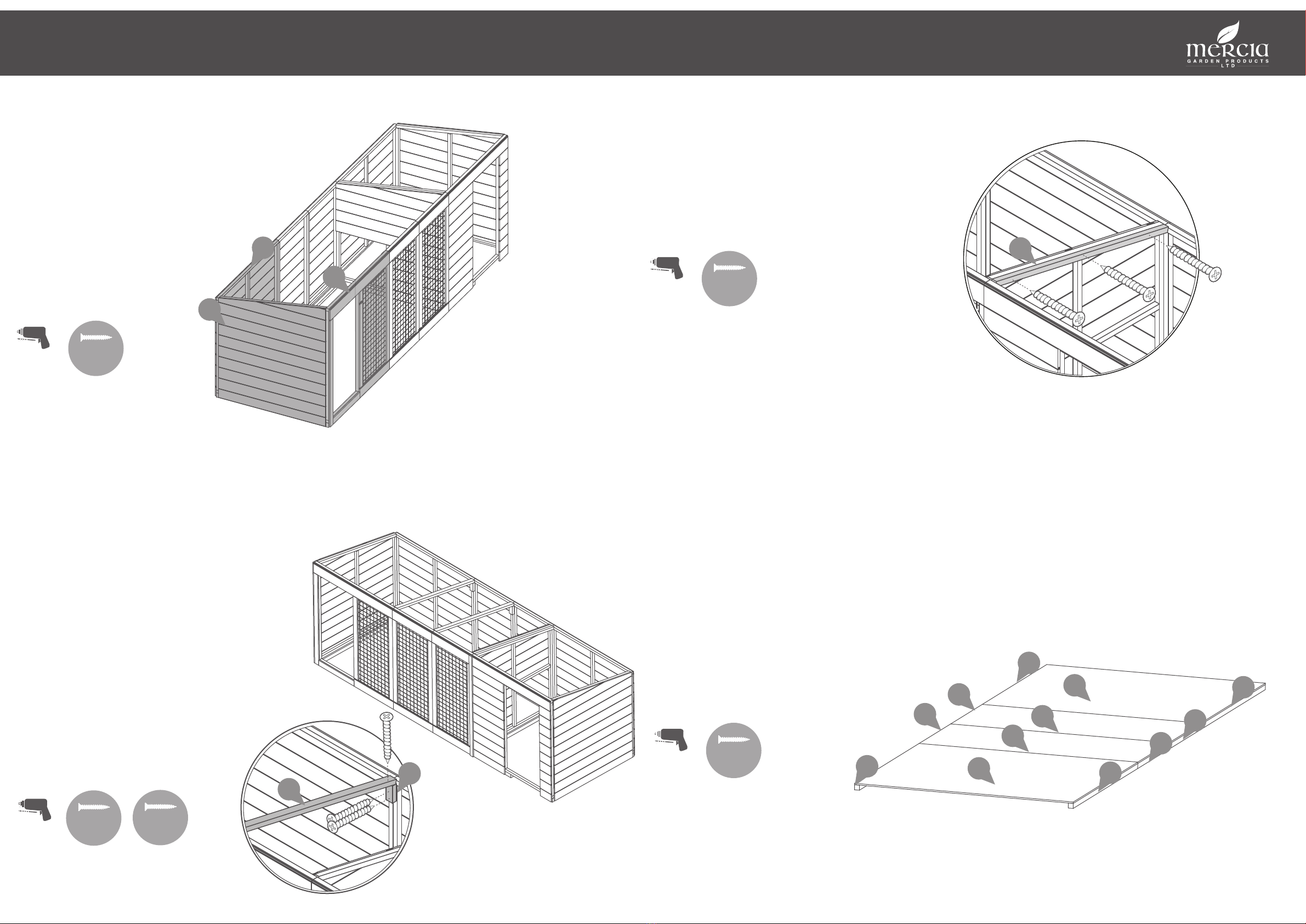

10x4 Run With Extension (Pack A + Pack B)
Step 12
Parts Needed: No. 17 QTY 1
No. 19 QTY 1
No. 20 QTY 1
No. 29 QTY 2
No. 30 QTY 1
Place the Base Framing (No. 17, 19, 20,
29, 30, ) into position and secure to each
with 2x70mm and 3x70mm screws.
**Do NOT x to the base framing until
the Roof is secured**
11x70mm screws.
Pre drill
hole
70mm
screw
29
30
20 29
17 19
Step 13
Parts Needed: No. 22 QTY 1
No. 23 QTY 1
Fix the Small Back Panel (No. 22) and the
Mesh Panel (No. 23) into position and
secure with 3x40mm screws per panel.
**Do NOT x to the base framing until
the Roof is secured**
6x40mm screws.
Pre drill
hole
50mm
screw
22 23
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Step 14
Parts Needed: No. 7 QTY 1
Place the Central Gable (No. 7) into posi-
tion and secure with 3x40mm screws per
side.
*The Central Gable xes to the framing
of the panels that make up the Run
area.*
**Do NOT x to the base framing until
the Roof is secured**
6x40mm screws.
Pre drill
hole
40mm
screw
7
IMPORTANT: Pre-drill before xing screws.
Step 15
Parts Needed: No. 3 QTY 1
No. 6 QTY 1
No. 8 QTY 1
Place the Run Door Panel (No. 3), the
remaining Back Panel (No. 8)and the Left
Gable (No. 6) into position and secure
with 3x40mm screws per side.
**Do NOT x to the base framing until
the Roof is secured**
12x40mm screws.
Pre drill
hole
40mm
screw
6
38
£
IMPORTANT: Pre-drill before xing screws.
Step 16
Parts Needed: No. 26 QTY 1
No. 27 QTY 1
Fix the Roof Blocks (No. 27) to the framing
where the two panels meet with 2x40mm
screws per Block.
Secure the Roof support (No. 26) to the
blocks with 2x50mm screws.
*Make sure the Roof support is inline
with the gable tops*
**Do NOT x to the base framing until
the Roof is secured**
2x50mm screws.
4x40mm screws.
Pre drill
hole
50mm
screw
40mm
screw
26
27
IMPORTANT: Pre-drill before xing screws.
Step 17
Parts Needed: No. 21 QTY 1
Fix the Centre Framing (No. 21) to the
Centre Gable with 3x40mm screws.
**Do NOT x to the base framing until
the Roof is secured**
3x40mm screws.
Pre drill
hole
40mm
screw 21
Step 18
Parts Needed: No. 9 QTY 2
No. 16 QTY 4
No. 24 QTY 1
No. 28 QTY 2
Fix the Eaves Frames (No. 16 & 28) to the
Roof OSB (No. 9 & 24) with 3x30mm
screws per Eaves frame.
**Do NOT x to the base framing until
the Roof is secured**
4x30mm screws.
Pre drill
hole
30mm
screw
9
9
24
28
16
16
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Step 19
Fix the assembled roof panels to the build-
ing with 12x30mm screws per roof sheet.
**Do NOT x to the base framing until
the Roof is secured**
36x30mm screws.
Pre drill
hole
30mm
screw
Step 20
Fix the building to the Base Framing with
50mm screws evenly spaced.
24x50mm screws.
Pre drill
hole
50mm
screw
b
IMPORTANT: Pre-drill before xing screws.
b
b
b
b
b
b
b
b
b
b
b
b
IMPORTANT: Pre-drill before xing screws.
12x4 Run With Extension (Pack A + Pack B x2)
Step 21
Parts Needed: No. 17 QTY 1
No. 19 QTY 1
No. 20 QTY 1
No. 29 QTY 4
No. 30 QTY 1
Place the Base Framing (No. 17, 19, 20,
29, 30) into position and secure to each
with 2x70mm and 3x70mm screws.
**Do NOT x to the base framing until
the Roof is secured**
4x70mm screws.
Pre drill
hole
70mm
screw
17
29
29
29
29
19
20 30
Step 22
Parts Needed: No. 22 QTY 2
No. 23 QTY 2
Fix a Back Panels (No. 22) and the Mesh
Panels (No. 23) into position and secure
with 3x40mm screws per panel.
**Do NOT x to the base framing until
the Roof is secured**
12x40mm screws.
Pre drill
hole
50mm
screw
23
23
22
22
IMPORTANT: Pre-drill before xing screws.
Step 23
Parts Needed: No. 7 QTY 1
Place the Central Gable (No. 7) into
position and secure with 3x40mm screws
per side.
*The Central Gable xes to the framing
of the panels that make up the Run
area.*
**Do NOT x to the base framing until
the Roof is secured**
6x40mm screws.
Pre drill
hole
40mm
screw
7
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Step 24
Parts Needed: No. 3 QTY 1
No. 6 QTY 1
No. 8 QTY 1
Place the Run Door Panel (No. 3), the
remaining Back Panel (No. 8), and the Left
Gable (No. 6) into position and secure
with 3x40mm screws per side.
**Do NOT x to the base framing until
the Roof is secured**
15x40mm screws.
Pre drill
hole
40mm
screw
3
8
6
Pre drill
hole
Step 25
Parts Needed: No. 26 QTY 2
No. 27 QTY 2
Fix the Roof Blocks (No. 27) to the framing
where the two panels meet with 2x40mm
screws per Block.
Secure the Roof support (No. 26) to the
blocks with 2x50mm screws.
*Make sure the Roof support is inline
with the gable tops*
**Do NOT x to the base framing until
the Roof is secured**
2x50mm screws.
4x40mm screws.
50mm
screw
40mm
screw
26
27
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Step 26
Parts Needed: No. 21 QTY 1
Fix the Centre Framing (No. 21) to the
Centre Gable with 3x40mm screws.
**Do NOT x to the base framing until
the Roof is secured**
3x40mm screws.
Pre drill
hole
40mm
screw
21
IMPORTANT: Pre-drill before xing screws.
Step 27
Parts Needed: No. 9 QTY 2
No. 16 QTY 4
No. 24 QTY 2
No. 28 QTY 4
Fix the Eaves Frames (No. 16 & 28) to the
Roof OSB (No. 9 & 24) on both sides with
3x30mm screws per Eaves frame. Secure
through the OSB sheet.
**Do NOT x to the base framing until
the Roof is secured**
18x30mm screws.
Pre drill
hole
30mm
screw
28
28
9
9
24
24
16
28
28
16
16
16
Step 28
Fix the assembled roof panels to the building
with 12x30mm screws per roof sheet.
**Do NOT x to the base framing until the
Roof is secured**
36x30mm screws.
Pre drill
hole
30mm
screw
9
24
24
9
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Step 29
Fix the building to the Base Framing with
50mm screws evenly spaced.
24x50mm screws.
Pre drill
hole
50mm
screw
b
b
b
b
b
b
b
b
b
b
b
b
b
Felt
tacks
Step 30
Cut the roof felt provided into equal
lengths making sure that there is 50mm of
overhang on both sides.
Place the rst strip on the back of the
building and lay the second overlaying
the rst sheet at the front.
Secure the felt in place with Felt tacks
evenly spaced at 100mm intervals.
8x4 - 65 x Felt tacks
10x4 - 85 x Felt tacks
12x4 - 105 x Felt tacks
Pre drill
hole
**The following steps are applicable to all buildings.**
100mm
HANDLE
WITH CARE
1 2
3
4
1
2
Step 31
Parts Needed: No. 14 QTY 4
Fix the Fascias (No. 14) to the building
with 3x30mm screws per Fascia.
Some Fascias will need to be cut down to
t.
**8x4 building shown**
8x4 & 10x4 - 12x30mm screws.
12x4 - 15x30mm screws
Pre drill
hole
30mm
screw
*Cut down
trims to t
IMPORTANT: Pre-drill before xing screws.
Step 32
Parts Needed: No. 15 QTY 6
Fix the Cover trims (No. 15) to the
building with 3x30mm screws per Trim.
The rear Cover trims will need to be cut
down to t.
A Cover trim is provided for each corner
and for each point that a panel meets
anothers.
**8x4 building shown**
8x4 - 18x30mm screws.
10x4 - 24x30mm screws.
12x4 - 27x30mmscrews.
Pre drill
hole
30mm
screw
*Cut down
trims to t
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Step 33
Parts Needed: No. 2 QTY 1
No. 11 QTY 3
To x the kennel Door to the building,
attach the hinges to the Door (No. 2) with
4x20mm screws per hinge.
Pawsition the Door into the door opening
and x into position with 3x30mm screws
per hinge.
**8x4 building shown**
12x20mm screws
Pre drill
hole
20mm
screw 30mm
screw
11
2
IMPORTANT: Pre-drill before xing screws.
Step 34
Parts Needed: No. 4 QTY 1
No. 11 QTY 3
To x the Run Door to the building, attach
the hinges to the Mesh Door (No. 4) with
4x20mm screws per hinge.
Pawsition the Door into the door opening
and x into position with 3x30mm screws
per hinge.
**8x4 building shown**
12x20mm screws
9x30mm screws
Pre drill
hole
20mm
screw 30mm
screw
4
IMPORTANT: Pre-drill before xing screws.
Step 35
Parts Needed: No. 12 QTY 4
No. 13 QTY 2
Fix a Pad Bolt (No. 13) to each door. make
sure to screw through the Door framing.
Use 8x20mm screws to attach to the
Door/Mesh Door and 4x30mm screws to
attach the Pad Bolt catch to the building.
Attach a Turn button (No. 12) to the top
and bottom of each door. 1x20mm screw
per Turn Button.
**8x4 building shown**
20x20mm screws
8x30mm screws
Pre drill
hole
20mm
screw 30mm
screw
13
12
IMPORTANT: Pre-drill before xing screws.
Step 36
Parts Needed: No. 10 QTY 3
Place the Floor tiles (No.10) into the
kennel area as shown.
These panels are removeable so do not
need securing in position.
*For ease of use, Drill a nger sized hole
in one tile.
**8x4 building shown**
¡
¡
¡
¡
¡
¢
¡
¡¡
¢
¤
¢
£
¥
¢
¤
1
2
3
4
5
6
7
8
9
¦
§
¥¡
2
1
¨
3
4
¦
¡
§
¡
¡
¡
¤
¨
¢
§
12
¡
¡
¡
¤
¨
¢
Other manuals for 10DTBARK0804-V1
1
Table of contents
Other Mercia Garden Products Garden House manuals
Mercia Garden Products
Mercia Garden Products 8x8 Helios Summerhouse Instruction manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0705SDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products Wessex 03WES1208-V3 Instruction manual
Mercia Garden Products
Mercia Garden Products 02GARA0806-V1-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 0644RANE5504HGDD8MW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01RAW1010DDOW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01PTSHPWOR1010DDOW-V4 Instruction manual
Mercia Garden Products
Mercia Garden Products 0634AXNE0503HGDD2MW-V1 User manual
Mercia Garden Products
Mercia Garden Products 02DTTWRS0605-V1-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 0644AXNE0656LBDDHGSD1SW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTPRMSHPN1008DDOP-V2 Instruction manual
Mercia Garden Products
Mercia Garden Products 03LBRO1008-V7 User manual
Mercia Garden Products
Mercia Garden Products 01PTPOT0806-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTOVAX1006DDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01OVLPA0806DDFW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 03DTSHCR0707FGD2TW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTPRMSHDB0808DDOP-V1 User manual
Mercia Garden Products
Mercia Garden Products 01DTSHRAX0604SDNW-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 01DTSHPN0806SDFW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01PTJER0806-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 0628RANE0504FGDD2TW1SW-V1 User manual
Mercia Garden Products
Mercia Garden Products 01BEACH-V1 Instruction manual
Mercia Garden Products
Mercia Garden Products 02DTTWR0605-V1-PEFC Instruction manual
Mercia Garden Products
Mercia Garden Products 0644CSNE0303HGDD2SW-V1 Instruction manual
Popular Garden House manuals by other brands
Jimmy at work
Jimmy at work SPR10001 owner's manual
Outdoor Life Products
Outdoor Life Products I2328-57 Assembly instructions
Lemeks
Lemeks Palmako Pavilion PA44-3833 Assembly, installation and maintenance manual
Palmako
Palmako PA44-3030 installation manual
Sojag
Sojag Monterey owner's manual
Décor et Jardin
Décor et Jardin SF/DPV-SPL - TM Assembly Notice
WoodLife Garden
WoodLife Garden 17350 installation instructions
Lemeks
Lemeks Palmako PM70-5242 Assembly, installation and maintenance manual
Rowlinson Garden Products
Rowlinson Garden Products SS024R Assembly instructions
Lemeks
Lemeks Palmako FR40-4838 Assembly, installation and maintenance manual
Lemeks
Lemeks Palmako Cabin EL18-3422 Assembly, installation and maintenance manual
Biohort
Biohort HighLine Assembly manual
Pacific Casual
Pacific Casual 5LGZ1159-NN Use and care guide
Rowlinson Garden Products
Rowlinson Garden Products 10’ x 8’ Double Door Shed Assembly instructions
Lemeks
Lemeks Palmako FR28-4925 Assembly, installation and maintenance manual
GARDIVAL
GARDIVAL alpha Midi 200 manual
Palmako
Palmako PA28-4530 installation instructions
Palmako
Palmako EL18-4555-4 installation manual
