Mercia Garden Products 0644LOG178-V4 Instruction manual

P 1
0644LOG178-V4 (5.8x4.2m)
0644LOG178-V4: 5.8x4.2m 44mm garage cabin
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
Our buildings are pre treated with a water based treatment; this only helps to protect
the product during transit and for upto 3 months against mould. To validate your
guarantee and ensure longevity of the product, it is ESSENTIAL the building is treated
with a wood preserver within the rst three months of assembly and thereafter in
accordance with the manufactures recommendations. Care must be taken to ensure
the product is placed on a suitable base.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in
the case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.

2
13
5
6
7
8
9
10
11
13
14
15
16
17
18
19
20
21
22
P 2
0644LOG178-V4
Overall Dimensions:
Width = 4200mm
Depth = 5800mm
Height = 2710mm
Base Dimensions:
Width = 4018mm
Depth = 5502mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Short Window Pack* Single Door
Pack*
Garage Door
QTY 2
178 Gable - 4200mm
QTY 2
AI-0644LOG178G-V4
Starter Board - 44x66x5800mm QTY 2
LB44RT66-A-5800
Log Board - 44x120x3884mm QTY 6
LB44-B-3884
Log Board - 44x120x1097mm QTY 30
LB44-B-1097
Log Board - 44x120x2037mm QTY 12
LB44-C-2037
Log Board - 44x120x5800mm QTY 19
LB44-A-5800
Log Board - 44x120x869mm QTY 38
LB44-B-869
Log Board - 44x120x4200mm QTY 19
LB44-A-4200
Purlin - 45x120x5808mm QTY 5
F45120-A-5808
Fascia - 16x120x2237mm QTY 4
S16120-G-2237 (Angled)
Fascia - 16x120x2900mm QTY 4
S16120-2900
Eaves frame - 27x44x2900mm QTY 4
F2744-2900
Roof Board - 16x121x2217mm QTY 106
MB16-2217
Bearer - 44x58x5502mm QTY 2
F4458-5502-PT
Bearer - 44x58x807mm QTY 2
F4458-807-PT
Bearer - 44x58x4018mm QTY 1
F4458-4018-PT
Bearer - 44x58x300mm QTY 4
F4458-300-PT
Garage Door Strip - 16x60x2055mm
S1660-2055
12 Log Board - 44x120x5800mm
LB44-AD-5800 (Mid Notch - Cut out for door and window)
4
Storm Brace - 27x44x2000mm QTY 10
F2744-2000
23
24 Closure Trim - 27x44x2400mm (approx length) QTY 8
S1628-2400
25
26
27
28
29
30
Truss A - 40x90x4204mm QTY 2
F4090-AG-4204
Truss B - 40x70x814mm QTY 4
F4070-G-814
Truss C - 40x70x282mm QTY 4
F4070-G-282
Garage Door Frame Top - 88x115x2532mm
AI-0644LOGGTF-V4
Garage Door Frame Left Upright - 71x70x2155mm
AI-0644LOGGUFL-V4
Garage Door Frame Right Upright - 71x70x2155mm
AI-0644LOGGUFR-V4

Felt Tacks x600
70mm Screw x80
30mm Black Screw x8
Nail Bag
40mm Screw x585
Hook & Band Hinge QTY 6
See straight gate H&B kit
Pad Bolt
QTY 2
Pull Handle
QTY 2
P 3
Please retain product label and instructions for future reference
Finisher Board - 44x45x1978 QTY 4
LB44RG45-B-1978
Finisher Board - 44x45x1771 QTY 2
LB44RG45-C-1771
32
31
33
90mm Bolt Set x16
34 35
Felt
36

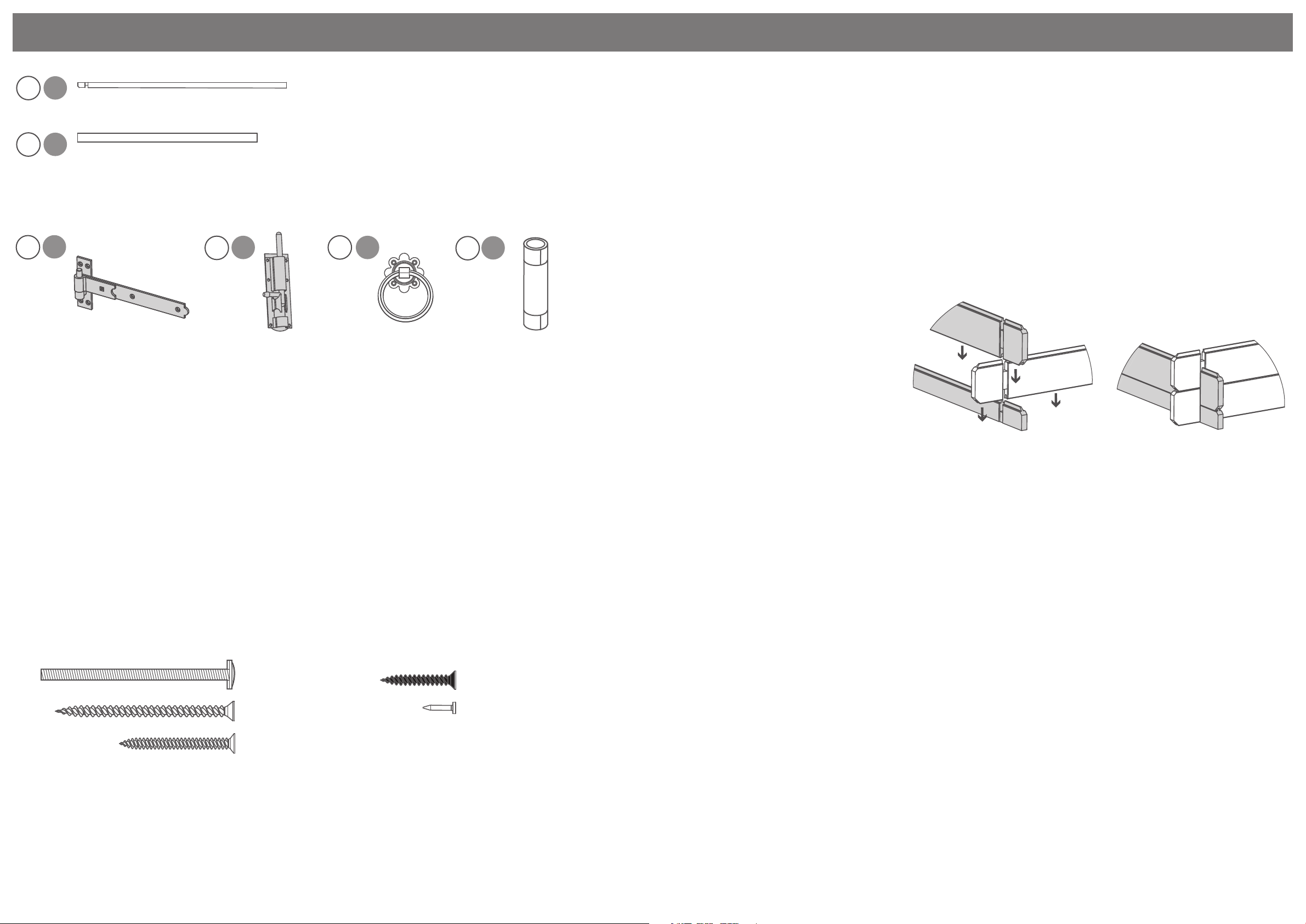

Pre-assembly
*Please note:
Each board interlocks at
either end in a staggered pattern.
Before securing ensure that the boards
are tted properly in their respective
tongues and grooves.
*All components for the Windows and Doors are shown
in the Windows and Doors instruction packs.

Pre drill
hole
70mm
screw
P 4
Please retain product label and instructions for future reference
20
Step 1
Parts needed - No. 18 QTY 2
No. 19
QTY 2
No. 20 QTY 1
Lay the bearers (No’s. 18, 19 &
20) onto a rm and level
surface (free from areas where
standing water can collect ) as
shown in the illustration.
Fix the framing together at
each corner using 2x70mm
screws, ensuring the frame is
ush.
*Ensure the 58mm side of the
bearer is laying on the base so
that you can screw the bearers
together on the 44mm side.
8x70mm Screws
18
19
19
Pre drill
hole
70mm
screw
Pre drill
hole
Step 2
Parts needed - No. 21 QTY 4
Place the small angled bearers
(No. 21) into each corner as
shown in the illustration.
*Ensure there is an equal
amount of space between each
frame.
Secure each of the frames in
place using 2x70mm screws
for each side of the bearer,
ensuring the framing remains
level.
8x70mm Screws
5
70mm
screw
Step 3 (See Pre-Assembly)
Parts needed - No. 5 QTY 2
No. 10 QTY 2
No. 11 QTY 1
Place the starter boards (No’s.
5, 10 & 11) on to assembled
base frame along the longest
sides.
*Ensure the notches at either
end of each board are ush
and level with the ends of the
frame.
Fix each of the starter boards
to the frame by screwing
through the notch into the
frame as shown in the
illustration.
4x70mm Screws
21
5
5
10
10
11
IMPORTANT: Pre-drill before xing screws.
18
Example picture
2 screws per bearer per end.

IMPORTANT: Pre-drill before xing screws.
P 5
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
Please retain product label and instructions for future reference
Step 4 (See Pre-Assembly)
Parts needed - No. 6 QTY 6
No. 7 QTY 6
No. 9 QTY 6
No. 10 QTY 12
No. 11 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the rst 6 boards (No’s. 6, 7,
9, 10 & 11) onto the starter
boards to create your rst
level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Step 6
Once you have laid 6 log boards (o of
the starter) up the door section, slide the
assembled door frame (No. 2) assembly
over the boards resting the frame on top
of the starter board.
*Please note: This image is for illustrative
purposes and may dier from your choice
in product (regarding door position).
Nevertheless the process of tting the
door frame is the same.
**Please Note: The short boards at the
front of the building (either side of the
door and window opening’s) can be
placed either side depending
on your needs.
Please Note: The short boards at the
front of the building (either side of
the door and window opening’s)
can be placed either side depending
on your needs.
10
10
11
6
7
9
28
29
30
Step 5: Garage Door
Parts needed - No. 28 QTY 1
No. 29 QTY 1
No. 30 QTY 1
Arrange the door frames onto a rm
and level surface. Secure the top
door frame (No. 28) between the left
(No. 29) and right (No. 30) sections.
Fixing into position with 4x70mm
screws as shown in the
illustration.
*Ensure that the rebates match on
the framing.
4x70mm Screws
Pre drill
hole
80mm
screw

P 6
Please retain product label and instructions for future reference
Step 7 (See Pre-Assembly)
Parts needed - No. 7 QTY 12
No. 8 QTY 6
No. 9 QTY 6
No. 10 QTY 12
No. 11 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the next 6 boards (No’s. 7, 8, 9,
10 & 11) onto the assembly
to create your second level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
**Please Note: The short boards placed
to create the opening’s for the doors &
windows can be placed either side
depending on your needs.
Step 10 (See Pre-Assembly)
Parts needed - No. 7 QTY 12
No. 8 QTY 6
No. 9 QTY 6
No. 10 QTY 12
No. 11 QTY 6
Following the same method
outlined in Pre-Assembly, lay
the remaining boards (No’s. 7,
8, 10, 11 & 12) onto the
assembly to bring the board
level to the top of the window
and door frames.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm
10
10
8
7
9
11
Step 8
Following the same method, place the
assembled garage door frame
inbetween the short boards at the
front of the building ensuring the
frame rests on top of the bearers.
Once in place secure the frame to
the log boards, screwing through
the frame into the boards using
10x70mm screws.
10x70mm Screws
Pre drill
hole
70mm
screw
Pre drill
hole
70mm
screw
IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
Step 9
Once you have laid the second
level of boards onto the assembly
slide the window(s) (No. 1) between the
smaller boards and rest on to the
longer board.
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may
dier from your choice in product
(regarding window position).
Nevertheless the process of tting
the window is the same.
7
10
10
87
9
11
7
IMPORTANT: Pre-drill before xing screws.

P 7
Please retain product label and instructions for future reference
IMPORTANT: Pre-drill before xing screws.
Step 11 (See Pre-Assembly)
Parts needed - No. 9 QTY 1
No. 12 QTY 1
Following the same method
outlined in Pre-Assembly, lay
the last two boards (No’s. 9 &
12)onto the assembly.
Once in position x by
screwing through the notches
as shown in the illustration.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
Pre drill
hole
70mm
screw
12
Step 12 (See Pre-Assembly)
Parts needed - No. 4 QTY 2
Place the gable tops (No. 4) onto the assembly. Fix
each gable into position by
screwing through the notches
as shown in the illustration.
*Ensure that the boards are
level and ush with each
other as you lay each one.
4x70mm Screws
Pre drill
hole
70mm
screw
4
4
IMPORTANT: Pre-drill before xing screws.
Step 13
Parts needed - No. 25 QTY 2
Place Truss A x2 (No. 25) onto the
assembly as shown and adjust
where necessary.
*DO NOT FIX THEM TO THE
ASSEMBLY AT THIS POINT.
9
25
25
31
31
31
32
32
31
Step 14
Parts needed - No. 31 QTY 4
No. 32 QTY 2
Place the shorter nisher boards
x2 (No. 32) onto the assembly in
the centre position as shown.
This will ensure the roof truss’
are in the correct place.
The longer nisher boards x4
(No. 31) will go either side.
Fix the nisher boards to the
building with 2x70mm screws
per board.
12x70m Screws
Pre drill
hole
70mm
screw

P 8
Please retain product label and instructions for future reference
Pre drill
hole
Step 15
Parts needed - No. 13 QTY 5
Align the roof purlin(s) (No. 13)
into the cut out slots on each gable top
ensuring each ridge bar interlocks the
boards.
Secure the purlins at each end
by screwing through the bars into the
boards (ensure to pre-drill to avoid
the boards splitting) using 6x70mm
screws per purlin.
*Please note: The gable shown is for
illustrative purposes and may dier
in width from your choice in product.
Nevertheless, despite any dierences
the process of xing the purlins
is the same.
30x70mm Screws
70mm
screw
13
13
13
13
13
13
IMPORTANT: Pre-drill before xing screws.
a
b
a
b

P 9
Please retain product label and instructions for future reference
Step 16
Parts needed - No. 26 QTY 4
Place the 4x Truss Bs (No. 26)
onto the building. Fix the Truss
Bs to the Truss As screwing
down with 1x40mm screw.
The x the Truss B’s to the top
roof purlin with 1x40mm screw
as shown.
8x40mm Screws
Step 17
Parts needed - No. 27 QTY 4
Fix Truss C (No. 27) to Truss A
screwing down at an angle with
1x40mm screws per board as
shown.
Then x to the roof purlins with
2x40mm screws per board.
12x40mm Screws
26
26
26
26
Pre drill
hole
40mm
screw
Pre drill
hole
40mm
screw
27
27
27
27
27

P 10
Please retain product label and instructions for future reference
Step 18
Parts needed - No. 17 QTY 106
Place the rst two roof board’s
(No. 17) onto the assembly on
each side, making sure the boards
are ush to the end of the roof
purlin. Once in position x to each
purlin using 4x40mm screws.
*Ensure the roof boards meet
at the top of the apex and leave
an overhang at the bottom.
Continue adding the roof boards
along the roof, xing each one into
position using 4x40mm screws,
making sure that each board is
interlocked, ush at the bottom &
meet at the top of the apex.
The last board on each side will
overhang: Using a staight edge
and a pencil mark out a line as
a guide.
Cut along the pencil mark and
remove the excess. Place the
cut down board’s back onto the
roof and secure into place
using 4x40mm screws per
board.
*Please Note: This image is for illustrative
purposes and may dier from your choice in
product. Nevertheless the process of cutting
and tting the last roof boards is the same.
416x40mm Screws
40mm
screw
Pre drill
hole
Step 19
Parts needed - No. 16 QTY 4
Ensuring the roof boards are ush
at the overhanging side and meet
at the apex, x the eaves frames
(No. 16) to the underside of the roof
boards using 10x40mm screws per
eaves frame as shown in the
illustration.
*Please Note: This image is for
illustrative purposes and may
dier from your choice in
product. Nevertheless the process
of xing the eaves frames is the
same.
40x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
23b 17
17
a
17
b
a
b
28
17
16
16
16
16

P 11
Please retain product label and instructions for future reference
Felt
tacks
Step 21
Parts needed - No. 36
Cut the felt into ve strips and lay
onto the roof in the order shown
in the illustration.
*Ensure there is approximately
50mm of overhanging felt each
side.
Once the felt is laid out x to the
roof using felt tacks at 100mm
intervals.
*Felt size: 5936mm
480x Felt Tacks
Step 20
Parts needed - No. 24 QTY 8
Inside the building place a closure trim
(No. 24) against the boarding and align
with the roof as shown in the illustration.
Once in position x each trim
into place by pre drilling a pilot hole and
using 6x30mm screws per trim, equally
spacing them along the face of the
board.
40x40mm Screws
Pre drill
hole
40mm
screw
*trim to t
IMPORTANT: Pre-drill before xing screws.
Roof
Closure Trim
Internal
24
*Measure and cut the
closure trims to
t the internal space.
30mm
screw
HANDLE
WITH CARE
12
3
4
1. 2.
3. 4.
5.
30mm
screw

P 12
Please retain product label and instructions for future reference

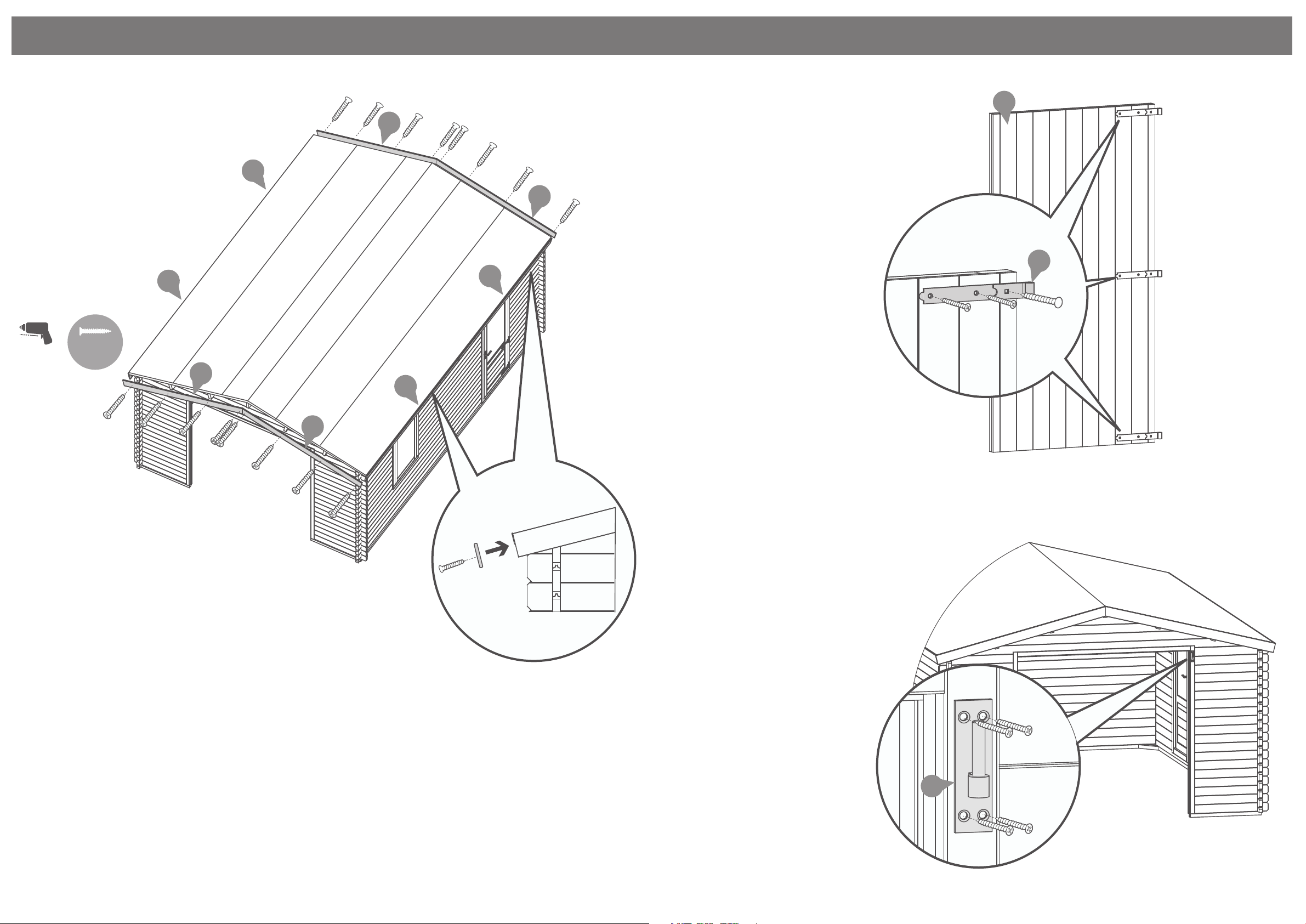

Step 22
Parts needed - No. 14 QTY 4
No. 15 QTY 4
Align the fascia’s (No’s. 14
& 15) with the roof and x
into place using 8x40mm
screws, making sure to screw
through the fascia into the
roof purlins and eaves frame.
*Ensure the angled cuts meet
at the top of the apex.
64x40mm Screws
Pre drill
hole
40mm
screw
14
14
14
14
15
33
3
Step 23
Parts needed - No. 3 QTY 1
No. 33 QTY 6
Using the screws and bolts provided
attach the band part of the hinge’s
(No. 33) to the front of the garage
doors (No. 3).
*Ensure to align the band with the
horizontal framing on the back of
each door.
33
Step 24
Parts needed - No. 33 QTY 6
Using the screws provided x the
hook part of the hinge’s (No. 33)
to the front of the garage door
framing.
*Ensure to align the hook & band
sections before xing into position.
IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws.
IMPORTANT: Pre-drill before xing screws.
15 15
15

Pre drill
hole
30mm
screw
P 13
Please retain product label and instructions for future reference
C

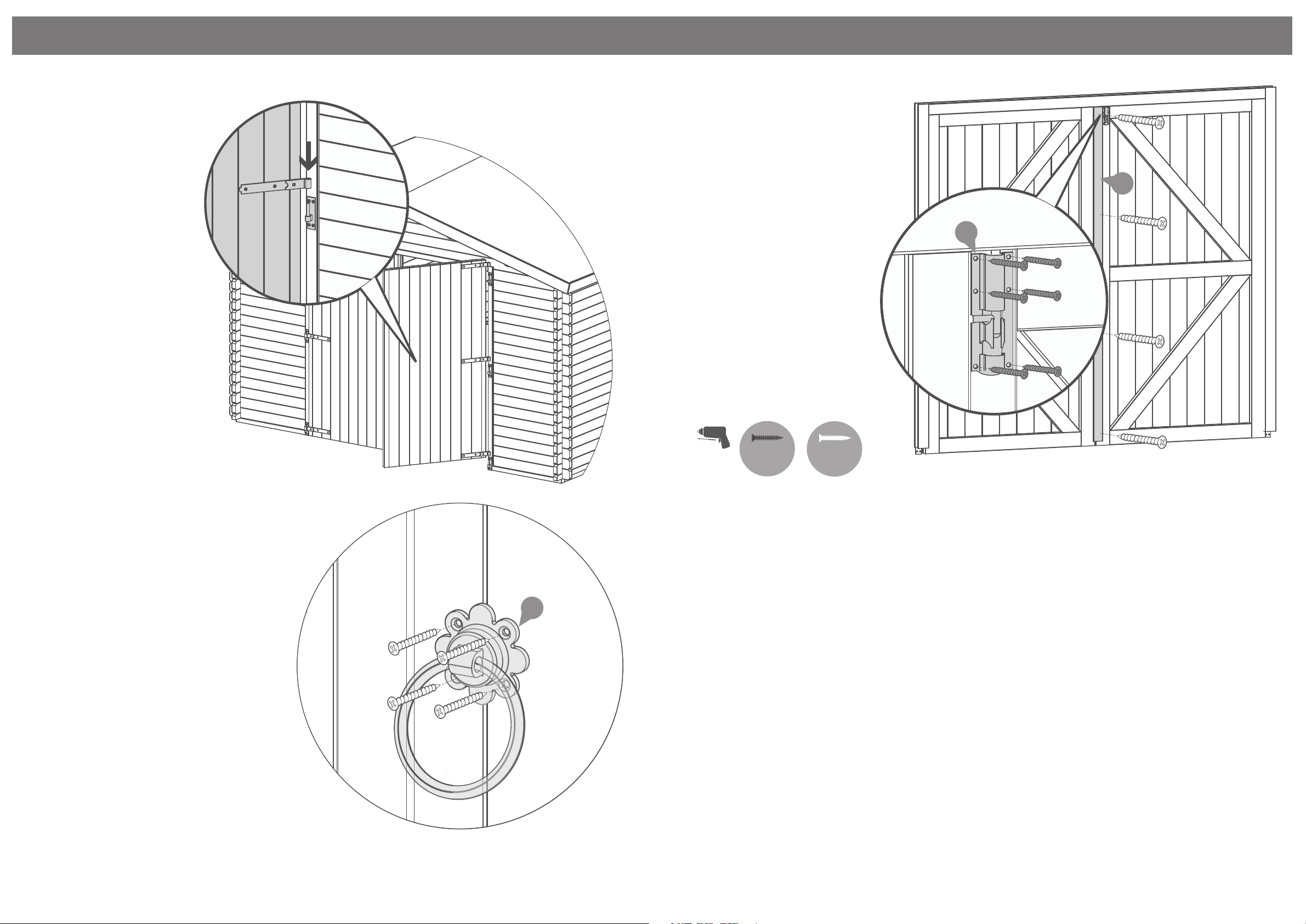

Step 25
Once both parts of the hinge’s
(No. 33) are secured into place
lift each door, ensuring the hook
and bands connect.
*Some adjustment may be
required to align properly.
CAUTION: THESE DOORS
ARE EXTREMELY HEAVY!
35
Step 26
Parts needed - No. 35 QTY 2
Using the screws provided, attach the
pull handles [without the locking bar]
(No. 35) to the front of the garage
doors.
Step 27
Parts needed - No. 22 QTY 1
No. 34 QTY 1
Fix the garage door strip
(No. 22) to the back of the
non locking door using
4x40mm screws.
Attach the pad bolt
(No. 34) to the same door
with 6x30mm black screws
as shown in the illustration.
Once the bolt is in place
mark the position and
drill into the door frame
above big enough for the
bolt to slide into.
6x30mm Black Screws
4x40mm Screws
40mm
screw
22
34

It is ESSENTIAL that you apply wood
treatment immediately after the building
has been assembled.
P 14
Please retain product label and instructions for future reference
23
23
Step 28
Parts needed - No. 23 QTY 10
Arrange the storm braces (No. 23)
around the building (internally).
Place 2x storm braces per side
xing into place using 2x 90mm
bolts per brace making sure the
washer & nut are tightened from
the outside of the building.
*Ensure the storm braces are
secured at the highest point
possible on each side.
**Storm braces will help your
building expand and contract
properly.
***Important: Ensure each
bolt is tightened using a
washer so as not to damage
the log boards.
16x90mm Bolt Sets
Pre drill
hole
90mm
bolt
