Mercia Garden Products 0644LOG133-V4 Instruction manual

P 1
0644LOG133-V4 (5.8x5m)
0644LOG133-V4: 44mm cabin
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
Please retain product label and instructions for future reference
General Instructions
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied)
including a Phillips screwdriver, Stanley knife, wood saw, step ladder and drill with 2mm
bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be aected during various weather conditions.
For the duration of heavy or extended periods of rain, swelling of the wood panels may
occur. Warping of the wood may also occur during excessive dry spells due to an interior
moisture loss. Unfortunately, these processes cannot be avoided but can be helped. It is
suggested that the outdoor building is sprayed with water during extended periods of
warm sunshine and sheltered as much as possible during rain or snow.
BUILDING A BASE
When thinking about where the building and base are going to be constructed:
Ensure that there will be access (60cm) to all sides for maintenance work and annual
treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to
diagrams for the base dimensions. The base should be slightly smaller than the external
measurement of the building, i.e. The cladding should overlap the base, creating a run
o for water. It is also recommended that the oor be at least 25mm above the
surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the
case of childrens products independently tested to EN71 level, we cannot accept
responsibility for your safety whilst erecting or using this product.
Refer to the instructions pages for your specic product code
For ease of assembly use a
rubber mallet to t the log
boards. Do NOT use a heavy
hammer.
Ensure to measure and check before cutting
boards.
It is advisable to use a hand
saw when cutting roof and
oor boards.
To ensure log boards are even, use a spirit
level to check each layer has been installed
correctly.

2
13
4
20
11
7
10
19
17
14
9
18
15
6
16
21
22
P 2
0644LOG133-V4
Overall Dimensions:
Width = 5832mm
Depth = 5138mm
Height = 2813mm
Base Dimensions:
Width = 5644mm
Depth = 4818mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Log Board - 44x120x328mm QTY 36
LB44-B-328
Log Board - 44x120x2225mm QTY 2
LB44-A-2225
Starter Board - 44x66x3801mm
LB44RT66-A-3801mm
Log Board - 44x120x3801mm QTY 6
LB44-A-3801
Log Board - 44x120x1526mm QTY 24
LB44-B-1526
Log Board - 44x120x5800mm
LB44-ADF-5800
Log Board - 44x120x5000mm QTY 19
LB44-A-5000
Log Board - 44x120x4120mm QTY 6
LB44-A-4120
Log Board - 44x120x1685mm QTY 24
LB44-B-1685
Log Board - 44x120x5000mm
LB44-ADF-5000
Starter Board - 44x66x5800mm
LB44RT66-A-5800mm
Log Board - 44x120x5800mm QTY 19
LB44-A-5800
Roof Purlin A - 45x120x5804mm QTY 4
F45120-A-5804
Roof Purlin B - 45x120x5804mm
F45120-AF-5804
5
a
c
b
133 Gable A 1106mm
AI-0644LOG133HGRS-V4
(return side - gable is un-xed
for assembly purposes)
Double Door Pack*
Medium Window Pack*
QTY 2
133 Gable A 5000mm
AI-0644LOG133FGRS-V4
(full non-return side)
133 Gable D 5000mm
AI-0644LOG133FG-V4
(return side - gable is un-xed for assembly purposes)
ba
c
d
e
f
8Starter Board - 44x66x2225mm
LB44RT66-A-2225mm
Log Board - 44x120x2225mm
LB44-AD-2225
13 Log Board - 44x120x1106mm QTY 19
LB44-A-1106
12

Felt Tacks x175
70mm Screw x200
Felt
Pre-assembly
*Please note:
Each board interlocks at
either end in a staggered pattern.
Before securing ensure that the boards
are tted properly in their respective
tongues and grooves.
Nail Bag
40mm Screw x1128
30mm Screw x220
27
28
29
26
23
24
25
30
31
32
100mm Screw x14 10mm Screw x4
Roof Spacers QTY 5
PI-07-0208 (20x100x2mm)
38
P 3
Please retain product label and instructions for future reference
Roof Board - 16x121x2628mm QTY 104
MB16-C-2628
Long Floor Board - 16x121x3849mm QTY 18
MB16-C-3849
Short Floor Board - 16x121x2354mm QTY 64
MB16-C-2354
Eaves Frame - 44x27x2900mm QTY 4
F2744-2900
Veranda Post - 70x70x2001mm
F7070-2001 (Notched)
Fascia - 16x120x2632mm QTY 4
S16120-2632 (Angled)
Fascia - 16x120x2916mm QTY 4
S16120-2916
Floor Bearer - 44x58x2409mm QTY 8
F4458-2409-PT
Floor Bearer - 44x58x3503mm QTY 16
F4458-3503-PT
Floor Bearer - 44x58x1883mm QTY 18
F4458-1883-PT
33
37
Storm Brace - 27x44x2000mm QTY 11
F2744-2000
34
90mm Bolt Set x24
36
Post Plate
Closure Trim - 16x28x2400mm (approx length) QTY 18
S1628-2400
Veranda Board - 16x120x880mm QTY 14
SR16120-880
35
*All components for the Windows and Doors are shown
in the Windows and Doors instruction packs.

Pre drill
hole
70mm
screw
30
32
30
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
P 4
Please retain product label and instructions for future reference

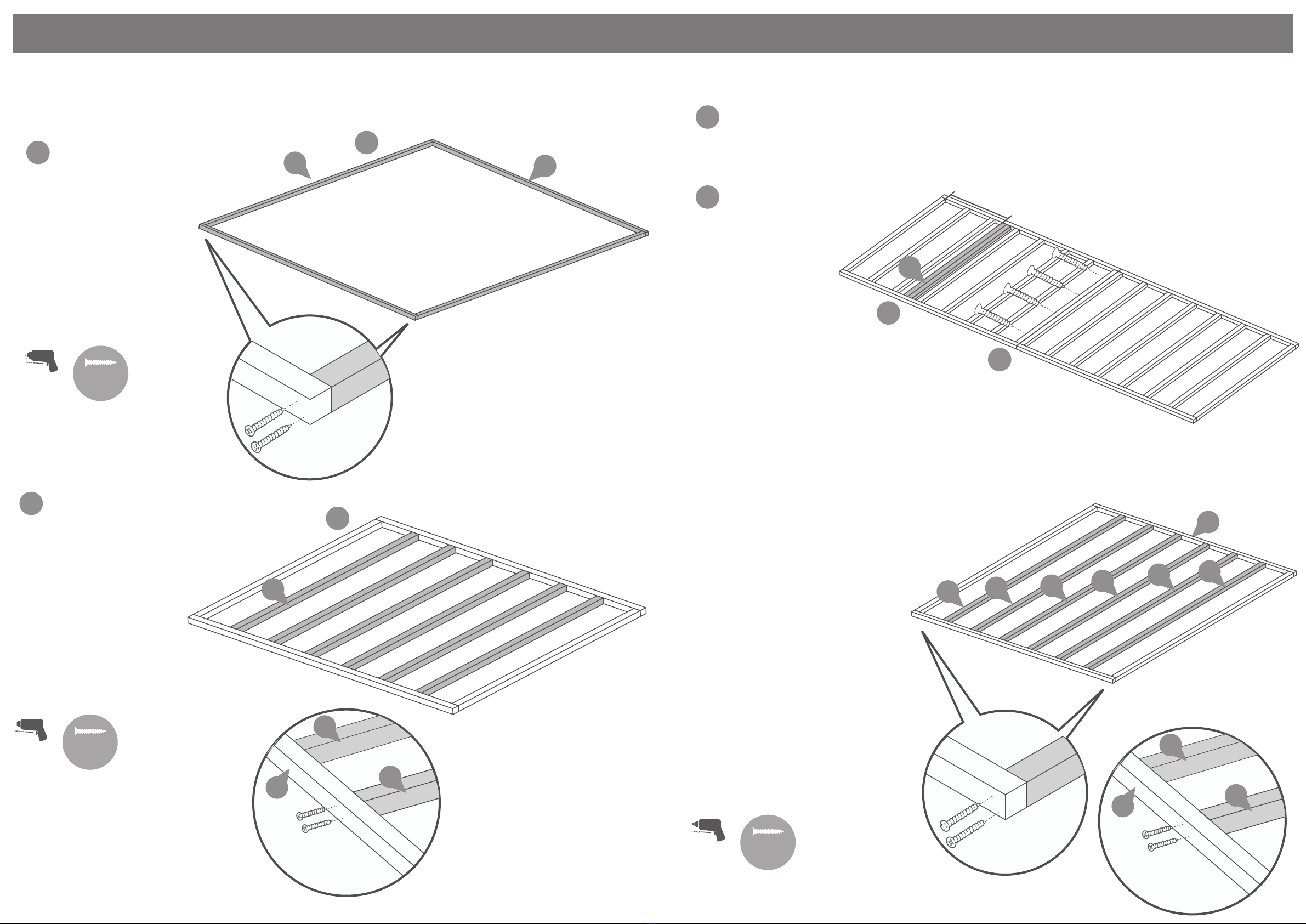

Step 1: Base 1
Parts needed - No. 30 QTY 4
No. 32 QTY 16
Lay the bearers (No’s. 30 &
32) onto a rm and level surface
(free from areas where standing
water can collect) as shown in the
illustration.
Fix the framing together at each
point using 2x70mm screws per
side ensuring the frame is ush.
This will create half of base 1.
8x70mm Screws
32
30
32

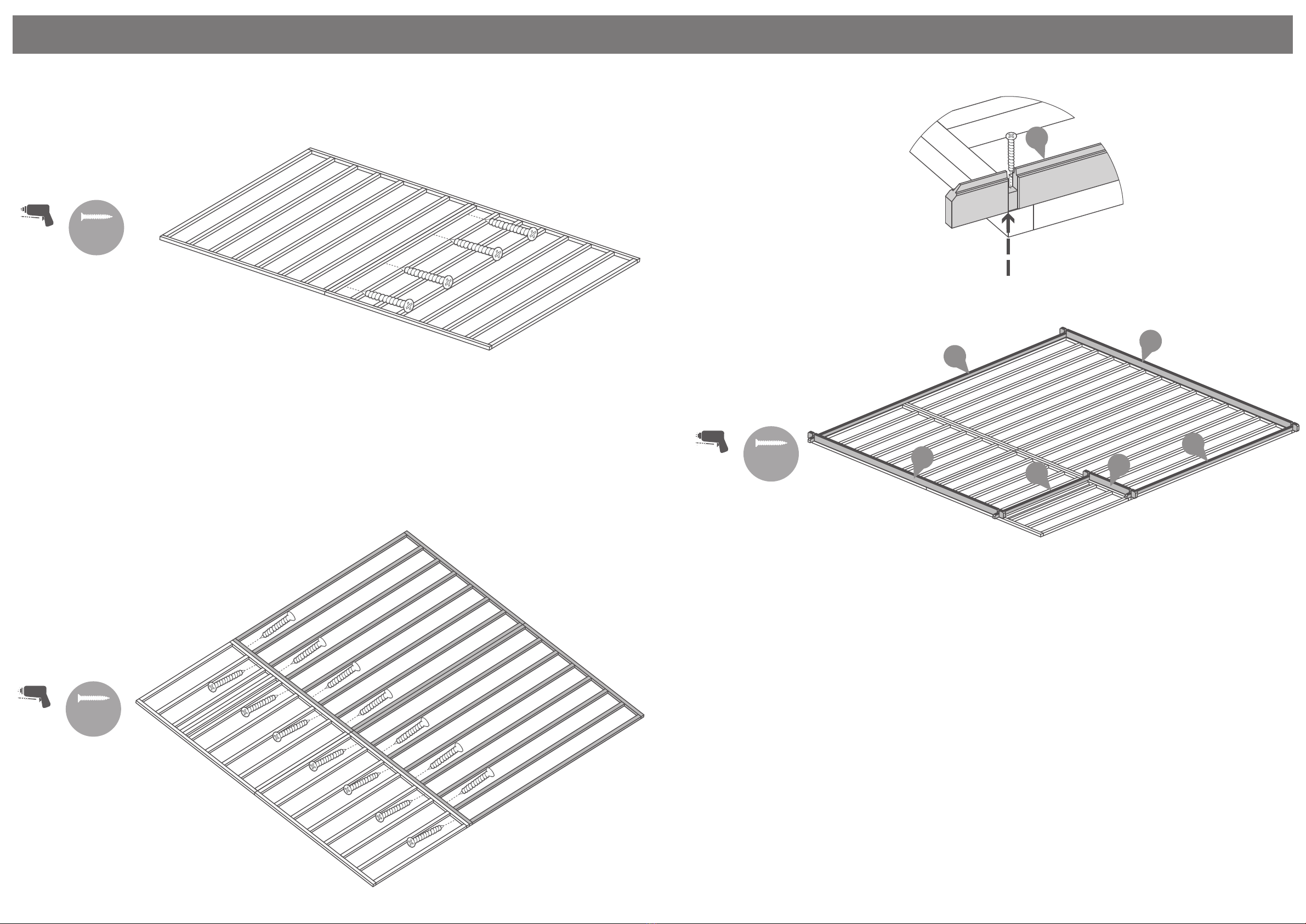

Step 2
Parts needed - No. 32 QTY 2
Lay both halves for base
1 side by side and x using
4x70mm screws as shown in the
diagram.
Then add in 2 extra
bearers (No. 32) at a distance of
771mm from the end bearer.
Ensure the 2 bearers sit ush
next to each other. Fix
using 8x70mm screws.
12x70mm Screws
Step 3: Base 2
Parts needed - No. 30 QTY 4
No. 31 QTY 16
Following the same method as
Step 1, create Base 2 by laying the
bearers (No’s. 30 & 31) onto a rm
and level surface (free from areas
where standing water can collect)
as shown in the illustration.
Fix the framing together at each
point using 2x70mm screws per
side ensuring the frame is ush.
This will create half of base 2.
Repeat this to create another base
of the same size.
64x70mm Screws
Pre drill
hole
70mm
screw
Following the same
method, arrange the remaining
bearers (No. 32) inside the
assembled frame, ensuring there
is an equal spacing between
each bearer. Secure each bearer
into position using 4x70mm
screws per bearer.
Repeat this to create another
base of the same size.
64x70mm Screws
*Ensure there is an equal
amount of space between each
frame.
b
aa
b
31
30
31
a
b
a
b
Pre drill
hole
70mm
screw
*Ensure there is an equal
amount of space between each
frame.
771mm
32
31 31
31
31
31
31
32
Example picture
2 screws per bearer per end.

Pre drill
hole
IMPORTANT: Pre-drill before xing screws.
Please retain product label and instructions for future reference
70mm
screw
Step 6 (See Pre-Assembly)
Parts needed - No. 6 QTY 1
No. 7 QTY 1
No. 8 QTY 1
No. 9 QTY 1
No. 13 QTY 1
No. 14 QTY 1
Place the starter boards (No’s. 6, 7, 8,
9, 13 & 14) on to assembled base
frame along the longest sides.
*Ensure the notches at either end of
each board are ush and level with
the ends of the frame.
Fix each of the starter boards to the
frame by screwing through the notch
into the frame as shown in the
illustration.
6x70mm Screws
6
Step 5: Base Fix
Once all four bases are assembled,
x together using 100mm screws
ensuring to stagger so as not to
collide.
*Make sure the bases are ush
and level at the back.
14x100mm Screws
Pre drill
hole
100mm
screw
9 13
14
6
8
7
Step 4
Lay both of the halves for base 2
side by side and x using
4x70mm screws as shown in the
diagram.
4x70mm Screws
Pre drill
hole
70mm
screw
P 5

IMPORTANT: Pre-drill before xing screws.
Step 8
Once you have laid 6 log boards (o
of the starter) up the door section,
slide the assembled door frame (No.
2) assembly over the boards resting
the frame on top of the starter board.
*Please note: This image is for illustra-
tive purposes and may dier from
your choice in product (regarding
door position). Nevertheless the
process of tting the door frame is
the same.
**Please Note: The short boards at
the
front of the building (either side of
the door and window opening’s) can
be placed either side depending on
your needs.
Please retain product label and instructions for future reference
***Please Note: The short boards placed
to create the opening’s for the doors &
windows can be placed either side
depending on your needs.
9 13
14
16
20 10
14
16
20
20
18 13 19
18
Step 7 (See Pre-Assembly)
Parts needed - No. 9 QTY 6
No. 10 QTY 6
No. 13 QTY 6
No. 14 QTY 6
No. 16 QTY 6
No. 20 QTY 12
Following the same method
outlined in Pre-Assembly, lay
the next 6 boards (No’s. 9, 10,
13, 14, 16 & 20) onto the
assembly to create your second
level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Step 9 (See Pre-Assembly)
Parts needed - No. 13 QTY 6
No. 14 QTY 6
No. 16 QTY 6
No. 18 QTY 12
No. 19 QTY 12
No. 20 QTY 12
Following the same method
outlined in Pre-Assembly, lay
the next 6 boards (No’s. 13, 14,
16, 18, 19 & 20) onto the
assembly to create your second
level.
*Ensure that the boards are
level and ush with each
other as you lay each one.
*Doors can be hung once the
boarding has enclosed the
door frame by 12-13 boards,
refer to door installation
instructions, if not, you can
install the door at step 11.
***Please Note: The short boards placed
to create the opening’s for the doors &
windows can be placed either side
depending on your needs.
IMPORTANT: Pre-drill before xing screws.
20
19
P 6
Step 10
Once you have laid the second
level of boards onto the assembly
slide the window(s)(No. 1) between the
smaller boards and rest on to the
longer board.
*Ensure the boards are level with
each end.
*Please note: This image is for
illustrative purposes and may
dier from your choice in product
(regarding window position).
Nevertheless the process of tting
the window is the same.

Please retain product label and instructions for future reference
***Please Note: The short boards placed
to create the opening’s for the doors &
windows can be placed either side
depending on your needs.
14
16
20
18 13 19
18 20
Step 11 (See Pre-Assembly)
Parts needed - No. 13 QTY 6
No. 14 QTY 6
No. 16 QTY 6
No. 18 QTY 12
No. 19 QTY 12
No. 20 QTY 12
Following the same method
outlined in Pre-Assembly, lay
the remaining boards (No’s. 13,
14, 16, 18, 19 & 20) onto the
assembly to bring the board
level to the top of the window
and door frames.
*Ensure that the boards are
level and ush with each
other as you lay each one.
*Doors can be hung once the
boarding has enclosed the
door frame.
IMPORTANT: Pre-drill before xing screws.
a
a
b
c
c
Step 12
Parts needed - No. 35 QTY 14
Fix the Veranda Boards (No. 35)
to the oor bearers using
8x30mm screws per board.
Some boards need to be
notched to t. Cut a
notch 98x28mm on one
corner.
Fix the remaining boards
17mm apart.
The nal board will need
to be shortened by
28mm.
112x30mm Screws
35
35
35
*Cut to t
Pre drill
hole
30mm
screw
b
19
P 7

Pre drill
hole
70mm
screw
P 8
Please retain product label and instructions for future reference
40mm
screw
10mm
screw
16
12 17
Inside of
Board
ab
c
Step 14 (See Pre-Assembly)
Parts needed - No. 12 QTY 1
No. 16 QTY 1
No.17 QTY 1
Following the same method
outlined in Pre-Assembly,
x the next three boards
(No’s. 12 , 16 & 17) onto
assembly as shown in the
illustration.
Step 13 (See Pre-Assembly)
Parts needed - No. 13 QTY 1
No. 14 QTY 1
No. 15 QTY 1
No. 23 QTY 1
No. 36 QTY 1
Following the same method
outlined in Pre-Assembly, lay
the next three boards (No’s. 13,
14 & 15) onto the assembly as
shown in the illustration.
*Ensure that the boards are
level and ush with each
other as you lay each one.
Fix the top section of
the Post Plate (No. 36) to the
base of the veranda post (No.
23) using 4x40mm screws as
shown in the illustration.
Fix the bottom part of
the post plate to the veranda
using 4x10mm screws.
Place the post onto the
protruding (ensuring the
board sits into the notch).
Secure into place using
2x70mm screws at the
top and adjust the nut to
suit the post.
4x10mm Screws
4x40mm Screws
2x70mm Screws
a
b
c
36
23
36
23
13
15
14

P 9
Please retain product label and instructions for future reference
Step 15 (See Pre-Assembly)
Parts needed - No. 3 QTY 1
No. 4f QTY 1
No. 5c QTY 1
No. 11 QTY 1
Place the Gable Top (No. 3)
onto the assembly and x into
position by screwing through the
notches into the boards below.
Part No’s. 4f & 5c are the
bottom boards from the gable
only (gable is un-xed for assem-
bly purposes) rest these into
position and secure through
the notches in the board.
Place the second Log Board (No.
11) above the doors xing the
board into position through each
notch with 2x70mm screws.
*Ensure that the boards are
level and ush with each
other as you lay each one.
**Ensure to stagger the screws
to ensure not to collide.
6x70mm Screws
IMPORTANT: Pre-drill before xing screws.
Pre drill
hole
70mm
screw
a
b
3
11
a
b
Step 16 (See Pre-Assembly)
Parts needed - No. 4e QTY 1
No 5b QTY 1
Part No’s. 4e & 5b are the second
boards from the gable only
(gable is un-xed for assembly
purposes) rest these into
position and secure through
the notches in the board.
*Ensure that the boards are
level and ush with each
other as you lay each one.
**Ensure to stagger the screws
to ensure not to collide.
4x70mm Screws
Pre drill
hole
70mm
screw
Step 17 (See Pre-Assembly)
Parts needed - No. 11 QTY 1
Add the remaining Log Board
(No. 11) onto the door gables
following the same method
outlined in the previous steps.
*Ensure that the boards are
level and ush with each
other as you lay each one.
**Ensure to stagger the screws
to ensure not to collide.
2x70mm Screws
Pre drill
hole
70mm
screw
11
5b
4e
5c
4f

P 10
Please retain product label and instructions for future reference
21
21
21
21
22
Pre drill
hole
Step 19
Parts needed - No. 21 QTY 4
No. 22 QTY 1
Align the Purlin(s) (No. 21) into the
cut out slots on each gable top at the
rear of the building ensuring each roof
purlin interlocks the boards. Following the
same outlined method place the
Front Purlin (No. 22 - 3x notches)
into cut out slots at the front of the
building ensuring it interlocks
the boards.
Secure the Purlins at each end by
screwing through the bars into the
boards (ensure to pre-drill to avoid
the boards splitting) using 4x70mm
screws per purlin.
*Please note: The gable shown is for
illustrative purposes and may dier
in width from your choice in product.
Nevertheless, despite any dierences
the process of xing the roof purlins
is the same.
20x70mm Screws
70mm
screw
IMPORTANT: Pre-drill before xing screws.
a
b
a
b

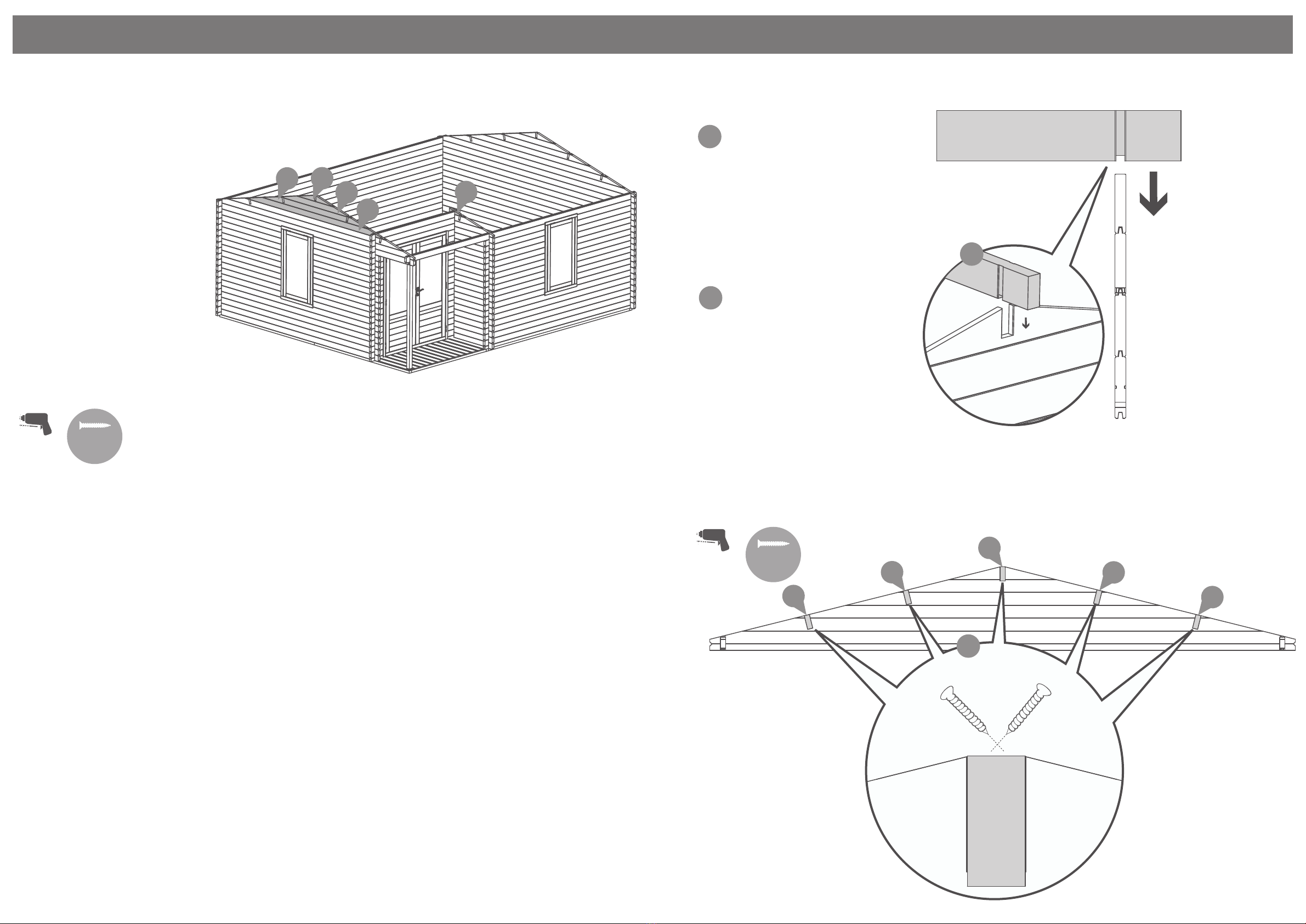

Step 18 (See Pre-Assembly)
Parts needed - No. 4a QTY 1
No 4b QTY 1
No. 4c QTY 1
No. 4d QTY 1
No. 5a QTY 1
Parts No. 4a, 4b, 4c, 4d & 5a are
the last log boards from the
gables; rest these into position
and secure through the
notches in the board.
*Ensure that the boards are
level and ush with each other
as you lay each one.
**Ensure to stagger the screws
to ensure not to collide.
8x70mm Screws
Pre drill
hole
70mm
screw
4a 4b
4c 5a
4d

P 11
Please retain product label and instructions for future reference
23b 27
27
27
26
Step 20
Parts needed - No. 27 QTY 104
Place the rst two Roof
Board’s (No. 27) onto the assembly
on each side, making sure the
boards are ush to the end of the
roof purlin. Once in position x to
each purlin using 4x40mm screws.
*Ensure the roof boards meet
at the top of the apex and leave
an overhang at the bottom.
Due to natural occurences of wood
shrinkage / expansion. You maybe
required to use the provided spacers
and place a space of 2mm to ensure
every roof board lines up with the
truss’.
Continue adding the roof boards
along the roof, xing each one into
position using 4x40mm screws,
making sure that each board is
interlocked, ush at the bottom &
meet at the top of the apex.
The last board on each side
will overhang: Using a staight edge
and a pencil mark out a line as
a guide.
Cut along the pencil mark and
remove the excess. Place the cut
down board’s back onto the roof and
secure into place using 4x40mm
screws per board.
*Please Note: This image is for
illustrative purposes and may dier
from your choice in product.
Nevertheless the process of cutting
and tting the last roof boards is the
same.
416x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t
a
b

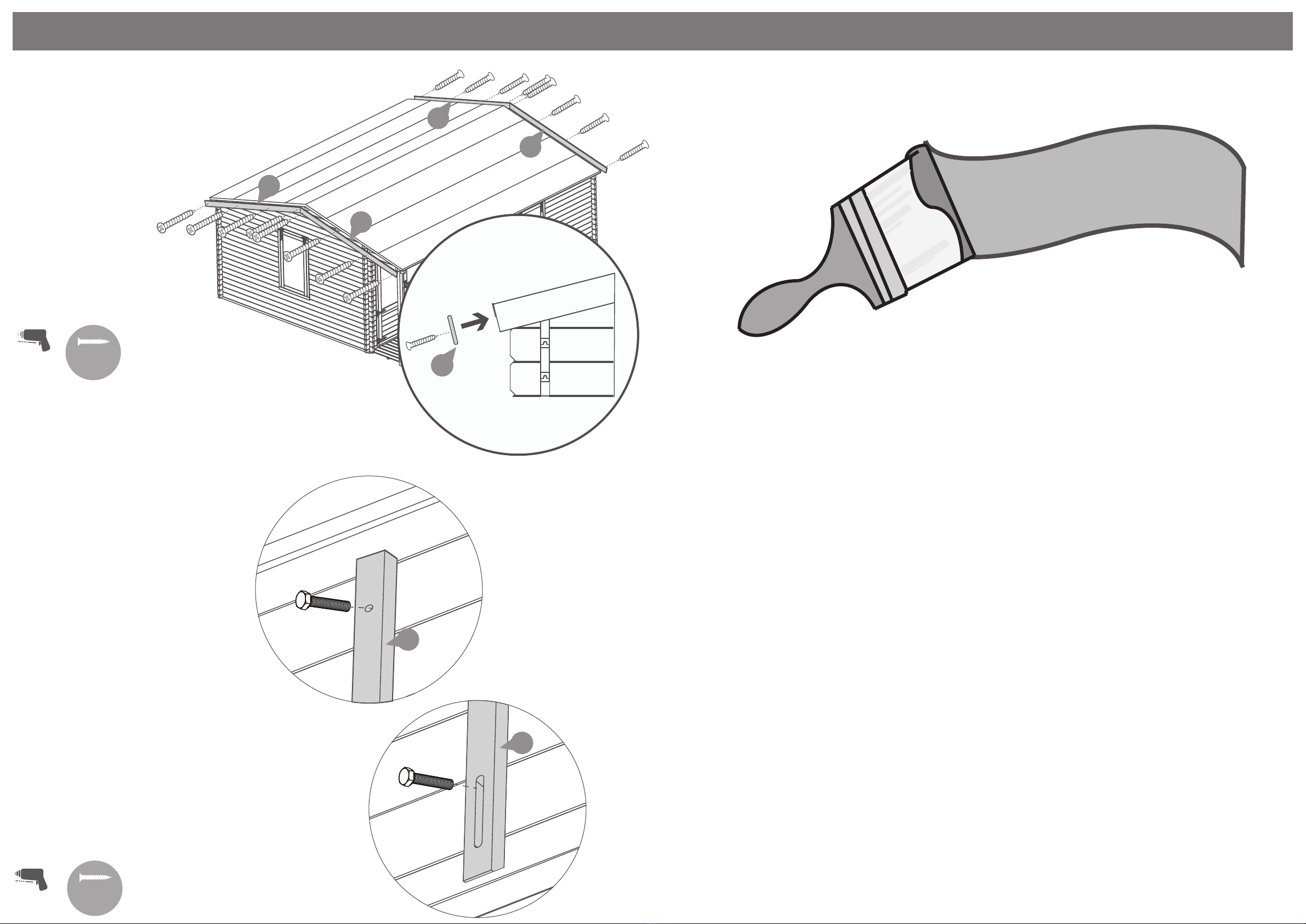

Step 21
Parts needed - No. 26 QTY 4
Ensuring the roof boards are
ush at the overhanging side
and meet at the apex, x the
eaves frames (No. 26) to the
underside of the roof boards
using 9x40mm screws as
shown in the illustration
*Please Note: This image is for
illustrative purposes and may
dier from your choice in
product. Nevertheless the
process of xing the eaves
frames is the same.
36x40mm Screws
40mm
screw
Pre drill
hole

P 12
Please retain product label and instructions for future reference
23
28
29

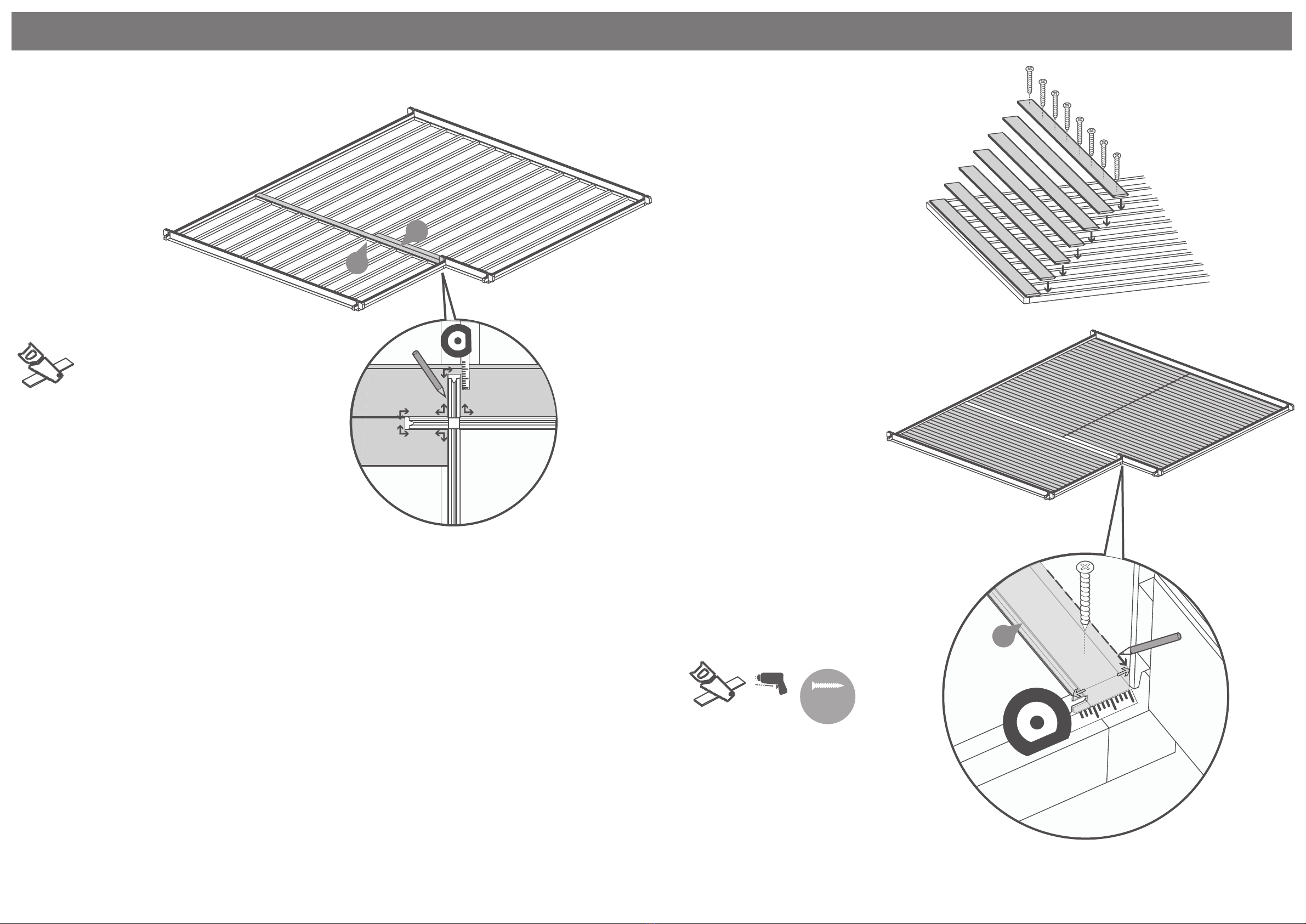

Step 22
Parts needed - No. 28 QTY 1
No. 29 QTY 1
Internally, measure around
the protruding boards and
mark onto the Long & Short
Floor Boards (No’s. 28 & 29).
Once marked, cut into the
boards to create the
corresponding notches.
*Ensure the tongue of the
long oor board (No. 29)
faces away from the
shorter oor board.
*Cut to t
Step 23
Parts needed - No. 28 QTY 17
No. 29 QTY 63
Continue adding the oor boards
(No’s. 28 & 29) (internally) making
sure to interlock each individual
board.
*Do NOT secure the boards until
the last board has been measured
and cut.
Following the same method outlined
in the previous step measure the gap between
the bottom of the tongue (on the last
board placed) and the log board.
Using a straight edge mark out the
measurement onto the last oor
board (No’s. 28 & 29) and cut along
the length removing the excess.
**Please note: Mark the nal board
1mm under the measurement; This
will allow the timber to expand and
contract correctly.
Once all the oor boards are in
position secure each board into
position using 8x40mm screws.
***Please Note: Ensure to screw
through each of the oor boards
into the oor bearers.
640x40mm Screws
40mm
screw
Pre drill
hole
*Cut to t

P 13
Please retain product label and instructions for future reference
HANDLE
WITH CARE
12
3
4
1. 2.
3. 4.
5. 6.
7.
Felt tacks

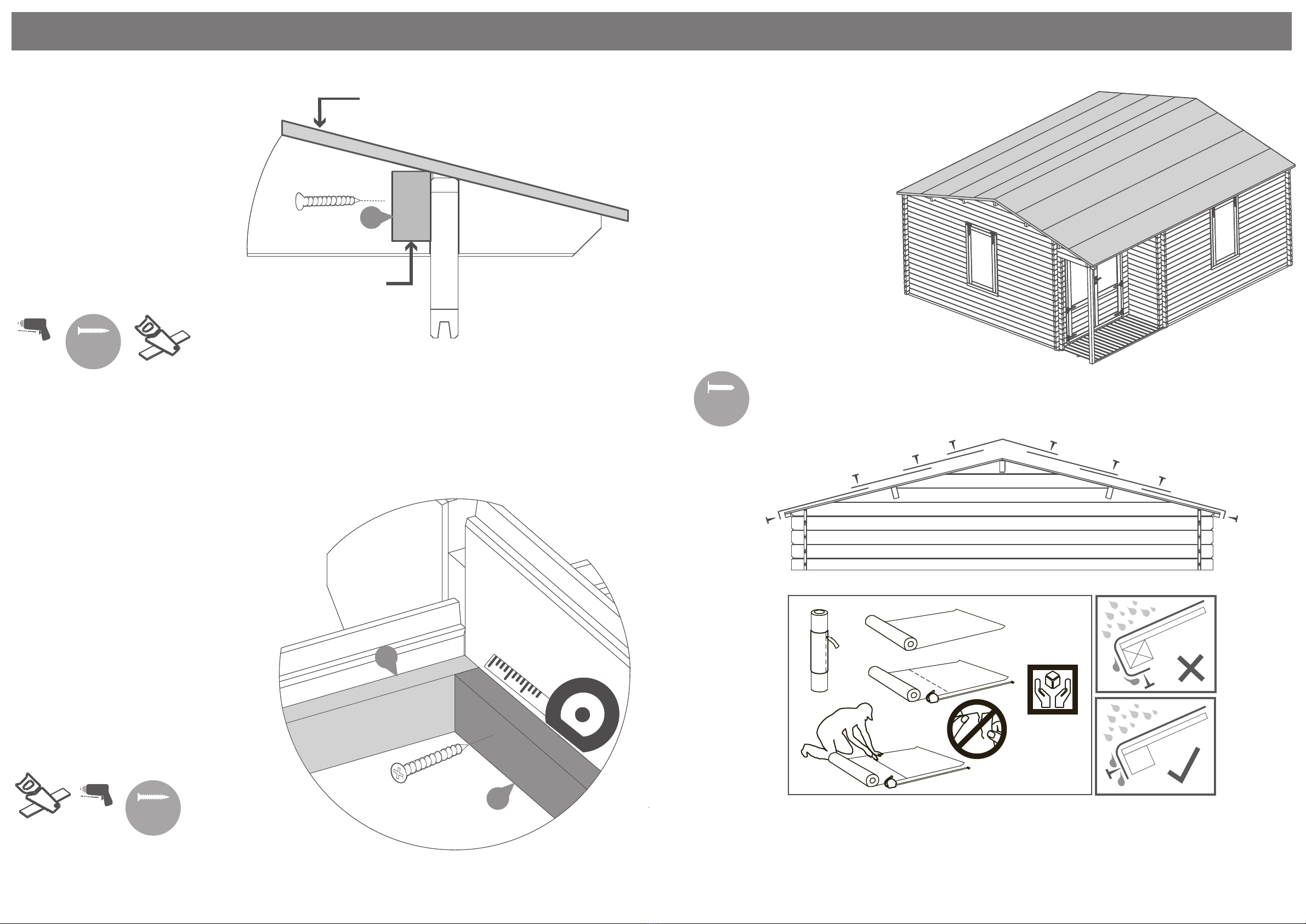

Step 26
Parts needed - No. 37
Cut the felt (No. 37) into seven
strips and lay onto the roof in the
order shown in the illustration.
*Ensure there is approximately
50mm of overhanging felt each
side.
Once the felt is laid out x to the
roof using felt tacks at 100mm
intervals.
*Felt size: 5936mm
480x Felt Tacks
Roof
Closure Trim
Internal
23
*Measure and cut the
closure trims to
t the internal space.
23
23
Roof
Closure Trim
Internal
33
*Measure and cut the
closure trims to
t the internal space.
33
33
Pre drill
hole
30mm
screw
*trim to t
Step 24
Parts needed - No. 33 QTY 9
Inside the building place the closure
trim (No. 33) against the boarding
and align with the roof as shown in
the illustration.
Once in position x each trim
into place by pre drilling a pilot hole
and using 6x30mm screws per trim,
equally spacing them along the face
of the board.
54x30mm Screws
30mm
screw
Pre drill
hole
*Cut to t
Step 25
Parts needed - No. 33 QTY 9
Once the oor has been laid arrange the
closure trim (No. 33) around the outside
edge of oor (internally), measure and cut
down accordingly to best match the
internal space.
Secure each trim section into place using
6x30mm screws spaced equally along the
board as shown in the illustration.
*Do NOT x the closure trim to the oor
boards.
54x30mm Screws

It is ESSENTIAL that you apply wood treat-
ment immediately after the building has
been assembled.
P 14
Please retain product label and instructions for future reference
Step 27
Parts needed - No. 24 QTY 4
No. 25 QTY 4
Align the fascia’s (No’s. 24
& 25) with the roof and x
into place using 4x40mm
screws per fascia, making
to screw through the fascia
into the roof purlins and
eaves frame.
*Ensure the angled cuts meet
at the top of the apex.
32x40mm Screws
Pre drill
hole
40mm
screw
24
24
24
24
25
Step 28
Parts needed - No. 34 QTY 8
Arrange the storm braces (No. 34)
around the building (internally).
Place 2x storm braces per side
xing into place using 2x 90mm
bolts per brace making sure the
washer & nut are tightened from
the outside of the building.
*Ensure the storm braces are
secured at the highest point
possible on each side.
**Storm braces will help your
building expand and contract
properly.
***Important: Ensure each
bolt is tightened using a
washer so as not to damage
the log boards.
16x90mm Bolt Sets
90mm
bolt
Pre drill
hole
34
34
