Mercia Garden Products 03PTMBPN0406BR-V1 Instruction manual

REGISTER FOR YOUR
ANTI-ROT
GUARANTEE TODAY
PLEASE SCAN HERE:
Measure
under the
head
Measure
overall
length
Screws & Nails Bolts To identify the
xings required
for each step use a
measuring tape.
03PTMBPN0406BR-V1
PRESSURE TREATED MATCHBOARD PENT 4X6 BAR
2mm Drill bit
x2 Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
All buildings should be
erected by two adults
For ease of assembly, you
MUST pilot drill all screw
holes and ensure all screw
heads are countersunk.
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
CAUTION
Every eort has been made during the
manufacturing process to eliminate the
prospect of splinters on rough surfaces of the
timber. You are strongly advised to wear gloves
when working with or handling rough sawn
timber.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
For ease of assembly, you
will need a tape measure to
check dimensions of
components.
Pressure Treated Timber
Your building has been pressure treated.
Pressure treating is a chemical process which helps to protect wood against adverse weather which could
lead to rot or insect damage.
The most common chemicals used to pressure treat wood are Alkaline Copper Quaternary (ACQ),
Copper Azole (CA), and Micronized Copper Quaternary (MCQ).
Safety: Always wear gloves, eye protection and a dust mask when handling wood. Due to chemicals in
pressure treated wood, never burn its sawdust or scraps; instead dispose in a landll.
P 1
Please retain product label and instructions for future reference
General Instructions

2
14
5
3
6 7
18
8
911
12
13
14
15
16
17
20
50mm Screw x 35
40mm Screw x 27
70mm Screw x 71
10
19
30mm Screw x 8
P 2
For assistance please contact customer care on: 01636 821215
Mercia Garden Products Limited,
Sutton On Trent,
Newark,
Nottinghamshire,
NG23 6QN
www.merciagardenproducts.co.uk
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand (not supplied) including a Phillips screw-
driver, Stanley knife, Wood saw, Step ladder, Hammer and a Drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
LOCATION FOR YOUR GARDEN BUILDING
A minimum of 60cm should be left around the perimeter of your garden building to allow access for maintenance,
annual treatment and to allow air ow around the building.
Where possible you should avoid placing your garden building underneath large trees to prevent the tree causing
damage to the building.
TIMBER
As with all natural materials, timber can be aected during various weather conditions. For the duration of heavy
or extended periods of rain, swelling of the wood panels may occur. Warping of the wood may also occur during
excessive dry spells due to an interior moisture loss. Unfortunately, these processes cannot be avoided but can be
helped. It is suggested that the outdoor building is sprayed with water during extended periods of warm sunshine
and sheltered as much as possible during rain or snow.
Once your garden building has been installed it will need to be treated as soon as possible and annually to prevent
the timber from deteriorating and to waterproof it. This is required to maintain the anti-rot guarantee.
Dip Treated buildings - Require a preservative treatment to protect against rot and decay and a waterproof treat-
ment to prevent water ingress
Pressure Treated buildings - Require a waterproof treatment to prevent water ingress
Log Cabins - Are supplied untreated and require a preservative and waterproong treatment.
BUILDING A BASE
When thinking about where the building and base is going to be constructed:
Ensure that there will be access to all sides for maintenance work and annual treatment.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base
dimensions, The base should be slightly smaller than the external measurement of the building, i.e. The cladding
should overlap the base, creating a run o for water. It is also recommended that the oor be at least 25mm above
the surrounding ground level to avoid ooding.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Whilst all products manufactured are made to the highest standards of Safety and in the case of childrens
products independently tested to EN71 level, we cannot accept responsibility for your safety whilst erecting or
using this product.
Back Panel QTY 2
AI-S22MBVCPP837X1762-V1
Left Plain Panel QTY 1
AI-S22MBVCPP1119X900-V1
Left Gable QTY 1
AI-S21MBPGTL1119X393-V1
Right Gable QTY 1
AI-S21MBPGTR1119X393-V1
Roof QTY 2
AI-S22FEPR971X1428-V1
Front Panel QTY 2
AI-S22MBVCPP837X900-V1
Right Plain Panel QTY 1
AI-S22MBVCPP557X900-V1
Top Panel QTY 2
AI-S21MBVCPP837X352-V1
Right Bar Top QTY 1
AI-03S21MBSHFCO632X254-V1
Plain Bar Top QTY 2
AI-03S21MBSHF658X254-V1
Left Bar Top QTY 1
AI-03S21MBSHFCO254X1194-V1
Ridge Bar 27x70x1674mm QTY 1
F2770-1674mm
Front Cover Trim 12x56x1848mm QTY 1
S1256-1848mm
Side Cover Trim 12x56x1269mm QTY 2
S1256-1269mm
Roof Cover Trim 12x80x1130mm QTY 1
S1280-1130mm
Fascias 12x95x1428mm QTY 2
S1295-1428mm
Side Fascia 12x95x1966mm QTY 2
S1295-1966mm
Bar Support 27x44x258mm QTY 2
F2744-G-298mm
Front Post 75x75x2100mm QTY 2
PI-14-0306
Back Post 75x75x1800mm QTY 2
PI-14-0304
Corner Brace QTY 2
PI-07-0012
21
03PTMBPN0406BR-V1
Overall Dimensions:
Width = 1966mm
Depth = 1432mm
Height = 2140mm
Base Dimensions:
Width = 1824mm
Depth = 1269mm
Please retain product label and instructions for future reference
Before assembly
please make sure you have a
suitable base ready to erect your
building
MADE IN GREAT BRITAIN
Nail Bag
There may be extra screws present in the nail bag

50mm Screw x 12
40mm Screw x 11
70mm Screw x 21
P 3
Please retain product label and instructions for future reference
20
Bar Support 27x44x258mm QTY 1
F2744-G-298mm
15
Roof Cover Trim 12x80x1130mm QTY 1
S1280-1130mm
Front Panel QTY 1
AI-S22MBVCPP837X900-V1
6
1
Back Panel QTY 1
AI-S22MBVCPP837X1762-V1
Roof Panel Extension QTY 1
AI-S22FEPR837X1428-V1
22
Cover Trim Extension 12x56x837mm QTY 1
S1256-837mm
23
Fascia Extension 12x95x837mm QTY 2
S1295-837mm
24
Plain Bar Top Extension QTY 1
AI-03S21MBSHF837X254-V1
8
Top Panel QTY 1
AI-S12MBVCPP837x352-V1
26
Ridge Bar 27x70x2511mm QTY 1
F2770-2511mm
25
Overall Dimensions:
Width = 2803mm
Depth = 1432mm
Height = 2140mm
Base Dimensions:
Width = 2661mm
Depth = 1269mm
Extension Pack
03PTMBPN0403BRPB-V1
Nail Bag
There may be extra screws present in the nail bag
If Extension Pack has been purchased, please follow
steps labelled ‘Extension Pack’ where present

P 4
Please retain product label and instructions for future reference

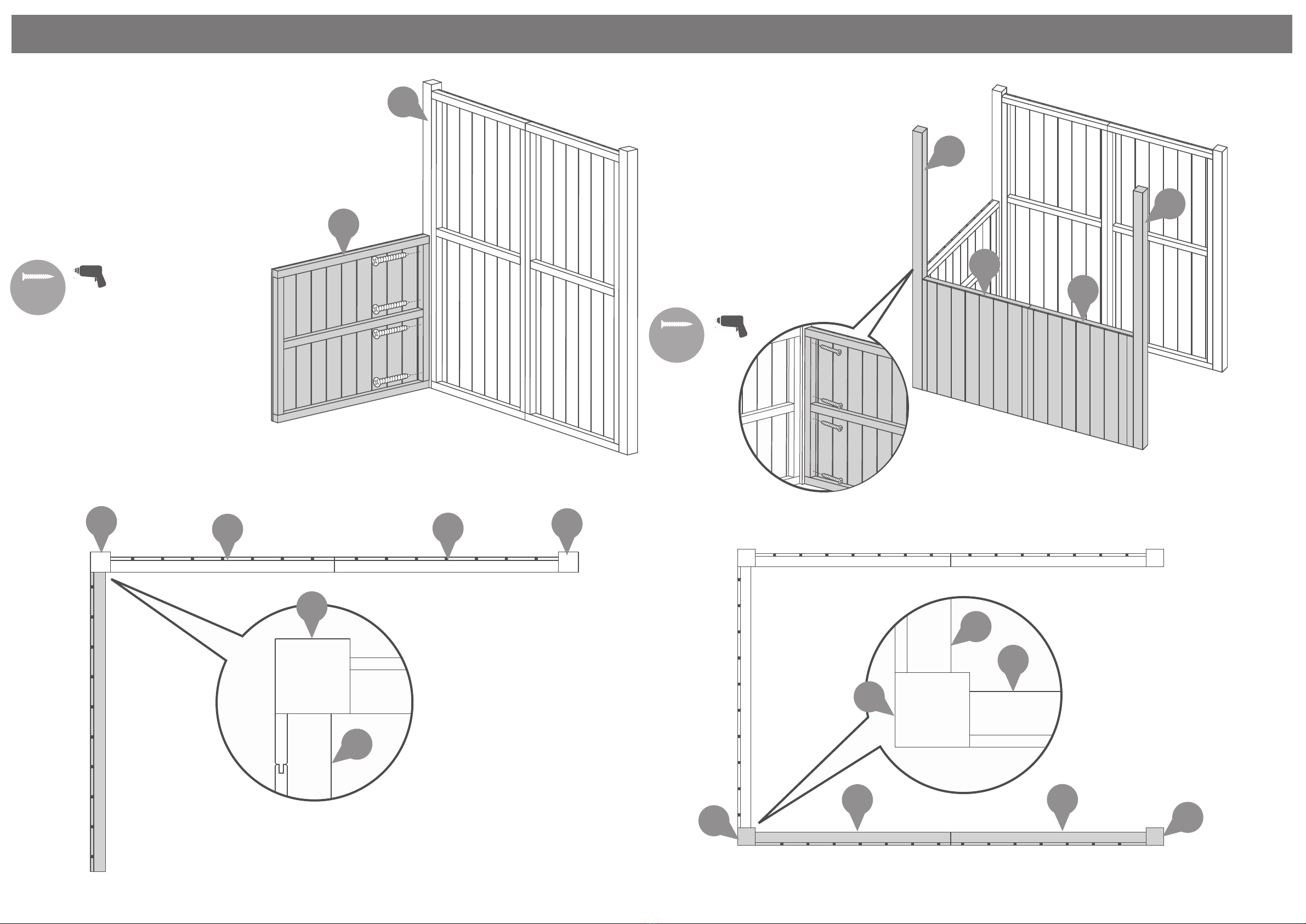

Stand the Back Panels (No. 1) upright as
shown, with the larger gap between the panel
framing at the bottom, as per the
measurements on the diagram. Fix together in
an alternating pattern using 4x70mm screws
Place Corner Posts 75x75-1800mm (No. 19) to
either side ush with the inside of the panel.
Attach the post (No.19) to the back panel
(No.1) using 4x70mm screws per post, xing
through the panel into the post.
12x70mm Screws
Step 1
Parts Needed- No.1 QTY 2
- No. 19 QTY 2
Pre drill
hole
70mm
screw
Ariel View
Stand the Back Panels (No. 1)
upright as shown, with the larger
gap between the panel framing at
the bottom, as per the
measurements on the diagram. Fix
together in an alternating pattern
using 4x70mm screws per join.
Place Corner Posts 75x75-1800mm
(No. 19) to either side ush with
the inside of the panel.
Attach the post (No.19) to the
back panel (No.1) using 4x70mm
screws per post, xing through
the panel into the post.
16x70mm Screws
Step 1A
Parts Needed- No.1 QTY 3
- No. 19 QTY 2
Pre drill
hole
70mm
screw
Extension Pack
Ariel View
767mm
868mm
767mm
868mm
1
19 19 19
19
19
111
11
1
19

P 5
Please retain product label and instructions for future reference
Stand the Front Panels (No.6) upright as
shown. Fix together using 4x70mm
screws in an alternating pattern.
Place the Corner Posts 75x75 - 2100mm
(No.18) at either side ush with the
outside of the panels.
Attach the Corner Posts (No.18) to the
Front Panels (No.6) using 4x70mm
screws per post, xing through the
panel into the post.
12x70mm Screws
Ariel View
Pre drill
hole
70mm
screw
Step 2
Parts Needed- No.6 QTY 2
- No. 18 QTY 2
Stand the Front Panels (No.6) upright as
shown. Fix together using 4x70mm
screws in an alternating pattern.
Place the Corner Posts 75x75 - 2100mm
(No.18) at either side ush with the
outside of the panels.
Attach the Front Posts (No.18) to the
Front Panels (No.6) using 4x70mm
screws per post, xing through the
panel into the post.
16x70mm Screws
Pre drill
hole
70mm
screw
Step 2A
Parts Needed- No.6 QTY 2
- No. 18 QTY 2
Extension Pack
Ariel View
18 618 6
18 18 18 18
666
66

P 6
Please retain product label and instructions for future reference

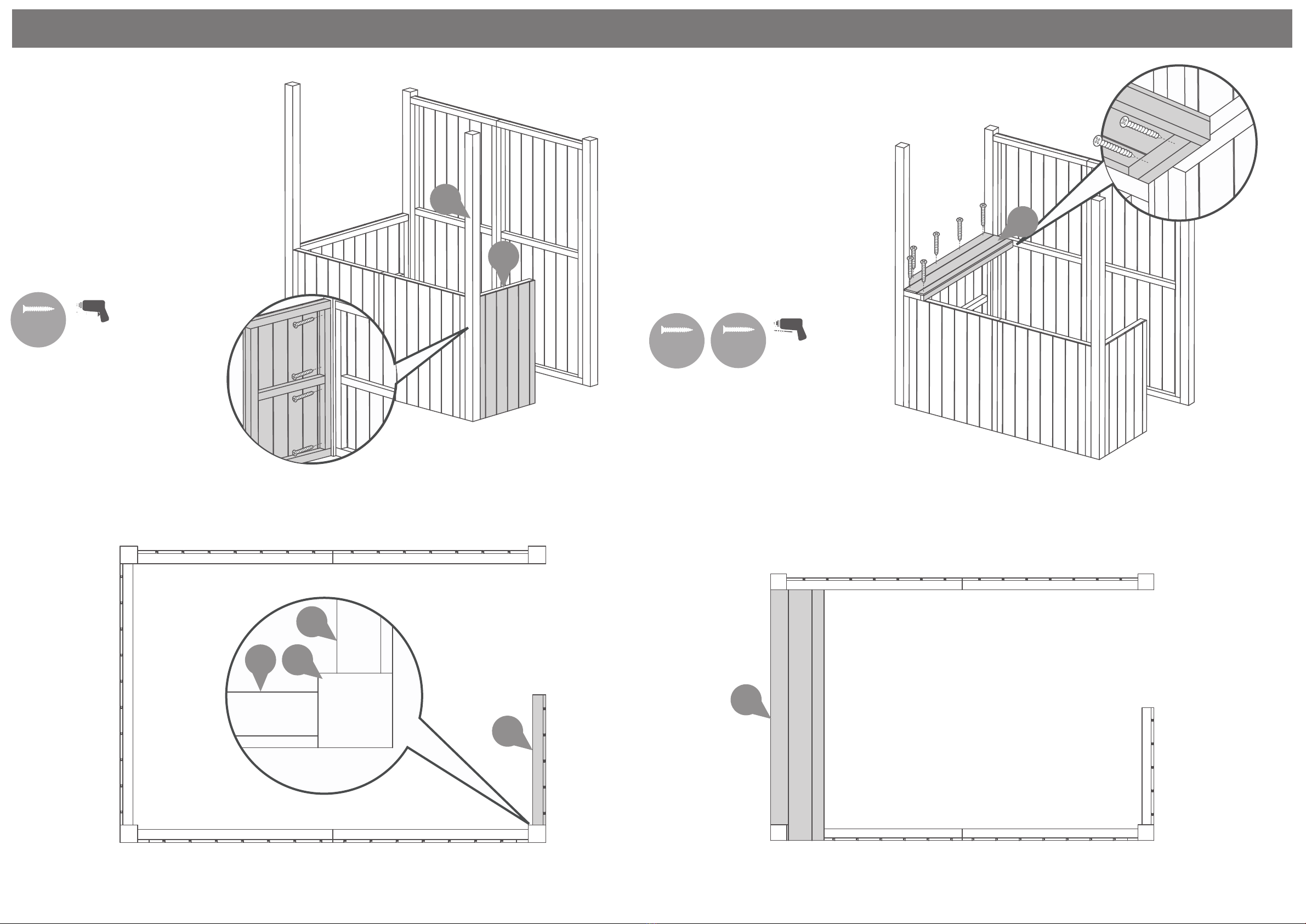

3
Step 3
Parts Needed- No.3 QTY 1
Place the Left Plain Panel (No.3)
ush to the inside of the post
(No.19).
Fix the Left Plain Panel (No.3) to
the Post (No.19) using 4x70mm
Screws.
4x70mm Screws
Pre drill
hole
70mm
screw
19
Ariel View
19 19
1
1
Place the Post (No.18) attached to the
front panels against the Left Panel (No.3),
framing facing inwards.
Ensure that the panel sits ush to the
outside of the post.
Fix the Left Panel (No.3)to the Post
(No.10) using 4x70mm screws.
4x70mm Screws
Pre drill
hole
70mm
screw
Step 4
Parts Needed- No.6 QTY 2
- No. 18 QTY 2
Ariel View
66
6
6
6
18
18
18
18
18
3
19
3

P 7
Please retain product label and instructions for future reference
Place the Right Plain Panel (No.7)
against the front panel Post (No.18),
with the framing facing inwards.
Ensure that the panel sits ush to the
outside of the post.
Fix the Right Plain Panel (No.7) to the
Post (No.18) using 4x70mm screws.
4x70mm Screws
Step 5
Parts Needed- No.7 QTY 1
Ariel View
Step 6
Parts Needed- No.11 QTY 1
Pre drill
hole
70mm
screw
Place the Left Bar top (No.11) on top
of the Left Plain Panel (No.3).
Secure using 6x70mm screws going
through the Bar top cladding and into
the plain panel framing below.
Using 2x50mm screws, x the Left Bar
top to the back panel, ensuring that
the Bar top cladding sits ush with the
top of the back panel framing
2x50mm Screws
6x70mm Screws
Ariel View
Pre drill
hole
70mm
screw 50mm
screw
7
18
618
7
7
11
11

P 7
Please retain product label and instructions for future reference
P 8
Ariel View
Step 7
Parts Needed- No.10 QTY 2
Pre drill
hole
70mm
screw

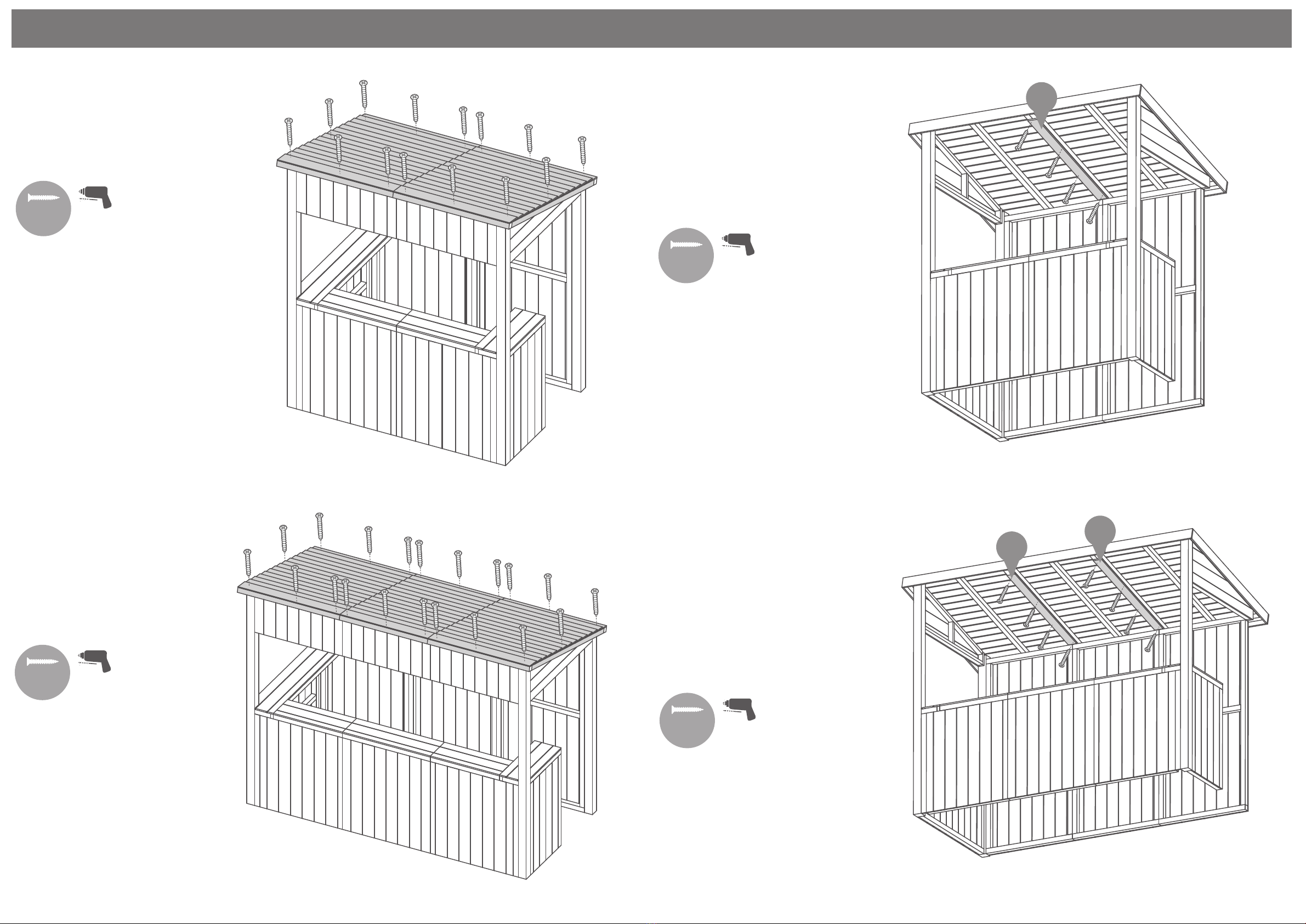

Place the Plain Bar tops (No.10) on top
of the Front Panels (No.6).
Secure using 3x70mm screws per bar
top, going through the Bar top
cladding and into the front panel
framing below.
Using 2x50mm screws, x the Plain Bar
top to the Left Bar top from the
underside of the bar tops.
Using 2x50mm screws, x the Plain Bar
tops together in alternating pattern
from the underside of the bar tops
4x50mm Screws
6x70mm Screws
10 1022
Ariel View
Step 7A
Parts Needed- No.10 QTY 2
- No.22 QTY 1
Pre drill
hole
70mm
screw
Place the Plain Bar tops (No.10) and the
Plain Bar top Extension (No.22) on top of
the Front Panels (No.6).
Secure using 3x70mm screws per bar top,
going through the Bar top cladding and into
the front panel framing below.
Using 2x50mm screws, x the Plain Bar top
to the Left Bar top from the underside of the
bar tops.
Using 2x50mm screws per join, x the Plain
Bar tops and the Plain Bar top extension
together in alternating pattern from the
underside of the bar tops
6x50mm Screws
9x70mm Screws
Extension Pack
50mm
screw
50mm
screw
837mm
658mm 658mm
10
10
10 10
10
10 22

P 9
Please retain product label and instructions for future reference
P 8
Ariel View
Step 8
Parts Needed- No.9 QTY 1
Pre drill
hole
70mm
screw
Place the Right Bar top (No.9) on top
of the Right Plain Panel (No.7).
Secure using 5x70mm screws going
through the Bar top cladding and into
the plain panel framing below.
Using 2x50mm screws, x the Right
Bar top to the Plain Bar top (No.10)
from the underside of the bar tops
2x50mm Screws
5x70mm Screws
Step 9A
Parts Needed- No.20 QTY 3
Pre drill
hole
50mm
screw
Extension Pack
Step 9
Parts Needed- No.20 QTY 2
Pre drill
hole
50mm
screw
Place the bar supports (No.20)
underneath the bar tops as shown in the
illustration. Place the rst underneath the
Right Bar Top (No.9) ush to the edge of
the bar and the right plain panel (No7).
The second should be positioned centrally
between the Plain Bar Tops (No.10) ush
to the edge of the bar top and the Front
Panels (No.6)
Secure using 4x50mm screws per Bar
support (No.20)ensuring to o set the
screws location so to not split the bar
support.
8x50mm Screws
Place the bar supports (No.20) underneath
the bar tops as shown in the illustration.
Place the rst underneath the Right Bar Top
(No.9) ush to the edge of the bar and the
right plain panel (No7). The second and
third should be positioned centrally
between the Plain Bar Tops (No.10) and
the Plain Bar top Extension (No.22), ush
to the edge of the bar top and the Front
Panels (No.6).
Secure using 4x50mm screws per Bar
support (No.20)ensuring to o set the
screws location so to not split the bar
support.
12x50mm Screws
50mm
screw
9
20 20 20
20
20 20
20
9

Please retain product label and instructions for future reference
21mm
4
5
Step 10
Parts Needed- No.4 QTY 1
- No.5 QTY 1
Pre drill
hole
50mm
screw

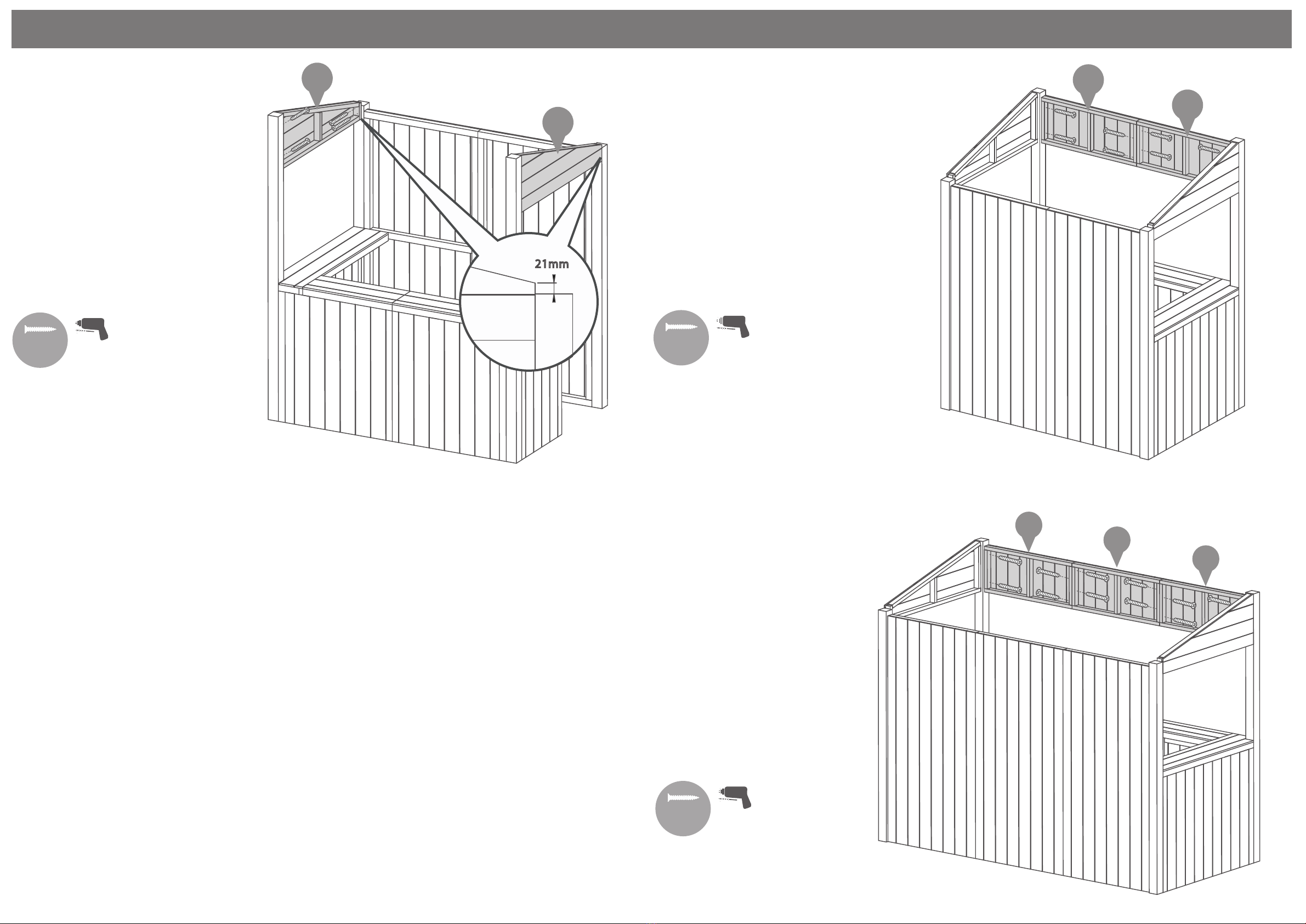

Place the Right Gable (No.5) and the Left
Gable (No.4) between the Posts, the
front of the gables will sit ush to the top
of the front posts. The back of the gables
will sit 21mm above the back posts.
Secure each gable to the posts using
4x50mm screws. When securing to the
back post, oset the screws to ensure the
framing does not split
8x50mm Screws
Step 11A
Parts Needed- No.8 QTY 3
Pre drill
hole
50mm
screw
Extension Pack
Step 11
Parts Needed- No.8 QTY 2
Pre drill
hole
50mm
screw
Place the Top Panels (No.8) between
the front posts (No.20), position them
to be ush with the bottom of the
gables.
Secure the Top panels to the Posts
using 2x50mm screws.
Secure the Top panels together using
4x50mm screws in an alternating
pattern.
8x50mm Screws
Place the Top Panels (No.8) between
the the front posts (No.20), position
them to be ush with the bottom of
the gables.
Secure the Top panels to the Posts
using 2x50mm screws.
Secure the Top panels together using
4x50mm screws per join in an
alternating pattern.
12x50mm Screws
8
8
8
8
8
P 10
