MetalMaster SHST-1.2HO User manual

OPERATION MANUAL
Edition No : SHST1.2HO-1
Date of Issue : 02/2021
Model. SHST1.2HO
Order Code S2264
Shrinker Stretcher

2
OPERATION MANUAL
NOTE:
In order to see the type and model of the machine, please see the
specication plate. Usually found on the back of the machine. See
example (Fig.1)
Fig.1
SHRINKER STRETCHER
MACHINE
SHST1.2HO
MODEL NO.
SERIAL NO.
DATE OF MANF.
Note:
This manual is only for your reference. Owing to the continuous improvement of the
Metalmaster machine, changes may be made at any time without obligation or notice.
Please ensure the local voltage is the same as listed on the specication plate before
operating any electric machine.
Distributed by
www.machineryhouse.co.nz
MACHINE DETAILS

3
OPERATION MANUAL
C O N T E N T S:
1. GENERAL MACHINE INFORMATION
1.1 Specications.............................................................. 4
1.2 Accessories Included................................................ 4
1.3 Identication............................................................... 5
2. IMPORTANT INFORMATION
2.1 General Metalworking Machine Safety............. 6
2.2 Specic Safety For Shrinker Stretchers.............. 9
2.3 Lifting Instructions.................................................... 10
3. SETUP
3.1 Assembly...................................................................... 11
3.2 Clean Up....................................................................... 12
3.3 Site Preparation......................................................... 12
3.4 Machine Leveling...................................................... 12
4. OPERATION
4.1 Operation Overview................................................. 13
5. MAINTENANCE
5.1 Cleaning And Oiling................................................. 14
Spare Parts............................................................................ 15
Risk Assessment Sheets.................................................... 18

4
OPERATION MANUAL
1.1 SPECIFICATION
Order Code S2264
MODEL SHST1.2HO
Operation (Type) Foot Operated
Mild Steel - Capacity (mm/gauge) 1.2 / 18
Aluminium - Capacity (mm/gauge) 1.8 / 15
Throat Depth (mm) 130
Working Height (mm) 1050
Dimensions (L x W x H) (mm) 512 x 480 x 1160
Packing Dimensions (L x W x H) (mm) 1160 x 480 x 190
Weight (kg) 30
1.2 ACCESSORIES INCLUDED
1 Set CR12 Steel Shrinker Jaws
1 Set CR12 Steel Stretcher jaws
Metal Stand
Instruction Manual

5
OPERATION MANUAL
1.3 IDENTIFICATION
AHead DBottom Jaw
BStand ETop Jaw
CFoot Pedal FBase
A
B
C
D
E
F

6
OPERATION MANUAL
DO NOT use this machine unless you have read this manual or have been instructed in the use
of this machine in its safe use and operation
This manual provides safety instructions on the proper setup, operation, maintenance, and
service of this machine. Save this manual, refer to it often, and use it to instruct other operators.
Failure to read, understand and follow the instructions in this manual may result in re or
serious personal injury—including amputation, electrocution, or death.
The owner of this machine is solely responsible for its safe use. This responsibility includes, but
is not limited to proper installation in a safe environment, personnel training and authorization
to use, proper inspection and maintenance, manual availability and comprehension, of the
application of the safety devices, integrity, and the use of personal protective equipment.
The manufacturer will not be held liable for injury or property damage from negligence,
improper training, machine modications or misuse.
WARNING
2.1 GENERAL METALWORKING MACHINE SAFETY
Always wear safety glasses or goggles.
Wear appropriate safety footwear.
Wear respiratory protection where required.
Gloves should never be worn while operating an electric machine, and only worn when
handling the work-piece.
Wear hearing protection in areas > 85 dBA. If you have trouble hearing someone speak
from one metre (three feet) away, the noise level from the machine may be hazardous.
DISCONNECTION THE MACHINE FROM POWER when making adjustments or servicing.
Check and adjust all safety devices before each job.
Ensure that guards are in position and in good working condition before operating.
Ensure that all stationary equipment is anchored securely to the oor.
Ensure all machines have a start/stop button within easy reach of the operator.
Each machine should have only one operator at a time. However, everyone should know
how to stop the machine in an emergency.

7
OPERATION MANUAL
Ensure that keys and adjusting wrenches have been removed from the machine before
turning on the power. Appropriate storage for tooling should be provided.
Ensure that all cutting tools and blades are clean and sharp. They should be able to cut freely
without being forced.
Stop the machine before measuring, cleaning or making any adjustments.
Wait until the machine has stopped running to clear cuttings with a vacuum, brush or rake.
Keep hands away from the cutting head and all moving parts.
Avoid awkward operations and hand positions. A sudden slip could cause the hand to move
into the cutting tool or blade.
Return all portable tooling to their proper storage place after use.
Clean all tools after use.
Keep work area clean. Floors should be level and have a non-slip surface.
Use good lighting so that the work piece, cutting blades, and machine controls can be seen
clearly. Position any shade lighting sources so that they do not cause any glare or reections.
Ensure there is enough room around the machine to do the job safely.
Obtain rst aid immediately for all injuries.
Understand that the health and re hazards can vary from material to material. Make sure all
appropriate precautions are taken.
Clean machines and the surrounding area when the operation is nished.
Use proper lock out procedures when servicing or cleaning the machines or power tools.
DO NOT
×Do not distract an operator. Horseplay can lead to injuries and should be strictly prohibited.
×Do not wear loose clothing, gloves, necktie’s, rings, bracelets or other jewellery that can be
come entangled in moving parts. Conne long hair.
×Do not handle cuttings by hand because they are very sharp. Do not free a stalled cutter
without turning the power o rst. Do not clean hands with cutting uids.
×Do not use rags or wear gloves near moving parts of machines.
×Do not use compressed air to blow debris from machines or to clean dirt from clothes.
×Do not force the machine. It will do the job safer and better at the rate for which it was
designed.
2.1 GENERAL METALWORKING MACHINE SAFETY Cont.
BEFORE OPERATING ANY MACHINE, TAKE TIME TO READ
AND UNDERSTAND ALL SAFETY SIGNS AND SYMBOLS.
IF NOT UNDERSTOOD SEEK EXPLANATION FROM YOUR
SUPERVISOR.

8
OPERATION MANUAL
2.1 GENERAL METALWORKING MACHINE SAFETY Cont.
HAZARDS ASSOCIATED WITH MACHINES include, but are not limited to:
• Being struck by ejected parts of the machinery
• Being struck by material ejected from the machinery
• Contact or entanglement with the machinery
• Contact or entanglement with any material in motion
Health Hazards (other than physical injury caused by moving parts)
• Chemicals hazards that can irritate, burn, or pass through the skin
• Airborne items that can be inhaled, such as oil mist, metal fumes, solvents, and dust
• Heat, noise, and vibration
• Ionizing or non-ionizing radiation (X-ray, lasers, etc.)
• Biological contamination and waste
• Soft tissue injuries (for example, to the hands, arms, shoulders, back, or neck) resulting
from repetitive motion, awkward posture, extended lifting, and pressure grip)
Other Hazards
• Slips and falls from and around machinery during maintenance
• Unstable equipment that is not secured against falling over
• Safe access to/from machines (access, egress)
• Fire or explosion
• Pressure injection injuries from the release of uids and gases under high pressure
• Electrical Hazards, such as electrocution from faulty or ungrounded electrical
components
• Environment in which the machine is used (in a machine shop, or in a work site)
MACHINES ARE SAFEGUARDED TO PROTECT THE OPERATOR FROM INJURY OR DEATH WITH THE
PLACEMENT OF GUARDS. MACHINES MUST NOT BE OPERATED WITH THE GUARDS REMOVED
OR DAMAGED.

9
OPERATION MANUAL
2.2 SPECIFIC SAFETY FOR SHRINKER STRETCHERS
DO NOT use this machine unless you have been instructed in its safe use
and operation and have read and understood this manual.
Safety glasses must be worn at
all times in work areas.
Close tting protective clothing or
overalls are encouraged
Appropriate protective footwear
with substantial uppers must be
worn.
Rings and jewelery must NOT be
worn in the workshop
PRE-OPERATIONAL SAFETY CHECKS
1. Ensure you are familiar with the operation of the Shrinker Stretcher
2. Check for any damage or parts missing
3. The area around the machine must be clean and free of trip hazards.
4. Any forming die must be inspected for safe use i.e. no cracks.
5. Ensure safety glasses or goggles are available and are worn by all persons in the vicinity.
6. Any test piece, project or material (work piece) to be worked must be of an appropriate
thickness and safe to use on this equipment.
7. Faulty equipment must not be used. Immediately check suspect machinery.
OPERATIONAL SAFETY CHECKS
1. Place your test piece, project or material (work piece) securely between the top and bottom
jaws
2. Do not over reach. Maintain a balanced stance at all times, so that you do not fall or lean
against the machine.
3. Use the Shrinker Stretcher pedal, in a pumping action, to slowly work the material.
4. Keep hands and ngers away from jaws.
5. Wear leather gloves when handling the work piece.
6. Use the right tool. Do not force a jaw set to do a job that it was not designed to do.
7. Give your work undivided attention. Looking around, carrying on a conversation and
“horseplay” are careless acts that can result in serious injury
8. DO NOT apply excessive force to the Shrinker Stretcher.
AFTER OPERATION COMPLETED
1. After use, clean the machine down and place any tools and equipment in the appropriate
storage area.
2. Place all scrap or waste in the appropriate bin.
POTENTIAL HAZARDS
Beware of high forces applied Eye injuries – ying or shattering objects
Pinch and squash Laceration injuries

Gloves should be worn when
handling the work piece
Ear protection should be used in
loud and noisy conditions

10
OPERATION MANUAL
2.3 LIFTING INSTRUCTIONS
On the day that the machine arrives, make sure that a forklift or lifting device, with sucient
capacity is available to unload the machine from the vehicle. Ensure access to the chosen site is
clear and that doors and ceilings are suciently high and wide enough to receive the machine.
This machine is extremely heavy.
Serious personal injury may occur if safe moving methods are not
followed. To be safe, you will need assistance and power equipment
when moving the shipping crate and removing the machine from
the crate.
When lifting the machine only certied lifting web
slings should be used.
Ensure that when lifting, the machine does not tip over.
Check that the lifting slings do not interfere with the
parts of the machine that may be damaged. (Fig.2.1)
LIFTING POINT
Fig.2.1

11
OPERATION MANUAL
3. SETUP
3.1 ASSEMBLY

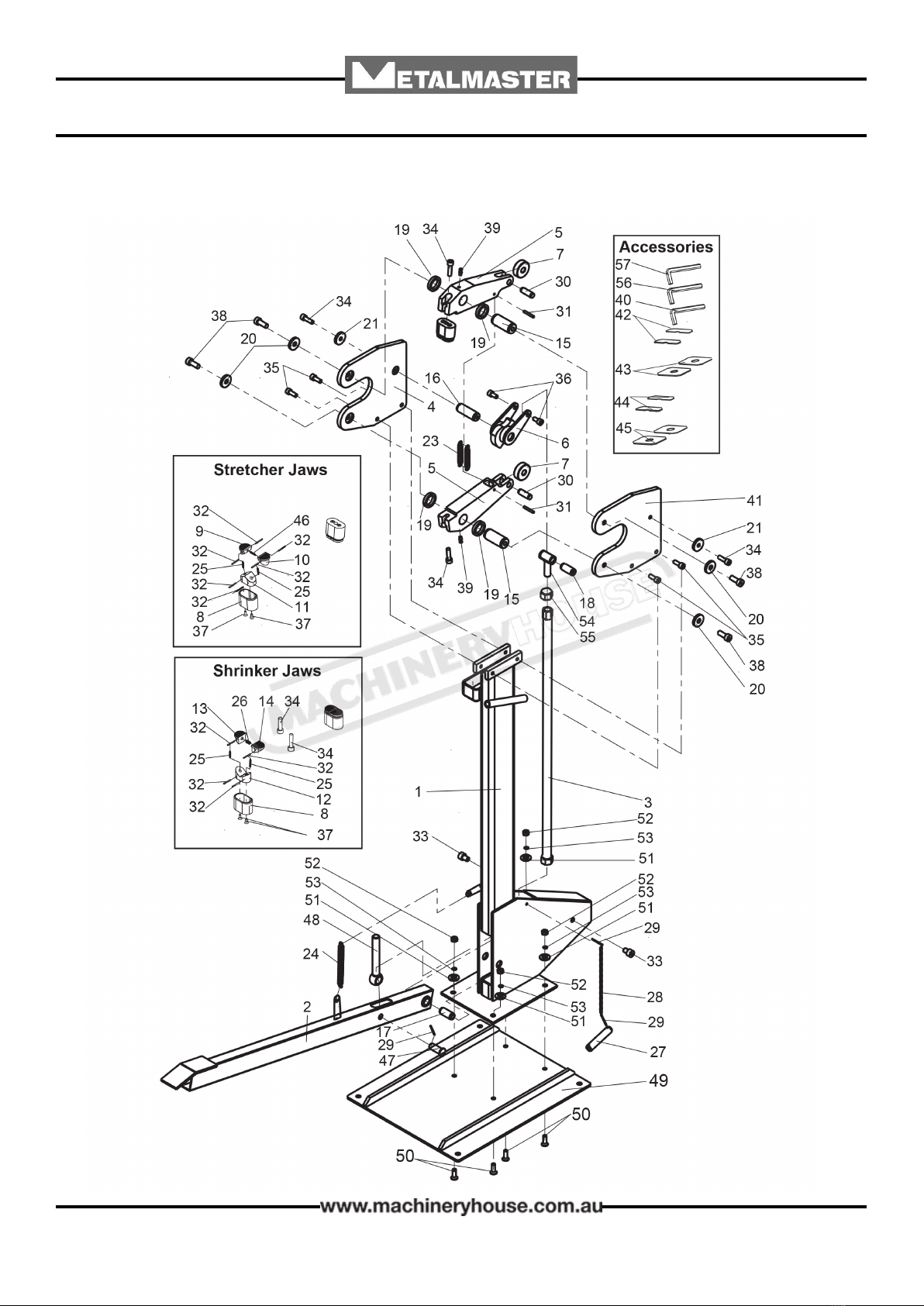

THE METALMASTER Shrinker & Stretcher will require minor assembly prior to operation. It is
important that the entire manual is read to become familiar with the unit BEFORE you
assemble and use the Machine. Before assembling the Metal Shrinker Stretcher, be sure that
you have all parts described in the Parts List. (Fig.3.1)
To assemble the machine:
1. Mount the Bottom Plate(49#) to the Frame (1#) using Screws M8 x 25mm (50#), M8 Washers
(51#), M8 Spring Washers (53#), and M8 Nuts (52#).
2. Mount the Bottom Plate(49#) on the oor through the four mounting holes. (See Figure 3.1)
3. Connect the Footplate Bar (2#) into the Frame (1#) using Shaft (17#) and two Screws
M10 x 16 (33#). (See Figure 3.1.)
4. Screw the Bar (3#) onto the big M16 x 120mm Bolt (48#) on the Footplate Bar (2#).Screw in
about 40mm.
5. Put the Shaft (18#) into the upper hole of the “T” Bolt (54#), then connect the “T” Bolt (54#)
and the Driving Wheel (6#) with two Screws M8 x 16mm (36#). (See Figure 3.1)
6. Attach the Frame (1#) and Footplate Bar (2#) using the Spring (24#). (See Figure 1.)
7. Insert the appropriate Shims (42#, 43#, 44#, 45#) between the Jaw Bases (5#) and the Jaw
Covers (8#) to make the Jaws(9#,10#,13#,14#) parallel when depressing the jaws together.
Fig. 3.1

12
OPERATION MANUAL
The unpainted surfaces of the machine have been coated with a waxy oil to protect them from
corrosion during shipment. Remove the protective coating with a solvent cleaner or a citrus
based degreaser.
Optimum performance from your machine will be achieved when you clean all moving parts or
sliding contact surfaces that are coated with rust prevented products.
It is advised to avoid chlorine based solvents, such as acetone or brake parts cleaner, as they
will damage painted surfaces and strip metal should they come in contact. Always follow the
manufacturer’s instructions when using any type of cleaning product.
3.2 CLEAN - UP
3.3 SITE PREPARATION
When selecting the site for the machine, consider the largest size of workpiece that will be
processed through the machine and provide enough space around the machine for operating
the machine safely. Consideration should be given to the installation of auxiliary equipment.
Leave enough space around the machine to open or remove doors/covers as required for the
maintenance and service as described in this manual.
It is recommended that the machine is anchored to the oor to prevent tipping or shifting. It
also reduces vibration that may occur during operation.
Fig. 3.2
OPTIONS FOR MOUNTING
The machine is best mounted on a concrete slab.
Masonry anchors with bolts are the best way to anchor
machinery, because the anchors sit ush with the oor
surface, making it easy to unbolt and move the machine
later, if needed. (Fig. 3.2)
Metal Shim
Hold Down Bolt
Fig. 3.3
To set your machine up so that it operates to optimum
performance, apply the following procedure
After your machine has been anchored to a concrete slab
oor, it then needs to be leveled.
3.4 MACHINE LEVELING
To level the machine:
Loosen the hold down bolts and lightly clamp a piece of
straight steel between the jaws and measure each end
with a tape measure to the oor. Metal shims need to
be placed under corner of the base of the machine until
level and the machine is stable with each corner sitting
rmly on the oor. Once level then tighten the hold
down bolts. (Fig. 3.3).

13
OPERATION MANUAL
4. OPERATION
The metal shrinker-stretcher basically does exactly what its name implies: shrink or stretch
metal. It does this with two sets of jaws. As each one clamps down it either compresses the
metal or pulls it apart, which creates the shrinking or stretching action. In this way, the tool
actually changes the thickness of the steel, which makes part of the piece longer or shorter
depending on which jaw set is used. The dimensions of the un-worked section remains the
same, so the lengthened or shortened sections created by the tool cause the metal to deform
into a curved shape. It’s useful for creating curved corner pieces of sheet metal.
To operate the METALMASTER Shrinker Stretcher:
1. Make a template out of cardboard or a piece of wire, of the outline of the form that needs
to be produced. A good t is essential to reduce the amount of ller that may be required
to assemble and nish the project.
2. Select and t either the shrinking jaws or the stretching jaws.
3. If creating a anged form, before working the material on a Metalmaster Shrinker Stretcher
bend the piece of sheet metal to 90° on a folder. (Maximum ange width is 120mm)
4. Place the material between the upper and lower jaws, and press the foot pedal, working
the leading edge rst. This will breaks down the maximum resistance and permits easy and
accurate working thereafter.
5. For best results and maximum forming power, insert metal only halfway into the jaws.
6. Bunching or pocketing that typically occurs when shrinking may need to be x with some
hammering out.
7. Control the pressure exerted on the pedal of Footplate Bar while forming the metal.
8. Move the metal back and forth until the desired radius is obtained.
9. The jaws of the tools are “toothed” to better grip the metal. These teeth leave slight
markings, depending on the hardness of the metal, and can be removed with an abrasive
cloth or wheel.
CAUTIONARY TIPS
1. Wear gloves to avoid cuts that may come from material handling, during all forming
operations
2. To avoid dulling the teeth, NEVER press the jaws together without a separator between
them.
3. ALWAYS insert a piece of metal or other material divider between the jaws when not
in use.
4.1 OPERATION OVERVIEW

14
OPERATION MANUAL
5. MAINTENANCE
5.1 CLEANING AND OILING
When nished with the machine always clean down the machine and oil with a light oil all
moving parts and machined surfaces.
Clean both of the jaws when nished. Using an air gun of vacuum will remove the surface dirt
but to clean them properly, disassemble the jaws as follows.
1. Loosen the top and bottom screws (#34) , to remove the die assembly. (Fig.5.1)
2. Remove the jaws from the jaw cover (#8) by loosening the two Phillips head screws (#37).
NOTE: Be careful not to loose the spring between the jaws
3. Clean the jaws and V-blocks with cleaning uid and a brush. Do not use a wire brush or a
wire wheel. Always brush in the same direction as the teeth, with the grooves.
4. Reassemble and replace the dies.
Shrinker Dies Stretcher Dies
Fig.5.1
#34
#8 #8
#37
#37 #37 #37

15
OPERATION MANUAL
SPARE PARTS SECTION
Spare Parts Diagram................................................. 16
Spare Parts List........................................................... 17
The following section covers the spare parts diagrams and lists that were current at the time
this manual was originally printed. Due to continuous improvements of the machine, changes
may be made at any time without notication.
HOW TO ORDER SPARE PARTS
1. Have your machines model number, serial number & date of manufacture
on hand, these can be found on the specication plate mounted on the machine
2. A scanned copy of your parts list/diagram with required spare part/s
identied.
NOTE: SOME PARTS MAY ONLY BE AVAILABLE AS AN ASSEMBLY
3. Go to www.machineryhouse.com.au/contactus and ll out the inquiry form attaching a
copy of scanned parts list.
CONTENTS
Edition No : SHST1.2HO-1
Date of Issue : 02/2021
Model. SHST1.2HO
Order Code S2264
Shrinker Stretcher

16
OPERATION MANUAL
SPARE PARTS DIAGRAM

17
OPERATION MANUAL
SPARE PARTS LIST
ITEM DESCRIPTION QT Y. ITEM DESCRIPTION QT Y.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
29
Frame
Footplate Bar
Bar
Left Side Support
Jaw Base
Driving Wheel
Driven Wheel
Jaw Cover
Stretcher Jaw 1
Stretcher Jaw 2
Stretcher V-Block
Shrinker V-Block
Shrinker Jaw 1
Shrinker Jaw 2
Shaft 25mm
Shaft 20mm
Shaft 16mm
Shaft 16mm
Washer 25mm
Washer 10mm
Washer 8mm
Spring
Spring
Spring
Spring
Pin 16mm
Chain
Pin 4mm
1
1
1
1
2
1
2
4
2
2
2
2
2
2
2
1
1
1
4
4
2
2
1
8
2
1
1
3
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
Pin 12mm
Pin 4mm
Pin 2.5mm
Screw M10×16
Screw M8×20
Screw M8×25
Screw M8×16
Screw M5×10
Screw M10×20
Lubricating Nipple
Wrench 6mm
Right Side Support
0.5mm Half Shim
0.5mm Whole Shim
1mm Half Shim
1mm Whole Shim
Spring
Pin
Bolt M16×120
Bottom Plate
Screw M8X25
Washer 8mm
Nut M8
Spring Washer 8mm
“T” Bolt
Nut M16
Wrench 5mm
Wrench 8mm
2
2
20
2
6
4
2
8
4
2
1
1
2
2
2
2
2
1
1
1
4
4
4
4
1
1
1
1
NOTE: SOME INDIVIDUAL PARTS MAY ONLY BE AVAILABLE AS AN ASSEMBLY

General Machinery Safety Instructions
1. Read the entire Manual before starting
machinery. Machinery may cause serious injury if
not correctly used.
2. Always use correct hearing protection when
operating machinery. Machinery noise may cause
permanent hearing damage.
3. Machinery must never be used when tired, or
under the influence of drugs or alcohol. When
running machinery you must be alert at all times.
4. Wear correct Clothing. At all times remove all loose
clothing, necklaces, rings, jewelry, etc. Long hair
must be contained in a hair net. Non-slip protective
footwear must be worn.
5. Always wear correct respirators around fumes
or dust when operating machinery. Machinery
fumes & dust can cause serious respiratory illness.
Dust extractors must be used where applicable.
6. Always wear correct safety glasses. When
machining you must use the correct eye protection
to prevent injuring your eyes.
7. Keep work clean and make sure you have good
lighting. Cluttered and dark shadows may cause
accidents.
8. Personnel must be properly trained or well
supervised when operating machinery. Make
sure you have clear and safe understanding of the
machine you are operating.
9. Keep children and visitors away. Make sure
children and visitors are at a safe distance for you
work area.
10. Keep your workshop childproof. Use padlocks,
Turn off master power switches and remove start
switch keys.
11. Never leave machine unattended. Turn power off
and wait till machine has come to a complete stop
before leaving the machine unattended.
12. Make a safe working environment. Do not use
machine in a damp, wet area, or where flammable
or noxious fumes may exist.
13. Disconnect main power before service
machine. Make sure power switch is in the off
position before re-connecting.
14. Use correct amperage extension cords.
Undersized extension cords overheat and lose
power. Replace extension cords if they become
damaged.
15. Keep machine well maintained. Keep blades
sharp and clean for best and safest performance.
Follow instructions when lubricating and changing
accessories.
16. Keep machine well guarded. Make sure guards
on machine are in place and are all working
correctly.
17. Do not overreach. Keep proper footing and
balance at all times.
18. Secure workpiece. Use clamps or a vice to
hold the workpiece where practical. Keeping the
workpiece secure will free up your hand to operate
the machine and will protect hand from injury.
19. Check machine over before operating. Check
machine for damaged parts, loose bolts, Keys and
wrenches left on machine and any other conditions
that may effect the machines operation. Repair and
replace damaged parts.
20. Use recommended accessories. Refer to
instruction manual or ask correct service officer
when using accessories. The use of improper
accessories may cause the risk of injury.
21. Do not force machinery. Work at the speed and
capacity at which the machine or accessory was
designed.
22. Use correct lifting practice. Always use the
correct lifting methods when using machinery.
Incorrect lifting methods can cause serious injury.
23. Lock mobile bases. Make sure any mobile bases
are locked before using machine.
24. Allergic reactions. Certain metal shavings and
cutting fluids may cause an ellergic reaction in
people and animals, especially when cutting as the
fumes can be inhaled. Make sure you know what
type of metal and cutting fluid you will be exposed
to and how to avoid contamination.
25. Call for help. If at any time you experience
difficulties, stop the machine and call you nearest
branch service department for help.
Machinery House
requires you to read this entire Manual before using this machine.

Shrinker Stretcher Safety Instructions
1. Maintenance. Make sure all moving parts are
locked down before any inspection, adjustment or
maintenance is carried out.
2. Shrinker Stretcher Condition. Shrinker Stretcher
machine must be maintained for a proper working
condition. Never operate a Shrinker Stretcher
machine that has damaged or worn parts. Scheduled
routine maintenance should performed on a
scheduled basis.
3. Hand Hazard. Keep hands and fingers clear from
moving parts. Serious injury can occur if hands or
finger tips are placing between moving parts.
4. Gloves & Glasses. Always wear leather gloves and
approved safety glasses when using this machine.
5. Avoiding Entanglement. Tie up long hair and use
the correct hair nets to avoid any entanglement with
the Shrinker Stretcher machine moving parts.
6. Understand the machines controls. Make sure you
understand the use and operation of all controls.
7. Work area hazards. Keep the area around the
Shrinker Stretcher machine clean from oil, tools,
chips. Pay attention to other persons in the area and
know what is going on around the area to ensure
unintended accidents.
8. Guards. Do not operate this machine without the
correct guards in place. Necessary guards protect
you from moving parts.
9. Material condition. Material must be clean from oil
and dry. Oily material can slip.
10. Material hardness. Make sure your hardness is
the same throughout the material, we recommend
that you use certified material. Never use hardened
steel, glass or fragile material on this machine.
11. Level machine. Level the machine on a flat
concrete surface by using a spirit level and secure
with to floor.
12. Feeding material. Shrinking or Stretching a tight
radius in one pass is not possible. So you need
several passes before you can achieve a certain
radius.
13. Call for help. If at any time you experience
difficulties, stop the machine and call you nearest
branch service department for help.
Machinery House
requires you to read this entire Manual before using this machine.

Manager:
Shrinker Stretcher
D
SHEARING
Developed in Co-operation Between A.W.I.S.A and Australia Chamber of Manufactures
This program is based upon the Safe Work Australia, Code of Practice - Managing Risks of Plant in the Workplace ( WHSA 2011 No10 )
Authorised and signed by:
NEW MACHINERY HAZARD IDENTIFICATION, ASSESSMENT & CONTROL
PLANT SAFETY PROGRAM
No.
Hazard
Identification
Item
Hazard
PUNCTURING
MEDIUM
Assessment
Wear gloves to prevent cuts from sharp material.
B
C
LOW
Risk Control Strategies
(Recommended for Purchase / Buyer / User)
Ensure machine is bolted down.
Secure & support work material.
CRUSHING
CUTTING, STABBING,
Keep hands clear from moving parts.
MEDIUM
Revised Date:
www.machineryhouse.com.au
www.machineryhouse.co.nz
12th March 2012
Plant Safety Program to be read in conjunction with manufactures instructions
Safety officer:
