Metra Electronics 99-6527B User manual

REV. 2/27/2017 INST99-6527B
INSTALLATION INSTRUCTIONS FOR PART 99-6527B
METRA – The World’s best kits.®metraonline.com © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
CAUTION! All accessories, switches, climate controls panels,
and especially air bag indicator lights must be connected before
cycling the ignition. Also, do not remove the factory radio with
the key in the on position, or while the vehicle is running.
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
•
Touchscreen display for climate and personalization features
• Painted black
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws
KIT FEATURES
KIT COMPONENTS
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Torx T-20 screwdriver
TOOLS REQUIRED
Ram 1500/2500/3500 2013-up
(with 8” touchscreen)
99-6527B
Table of Contents
A B C D
Dash Disassembly ..............................................2-3
Kit Preparation....................................................... 4
Kit Assembly
–ISO DIN radio provision with pocket...................... 5
–ISO DDIN radio provision ...................................... 5
Axxess Interface Installation ........................... 6-15
WIRING & ANTENNA CONNECTIONS
Wiring Harness: • Axxess interface and harness included Antenna Adapter: • 40-EU55 (sold separately)

99-6527B
2
Dash Disassembly
1. Remove the rubber tray liner inside
the tray at the top center of the
dash, and then remove the (2) Torx
T-20 screws exposed. (Figure A)
2. Remove the rubber tray liner from
inside the small pocket on the
passenger side of the center dash
panel, and then remove the (1) Torx
T-20 screw exposed. (Figure B)
(Figure C)
3. For models with a center console:
a. Remove the rubber liner from
the storage tray in front of
the center console, and then
remove the (2) Phillips screws
exposed. (Figure C)
b. Remove the rubber liner from
the middle of the center
console, and then remove the
(1) Phillips screw exposed.
(Figure C)
c. Remove the rubber liner from
the rear of the center console,
and then remove the (2) Phillips
screws exposed. (Figure C)
d. Unsnap and remove the top of
center console.
Continued on the next page
(Figure B)
(Figure A)

99-6527B
Dash Disassembly (cont.)
3
4. Unsnap and remove the entire
center dash panel. (Figure D)
5. Remove the (4) 9/32” screws
securing the radio/display screen,
and then unplug & remove.
(Figure E)
Continue to Kit Preparation
(Figure D) (Figure E)

99-6527B
4
Kit Preparation
(Figure A)
(Figure B)
From the factory center dash panel:
1. Remove the (4) Phillips screws
securing the lower button panel,
and then remove. (Figure A)
2. Remove the (13) Phillips screws
securing the radio/climate control
panel, and then remove. (Figure A)
3. Secure the 99-6527B radio trim
panel with touchscreen display
to the panel using the factory
hardware removed in step 2.
(Figure B)
4. Secure the lower button panel
back to the panel using the factory
hardware removed in step 1.
(Figure B)
Continue to Kit Assembly

99-6527B
5
(Figure A)
(Figure B)
(Figure A)

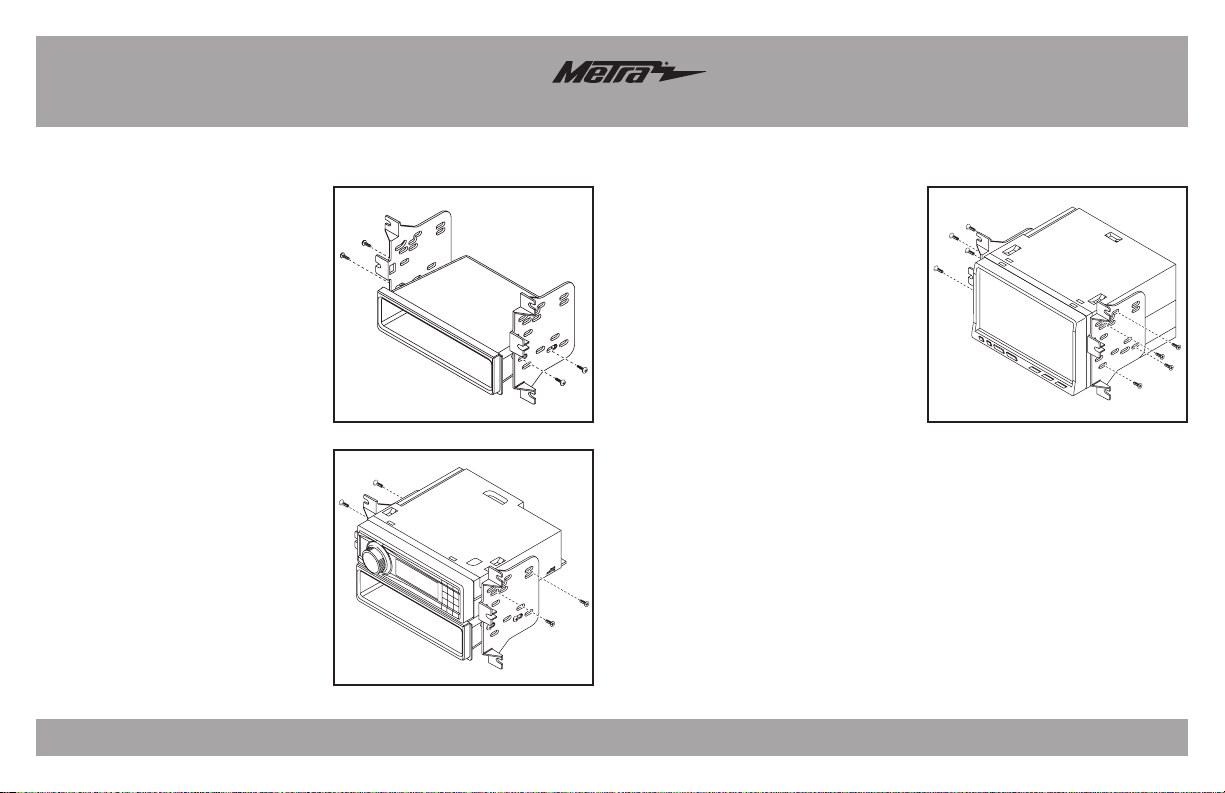

ISO DIN radio provision with pocket
1. Attach the pocket to the radio
brackets using the (4) #8 x 3/8”
Phillips screws provided. (Figure A)
2. Remove the metal DIN sleeve and
trim ring from the aftermarket radio.
3. Slide the radio into the bracket/
pocket assembly, and then secure it
using the screws supplied with the
radio. (Figure B)
Continue to Axxess
Interface Installation
ISO DDIN radio provision
1. Attach the brackets to the radio
using the screws supplied with
the radio. (Figure A)
Continue to Axxess
Interface Installation
Kit Assembly

99-6527B
6
Axxess Interface Installation
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains safety chimes
• Retains the factory backup camera
• Retains the factory AUX-IN jack
• Retains balance and fade*
• Micro “B” USB updatable
* Non-amplified models only.
INTERFACE FEATURES
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell caps, etc.)
TOOLS REQUIRED
• Axxess interface (built into the touchscreen display)
• 6527 harness
• 16-pin harness with stripped leads
• 4-pin harness with yellow RCA jacks
• Hazard harness
• Female 3.5mm connector with stripped leads
Connections to be made..........................................................................7-9
Installing the interface ............................................................................. 10
Initializing the interface ........................................................................... 10
Final assembly.......................................................................................... 10
Touchscreen display operation ...........................................................11-13
Steering wheel control settings..........................................................14-15
INTERFACE COMPONENTS
TABLE OF CONTENTS

99-6527B
7
Connections to be made
From the 6527 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the (2) 4-pin connectors together.
• If retaining the factory backup camera, connect the Yellow RCA jack to the reverse
camera input.
• If the AUX-IN jack in the dash is desired to be used, connect the Red and White RCA
jacks to the audio AUX-IN jacks of the aftermarket radio.
• Disregard the DIN jack, it will not be used in this application.
Continue to 3.5mm jack steering wheel control retention
Attention! This interface will work with models that are either non-amplified, or
amplified. Please follow the instructions carefully for your model vehicle. Failure to
do so will result in either no sound, or low sound. If you are unsure if your vehicle is
factory amplified or not, please contact your local dealership.
For models without a factory amplifier:
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative output.
• Tape off and disregard the following (6) wires, they will not be used in this application.
Blue/White, Brown, Gray, Gray/Black, White, White/Black
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire.

99-6527B
8
Connections to be made (cont.)
The following (3) wires are only for multimedia/navigation radios that require these wires.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Green/Purple wire to the reverse wire.
• Connect the Light Green wire to the parking brake wire.
From the 6527 harness to the aftermarket radio:
• Connect the Black wire to the ground wire.
• Connect the Yellow wire to the battery wire.
• Tape off and disregard the following (4) wires, they will not be used in this application:
Gray, Gray/Black, White, White/Black
• Connect the (2) 4-pin connectors together.
• If retaining the factory backup camera, connect the Yellow RCA jack to the
reverse camera input.
•If the AUX-IN jack in the dash is desired to be used, connect the Red and White RCA
jacks to the audio AUX-IN jacks of the aftermarket radio.
• Disregard the DIN jack, it will not be used in this application.
Continue to 3.5mm jack steering wheel control retention
Attention! This interface will work with models that are either non-amplified, or amplified.
Please follow the instructions carefully for your model vehicle. Failure to do so will result in
either no sound, or low sound. If you are unsure if your vehicle is factory amplified or not,
please contact your local dealership.
For models with a factory amplifier:
From the 16-pin harness with stripped leads to the aftermarket radio:
• Connect the Red wire to the accessory wire.
• Connect the Blue/White wire to the amp turn on wire. This wire must be connected to
hear sound from the factory amplifier.
• If the aftermarket radio has an illumination wire, connect the Orange/White wire to it.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative output.
• Tape off and disregard the following (1) wire, it will not be used in this application: Brown

99-6527B
9
Connections to be made (cont.)
3.5mm jack - steering wheel control retention:
The 3.5mm jack is to be used to retain audio controls on the steering wheel control.
• For the radios listed below, connect the included female 3.5mm connector with
stripped leads, to the male 3.5mm SWC jack from the 6527 harness.
Any remaining wires tape off and disregard.
• Eclipse: Connect the steering wheel control wire, normally Brown, to the
Brown/White wire of the connector. Then connect the remaining steering
wheel control wire, normally Brown/White, to the Brown wire of
the connector.
• Metra OE: Connect the steering wheel control Key 1 wire (Gray) to the
Brown wire.
• Kenwood or select JVC with a steering wheel control wire: Connect the
Blue/Yellow wire to the Brown wire.
Note: If the Kenwood radio auto detects as a JVC, manually set the radio
type to Kenwood. See the instructions under changing radio type.
• XITE: Connect the steering wheel control SWC-2 wire from the radio to the
Brown wire.
• Parrot Asteroid Smart or Tablet: Connect the 3.5mm jack into the
AX-SWC-PARROT (sold separately), and then connect the 4-pin connector from
the AX-SWC-PARROT into the radio.
Note: The radio must be updated to rev. 2.1.4 or higher software.
• Universal “2 or 3 wire” radio: Connect the steering wheel control wire,
referred to as Key-A or SWC-1, to the Brown wire of the connector. Then
connect the remaining steering wheel control wire, referred to as Key-B
or SWC-2, to the Brown/White wire of the connector. If the radio comes with
a third wire for ground, disregard this wire.
Note: After the interface has been programmed to the vehicle, refer to the
manual provided with the radio for assigning the SWC buttons. Contact the
radio manufacturer for more information.
• For all other radios: Connect the 3.5mm jack into the port on the radio designated
for an external steering wheel control interface. Refer to the manual provided with
the radio if in doubt as to where the 3.5mm jack goes to.
4-pin harness with yellow RCA jacks:
• If retaining the factory backup camera to the touchscreen display is desired,
connect the Yellow RCA jack labeled “Rearview camera”, to the Yellow RCA
jack from the 6527 harness.
Note: If this method is chosen, the backup camera option must be enabled in

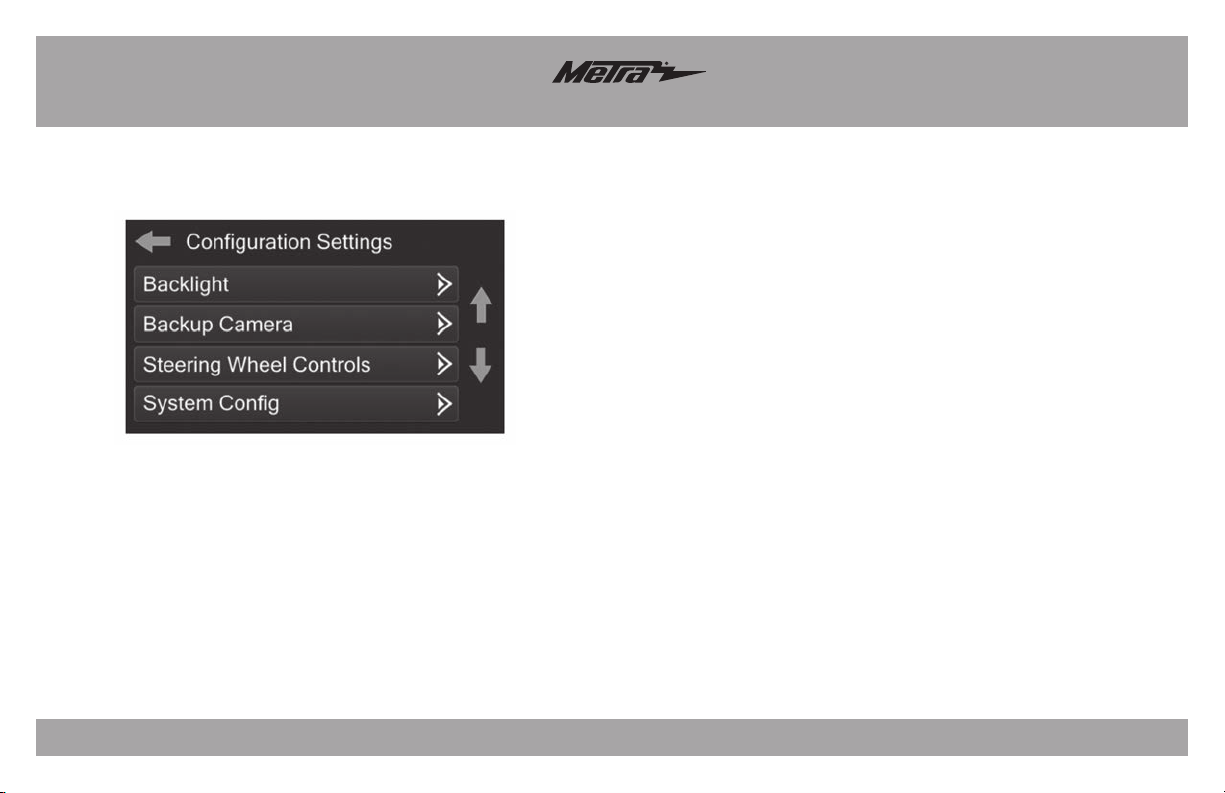

the Configuration Settings Screen.
• Disregard the Yellow RCA jack labeled “AUX video”, it will not be used in
this application.

99-6527B
10
Installing the interface
It is highly advisable to read the following steps beforehand, to ensure a clear understanding of
what is to be expected. The following steps must be done in the order that they are numbered.
With the vehicle completely off:
Touchscreen display
1. Connect the 16-pin harness with stripped leads into port “B” in the touchscreen display.
2. Connect the 6527 harness to the wiring harnesses in the vehicle. Then insert the 6527
harness into port “A” in the touchscreen display. But do not install this harness until exactly
before step 1 of “Initializing the Interface”. This is a timed process
3. Connect the 4-pin harness with yellow RCA jacks into port “C” in the touchscreen display.
4. Connect the hazard harness into port “D” in the touchscreen display, and then to the wiring
harness in the vehicle.
5. Disregard port “E”, it will not be used in this application.
6. Port “F” is an update port for future firmware upgrades.
7. Locate the factory antenna connector in the dash and complete all necessary connections
to the radio. Metra recommends using the proper mating adapter from Metra.
AB
C
E
FD
Initializing the interface
Attention! If the interface loses power for any reason, the following steps
will need to be performed again.
1. Refer to step 2 of “Installing the interface”.
2. Press the push-to-start button to start the vehicle.
3. Program the kit:
a. Once the touchscreen display loads up, select the vehicle type; “Ram 2013-up”.
b. Wait until the radio comes on, and the touchscreen display shows
“SWC Configured”. This process may take up to 3 minutes.
Note: If the touchscreen display does not load up, or the radio doesn’t come on within 3
minutes, and/or the touchscreen display does not show “SWC Configured”, turn the vehicle
off and disconnect the 6527 harnesses from port “A” in the touchscreen display. Check all
the connections, reconnect the harness into the touchscreen display, and then try again.
4. Test all functions of the installation for proper operation, before reassembling the dash.
Note: The clock and compass in the driver’s information center will no longer be functional.
Final assembly
1. Secure the completed assembly into the upper dash using the factory hardware.
2. Reassemble the center console and dash in reverse order of disassembly.
