Metra Electronics AT-807HD User manual

METRA - The World’s best kits ®metraonline.com
REV. 10/4/2016 INST-7898
Installation instructions for part INST-7898
®
CAUTION! All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
• DIN radio provision
• ISO DIN radio provision
• A) Radio housing (a) • B) Radio housing (b) • C) Trim plate (a) • D) Trim plate (b) • E) ISO spacers
• F) ISO brackets (a) • G) ISO brackets (b) • H) Radio brackets • I) Rear support bracket (a) • J) Rear support
bracket (b) • K) (2) #8 x 3/4” Phillips pan head screws • L) (6) #8 x 3/8” Phillips pan head screws
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• Please visit metraonline.com for more information
Antenna Adapter:
• Not Required
• Phillips screwdriver • Cutting tool
• Panel removal tool • 8mm socket wrench
TOOLS REQUIRED
Acura/Honda/Isuzu 1988-2006
99-7898
AT-807HD, IBR-807HD, CF-807HD, AW-807HD
EB C DA F G
H I J K L

INST-7898
®
2
Applications
Dash Disassembly
Acura
- CL 1997-1999............................................ 3
- Integra 1990-1993 ..................................... 3
- Integra 1994-2001 ..................................3-4
- Legend 1990-1996 .................................... 4
- RSX 2002-2006
(except “S” model)..................................4-5
- TL 1996-1998............................................ 5
- Vigor 1992-1994........................................ 5
Honda
- Accord 1990-1993 ..................................... 6
- Accord 1994-1997 ..................................... 6
- Accord 1998-2002 ..................................... 7
- Civic 1996-1998 ........................................ 7
- Civic 1999-2000 ........................................ 8
Honda (Cont)
- Civic SE 2005 (only).................................... 9
- CRV 1997-2001 ....................................... 10
- CRV 2002-2006 ....................................... 10
- Oasis 1996-1999 ..................................... 11
- Odyssey 1995-1998................................. 11
- Odyssey 1999-2004................................. 11
- Prelude 1988-1991 .................................. 12
- Prelude 1992-1996 .................................. 12
- Prelude 1997-2001 .................................. 13
Kit Assembly

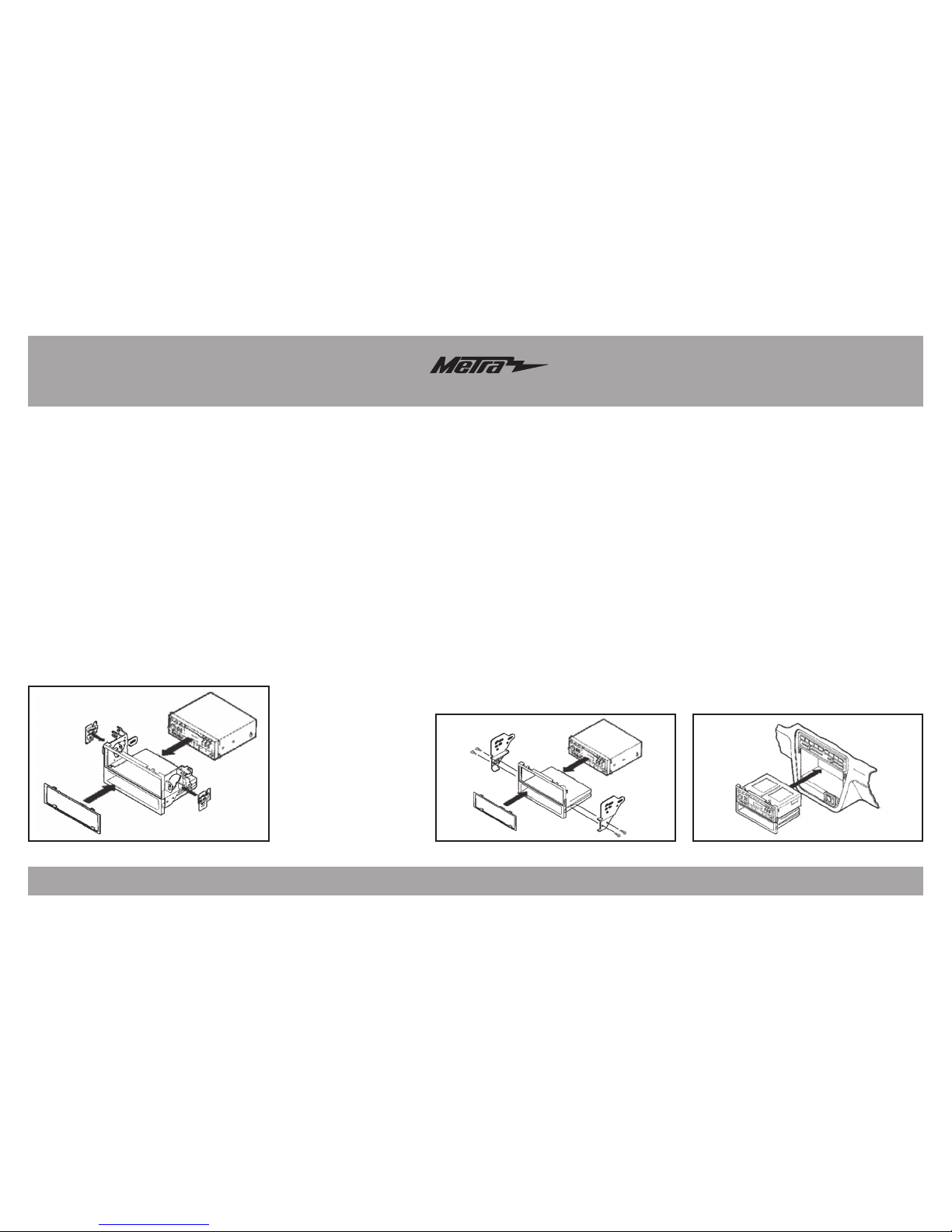

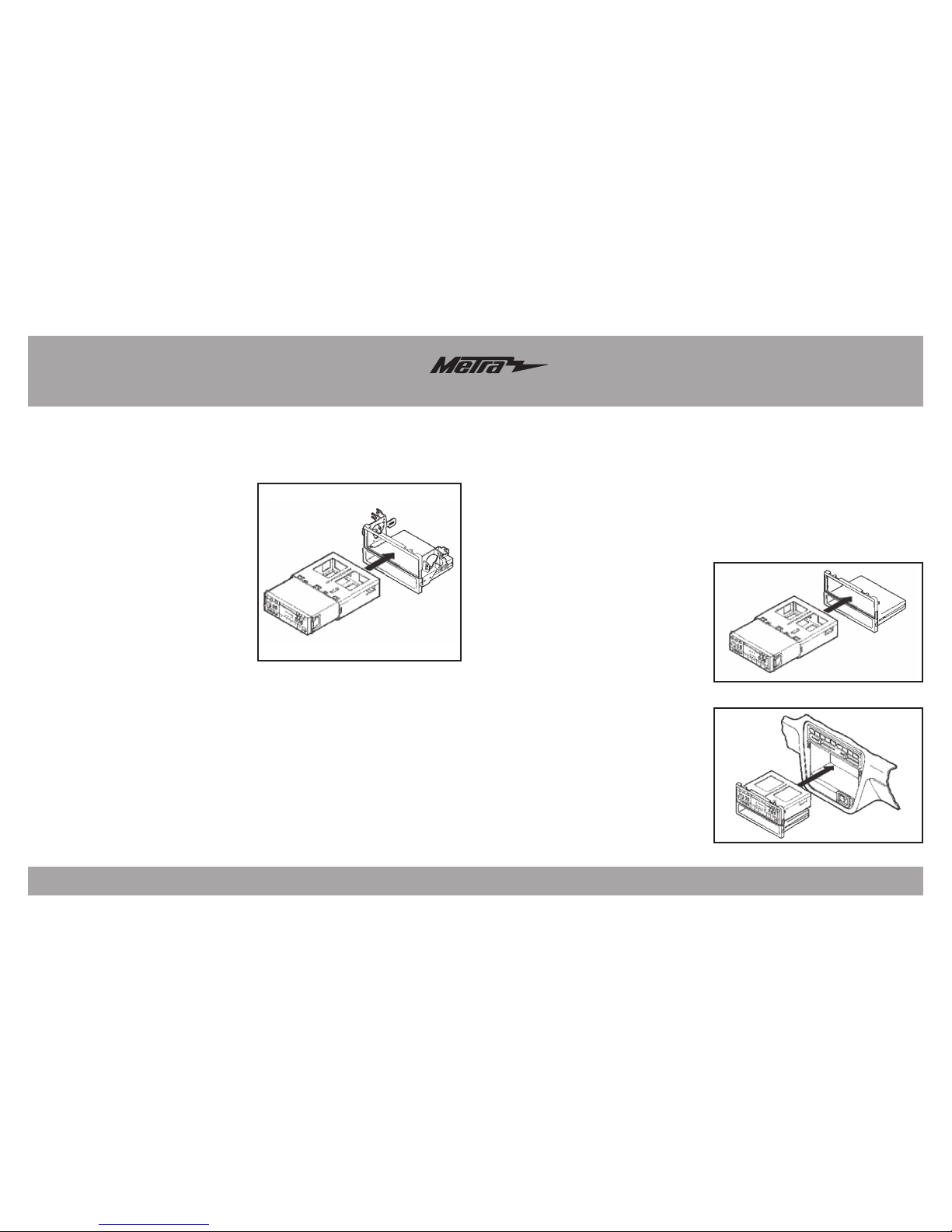

- DIN radio provision ..............................13-14
- ISO DIN radio provision............................. 15
Acura
CL ...........................1997-1999
Integra.....................1990-2001
Legend ....................1990-1996
RSX
(except “S” model)....2002-2006
TL............................1996-1998
Vigor........................1992-1994
Honda
Accord.....................1990-2002
Civic ........................1996-2000
Honda (Continued)
Civic SE ............................ 2005
CRV .........................1997-2006
Odyssey (without nav) 1995-2004
Prelude....................1988-1996
Isuzu
Oasis .......................1996-1999
Table of Contents

INST-7898
®
Dash Disassembly
3
1. Remove (3) screws
from each side of the
center console and
remove the console.
2. Remove (2) screws
securing the factory
radio to the sub-dash
support bracket. Slide
the radio/pocket
assembly out and
disconnect the wiring.
(Figure A)
3. Cut and remove all
of the mounting clips
on Radio Housing (a)
EXCEPT clips “C” and
“H” (the clips can
be identified by the
stamped letter near
each clip). (Figure B)
Continue to kit
assembly
Acura Integra 1990-1993
1. Unclip the radio trim
bezel and disconnect
the clock and climate
control wiring.
(Figure A)
2. Remove (2) 8mm
hex head screws
securing the factory
radio and disconnect
the wiring.
3. Cut and remove all
of the mounting clips
on Radio Housing (a)
EXCEPT clips “A” and
“H” (the clips can
be identified by the
stamped letter near
each clip). (Figure B)
4. Mount the rear
support bracket (a)
to the back of Radio
Housing (b) with (2)
#8 x 3/8” Phillips pan
head screws supplied.
(Figure B)
Continue to kit
assembly
Acura CL 1997-1999
(Figure B)
(Figure A)
“H”
“H”
“A”
(Figure B)
(Figure A)
“H”
“H”
“C”
“C”
1. Remove the cover cap located under the
emergency brake and remove (2) screws exposed.
2. Remove (2) screws from the rear corners of the
lower dash trim bezel and remove.
3. Remove the ashtray and (2) screws exposed.
4. Unsnap the ashtray housing and disconnect the
cigarette lighter harness.
5. Remove the gear shifter knob and unsnap the
shifter trim.
Continue on next page
Acura Integra 1994-2001
(Figure A)

INST-7898
®
4
6. Remove (2) screws below the radio opening and
remove the upper dash trim bezel. (Figure A)
7. Remove (2) 8 mm screws securing the factory
radio and disconnect the wiring.
8. Cut and remove all of the mounting clips on Radio
Housing (a) EXCEPT clips “C” and “H” (the clips can
be identified by the stamped letter near each clip).
(Figure B)
Continue to kit assembly
Acura Integra 1994-2001
(Figure B)
“H”
“H”
“C”
“C”
1. Remove (2) screws
below the ashtray.
(Figure A)
2. Unclip the dash
trim bezel.
3. Disconnect the
cigarette lighter wiring
and remove the bezel.
4. Remove (2) bolts
securing the rear
of the factory radio
and disconnect the
wiring.
5. Cut and remove all
of the mounting clips
on Radio Housing (a)
EXCEPT clips “E” and
“J” (the clips can
be identified by the
stamped letter near
each clip). (Figure B)
Continue to kit
assembly
Acura Legend 1990-1996
(Figure B)
(Figure A)
“J”
“J”
“E”
“E”
(Figure A)
1. Unclip the lower dash panel (containing the power
outlet) and remove the panel.
2. Reach into the opening and remove (2) Phillips
screws from the base of the factory radio.
3. Slide the factory radio (with bracket assembly)
from the dash and disconnect the wiring. (Figure A)
4. Remove (4) Phillips screws securing the factory
radio to the bracket assembly and remove the
radio (if a factory pocket is present,
Continue on next page
Acura RSX 2002-2005
(except “S” model)
Dash Disassembly

INST-7898
®
5
(Figure B)
“J”
“J”
1. Using a small
screwdriver, unclip the
perimeter of the radio
trim bezel.(Figure A)
2. Disconnect the climate
control and rear
defroster wiring and
remove the bezel.
3. Remove (4) Phillips
screws securing the
factory radio/trim bezel
assembly. (Figure A)
4. Loosen (2) Phillips
screws securing the
back of the radio to the
metal housing and slide
the radio out (it is not
necessary to remove
the screws securing the
metal).
5. Disconnect the wiring.
6. Cut and remove all
of the mounting clips
on Radio Housing (a)
EXCEPT clips “B” and
“K” (the clips can
be identified by the
stamped letter near
each clip). (Figure B)
Acura TL 1996-1998
(Figure A) (Figure B)
“K”
“K”
“B”
“B”
remove (4) Phillips screws securing
the pocket to the bracket assembly
and remove). (Figure A)
5. Cut and remove the all mounting
clips on Radio Housing (a) EXCEPT
clips “J” (the clips can be identified
by the stamped letter near each clip).
(Figure B)
6. Mount the rear support bracket (b) to
the back of Radio Housing (a) with (2)
#8 x 3/8” Phillips pan head screws
supplied.
Continue to kit assembly
Acura RSX 2002-2005
(except “S” model)
Dash Disassembly
Continue to kit assembly
1. Remove the access cap from
the climate control cluster and
(1) screw exposed. (Figure A)
2. Unclip the cluster and remove
(2) screws exposed. (Figure A)
3. Remove the ashtray and (2)
Phillips screws exposed.
4.
Remove the cover caps
from each front corner of
the center console and the
screws exposed.
5. Open the storage
compartment, lift up the
carpet and remove (2)
screws exposed.
6. Lift up on the center
console and remove. Unclip
the radio trim bezel and
disconnect the wiring.
7. Remove (2) bolts from the
back of the factory radio
and disconnect the wiring.
8.
Cut and remove all of the
mounting clips on Radio
Housing (a) EXCEPT clips
“A” and “H” (the clips can
be
identified by the stamped
letter near each clip). (Figure B)
Continue to kit assembly
Acura Vigor 1992-1996
(Figure B)
(Figure A)
“H”
“H”
“A”
“A”

INST-7898
®
6
1. Remove the ashtray and (1) 3/4” #8
Phillips screw exposed. Open the
storage compartment and remove
(2) #8 Phillips screws exposed.
2. Remove the cup holder tray and (3)
#8 Phillips screws inside.
3. Lift the center console out and
remove (2) Phillips screws exposed
at the base of the dash trim bezel.
4. Unclip the bezel and remove.
5. Remove (2) hex head screws
securing the factory radio and
disconnect the wiring. (Figure A)
6. Cut and remove all of the mounting
clips on Radio Housing (a) EXCEPT
clips “A” and “H” (the clips can be
identified by the stamped letter near
each clip). (Figure B)
7. Mount the rear support bracket (a)
to the back of the Radio Housing (a)
with (2) #8 x 3/8” Phillips pan head
screws supplied.
Continue to kit assembly
Honda Accord 1994-1997
(Figure B)(Figure A)
“H”
“H”
“C”
“C”
Dash Disassembly
“H”
“H”
“A”
1. Remove (4) screws from the lower
portion of the center console.
(Figure A)
2.
Remove the gear shifter knob and lift
the console out. Remove the ashtray
and ashtray bracket
.
3. Remove (2) screws from the bottom
of the radio support, slide the radio
out and disconnect the wiring.
4. Cut and remove all of the mounting
clips on Radio Housing (a) EXCEPT
clips “C” and “H” (the clips can be
identified by the stamped letter near
each clip). (Figure B)
Continue to kit assembly
Honda Accord 1990-1993
(Figure B)
(Figure A)
“H”
“H”
“C”
“C”

INST-7898
®
7
Honda Accord 1998-2002
1. Unsnap the clock panel, disconnect
the wiring and remove. (Figure A)
2. Remove (1) Phillips screw exposed
in the clock cavity.
3. Remove (2) Phillips screws below
the factory radio.
4. Unclip the radio trim bezel and
disconnect the wiring. (Figure A)
5. Remove (4) Phillips screws securing
the factory radio assembly and
disconnect the wiring.
6. Remove (2) screws securing the
factory pocket to the assembly.
7. Cut and remove the mounting clips
from Radio Housing (a).
8. Locate tabs “A” on the mounting
brackets for mounting, cut and
remove tabs “B” (the tabs can be
identified by the stamped letter near
each tab). (Figure B)
9.
Secure the brackets to the housing with
(4) #8 x 3/8” Phillips pan head screws
.
Continue to kit assembly
(Figure B)(Figure A)
“A”
1. Remove (2) Phillips screws from
the bottom edge of the glove box
door and remove the door.
2. Remove (3) Phillips screws from
the lower steering column panel.
3. Pull straight down on the lower
steering column panel and remove
the panel.
4. Remove (2) Phillips screws under
the climate control panel.
(Figure A)
5. Remove (4) Phillips screws from
the lower dash location.
6. Remove (2) 8 mm hex head screws
securing the bottom-rear of the
factory radio and disconnect the
wiring.
7.
Locate Radio Housing (b). (Figure B)
Continue to kit assembly
Honda Civic 1996-1998
(Figure B)
(Figure A)
Dash Disassembly

INST-7898
®
8
Honda Civic 1999-2000
1. Remove (2) Phillips screws from the
bottom edge of the glove box door
and remove the door.
2. Remove (3) Phillips screws from the
lower steering column panel.
3. Pull straight down on the lower
steering column panel and remove
the panel.
4. Remove (2) Phillips screws under
the climate controls.
5. Remove (4) Phillips screws from the
lower dash location. (Figure A)
6. Remove (4) Phillips screws securing
the bottom of the dash trim bezel/
radio assembly and pull the
assembly out as far as possible.
7. Cut the zip ties securing the radio
and climate control wires, slide the
dash trim bezel/radio assembly from
the dash cavity and disconnect the
wiring.
8. Cut and remove all of the mounting
clips on Radio Housing (a) EXCEPT
clips “B” and “H” (the clips can be
identified by the stamped letter near
each clip). (Figure B)
Continue to kit assembly
(Figure B)(Figure A)
“H”
“H”
“B”
“B”
Dash Disassembly

INST-7898
®
9
Honda Civic SE 2005 (only)
1. Unsnap and remove the trim ring
from around floor shifter.
2. Unsnap and remove larger trim
around floor console shifter.
3. Remove (2) Phillips screws from
in between cup holder and shifter.
(Figure A)
4. Unsnap sides of console (2 snaps
per side) and remove with power
outlet assembly.
5. Remove (2) Phillips screws from
under radio assembly, facing up.
(Figure A)
6. Remove (3) screws securing the
climate control pod to the back of
the dash trim bezel and remove the
pod. (Figure B)
7. Remove (4) Phillips screws from
each side securing the factory
radio to the bracket assembly and
remove the radio.
8. Cut and remove all mounting clips
on Radio Housing (a), EXCEPT
clips “B” and “H” (hooks can be
identified by the letter stamped
near each clip). (Figure C)
Continue to kit assembly (Figure C)(Figure A) (Figure B)
“H”
“H”
“B”
“B”
Dash Disassembly

INST-7898
®
10
1. Open the glove box, squeeze the
retaining clips and remove the
stoppers.
2. Lower the glove box and remove (2)
Phillips screws from the left edge.
3. Remove (2) Phillips screws from the
lower steering column panel and
remove.
4. Unclip the lower console cover (below
the ashtray and pocket) and remove.
5. Remove (2) Phillips screws from the
base of the center console, open
the console pocket and remove the
(4) outer screws exposed.
6. Unclip the center console and remove.
7. Remove (2) Phillips screws securing
the radio trim bezel, disconnect the
wiring, and remove the trim bezel/
radio assembly. (Figure A)
8. Remove (4) Phillips screws
securing the radio to the bezel and
remove.
9. Cut and remove all of the mounting
clips on Radio Housing (a) EXCEPT
clips “B” and “H” (the clips can be
identified by the stamped letter near
each clip). (Figure B)
Continue to kit assembly
Honda CR-V 1997-2001
(Figure A) (Figure B)
“H”
“H”
“B”
“B”
1. Remove (2) Phillips screws
from the bottom edge of the radio
trim bezel. (Figure A)
2. Unclip the trim bezel and remove.
3. Remove (4) Phillips screws
securing the factory radio and
disconnect the wiring.
4. Cut and remove all of the mounting
clips on
Radio Housing (a) EXCEPT
clips “M” and “H” (the clips can
be identified by the stamped letter
near each clip). (Figure B)
Continue to kit assembly
Honda CR-V 2002-2006
(Figure B)
(Figure A)
“H”
“H”
“M”
“M”
Dash Disassembly

INST-7898
®
11

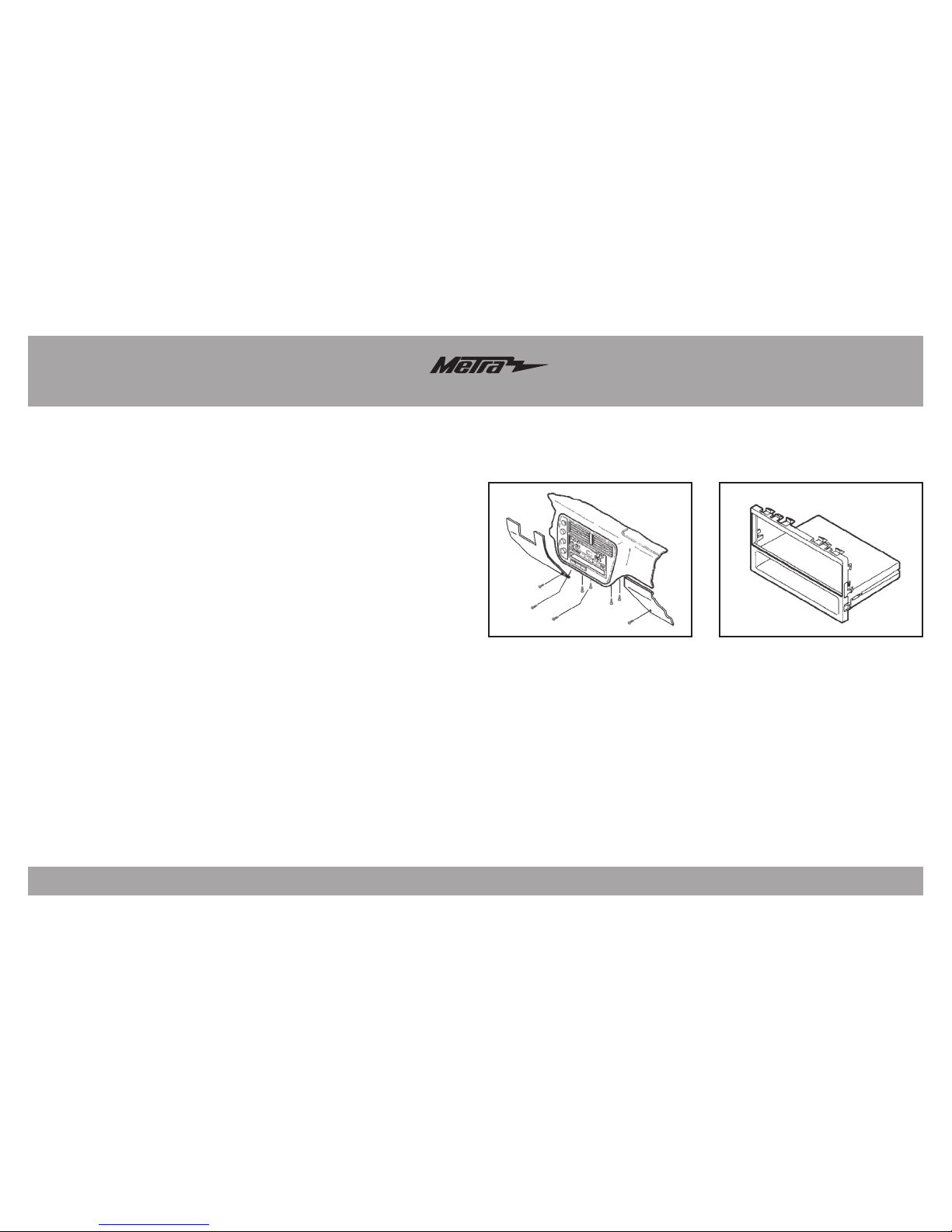

1. Lower the glove box assembly.
2. Remove (2) Phillips screws exposed
on the right side of the underdash.
3. Remove (2) Phillips screws from the
driver’s side knee bolster and (1)
Phillips screw in the coin pocket.
4. Remove (5) Phillips screws from the
underdash panel and remove the
panel. (Figure A)
5. Remove (4) Phillips screws from the
cupholder assembly and remove.
6. Remove (2) Phillips screws
securing the factory radio and
disconnect the wiring.
7. Cut and remove all of the mounting
clips on
Radio Housing (a) EXCEPT
clips “D” and “H” (the clips can be
identified by the stamped letter near
each clip). (Figure B)
Continue to kit assembly
Honda Odyssey 1995-1998
Isuzu Oasis 1996-1999
(Figure A) (Figure B)
“H”
“H”
“D”
“D”
1. Unclip the radio trim bezel
(including the climate control
panel) and remove). (Figure A)
2. Remove (4) Phillips screws
securing the factory radio and
disconnect the wiring.
3. Cut and remove the mounting clips
from
Radio Housing (a) .
4. Locate tabs “B” on the mounting
brackets for mounting, cut and
remove tabs “A” (the tabs can be
identified by the stamped letter
near each tab). (Figure B)
5. Secure the brackets to the housing
with (4) #8 x 3/8” Phillips pan head
screws. (Figure B)
Continue to kit assembly
Honda Odyssey 1999-2004
(Figure B)
(Figure A)
“B”
Dash Disassembly

INST-7898
®
12
Dash Disassembly
1. Remove (2) Phillips screws
located below the climate controls.
(Figure A)
2. Remove (1) Phillips screw from
each side of the dash console and
(2) Phillips screws from each side
of the floor console. (Figure A)
3. Remove the plastic dummy cap
from the end of the dash console
and (2) Phillips screws exposed.
(Figure A)
4. Pull the floor console out and
gently remove the dash console.
5. Remove (6) Phillips screws
securing the factory radio and
disconnect the wiring.
6. Cut and remove all of the mounting
clips on Radio Housing (a) EXCEPT
clips “A” and “C” (the clips can be
identified by the stamped letter
near each clip). (Figure B)
Continue to kit assembly
(Figure B)
Honda Prelude 1988-1991
(Figure A)
“C”
“C”
“A”
“A”
1. Remove (2) screws from the top of
the console trim bezel.
2. Slide the front seats back and
remove (4) Phillips screws from
each side of the bezel. (Figure A)
3. Pull up on the console trim bezel
and remove.
4. Using an angled screwdriver,
remove (2) screws securing the
gear shifter bracket to the bezel.
5. Remove (4) screws from the radio
trim bezel, remove the factory
radio assembly and disconnect the
wiring. (Figure A)
6. Cut and remove all of the mounting
clips on
Radio Housing (a) EXCEPT
clips “F” and “H” (the clips can be
identified by the stamped letter
near each clip). (Figure B)
Continue to kit assembly
Honda Prelude 1992-1996
(Figure B)
(Figure A)
“H”
“H” “F”
“F”

INST-7898
®
13
Dash Disassembly Kit Assembly
1. Using a panel removal tool, unclip
the radio trim bezel and remove
(some force may be required).
(Figure A)
2. Remove (4) Phillips screws
securing the factory radio/bracket
housing assembly and disconnect
the wiring.
3. Remove (4) Phillips screws
securing the factory radio to the
bracket housing and remove.
4. Cut and remove all of the mounting
clips on
Radio Housing (a) EXCEPT
clips “A” and “G” (the clips can be
identified by the stamped letter
near each clip). (Figure B)
Continue to kit assembly
(Figure B)
Honda Prelude 1997-2001
(Figure A)
“H”
“H”
“A”
“A”

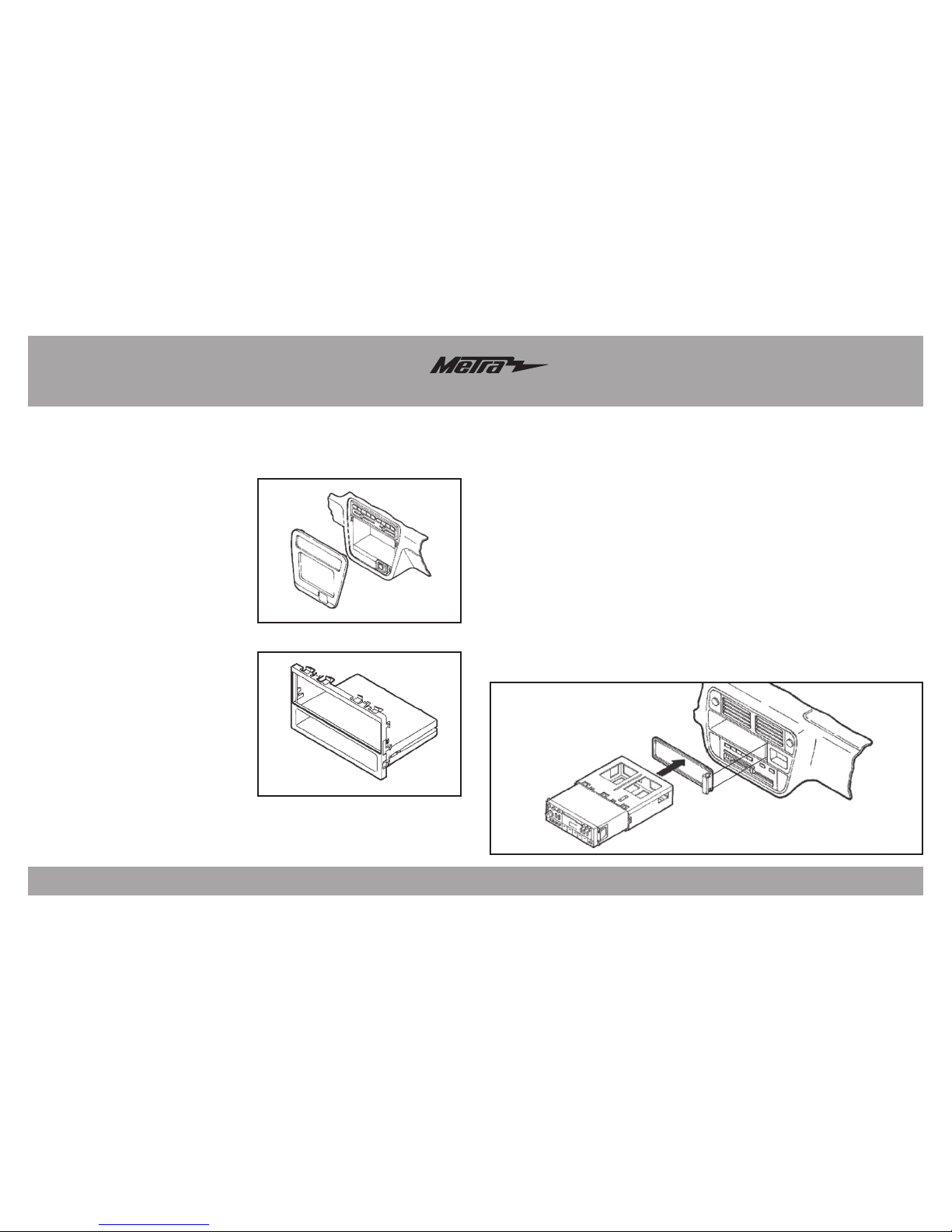

For the Honda Civic 1996-1998
follow the next (6) steps. For all other
applications, either proceed to page
14 for DIN radio installations, or page
15 for ISO DIN radio installations:
1. Position the radio housing (b) in
the radio opening by inserting the
locating pins on the housing into the
holes in the sub-dash. (Figure A)
Note: if a radio dummy plate
was removed during the dash
disassembly, cut and remove the
locating pins on the radio housing.
2. Remove the metal DIN sleeve from
the aftermarket radio.
3. Slide the sleeve into the kit and
secure by bending the metal locking
tabs down.
4. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from
Metra or AXXESS. Test the radio for
proper operation.
5. Slide the radio back into the sleeve
until it clicks in. (Figure A)
6. Reassemble the dash in reverse
order of disassembly.
(Figure A)

INST-7898
®
14
DIN radio provision
All other models:
1. Remove the metal DIN sleeve from
the aftermarket radio.
2. Slide the sleeve into radio housing
(a) and secure by bending the metal
locking tabs down.
Note: For the Honda Civic 2001-
2005 (non “si” model), use Radio
Housing (b) instead.
3. Slide the radio back into the sleeve
until it clicks in. (Figure A)
4. Locate the factory wiring harness in
the dash. Metra recommends using
the proper mating adapter from
Metra or AXXESS. Test the radio for
proper operation.
5. Reassemble the dash in reverse
order of disassembly.
**For the Honda Accord 1994-
1997 and Acura CL 1997-1999:
Mount the rear support bracket (b)
to the rear support provision with
(2) bolts previously removed in dash
disassembly. (Figure B)
**For the Acura RSX 2002-2006:
Mount rear support bracket (a) to
the rear support provision with (2)
#8 x ¾” Phillips pan head screws
included. (Figure B)
(Figure B)
(Figure A)
Kit Assembly
For the Honda Accord 1998-2002 /
Odyssey 1999-2002 follow the next
(6) steps. For all other applications
skip to All Other Models:
1. Secure the radio brackets to radio
housing (a) using (4) #8 X 3/4”
screws Phillips pan head screws
provided.
2. Remove the metal DIN sleeve from
the aftermarket radio.
3. Slide the sleeve into the assembly
and secure by bending the metal
locking tabs down. (Figure A)
4. Slide the radio back into the sleeve
until it click in.
5. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Test the
radio for proper operation.
6. Reassemble the dash in reverse
order of disassembly.
(Figure A)

INST-7898
®
15
For the Honda Accord 1998-2002
/ Odyssey 1999-2002 follow
the next (6) steps. For all other
applications skip to All Other
Models:
1. Secure the radio brackets to radio
housing (a) using (4) #8 X 3/4”
screws Phillips pan head screws
provided.
2. Attach the ISO spacers onto the
sides of the radio brackets, and
snap trim plate (a) into the radio
housing. (Figure A)
3. Remove the metal DIN sleeve and
trim ring from the aftermarket
radio.
4. Slide the radio into the assembly
and align the holes in the radio,
with the holes in the ISO spacers.
Secure with screws supplied with
the radio.
5. Locate the factory wiring harness
in the dash. Metra recommends
using the proper mating adapter
from Metra or AXXESS. Test the
radio for proper operation.
6. Reassemble the dash
in reverse order of
disassembly.
ISO DIN radio provision
(Figure A)
All other models:
1. Snap trim plate (a) into radio housing (a).
(Figure A)
Note: For the Honda Civic 2001-2005 (non
“si” model), use Radio Housing (b), and
trim plate (b) instead.
2. Secure ISO brackets (a) to the radio
housing with (4) #8 x 3/8” Philips pan
head screws supplied. (Figure A)
3. Remove the metal DIN sleeve and trim
ring from the aftermarket radio
4. Slide the radio into the assembly and align
the holes in the radio, with the holes in
the radio brackets. Secure with screws
supplied with the radio. (Figure A)
5. Locate the factory wiring harness in the
dash. Metra recommends using the proper
mating adapter from Metra or AXXESS.
Test the radio for proper operation.
6. Reassemble the dash in reverse order of
disassembly.
**For the Honda Accord 1994-1997 and
Acura CL 1997-1999:
Mount rear support bracket (b) to the rear
support provision with (2) bolts previously
removed in the dash disassembly. (Figure B)
**For the Acura RSX 2002-2006:
Mount rear support bracket (a) to the rear
support provision with (2) #8 x ¾” Phillips
pan head screws included. (Figure B)
(Figure A) (Figure B)
Kit Assembly

METRA - The World’s best kits ®metraonline.com © COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
REV. 10/4/2016 INST-7898
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
Metra recommends MECP
certified technicians
Installation instructions for part INST-7898
®
IMPORTANT
If you are having difficulties with the
installation of this product, please call our
Tech Support line at 1-800-253-TECH.
Before doing so, look over the instructions a
second time, and make sure the installation
was performed exactly as the instructions
are stated. Please have the vehicle apart
and ready to perform troubleshooting steps
before calling.

REV. 10/4/2016 INST-7898
METRA - The World’s best kits ®metraonline.com
Instrucciones de instalación para la pieza INST-7898
®
¡PRECAUCIÓN! Todos los accesorios, interruptores, paneles de con-
troles de clima y especialmente las luces del indicador de las bolsas
de aire deben estar conectados antes ciclar la ignición. Además, no
quite el radio de fábrica con la llave en la posición o de encendido ni
con el vehículo funcionando.
© COPYRIGHT 2016 METRA ELECTRONICS CORPORATION
• Provisión de radio DIN
• Provisión de radio ISO DIN
• A) Carcasa del radio (a) • B) Carcasa del radio (b) • C) Placa de moldura (a) • D) Placa de moldura (b)
• E) Espaciadores ISO • F) Soportes ISO (a) • G) Soportes ISO (b) • H) Soportes del radio • I) Soporte de apoyo (a)
• J) Soporte de apoyo (b) • K) (2) Tornillos Phillips #8 x 3/4” de cabeza troncocónica
• L) (6) Tornillos Phillips #8 x 3/8” de cabeza troncocónica
CARACTERÍSTICAS DEL KIT
COMPONENTES DEL KIT
Acura/Honda/Isuzu 1988-2006
99-7898
AT-807HD, IBR-807HD, CF-807HD, AW-807HD
EB C DA F G
H I J K L
CABLEADO Y CONEXIONES DE ANTENA
(se venden por separado)
Arnés de cableado:
• Visite metraonline.com para más información
Adaptador de antena:
• No se requiere
• Destornillador Phillips • Herramienta de corte
• Herramienta para quitar paneles • llave de tubo 8mm
HERRAMIENTAS REQUERIDAS

99-7898BB
®
2
Aplicaciones
Acura
CL ...........................1997-1999
Integra.....................1990-2001
Legend ....................1990-1996
RSX
(excepto el modelo “S”) .2002-2006
TL............................1996-1998
Vigor........................1992-1994
Honda
Accord.....................1990-2002
Civic ........................1996-2000
Honda (Continúa)
Civic SE ............................ 2005
CRV .........................1997-2006
Odyssey (sin NAV)......1995-2004
Prelude....................1988-1996
Isuzu
Oasis .......................1996-1999
Indice
Desmontaje tablero
Acura
- CL 1997-1999............................................ 3
- Integra 1990-1993 ..................................... 3
- Integra 1994-2001 ..................................3-4
- Legend 1990-1996 .................................... 4
- RSX 2002-2006
(excepto el modelo “S”)..........................4-5
- TL 1996-1998............................................ 5
- Vigor 1992-1994........................................ 5
Honda
- Accord 1990-1993 ..................................... 6
- Accord 1994-1997 ..................................... 6
- Accord 1998-2002 ..................................... 7
- Civic 1996-1998 ........................................ 7
- Civic 1999-2000 ........................................ 8
Honda (Cont)
- Civic SE 2005 (solamente).......................... 9
- CRV 1997-2001 ....................................... 10
- CRV 2002-2006 ....................................... 10
- Oasis 1996-1999 ..................................... 11
- Odyssey 1995-1998................................. 11
- Odyssey 1999-2004................................. 11
- Prelude 1988-1991 .................................. 12
- Prelude 1992-1996 .................................. 12
- Prelude 1997-2001 .................................. 13
Ensamble del kit
- Provisión de radio DIN .........................13-14
- Provisión de radio ISO DIN ........................ 15

99-7898BB
®
Desmontaje tablero
3

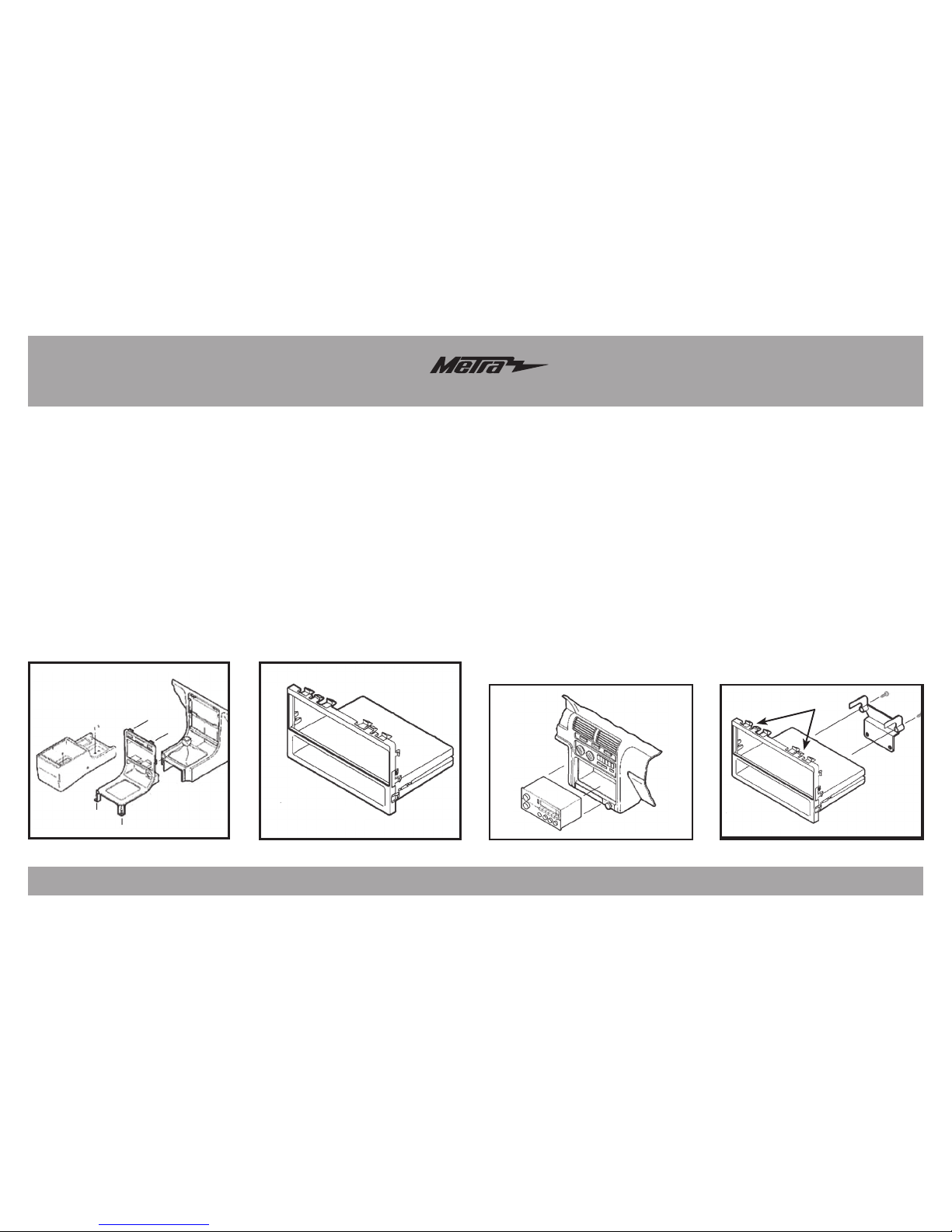

1. Quite los (3) tornillos
a cada lado de la
consola central y quite
la consola.
2. Quite los (2) tornillos
que sujetan el radio
de fábrica al soporte
de apoyo del sub
tablero. Deslice el
ensamble de radio/
cavidad hacia afuera
y desconecte el
cableado. (Figura A)
3. Corte y quite todos los
ganchos de montaje de
la carcasa del radio (a)
EXCEPTO los ganchos
“C” y “H” (los ganchos
pueden identificarse
por la letra estampada
cerca de cada gancho).
(Figura B)
Continúe con el
ensamble del kit
Acura Integra 1990-1993
1. Desenganche el bisel de
la moldura del radio y
desconecte el cableado
del reloj y del control del
clima. (Figura A)
2. Quite los (2) tornillos
de cabeza hexagonal
de 8 mm que sujetan
el radio de fábrica y
desconecte el cableado.
3. Corte y quite todos los
ganchos de montaje de
la carcasa del radio (a)
EXCEPTO los ganchos
“A” y “H” (los ganchos
pueden identificarse
por la letra estampada
cerca de cada gancho).
(Figura B)
4. Monte el soporte de
apoyo trasero (a) en
la parte posterior la
carcasa del radio (b)
con los (2) tornillos
Phillips de cabeza
troncocónica #8 x
3/8” suministrados.
(Figura B)
Continúe con el
ensamble del kit
Acura CL 1997-1999
(Figura B)
(Figura A)
“H”
“H”
“A”
(Figura B)
(Figura A)
“H”
“H”
“C”
“C”
1. Quite la tapa de la cubierta localizada debajo del freno
de emergencia y quite los (2) tornillos expuestos.
2. Quite los (2) tornillos de las esquinas traseras del
bisel de la moldura del tablero inferior y quite.
3. Quite el cenicero y los (2) tornillos expuestos.
4. Suelte a presión la carcasa del cenicero y
desconecte el arnés del encendedor.
5. Retire la perilla de la palanca de velocidades y
suelte a presión la moldura de la palanca.
Continua en la siguiente pagina
Acura Integra 1994-2001
(Figura A)

99-7898BB
®
4
6. Quite los (2) tornillos debajo de la apertura del
radio y quite el bisel de la moldura del tablero
superior. (Figura A)
7. Quite los (2) tornillos de 8 mm que sujetan el radio
de fábrica y desconecte el cableado.
8. Corte y quite todos los ganchos de montaje de la
carcasa del radio (a) EXCEPTO los ganchos “C” y
“H” (los ganchos pueden identificarse por la letra
estampada cerca de cada gancho). (Figura B)
Continúe con el ensamble del kit
Acura Integra 1994-2001
(Figura B)
“H”
“H”
“C”
“C”
1. Quite los (2) tornillos
de debajo del cenicero .
(Figura A)
2. Desenganche el bisel
de la moldura del
tablero.
3.
Desconecte el cableado
del encendedor y retire
el bisel.
4. Retire los (2) pernos
que sujetan la parte
trasera del radio de
fábrica y desconecte
el cableado.
5. Corte y quite todos los
ganchos de montaje
de la carcasa del
radio (a) EXCEPTO
los ganchos “E” y “J”
(los ganchos pueden
identificarse por la
letra estampada cerca
de cada gancho).
(Figura B)
Continúe con el
ensamble del kit
Acura Legend 1990-1996
(Figura B)
(Figura A)
“J”
“J”
“E”
“E”
(Figura A)
1. Desenganche el tablero central inferior (que
contiene el tomacorriente) y quite el panel.
2. Deslice en la apertura y quite los (2) tornillos
Phillips de la base del radio de fábrica.
3.
Deslice el radio de fábrica (con el ensamble de soporte)
del tablero y desconecte el cableado. (Figura A)
4. Quite los (4) tornillos Phillips que sujetan el radio
de fábrica al ensamble del soporte y quite el radio
(si hay cavidad de fábrica presente,
Continua en la siguiente pagina
Acura RSX 2002-2005
(excepto el modelo “S”)
Desmontaje tablero
