INSTALLATION INSTRUCTIONS
99-7397B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted scratch resistant matte black
• Retains factory steering wheel controls (pre-wired in included harnessing)
• Radio harness included with connections to retain factory camera
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Panel clip legs • D) Pocket • E) Panel clips (2) • F) #6 x 3/8” Phillips screws (4)
• G) #8 x 3/8” Phillips screws (8) • H) Steering wheel control interface (not shown) • I) 6 volt factory camera adapter (not shown)
• J) Radio wire harness (not shown) • K) Antenna adapter (not shown) TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench • T-25 Torx driver • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation ....................................................2-3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
AXXESS Interface installation ............................5-11
Final Assembly ...................................................... 11
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: Included in kit
Antenna Adapter: Included in kit
SWC Interface: Included in kit
6v Camera Adapter: Included in kit
A B C
G
D E
F
Kia Soul (Non-NAV) 2020
Visit MetraOnline.com for more detailed information about the product and up-to-date vehicle
specific applications

1.800.221.0932
|
MetraOnline.com
2

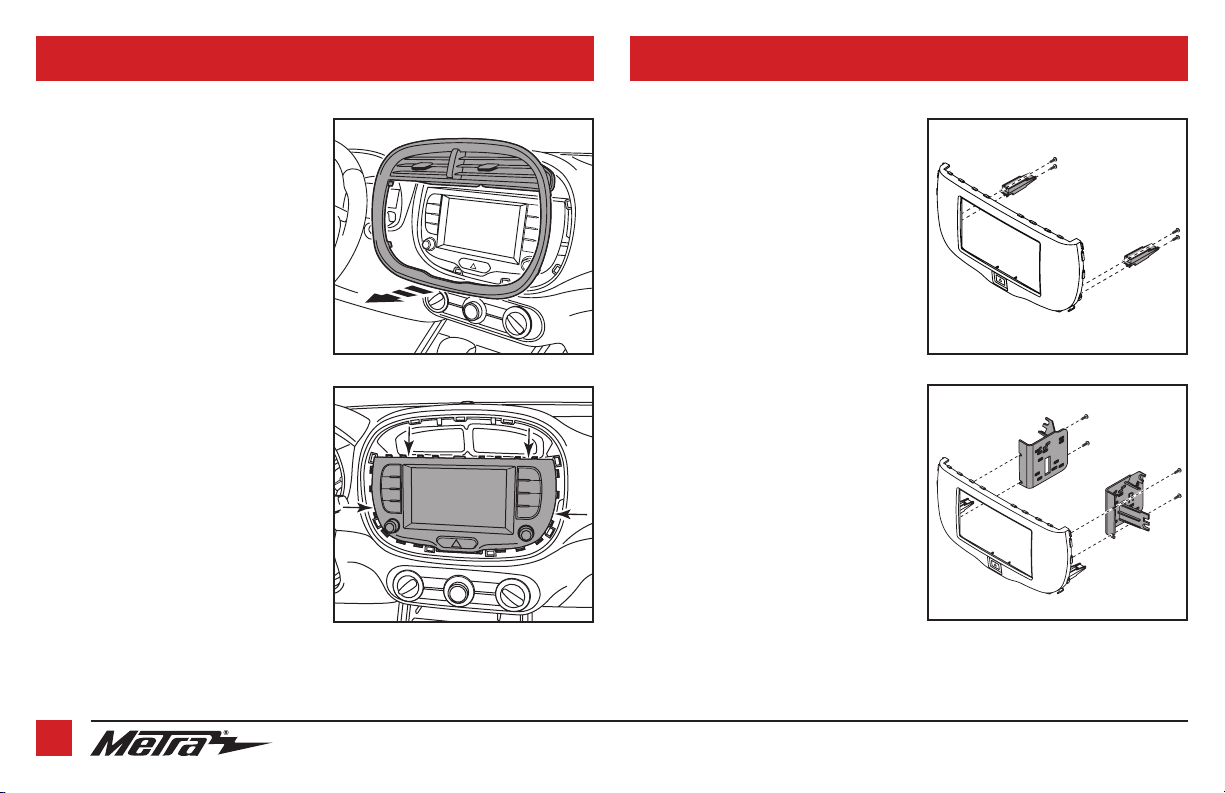

1. Unclip and remove the trim panel
around the factory radio including the
a/c vents. (Figure A)
2. Remove (4) Philips screws securing the
factory radio then unclip and remove
the radio. (Figure B)
Continue to Kit Preparation
(Figure B)
(Figure A)
1. Attach the (2) included clip legs onto
the radio trim panel using (4) #6 x 3/8”
Phillips screws supplied.
Note: The clip legs will only go on one
way. (Figure A)
2. Attach the radio brackets to the radio
trim panel using (4) #(8) x 3/8” Phillips
screws supplied. (Figure B)
2. Attach the panel clips to the clip legs.
Continue to Kit Preparation
DASH DISASSEMBLY KIT PREPARATION
(Figure B)
(Figure A)

REV. 11/11/2020 INST99-7397B 3
KIT PREPARATION
1. Cut the shaded area in the sub-dash to
allow room for the aftermarket radio.
The metal rear support can be bent
out of the way but some plastic at the
bottom must be removed for most
radios. (Figure A)
Continue to Kit Assembly
(Figure A)
Remove shaded areas

1.800.221.0932
|
MetraOnline.com
4
KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Attach the pocket to the bracket
assembly using the (4) supplied
#8 x 3/8” Phillips screws. (Figure A)
2. Slide the radio into the completed
assembly, and then secure it to the
assembly using screws supplied with
the radio. (Figure B)
Continue to AXXESS Interface
Installation (Figure A) (Figure A)
(Figure B)
ISO DDIN radio provision
1. Slide the radio into the completed
assembly, and then secure it to the
assembly using screws supplied with
the radio. (Figure A)
Continue to AXXESS Interface
Installation

REV. 11/11/2020 INST99-7397B 55
AXXESS INTERFACE INSTALLATION
INTERFACE FEATURES
INTERFACE COMPONENTS
• Main Wiring harness (70-7306)
• AXXESS steering wheel control interface (SWC)
• 3.5mm connector with stripped leads
• Camera step down adapter (CAM6V)
• Antenna adapter (AD-KI11)
• Hazard button harness (SOULHAZ)
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun, solder, and heat shrink • Tape
• Wire cutter • Zip ties
TABLE OF CONTENTS
Connections ................................................................................................................................6-7
Installation .................................................................................................................................... 8
Programming the SWC .................................................................................................................9
Steering wheel control (SWC) .....................................................................................................10
Troubleshooting ............................................................................................................................11
Final Assembly ..............................................................................................................................11
• Retains hazard button function
• Retains audio controls on the steering wheel
• Includes 12V-to-6V step-down adapter to retain the factory back up camera

1.800.221.0932
|
MetraOnline.com
66
CONNECTIONS
From the main wiring harness included with the kit to the aftermarket radio:
• Connect the (2) Black wires, the Black wire labeled “CAMERA GROUND”, and also the Black
wire from the AX-CAM6V, to the ground wire.
• Connect the (2) Yellow wires to the battery wire.
• Connect the Red wire to the accessory wire.
• Connect the Red wire labeled “CAMERA POWER 6V” to the Blue/Red wire from the
AX-CAM6V.
• Connect the Blue wire to the power antenna wire.
• If the aftermarket radio has an illumination wire, connect the Orange wire to it.
• Connect the Gray wire to the right front positive speaker output.
• Connect the Gray/Black wire to the right front negative speaker output.
• Connect the White wire to the left front positive speaker output.
• Connect the White/Black wire to the left front negative speaker output.
• Connect the Green wire to the left rear positive speaker output.
• Connect the Green/Black wire to the left rear negative speaker output.
• Connect the Purple wire to the right rear positive speaker output.
• Connect the Purple/Black wire to the right rear negative output.
• Connect the Blue/White wire from the AX-CAM6V to a wire that has power while the vehicle
is in reverse. This wire will have to be located in the vehicle.
The following (1) wire is only for a multimedia/navigation radio that requires this wire.
• Connect the Blue/Pink wire to the VSS/speed sense wire.
• Connect the Yellow RCA jack to the backup camera input.
• Disregard the Red and White RCA jacks on this harness
Continued on the next page

REV. 11/11/2020 INST99-7397B 7
7
ASWC PROGRAMMING (SOLD SEPARATELY)
CONNECTIONS (CONT.)
3.5mm jack steering wheel control retention:
• For the radios listed below: Connect the included female 3.5mm connector with stripped
leads, to the male 3.5mm SWC jack from the wiring harness included with the kit. Any
remaining wires tape off and disregard:
• Eclipse: Connect the steering wheel control wire, normally Brown, to the Brown/
White wire of the connector. Then connect the remaining steering wheel control
wire, normally Brown/White, to the Brown wire of the connector
.
• Metra OE: Connect the steering wheel control Key 1 wire (Gray) to the Brown
wire.
• Kenwood or select JVC with a steering wheel control wire: Connect the Blue/
Yellow
wire to the Brown wire.
Note: If your Kenwood radio auto detects as a JVC, manually set the radio type to
Kenwood. See the instructions under changing radio type.
• XITE: Connect the steering wheel control SWC-2 wire from the radio to the
Brown wire.
• Parrot Asteroid Smart or Tablet: Connect the 3.5mm jack into the AX-SWC-PARROT
(sold separately), and then connect the 4-pin connector from the AX-SWC-PARROT
into the radio .
Note: The radio must be updated to rev. 2.1.4 or higher software.
• Universal “2 or 3 wire” radio: Connect the steering wheel control wire, referred to
as Key-A or SWC-1, to the
Brown wire of the connector. Then connect the remaining
steering wheel control wire, referred to as Key-B or SWC-2, to the
Brown/White wire
of the connector. If the radio comes with a third wire for ground, disregard this wire
.
Note: After the interface has been programmed to the vehicle, refer to the
manual provided with the radio for assigning the SWC buttons. Contact the radio
manufacturer for more information.
• For all other radios: Connect the 3.5mm jack from the wiring harness included with
the kit into the jack from the aftermarket radio designated for an external steering
wheel control interface. Please refer to the aftermarket radios manual if in doubt as to
where the 3.5mm jack connects to.
Continue to Installation

1.800.221.0932
|
MetraOnline.com
88
With the key in the off position:
1. Connect the wiring harness included with the vehicle.
2. Locate the factory antenna connector in the dash and complete all necessary connections to
the radio. Use the antenna adapter provided to adapt the factory antenna connector to the
aftermarket radio.
3. Connect the 12-pin plug from the main wire harness (70-7306) to the AXXESS Steering wheel
control interface.
Attention! If retaining steering wheel controls, ensure that the SWC jack/wire is connected to the
radio before proceeding. If this step is skipped, the ASWC-1 will need to be reset for the steering
wheel controls to function.
Continue to Programming
I N S TAL L AT IO N

REV. 11/11/2020 INST99-7397B 99
PROGRAMMING THE AXXESS SWC INTERFACE
Programming:
1. Press and hold the “Volume-Up” button on the steering wheel, then turn the ignition on.
The L.E.D. will start flashing rapidly which means the AXXESS SWC interface is looking for the
vehicle and the radio.
Note: If the L.E.D. did not start flashing rapidly, press the reset button for 3 seconds.
2. After a few seconds the L.E.D. should stop flashing rapidly, then go out for approximately
2 seconds.
3. After approximately 2 seconds there will be a series of 7 Green flashes, some short, and
some long. The long flashes represent the wires that are connected to the SWC interface.
Tip: Knowing this will help to troubleshoot, if need be.
4. The L.E.D. will pause for another 2 seconds, then flash Red up to 18 times depending on
which radio is connected to the ASWC-1. Refer to the L.E.D. feedback section for information.
5. This is the end of the auto detection stage. If the SWC interface detected the vehicle and the
radio successfully, the L.E.D. will light up solid. Release from holding the Volume-Up button.
6. Test the steering wheel controls for proper operation. Refer to AXXWEEINTERFACES.COM
“Steering wheel control settings” for customizing the buttons, if so desired.
Continue to Steering Wheel Control Settings

1.800.221.0932
|
MetraOnline.com
10
ASWC-1 STEERING WHEEL CONTROL SETTINGS
L.E.D. Feedback
The (18) Red L.E.D. flashes represent what brand radio the SWC interface believes it is connected
to. Each flash represents a different radio Manufacturer. For example, if you are installing a JVC
radio, the ASWC-1 will flash Red (5) times, and then stop. Following is a legend that dictates
which radio Manufacturer corresponds to which flash.
*Note: If the ASWC-1 flashes Red (7) times, and you do not have an Alpine radio connected to
it, that means the ASWC-1 does not detect a radio connected to it. Verify that the 3.5mm jack is
connected to the correct steering wheel jack/wire in the radio.
**Note: The AX-SWC-PARROT is required (sold separately). Also, the Parrot radio must have rev.
2.1.4 or higher software.
† Note: If you have a Clarion radio and the steering wheel controls do not work, change the radio
type to the other Clarion radio type; same for Eclipse. The following section explains how to do
this.
‡ Note: If you have a Kenwood radio and the L.E.D. feedback comes back showing as a JVC radio,
change the radio type to Kenwood. The following section explains how to do this.
Continue to Troubleshooting
Flash Count Radio
1 Eclipse (type 1) †
2 Kenwood ‡
3 Clarion (type 1) †
4 Sony/Dual
5 JVC
6 Pioneer/Jensen
7 Alpine *
8 Visteon
9 Valor
10 Clarion (type 2) †
11 Metra OE
12 Eclipse (type 2) †
13 LG
14 Parrot **
15 XITE
16 Philips
17 TBA
18 JBL
L.E.D. Feedback Legend

REV. 11/11/2020 INST99-7397B 11
TROUBLESHOOTING
For troubleshooting and customization of the steering wheel controls,
visit AXXESSINTERFACES.COM. The Axxess Updater App can also be used.
- Changing radio type
- Remapping the steering wheel control buttons
- Dual assignment instructions (long button press)
Continue to Final Assembly
FINAL ASSEMBLY
1. Secure the radio assembly to the dash using the factory screws.
2. Reassemble the dash in reverse order of disassembly to complete the installation.

KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
®
Metra recommends MECP
certified technicians
Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/11/20 INST99-7397B
INSTALLATION INSTRUCTIONS
99-7397B
Having difficulties? We’re here to help.
Contact our Tech Support line at:
386-257-1187
Or via email at:
[e-mail]
Tech Support Hours (Eastern Standard Time)
Monday - Friday: 9:00 AM - 7:00 PM
Saturday: 10:00 AM - 7:00 PM
Sunday: 10:00 AM - 4:00 PM
