Metro DataVac C5 U-SERIES User manual

DESCRIPTION
Metro Heated Cabinets are for Hot and Cold Food Holding applications only.

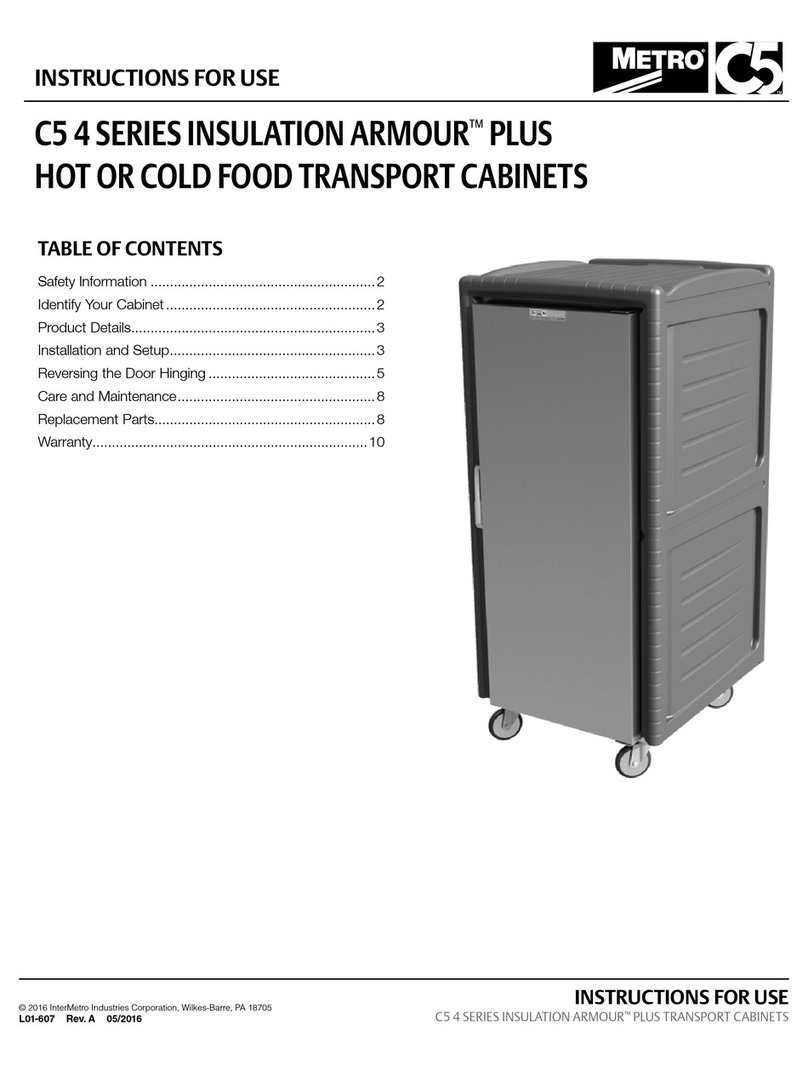

INSTRUCTION FOR USE
C5 4 SERIES INSULATION ARMOUR™ PLUS
HOT OR COLD FOOD TRANSPORT CABINETS
TABLE OF CONTENTS
Safety Information .........................................................2
Identify your Cabinet.....................................................2
Product Details..............................................................3
Installation and Setup ...................................................3
Reversing the Door Hinging ......................................... 5
Care and Maintenance ................................................. 8
Replacement Parts .......................................................8
Warranty ......................................................................10

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
2
www.metro.com
L01-607
REV C 06/19
SAFETY INFORMATION
This cabinet is designed for hot and cold food holding applications.
C5 4 Series transport cabinet (Polymer Insulation Armour panels on the sides,
top and rear) must not be placed next to char boilers. Allow 18" (46cm) between
Insulation Armour and any cooking equipment. Do not allow hot kitchen
equipment whose surfaces exceed 200° F (90° C) to touch the panels.
IDENTIFYING YOUR CABINET
For future reference, note the serial and model number found on the data plate of the cabinet here:
Model number _______________________________
Serial number ________________________________
Date the cabinet was put into service _______________________________
Fill out and return the warranty card located at the back of this manual.
Part Numbering
C5 4 9 S U
-
N
A
CABINET NAME
CABINET HEIGHT
9 = FULL
8 = 5/6
5 = 1/2 NON-POWERED
MATERIAL
S = STAINLESS STEEL
SLIDES
U = UNIVERSAL WIRE SLIDE
CABINET
SERIES
L = FIXED LIP LOAD
ACCESSORIES
(IF APPLICABLE)

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
3
www.metro.com
L01-607
REV C 06/19

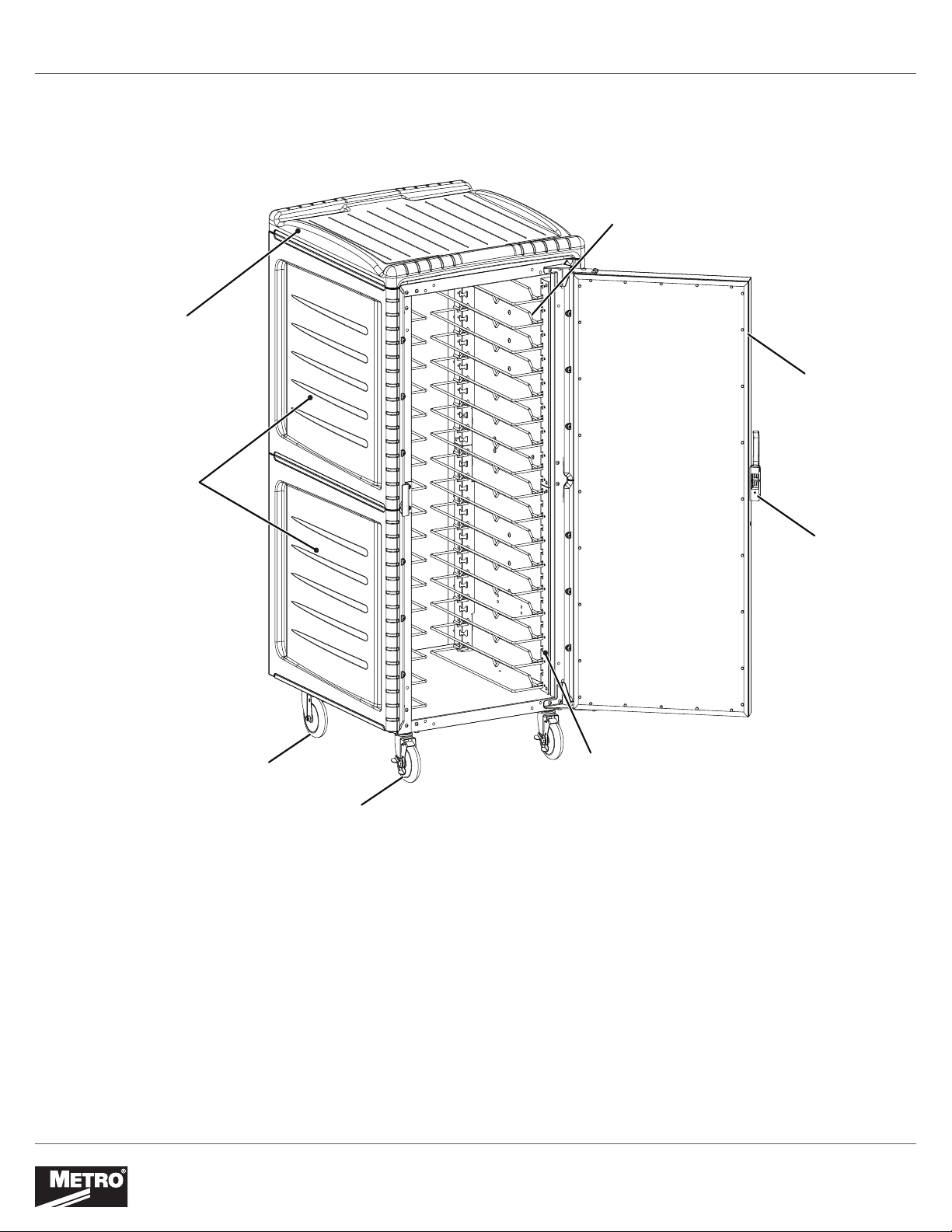

PRODUCT DETAILS
INSTALLATION AND SETUP
1. Check the packaging and cabinet for shipping damage after unloading the unit, and after removing all the packaging.
2. The receiver of this product is responsible for ling freight damage claims. This equipment must be opened
immediately for inspection. All visible damage must be reported to the freight company within 48 hours and must be
noted on freight bill at the time of delivery.
3. Concealed damage is your responsibility — you must advise the carrier of any loss or damage within 15 days after
receipt of the cabinet. If there is damage, retain the original packaging for inspectors.
4. Remove all packaging material from inside as well as outside of the unit.
Armour Panel
(Left-Right-Back)
Door Handle
Door
(2) Brake Casters
Slides
(2) Swivel Casters Upright
Armour Panel
(Top)
(FULL HEIGHT CABINET SHOWN)

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
4
www.metro.com
L01-607
REV C 06/19

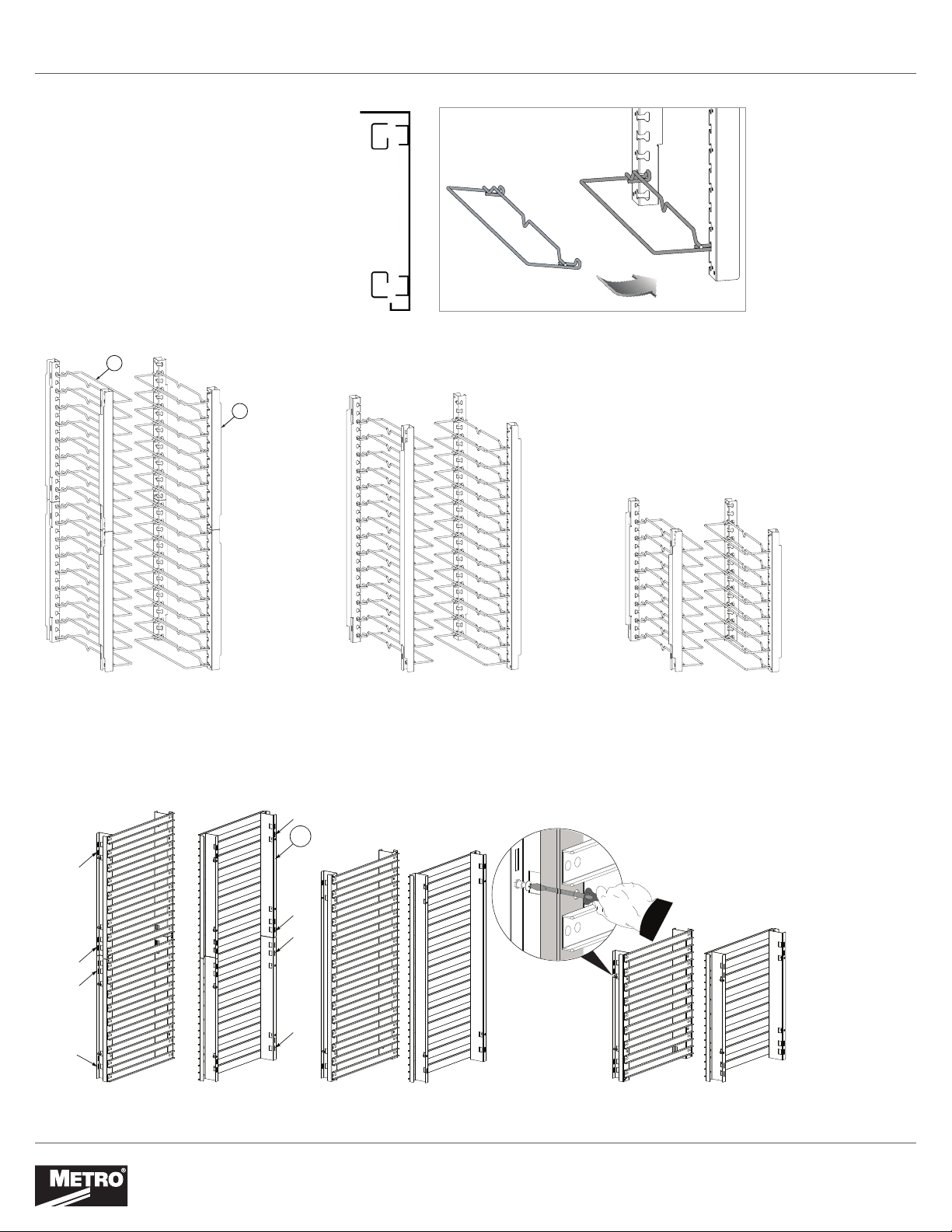

Slide Installation
The universal rack uprights or lip load slides
have been installed at the factory.
If removed for cleaning, reinstall by hanging
them on the rack hangers on the side walls of
the cabinet.
Slide Position to Maximize Universal Slide Pan Capacity when Slides are Spaced on 3" Centers
Complete set of universal slides and
uprights for full height cabinet
Part No. RPC54-9-URACK
17 Levels
Complete set of universal slides and
uprights for 5/6 height cabinet
Part No. RPC54-8-URACK
14 Levels
Complete set of universal slides
and uprights for 1/2 height cabinet
Part No. RPC54-5-URACK
8 Levels
13
12
For additional pairs of wire slides, order C5-USLIDEPR-C for Chrome or C5-USLIDEPR-S for Stainless Steel.
To order individual universal uprights only, see item # 13.
Fixed Lip Load Slide Configurations
Complete set of lip load slides for full
height cabinet
Part No. RPC54-9-LRACK
Complete set of lip load slides for 5/6
height cabinet
Part No. RPC54-8-LRACK
Complete set of lip load slides for 1/2 height
cabinet
Part No. RPC54-5-LRACK
LS
LS
LS
LS
LS
LS
LS
LS
11
NOTE: Lip load slide racks include adjustment
screws to help accommodate variations in sheet
pan sizes from different pan manufacturers.
Turn the screw clockwise to tighten the slides,
and counter-clockwise to loosen them. Full,
5/6, and ½ height cabinet racks have (4) adjust-
ments points on each rack.

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
4Series
INSULATION ARMOUR Pl u s
TM
5
www.metro.com
L01-607
REV C 06/19
Slide Position to Maximize Universal Slide Pan Capacity when Slides are Spaced on 3" Centers

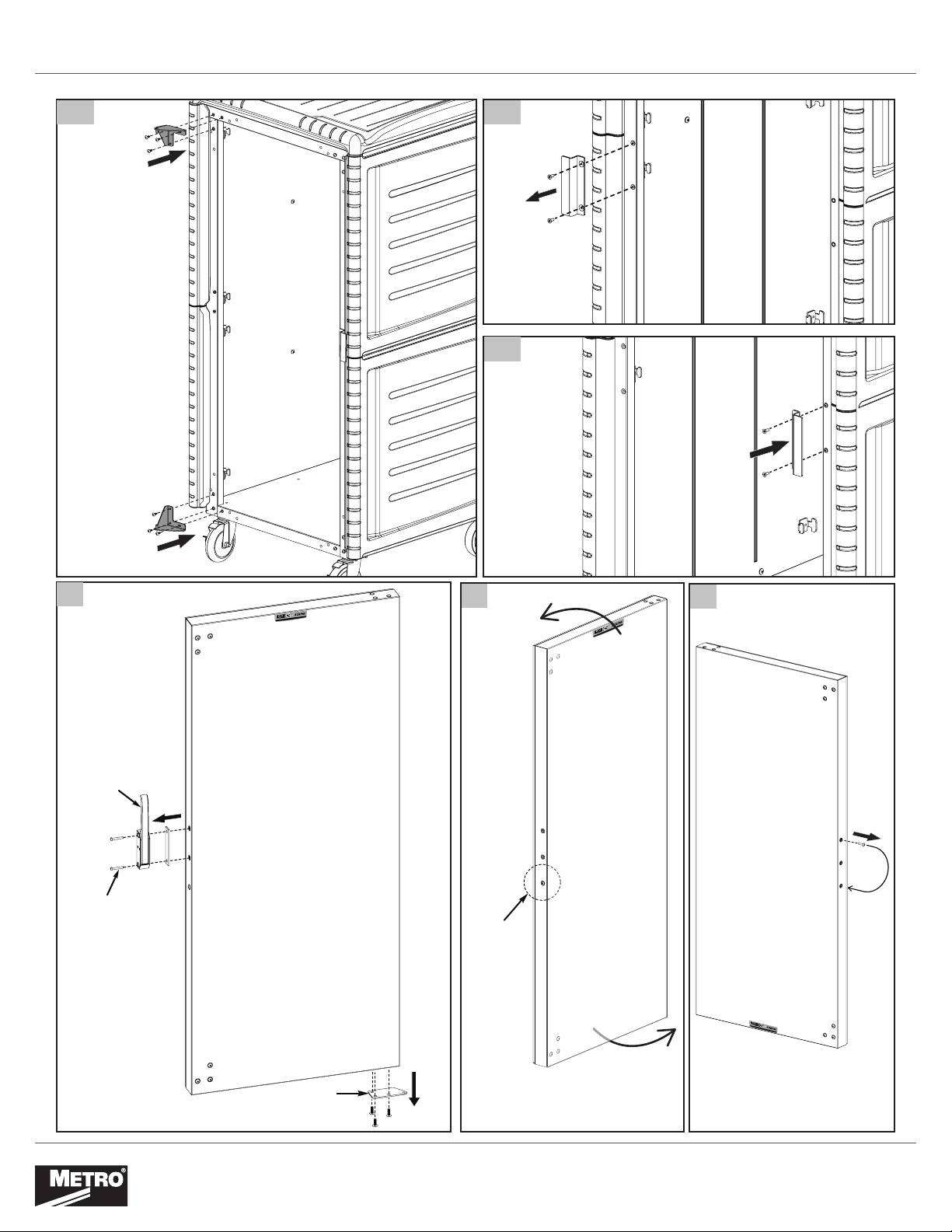

REVERSING THE DOOR HINGING
NOTE: Retain all hardware as these are used during door reversal.
The door on your cabinet can be reversed to accommodate a right- or left-hand opening. To reverse, follow the
instructions listed below:
D
Lift the Complete
Door Assembly from Bottom Hinge
and set it aside for Re-installation.
4Series
I N S U L A T I O N A R M O U R P l u s
TM
C
AB
Door Plate - Top
4Series
INSULATION A R M O U R P l u s
TM
CAUTION: Do not damage the door gasket and
carefully set the door aside.
E-1
E-2
Bottom Hinge
Top Hinge

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
6
www.metro.com
L01-607
REV C 06/19

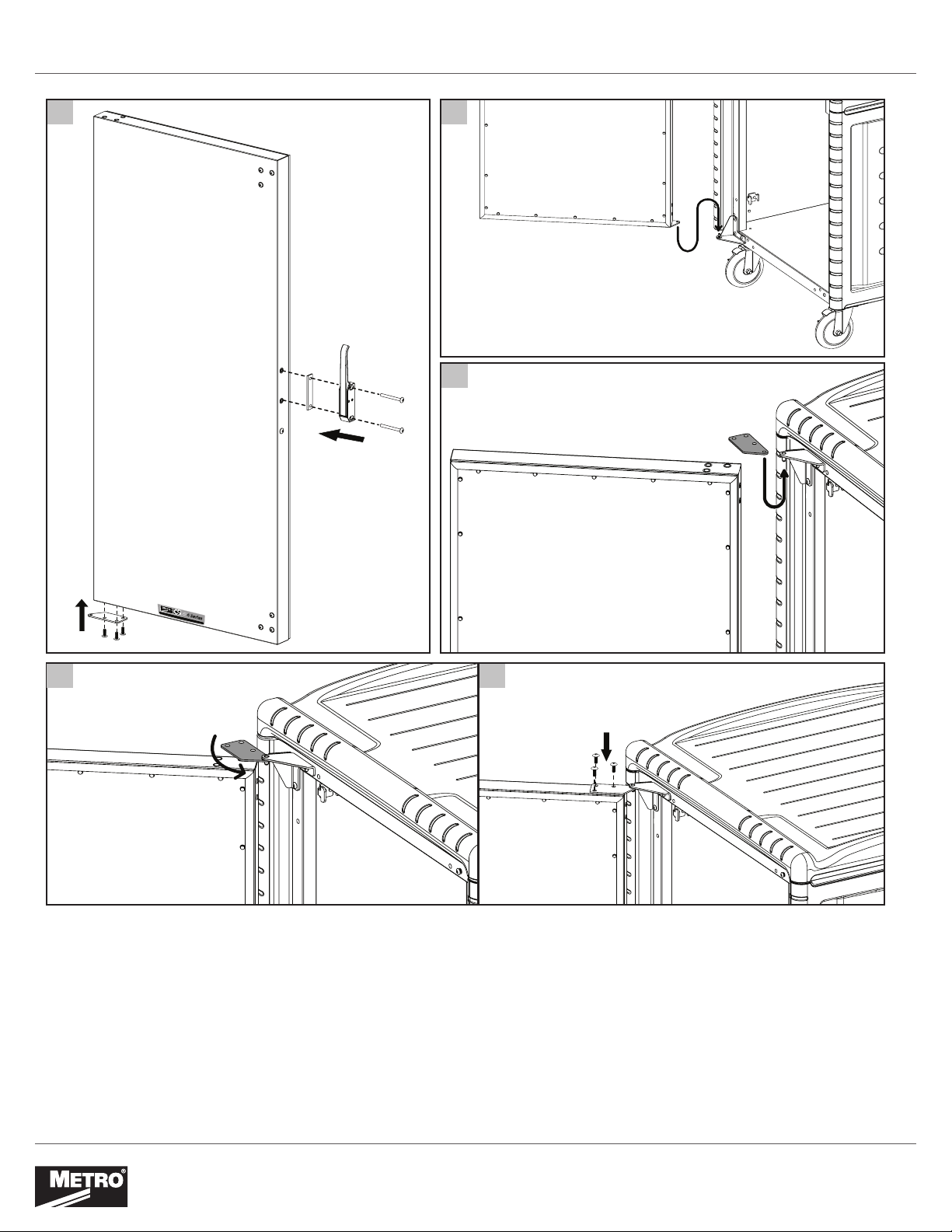

E-3
NOTE:
Install hinges on
opposite side
F-1
Remove latch
strike plate
from left side.
F-2
Install latch
strike plate on
the right side.
4Series
IN S U L A T I O N ARM O URP l u s
TM
I
4Series
I N S U L AT I O N AR M O U R Plus
TM
G
Door
Handle
NOTE:
Keep these pair of
fasteners (2x) for
re-installation.
Door Plate
- Bottom
Cabinet with Door
Handle on Left
Side and Hinged
on Right Side
4Series
I N S U L AT I O N AR M O U R Pl u s
TM
H
Fastener
on Bottom
Rotate the door 180° about
vertical axis and note the
position of fasteners.

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
7
www.metro.com
L01-607
REV C 06/19
4Series
I N S U L A T I O N A R M O U R Plus
TM
Door Handle on Right
Side of the Cabinet
J
Install Door
Assembly on
Bottom Hinge
K
L
MN
THIS STEP
COMPLETES
REVERSING THE
DOOR HINGING
NOTE: Order replacement door label with part #RPC05-1200.

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
8
www.metro.com
L01-607
REV C 06/19
CARE AND MAINTENANCE
Before proceeding with any maintenance activity strictly follow “Safety Information”
on page 2 of this manual.
Cleaning The Cabinet
WARNING: Do not wash the cabinet with a water jet or high pressure water.
CAUTION: To clean the cabinet, wipe with a damp cloth and dry with a towel. Use only cleaning agents
approved for stainless steel.
CAUTION: Do not use cleaners with chlorides or phosphates as they may cause damage to stainless steel.
1. Use cleaners in proper concentrations. Follow the manufacturer’s directions for the cleaning product used. The oor of
the cabinet may be hosed out with low pressure water. After using any cleaning products, thoroughly rinse all surfaces to
remove residue.
2. Use a damp cloth or sponge. Mild soap suitable for stainless steel is acceptable. Dry with a clean towel. Wipe up spills as
soon as possible and regularly clean the cabinet to avoid staining and di󰀩cult to clean conditions.
Regularly inspect the casters. Tighten loose fasteners and replace worn or
damaged parts with new InterMetro approved parts. Replace worn or damaged
casters immediately.
Armour Panel Cleaning
Use soft cloth, mild soap water solution to clean lightly-soiled surfaces. Then wipe dry with a clean, soft cloth. For heavily-
soiled areas, use a soft brush and solvent or emulsion-based cleaner. Always ensure the cleaner is recommended for use
on plastics and follow any special instructions from the manufacturer.
C5 4 SERIES TRANSPORT CABINET REPLACEMENT PARTS
Item# Replacement
Part No.
Description Item# Replacement
Part No.
Description
1 RPC06-1130A Full Height Door Gasket 9 RPC53-HGRKIT Replacement Rack Hanger Kit
RPC06-1130B 5/6 Height Door Gasket 10 RPC54-9-URACK Full Height Universal Slide Assembly - 2 pair
RPC06-1130C 1/2 Height and Dutch Door
Gasket RPC54-8-URACK 5/6 Height Universal Slide Assembly - 1 pair
2RPC54-9SFS-DOOR Solid Full Height Door Assembly RPC54-5-URACK 1/2 Height Universal Slide Assembly - 1 pair
RPC54-8SFS-DOOR Solid 5/6 Height Door Assembly 11 RPC54-9-LRACK Full Height Lip Load Slide Assembly - 2 pair
RPC54-9SDS-BDOOR Solid 1/2 Height Door Assembly RPC54-8-LRACK 5/6 Height Lip Load Slide Assembly - 1 pair
3RPC14-118A Door Latch Flush Handle RPC54-5-LRACK 1/2 Height Lip Load Slide Assembly - 1 pair
4 RPC54-BOTHINGEASY Bottom Hinge Assembly 12 C5-USLIDEPR-C Chrome Wire Slide, 1 Pair
5 RPC54-TOPHINGEASY Top Hinge Assembly C5-USLIDEPR-S Stainless Steel Wire Slide, 1 Pair
6B5DN 5" Swivel Caster 13 RPC54-9-UNIVUP Individual Full Height and 1/2 Height
Universal Upright
B5DNB 5" Swivel, Brake Caster RPC54-8-UNIVUP Individual 5/6 Height Universal Upright
RPQC02-247 6" Swivel Caster 14 RPC54-TRVL Travel Latch
RPQC02-248 6" Swivel, Brake Caster 15 C5-SHELF-S Wire Shelf (Used with Universal Uprights)
6A B5DNR 5" Rigid Caster 16 RPC05-1200 Door Label
7RPC54-8-REDPNLF
RPC54-9-REDPNLF
Armour Panel with Screws
(FOR PANEL IDENTIFICATION
SEE CHART)
8 RPC54N-REDTOPF Armour Top Panel
ARMOUR SIDE PANEL IDENTIFICATION
Height Top Panel Bottom Panel
Full Height RPC54-9-REDPNLF RPC54-9-REDPNLF
5/6 Height RPC54-8-REDPNLF RPC54-9-REDPNLF
1/2 Height --- RPC54-9-REDPNLF

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
9
www.metro.com
L01-607
REV C 06/19
C5 4 Series Transport Cabinet Replacement Parts Diagram
3
2
4
1
13
12 6
6
7
5
7
7
9
14
15
6A
11 10
Brake (x2)
Swivel (x2)
7
NOTE:
For armour panel
identification, see
chart on page 8.
8
4Series
INSULAT I O N A R M O U R Plus
TM
16
NOTE:
For slide identification,
see page 4.

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
10
www.metro.com
L01-607
REV C 06/19
®
06/2019

HOT OR COLD FOOD TRANSPORT CABINETS — INSTRUCTIONS FOR USE
11
www.metro.com
L01-607
REV C 06/19
CUSTOMER INFORMATION
1. Which one of the following best describes
your establishment?
a. Full-Service Restaurant
b. Banquet Hall
c. Hotel/Motel
d. Hospital/Nursing Home
e. College/University
f. School
g. Employee Feeding
h. Other
WARRANTY INFORMATION:
Cabinet Model No.
Date Purchased
Customer Name
Address
Phone No.
2. Please indicate the two product benets / features
that
were of major interest to you.
a.
b.
c.
d.
g.
Other
FOLD HERE — DO NOT DETACH
3. Main factor that led to your decision to
pur chase this product?
a. Product operating and functional features
b. Overall quality
c. Price
d. Availability
e. Other
4. Three sources that led to the purchase of
this product — in the order of their impact
(1 — being most impact; 3 — being least impact).
a. Trade Journal Ad
b Trade Show
c. Sales Call
d. Direct Mail
e. Previous Purchase
f. Other
For warranty coverage please fill out this card and
return it to Metro, or go to www.metro.com/heatedcabinetsupport
and select Online Warranty Registration to register electronically.
Thank you for purchasing a Metro C5 4 Series Cabinet. We are certain you will be
more than satisfied with its quality and performance. Please fill in the warranty
information space below so we may register your warranty. Also, so that we may learn
more about our customers and hopefully be of continued service in the future,
please take a moment to fill in the customer information space below.
Thank you
Superior Temperature Retention
Pan Capacity
Built-in Handles & Full Body Bumper
Easy-to-clean Stainless Steel
e. Holds Multiple Pan Sizes
f. Easy Access Door Latch

© 2019 InterMetro Industries Corporation, Wilkes-Barre, PA 18705
L01-607 REV C 06/19
FOLD HERE — DO NOT DETACH
STAPLE HERE
STAPLE HERE
POSTAGE WILL BE PAID BY
INTERMETRO INDUSTRIES CORPORATION
ATTN: CUSTOMER SERVICE
P O BOX A
WILKES-BARRE PA 18705-9968
STAPLE HERE
BUSINESS REPLY MAIL
FIRST- CLASS PERMIT NO. 121 WILKES-BARRE, PA
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
