1 Introduction
1.1 Instrument description
The 803 Ti Stand with a magnetic stirrer and a built-in pump is part of the
Titrando system. It is mainly used for volumetric Karl Fischer titration
together with a Titrando.
The titration stand is directly connected to the Titrando via an MSB con-
nection cable.
With the integrated membrane pump it is possible to aspirate the titered-
out solution and to add a new solvent without having to open the titra-
tion cell.
1.2 About the documentation
CAUTION
Please read through this documentation carefully before putting the
instrument into operation. The documentation contains information
and warnings which the user must follow in order to ensure safe opera-
tion of the instrument.
1.2.1 Symbols and conventions
The following symbols and styles are used in this documentation:
Cross-reference to figure legend
The first number refers to the figure number, the sec-
ond to the instrument part in the figure.
Instruction step
Carry out these steps in the sequence shown.
Warning
This symbol draws attention to a possible life hazard
or risk of injury.
Warning
This symbol draws attention to a possible hazard due
to electrical current.

1.3 Safety instructions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2￭￭￭￭￭￭￭￭ 803 Ti Stand
Warning
This symbol draws attention to a possible hazard due
to heat or hot instrument parts.
Warning
This symbol draws attention to a possible biological
hazard.
Caution
This symbol draws attention to a possible damage of
instruments or instrument parts.
Note
This symbol marks additional information and tips.
1.3 Safety instructions
1.3.1 General notes on safety
WARNING
Operate this instrument only according to the information contained in
this documentation.
This instrument left the factory in a flawless state in terms of technical
safety. To maintain this state and ensure non-hazardous operation of the
instrument, the following instructions must be observed carefully.
1.3.2 Electrical safety
The electrical safety when working with the instrument is ensured as part
of the international standard IEC 61010.
WARNING
Only personnel qualified by Metrohm are authorized to carry out service
work on electronic components.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction
803 Ti Stand ￭￭￭￭￭￭￭￭ 3
WARNING
Never open the housing of the instrument. The instrument could be
damaged by this. There is also a risk of serious injury if live components
are touched.
There are no parts inside the housing which can be serviced or replaced
by the user.
Protection against electrostatic charges
WARNING
Electronic components are sensitive to electrostatic charges and can be
destroyed by discharges.
Do not fail to pull the power cord out of the power socket before you
set up or disconnect electrical plug connections at the rear of the
instrument.
1.3.3 Working with liquids
CAUTION
Periodically check all system connections for leaks. Observe the relevant
regulations in respect to working with flammable and/or toxic fluids
and their disposal.
1.3.4 Flammable solvents and chemicals
WARNING
All relevant safety measures are to be observed when working with
flammable solvents and chemicals.
￭Set up the instrument in a well-ventilated location (e.g. fume cup-
board).
￭Keep all sources of flame far from the workplace.
￭Clean up spilled liquids and solids immediately.
￭Follow the safety instructions of the chemical manufacturer.

1.3 Safety instructions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4￭￭￭￭￭￭￭￭ 803 Ti Stand
1.3.5 Recycling and disposal
This product is covered by European Directive 2012/19/EU, WEEE – Waste
Electrical and Electronic Equipment.
The correct disposal of your old instrument will help to prevent negative
effects on the environment and public health.
More details about the disposal of your old instrument can be obtained
from your local authorities, from waste disposal companies or from your
local dealer.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Overview of the instrument
803 Ti Stand ￭￭￭￭￭￭￭￭ 5
2 Overview of the instrument
1
2
3
4
5

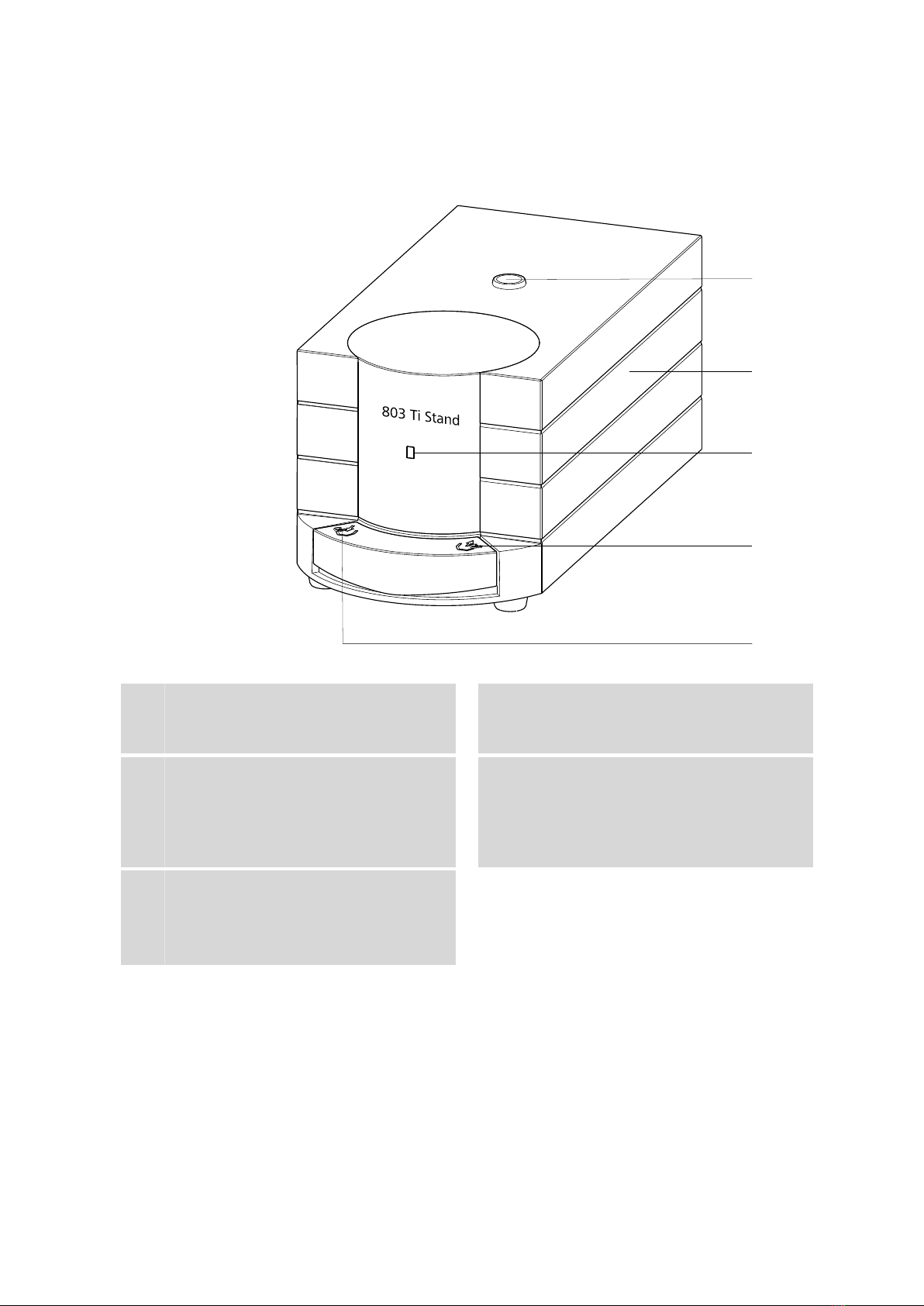

Figure 1 Front 803 Ti Stand
1Bore hole
For support rod (6.2016.070), diameter 10
mm, length 40 mm
2Housing
With built-in pump and magnetic stirrer
3LED function display
Lights up, when the stirrer is switched on.
4Key
Pressing the key aspirates air out of the aspi-
ration bottle. The vacuum in the suction bot-
tle suctions the liquid out of the KF titration
cell and into the suction bottle.
5Key
Pressing the key pumps air into the solvent
bottle. The overpressure in the solvent bottle
pushes solvent into the KF titration cell.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
6￭￭￭￭￭￭￭￭ 803 Ti Stand
1
3
4
2
MSB
Waste Solvent

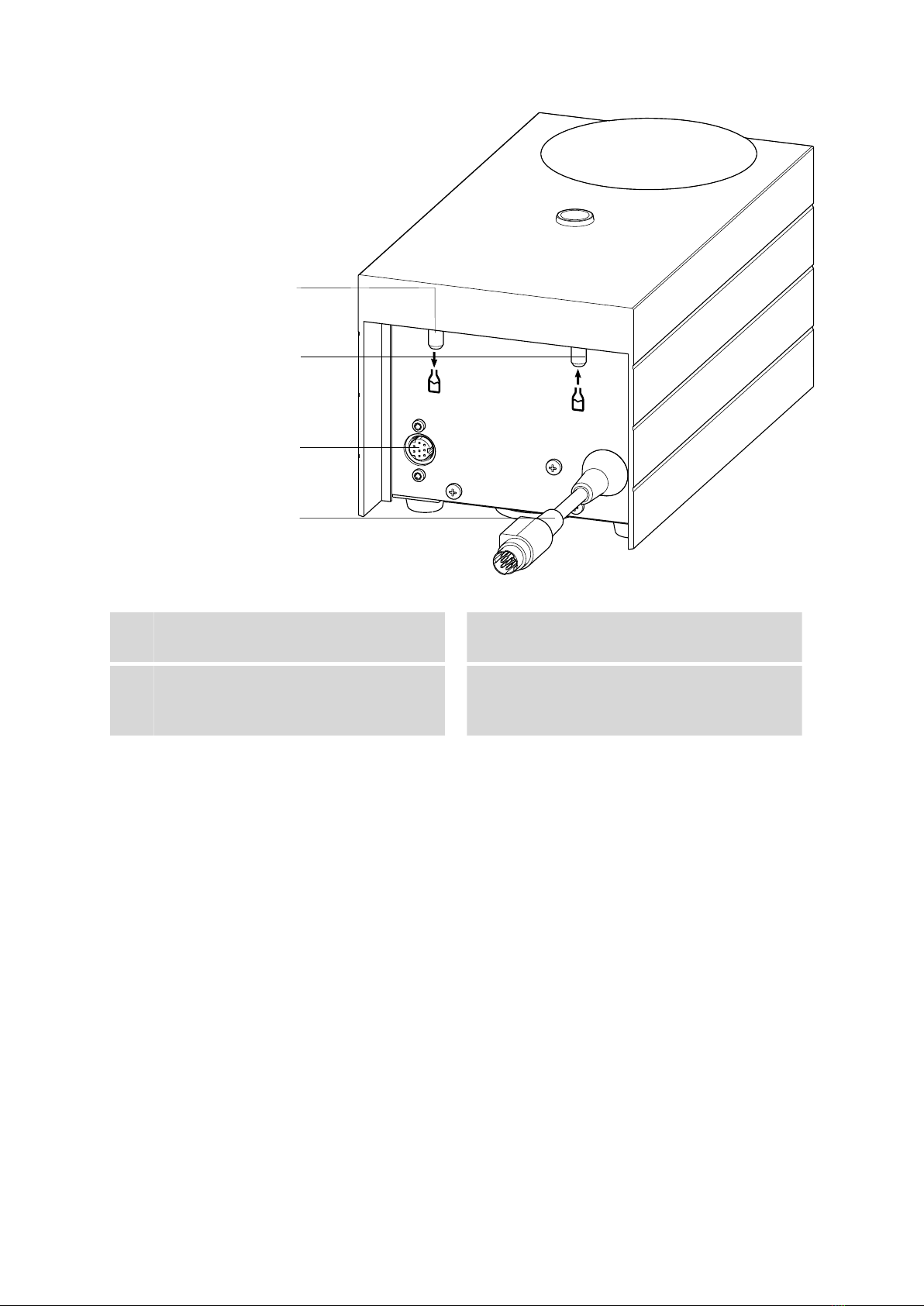

Figure 2 Rear 803 Ti Stand
1Connection nipple for PVC tubing
For aspirating the titration vessel content.
2Connection nipple for PVC tubing
For aspirating solvent.
3MSB connector
For connecting additional devices (e.g. Dos-
ino)
4MSB connection cable
For connecting to an analysis device.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation
803 Ti Stand ￭￭￭￭￭￭￭￭ 7
3 Installation
3.1 Setting up the instrument
3.1.1 Packaging
The instrument is supplied in protective packaging together with the sepa-
rately packed accessories. Keep this packaging, as only this ensures safe
transportation of the instrument.
3.1.2 Checks
Immediately after receipt, check whether the shipment has arrived com-
plete and without damage by comparing it with the delivery note.
3.1.3 Location
The instrument has been developed for operation indoors and may not be
used in explosive environments.
Place the instrument in a location of the laboratory which is suitable for
operation and free of vibrations and which provides protection against
corrosive atmosphere and contamination by chemicals.
The instrument should be protected against excessive temperature fluctua-
tions and direct sunlight.

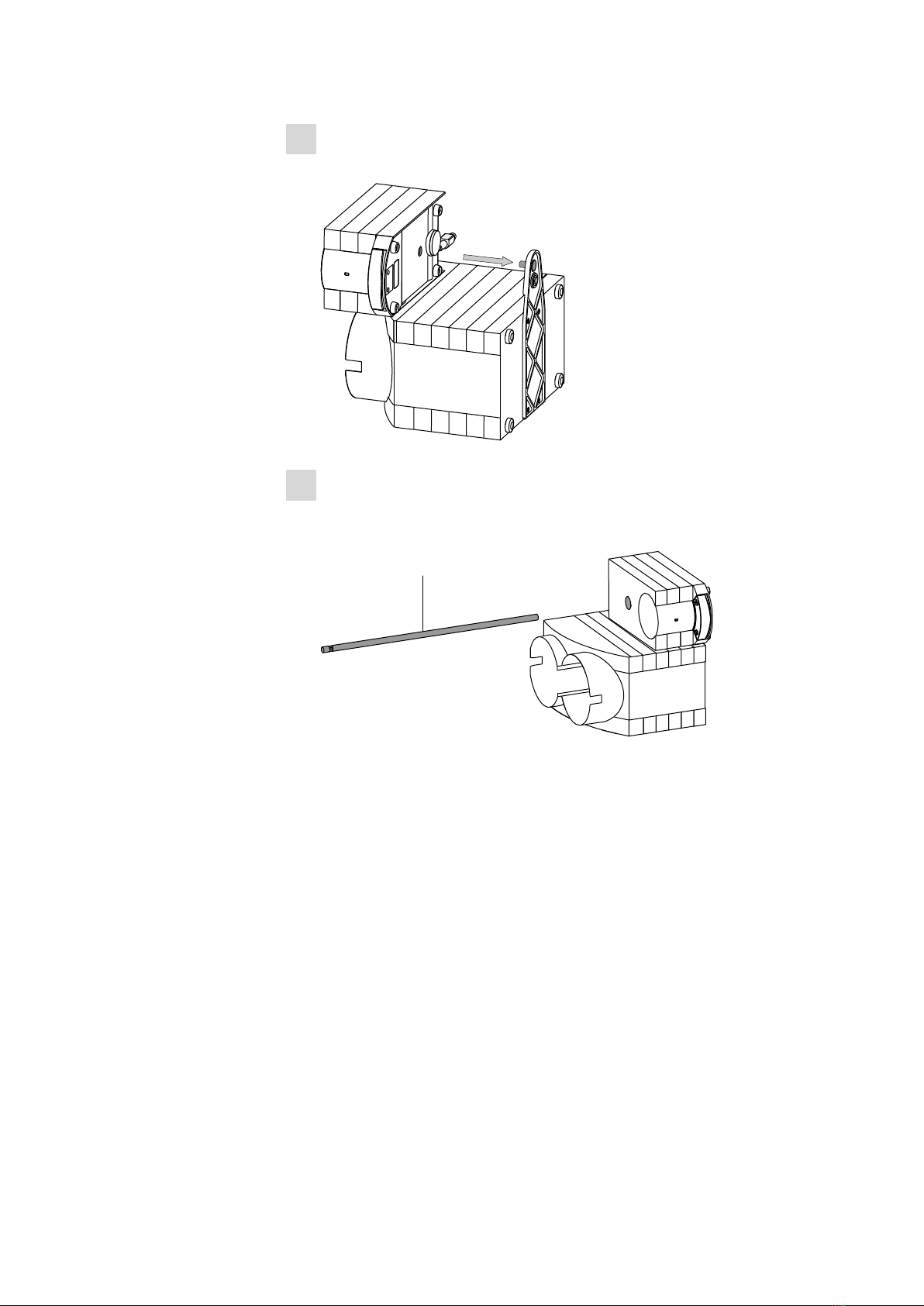

3.2 Mounting the 803 Ti Stand
Mounting the KF titration stand as follows:

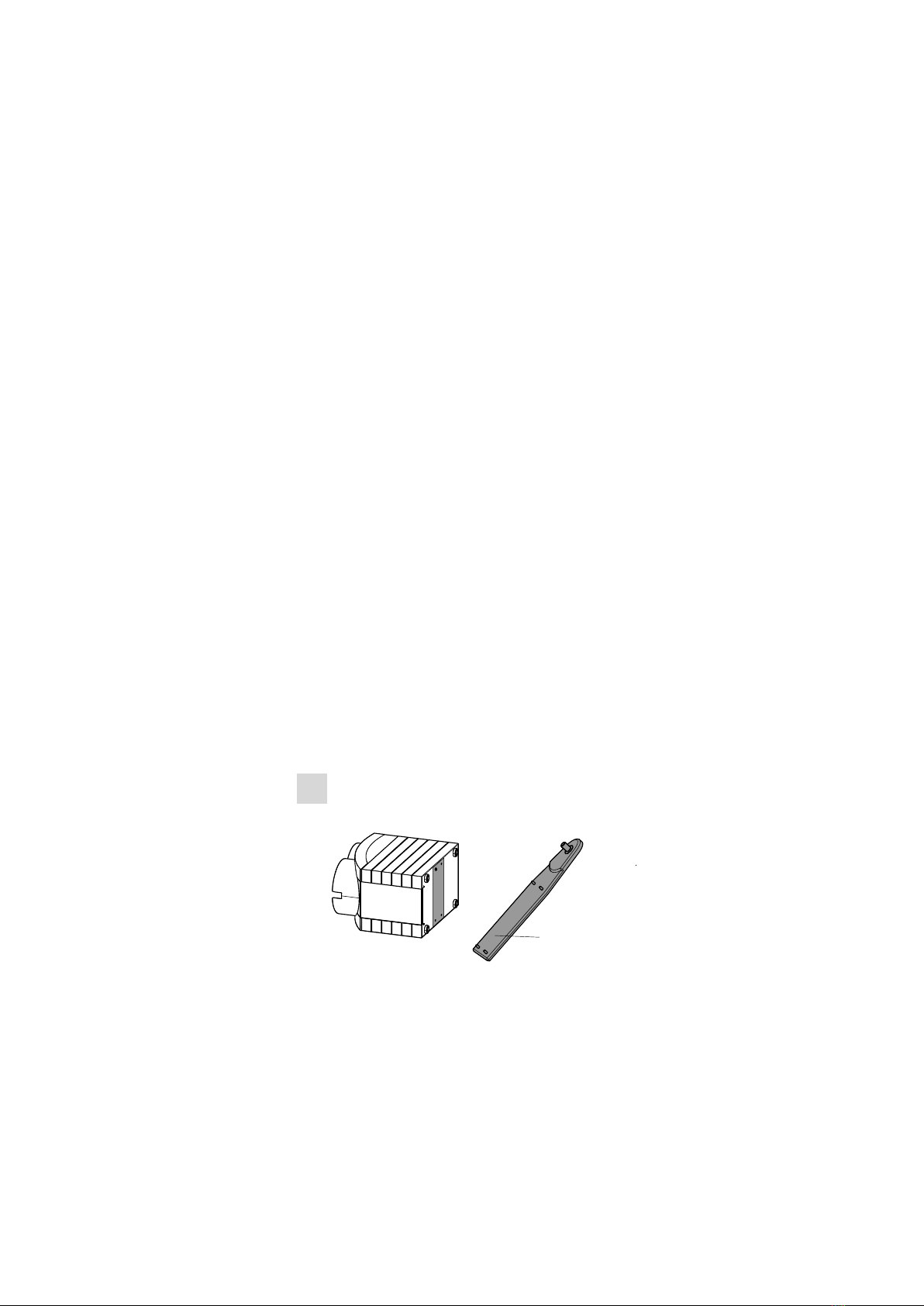

1Screw the 6.2001.060 stand plate with the accompanying four
screws tightly to the bottom of the instrument.
6.2001.060

3.2 Mounting the 803 Ti Stand ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
8￭￭￭￭￭￭￭￭ 803 Ti Stand
2Attach the opening on the bottom of the KF titration stand onto the
hexagon screw in the stand plate.
3Slide the 6.2016.070 support rod from above into the opening of the
KF titration stand intended for this purpose up to the hexagon screw
and tighten.
6.2016.070

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation
803 Ti Stand ￭￭￭￭￭￭￭￭ 9
Mounting the KF titration cell
1
2
4
3
6.1414.030
6.2013.010
6.1415.220
6.1903.020

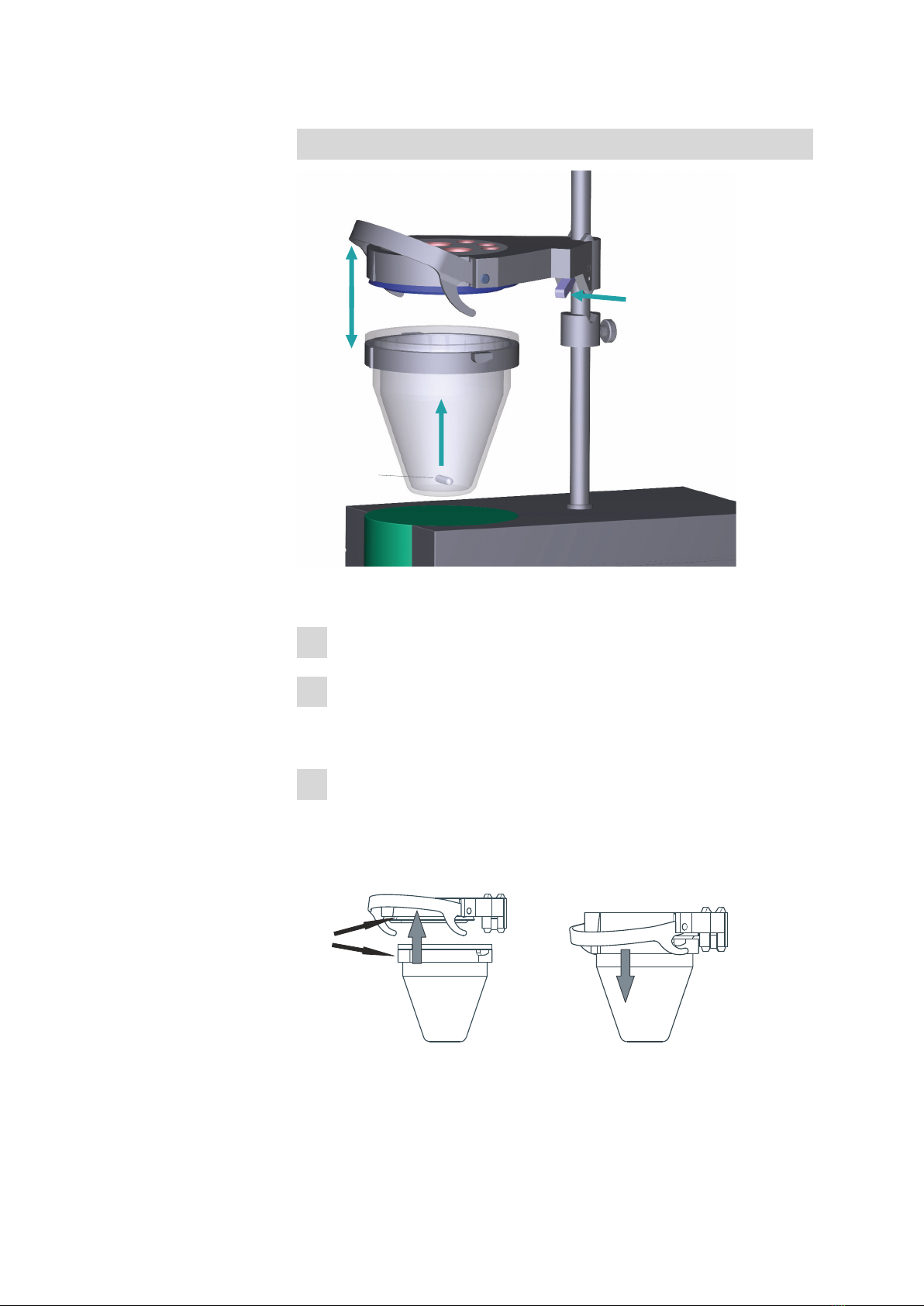

Install the KF titration cell as follows:
1Screw the 6.2013.010 clamping ring tightly to the support rod.
2Mount the 6.1414.030 vessel lid of the KF titration cell to the sup-
port rod. Keep the locking lever pressed down until it can be released
at the desired position.
3Fasten the 6.1415.220 (or 6.1415.250) titration vessel with a
6.1903.020 (or 6.1903.030) stirring bar inside on the vessel lid. Fold
back the holding bracket upwards while doing so. The markings on
the vessel lid and on the plastic ring must be aligned above one
another.
4

3.3 Connecting the 803 Ti Stand ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10 ￭￭￭￭￭￭￭￭ 803 Ti Stand
4Press the holding bracket downwards in order to fix the titration ves-
sel. The levers of the holding bracket must enclose the pins of the
plastic ring on the titration vessel in order to ensure a secure hold.
5Adjust the height of the KF titration cell by pressing the locking lever.
It should almost touch the surface of the stirrer. The position can
now be fixed by readjusting the clamping ring.
Once the height of the KF titration cell has been adjusted correctly,
the entire cell can be raised and swiveled to the right as required by
pressing the locking lever.
3.3 Connecting the 803 Ti Stand
Connect the titration stand as follows:
1Exit the control software.
2Connect the connection cable of the titration stand to one of the
sockets marked with MSB on the rear of the control device.
MSB
Waste Solvent
Figure 3 Connecting the 803 Ti Stand
3Connecting an additional device (e.g. Dosimat or Dosino) to the MSB
connector of the titration stand (optional).

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation
803 Ti Stand ￭￭￭￭￭￭￭￭ 11
MSB
Waste Solvent
Figure 4 Connecting the Dosino to the 803 Ti Stand
4Start the control software.

3.4 Mounting the accessories ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12 ￭￭￭￭￭￭￭￭ 803 Ti Stand
3.4 Mounting the accessories
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
23
20
21
22
21
19
Figure 5 803 Ti Stand with volumetric titration vessel and equipment for automatic reagent
exchange.
1Tubing adapter 6.1808.050 2Threaded stopper 6.1446.040
3Overflow protection 6.1623.000 4PTFE tubing 6.1805.200
5Stopper 6.1446.090 6Bottle attachment 6.1602.105
For direct dosing out of reagent bottles with
GL 45 thread.
7Cannula 6.1819.050 8Amber glass bottle 6.1608.030
Waste bottle.
9PVC tubing 6.1801.120 10 Aspiration tip 6.1543.120
11 Connection nipple for PVC tubing
For aspirating the titration vessel content.
12 PTFE tubing 6.1805.200
13 Transfer tip 6.1543.110 14 Connection nipple for PVC tubing
For aspirating solvent.
15 PVC tubing 6.1801.120 16 Threaded stopper 6.1446.040
17 Bottle attachment 6.1602.105
For direct dosing out of the reagent bottle
with GL 45 thread.
18 Amber glass bottle 6.1608.023
Solvent bottle
19 SGJ clip 6.2023.020 20 Adsorber tube with tubing nipple
6.1609.010

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation
803 Ti Stand ￭￭￭￭￭￭￭￭ 13
21 Cotton 22 Molecular sieve 6.2811.000
23 Cannula 6.1819.030
Mounting the equipment for aspirating
Mount the waste bottle as follows:
1Equip the 6.1602.105 bottle attachment with the 6.1446.040
threaded stopper, the 6.1808.050 tubing adapter and the
6.1446.090 stopper.
2Plug the 6.1623.000 overflow protection from below into the
6.1602.105 bottle attachment (the opening, the 6.1808.050 tubing
adapter is plugged in).
3Screw the 6.1602.105 bottle attachment onto the 6.1608.030 waste
bottle.
4Cut the 6.1801.120 PVC tubing into two halves and use one to aspi-
rate.
5Fasten the one end of the aspiration tubing to the tubing adapter,
the other to the connection nipple for the waste on the rear of the
titration stand.
6Insert the 6.1819.050 cannula through the 6.1446.090 stopper into
the waste bottle.
7Screw the 6.1805.200 PTFE tubing into the 6.1446.090 stopper.
8Screw the 6.1543.120 aspiration tip to the other end of the PTFE
tubing.
9Insert the aspiration tip down to the bottom of the titration vessel to
be emptied and fasten it to the titration vessel lid.
NOTICE
The waste bottle should periodically be emptied.

3.4 Mounting the accessories ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
14 ￭￭￭￭￭￭￭￭ 803 Ti Stand
Mounting the equipment for aspirating solvent
Mount the solvent bottle as follows:
1Fill the 6.1609.010 adsorber tube and the 6.2811.000 molecular
sieve with cotton.
2Use the other half of the 6.1801.120 PVC tubing previously cut in
two pieces for aspirating the solvent. Fasten the one end of the tub-
ing to the lower end of the adsorber tube, the other end to the con-
nection nipple for aspirating the solvent.
3Equip the 6.1602.105 bottle attachment with the 6.1446.040
threaded stopper and the 6.1609.010 adsorber tube.
4Secure the adsorber tube with the 6.2023.020 SGJ clip.
5Insert the 6.1819.030 cannula into the last open hole (with medium-
sized diameter) of the 6.1602.105 bottle attachment.
6Screw the 6.1602.105 bottle attachment onto the solvent bottle.
Instead of the 6.1608.023 amber glass bottle, other reagent bottles
with GL45 thread can be used (e.g. RIEDEL DE HAEN (1 liter), BAKER).
For other bottles another bottle attachment or an additional thread
adapter have to be used.
MERCK bottles: 6.1602.110 bottle attachment
FLUKA bottles, RIEDEL DE HAEN (500 ml): 6.1602.100 bottle attach-
ment with 6.1618.000 thread adapter.
7Screw the 6.1543.110 transfer tip to the free end of the 6.1805.200
PTFE tubing, insert into the titration vessel and fasten to the titration
vessel lid.
