Metrohm 859 Titrotherm User manual

859 Titrotherm
Manual
8.859.8001EN / 2019-12-02

Metrohm AG
CH-9100 Herisau
Switzerland
Phone [phone]
Fax [phone]
[email protected]
www.metrohm.com
859 Titrotherm
Manual
8.859.8001EN / 2019-12-02

Technical Communication
Metrohm AG
CH-9100 Herisau
[email protected]
This documentation is protected by copyright. All rights reserved.
This documentation has been prepared with great care. However, errors
can never be entirely ruled out. Please send comments regarding possible
errors to the address above.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of contents
859 Titrotherm ￭￭￭￭￭￭￭￭ III
Table of contents
1 Introduction 1
1.1 The 859 Titrotherm in the Titrando system ....................... 1
1.2 Instrument description ......................................................... 3
1.2.1 Titration modes, dosing commands and other commands ....... 3
1.2.2 Intended use ........................................................................... 3
1.3 About the documentation ................................................... 4
1.3.1 Symbols and conventions ........................................................ 4
1.4 Safety instructions ................................................................ 5
1.4.1 General notes on safety ........................................................... 5
1.4.2 Electrical safety ........................................................................ 5
1.4.3 Working with liquids ................................................................ 6
1.4.4 Recycling and disposal ............................................................. 6
2 Overview of the instrument 7
3 Installation 9
3.1 Setting up the instrument .................................................... 9
3.1.1 Packaging ................................................................................ 9
3.1.2 Checks .................................................................................... 9
3.1.3 Location .................................................................................. 9
3.2 Connecting the instrument to the power grid ................... 9
3.3 Connecting a computer ...................................................... 10
3.4 Connecting MSB devices .................................................... 12
3.4.1 Connecting a dosing device ................................................... 14
3.4.2 Connecting a stirrer or titration stand .................................... 14
3.4.3 Connecting a Remote Box ..................................................... 15
3.5 Connecting USB devices ..................................................... 16
3.6 Connecting a sensor ........................................................... 17
3.7 Setting up the titration cell ............................................... 18
4 Handling and maintenance 20
4.1 Care ...................................................................................... 20
4.2 Maintenance by Metrohm Service .................................... 20
5 Troubleshooting 21
5.1 Problems .............................................................................. 21

Table of contents ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
IV ￭￭￭￭￭￭￭￭ 859 Titrotherm
6 Appendix 22
6.1 Thermoprobes ..................................................................... 22
6.1.1 Various models ...................................................................... 22
6.1.2 Cleaning and storage ............................................................. 22
6.2 Maximum dosing and filling rate ...................................... 23
6.3 Remote interface ................................................................ 24
6.3.1 Pin assignment of the remote interfaces ................................ 24
7 Technical specifications 26
7.1 Measuring interface NTC 10 kOhm .................................. 26
7.2 Interfaces and connectors ................................................. 26
7.3 Mains connection ............................................................... 26
7.4 Ambient temperature ......................................................... 27
7.5 Reference conditions .......................................................... 27
7.6 Dimensions .......................................................................... 27
8 Accessories 28
Index 29

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ Table of figures
859 Titrotherm ￭￭￭￭￭￭￭￭ V
Table of figures
Figure 1 The 859 Titrotherm in the Titrando system ........................................ 2

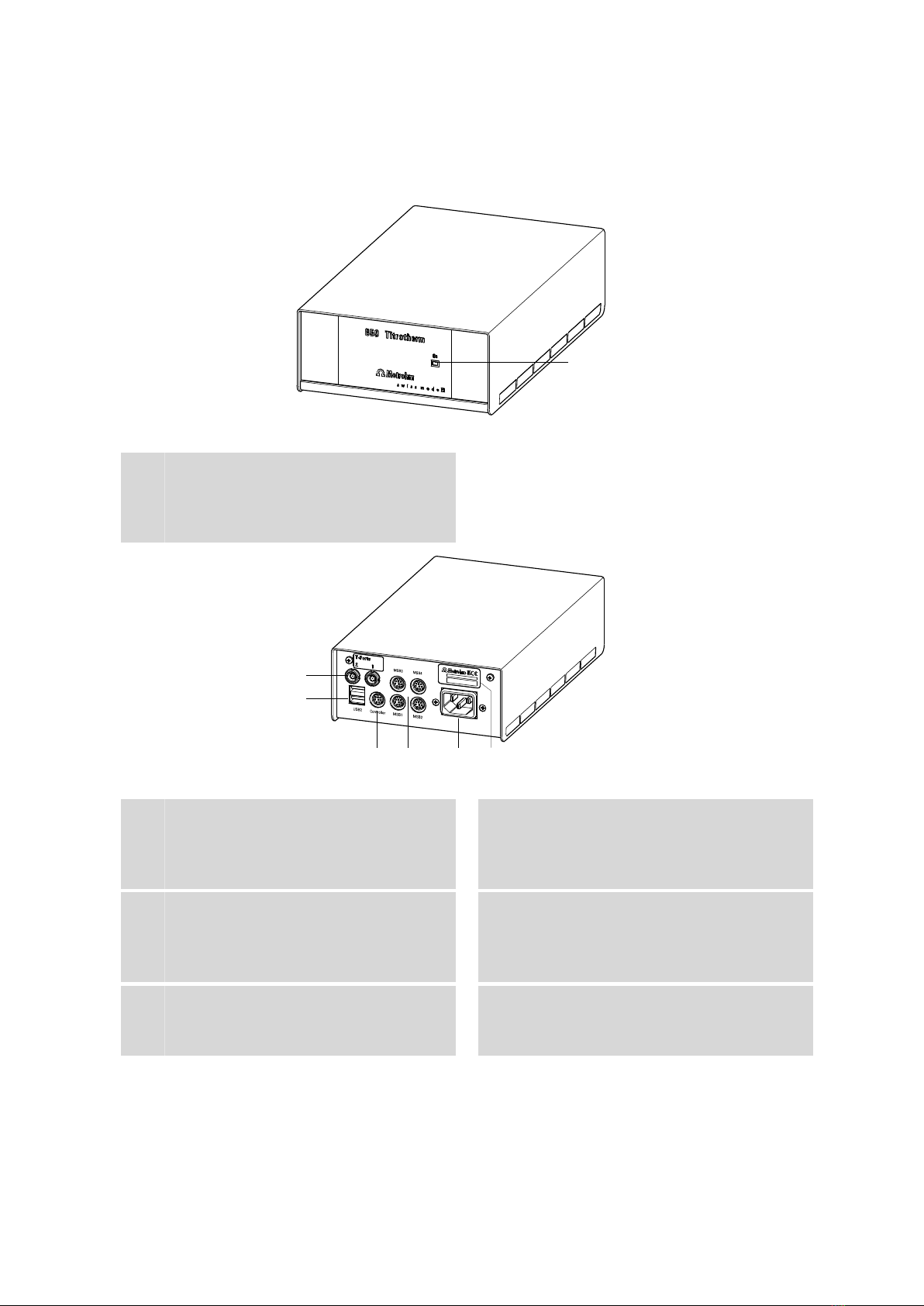

Figure 2 Front 859 Titrotherm ......................................................................... 7
Figure 3 Rear 859 Titrotherm .......................................................................... 7

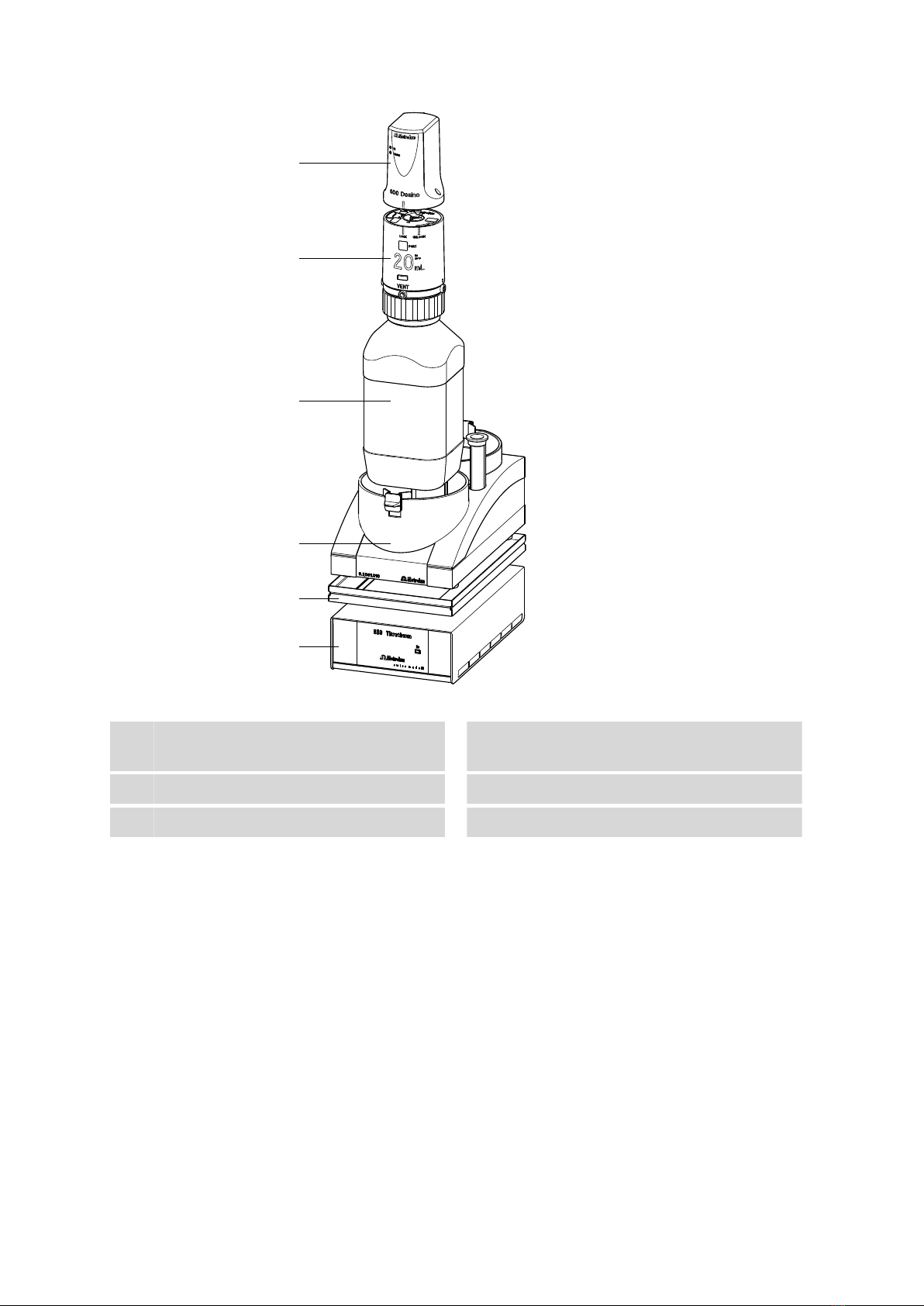

Figure 4 859 Titrotherm with titration accessories ........................................... 8
Figure 5 Connecting the computer ................................................................ 11
Figure 6 MSB connections ............................................................................ 13
Figure 7 Connecting a dosing device ............................................................. 14
Figure 8 Connecting an MSB stirrer ............................................................... 15
Figure 9 Propeller stirrer and titration stand ................................................... 15
Figure 10 Connecting a Remote Box ............................................................... 16
Figure 11 Connecting USB devices to the 859 Titrotherm ................................ 17
Figure 12 Positioning the Thermoprobe .......................................................... 19
Figure 13 Thermoprobes – two models ........................................................... 22
Figure 14 Connectors of the Remote Box ........................................................ 24
Figure 15 Pin assignment of remote socket and remote plug ........................... 24

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction
859 Titrotherm ￭￭￭￭￭￭￭￭ 1
1 Introduction
The 859 Titrotherm is a Metrohm titrator for thermometric titration. Ther-
mometric titration can be utilized where potentiometric indication is either
not possible or possible only to a limited extent.
For the theory and application possibilities of thermometric titration, we
recommend the monograph: Thomas Smith, Practical thermometric
titrimetry, Metrohm AG, 2006 (Order No. 8.036.5003).
1.1 The 859 Titrotherm in the Titrando system
The 859 Titrotherm is a component of the modular Titrando system. Oper-
ation is carried out with a computer containing the software tiamo™
(starting with Version 2.2).

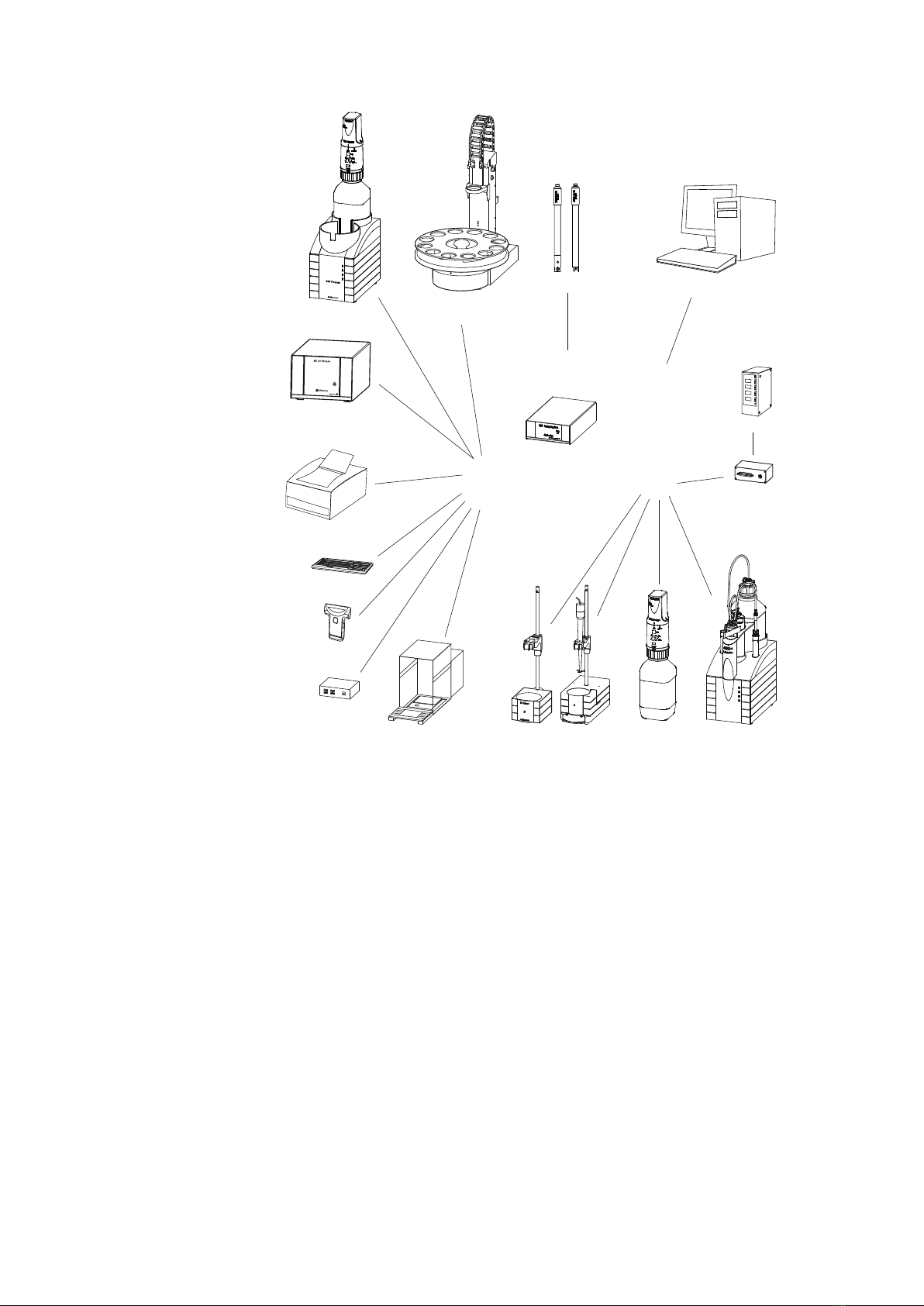

A Titrando system can contain numerous, various kinds of instruments.
The following figure provides an overview of the peripheral devices you
can connect to the 859 Titrotherm.

1.1 The 859 Titrotherm in the Titrando system ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
2￭￭￭￭￭￭￭￭ 859 Titrotherm
MSB
USB
Controller
T-Port 1 / 2
PC Keyboard
Barcode
Reader
USB Hub
Balance
USB Sample Processor
Robotic Titrosampler
Printer
Personal Computer
Relay Box
Remote Box
859 Titrotherm
Stirrer / Ti Stand Dosino Dosimat
USB/RS-232 Converter
867 pH Module
Titrando
On
Figure 1 The 859 Titrotherm in the Titrando system
You can request information on special applications in the "Application
Bulletins" and "Application Notes"; available free of charge via the
Metrohm representative responsible.
Updating the device software is described in the tiamo help.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction
859 Titrotherm ￭￭￭￭￭￭￭￭ 3
1.2 Instrument description
The 859 Titrotherm has the following characteristics:
￭Operation
Operation is carried out using the high-performance PC software
tiamo™, Version 2.2 or higher.
￭MSB connectors
Four MSB connectors (Metrohm Serial Bus) to control dosing devices
(Dosimat with exchange unit or Dosino with dosing unit), stirrer or
titration stand and Remote Boxes.
￭USB connectors
Two USB connectors, through which devices such as printers, PC key-
boards, barcode readers or additional control devices (USB Sample Pro-
cessor, Titrando, Dosing Interface, etc.) can be connected.
￭Measuring interface
Measuring interface with two connectors for two temperature sensors
(Thermoprobes).
1.2.1 Titration modes, dosing commands and other commands
￭TET
Thermometric endpoint titration. The reagent addition takes place con-
tinuously at a constant dosing rate.
￭Dosing commands
The following commands for dosing can be selected:
–ADD (adding a predefined volume)
–PREP (rinsing the cylinder and tubings of an exchange or dosing
unit)
–EMPTY (for emptying cylinder and tubings)
–LQH (for executing complex dosing tasks)
￭Other commands
–STIR (stirrer control)
–SCAN (scanning remote signals)
–CTRL (setting remote signals)
1.2.2 Intended use
The 859 Titrotherm is designed for usage as a titrator in analytical labora-
tories. Its main area of application is the determination of ions in aqueous
and nonaqueous media. The 859 Titrotherm uses the method of thermo-
metric titration.
This instrument is suitable for processing chemicals and flammable sam-
ples. The usage of the 859 Titrotherm therefore requires that the user has
basic knowledge and experience in the handling of toxic and caustic sub-

1.3 About the documentation ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
4￭￭￭￭￭￭￭￭ 859 Titrotherm
stances. Knowledge with respect to the application of the fire prevention
measures prescribed for laboratories is also mandatory.
1.3 About the documentation
CAUTION
Please read through this documentation carefully before putting the
instrument into operation. The documentation contains information
and warnings which the user must follow in order to ensure safe opera-
tion of the instrument.
1.3.1 Symbols and conventions
The following symbols and formatting may appear in this documentation:
Cross-reference to figure legend
The first number refers to the figure number, the sec-
ond to the instrument part in the figure.
Instruction step
Carry out these steps in the sequence shown.
Method Dialog text, parameter in the software
File ▶ New Menu or menu item
[Next] Button or key
WARNING
This symbol draws attention to a possible life-threat-
ening hazard or risk of injury.
WARNING
This symbol draws attention to a possible hazard due
to electrical current.
WARNING
This symbol draws attention to a possible hazard due
to heat or hot instrument parts.
WARNING
This symbol draws attention to a possible biological
hazard.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 1 Introduction
859 Titrotherm ￭￭￭￭￭￭￭￭ 5
CAUTION
This symbol draws attention to possible damage to
instruments or instrument parts.
NOTE
This symbol highlights additional information and
tips.
1.4 Safety instructions
1.4.1 General notes on safety
WARNING
Operate this instrument only according to the information contained in
this documentation.
This instrument left the factory in a flawless state in terms of technical
safety. To maintain this state and ensure non-hazardous operation of the
instrument, the following instructions must be observed carefully.
1.4.2 Electrical safety
The electrical safety when working with the instrument is ensured as part
of the international standard IEC 61010.
WARNING
Only personnel qualified by Metrohm are authorized to carry out service
work on electronic components.
WARNING
Never open the housing of the instrument. The instrument could be
damaged by this. There is also a risk of serious injury if live components
are touched.
There are no parts inside the housing which can be serviced or replaced
by the user.

1.4 Safety instructions ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
6￭￭￭￭￭￭￭￭ 859 Titrotherm
Supply voltage
WARNING
An incorrect supply voltage can damage the instrument.
Only operate this instrument with a supply voltage specified for it (see
rear panel of the instrument).
Protection against electrostatic charges
WARNING
Electronic components are sensitive to electrostatic charges and can be
destroyed by discharges.
Do not fail to pull the power cord out of the power socket before you
set up or disconnect electrical plug connections at the rear of the
instrument.
1.4.3 Working with liquids
CAUTION
Periodically check all system connections for leaks. Observe the relevant
regulations in respect to working with flammable and/or toxic fluids
and their disposal.
1.4.4 Recycling and disposal
This product is covered by European Directive 2012/19/EU, WEEE – Waste
Electrical and Electronic Equipment.
The correct disposal of your old instrument will help to prevent negative
effects on the environment and public health.
More details about the disposal of your old instrument can be obtained
from your local authorities, from waste disposal companies or from your
local dealer.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 2 Overview of the instrument
859 Titrotherm ￭￭￭￭￭￭￭￭ 7
2 Overview of the instrument
1
Figure 2 Front 859 Titrotherm
1LED "On"
Lights up when the device and a computer
are connected to the mains and switched
on.
1
2
3 4 5 6
Figure 3 Rear 859 Titrotherm
1Measuring interface: T-Port 1 and 2
For connecting two Thermoprobes.
2USB connector (USB 1 and USB 2)
USB ports (type A) for connecting printer,
keyboard, barcode reader, additional Titran-
dos, USB Sample Processor, etc.
3Controller connector (Controller)
Connector for a PC with installed PC soft-
ware. Mini DIN, 9-pin.
4MSB connector (MSB 1 to MSB 4)
Metrohm Serial Bus. For connecting external
dosing devices, stirrers or Remote Boxes.
Mini DIN, 9-pin.
5Mains connection socket 6Type plate
Contains specifications concerning mains
voltage, instrument type and serial number.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
8￭￭￭￭￭￭￭￭ 859 Titrotherm
1
2
3
4
5
6

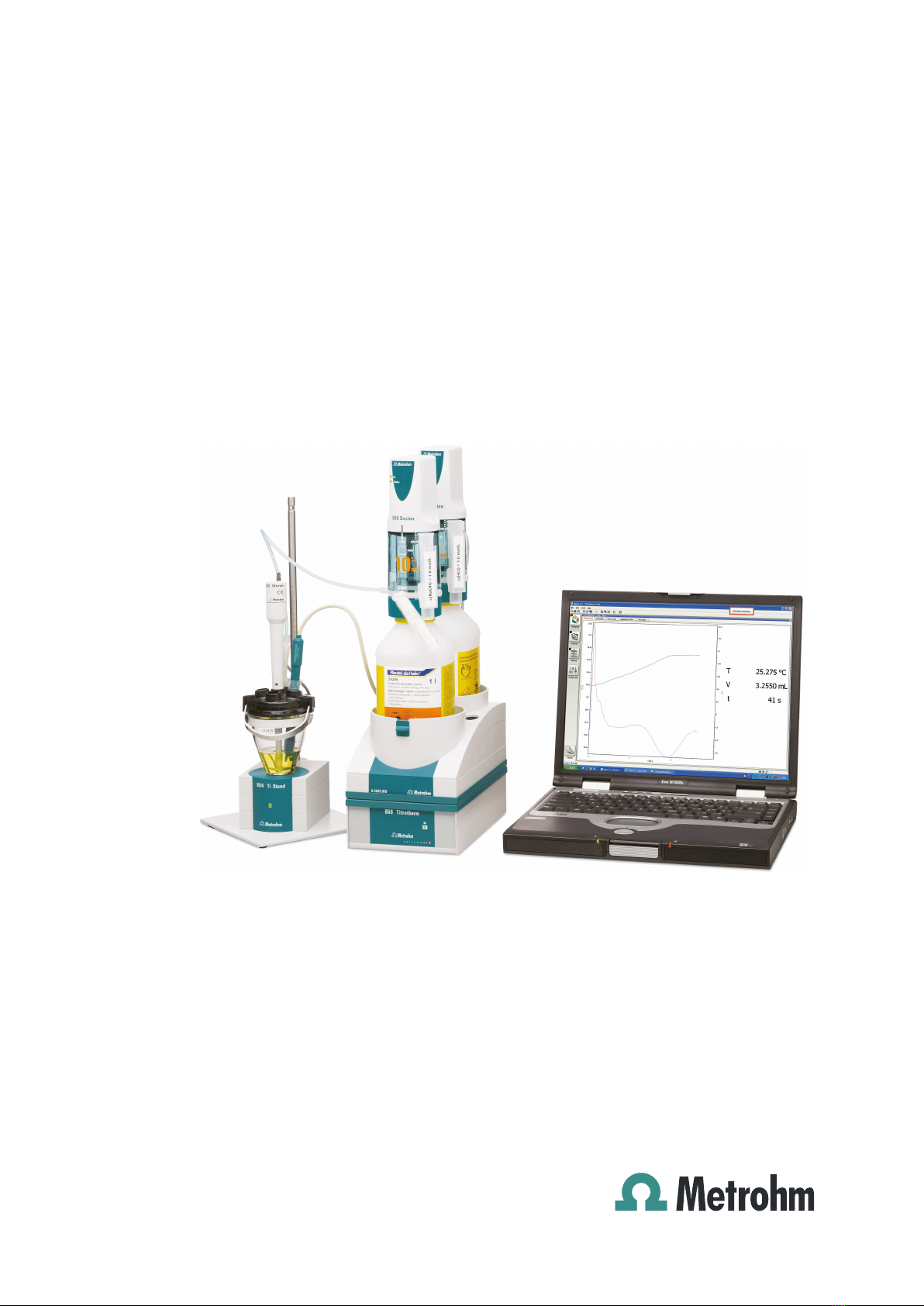

Figure 4 859 Titrotherm with titration accessories
1800 Dosino
Dosing drive for the titrant.
2Dosing unit (6.3032.XXX)
With cylinder sizes 2, 5, 10, 20, 50 mL.
3Bottle (6.1608.XXX) 4Bottle holder for Dosinos (6.2061.010)
5Stacking frame (6.2065.000) 6859 Titrotherm

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation
859 Titrotherm ￭￭￭￭￭￭￭￭ 9
3 Installation
3.1 Setting up the instrument
3.1.1 Packaging
The instrument is supplied in protective packaging together with the sepa-
rately packed accessories. Keep this packaging, as only this ensures safe
transportation of the instrument.
3.1.2 Checks
Immediately after receipt, check whether the shipment has arrived com-
plete and without damage by comparing it with the delivery note.
3.1.3 Location
The instrument has been developed for operation indoors and may not be
used in explosive environments.
Place the instrument in a location of the laboratory which is suitable for
operation and free of vibrations and which provides protection against
corrosive atmosphere and contamination by chemicals.
The instrument should be protected against excessive temperature fluctua-
tions and direct sunlight.
3.2 Connecting the instrument to the power grid
WARNING
Electric shock from electrical potential
Risk of injury by touching live components or through moisture on live
parts.
￭Never open the housing of the instrument while the power cord is
still connected.
￭Protect live parts (e.g. power supply unit, power cord, connection
sockets) against moisture.
￭Unplug the power plug immediately if you suspect that moisture has
gotten inside the instrument.
￭Only personnel who have been issued Metrohm qualifications may
perform service and repair work on electrical and electronic parts.

3.3 Connecting a computer ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
10 ￭￭￭￭￭￭￭￭ 859 Titrotherm
Connecting the power cord
Accessories Power cord with the following specifications:
￭Length: max. 2 m
￭Number of cores: 3, with protective conductor
￭Instrument plug: IEC 60320 type C13
￭Conductor cross-section 3x min. 0.75 mm2 / 18 AWG
￭Power plug:
– according to customer requirement (6.2122.XX0)
– min. 10 A
NOTICE
Do not use a not permitted power cord!
1Plugging in the power cord
￭Plug the power cord into the instrument's power socket.
￭Connect the power cord to the power grid.
3.3 Connecting a computer
The 859 Titrotherm requires a USB connection to a computer in order to
be able to be controlled by a computer software. Using a 6.2151.000
controller cable, the instrument can be connected directly, either to a USB
socket on a computer, to a connected USB hub or to a different Metrohm
control instrument.
You need administrator rights for the installation of driver software and
control software on your computer.
Cable connection and driver installation
A driver installation is required in order to ensure that the 859 Titrotherm
is recognized by the computer software. To accomplish this, you must
comply with the procedures specified. The following steps are necessary:
1Installing the software
￭Insert the computer software installation CD and carry out the
installation program directions.
￭Exit the program if you have started it after the installation.

￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭ 3 Installation
859 Titrotherm ￭￭￭￭￭￭￭￭ 11
2Establishing the cable connections
￭Connect the instrument to the power supply if you have not
already done this.
The "On" LED on the 859 Titrotherm is not yet illuminated!
￭Connect the instrument to a USB connector (type A) of your com-
puter (see manual of your computer). The 6.2151.000 cable is
used for this purpose.
6.2151.000
Figure 5 Connecting the computer
The instrument is recognized. Depending on the version of the Win-
dows operating system used, the driver installation proceeds differ-
ently afterwards. Either the necessary driver software is installed
automatically or an installation wizard is started.
3Follow the instructions of the installation wizard.
The "On" LED on the 859 Titrotherm lights up when the driver instal-
lation has been completed and the instrument is ready for operation.
If problems should occur during installation, contact your company's IT
support team.
NOTICE
The plug on the instrument end of the 6.2151.000 controller cable is
protected against accidental disconnection by means of a pull-out pro-
tection feature. If you wish to pull out the plug, you first need to pull
back the outer plug sleeve marked with arrows.

3.4 Connecting MSB devices ￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
12 ￭￭￭￭￭￭￭￭ 859 Titrotherm
Registering and configuring the instrument in the computer
software
The instrument must be registered in the configuration of your computer
software. Once that has been done, you can then configure it according
to your requirements. Proceed as follows:
1Setting up the instrument
￭Start the computer software.
The instrument is automatically recognized. The configuration dia-
log for the instrument is displayed.
￭Make configuration settings for the instrument and its connectors.
More detailed information concerning the configuration of the
instrument can be found in the documentation for the respective
computer software.
3.4 Connecting MSB devices
In order to connect MSB devices, e.g. stirrers or dosing devices, Metrohm
instruments are equipped with up to four connectors on what is referred
to as the Metrohm Serial Bus (MSB). Various kinds of peripheral devices
can be connected in sequence (in series, as a «daisy chain») at a single
MSB connector (8-pin Mini DIN socket) and controlled simultaneously by
the respective control device. In addition to the connection cable, stirrers
and the Remote Box are each equipped with their own MSB socket for
this purpose.
The following figure provides an overview of the devices that can be con-
nected to an MSB socket, along with a number of different cabling varia-
tions.
