Mettler Electronics Laser Sys Stim 540 User manual

Instruction Manual
®
1333 South Claudina Street
Anaheim, CA 92805, U. S. A.
Toll free: (800) 854–9305 • Telephone: [phone] • FAX: [phone]
Web Site: http://www.mettlerelectronics.com • Email: [email protected]
IR9–39 Rev.F_07/03/12
Copyright © 2005, 2010 by Mettler Electronics Corp.—Anaheim, CA

Mettler Electronics Corp.— Rev.F_07/03/12
2

Laser Sys*Stim 540, Therapeutic Laser— Rev.F_07/03/12
3
TABLE OF CONTENTS
1 Introduction 5
1.1 Introduction to the Laser Sys*Stim 540 5
1.2 Introduction to this manual 6
1.3 Safety precautions 6
1.4 Caution 6
1.5 Shipping damage 6
1.6 Package contents 6
1.7 Limited Warranty 7
2 Symbol Glossary and List of Abbreviations 9
2.1 Operational controls, displays, receptacles and symbols 9
2.2 Abbreviations 9
2.3 Top panel—Controls and Indicators 10
2.4 Laser and Cluster Applicators – Controls, Output Aperture and Indicators 12
3 Installation 15
3.1 Installation Instructions 15
4 Operating Instructions 17
4.1 General instructions 17
4.2 Instructions for operation 18
4.3 User program memory 20
5 Laser Therapy 21
5.1 Introduction 21
5.2 What is a Laser? 21
5.3 Laser interaction with the Human Tissue 21
5.4 Wavelengths 21
5.5 Pulsed Modes 21
5.6 Method of Laser Therapy 22
5.7 Laser Dosage 22
5.8 SLD/LED Cluster vs. Laser Application 22
5.9 References 21
6 Indications, Contraindications and Precautions for Low Level
Infrared Laser Therapy 25
6.1 Indications 25
6.2 Contraindications 25
6.3 Precautions 25

Mettler Electronics Corp.— Rev.F_07/03/12
4
7 Maintenance and Troubleshooting 27
7.1 Cleaning and disinfecting 27
7.2 Routine Maintenance 27
7.3 Changing fuses 27
7.4 Laser Output Sensor 28
7.5 Troubleshooting the Laser Sys*Stim 540 28
8 Specifications 29
8.1 General Information 29
8.2 Laser Performance 29
8.3 Laser Applicator Specifications: 30
8.4 Optional Cluster Applicator Specifications: 30
9 Accessories 31
9.1 Ordering Information 31
9.2 Laser Sys*Stim 540 Accessories 31
LIST OF FIGURES
1.1 The Laser Sys*Stim 540 5
2.1 Controls and Indicators on the Top Panel 11
2.2 Laser Applicator Description 12
2.3 Laser Applicator Label Descriptions 13
3.1 Laser Sys*Stim 540, Controls and Receptacles Located on the Front of the Unit 13
3.2 Laser Sys*Stim 540, Power Cord Connection 14
4.1 Laser Sys*Stim 540 Membrane Control Panel and LED Indicators 15

Laser Sys*Stim 540, Therapeutic Laser— Rev.F_07/03/12
5
1 Introduction
1.1 Introduction to the Laser Sys*Stim 540
Thank you for purchasing the Laser Sys*Stim 540 therapeutic laser for the temporary relief of muscle
and joint aches, pains and stiffness. The laser applicator has a AlGaAs Diode that emits coherent light
at the infrared wavelength of 785 nm. Blue LEDs at 470 nm illuminate the treatment field to show the
clinician when the laser is active. An optional LED cluster applicator, with 950 nm SLDs and 660 nm
LEDs is also available.
The control unit allows the clinician to set treatment time, continuous/pulse modulation modes and
laser output energy. All treatment parameters are displayed on the LED displays and controlled via
the membrane keypad. There are holders integrated into the unit to store applicators when not in use.
Figure 1.1— The Laser Sys*Stim 540
The Laser Sys*Stim 540 has been certified by SGS United Kingdom Ltd. to meet the following
requirements:
EN60601-1 1990, Medical Electrical Equipment General Requirements
EN 60601-2-22, 1996, Medical Electrical Equipment Particular Requirements for Safety -
Diagnostic and Therapeutic Laser Equipment
IEC 60825-1, 2001
In addition, the Laser Sys*Stim 540 meets the following standards for radio frequency emissions:
IEC/EN 60601-1-2, 2002
The Laser Sys*Stim 540 complies with the light-emitting and laser product performance standards set
forth in the Code of Federal Regulations, Title 21 (Food and Drugs), Parts 1040.10 and 1040.11.
Mettler Electronics Corp. has been certified by VTT Expert Services LTD to be compliant with EN ISO
13485:2003 and MDD 93/42/EEC Annex II requirements. In addition, Mettler is certified by DQS
Medizinprodukte GMBH to be compliant with ISO 13485:2003 (CMDCAS) Canadian Medical Device
requirements.

Mettler Electronics Corp.— Rev.F_07/03/12
6
1.2 Introduction to This Manual
Read the contents of this manual before treating patients with the Laser Sys*Stim 540.
This manual has been written to assist you with the safe operation of the Laser Sys*Stim 540. It is
intended for use by the owners and operators of the Laser Sys*Stim 540. The goal of this manual is to
direct the correct operation and maintenance of this unit.
The specifications and instructions presented in this manual are in effect at the time of its publication.
These instructions may be updated at any time at the discretion of the manufacturer.
1.3 Safety Precautions
The Laser Sys*Stim 540 operates with high voltages. Qualified biomedical technicians with training in
service of therapeutic laser systems should perform servicing of the Laser Sys*Stim 540 or it should
be returned directly to the factory. To maximize safety during use, the unit should be plugged into a
grounded wall outlet or run off the battery. General safety guidelines for medical electronic equipment
should be followed.
Service may be obtained from the manufacturer by sending the Laser Sys*Stim 540 in its original
shipping container to Mettler Electronics Corp., 1333 South Claudina Street, Anaheim, CA 92805,
ATTN: Service Department. (Telephone toll free: (800) 854–9305, Alternate telephone number: 1
(714) 533–2221) NOTE: All warranty repairs must be performed by Mettler Electronics Corp. or by a
service facility authorized by Mettler Electronics to perform warranty repair work.
A service manual for the Laser Sys*Stim 540 is available from Mettler Electronics Corp. for a nominal
charge.
1.4 Caution
Federal law restricts the sale of this device to, or on the order of a physician, dentist, veterinarian or
any other practitioner licensed by law of the state in which he practices.
Use of controls or adjustments or performance of procedures other than those specified herein may
result in hazardous exposure to laser light energy. Treatment should be administered only under the
direct supervision of a health care professional.
1.5 Shipping Damage
Your new Laser Sys*Stim 540 is shipped complete in one carton. Upon receipt, please inspect the
cartons and the unit and its accessories for visible and hidden damage. If you discover any damage,
hold all shipping materials, including the carton, and call the shipping agent who delivered the unit.
They are responsible for all damage in transit; therefore, all claims should be filed directly with them.
The factory will not be responsible for any damage in shipment, nor allow any adjustments unless
proper formal claim has been filed by the receiver against the carrier.
The carton in which your new Laser Sys*Stim 540 was received is specially designed to protect the
unit during shipping. Please retain all shipping materials in the event that you will need to return your
unit for servicing. NOTE: All warranty repairs are to be performed by Mettler Electronics Corp. or an
authorized Mettler Electronics warranty repair center.
1.6 Package Contents
Your new Laser Sys*Stim 540 comes complete with all the necessary components to perform
therapeutic laser treatements. Below is a list of items that are included in the shipping carton. There
are also other optional accessories available for this unit. They are listed at the back of this book.
1. Laser Sys*Stim 540
2. One laser applicator with a AlGaAs Diode that emits coherent light at the infrared wavelength of
785 nm, (ME5401)

Laser Sys*Stim 540, Therapeutic Laser— Rev.F_07/03/12
7
3. Two pair of protective Uvex glasses (5403)
4. One detachable hospital grade line cord (7293)
5. Instruction manual and warranty card
1.7 Limited Warranty
The Laser Sys*Stim 540 therapeutic laser unit is warranted against defects in materials and
workmanship for a period of two years from date of purchase, (one year on applicators). During the
applicable warranty period Mettler Electronics Corp. will, at its discretion, either repair or replace the
Product without charge for these types of defects. Batteries are excluded from this warranty except
where it can be demonstrated that any battery failure was caused by a malfunction in the Laser
Sys*Stim 540. This warranty excludes glass or ceramic parts.
For service under this warranty, the Product must be returned by the buyer within the applicable
warranty period to Mettler Electronics Corp. Shipping charges to Mettler Electronics Corp. under
this warranty must be paid by the buyer. The buyer must also include a copy of the sales
receipt or other proof of the date of purchase. If the Product is returned without proof of the
date of purchase, it will be serviced as an out–of–warranty product at Mettler Electronics
Corp.'s prevailing service rates.
Alteration, misuse, or neglect of the Product voids this warranty. Except as specifically set
forth above, Mettler Electronics Corp. makes no warranties, express or implied, including
without limitation any implied warranty of merchantability or fitness for a particular purpose,
with respect to the Product. If any implied warranties apply as a matter of law, they are limited
in duration to one year.
Mettler Electronics Corp. shall not be liable for any indirect, special, consequential or
incidental damages resulting from any defect in or use of the Product.
Any legal action brought by the buyer relating to this warranty must be commenced within one year
from the date any claim arises and must be brought only in the state or federal courts located in
Orange County, California.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not
apply to the buyer. This warranty gives the buyer specific legal rights, and the buyer may also have
other rights which vary from state to state.

Mettler Electronics Corp.— Rev.F_07/03/12
8

Laser Sys*Stim 540, Therapeutic Laser— Rev.F_07/03/12
9
2 Symbol Glossary and List of Abbreviations
2.1 Symbol Glossary
Time display symbol
Output display symbol
Battery symbol
Down arrow for time and intensity
Up arrow for time and intensity
Program and Pulse selector buttons
Attention, consult instruction manual.
Type BF Equipment—Class I
The applied parts (treatment applicators) of this equipment are rated as Type
“BF” which means that the applied parts are suitable for placement on the
external surface of the body.
Warning symbol indicates that the device emits laser energy and that proper
precautions listed in this manual need to be taken.
Fuse rating symbol
2.2 Abbreviations
CW — Continuous wave (100 % duty cycle)
AlGaAs — Aluminum Gallium Arsenide
Hz — Hertz (pulses per second)
LED — Light Emitting Diode
μs — Microsecond (1 x 10-6 seconds)
min — Minutes
mW — milliwatt (1 x 10-3 watts)
mm — millimeter (1 x 10-3 meters)
nm — nanometer (1 x 10-9 meters)
s — Seconds
Ser. No. — Serial Number
SLD — Super Luminescent Diode
SN — Serial Number
W — Watts
V — Volts
A — Amperes

Mettler Electronics Corp.— Rev.F_07/03/12
10
2.3 Top panel—Controls and Indicators
1
3
5
7
9
2
4
6
8
10
11

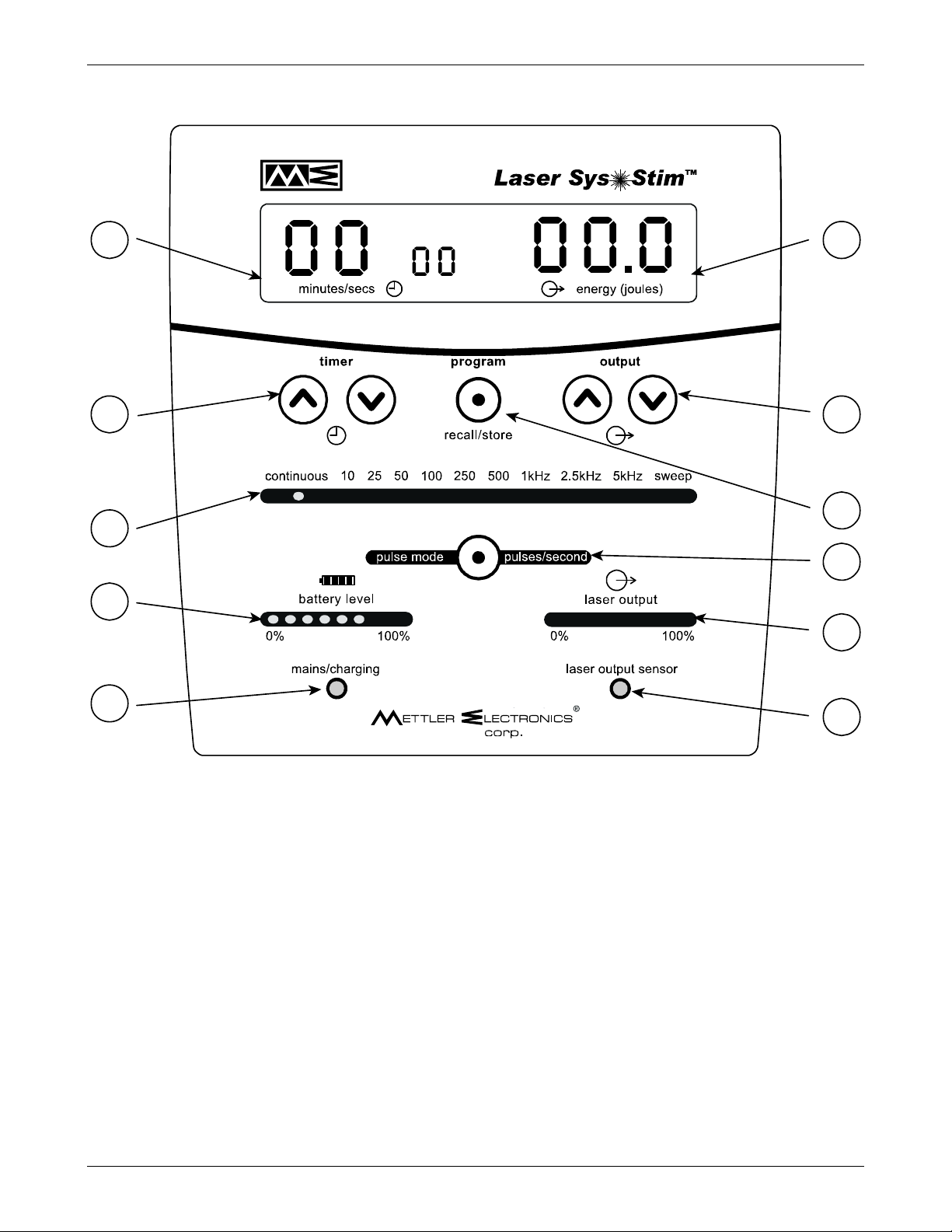

Figure 2.1—Controls and Indicators on the Top Panel
1. Timer Display 6. Energy Display
2. Timer “Up” and “Down 7. Output “Up” and “Down
3. Mode Display 8. Program Select
4. Battery Level Bargraph 9. Pulse Mode Select
5. Charging Indicator 10. Laser Output Bargraph
11. Laser Output Sensor
LED Displays
The LED displays show all the operating parameters of the Laser Sys*Stim 540. These are:
Treatment time: this 4 digit display is used to set the treatment time, and during treatment the
display counts down to show the time remaining, see figure 2.1(1).
Treatment energy: this 3 digit numeric display is used to set the energy dosage for the
treatment, see figure 2.1(6).

Laser Sys*Stim 540, Therapeutic Laser— Rev.F_07/03/12
11
Pulse mode: this 11 position display shows the selected pulse mode frequency. If SWEEP is
selected, during the treatment the display will show the current pulse mode, see figure 2.1(3).
Laser output: this bargraph display shows the amount of incident laser energy measured by
the LASER OUTPUT SENSOR, the 100% level indicates the laser is at 100% i.e. 80mW. See
figure 2.1(10).
If the bargraph has several bars illuminated beyond the '%' mark (ie total of 15 segments
illuminated) is possible the laser is emitting at a higher level, it is recommended the unit be
checked for calibration as soon as possible by a service facility specializing in medical lasers.
Battery level: this bargraph display shows the battery level range 0 to 100%, see figure 2.1(4).
Laser Output Sensor
This sensor is used to display and verify the output from the laser applicator when laser energy is
being emitted. Note: Ensure measurement is performed using Continuous Pulse Mode, figure 2.1(11).
Please note: This sensor does not work with the cluster applicator.
Membrane Keypad
These six keys enable the operator to input and manipulate the user selectable parameters of the
Laser Sys*Stim 540 to obtain the desired treatment.
Timer “Up” and “Down”: these two arrow keys are used to set the treatment time, which is
displayed on the display above the keys, see figure 2.1(2).
Output “Up” and “Down”: these two arrow keys are used to set the treatment dosage energy,
which is displayed on the display above the keys, see figure 2.1(7).
Pulse Mode: this key selects the Pulse mode which is displayed on the display above the key,
pressing the key indexes the Pulse mode selection to the right, see figure 2.1(9).
Program: this key selects the 0 to 9 available user programmable memories, allowing the
practitioner to store and recall configurations. Pressing the key indexes through the memories,
figure 2.1(8).
Mains/Charging Indicator
This indicator is illuminated when the mains supply is applied to the unit. This will enable the battery
to be charged during use, figure 2.1(5).

Mettler Electronics Corp.— Rev.F_07/03/12
12
2.4 Laser and Cluster Applicators – Controls, Output aperture and Indicators
1
3
5
2
4
6
Figure 2.2—Laser Applicator Description
1. Laser Output Aperture 4. “Laser Activate” Capacitance Switch
2. Aperture Warning Label 5. Increase Output Energy (repeat dosage)
3. Laser On Indicator 6. Decrease Output Energy
Laser Warning Labels
The laser applicator has four warning labels, two of these labels are visible on figure 2.2. These two
labels are the international Laser Hazard symbol which is located on the “Laser Activate” capacitance
switch pad, and the other is the yellow Laser Aperture label which has an arrow pointing to the laser
aperture at the front of the laser applicator.
The two other labels are shown in figure 2.3 below.
1 2
Figure 2.3—Laser Applicator Label Descriptions
1. Laser Aperture Label 2. Explanatory Label

Laser Sys*Stim 540, Therapeutic Laser— Rev.F_07/03/12
13
Laser On Indicator
The green Laser On indicator illuminates when the laser is lasing. When the laser beam is
extinguished after the treatment time has elapsed the Laser On indicator will turn off.
Note: When the Laser Sys*Stim 540 power is switched on by turning the keyswitch, the Green
Indicator will flash momentarily, this is normal and is provided as a start-up lamp test.
Please Note: When there is a problem with the laser applicator, the Laser On indicator will glow an
amber color. The blue LEDs will not be illuminated, but it is possible that the laser diode will be active
and therefore eye protection is still warranted. If the amber indicator light comes on and stays on
when the capacitive switch is activated, return the laser applicator for service.
Laser Activate Capacitance Switch
The “Laser Activate” capacitance switch is located on the handle section of the laser applicator
membrane. The capacitance switch works by measuring the practitioners body capacitance across a
sensing ‘Pad’. The ‘Pad’ is a rectangular shaped area and has the words “Laser Activate” on it. By
placing a finger or thumb over the ‘Pad’, the capacitance is increased and the switch is activated. The
advantage is that it requires no force to actuate, and therefore reduces the strain a practitioner may
experience holding down a mechanical switch for possibly long periods of time.
Increase/Decrease Output Energy Keys
The two membrane keys on the handle section of the applicator are used to increase or decrease the
dosage energy. During the laser treatment, these keys are locked out so that the dosage can not be
accidentally increased.

Mettler Electronics Corp.— Rev.F_07/03/12
14

Laser Sys*Stim 540, Therapeutic Laser— Rev.F_07/03/12
15
3 Installation
3.1 Installation Instructions
1. Place the Keyswitch at the front of the unit in the ON position. (Figure 3.1) Check the battery
charge to make sure the battery has a charge. The battery level display is displayed by a
bargraph on the top panel, this gives the practitioner an indication of the level of charge of the
internal battery. If normally operated with connection to mains the charge level should be
approximately 90% to 100%.
If operating the laser on batteries, and the battery level is 25% or less at the end of treatment, it
is recommended that the unit be connected to mains overnight to recharge the battery.
The battery charge cycle takes 14 hours minimum to achieve full charge and requires the mains
supply to be connected. The laser can be switched off at the keyswitch and the battery will still
charge provided the "Mains/Charging" indicator on the top panel is illuminated. Please note: To
prevent damage to the battery, fully charge on a monthly basis when not in use. If the battery
completely discharges, it will not recharge and the laser will be inoperable.
2. Plug the line cord into the back of the unit. (Figure 3.2) Plug the line cord (ME 7293) into a
grounded wall outlet that is rated from 100 to 240 volts AC 50/60 Hz. Your power supply must
match the voltage requirements listed on the serial number label of your device. Do not connect
the Laser Sys*Stim 540 to a power supply rated differently than that described above It is
important that the Laser Sys*Stim 540 be operated from a wall outlet which has a nominal supply
voltage equal to that indicated on the label on the rear panel. Safety and performance
specifications are only valid if these voltages are the same. Verify that the mains/charging
indicator is on.
3. The line cord comes equipped with a standard 3–prong plug. This plug provides grounding for
the Laser Sys*Stim 540. Do not defeat its purpose by using 3–to–2 prong adapters or any other
means of attaching to a wall outlet.
4. Plug the laser or cluster applicator into the receptacle located next to the key. The applicator is
connected to the eight pin socket, observe the keyway which aligns the pins in the correct
orientation. Once connected the plug can be locked in place by turning the outside ring
clockwise. The Laser Sys*Stim 540 has interchangeable treatment applicators. To prevent
possible damage to sensitive circuitry and potential malfunction, applicators should only be
connected or removed from the unit with the power keyswitch is in the "OFF" position.
5. Place the Keyswitch at the front of the unit in the ON position to ready the unit for a treatment.
Please note: Leave the keyswitch in the OFF position whenever the Laser Sys*Stim 540 is not in
use.
6. The battery level display is displayed by a bargraph on the top panel, this gives the practitioner
an indication of the level of charge of the internal battery. If normally operated with connection to
mains the charge level should be approximately 90% to 100%.
If operating the laser on batteries, and the battery level is 25% or less at the end of treatment, it
is recommended that the unit be connected to mains overnight to recharge the battery.
The battery charge cycle takes 14 hours minimum to achieve full charge and requires the unit to
be plugged into the wall socket. The laser can be switched off at the keyswitch and the battery
will still charge provided the "Mains/Charging" indicator on the top panel is illuminated.
7. Once you have verified proper functioning of your Laser Sys*Stim 540, using the instructions in
Section 4, please fill in the enclosed self–addressed Warranty Registration Card and mail it to
Mettler Electronics.

Mettler Electronics Corp.— Rev.F_07/03/12
16
on
off
Figure 3.1— Laser Sys*Stim 540, Controls and Receptacles Located on the Front of the Unit
Figure 3.2— Laser Sys*Stim 540, Power Cord Connection
8. The laser can be turned off at any time by turning the "ON/OFF" keyswitch counter-clockwise.
The displays on the panel will disappear, except the Charging indicator, if the unit is connected
to the wall outlet.
9. Do not use the Laser Sys*Stim 540 in close proximity to operating shortwave diathermy devices.
10. The Laser Sys*Stim 540 has been designed to comply with EN 60601-1-2: 2002 but this does
not guarantee that other equipment in the vicinity will not be affected by the electromagnetic
emissions from this unit. Similarly, other equipment in the vicinity may effect the operation of the
Laser Sys*Stim 540.
It is recommended that all equipment used near this unit comply with the relevant
electromagnetic compatibility requirements for that equipment and to check before use that no
interference is evident or disruptive. Increasing the distance between offending devices, and
keeping interconnecting leads as short as possible, will help reduce any effect.
11. The Laser Sys*Stim 540 is not suitable for use in the presence of flammable gases and
anaesthetics.
12. The laser or cluser applicators contain a semiconductor laser diode or SLD diodes, glass optical
elements and sensitive electronic circuits. Rough handling or jarring or dropping may adversely
affect the output performance. Careful handling of these applicators will prolong the life of the
applicators and preserve their output characteristics.
13. The Laser Sys*Stim 540 treatment applicators have not been designed to be used on open
wounds or broken skin. Use in the presence of these conditions is not recommended and is not
an intended use of the device.

Laser Sys*Stim 540, Therapeutic Laser— Rev.F_07/03/12
17
4 Operating Instructions
4.1 General Instructions
Before you start…
a) Review precautions and contraindications listed in Section 6.
b) Verify connection of the line cord to a grounded wall receptacle and the Laser Sys*Stim 540
and that the battery is charged.
c) Note: Descriptions of the symbols used on controls are in Section 2.
d) The laser energy emitted by this device is relatively low power but because it is in the low
red/infrared region of the visible spectrum there is a potential hazard when using this device.
Although the laser beam is divergent and not finely focused it is possible the laser energy can
be a risk to the naked eye. The laser applicator should never be directed at the eyes of the
patient or the practitioner, particularly during treatment.
To reduce the potential hazard associated with using the laser, two sets of protective glasses
have been supplied. It is strongly recommended that both the practitioner and the patient wear
a set of these glasses during treatment when laser energy is being administered.
Figure 4.1— Laser Sys*Stim 540 Membrane Control Panel and LED Indicators

Mettler Electronics Corp.— Rev.F_07/03/12
18
4.2 Instructions for operation
on
off
1. Plug in either the laser or cluster applicator.
2. Turn the "ON/OFF" keyswitch clockwise on the front panel to turn
on the Laser Sys*Stim 540. The numeric displays will light up on
the LED screen. This procedure is followed whether the unit is
plugged in or not. (initially 0000 Time and 00.0 Joules)
3. Note: When the Laser Sys*Stim 540 main unit power is switched
on by turning the keyswitch, the Green Indicator on the applicator
will flash momentarily. This is normal and is provided as a start-up
lamp test.
4. Energy: The practitioner can adjust Energy by pressing the
POWER "Up'" key for increasing energy setting or by pressing the
POWER "Down" key for reducing the energy setting. The Energy is
displayed on the numeric display above the POWER keys.
Treatment time is automatically calculated from the Energy setting
and the selected Pulse Mode and is displayed on the Timer
display. Holding either of the POWER keys down will automatically
increment or decrement the Energy and Time settings.
5. Treatment Time: The practitioner can adjust the treatment time by
pressing the TIMER "Up" key for increasing the treatment time, or
pressing the TIMER "Down" key for decreasing treatment time. If
the either of the TIMER keys are held down, the time and energy
settings will automatically increase or decrease, thus reducing the
number of key presses needed to set longer times.
6. Pulse Mode: Pressing the “Pulse Mode” key will step through the
various pulse mode frequencies available. The display above the
Pulse Mode key indicates which of the Pulse Mode frequencies is
selected. If SWEEP is selected, the Pulse Mode will sweep across
the ten pulse mode frequencies in ten seconds. When the unit is
operational and is lasing in the SWEEP Pulse Mode, the current
pulse mode will be shown on the display and will be seen to step
through each Pulse Mode in one second.
7. Please note: The Laser Sys*Stim 540 automatically calculates
the time or the energy related to a particular setting. If the
practitioner is setting the energy to be delivered the laser will
automatically calculate the time that the delivery of this amount of
energy will take. Conversely if a treatment time is selected the
laser will automatically calculate the energy that will be delivered.
8. Once the desired parameters have been set using the LED display
and the keypad, the laser output can be initiated by placing a
finger or thumb over the top of the “Laser Activate” pad on the
laser treatment applicator. This pad is a capacitance switch which
relies on the capacitance of the human body to sense when the
practitioner wishes to operate the laser. Each time suitable contact
is made over the pad a beep will sound.
9. Once the “Laser Activate” capacitance switch has been triggered
the laser energy shall begin to be delivered. This will be indicated
by the Green “Laser On” indicator located above the capacitance

Laser Sys*Stim 540, Therapeutic Laser— Rev.F_07/03/12
19
switch. Three Blue LED’s around the aperture of the laser shall be
illuminated, these high brightness LED’s define the treatment area
(and assist the blink reflex to reduce laser exposure to the naked
eye), and the timer on the display shall decrement. To maintain
output the “Laser Activate” capacitance switch must have contact
maintained.
10. The capacitance sensors on the laser applicator rely on body
capacitance to provide activation of the laser output. Body
capacitance is a variable parameter and will vary from person to
person and will vary for one person dependent on environmental
conditions. The capacitance switch is best operated using the
thumb on the “Laser Activate” pad. The capacitance switch
automatically calibrates at power up, if the capacitance switch
requires excessive pressure on the “Laser Activate” pad, the unit
may need to be powered down and powered up 10 seconds later
for the unit to re-calibrate the capacitance switch. During the
power-up, the practitioner should keep the laser applicator located
in the holster and keep hands or metal objects approximately 10
cm away from the laser applicator, as this may affect the
capacitance switch auto-calibration.
11. If, for any reason, cessation of laser energy is desired, the output
can be terminated by simply lifting the thumb off the “Laser
Activate” pad on the laser applicator. The applicator will indicate
that lasing has ceased by turning off the “Laser On” indicator, and
turning off the three blue target LED’s. The timer will stop also.
12. If laser treatment has terminated by lifting the thumb off the “Laser
Activated” capacitance pad, treatment can be continued by placing
the thumb back on the “Laser Activated” capacitance pad. If
treatment is continued until all the energy has been delivered, or
the desired treatment time has elapsed, the lasing will cease and
the laser will emit a low pitch beep to indicate this (timer will show
00:00 also).
13. Some treatments require the same dosage of laser energy to be
applied at several different points of the patient’s body. Once the
first treatment has been performed (treatment time counted down
to zero, i.e.: Timer is 00:00) the same dosage can be achieved by
pressing the Output “Up” button once on the Laser applicator
(ensure your thumb is off the “Laser Activate” capacitance pad),
the display will show the previous dosage energy and time. Once
the laser applicator has been moved to the application point, the
laser can be activated to deliver this dosage.
14. The practitioner may need to power down the laser in an urgent
manner. The laser can be turned off by turning the "ON/OFF"
keyswitch counter-clockwise, or by removing the Laser Applicator
cable from the main unit receptacle, which is also located on the
front panel along with the keyswitch.

Mettler Electronics Corp.— Rev.F_07/03/12
20
4.3 User Program Memory
1. The Laser Sys*Stim 540 has ten program memories. The
practitioner can store commonly used settings and at a later time
recall them.
2. Recalling User Program: To recall a user program press the
PROGRAM key. “PROG 0” will be displayed and a short time later
the PROG 0 settings will be displayed. If the PROGRAM key is
pressed again the next program memory will be selected, which is
“PROG 1”. Following this procedure any of the (PROG 0 to PROG
9) memories can be selected by pressing the PROGRAM key until
the desired program memory is selected.
3. Once the desired program is selected, the settings can be used for
treatment by pressing the LASER ACTIVATE capacitance pad twice
(first press is to confirm, second press is for treatment as normal).
4. For example, using Program 2 for treatment.
Press PROGRAM key. “PROG 0” is displayed and a moment later
settings for PROG 0 are displayed.
Press PROGRAM key again. “PROG 1” is displayed and a
moment later settings for PROG 1 are displayed.
Press PROGRAM key. “PROG 2” is displayed and a moment later
settings for PROG 2 are displayed.
Press LASER ACTIVATE. Release LASER ACTIVATE (settings
are locked in)
Press LASER ACTIVATE >> PROG 2 treatment given.
5. Storing User Program: To store a user program in memory, the
user must select a program memory to modify. This is done by
pressing the PROGRAM key until the desired program memory is
selected. The program memory is modified by adjusting the Energy /
Time / Pulse Mode parameters as described in 4.2. To store these
new parameters, press and hold the PROGRAM key until two beeps
are heard.
6. For example, modifying and storing in Program 1 memory.
Press PROGRAM key. “PROG 0” is displayed and a moment later
settings for PROG 0 are displayed.
Press PROGRAM key again. “PROG 1” is displayed and a
moment later settings for PROG 1 are displayed.
Adjust Parameters.
Press and Hold PROGRAM key until two beeps are heard.
New Parameters are stored in PROG 1.
