Meyer 95230 User manual

1-1211 PAGE 1
ASSEMBLYASSEMBLY
PROFESSIONAL SNOW PUSHERPROFESSIONAL SNOW PUSHER
MODELS: 95230 30” AND 95236 36” ASSEMBLY INSTRUCTIONS
1
Attach pusher blade to pusher support
by inserting
1c
into center hole at top
of blade. Thread nut onto bolt but do
not tighten. Insert all hex nuts into back
of pusher support.
2
Grasp pusher blade support by shaft,
ex blade to insert second
1c
into
middle hole at center of blade.
HARDWAREHARDWARE
Stainless Steel
1/4” Hex nut (4)
1b
Lynch pin (1)
1a
Stainless Steel
1/4” x 20 Bolt (4)
1c
Stainless Steel
#8 5/8” Phillips
screw (2)
1d
Form No. 1-1211

1-1211 PAGE 2
ASSEMBLYASSEMBLY
4
Insert handle shaft
into pusher support
5
6
Open
1a
lynch pin and insert through hole
at top of pusher support. Insert from back of
support towards front (specically designed to
be snug in this direction).
Install remaining two screws
1d
into
lower two holes of pusher support.
3
Insert LH and RH bolts
1c
through
remaining blade holes
TIGHTEN ALL BOLTS, USE NEEDLE NOSE
PLIERS TO TIGHTEN NUT FROM STEP 1.

1-1211 PAGE 3
CUSTOMER SERVICECUSTOMER SERVICE
216.486.1313216.486.1313 | WWW.MEYERPRODUCTS.COM/CONTACT | WWW.MEYERPRODUCTS.COM
1YEAR LIMITED WARRANTY1YEAR LIMITED WARRANTY
Meyer Products LLC warrants to the original purchaser of Meyer brand products that they will be free from defects in materials or
workmanship. Warranty does not cover failur to follow product instructions, damage caused by usage that is not in accordance with
product, expandable parts, anything which has been modied or altered, property damage, down time, or related issues. In order to
obtain service under this warranty, the original purchaser must return the claimed defective part to any authorized Meyer Distribu-
tor/Sub-Distributor, transportation and freight charges prepaid. Only Meyer Distributors/Sub-Distributors are authorized to perform
the obligations under these warranties. For the address and telephone number of the Distributor/Sub-Distributor nearest you, visit
www.meyerproducts.com. It is the responsibility of the original purchaser to establish the warranty period by verifying the original
delivery date. A bill of sale, or some other appropriate payment record may be kept for that purpose. No person is authorized to
change this warranty or to create any warranty other than that set forth herein. This warranty gives you specic legal rights and you
may also have other rights which vary from state to state.

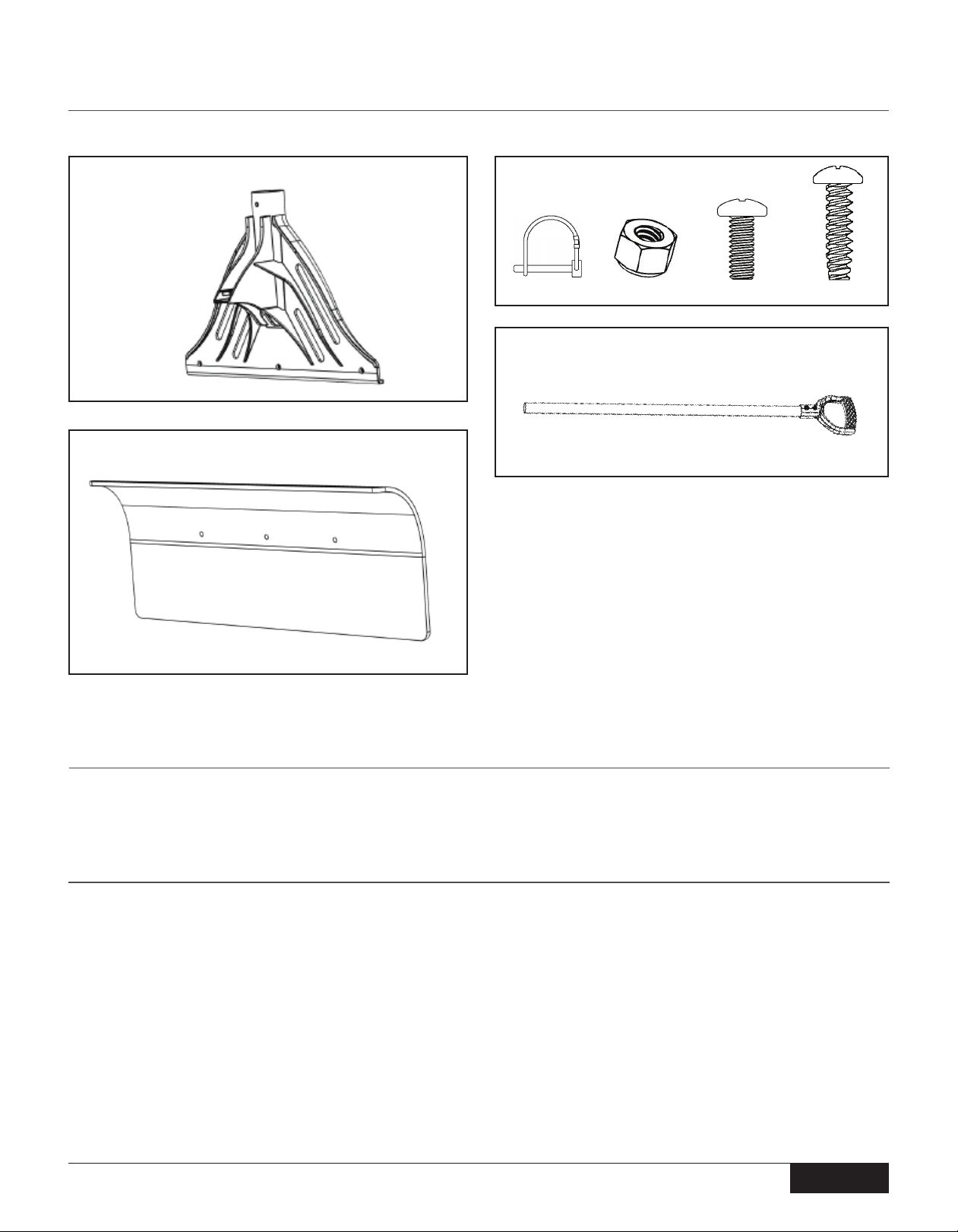

PARTS LISTPARTS LIST
PUSHER SUPPORTPUSHER SUPPORT
PUSHER BLADEPUSHER BLADE
HARDWARE PACKHARDWARE PACK
QTY 1 QTY 4 QTY 4 QTY 2
HANDLE & DGRIPHANDLE & DGRIP
