MFJ-209 SWR Analyzer Instruction Manual
1
MFJ-209 HF/VHF SWR Analyzer
TABLE OF CONTENTS
Table of Contents......................................................................................................1
Introduction..............................................................................................................2
Powering The MFJ-209 ............................................................................................3
Battery Installation....................................................................................................3
Operation Of The MFJ-209.......................................................................................4
SWR and the MFJ-209..................................................................................4
Measuring SWR............................................................................................5
Adjusting Simple Antennas .......................................................................................6
Dipoles..........................................................................................................6
Verticals........................................................................................................6
Tuning an Antenna........................................................................................6
Measuring the Feedpoint Resistance of Antennas...........................................7
Testing and Tuning Stubs and Transmission Lines.....................................................7
Velocity Factor of Transmission Lines...........................................................8
Impedance of Transmission Lines..................................................................9
Estimating transmission line loss....................................................................9
Adjusting Tuners.......................................................................................................10
Adjusting Amplifier Matching Networks...................................................................10
Testing RF Transformers ..........................................................................................11
Testing Baluns...............................................................................................11
Measuring Inductance and Capacitance.....................................................................12
Measure capacitance......................................................................................12
Measure inductance.......................................................................................12
Resonant Frequency of tuned circuits........................................................................13
Testing RF Chokes........................................................................................14
"Zero Beating" the MFJ-209.....................................................................................14
Using the MFJ-209 as a Signal Source......................................................................15
Technical Assistance.................................................................................................15
MFJ-209 Parts List ...................................................................................................15

MFJ-209 SWR Analyzer Instruction Manual
2
INTRODUCTION
The MFJ-209 SWR Analyzer is an easy to operate, versatile test instrument for analyzing
nearly any 50 ohm RF system on frequencies between 1.8 and 170 MHz. In addition the MFJ-
209 can be used as signal source.
The MFJ-209 combines three basic circuits; a wide range oscillator, a 50 ohm RF bridge, and a
calibrated bridge unbalance indicator. This combination of circuits allows measurement of the
SWR (referenced to 50 ohms) of any load connected to the ANTENNA connector.
The MFJ-209 covers all ham bands from 2 meters to 160 meters. The dial calibration is
approximate and for reference only. The actual frequency may vary from what is marked on
the front panel. The MFJ-209 FREQUENCY switch selects the following frequency ranges:
1.8 -4 MHz
4 -10 MHz
10 -26.2 MHz
26.2 -62.5 MHz
62.5 -113 MHz
113 -170 MHz
A frequency counter, such as the MFJ-346, can be connected to the "FREQ. OUT" jack (RCA
phono) to get a more accurate reading of the frequency. As an alternative to a frequency
counter, you can zero beat the output with an HF receiver. See the section on zero beating the
MFJ-209 with a receiver.
The MFJ-209 can be used to adjust or measure the following:
Antennas: SWR, resonant frequency, bandwidth, efficiency
Antenna tuners: SWR, frequency
Amplifiers: Input and output networks
Coaxial transmission lines: SWR, velocity factor, losses, resonance
Balanced transmission lines: Impedance, velocity factor, resonance
Matching or tuning stubs: SWR, resonant frequency, bandwidth
Traps: Resonant frequency
Tuned Circuits: Resonant frequency
Small capacitors: Value
RF chokes and inductors: Self resonance, series resonance, value
Transmitters and oscillators: Frequency
Warning: Please read this manual thoroughly before using this instrument. Failure to follow
the operating instructions may cause false readings or even damage this unit.

MFJ-209 SWR Analyzer Instruction Manual
3
POWERING THE MFJ-209
The MFJ-209 requires between 8 and 18 volts for proper operation. Any power supply used
with the MFJ-209 must be capable of supplying 200mA of current. An optional power supply,
the MFJ-1312B, is available from MFJ for $12.95.
The MFJ-209 has a standard 2.1 mm female receptacle on the top right edge of the case. This
jack is labeled "12VDC" and has the word "POWER" near it. A pictorial polarity marking
appears on the case near the power jack. The outside conductor of the plug must connect to
the negative supply voltage and the center conductor of the plug must connect to the positive
voltage. The internal battery pack is automatically disconnected when an external power plug
is inserted in this jack.
SWR measurement will be inaccurate when the supply voltage falls below 7 volts. To avoid
false readings maintain fresh batteries and always use the correct power supply.
Warning: Never apply AC, unfiltered or incorrectly polarized DC to this jack. Peak voltage
must never exceed 18 volts.
BATTERY INSTALLATION
If batteries are used, they must be installed by removing the 8 phillips head screws on each side
of the case. The eight batteries fit in two separate battery holders with the positive terminal of
the batteries positioned toward the round fixed connection, and the negative terminals toward
the springs of the battery holder.
The battery case has two external terminals that connect to a "pigtail" that has two terminals on
it. This connector looks like the type used for 9 volt transistor radio batteries and connects in
the same way. Do not attempt to use 9 volt batteries with this unit. After the batteries are
installed in the plastic holders and the connections are made to the battery packs, the battery
holders can be slid directly into the chrome retaining clips on the cover.
MFJ recommends the use of ALKALINE AA (or rechargeable nicad) cells to reduce the risk of
equipment damage from battery leakage. Avoid leaving any batteries in this unit during periods
of extended storage. Remove weak batteries immediately!
Carefully check the following:
*The battery packs are positioned so that they do not interfere with any internal parts of the
MFJ-209.
*The leads are positioned to reach with the cover in the original position.
*The wires are not pinched between the cover and the chassis.

MFJ-209 SWR Analyzer Instruction Manual
4
OPERATION OF THE MFJ-209
After the MFJ-209 is connected to a proper power source the red on-off button can be
depressed to apply power. When pressed, the red button should lock into position.
The "ANTENNA" connector (SO-239 type) on the top of the MFJ-209 provides the SWR
bridge output connection. To measure SWR, this connector must be connected to the load or
device under test.
Warning: Never apply power to the "ANTENNA" connector.
SWR and the MFJ-209
Some understanding of transmission line and antenna behavior is necessary to use the MFJ-209
properly. For a thorough explanation the ARRL Handbooks or other detailed textbooks can
be used for reference.
SWR is the ratio of a load impedance to source impedance. Since nearly all feedlines and radio
equipment used in amateur service are 50 ohms, this instrument is designed to measure the
system SWR normalized to 50 ohms. For example a 150 ohm load placed across the
"ANTENNA" connector will give an SWR reading of 3:1 .

MFJ-209 SWR Analyzer Instruction Manual
5
The MFJ-209 measures actual SWR. The load must be 50 ohms of pure resistance for a meter
reading of 1:1 . The common misconception that 25 ohms of reactance and 25 ohms of
resistance in a load will give a 1:1 SWR is absolutely untrue. The actual SWR in this condition
will be measured as 2.6:1 . The MFJ-209 is not "fooled" by mixtures of reactive and resistive
loads.
Another common misconception is that changing a feedlines length will change SWR. If the
impedance of a feedline is 50 ohms and the load impedance is 25 ohms the SWR will remain
2:1 as the feedline length changes. If line loss is low it is perfectly acceptable to make SWR
measurements at the transmitter end of the feedline. The feedline does not have to be any
particular length. However, as line loss increases, and as SWR increases, more error is
introduced into the SWR reading. The error causes the measured SWR reading to appear
better than the actual SWR at the antenna. Refer to the section on estimating the line loss on
page 10.
If changing feedline length changes the SWR reading, one or more of the following must be
true: the feedline is not 50 ohms,
the bridge is not set to measure 50 ohms,
the line losses are significant,
the feedline is acting like part of the antenna system and radiating RF.
Feedlines with very low losses, such as air insulated transmission lines, will not have much loss
even when operating at extremely high SWRs. High loss cables, such as small polyethylene
dielectric cables like RG-58, will rapidly lose efficiency as the SWR is increased. With high
loss or long feedlines it is very important to maintain a low SWR over the entire length of the
feedline.
Any SWR adjustments have to be made at the antenna, since any adjustments at the transmitter
end of the feedline can not affect the losses, nor the efficiency of the antenna system.
Measuring SWR
The MFJ-209 will measure the impedance ratio (SWR) of any load referenced to 50 ohms.
The SWR can be measured on any frequency from 1.8 to 170 MHz. No other devices are
required.
To measure the SWR on a predetermined frequency adjust the "TUNE" and "FREQUENCY"
knobs to the desired frequency. To accurately measure the MFJ-209's frequency connect a
counter to the "FREQ. OUT" jack or zero beat the MFJ-209 with a receiver. Read the SWR
from the "SWR" meter.
To find the lowest SWR adjust the frequency until the SWR meter reaches the lowest reading.
Read the approximate frequency of the lowest SWR from the "TUNE" scale or measure the
exact frequency with a counter.

MFJ-209 SWR Analyzer Instruction Manual
6
ADJUSTING SIMPLE ANTENNAS
Most antennas are adjusted by varying the length of the elements. Most home made antennas
are simple verticals or dipoles that are easily adjusted.
Dipoles
Since a dipole is a balanced antenna, it is a good idea to put a balun at the feedpoint. The balun
can be as simple as several turns of coax several inches in diameter, or a complicated affair with
many windings on a ferromagnetic core.
The height of the dipole, as well as it's surroundings, influences the feedpoint impedance and
the line SWR. Typically, dipoles have a SWRs below 1.5:1 .
Generally the only adjustment on a dipole is the length of the antenna. If the antenna is too
long it will resonate too low in frequency, and if it is too short it will resonate too high.
Verticals
Verticals are usually unbalanced antennas. Most antenna manufacturers downplay the
importance of good radial systems with grounded verticals. If you have a good ground system
the SWR of a quarter wave vertical can be nearly 2 to one. The SWR generally gets BETTER
as the ground system, and performance, get worse.
Verticals are tuned like dipoles, lengthening the element moves the frequency lower, and
shortening the element moves the frequency higher.
Tuning an Antenna
Tuning basic antennas fed with 50 ohm coaxial cable can be accomplished with the following
steps:
1Connect the feedline to the MFJ-209.
2Adjust the MFJ-209 until the SWR reaches the lowest reading.
3Read or measure (with a counter) the MFJ-209's frequency.
4Divide the measured frequency by the desired frequency.
5Multiply the present antenna length by the result of step 4. This is the new length needed.
Note: This method will not work on loaded or electrically shortened antennas. They must be
tuned by adjusting and re-testing until the proper frequency is obtained.

MFJ-209 SWR Analyzer Instruction Manual
7
Measuring the Feedpoint Resistance of Antennas
The feedpoint resistance of a low impedance (10-100 ohm) resonant HF antenna or load can be
measured with the MFJ-209. A low value non-inductive potentiometer (250 ohms) and a
conventional ohm meter can be used to make these measurements.
1Connect the MFJ-209 directly across the terminals of the unknown impedance. If the load
is unbalanced be sure that the ground is connected to the SO-239 "ANTENNA"
connector's ground.
2Adjust the MFJ-209 until the SWR reads the lowest value.
3If the SWR is not unity (1:1), place the potentiometer in parallel with the load. Adjust the
potentiometer until the SWR is as good as possible.
4If the SWR only becomes worse go to step 7.
5If the SWR reached unity, remove the potentiometer and measure its resistance.
6The resistance of the load is found by using the formula below.
R=
50
R
R-50
R=Antenna resistance
R=Potentiometer resistance
AP
P
A
P
7If the earlier steps did not work put the potentiometer in series with the center pin
(ungrounded terminal) of the SO-239 "ANTENNA" connector.
8Adjust the value of the potentiometer until the SWR is unity (1:1).
9Remove the potentiometer and measure the resistance of the setting used in step 8.
Subtract this value from 50 to determine the load resistance.
TESTING AND TUNING STUBS AND TRANSMISSION LINES
The proper length of quarter and half wave stubs or transmission lines can be found with this
unit and a 50Ωcarbon resistor. Accurate measurements can be made with any type of coaxial
or two wire line. The line does not have to be 50 ohms.
The stub to be tested should be attached with a 50Ωnoninductive resistor in series to the
center conductor of the "ANTENNA" connector with a coaxial line. The shield should be
grounded to the connector shell. For two wire lines the 50Ωresistor connects in series
between the ground shell of the PL-259 and one conductor. The other conductor of the
balanced line connects directly to the center pin of the connector.
Coaxial lines can lie in a pile or coil on the floor, two wire lines must be suspended in a straight
line a few feet away from metallic objects or ground. The lines must be open circuited at the
far end for odd multiples of 1/4 wave stubs (i.e., 1/4, 3/4, 1-1/4, etc.) and short circuited for
half wave stub multiples ( like 1, 1-1/2, etc.)

MFJ-209 SWR Analyzer Instruction Manual
8
Connect the PL-259 to the "ANTENNA" connector of the MFJ-209 and adjust the line or stub
by the following method. For critical stubs you may want to gradually trim the stub to
frequency.
1Determine the desired frequency and theoretical length of the line or stub.
2Cut the stub slightly longer than necessary.
3Measure the frequency of the lowest SWR. It should be just below the desired frequency.
4Divide the measured frequency by the desired frequency.
5Multiply the result by the length of the stub. This is the necessary stub length.
6Cut the stub to the calculated length and confirm that it has the lowest SWR near the
desired frequency.
Velocity Factor of Transmission Lines
The MFJ-209 can accurately determine the velocity factor of any impedance transmission line.
Measure the velocity factor with the following procedure:
1. Disconnect both ends of the transmission line and measure the physical length of the line in
feet.
2. Set up the line to measure 1/4 stubs as in the section on Testing and Tuning Stubs, page 7.
3. Find the lowest frequency across all the bands at which the lowest SWR occurs. The dip
should occur slightly below the 1/4 wavelength frequency.
4. Measure the frequency from the MFJ-209. This is the 1/4 resonant wavelength frequency
of your transmission line. Note that you will get low SWR reading at all odd multiples of
1/4 wavelength.
Example: On a 27 foot line the measured frequency was 7.3MHz.
5. Divide 246 by the measured frequency. This gives you the free space 1/4 wavelength in
feet.
Example: 246 divided by a dip frequency of 7.3 MHz is 33.7 feet, the free space 1/4
wavelength
6. Divide the physical measured length of the feedline in feet by the free space 1/4 wavelength
calculated in number 5.
Example: 27 feet (physical length) divided by 33.7 feet (calculated length) equals .80 .
The velocity factor is .80 or 80%.
Free space 1/4wavelength =Low SWR frequency
Velocity Factor =Free space 1/4wavelength
Actual feedline length
246

MFJ-209 SWR Analyzer Instruction Manual
9
Impedance of Transmission Lines
The impedance of transmission lines between 15 and 150 ohms can be measured with the MFJ-
209, a 250 ohm potentiometer, and an ohm meter. Lines of higher impedance can be measured
with a higher resistance potentiometer if a broad band transformer is used (see the section on
testing transformers) to transform the line impedance to approximately 50 ohms.
1Measure the 1/4 wavelength frequency of the transmission line to be tested as in Testing
and Tuning Stubs on page 7.
2Terminate the far end of the transmission line with a non-inductive 250 ohm potentiometer.
3Connect the transmission line to the MFJ-209 "ANTENNA" connector and set the analyzer
to the 1/4 wave frequency.
4Observe the SWR as you vary the "TUNE" from end to end of the "FREQUENCY" range
selected.
5Adjust the potentiometer until the SWR reading varies as little as possible, over the
"TUNE" range. Note that the value of the SWR is not important. Only the change in
SWR as the frequency is varied is important.
6The value of the potentiometer will correspond closely to the line impedance.
Estimating transmission line loss
The loss of 50 ohm feedlines (between 3 and 10 dB) can be measured with the MFJ-209. It is
a simple matter to find the loss at a known frequency and then estimate the loss at a lower
frequency.
To measure feedline loss:
1. Connect the feedline to the MFJ-209 "ANTENNA" connector.
2. The far end of the feedline is either left unconnected or terminated with a direct short.
3. Adjust the MFJ-209 frequency to the frequency desired and observe the "SWR" meter.
4. If the SWR is in the red area of the scale the loss is less than 3 dB. Increase the frequency
until the "SWR" meter reads 3:1. This is the 3dB loss frequency.
5. If the SWR on the operating frequency is in the black area of the "SWR" meter, pick the
closest SWR point and estimate the loss from the chart below.
SWR LOSS
3.0 : 1 3.0 dB
2.5 : 1 3.6 dB
2.0 : 1 4.7 dB
1.7 : 1 5.8 dB
1.5 : 1 6.9 dB
1.2 : 1 10.3 dB
You can estimate the approximate loss at the operating frequency by remembering that the
feedline loss in dB is reduced by 70 % at half the frequency, and increased by 140 % at twice
the frequency you measured. This method is reasonably accurate if the loss is distributed along
the feedline and not confined to one bad area.

MFJ-209 SWR Analyzer Instruction Manual
10
For example, assume an operating frequency of 28 MHz. You want to know what the feedline
loss is at 28 MHz. At that frequency the "SWR" meters needle is in the red uncalibrated
portion of the meter. Increase the measured frequency until the needle falls on a calibration
mark. At 60MHZ the meter reads 3:1 SWR. Using the chart you know that the loss is 3 dB.
Since 28MHz is about half of 60MHz, you can multiply 3dB by .7 giving a loss of about 2dB at
28MHz.
ADJUSTING TUNERS
The MFJ-209 can be used to adjust tuners. Connect the MFJ-209 "ANTENNA" connector to
the tuner's 50 ohm input and the desired antenna to the normal tuner output. This connection
can be made with a manual RF switch to facilitate rapid changeover.
Warning: Always connect the common (rotary contact) of the switch to the tuner. The
switch must connect either the MFJ-209 or the station equipment to the tuner.
The Station Equipment Must Never Be Connected To The MFJ-209.
1Connect the MFJ-209 to the tuner input.
2Turn on the MFJ-209 and adjust it to the desired frequency.
3Adjust the tuner until the SWR becomes unity (1:1).
4Turn off the MFJ-209 and re-connect the transmitter.
ADJUSTING AMPLIFIER MATCHING NETWORKS
The MFJ-209 can be used to test and adjust RF amplifiers or other matching networks without
applying operating voltages.
The tubes and other components should be left in position and connected so that stray
capacitance is unchanged. A non-inductive resistor that equals the approximate driving
impedance of the tube is installed between the cathode of the tube and the chassis, or a resistor
should be connected between the anode and the chassis that equals the calculated plate
impedance of the tube. The appropriate network can now be adjusted.
The antenna relay (if internal) can be engaged with a small power supply so that the coax input
and output connectors are tied to the networks.
Caution: The driving impedance of most amplifiers changes as the drive level is varied. Do
not attempt to adjust the input network with the tube in an operating condition
with the low level of RF from the MFJ-209.

MFJ-209 SWR Analyzer Instruction Manual
11
TESTING RF TRANSFORMERS
RF transformers that are designed with a 50 ohm winding can be easily and accurately tested
with the MFJ-209.
The 50 ohm winding is connected through a short 50 ohm cable to the "ANTENNA"
connector on the MFJ-209. The other winding(s) of the transformer is then terminated with a
low inductance resistor that is equal to the winding's impedance. The MFJ-209 can then be
swept through the desired transformer frequency range. The SWR and bandwidth of the RF
transformer can be measured.
Testing Baluns
Baluns can be tested by connecting the 50 ohm unbalanced side to the MFJ-209 "ANTENNA"
connector. The balun must be terminated with two equal value load resistors in series. The
resistor combination must have resistance total that is equal to the balun impedance. A pair of
100 ohm carbon resistors must be used to test the 200 ohm secondary of a 4:1 balun (50 ohm
input).
The SWR is measured by moving a jumper wire from point "A" through point "C".
AB
C
BALUN
Clip Lead
"ANTENNA"
To the MFJ-249's
connector
A properly designed current balun, the type that is the most effective and usually handles the
most power, should show a low SWR over the entire operating range of the balun with the clip
lead in any of the three positions.
A well-designed voltage balun should show a low SWR over the entire operating range when
the clip lead is in position "B". It will show a poor SWR when the clip lead is in position "A"
and "C".
A voltage balun should also be tested by disconnecting the outer connections of the two
resistors and connecting each resistor in parallel. If the balun is operating properly the SWR
will be very low with the resistors connected from either output terminal to ground.
BALUN
"ANTENNA"
To the MFJ-249's
connector

MFJ-209 SWR Analyzer Instruction Manual
12
MEASURING INDUCTANCE AND CAPACITANCE
To measure capacitance or inductance you will need some standard value capacitors and
inductors. These should be collected and tested for accuracy. MFJ suggests the following sets
of values:
Inductors: 330µH, 56 µH, 5.6 µH, 0.47 µH
Capacitors: 10 pF, 150 pF, 1000 pF, 3300 pF
Readings will be the most accurate if the standard test values used are between 0.5 µH to 500
µH to measure capacitance or 10 pF and 5000 pF to measure inductance.
Take a component of unknown value and connect it in series with a standard component to
make a series LC circuit. Attach the series LC circuit to the "ANTENNA" connector in series
with a 50 Ωresistor.
Measure capacitance.
1. Connect an unknown capacitor in parallel with the highest value standard inductor.
2. Connect the LC circuit to ANTENNA connector with a 50 Ωresistor in series.
3. Adjust the tune knob through the bands until you get the lowest SWR. If you do not get a
deep meter deflection change to the next inductor with a lower value and try again.
Continue the process until you obtain low SWR. Read the resonant frequency off the MFJ-
209 scale or measure it with a counter.
4. Solve this equation using F as the resonant frequency as L as the inductance of the standard
inductor,
C(pF)=
1
00003948FL
F=MHz L =H
2
.µ
Measure inductance.
1. Connect an unknown inductor with the highest value standard capacitor in parallel.
2. Connect the LC circuit to "ANTENNA" connector with a 50 Ωresistor in series.
3. Adjust the tune knob through the bands until you get the lowest SWR. If you do not get a
deep meter deflection change to the next smaller value standard capacitor and try again.
Repeat the process until you get low SWR.
4. Solve this equation using F as the resonant frequency and C as the capacitance of the
standard capacitor.
L(H)=
1
00003948FC
F=MHz C =pF
2
µ.
RESONANT FREQUENCY OF TUNED CIRCUITS

MFJ-209 SWR Analyzer Instruction Manual
13
The MFJ-209 can be used to measure the resonant frequency of tuned circuits by two methods.
The first method involves placing a 50 ohm resistor in series with the MFJ-209 "ANTENNA"
connector. The MFJ-209 connects through the resistor to the parallel tuned circuit. This
circuit is for high capacitance values.
Tune the MFJ-209's frequency until the "SWR" meter reaches the highest SWR. This is the
resonant frequency of the load.
"ANTENNA"
To the MFJ-249's
connector
All leads should be short
50 ohms Hi - "C"
For high inductance values a series LC circuit should be used to measure resonant frequency.
The inductor and capacitor should be connected in series through a 50Ωlow inductance
carbon resistor across the "ANTENNA" connector on the MFJ-209.
"ANTENNA"
To the MFJ-249's
connector
All leads should be short
50 ohms Hi - "L"
Tune the MFJ-209's frequency until the "SWR" meter reaches the lowest SWR. This is the
resonant frequency of the load.

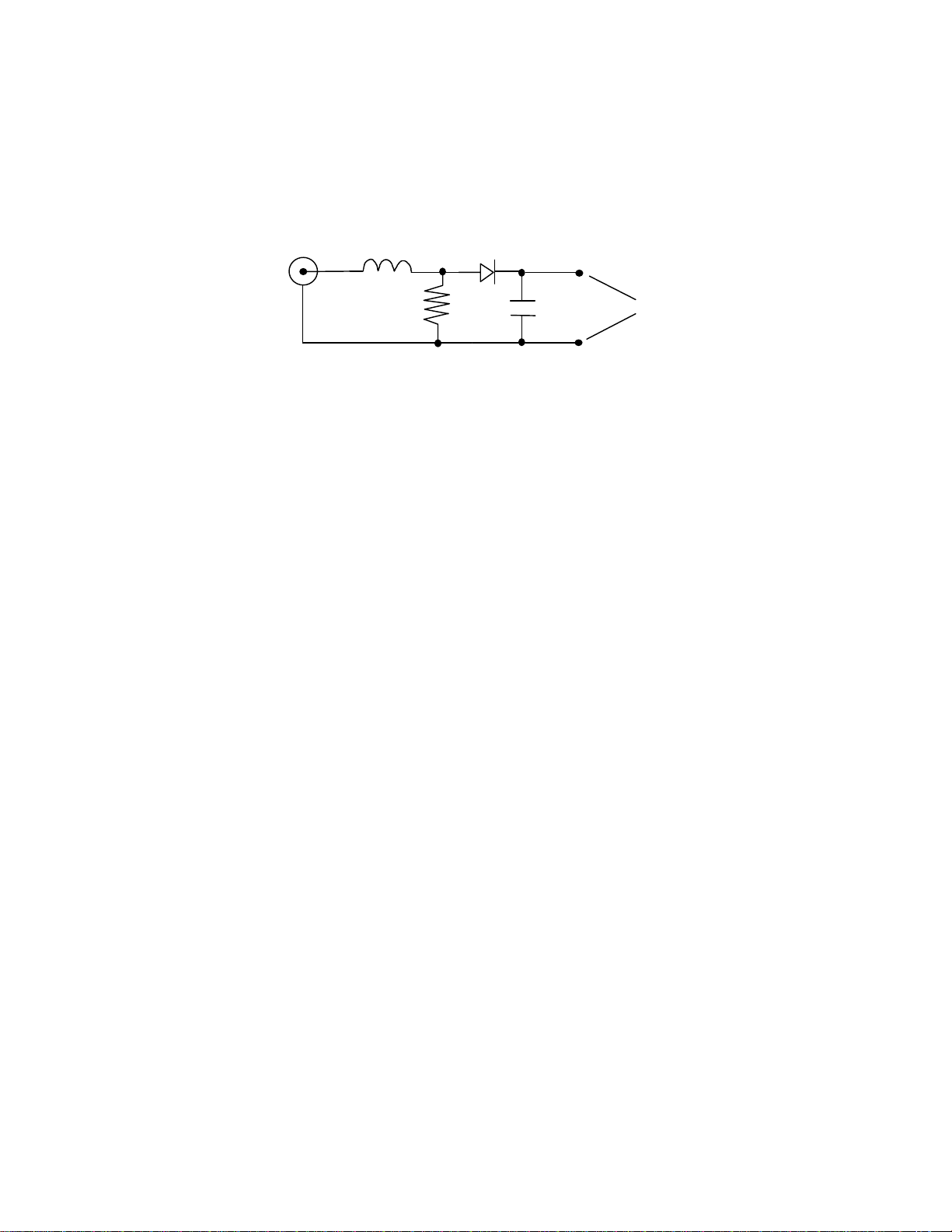

An external diode detector and volt meter can also be used to measure the resonant frequency
of circuits. The maximum meter reading occurs at the resonant frequency.
"ANTENNA"
To the MFJ-249's
connector
1N34
.01 10K
50 ohm
Measure the voltage
between these points
with a Hi-Z meter
All leads should be short
A second method of determining the resonant frequency is by using a small three or four link
coil to magnetically couple to a tuned circuit for testing. The coil should be wound around the
inductor in the tuned circuit. This magnetically couples the MFJ-209 to the resonant circuit.
The frequency of the MFJ-209 is adjusted for a dip on the "SWR" meter. The dip occurs at the
approximate resonant frequency of the tuned circuit.
Testing RF Chokes

MFJ-209 SWR Analyzer Instruction Manual
14
Large RF chokes usually have frequencies where the distributed capacitance and inductance
form a low impedance series resonance. The troublesome series resonance can be detected by
slowly sweeping the frequency of the MFJ-209 over the operating range of the choke. Peaks
in the voltage measured by the RF voltmeter will identify the low impedance series-resonant
frequencies.
"ANTENNA"
To the MFJ-249's
connector
1N34
.01
10K Measure the voltage
between these points
with a Hi-Z meter
All leads should be short
choke
Refer to the section on measuring the inductance of RF chokes on page 12.
"ZERO BEATING" THE MFJ-209
The FREQ. OUT jack of the MFJ-209 supplies enough signal to drive a frequency counter or a
receiver. The signal from this jack is strong enough to drive all but the poorest receivers
without direct coupling.
To measure the frequency with a receiver you should first connect a short wire to the input of
the receiver or to the center conductor of coax feeding the receiver. This wire can normally
just be placed near the MFJ-209 to provide ample signal strength for the receiver. In rare
cases a second wire can be inserted into the FREQ OUT jack and placed near the receiver lead.
To determine the operating frequency of the MFJ-209 the receiver should be set to the widest
bandwidth SSB position and tuned to the frequency setting of the MFJ-209 dial. The receiver
dial can then be tuned up and down until a signal is heard swooping past.
Zero in on the signal until the pitch becomes very low. The receiver will be approximately on
the same frequency as the receiver.
If you use the MFJ-209 primarily on one frequency range you can calibrate the knob. Find a
frequency and loosen the set screw on the knob. Carefully pull the knob off and reinsert it at
the correct setting. Be sure that the receiver and the MFJ-209 are on the same frequency
throughout the procedure.
A second method would be to set the frequency of interest on the dial with a grease pen or
other temporary marking device.

MFJ-209 SWR Analyzer Instruction Manual
15
USING THE MFJ-209 AS A SIGNAL SOURCE
The MFJ-209 can provide a moderately stable signal source for testing and alignment. Signal
is produced by the internal oscillator and can be taken from both the "FREQ.OUT" or the
"ANTENNA" jacks. Signal should be taken from the "ANTENNA" jack allowing a frequency
counter, such as the MFJ-346, to be attatched to the "FREQ. OUT" jack to measure the
frequency of the output signal.
An attenuator pad or variable resistor can be used to reduce the output level of the MFJ-203.
TECHNICAL ASSISTANCE
If you have any problem with this unit first check the appropriate section of this manual. If the
manual does not reference your problem or your problem is not solved by following the manual
you may call MFJ toll-free at 1-800-647-TECH (8324) or FAX to 601-323-6551, or TELEX
53 4590 MFJ STKV. Outside of the continental U.S.A. 601-323-5869. You will be best
served if you have your unit, manual and all information on your station handy so you can
answer any questions the technicians may ask.
You can also send questions to MFJ Enterprises, INC., P.O. Box 494, Mississippi State, MS
39762. Send a complete description of your problem, an explanation of exactly how you are
using your unit and a complete description of your station.
MFJ-209 PARTS LIST
Part Designator Description MFJ Part Number
R1 Resistor, 1/4 Watt, 5%, Film, 18 Ohm 100-1180
R2,R21,R22 Resistor, 1/4 Watt, 5%, Film, 1m Ohm 100-6100
R3,R8 Resistor, 1/4 Watt, 5%, Film, 100 Ohm 100-2100
R4,R7 Resistor, 1/4 Watt, 5%, Film, 10 Ohm 100-1100
R5,R6,R11 Resistor, 1/4 Watt, 5%, Film, 1.0k Ohm 100-3100
R15,R24,R29,R30 Resistor, 1/4 Watt, 5%, Film, 10.0k Ohm 100-4100
R17 Resistor, Trimpot, Sub. Horz., 10 K 133-4100
R18 Resistor, Trimpot, Sub. Horz., 100 K 133-5100
R26,R27,R28 Resistor, 1/8 Watt, 1%,49.9 Ohm 102-1499
R33 Resistor, 1/4 Watt, 5%, Film, 620 Ohm 100-2620
SW1 Switch, Rotary, Pcb, Horiz. Mt., 2p6p (prgm) 500-1563
FOR SW1 Knob, 1/4" Shaft, .75 X .75, Pka 50b Knob 760-0033
SW2 Switch, Push-Button, PC, .5 A, 125 Vac, 2p2p 504-0022
FOR SW2 Knob, Plastic, Push-Button, .350" Dia, Red 760-2140

MFJ-209 SWR Analyzer Instruction Manual
16
Part Designator Description MFJ Part Number
C1 Capacitor, Disc Ceramic, 50v, 20%, 22 pF 200-0018
C2,C3,C4,C6,C7,C8 Capacitor, Disc Ceramic, 25/50v, 20%, .01 uF 200-0004
C10,C33,C36 Capacitor, Disc Ceramic, 25/50v, 20%, .01 uF 200-0004
C11,C13,C14,C16,C19 Capacitor, Disc Ceramic, 25/50v, 20%, .01 uF 200-0004
C17,C18,C24 Capacitor, Disc Ceramic, 50/100v, 20%, .1 uF 200-0005
C20,C21,C25,C26,C27 Capacitor, Disc Ceramic, 25/50v, 20%, .01 uF 200-0004
C22,C23,C32,C39 Capacitor, Disc Ceramic, 25/50v, 20%, .01 uF 200-0004
C28 Capacitor, Electrolytic, Radial, 25v, 100 uF 203-0015
C29 Capacitor, Disc Ceramic, 500v, 20%, 75 pF 200-1011
C30 Capacitor, Disc Ceramic, 1 Kv, 20%, 470 pF 200-2023
C31 Capacitor, Disc Ceramic, 1 Kv, 20%, 33 pF 200-2016
C32 Capacitor, Electrolytic, Radial, 50v, 1 uF 203-0006
C38 Capacitor, Electrolytic, Radial, 35v, 220 uF 203-0019
VC1 Cap, Air Var, 6-200 pF 204-5160
D2,D3 Diode, Germanium, 1N34A 300-8001
D6 Opto, Led, 5 Mm Round, Red, MV5753 320-0001
IC1 IC, Op-amp, Quad Op-amp, 14 Pin, LM324N 311-0040
IC2 Voltage Regulator, 1 Amp, +5 Volts, 7805t 307-1011
FOR IC1 Socket, IC, Low Profile, 14 Pin 625-0031
J1 Jack, 2.1 Mm, Pcb, Dc Coaxial Jack 601-6021
J2 Connector, Header, Straight, .1, .375", 3 Pos 612-0103
JMP1-4 Wire, Jumper, 1/4"-2" 870-5000
L2 Inductor, 10mm, orange,10-403/9447, 2.64uH 402-3403
L3 Inductor, 10mm, Red, 10-402/9449, 1.8 uH 402-3402
L4 Inductor, Var, Pcm, Mc120 llow, .154 uH 402-2727
L7 Toroid, Ferrite, .5", Pre-wound, C/11, Amp 403-0020
M1 Meter, 1.5", 100 uA, SWR Meter 400-0035
Q1,Q2,Q4 Transistor, Fet, To-92, Siliconix, J310 305-6310
Q3 Transistor, Fet, Switching, VN10KM 305-6005
Q5 Transistor, HF Wide Band, NPN,2N5109 305-0017
B1 Battery, Holder, 8-AA,Snap Connector 730-2362
FOR B1 Battery, Snap, 9v, 8" 730-3005

MFJ-209 SWR Analyzer Instruction Manual
17
FULL 12 MONTH WARRANTY
MFJ Enterprises, Inc. warrants to the original owner of this product, if manufactured by MFJ Enterprises, Inc.
and purchased from an authorized dealer or directly from MFJ Enterprises, Inc. to be free from defects in
material and workmanship for a period of 12 months from date of purchase provided the following terms of this
warranty are satisfied.
1. The purchaser must retain the dated proof-of-purchase (bill of sale, canceled check, credit card or money
order receipt, etc.) describing the product to establish the validity of the warranty claim and submit the
original of machine reproduction or such proof of purchase to MFJ Enterprises, Inc. at the time of warranty
service. MFJ Enterprises, Inc. shall have the discretion to deny warranty without dated proof-of-purchase.
Any evidence of alteration, erasure, of forgery shall be cause to void any and all warranty terms
immediately.
2. MFJ Enterprises, Inc. agrees to repair or replace at MFJ's option without charge to the original owner any
defective product provided the product is returned postage prepaid to MFJ Enterprises, Inc. with a personal
check, cashiers check, or money order for $7.00 covering postage and handling.
3. MFJ Enterprises, Inc. will supply replacement parts free of charge for any MFJ product under warranty
upon request. A dated proof of purchase and a $5.00 personal check, cashiers check, or money order must
be provided to cover postage and handling.
4. This warranty is NOT void for owners who attempt to repair defective units. Technical consultation is
available by calling [phone].
5. This warranty does not apply to kits sold by or manufactured by MFJ Enterprises, Inc.
6. Wired and tested PC board products are covered by this warranty provided only the wired and tested PC
board product is returned. Wired and tested PC boards installed in the owner's cabinet or connected to
switches, jacks, or cables, etc. sent to MFJ Enterprises, Inc. will be returned at the owner's expense
unrepaired.
7. Under no circumstances is MFJ Enterprises, Inc. liable for consequential damages to person or property by
the use of any MFJ products.
8. Out-of-Warranty Service: MFJ Enterprises, Inc. will repair any out-of-warranty product provided the unit
is shipped prepaid. All repaired units will be shipped COD to the owner. Repair charges will be added to
the COD fee unless other arrangements are made.
9. This warranty is given in lieu of any other warranty expressed or implied.
10. MFJ Enterprises, Inc. reserves the right to make changes or improvements in design or manufacture
without incurring any obligation to install such changes upon any of the products previously manufactured.
11. All MFJ products to be serviced in-warranty or out-of-warranty should be addressed to MFJ Enterprises,
Inc., 921A Louisville Road, Starkville, Mississippi 39759, USA and must be accompanied by a letter
describing the problem in detail along with a copy of your dated proof-of-purchase.
12. This warranty gives you specific rights, and you may also have other rights which vary from state to state.
