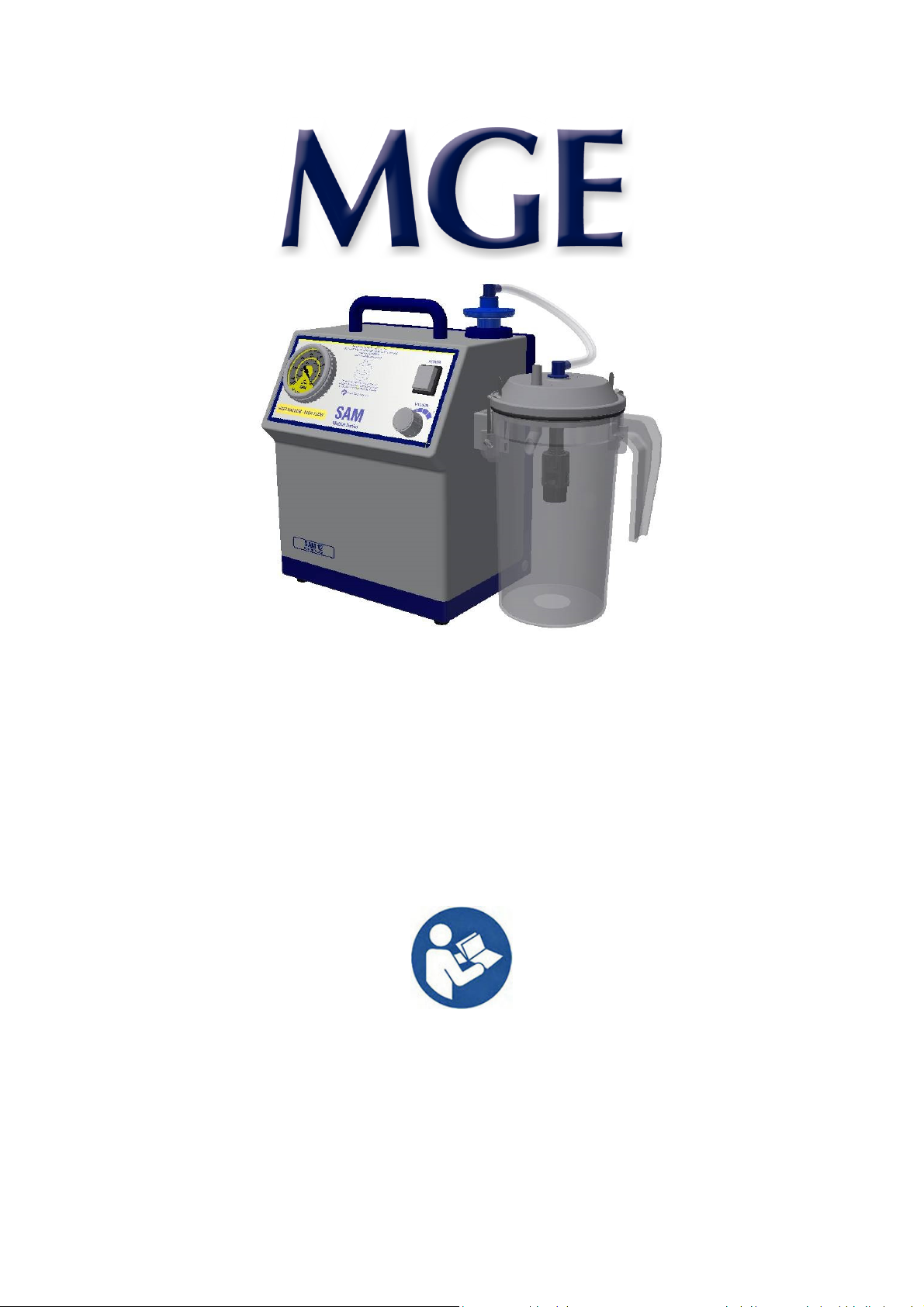

MGE UPS Systems SAM 12 Operating instructions

SA 12 SA 14
SA 15 SA 16
Medical Suction Unit
Operating and Maintenance Manual
M.G. Electric (Colchester) Ltd
Altbarn Close, Colchester, Essex, CO4 9HY, United Kingdom
Tel: [phone], Fax: [phone]
e-mail: [e-mail] www.mgeworldwide.com

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 2 of 24
Dear Customer,
We take this opportunity to thank you for purchasing a SA Medical Suction Unit. Please read the
operating instructions and listed precautions thoroughly before attempting to operate the unit. MG
Electric manufactures its range in accordance with the requirements of BS EN ISO 9001 and BS EN
ISO 13485
INDEX
1. SAFETY INSTRUCTIONS 4
2. GENERAL DESCRIPTION 6
3. INSTRUCTIONS FOR USE 7
3.1 Before Operating Unit
3.2 Unit Set Up
3.3 Operating Environment
3.4 Gauge (Manometer) - Indicated Vacuum
3.5 External Filter
3.6 Internal Filter
3.7 Fluid Collection Containers
3.8 Disposable Liner Systems
3.9 Effect of altitude
3.10 Cleaning Procedure
3.11 Transport
3.12 Storage
3.13 Long Term Storage
3.14 Instructions by Medical Staff to Patients
3.15 Troubleshooting
4. MAINTENANCE 12
4.1 Daily Procedures
4.2 Monthly Maintenance
4.3 Three Monthly Maintenance
4.4 General Layout
4.5 Pump (If Required)
4.6 Replacing the Internal Hydrophobic Filter
4.7 Replacing the Main Cable
4.8 Flow Diagram
5. OPTIONS AND RECOMMENDED SPARES 19
5.1 Options
5.2 Recommended spares
6. TECHNICAL SPECIFICATION 21
6.1 General Dimensions
6.2 End of life
6.3 Electromagnetic Compatibility (EMC)
7. NOTES 23
8. OTHER PRODUCTS IN THE SA RANGE 24

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 3 of 24
Return of Medical Equipment
Should you wish to return any equipment to MG Electric (Colchester) Limited (MGE), or one of our
designated distributors, Health Service Guideline HSG (93) 26 Decontamination of equipment prior
to inspection, service or repair) must be adhered to. Failure to follow this guideline will invalidate
any warranty claims and result in the equipment being destroyed.
Definition of symbols used in these instructions:
The Instruction for use must be referred to!
CLASS II equipment
Manufacturers’ details and date of
manufacture
Electricity Warning
Safety Warning
Disposal in accordance with directive
2012/19/EU
Temperature Limits
Humidity Limits
Type B applied part
Ingress Protection
3 - Ingress Protection against particulates
4 - Ingress Protection against water.

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 4 of 24
1. SAFETY INSTRUCTIONS
The safety of the patient and suction unit operator are the first priorities. It is therefore vital that the
following precautions are strictly observed:
WARNING!!!
Never operate a SAM suction unit without an MGE filter capsule.
The filter capsules are made to withstand limited use and cannot be reused. Reuse of such devices
can be dangerous for both patient and operator.
A hydrophobic filter must be fitted internally to prevent liquid passing through to the pump.
Hydrophobic filters only work once and should be replaced immediately it becomes wetted.
No modification of this equipment is allowed.
Only original and approved spare parts and collection systems must be used with all SAM suction
units – failure to use original or approved spares will invalidate the warranty and may cause injury or
damage the unit.
No liability can be accepted by MG Electric for units affected by the occurrence of overflow when
Disposable Liner Systems are being used.
Other than for routine daily procedures, any maintenance or repairs to MG Electric products must be
carried out by fully trained and qualified Electro-Biomedical engineer/technician (EBME) or an
authorized MG Electric dealer. Such persons are to be familiar with the relevant standards, rules,
accident prevention regulations, and operating conditions as a resultt of their training, experience, and
instruction. They are qualified to carry out the required activities and in doing so recognize and avoid
potential hazards. All testing on SAM units should be in accordance with ISO 10079-1
Contamination may be present on any components. When cleaning or replacing any part of the SAM
unit appropriate protective clothing and gloves MUST be worn to avoid contamination. Disposal of
contaminated parts must be according to local protocols.
Store the manual in a safe place, so that it is available to the trained personnel at all times.
All collection containers must be securely mounted when in use.
The overflow valve may not operate fully against frothing. To prevent frothing anti-foam agent maybe
used.
When replacing a full collection container, be aware of its weight and ensure handling the container is
comfortable to avoid the possibility of spillage.
Transport of the SA unit with a full jar attached is not advised.
Solvent-based cleaning agents or abrasive cleaners must not be used on any SA units. Do not wash
any SA units under running water or submerge in water.
Any dismantling and re-assembly of this equipment - for whatever purpose - must be followed by
testing in accordance with the manufacturers’ recommendations as specified for monthly
maintenance.
ELECTRICAL WARNING
Always electrically isolate the SA unit from the mains power supply before carrying out any cleaning,
maintenance or repairs. Electrical isolation of the SA unit is by removal of the mains power cable
from the mains power supply.

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 5 of 24
Never operate a SA suction unit in the presence of flammable gas such as anaesthetic agents.
This is an Explosion hazard!
Ensure the power cable does not create a trip hazard or is subject to damage.
The suction pumps may only be opened by qualified technical personnel. Electric shock hazard!

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 6 of 24
2. GENERAL DESCRIPTION
SA 12 - General-purpose high vacuum medical suction unit, incorporating one collection container
of 2L capacity. Designed for all medical procedures that require an adjustable high
vacuum. For domiciliary use or use within a healthcare facility. These units are not
intended for field and transport use.
SA 14 - General-purpose high vacuum medical suction unit, incorporating two collection containers
of 2L capacity. Designed for all medical procedures that require an adjustable high
vacuum. For domiciliary use or use within a healthcare facility. These units are not
intended for field and transport use.
SA 15 - High vacuum surgical suction unit, incorporating one Intra-Uterine (IU) collection container
of 2L capacity. Designed for use in intra-uterine procedures. Collection containers fitted
with a wide bore top complete with specimen filter. For theatre or ward use within a
healthcare facility. These units are not intended for field and transport use.
SA 16 - High vacuum surgical suction unit, incorporating two Intra-Uterine (IU) collection containers
of 2L capacity. Designed for use in intra-uterine procedures. Collection containers fitted
with a wide bore top complete with specimen filter. For theatre or ward use within a
healthcare facility. These units are not intended for field and transport use.
The SA 14 and SA 16 are fitted with two collection containers and a simple changeover valve. This
valve enables one container to be emptied and replaced while the other remains in use.
There are no contra-indications.
SA 14 and SA 16
2
nd
External Filter
Vacuum Gauge
Vacuum Control
ON/OFF Switch
SA 14 and SA 16
Changeover valve
External Filter
Connection to
Collection Vessel
Collection Vessel
Bracket

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 7 of 24
3. INSTRUCTIONS FOR USE
3.1 Before Operating Unit
BEFORE operating your new SA unit please read the following instructions carefully.
Become thoroughly familiar with the operation and maintenance of the unit before using and note the
information on the control panel and rear of the unit. Only persons trained in its use should operate
the unit.
Check that the voltage supply is as printed on the rating plate fitted to the back of the SA unit.
Warning! Always electrically isolate the SA unit from the mains power supply before
carrying out any cleaning, maintenance or repairs. Electrical isolation of the
SA unit is by removal of the mains power plug from the mains power supply.
3.2 Unit Set Up
•Connect the desired collection system securely in place on the bracket(s) fitted to the
side of the unit. More detail can be found later in this section.
•Connect the desired equipment to the patient inlet tube on the collection container
top.
•Connect the unit to the power supply, check label on rear of unit for correct ratings.
Do not obstruct access to the mains power supply, and ensure the power cable does
not create a trip hazard or is subject to damage. Ensure the exhaust outlet on the
side of the unit is kept clear of any restriction.
•Switch the SA unit on by pressing the green rocker switch so that it illuminates.
The lamp indicates the SA unit is operating and ready for use.

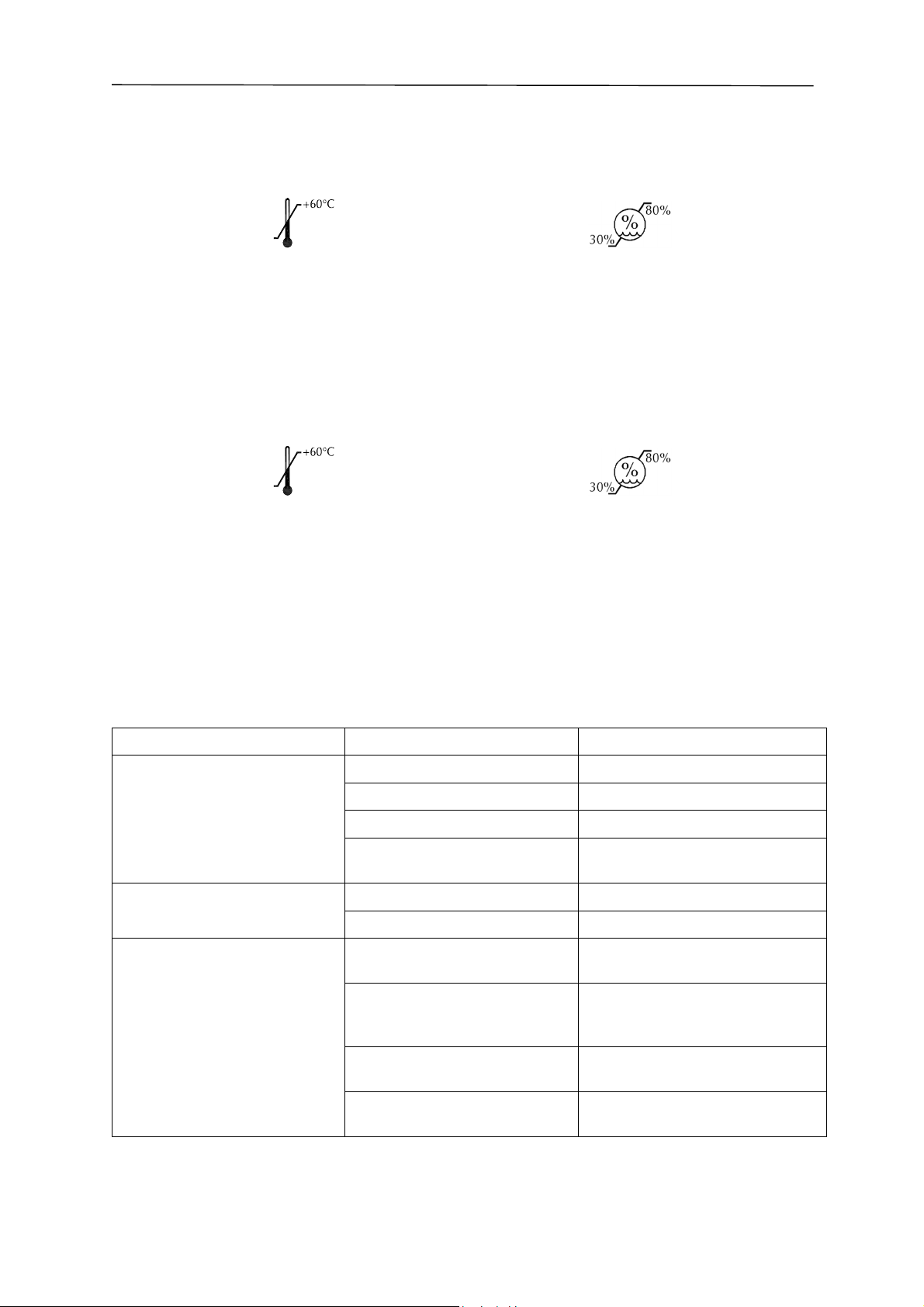

3.3 Operating Environment
Operation of this equipment must be within the following ambient condition
+40°C
-5°C
%
80%
30%
Temperature Humidity
Warning! Never operate a SAM suction unit in the presence of flammable gas such as
anaesthetic agents. This is an Explosion hazard!
3.4 Gauge (Manometer) - Indicated Vacuum
The unit has a gauge fitted to allow the vacuum to be set at a pre-determined level and monitored
during use. To achieve the desired degree of vacuum, occlude the tubing fitted to the patient inlet on
the collection container top, and read the indicated vacuum on the gauge. Adjust the vacuum control
until the required degree of vacuum is achieved. (Turning the knob clockwise 

increases the
vacuum). The SA unit is now set to operate at the selected vacuum.
3.5 External Filter
Warning! Never operate a SA suction unit without a MG Electric filter capsule.
The filter capsules are a sealed disposable bacterial or hydrophobic filter capsule. Both the bacterial
and hydrophobic filters have bacterial retention of 99.9999% ensuring safety and hygiene for patient
and operator. The 0.3 micron particle retention of the filter medium also gives not less than 99.985%
Dispersed Oil Particulate (D.O.P.) and so provides an effective barrier against possible aerosol
contamination. The hydrophobic filter also has an integrated micro porous membrane on the rear of
the filter medium which allows a clear flow of air through one way and an excellent block against any
accidental back flow the other. The external filters are fitted between the vacuum connector and the
filter capsule mount, and can be either a bacterial or hydrophobic filter. The connector, mount, and ‘O’

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 8 of 24
rings are autoclavable. However, the filter capsules are ‘Single Patient Use’ and must not be
autoclaved. The external filter must be changed with every patient and renewed in accordance with
the recommendations detailed in the ‘Daily Procedures’.
Warning! The filter capsules are made to withstand limited use and cannot be reused.
Reuse of such devices can be dangerous for both patient and operator.
3.6 Internal Filter
The SA unit must have fitted internally a hydrophobic filter capsule to prevent ingress of foreign
material into the pump. The hydrophobic filter prevents costly pump damage as well as additional
protection against contamination from liquids being sucked through due to jar overfill. Liquid sucked
through to the pump motor will cause damage and invalidate the warranty. The filter is disposable and
must not be autoclaved, but renewed in accordance with the recommended maintenance program.
Warning! A hydrophobic filter must be fitted internally to prevent liquid passing through to
the pump. Hydrophobic filters only work once and should be replaced
immediately it becomes wetted.

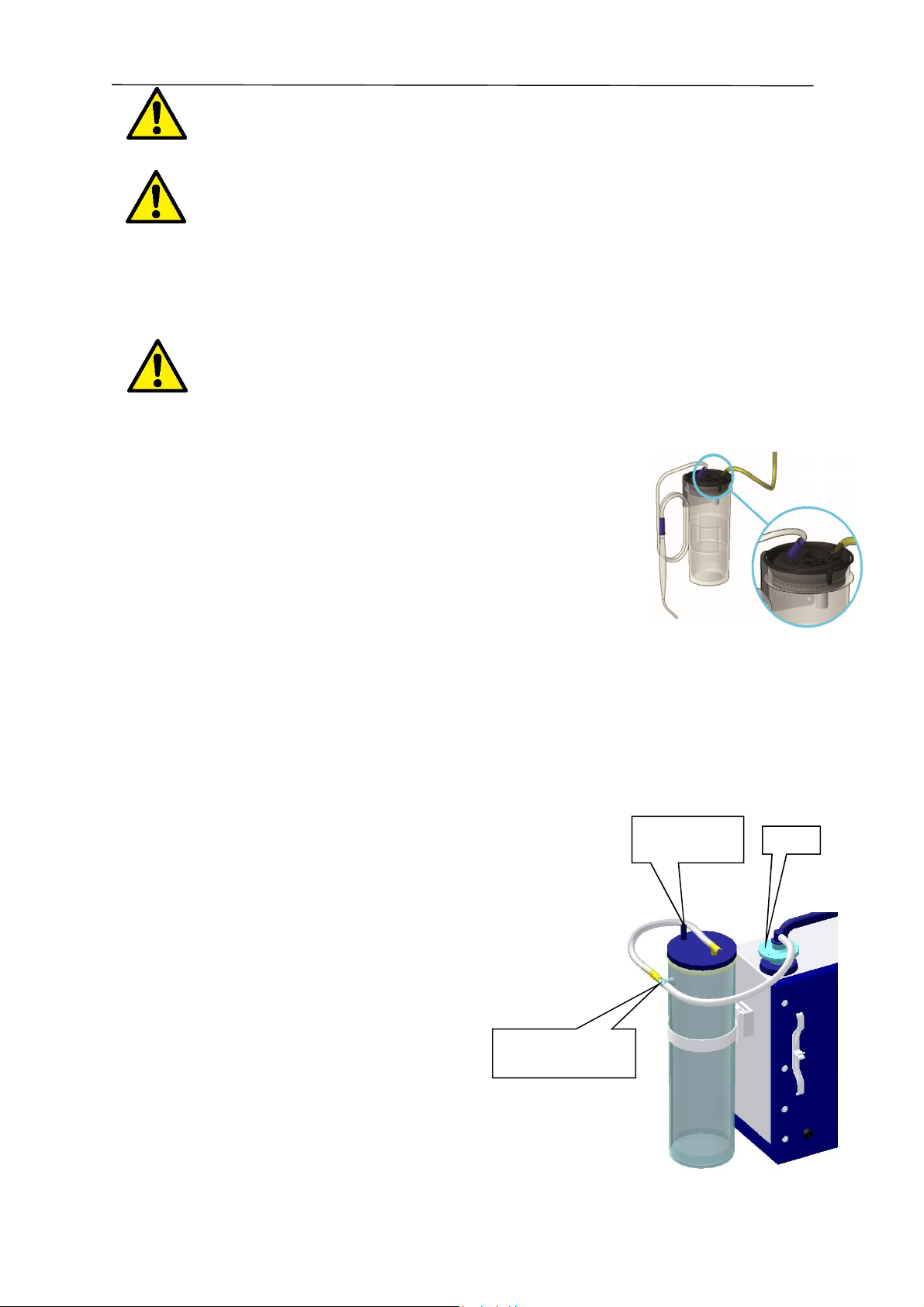

3.7 Fluid Collection Containers
The silicon service tube (∅6mm I/D with 3mm minimum wall thickness) must be connected between
the filter and the vacuum port on the collection container. The tube has an elbow connector on each
end for fitting to the filter and for fitting to the ‘VACUUM’ port of the SA 2 collection container. The
silicon tubing used in conjunction with this equipment is a replaceable item. It should be changed
regularly according to the level of usage and where it has become in any way contaminated or
damaged.
Warning! All collection containers must be securely mounted when in use.
An anti-foam agent may be put into the fluid collection container, without disinfectant solution, before
use to reduce the possibility of frothing. It should not however, be placed into the container for
extended storage periods.
3.7.1 SAM 2 Collection System
The SA 2 collection container is fitted as standard to all SA units. They are fully autoclavable
Polyester Carbonate (P.E.C.) collection containers, with integral handle and for IU applications, with a
wide bore. The container is connected to the SA unit via a moulded vacuum connector of the same
type as that fitted to the filter capsules.
•Place the collection container in the
bracket. Connect the tubing from the filter
to the angle connector in the centre of the lid.
•Connect the patient tube to the patient connection.
•Turn on the SA suction unit.
•Check the desired vacuum is established.
•After the suction procedure – disconnect the patient tube.
The SA 2 is fitted with an overflow valve designed to shut off the vacuum to the SA 2 collection
container when the fluid level reaches 1750ml. When the valve operates, the SA 12 and SA 15 units
must be switched off and the full container replaced by an empty one. The SA 14 and SA 16 have
two SA 2 collection containers and where appropriate the full container may be replaced by the
second container through operation of the changeover valve located on the top of the unit.
It should be noted that even after the valve has shut off, fluid might continue to be drawn into the
container to an extent dependent upon the level of vacuum in the container at the time when the valve
closes.
Patient
Connection
Filter
Angled
Connector
Angled
Connector

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 9 of 24
Warning! The overflow valve may not operate fully against frothing. To reduce frothing
anti-foam agent may be used.
Warning! When replacing a full collection container, be aware of its weight and ensure
handling the container is comfortable to avoid the possibility of spillage.
Transport of the SA unit with a full jar attached is not advised.
3.8 Disposable Liner Systems
The SA range has been designed to accept various disposable liner systems. When fitted,
protection of the unit against overflow is entirely dependent upon the correct use of the appropriate
liner in accordance with the manufacturers’ instructions.
Warning! No liability can be accepted by MG Electric for units affected by the occurrence
of overflow when Disposable Liner Systems are being used.
3.8.1 VacSax suction system
•Place liner into collection container and push firmly.
•Push the taper connector on the vacuum tubing from the
suction controller into the vacuum port with a twisting
motion.
•Connect the patient tubing firmly to the patient port to
ensure a good fit.
•Turn on the SA unit.
•Confirm suction is present at the patient tube by occluding
the patient tube end.
•After the suction procedure – disconnect the patient tube and fit stopper located on
rim into the port.
•Turn OFF the SA unit, and remove the liner for disposal.
The collection container may be sterilised by autoclaving at 121°C or by washing with water based
disinfectants. Before autoclaving, rinse the collection container well to remove any detergent.
3.8.2 Abbott Receptal Disposable Suction System
•Place the collection container in the bracket making
sure that the tee connection on the collection container
is tight. Fully extend the liner, and place it into the
collection container. Make sure that the liner is tightly
secured in the collection container.
•The liner incorporates an internal shut off valve, which
protects the vacuum source from contamination.
Connect the vacuum source tubing (from the filter) to
one side of the tee connection and the lid to the
other side using the ‘yellow to yellow’ coding.
•Connect the patient tube to the
patient connection, either directly
or by using the optional elbow
piece, which prevents kinking of
the patient tubing.
•Turn on the SA unit to inflate the liner and the
collection container is now ready for use.
•For maximum safety and to minimise the risk of
contamination when dismantling, the fluid level must not rise above the ‘DO NOT
FILL ABOVE THIS LINE’ mark on the collection container.
Tee Connection
Yellow to Yellow
Patient
Connection
Filter

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 10 of 24
•At the end of the procedure, the SA unit should remain switched on while the
patient suction tubing is removed from the patient port and discarded.
•Disconnect the liner lid tubing from the tee connection and immediately reconnect
the yellow connector to the patient port with a push and twist motion.
•Turn the vacuum off and use the thumb tab to remove the liner for disposal.
Warning! The liner lid tubing must not be used as a carry handle.

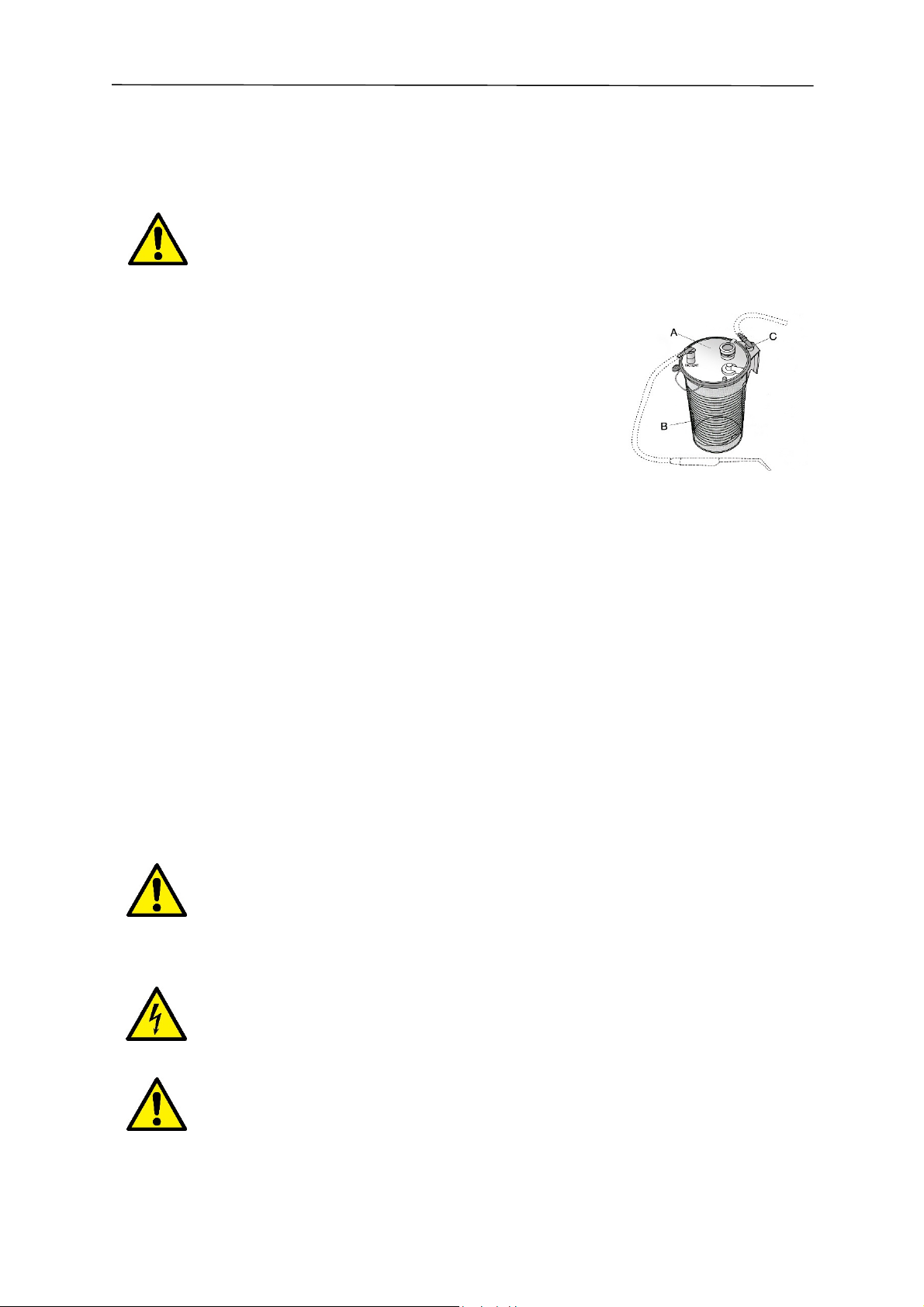

3.8.3 Serres Suction Bag System
•The system comprises the suction bag (A), the
collection container (B), and the angle connector (C).
•Place the collection container (B) in the bracket.
Connect the tubing from the SA filter to the angle
connector (C).
•Place the suction bag into the collection container
ensuring bag tail is not trapped between the lid and
collection container.
•Turn on the SA unit.
•Install the suction bag by using the vacuum – Occlude the patient connection and
simultaneously press lightly from the middle of the lid.
•Establish the desired vacuum and ensure the bag is fully inflated.
•Connect the patient tube to the patient connection.
•After the suction procedure – disconnect the patient tube and close the connection
with the plug provided on the lid.
•Turn OFF the SA unit, and remove the liner for disposal.
If necessary, the collection container only, may be washed (85°C) and autoclaved (121°C). Before
washing, disconnect the angle connector. If autoclaving, rinse the collection container well to remove
any detergent.
3.9 Effect of altitude
Altitude effects all vacuum pumps and it should be noted that there will be a reduction in the maximum
achievable vacuum / negative pressure level equivalent to approximately 3.5% per 300m
(approximately 1000ft) rise in altitude.
3.10 Cleaning Procedure
Warning! Contamination may be present on any components. When cleaning or
replacing any part of the SAM unit appropriate protective clothing and gloves
MUST be worn to avoid contamination. Disposal of contaminated parts must
be according to local protocols.
Warning! Always electrically isolate the SA unit from the mains power supply before
carrying out any cleaning, maintenance or repairs. Electrical isolation of the
SA unit is by removal of the mains power cable from the mains power supply.
Warning! Solvent-based cleaning agents or abrasive cleaners must not be used on any
SAM units. Do not wash any SAM units under running water or submerge in
water.
To clean the outside case of the SA suction unit, disconnect the unit from the power supply, wipe
over with a clean damp cloth or use an appropriate mild disinfectant solution. Following the
manufacturers’ instructions on cleaning product, and avoiding excessive moisture.

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 11 of 24
3.11 Transport
The SA unit will be adequately boxed and protected to ensure no damage occurs during normal
transportation of goods, providing the ambient conditions are within the following parameters:
Temperature max +60°C min -20°C Humidity max +80% min +30%
-20°C
There are no restrictions for land, air, or sea transport.
3.12 Storage
SA units must be stored in a dry, dust-free, well ventilated environment. The storage environment
should not exceed the temperature and humidity conditions stated below. Avoid direct sun or UV
exposure and shield nearby sources of heat. The equipment should be stored in its original
packaging providing no damage is evident. Protect against ground moisture by storing on a shelf or
wooden pallet.
Temperature max +60°C min -20°C Humidity max +80% min +30%
-20°C
3.13 Long Term Storage
When the units are held in storage, or used very infrequently, the three-monthly maintenance period
may be extended to twelve months. Particular care must be taken when inspecting flexible
components, such as valves, diaphragms, to ensure embrittlement has not occurred.
SA units should be stored in a cool, dry environment, as stated above.
3.14 Instructions by Medical Staff to Patients
When the equipment is required by a patient for home use, Medical Staff must fully instruct the patient
on the safe operation of the equipment. In the event of equipment contamination or failure, the patient
must be advised to switch off the unit and contact the authority from which the unit is loaned.
3.15 Troubleshooting
Problem: Cause: Solution:
No power to unit
Unit not turned on Turn Main Switch „ON/OFF” ON
Wrong operating voltage Check mains voltage output
Mains not connected Connect mains cable
Defective Fuse Check fuse and replace if
indicated
Pumps fail to run Leak in vacuum system Check all connection and tubing.
Collection Jar is full Replace Jar
Pump suction power too weak
Vacuum leaks Check all seals and hoses. Make
sure Lid is securely on Jar.
Vacuum not to required setting
Turn vacuum control clockwise
until the desired suction power is
reached
Tubing is plugged, bent and/or
disconnected
Replace tubing if plugged and
eliminate any bends
Internal hydrophobic filter is
blocked or wet
Replace internal hydrophobic
filter. – Must be done by EBME
If a problem cannot be solved, contact a fully trained and qualified engineer (EBME), authorized MG
Electric dealer or MG Electric ([e-mail]).

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 12 of 24
4. MAINTENANCE
Warning! Other than for routine daily procedures, any maintenance or repairs to MG
Electric products must be carried out by fully trained and qualified engineers
(EBME) or an authorized MG Electric dealer. Such persons are to be familiar
with the relevant standards, rules, accident prevention regulations, and
operating conditions as a result of their training, experience, and instruction.
They are qualified to carry out the required activities and in doing so recognize
and avoid potential hazards. All testing on SA units should be in accordance
with ISO 10079-1
Warning! No modification of this equipment is allowed.
Warning! Contamination may be present on any components. When cleaning or
replacing any part of the SA unit appropriate protective clothing and gloves
MUST be worn to avoid contamination. Disposal of contaminated parts must
be according to local protocols.
Warning! Any dismantling and re-assembly of this equipment - for whatever purpose -
must be followed by testing in accordance with the manufacturers’
recommendations as specified for Monthly maintenance.
Warning! Isolate the SA unit from the mains power supply before carrying out any
maintenance or repairs. Electrical isolation of the SA unit is by removal of the
mains power cable from the mains power supply.
4.1 Daily Procedures
•The external filter capsule should be changed after any of the following:
oEach day’s use.
oIf it becomes wetted by froth.
oAfter aspiration of any infective material.
oBefore being used on a new patient.
•Examine the collection container for damage. Replace if necessary.
•Examine the external tubing for ageing, damage, or contamination. Replace if
necessary using equivalent tubing (∅6mm I/D with 3mm minimum wall thickness).
Vacuum connector
to collection
container
External Filter
Filter Mount
External tubing

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 13 of 24
4.2 Monthly Maintenance
•Carry out the daily maintenance procedure.
•Check the vacuum and the flow at the collection container top.
•With the collection container empty and the vacuum control valve set to maximum,
switch on the unit and read the indicated vacuum on the gauge. Occlude the suction
inlet (Patient connection) on the collection container top and note the time taken for
the gauge to indicate an increase to 450mm Hg (60 kPa) vacuum. This time should
not exceed 10 seconds.
•The gauge should continue to rise and stabilise to indicate the maximum vacuum
available, and this should be not less than 590mm Hg (78.7 kPa).
•Replace the exhaust filters in the exhaust outlet housing located on the side of the
casing and marked ‘Exhaust Outlet’.
4.3 Three Monthly Maintenance
•Carry out the monthly procedure. Poor performance of the unit would indicate the
internal pump requires maintenance
Warning! Always electrically isolate the SA unit from the mains power supply before
carrying out any cleaning, maintenance or repairs. Electrical isolation of the
SA unit is by removal of the mains power cable from the mains power supply.
•Remove the back cover.
•Check the internal and external tubing for ageing or wear. Replace with equivalent
tubing where necessary. Tubing to gauge ∅5mm I/D, wall thickness min 2mm, all
other tubing on the SA unit ∅6mm I/D, wall thickness min 3mm.
Replace the hydrophobic filter. Details in section 0

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 14 of 24
•Replacing the Internal Hydrophobic Filter
•Check the internal wiring for ageing or wear. Replace with equivalent material and
terminations where necessary.
•Examine the mains cable for wear or damage and replace if necessary using
equivalent cable.
•Replace the back cover. Do not overtighten the rear cover fixings. (Recommended
torque 20 cNm)
•Examine the overflow valve float mechanism (SA 2) to ensure that this has free
movement.
•For SA 14 and SA 16 - Check the function of the changeover valve.
•Check the vacuum and flow performance at the collection container as previously
described

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 15 of 24
4.4 General Layout

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 16 of 24
4.5 Pump (If Required)
•Remove the pump from the SA unit.
•Remove the pump head from the pump casing and examine the diaphragm for signs
of wear.
•Check the balance within the connecting rod for excessive movement. Replace the
connecting rod and balance if necessary.
•Remove both pump head nozzles from the pump head.
•Remove the transfer valves.
•Clean the valve seats and check the valves for signs of wear.
•Replace any worn or damaged components as necessary and re-assemble.
•Replace the pump back into the SA unit and re-connect the internal tubing.
Note: Replacement kits are available to change an old LQ25 Pump with a new MQ25 Pump. Details
found in Options and Recommended Spares section.
MQ25 Pump Complete
230V 50/60H
Con-Rod
Assembly
Seal Kit
Pump Head
Connector Set

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 17 of 24
4.6 Replacing the Internal Hydrophobic Filter
Warning! A hydrophobic filter must be fitted internally to prevent liquid passing through to
the pump. Hydrophobic filters only work once and should be replaced
immediately it becomes wetted.
When replacing filters, particularly the hydrophobic filter, it is important to ensure the filter is connected
correctly to suit the direction of flow. The filters will only operate efficiently in one direction. The flow
diagram indicates the correct orientation installed in the pipework.
Hydrophobic Filter Installation
4.7 Replacing the Main Cable
Warning! Always electrically isolate the SA unit from the mains power supply before
carrying out any cleaning, maintenance or repairs. Electrical isolation of the
SA unit is by removal of the mains power cable from the mains power supply.
•Isolate the SA unit from the mains power supply!
•Detach the back panel to access the internal terminal block.
•Disconnect the brown and blue conductors of the cable from the terminal block, and
withdraw the cable.
•Fit the replacement cable through the access hole.
•Connect the conductors to their respective terminals (Blue to Blue and Brown to
Brown) in the terminal block. Provide sufficient length of cable between the gland
and terminal block.
•Fit the cable into the labyrinth.
•Ensure all conductors are fitted as the original.
•Check continuity of each circuit.
•If reconnection is correct - replace the back panel.
Small Inlet
Gauge Side
Large Inlet
Pump side

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 18 of 24
4.8 Flow Diagram
SA 12 and SA 15
SA 14 and SA 16

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 19 of 24
5. OPTIONS AND RECOMMENDED SPARES
5.1 Options
User Instruction Manuals are offered in English. Other languages are available on request.
SA
Model Electrical Specification Collection Jars Po er Cable Version
12 01 230Vac 50/60Hz 00 No Jar 01 UK 01 Static
14 02 110Vac 50/60Hz 01 SA 2 (2Ltr) 02 German 02 Mobile
15 03 4M Electric Cable 03 Abbott 03 French
16 04 Pennine 04 Spanish
05 SA 4 (4Ltr) 05 European
06 VacSax 06 Aus/NZ
07 Serres
08 Cardinal
Medline
09 Cardinal CRD
10 SA 2 Holder
11 MTP
13 Flo meter
Flovac
Example: SA 12 / 01 01 01 01
5.2 Recommended spares
Only original and approved spare parts must be used with all SA suction units – failure to use original
spares will invalidate the warranty and may cause injury and/or damage to unit.
All spares can be purchased by the user from MG Electric directly. Not all available spares are listed
below. Please contact the MG Electric sales team for a full list. ([e-mail])
It is recommended that only competent persons should undertake the replacement of spare parts.
5.2.1 Collection Container Components
2 litre Intra-Uterine collection container SAM 2 IU
Disposable bacterial filters – 24pk MSP1002
SAM 2 Bottle top assembly MSP1047
SAM 2 overflow valve – 10pk MSP1048
SAM 2 IU bottle top assembly MSP1071
Silicone tube (OD ∅12mm) – 25M MSP1156
SAM patient tubing – 2M MSP1351
Abbott collection container conversion kit MSP1146
5.2.2 Unit Components
Disposable hydrophobic filters – 24pk MSP1003
Elbow connector and ‘o rings – 10pk MSP1004
Exhaust filter – 10pk MSP1015

SA 12, SA 14, SA 15 and SA 16 – UK
Operation and Maintenance Manual
Manual 117 Issue 15 Page 20 of 24
Filter capsule mounts with ‘o’ rings and fixings – 10pk MSP1017
Handle with fixings MSP1027
2amp 20mm fuses – 10pk MSP1225
Power cable – 2M MSP1377
5.2.3 Pump Components
MQ25 Pump (Pump & motor 230V 50/60Hz) MSP1207
Motor 230V 50/60Hz MSP1208
MQ25 Pump head connector set MSP1209
MQ25 Pump head service kit MSP1211
MQ25 Consumable spares service kit MSP1212
MQ25 replacement for LQ25 (One Jar Option) MSP1235
MQ25 replacement for LQ25 (Two Jar Option) MSP1239
Con rod/diaphragm assembly MSP1259
5.2.4 Accessories
Mobile conversion kit MSP1147
Foot-switch conversion kit MSP1152
Bedside kit MSP1153
