Characteristics
General characteristics of Galaxy PW UPSs ......................................................... 4
UPS cubicles........................................................................................................... 5
Empty battery cubicles ............................................................................................ 5
Electrical parameters for selecting protective devices ............................................ 5
Normal AC source ............................................................................................. 5
Bypass AC source............................................................................................. 6
Recommended protection ....................................................................................... 7
Protection upstream of Galaxy PW................................................................... 7
Protection downstream of Galaxy PW .............................................................. 7
Electrical parameters for determining cable cross-sections.................................... 7
Installation
Positioning the cubicles .......................................................................................... 9
Floor load ................................................................................................................ 9
Cubicle layout on a false floor or a normal floor...................................................... 9
Power-circuit wiring diagrams ................................................................................. 10
Connection of power circuits ................................................................................... 12
UPS cubicle....................................................................................................... 12
Battery cubicle................................................................................................... 15
Connection through the top ............................................................................... 16
External bypass cubicle 150 kVA ...................................................................... 17
External bypass cubicle 360 kVA ...................................................................... 18
External bypass cubicle 600 kVA ...................................................................... 19
Connection of the hot-swap option.................................................................... 20
Galaxy PW cubicle with a built-in harmonic filter .............................................. 20
Galaxy PW cubicle with a built-in bypass AC source isolation transformer ...... 20
Bypass AC source isolation transformer in an auxiliary cubicle ........................ 21
THM filter........................................................................................................... 22
Connection of "Media Contacts 11" standard auxiliary circuits ............................... 23
Connection to battery circuit breaker "QF1" ...................................................... 23
Emergency power off ........................................................................................ 23
Connections between cubicles (parallel-connected configurations) ....................... 24
Connections between APOZ boards ................................................................. 24
Connections between MISI boards ................................................................... 24
Connections between UPS cubicles and the external bypass .......................... 25
Installation of communications options ................................................................... 25
Installation of boards ......................................................................................... 25
Passage of wires ............................................................................................... 25
Connection of the battery "Temperature Monitor"................................................... 26
Connections ...................................................................................................... 26
Installation of the "Temperature Monitor" in an MGE UPS SYSTEMS empty
battery cubicle ................................................................................................... 27
"Temperature Monitor" installation in a battery room ........................................ 27
Link to an IBM AS/400®computer........................................................................... 28
Connections ...................................................................................................... 28
Configuration of the AS/400
®
............................................................................. 28
Connection of the LED indications unit (optional) ................................................... 29
Final installation steps............................................................................................. 29

4 - E-51028231XU/BH
Cha acte istics
General characteristics of Galaxy PW UPSs
UPS power rating in kVA 20 30 40 50 60 80 100 120 160 200
Normal AC input
number of conductors 3 phases
rated voltage and tolerances 380 V or 400 V or 415 V ±10% (adjustable to ±15%)
rated frequency and tolerances 50 Hz or 60 Hz / ±10%
THDI with THM filter < 4%
power factor with THM filter up to 0,96
Bypass AC input
number of conductors 3 phases + neutral
rated voltage and tolerances 380 V or 400 V or 415 V / ±10%
rated frequency and tolerances 50 Hz or 60 Hz / ±10%
Load
number of conductors 3 phases + neutral
Ph/Ph voltages 380 V or 400 V or 415 V (according to setting)
Ph/N voltages 220 V or 230 V or 240 V (according to setting)
voltage fluctuations ±1%
adjustable frequency and tolerances
(on battery power) 50 Hz or 60 Hz ±0,05 Hz
synchronisation with bypass ±0,5 Hz (adjustable from ±0,25 Hz to ±2 Hz)
voltage variation for 0 to 100% load step change ±2% ((with battery)
permissible overloads 150% for 1 minute, 125% for 10 minutes
Isc Ph/Ph (% of I rated) 4.2 2.8 2.1 2.5 2.1 3.1 2.5 2.1 2.6 2.1
Isc Ph/N (% of I rated) 6.6 4.4 3.3 4 3.3 5 4 3.3 4 3.3
THDU Ph/Ph and Ph/N for linear load < 1,5% Ph/Ph, < 2% Ph/N
THDU Ph/Ph and Ph/N for non-linear load < 2% Ph/Ph, < 3% Ph/N
(at 80% of Pn) (1)
Battery
standard battery type gas-recombination sealed lead-acid battery
UPS characteristics
active power (kW) 16 24 32 40 48 64 80 96 128 160
efficiency at 50% load (%) 87.5 90.5 91.5 92.5 93 91 91.5 92 93 93.2
(values ±1%)
efficiency at 100% load (%) 91.5 92 91.5 93 92 92.5 92 91.5 92.8 92.5
(values ±1%)
heat losses (2) in KW 1.5 2.1 3.4 3.6 4.7 6.2 8.1 10.1 12.2 14.8
in cal./s 360 504 816 864 984 1488 1950 2420 2930 3550
storage temperature range -25 °C to +70 °C
operating temperature range 0 °C to 35 °C (40 °C for 8 hours)
relative humidity 95% maximum
maximum operating altitude without derating < 1000 meters
noise level (dBA) 58 58 58 60 60 62 64 65 67 68
dimensions (mm) width 715 1015 1215
depth 825
height 1400 or 1900 ±10 1900 ±10
weight (kg) (3) 450 450 450 490 490 800 800 800 1200 1200
recommended upstream earth-fault protection 1 A
standards design IEC 146
product ENV 50091
safety IEC 950, ENV 50091
protection IEC 521 (cubicles 1400 mm high = IP 21, cubicles 1900 mm high = IP 20)
electromagnetic compatibility IEC 62040, ENV 50091
(1): As per standards ENV 50091-3 / IEC 62040-3.
(2): The losses indicated are those produced at full rated load with the battery float charging. They must be taken into account when sizing the ventilation system.
(3): Not including any built-in options, such as harmonic filters or a bypass AC-source isolation transformer.

E-51028231XU/BH - 5
Empty battery cubicles Characteristics of empty battery cubicles
Cubicle width Cubicle height Cubicle depth Maximum weight (1)
in mm in mm in mm in kg
715 1400 ±10 825 145
1900 ±10 825 180
1015 1400 ±10 825 185
1900 ±10 825 230
Electrical parameters for selecting protective devices
Normal AC source
The parameters given in the table
opposite can be used to determine the
required rating of the upstream
protective circuit breaker on the normal
AC input for one single-UPS or parallel-
UPS unit, a unit in economy mode or a
frequency converter.
Important:
It is essential to choose the type of
circuit breaker according to its breaking
capacity and the prospective short-
circuit current at its place of installation
(see Schneider Electric LV
documentation).
Note:
For normal AC source power supply
voltages of 380, 400 and 415 V, the
normal AC source current is the same
because it is a function of the DC
voltage.

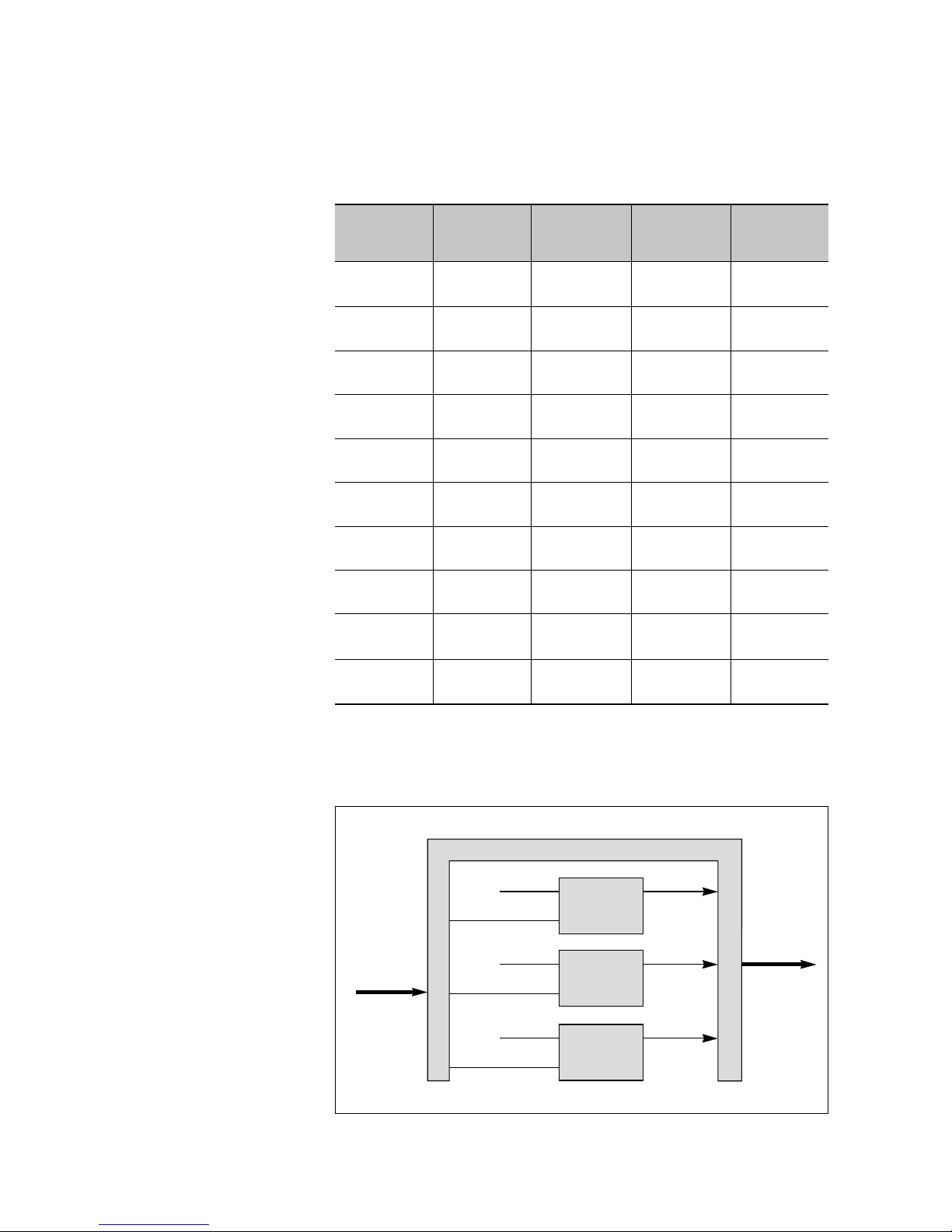

Electrical parameters for the normal AC source
Rated Current normal AC source
UPS Rated current In for unit: for 25% for 50%
output with battery at start without battery (2) overload (3) overload (3)
in kVA of charge cycle (1)
20 36 33 41 50
30 53 49 62 74
40 71 66 83 100
50 88 83 103 124
60 107 100 125 150
80 142 133 166 200
100 179 166 208 249
120 214 199 249 299
160 282 262 329 397
200 358 329 414 501
UPS cubicles
Cha acte istics (cont.)

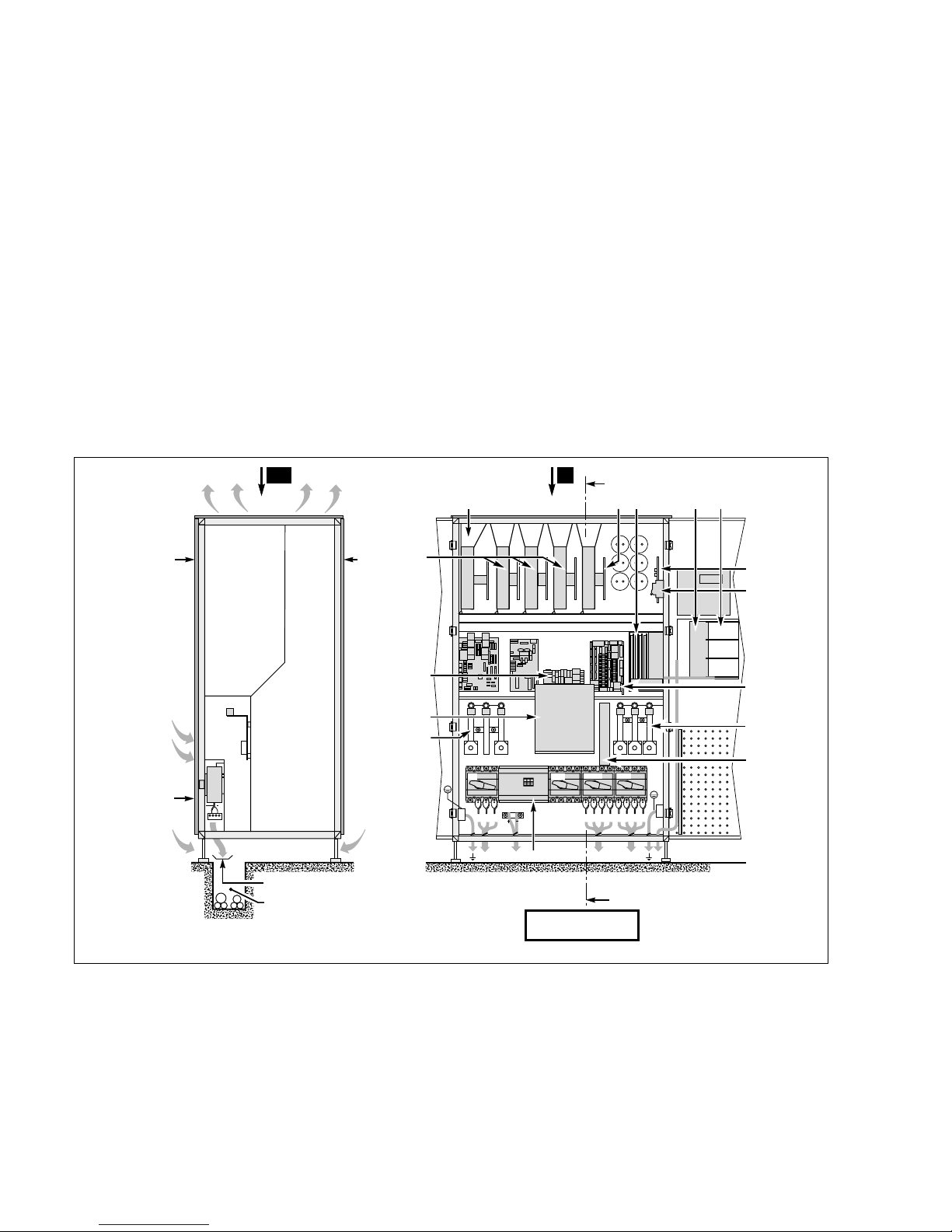

◗the cubicles are cooled by forced
ventilation. The air enters via the doors
and grids at the bottom and is
discharged through the back, or
through the roof for the 1900 mm high
cubicles (except the 160 and 200 kVA
units from which the air is discharged
through the roof only, which means the
cubicles can be positioned against the
back wall).
◗connections are made through the
bottom. Connections through the top
are available on option for all 1900 mm
high cubicles (except the 160 and
200 kVA units).
◗the connection cables may be run in
three ways:
◗in a trench running under the
cubicles,
◗under a false floor,
◗on the floor under the cubicles, in the
free space equal to the height of the
feet; in this case the cables should be
run side by side to avoid blocking the
flow of air for ventilation;
◗the cables for connections between:
◗the battery and UPS cubicles (power
and control cables);
◗the bypass AC-source transformer in
an auxiliary cubicle and the UPS
cubicle can be supplied on option.
Layout must comply with figures 5, 6
and 7. The other power cables for
connections between cubicles are not
supplied.
◗only the wires for the intercubicle
control connections between parallel-
connected UPS units are supplied;
◗the cubicle doors are secured by
SOUTHCO locks (key CH751).
(1) the indicated weights are for the empty
cubicles, without the batteries because the total
battery weight may vary widely.
(1) the rated normal AC source currents (In) have
been determined for a rated phase-to-phase
voltage of 400 V, a battery with a 10 minute
backup time at the beginning of its charge with 206
cells at 2 Volts per cell (412 Volts) and full rated
load with a power factor of 0.8.
(2) The rated normal AC source currents (In) have
been determined for a minimum float charging
voltage of 423 V and full rated load with a power
factor of 0.8.
(3) the normal AC source currents given for an
overload of 25% or 50% are maximum values.
They have been determined for a battery with
minimum float charging voltage and a load power
factor of 0.8. When choosing the circuit breaker
rating, use the "rated current" column and check
that the circuit breaker tripping curves are
compatible with the values in the overload
columns.

6 - E-51028231XU/BH
Electrical parameters for bypass AC source (415 V)
Rated UPS Current bypass AC source (1)
output in kVA Rated current for 25% for 50%
In overload overload
20 29 36 43
30 43 53 64
40 58 73 87
50 72 90 108
60 87 108 130
80 116 145 174
100 144 180 216
120 174 218 261
160 231 289 347
200 289 362 434
Bypass AC source
The parameters given in the table
opposite can be used to determine the
required rating of the upstream
protective circuit breaker on bypass AC
input.
Important:
It is essential to choose the type of
circuit breaker for bypass AC input
according to its breaking capacity and
the prospective short-circuit current at
its place of installation (see Schneider
Electric LV documentation).
This choice must also be made so as to
protect the static-switch
semiconductors with respect to the
maximum permissible currents (see
table opposite) and ensure
discrimination between the UPS output
fuses (see the fuse curves in figures 1
and 2) and the downstream protection
devices.
Remark:
If the installation includes a transformer
on the bypass AC input, allow for the
inrush current caused by magnetisation
of the transformer windings.
UPS output Maximum permissible current
in kVA
20 43 In for 20 ms
30 29 In for 20 ms
40 21 In for 20 ms
50 20 In for 20 ms
60 16 In for 20 ms
80 27 In for 20 ms
100 21 In for 20 ms
120 18 In for 20 ms
160 23 In for 20 ms
200 19 In for 20 ms
(1) the bypass AC source currents have been
determined for a rated phase-to-phase voltage of
400 V, a load power factor of 0.8 and for full rated
load as well as overloads of 25% or 50%. When
choosing the circuit breaker rating, use the "rated
current" column and check that the circuit breaker
tripping curves are compatible with the data in the
overload columns.
For a bypass AC source voltage of 380 V, multiply
the currents indicated in this table by 1.09.
For a bypass AC source voltage of 400 V, multiply
the currents indicated in this table by 1.04.

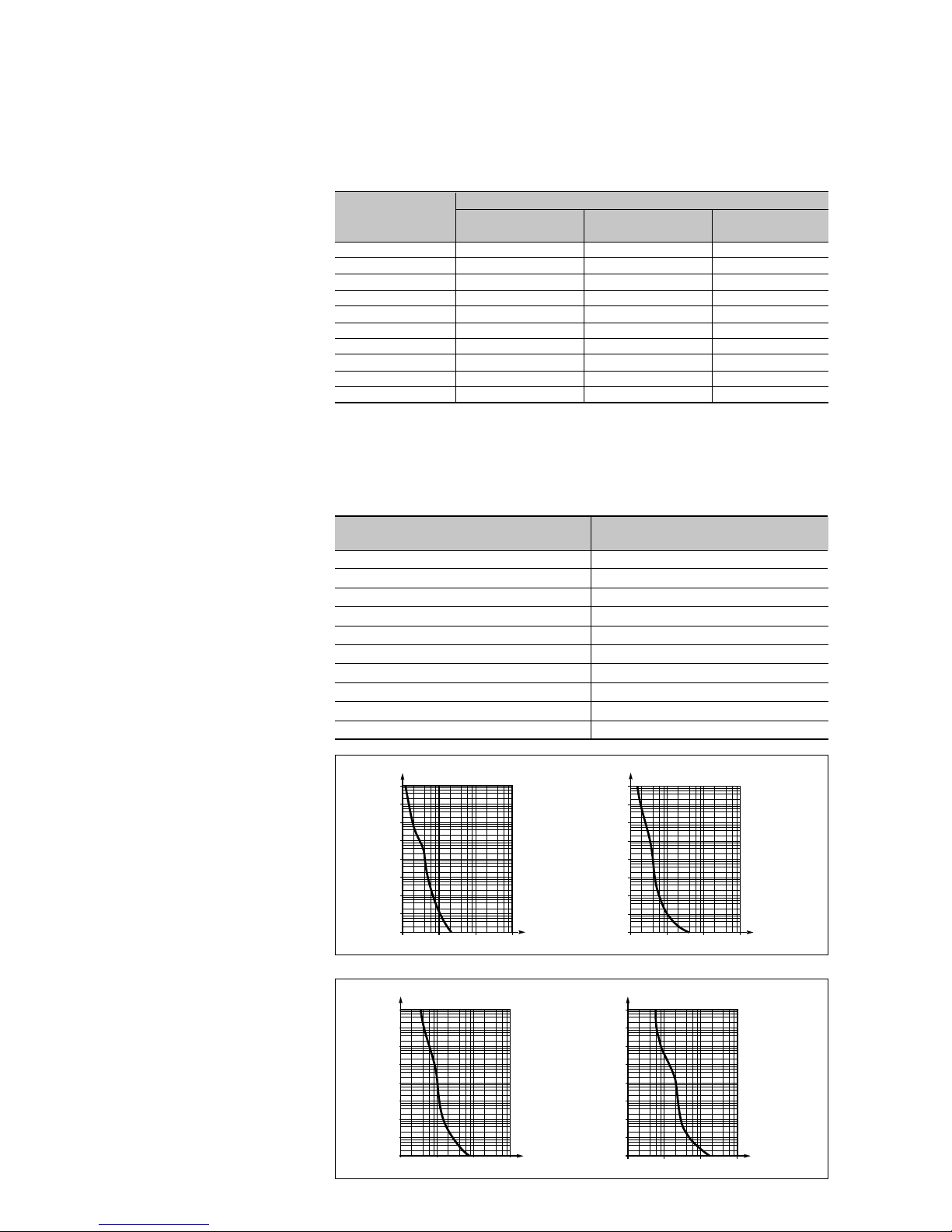

Fig. 1
Fig. 2
104
t(s)
I(A)
Galaxy PW 20 - 30 - 40 kVA
103
102
101
1
10-1
10-4
10-3
10-2
102103104
Galaxy PW 50 - 60 kVA
104
t(s)
I(A)
103
102
101
1
10-1
10-4
10-3
10-2
102103104
Galaxy PW 160 - 200 kVA
10
4
t(s)
I(A)
103
102
101
1
10-1
10-4
10-3
10-2
102103104
Galaxy PW 80 - 100 - 120 kVA
10
4
t(s)
I(A)
103
102
101
1
10-1
10-3
10-2
102103104
10-4
Cha acte istics (cont.)

E-51028231XU/BH - 7
Electrical parameters for determining cable cross-sections
Cha acte istics (cont.)
◗this table has been drawn up for
rated phase-to-phase AC source and
load voltages of 400 V. For voltages of
380 V or 415 V, multiply the currents for
the bypass AC source and the load by
1.05 and 0.96 respectively;
◗the current values and cable cross-
sections for the normal AC source are
given for full rated load with a power
factor of 0.8 and a battery consuming
its minimum float charging voltage.
◗the battery current values and cable
cross-sections have been determined
for a battery at the end of discharging;
◗the current values and cable sections
for the bypass AC source and load are
given for full rated load with a power
factor of 0.8.
For frequency converters, the
parameters concerning the bypass AC
source are not applicable.
Parameters for cables for a single-UPS unit
Rated UPS Line currents absorbed in Amps Cross-sectional area of Cu cables in mm2(2)
output Normal AC source 400 V Battery Normal AC source 400 V Battery
in kVA with or bypass AC with or without battery bypass AC
without battery (1) source and load source and load
20 33 29 52 16 16 16
30 49 43 72 25 25 25
40 66 58 103 35 35 35
50 83 72 128 50 35 50
60 100 87 154 50 50 70
80 133 116 205 95 or 2x50 70 95 or 2x50
100 166 144 256 95 or 2x50 70 2x70
120 199 174 308 95 or 2x50 70 2x70
160 262 231 410 95 95 2x95
200 329 289 512 120 120 2x95
(1) The rated normal AC source currents (In) have
been determined for a minimum float charging
voltage of 423 V and full rated load with a power
factor of 0.8.
(2) the cable cross-sections are given for copper
conductors (increase by 30% for aluminium
conductors). They are calculated according to
permissible temperature rise and allow for line
voltage drops over a maximum length of 100 m
(AC circuits) or 25 m (DC circuits if cables not
Recommended protection
provided). For greater lengths, the cross-sections
should be chosen to limit voltage drops to 3% (AC)
or 1% (DC).
protection upstream of
Galaxy PW
The information provided here is purely
indicative, for a single-UPS unit
supplied by a 380 to 415 V, 50 to 60 Hz
distribution system. Check that all the
criteria mentioned in the previous
section are taken into account (short-
circuit current and protection of the
static-switch semiconductors on the
bypass AC input).
Ratings of recommended protection devices upstream of a single-UPS unit
(Merlin Gerin circuit breakers)
Rated UPS Circuit breaker on normal Circuit breaker on bypass
output AC input AC input
in kVA Circuit breaker Control unit Circuit breaker Control unit
20 NS 100N 3P TM 63D NS 100N 4P TM 63D
30 NS 100N 3P TM 63D NS 100N 4P TM 63D
40 NS 100N 3P TM 80D NS 100N 4P TM 80D
50 NS 100N 3P TM 100D NS 100N 4P TM 100D
60 NS 125E 3P TM 125D NS 125E 4P TM 125D
80 NS 160N 3P TM 160D NS 160N 4P TM 160D
100 NS 250N 3P TM 200D NS 250N 4P TM 200D
120 NS 250N 3P TM 250D NS 250N 4P TM 250D
160 NS 400N 3P STR 23 SE NS 400N 4P STR 23 SE
200 NS 400N 3P STR 23 SE NS 400N 4P STR 23 SE
Protection downstream of
Galaxy PW
These protection devices ensure
discrimination for each of the Galaxy
PW output circuits. If the recommended
downstream protection is not installed
and a short-circuit occurs, the result
may be a break longer than 20 ms on
all the other output circuits.
Ratings of recommended protection devices downstream of a single-UPS unit
(Merlin Gerin circuit breakers)
Rated UPS Downstream circuit
output breaker(s)
in kVA Circuit breaker Control unit
20 to 40 kVA C60N C 10A
B 20A
50 to 60 kVA C60N C 20A
B 32A
80 to 120 kVA C60N C 50A
NC100 B 63A
160 to 200 kVA NC100 C 63A
B 100A

8 - E-51028231XU/BH
Parameters for bypass AC source and load cables for a parallel UPS
configuration
Rated unit Number of Total UPS Bypass AC Cable cross-
output parallel- rated output source or load section (1)
in kVA connected in kVA line current in mm2
units in Amps
20 2 405835
3 608750
4 80 116 50
30 2 608650
3 90 129 70
4 120 172 70
40 2 80 116 50
3 120 174 70
4 160 232 120
50 2 100 144 70
3 150 216 95
4 200 288 150
60 2 120 174 70
3 180 261 120
4 240 348 185
80 2 160 232 120
3 240 348 185
4 320 464 2x95
100 2 200 288 150
3 300 432 185
4 400 576 2x120
120 2 240 348 185
3 360 522 2x120
4 480 696 2x150
160 2 320 462 2x95
3 480 693 2x150
4 640 924 3x120
200 2 400 578 2x120
3 600 866 2x185
4 800 1155 3x185
(1) cable cross-sections are given for copper
conductors of the U1000 R02V type (increase by
30% for aluminium conductors). They are
calculated according to permissible temperature
rise and allow for line voltage drops over a
The table opposite serves as an
example for a parallel-connected
installation comprising up to four UPS
units.
◗for installations with redundant units,
take into account only the units
required to supply the load power (e.g.
for an installation made up of 3 parallel-
connected UPS units, one being
redundant, only 2 UPS units are used
to determine bypass AC source and
load currents and cable cross-
sections);
◗this table has been drawn up for
rated phase-to-phase bypass AC
source and load voltages of 400 V and
full rated load with a power factor of
0.8. For voltages of 380 V or 415 V,
multiply the indicated currents by 1.05
and 0.96 respectively, then modify the
cable cross-sections accordingly, if
necessary.
The cable cross-sections in this table
concern the parts illustrated in bold in
the simplified diagram in figure 3,
where:
1: normal AC source,
2: bypass AC source,
A: external bypass.
maximum length of 100 m. For greater lengths, the
cross-sections should be chosen to limit voltage
drops to 3%.
Fig. 3
A
2
1
2
1
2
1
2Galaxy 2
Galaxy 3
Galaxy 1
Cha acte istics (cont.)

E-51028231XU/BH - 9
Installation
(qual f ed personnel only)
Positioning the
cubicles
◗prior to moving the cubicles to their
final position, remove the packing
material and the base panels which
were shipped on top of the cubicle. The
panels will be installed at the end of the
installation procedure;
◗after moving them to their installation
location on their pallets, cubicles can
be moved short distances using a
forklift or pallet-mover when the front,
rear and side base panels are not
mounted. The forks can be inserted
from all four sides into 100 mm ±10 mm
high openings;
◗adjust the front foot pads to make the
cubicle vertical and align the
subsequent cubicles.
Note:
Dispose of packing materials in
compliance with applicable legislation.
Floor loads
See figure 4, where:
A: the rear panel of the cubicle,
B: the width of the cubicle, minus
139 mm (see page 5),
C: the four foot pads (diameter
40 mm),
D: the front panel of the cubicle.
◗to determine the stresses applied by
the cubicle on the floor, divide the
cubicle weight (see the first 3 tables of
this manual) by the total area of the 4
footpads (50 cm2).
Fig. 4
Cubicle layout on a false floor or a normal floor

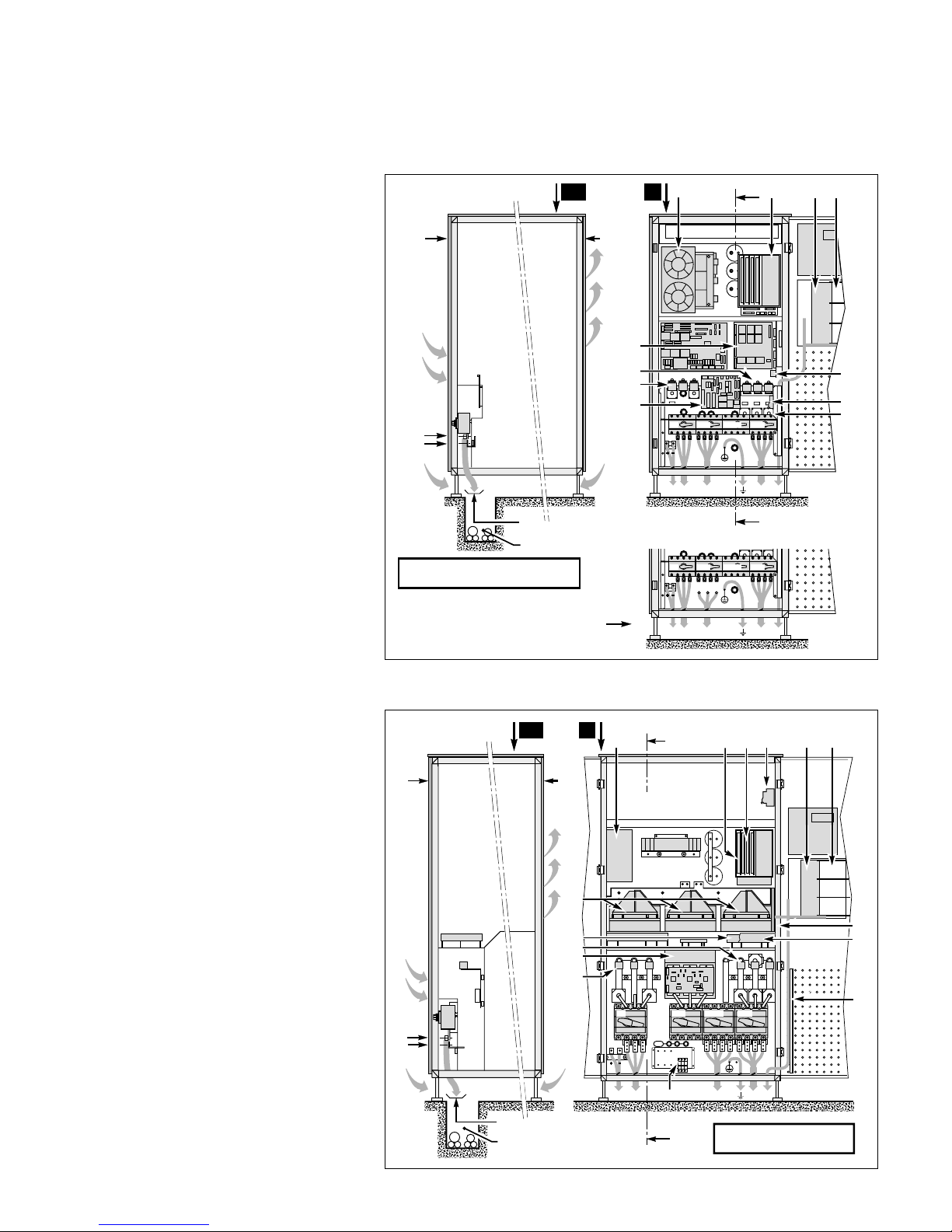

◗see figure 5 for a single-UPS Galaxy
PW unit with a single battery cubicle;
◗see figure 6 for a single-UPS Galaxy
PW unit with several battery cubicles;
◗see figure 7 for two parallel-connected
Galaxy PW units with battery and
auxiliary cubicles.
◗an overall clearance of 400 mm must
be left above the entire surface of the
cubicles for ventilation;
◗in rooms with unrestricted access,
install a fire-protection system under
the UPS cubicle.
Key for figures 5 to 7:
A: the width Wof the cubicle (see the
table in the Characteristics section
on page 5),
B: the openings to be made for cables
coming up through a false floor:
65 x 430 mm for 20 to 60 kVA UPS,
200 x (L-160) mm for 80 to 200 kVA
UPS,
C: the position of a trench under the
cubicles, if applicable,
D: front of cubicles
E: back of cubicles
1: the battery cubicle containing circuit
breaker QF1,
2: a second battery cubicle,
3: the UPS cubicle,
4: an auxiliary cubicle, if applicable.

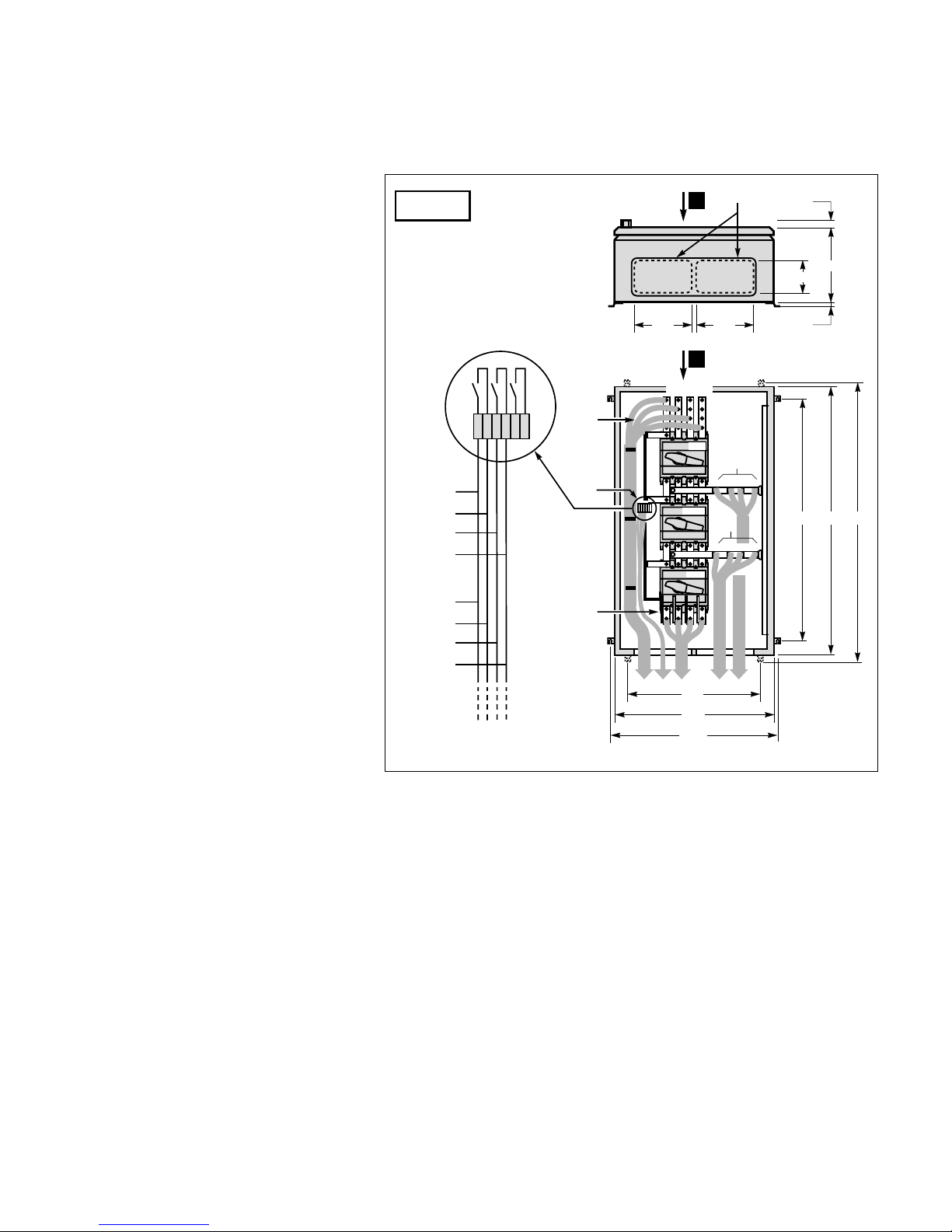

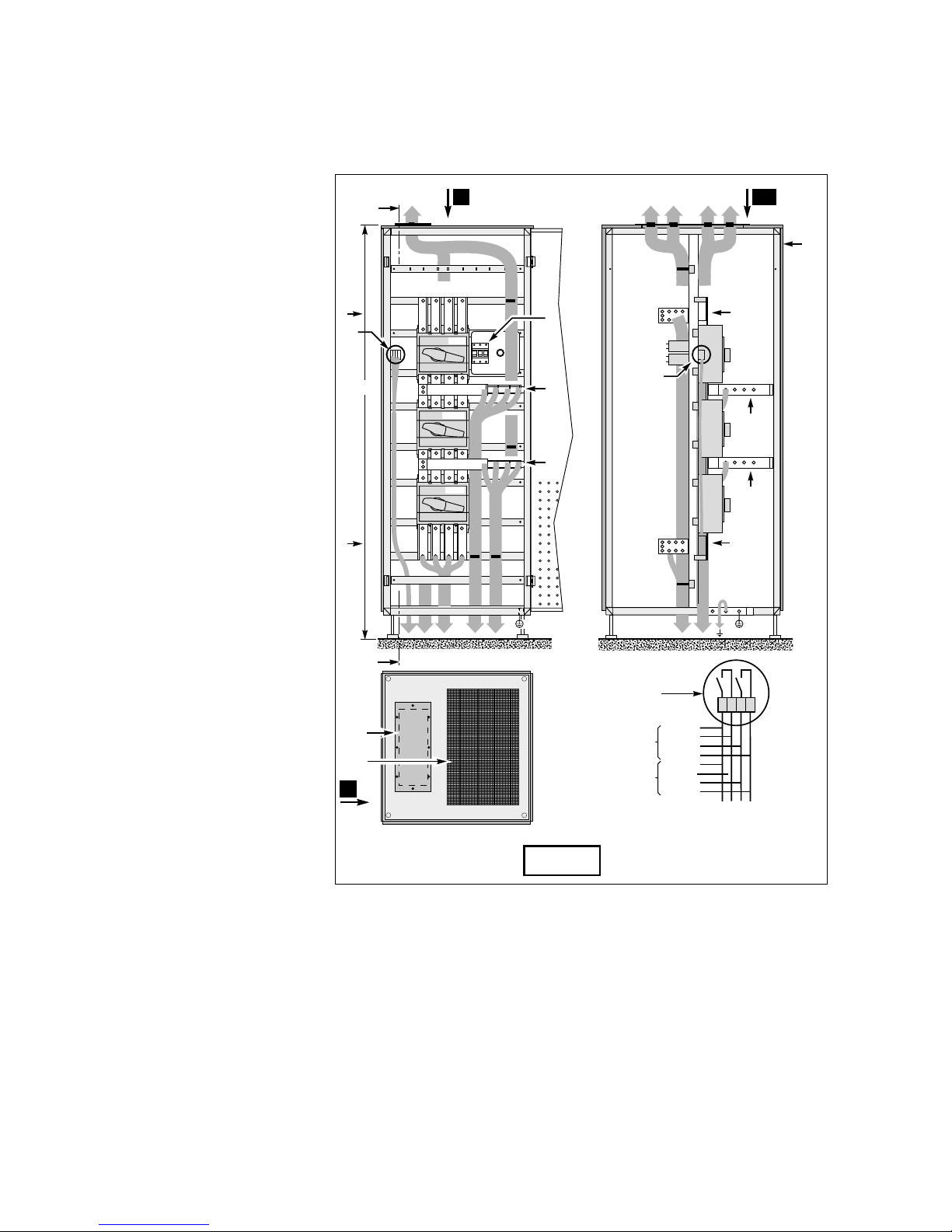

Fig. 5 Fig. 6
Fig. 7
69,5
676
B
C
82
6767
82
69,5
A
D
413413
E
D
213
E
D
(*) : ◗The Galaxy PW 20 to 120
kVA must be installed at a
distance of at least 250 mm
from a wall
◗Galaxy PW 160 and 200 may be
positioned against a wall;
◗It is advised that, whenever
possible, the units be installed at a
distance of 400 mm from a wall, in
order to facilitate their inspection
during preventive maintenance.
(*)
1
A
80 825
> 850
A
3
BC
E
D

10 - E-51028231XU/BH
2
1
C
B
A
Q4S
D+–+–E
F
QF1
Q1 Q5N
Galaxy PW
F
G
Q3BP
Power-circuit wiring diagrams
The single-wire diagrams for typical
UPS installations are given in figures 8
to 11. The heavy lines represent the
cables that must be connected (see the
table in the previous chapter for the
required cross-sectional areas of the
cables).

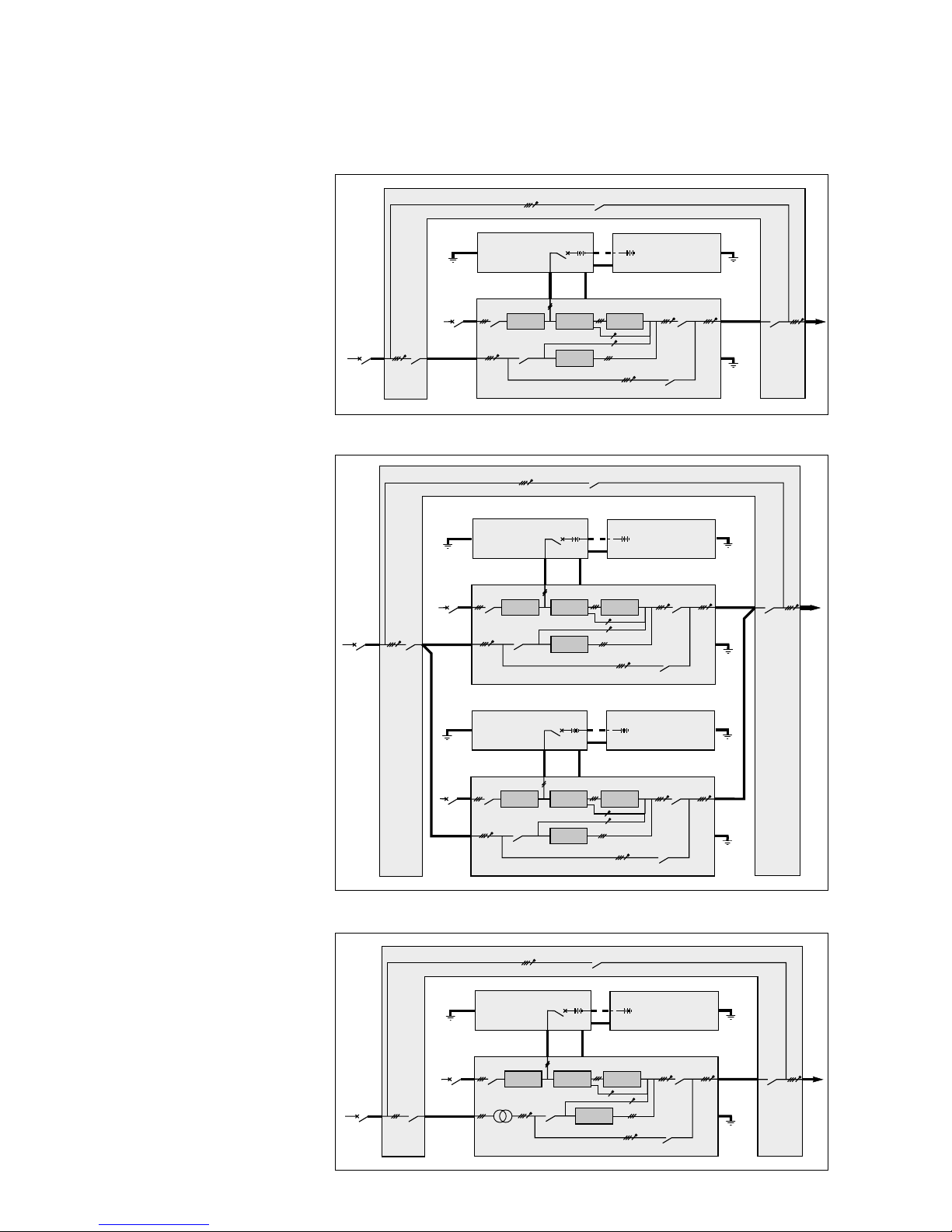

◗ see figure 8 for a single-UPS
Galaxy PW unit;
◗see figure 9 for a two parallel Galaxy
PW units combined for redundancy.

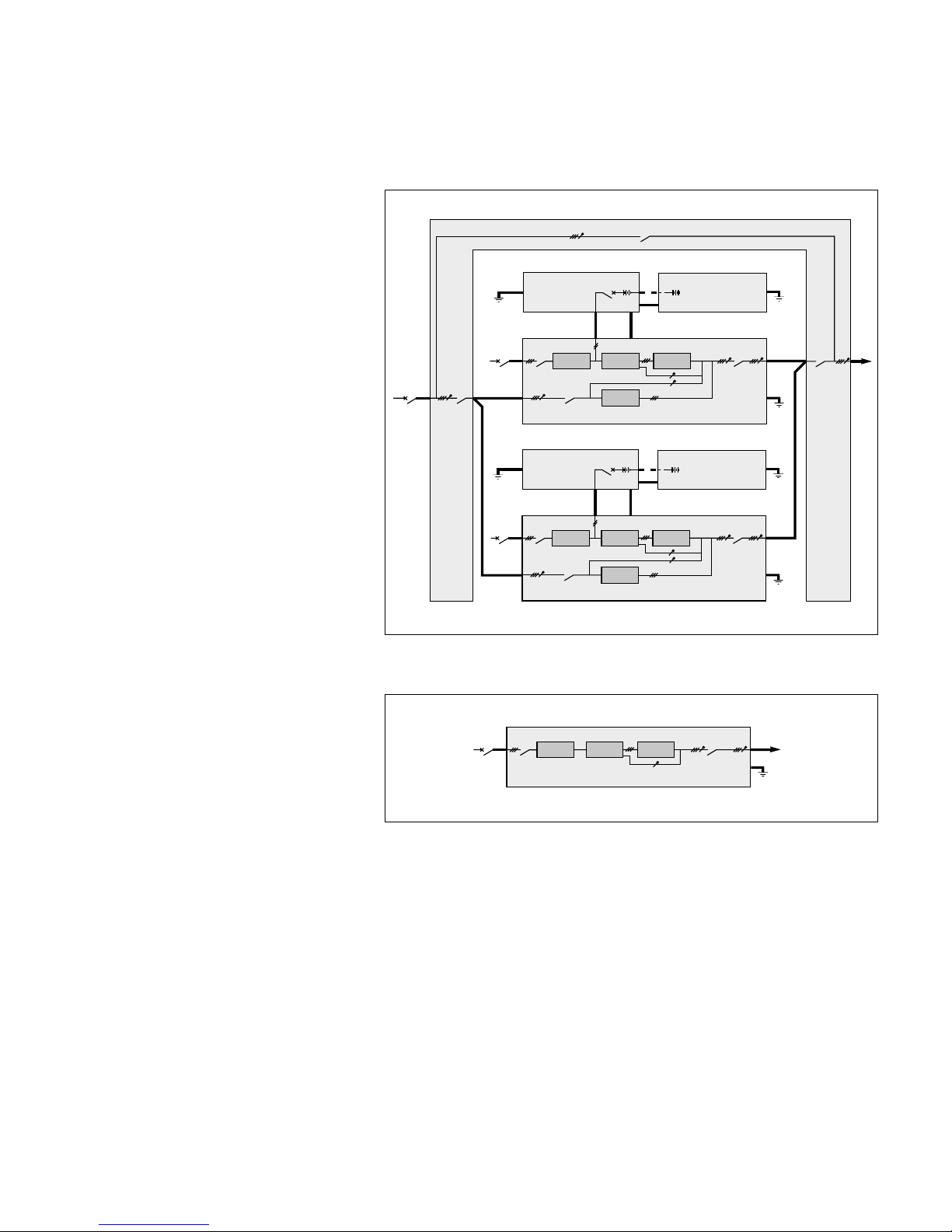

◗see figure 10 for a two parallel Galaxy
PW units combined for higher output;
◗see figure 11 for a Galaxy PW
frequency converter without a battery;
Key for figures 8 and 9:
1: normal AC source,
2: bypass AC source,
A: the rectifier/charger module,
B: the inverter module,
C: the static-bypass module,
D: the battery cubicle next to the
Galaxy PW UPS cubicle,
E: any additional battery cubicles,
F: the equipotential-bonding
connection between cubicles,
G: K3N contactor or output static-
switch module.
Fig. 8
Fig. 9
2
1
C
B
A
Q4S
D+–+–E
F
QF1
Q1 Q5N
Galaxy PW
F
G
2
1
C
B
A
Q4S
D+–+–E
F
QF1
Q1 Q5N
Galaxy PW
F
G
2
Q3BP
Q3BP
Galaxy PW single-UPS unit
Galaxy PW parallel connection for redundancy
Installation (cont.)
(qual f ed personnel only)

E-51028231XU/BH - 11
Key for figures 9 and 10:
1: normal AC source,
2: bypass AC source,
A: the rectifier/charger module,
B: the inverter module,
C: the static-bypass module,
D: the battery cubicle next to the
Galaxy PW UPS cubicle,
E: any additional battery cubicles,
F: the equipotential-bonding
connection between cubicles,
G: K3N contactor or output static-
switch module.
Fig. 11
Fig. 10
2
1
C
B
A
Q4S
D+–+–E
F
QF1
Q1 Q5N
Galaxy PW
F
G
2
1
C
B
A
Q4S
DE
F
QF1
Q1 Q5N
Galaxy PW
F
G
2
Q3BP
Q5N
Q4S
+–+–
1
B
A
Q1 Q5N
Galaxy PW
G
Galaxy PW parallel connection for greater capacity
Galaxy PW frequency converter without a battery
Installation (cont.)
(qual f ed personnel only)

12 - E-51028231XU/BH
Connection of power circuits
Before making connections,
check that switches Q1, Q4S,
Q3BP, Q5N and QF1 are in the
"open" position.
General:
Remark. See page 4 for information on
the supplied cables and wires.
◗open the doors and remove the lower
terminal shields (secured by screws to
the cubicle chassis) of the UPS
cubicles;
◗connect the power cables;
◗each cubicle must be earthed;
◗all the cubicles must be
interconnected for equipotential
bonding, forming a mesh which is itself
connected to the building structure and
earthing electrode;
◗the connection drawings hereafter
show the cubicles with doors open and
terminal shields removed.
Important:
For parallel UPSs with an external
bypass unit, the power connections
between each UPS cubicle and the
external bypass unit must imperatively
be of the same length.
Outside the cubicles, separate the
auxiliary wiring from the power cables.
UPS cubicle
See figure 12 for 20 to 60 kVA units,
and figure 13 for 80 to 120 kVA units,
and figure 14 for 160 to 200 kVA units.
Battery + and - cables are connected
by lugs on 8 mm diameter pins for 20 to
120 kVA units, or by lugs on 12 mm
diameter holes for 160 to 200 kVA
units.
Normal/Bypass AC input and load
cables are connected by tunnel
terminals to the 20 to 60 kVA units, or
by lugs on 10 mm diameter holes to the
80 to 120 kVA units.
Elevation of connections from ground
for 20 to 60 kVA units:
◗normal/bypass AC input and load: 310
mm;
◗battery: 280 mm.
Elevation of connections from ground
for 80 to 120 kVA units:
◗normal/bypass AC input and load: 340
mm;
◗battery: 310 mm.
Elevation of connections from ground
for 160 to 200 kVA units:
◗normal/bypass AC input and load: 410
mm;
◗battery: 410 mm.
Installation (cont.)
(qual f ed personnel only)

E-51028231XU/BH - 13
1, 2, E
F
D
C
H
G
G
I
J
H
F
L1L2L3N
E
L1 L2 L3
1
KNOP
2
L
M
A
A
W
S
M
R
G
Q
V
Y
T
U
BAA
80 - 100 - 120 kVA
Q1 Q4S Q5NQ3BP
X
L1L2L3N
Fig. 12
Key to figures 12 and 13:
AA: cross-sectional view of the cubicle,
B: front view of the cubicle,
C: front panel,
D: rear panel,
1: normal AC input connection,
2: bypass AC input connection,
E: load connection,
F: battery connection,
G: air inlets,
H: air outlets,
I: cable exit through the bottom,
J: trough, if applicable,
K: rectifier/charger module,
L: inverter module,
M: static-bypass module,
N: rack containing electronic boards,
O: Media Contacts 11 board,
P: slot for communications boards,
Q: FUE input fuses,
R: FUS output fuses,
S: ETOI board (20 to 60 kVA UPS) or
RELI board (80 to 200 kVA UPS),
T: APOZ board,
U: MISI board,
V: modem socket switch,
W: trough (20 to 60 kVA) or binding bar
(80 to 200 kVA) for fine wiring,
X: fuses for overvoltage protection RC
circuit on bypass,
Y: control-wire connection (auxiliary
"Media Contacts 11" circuits and
communications options).
Notes:
Figure 12. Switch Q3BP does not exist
in parallel Galaxy PW cubicles
interconnected for greater capacity.
Figure 13. Switch Q3BP and "X"
(protection fuses) do not exist in
parallel Galaxy PW cubicles
interconnected for greater capacity.
The bypass AC source ("2") connects
to switch Q4S.
Fig. 13
Installation (cont.)
(qual f ed personnel only)
Q1 Q5N
L1L2L3N
L1
L2
L3
Q4S
L1L2L3N
Q3BP
A
S
R
O P
T
U
N
W
V
BAA
20 - 30 - 40 - 50 - 60 kVA
C
G
1, 2, E
F
G
H
H
D
G
FE
12Y
K, L, M
A
Q
I
J
Q1 Q5N
L1L2L3N
L1
L2
L3
Q4S
L1 L2 L3
Q3BP
FE
12Y
Galaxy PW cubicle with built-in
bypass AC-input isolation
transformer (option)

14 - E-51028231XU/BH
H
G
G
H
FE
1
P
2
G
Y
160 - 200 kVA
Q1 Q4S Q5NQ3BP
L1L2L3
N
L1L2L3 L1L2L3
N
M
Q
S
L
A
B
MN
T
W
U
R
A
X
J
I
1, 2, E,F
D
C
AA
K
V
O
Key to figure 14:
AA: cross-sectional view of the cubicle,
B: front view of the cubicle,
C: front panel,
D: rear panel,
1: normal AC input connection,
2: bypass AC input connection,
E: load connection,
F: battery connection,
G: air inlets,
H: air outlets,
I: cable exit through the bottom,
J: trough, if applicable,
K: rectifier/charger module,
L: inverter module,
M: static-bypass module,
N: rack containing electronic boards,
O: Media Contacts 11 board,
Fig. 14
P: slot for communications boards,
Q: FUE input fuses,
R: FUS output fuses,
S: ETOI board (20 to 60 kVA UPS) or
RELI board (80 to 200 kVA UPS),
T: APOZ board,
U: MISI board,
V: modem socket switch,
W: trough (20 to 60 kVA) or binding bar
(80 to 200 kVA) for fine wiring,
X: fuses for overvoltage protection RC
circuit on bypass,
Y: control-wire connection (auxiliary
"Media Contacts 11" circuits and
communications options).
Note:
Figure 14. Switch Q3BP does not exist
in parallel Galaxy PW cubicles
interconnected for greater capacity.
The bypass AC source ("2") connects
to switch Q4S.
Installation (cont.)
(qual f ed personnel only)

E-51028231XU/BH - 15
Battery cubicle
See figure 15.
The battery cubicle shown is an
example only, given that characteristics
of these cubicles vary greatly from one
cubicle to another.
◗remove the cardboard covers and all
the hooping (used only for transport);
◗remove the terminal shield from the
battery circuit breaker "QF1" to make
the connections to this circuit breaker;
◗in the case of installations having
several battery cubicles, the
connections to be made between
cubicles are indicated in the
instructions accompanying the cubicles
(or in the drawing file for complicated
installations);
◗in the case of a UPS with a power
rating from 80 to 120 kVA and
connection via the top, the battery
cubicle containing circuit-breaker QF1
cannot be connected to the UPS
cubicle via the bottom. A roof equipped
with a cable gland can be installed on
this battery cubicle in order to connect it
directly via the top to the inverter
cubicle. Please contact our after-sales
service.
Important:
◗the cubicle is supplied with a fixture
locking circuit breaker "QF1"in the open
position. Do not remove this fixture
before commissioning. Accidental
closing of "QF1" will power up the
downstream circuits which could be
hazardous for personnel and
permanently damage the battery by
deep discharge;
◗connections between battery cubicles
should be made in compliance with
applicable regulations. Take all
protective measures associated with
working on live equipment and in
particular use only qualified personnel
equipped with gloves, protective
goggles, insulated tools, etc.
Cables are connected to copper
terminals by lugs.
Note:
The optional "Temperature Monitor"
unit is located at the top in one of the
battery cubicles. The cubicles not fitted
with a battery circuit breaker include an
additional shelf for battery cells.
Key to figure 15:
AA: cross-sectional view of the cubicle,
B: front view of the cubicle,
C: front panel,
D: rear panel,
E: cable ties to duckboard shelf,
F: cable exit through the bottom,
G: trough, if applicable,
H: connection of exposed conductive
parts to duckboard shelf,
I: cable exit to battery connection
point in UPS cubicle,
J: cable exit to an additional battery
cubicle, if applicable,
K: cable ties to duckboard shelf,
L: fixture locking circuit breaker "QF1"
in the open position.
Fig. 15
XR1
QF1
++
D
C
A
A
LK
IJ
F
G
EH
BAA
Installation (cont.)
(qual f ed personnel only)

16 - E-51028231XU/BH
Connection through the top
(20 to 120 kVA units)
This type of connection is possible on
1900 mm high cubicles. See figure 16.
Key to figure 16:
AA: cross-sectional view of the cubicle,
B: front view of the cubicle,
C: front panel,
D: rear panel,
1: normal AC input connection,
2: bypass AC input connection,
E: load connection,
F: battery connection,
I: air outlet grid,
J: passageway for cables exiting
through the top (opening 460 x
197 mm with cable-gland plate),
K: top view of the cubicle.
Note:
For 160 to 200 kVA units, this option is
not available because air is discharged
through the top. However, it is possible
to run normal/bypass AC input and load
cables through an auxiliary cubicle
(empty or containing an optional
harmonic filter or bypass AC-input
isolation transformer). In this case, the
cables enter through the standard
opening in the top and exit through the
bottom of the cubicle. Fig. 16
AA
I
J
F
L+L-
1
L3 L2 L1
2
L2 L1 NL3
E
L2 L1 NL3
F, 1, 2, E
A
B
K
20 - 30 - 40 - 50 - 60 - 80 - 100 - 120 kVA
DC
Installation (cont.)
(qual f ed personnel only)

E-51028231XU/BH - 17
15,5
15
L1 L2 L3
N
L1 L2 L3
N
G
H
750
E
D
F
L1 L2 L3
N
800
857,5
XM8
"MISI" 1
1
2
Q3BP +
Q3BP –
XM9
1
2
Q4S +
Q4S –
XM8
"MISI" 2
1
2
Q3BP +
Q3BP–
XM9
1
2
Q4S +
Q4S –
"MISI" 3
"MISI" 4
Q4S
Q3BP
150 kVA A
B
1000950 1057,5
120 303
317
1234
L1 L2 L3
N
Q4S
Q3BP
Q5N
C
317
56
Q5N
Fig. 17
External bypass cubicle
150 kVA
See figure 17.
Key to figure 17:
A: bottom view of the unit,
B: front view of the unit,
C: passageway for cables
(317 x 120 mm),
D: bypass AC input connection for the
UPS units,
E: connections for auxiliary wiring
indicating the position of the Q4S
and Q3BP switches,
F: connection for the UPS-unit outputs,
G: bypass AC input connection,
H: load connection.
Installation (cont.)
(qual f ed personnel only)

18 - E-51028231XU/BH
Fig. 18
External bypass cubicle
360 kVA
See figure 18.
Key to figure 18:
AA: cross-section AA of cubicle,
B: cubicle front view,
C: front panel,
D: bypass AC input connection for the
UPS units,
E: connection of the auxiliary position
wires of switches "Q4S" and
"Q3BP",
F: connection of UPS load outputs,
G: bypass AC input connection,
H: connection of load,
I: air outlet grid,
J: opening of 460 x 197 mm for cable
insertion,
K: fuses for overvoltage protection RC
circuit on bypass (to be replaced
when the indicator light is on).
L: top view of cubicle
C
D
G
H
F
E
A
1900
A
L1 L2 L3
N
L1 L2 L3
N
L1 L2 L3
L1 L2 L3
N
H
G
EK
I
J
BAA
L
XM8
"MISI" 1
1
2
Q3BP +
Q3BP -
XM9
1
2
Q4S +
Q4S -
XM8
"MISI" 2
1
2
Q3BP +
Q3BP -
XM9
1
2
Q4S +
Q4S -
"MISI" 3
"MISI" 4
E
Q4S
Q3BP
1234
360 kVA
Q4S
Q3BP
Q5N
N
D
F
Installation (cont.)
(qual f ed personnel only)

E-51028231XU/BH - 19
Fig. 19
External bypass cubicle
600 kVA
See figure 19.
Key to figure 19:
AA: cross-section AA of cubicle,
B: cubicle front view,
C: front panel,
D: bypass AC input connection for the
UPS units,
E: connection of the auxiliary position
wires of switches "Q4S" and
"Q3BP",
C
D
E
AA
A
A
H
G
B
D
E
Q4S
Q3BP
Q5N
G
H
F
I
J
XM8
"MISI" 1
1
2
Q3BP +
Q3BP -
XM9
1
2
Q4S +
Q4S -
XM8
"MISI" 2
1
2
Q3BP +
Q3BP -
XM9
1
2
Q4S +
Q4S -
"MISI" 3
"MISI" 4
E
Q4S
Q3BP
1234
600 kVA
L
F
F: connection of UPS load outputs,
G: bypass AC input connection,
H: connection of load,
I: air outlet grid,
J: opening of 460 x 197 mm for cable
insertion,
L: top view of cubicle
Installation (cont.)
(qual f ed personnel only)

20 - E-51028231XU/BH
Connection of the Hot
Swap option
The external bypass may be used to
construct a bypass outside the UPS,
thus making it possible to shutdown the
UPS for maintenance purposes.
The option may be used for single-UPS
units and redundant parallel UPSs.
◗control-wire connections are not
required between the bypass unit and
the UPS unit(s);
◗see figure 20 for the power-circuit
connections of a single-UPS unit and
figure 21 for the power-circuit
connections of redundant parallel
UPSs. Power cables for UPS-to-bypass
connections are not supplied.
Galaxy PW cubicle with
built-in bypass AC-input
isolation transformer
(20 to 60 kVA UPSs)
For this option, the cubicle is 1900 mm
high. This isolation transformer is
installed in the top part of the cubicle.
Power connections are not modified by
this option (see figure 22).
Installation (cont.)
(qual f ed personnel only)
C
B
A
Q4S
Q1 Q5N
Galaxy PW
Q3BP
2
1
D
+–+–
E
F
QF1
F
G
Q4S
2
Q3BP
Q5N
C
B
A
Q4S
Q1 Q5N
Galaxy PW
Q3BP
2
1
D
+–+–
E
F
QF1
F
G
Q4S
2
Q3BP
Q5N
Fig. 20
Fig. 21
C
B
A
Q4S
Q1 Q5N
Galaxy PW
Q3BP
2
1
D+–+–E
F
QF1
F
2
1
D+–+–E
F
QF1
F
C
B
A
Q4S
Q1 Q5N
Galaxy PW
Q3BP
G
G
Q4S
2
Q3BP
Q5N
Fig. 22
