MGF M18 ONEFHIWF34 User manual

mgf.co.uk
BATTERY
IMPACT WRENCH
T: 0808 256 9364
E: [e-mail]
M18 ONEFHIWF34

PRODUCT FEATURES
Remove the
battery pack
before starting
any work on
the machine.
1 2
3 4
USER GUIDE
2
3/4” BATTERY IMPACT WRENCH

USER GUIDE
3
3/4” BATTERY IMPACT WRENCH

HANDLE
(Insulated
gripping
surface)
USER GUIDE
4
3/4” BATTERY IMPACT WRENCH

0-800
0-850
0-1300
0-1850
0-1800
0-2400
0-1800
0-2400
MIN ¯
USER GUIDE
5
3/4” BATTERY IMPACT WRENCH

USER GUIDE
6
3/4” BATTERY IMPACT WRENCH

TECHNICAL INFORMATION
Setting number NO-LOAD SPEED IMPACT RANGE
10-800min¯/rpm 0-850min¯/rpm
20-1300min¯/rpm 0-1850min¯/rpm
30-1800min¯/rpm 0-2400min¯/rpm
40-1800min¯/rpm 0-2400min¯/rpm
Model Number M18 0NEFHIWF34
Torque max 1627 Nm
Max. diameter bolt/nut M33
Tool reception 3/4” (19mm)
Battery voltage 18V
Weight 3.5kg
Frequency band(s) of Bluetooth 2402-2480 MHz
Radio-frequency power 1.8dBm
Bluetooth version 4.0 BT signal mode
Recommended ambient operating temperature ¯18...+50°C
Recommended battery type M18B2, M18B4, M15B5, M18B6, M18B9
Recommended charger type M12-18C, M12-18AC, M12-18FC,
M1418C6
Measured values determined according to EN 62841
Sound pressure level (Uncertanty K=3dB(A)) 98.5 dB (A)
Sound power level (Uncertanty K=3dB(A)) 109.5 dB (A)
Total vibration values (vector sum in the three axes)
Impact tightening of fasteners of the maximum capacity of the tool 15,9m/s
Vibration emission 9a
Uncertainty K= 1,5 m/s
NOISE/VIBRATION INFORMATION
WEAR EAR PROTECTORS!
h
USER GUIDE
7
3/4” BATTERY IMPACT WRENCH

THE VIBRATION EMISSION LEVEL GIVEN IN THIS USER GUIDE HAS BEEN
MEASURED IN ACCORDANCE WITH A STANDARDISED TEXT GIVEN IN EN
62841 AND MAY BE USED TO COMPARE ONE TOOL WITH ANOTHER. IT
MAY BE USED FOR A PRELIMINARY ASSESSMENT OF EXPOSURE.
THE DECLARED VIBRATION EMISSION LEVEL REPRESENTS THE
MAIN APPLICATIONS OF THE TOOL. HOWEVER IF THE TOOL IS USED
FOR DIFFERENT APPLICATIONS WITH DIFFERENT ACCESSORIES OR
POORLY MAINTAINED, THE VIBRATION EMISSION MAY DIFFER. THIS
MAY SIGNIFICANTLY INCREASE THE EXPOSURE LEVEL OVER THE TOTAL
WORKING PERIOD.
AN ESTIMATION OF THE LEVEL OF EXPOSURE TO VIBRATION SHOULD
ALSO TAKE INTO ACCOUNT THE TIMES WHEN THE TOOL IS SWITCHED
OFF OR WHEN IT IS RUNNING BUT NOT ACTUALLY DOING THE JOB. THIS
MAY SIGNIFICANTLY REDUCE THE EXPOSURE LEVEL OVER THE TOTAL
WORKING PERIOD.
IDENTIFY ADDITIONAL SAFETY MEASURES TO PROTECT THE OPERATOR
FROM THE EFFECTS OF VIBRATION SUCH AS MAINTAIN THE TOOL AND
THE ACCESSORIES, KEEP THE HANDS WARM, ORGANISATION OF WORK
PATTERNS.
READ ALL SAFETY WARNINGS, INSTRUCTIONS, ILLUSTRATIONS AND
SPECIFICATIONS PROVIDED WITH THIS POWER TOOL. FAILURE TO
FOLLOW ALL INSTRUCTIONS LISTED MAY RESULT IN ELECTRIC SHOCK,
FIRE AND/OR SERIOUS INJURY.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
WARNINGS
HOLD POWER TOOL BY INSULATED GRIPPING SURFACES, WHEN
PERFORMING AN OPERATION WHERE THE FASTENER MAY
CONTACT HIDDEN WIRING.
FASTENERS CONTACTING A ‘LIVE’ WIRE MAY MAKE EXPOSED
METAL PARTS OF THE POWER TOOL ‘LIVE’ AND COULD GIVE THE
OPERATOR AN ELECTRIC SHOCK.
WEAR EAR PROTECTORS. EXPOSURE TO NOISE CAN CAUSE
HEARING LOSS.
IMPACT DRIVER SAFETY WARNINGS
USER GUIDE
8
3/4” BATTERY IMPACT WRENCH

ADDITIONAL SAFETY AND WORKING INSTRUCTIONS
•Use protective equipment.
•Always wear safety glasses when working with the machine.
•The use of protective clothing is recommended such as dust mask, protective gloves,
sturdy non-slip footwear, helmet and ear defenders.
•The dust produced when using this tool may be harmful to health. DO NOT INHALE THE
DUST. Wear a suitable dust protection mask.
• Do not machine any materials that present a danger to health (e.g. asbestos)
• Switch the device off immediately if the insertion tool stalls.
• Do no switch the device on again while the insertion tool is stalled, as doing so could
trigger a sudden recoil with a high reactive force.
• Determine why the insertion tool stalled and rectify this, paying heed to the safety
instructions.
Possible causes may be:
• It is tilted in the workpiece to be machined
• It has pierced through the material to be machined
• The power tool is overloaded
DO NOT REACH INTO THE MACHINE WHILE IT IS RUNNING.
The insertion tool may become hot during use WARNING! Danger of burns:
• when changing tools
• when setting the device down
Chips and splinters must not be removed while the machine is running.
When working in walls, ceiling, or floor, take care to avoid electric cables and gas or
waterpipes.
Clamp your workpiece with a clamping device. Unclampled workpieces can cause
severe injury and damage.
Remove the battery pack before starting any work on the machine.
Do not dispose of used battery packs in the household refuse or by burning them.
From official Milwaukee user guide “Milwaukee Distributors offer to retrieve old batteries
to protect our environment.”
Do not store battery pack together with metal objects (short circuit risk).
Use only System M18 chargers for charging System M18 battery packs. Do not use
battery packs from other systems.
Never break open battery packs and chargers and store only in dry rooms. Keep dry at
all times.
Battery acid may leak from damaged batteries under extreme load or extreme
temperatures. In case of contact with battery acid wash it off immediately with soap and
USER GUIDE
9
3/4” BATTERY IMPACT WRENCH

WARNING! This device contains lithium button/coin cell battery. A new or used battery
can cause severe internal burns and lead to death in as little as 2 hours if swallowed or
enters the body. Always secure the battery cover. If it does not close securely, stop
using the device, remove the batteries, and keep it away from children. If you think
batteries may have been swallowed or entered the body, seek immediate medical
attention.
WARNING! To reduce the risk of fire, personal injury, and product damage due to a short
circuit, never immerse your tool, battery pack or charger in fluid or allow a fluid to
flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial
chemicals, and bleach or bleach containing products, etc., can cause a short circuit.
SPECIFIED CONDITIONS OF USE
The cordless impact wrench can be used to tighten and loosen nuts and bolts wherever no
mains connection is available.
Do not use this product in any other way as stated for normal use.
ECDECLARATION OF CONFORMITY
We declare under our sole responsiblity that the product described under “Technical
Data” fulfills all the relevant provisions of the directives 2011/65/eu (RoHs), 2006/42/
EC,2014/53EU and the following harmonized standards have been used:
EN 62841-1:2015
EN 62841-2-2:2014
EN 55014-1:2017
EN 55014-2:2015
EN 62479:2010
EN 301 489-1V2.1.1 (2017-02)
EN 301 489-17V3.1.1 (2017-02)
EN 300 328V2.1.1 (2016-11)
EN 50581:2012
Winnenden, 2017-09-30
71364 Winnenden, Germany
SELECTING MODE
Allow the tool to come to a complete stop before changing modes. Press the selector
button to cycle between the settings. Select wireless to change the default settings via
the ONE-KEY App on your smart device.
ONEKEY™
To learn more about the ONE-KEY functionality for this tool, please reference the Quick
Start guide included with this product or go to www.milwaukeetool.com/one-key. To
download the ONE-KEY app, visit the App Store or Google Play from your smart device.
When the product experiences ESD, the speed LED shuts down and the product cannot
adjust speed. It needs the battery and coin cell removed and reinserted to recover.
USER GUIDE
10
3/4” BATTERY IMPACT WRENCH

Also, when the product experiences ESD, the Bluetooth communication will be
disconnected. It needs to be reset manually to recover.
We considered the results to be within our minimum acceptable performance level
according to EN 55014-2 / RN 30124891 / EN 30149-17.
BATTERIES
Battery packs which have not been used for some time should be recharged before use.
Temperatures in excess of 50°C (122°F) reduce the performance of the battery pack
Avoid extended exposure to heat or sunshine (risk of overheating).
The contacts of chargers and battery packs must be kept clean.
For an optimum life-time, after use, the battery packs have to be fully charged.
To obtain the longest possible battery life remove the battery pack from the charger once
it is fully charged.
For battery pack storage longer than 30 days:
Store the battery pack where the temperature is below 27°C and away from moisture
Store the battery packs in a 30% - 50% charged condition
Every six months of storage, charge the pack as normal.
BATTERY PACK PROTECTION
In extremely high torque, binding, stalling and short circuit situations that cause high
current draw, the tool will vibrate for about 2 seconds and then the tool will turn OFF.
To reset, release the trigger.
Under extreme circumstances, the internal temperature of the battery could become too
high. If this happens, the battery will shut down.
Place the battery on the charger to charge and reset it.
TRANSPORTING LITHIUM BATTERIES
Lithium-ion batteries are subject to the Dangerous Goods Legislation requirements.
Transportation of those batteries has to be done in accordance with local, national and
international provisions and regulations.
• The user can transport the batteries by road without further requirements.
• Commercial transport of Lithium-Ion batteries by third parties is subject to Dangerous
Goods regulations. Transport preparation and transport are exclusively to be carried
out by appropriately trained persons and the process has to be accompanied by
corresponding experts.
USER GUIDE
11
3/4” BATTERY IMPACT WRENCH

MAINTENANCE
Refer to the ONE-KEY App for information regarding necessary servicing.
From official Milwaukee user guide “use Milwaukee accessories and spare parts”. Should
components need to be replaced which have not been described please contact a member
of our team.

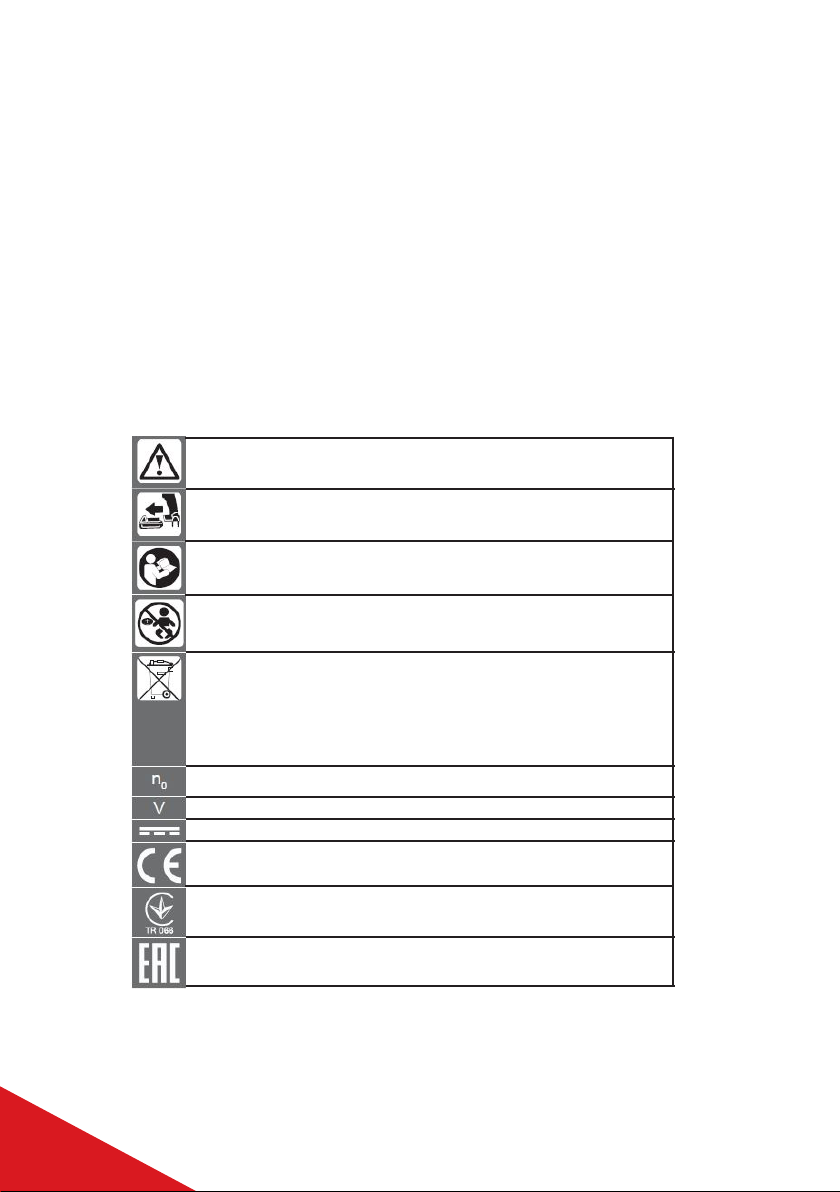

SYMBOLS
When transporting batteries:
• Ensure that battery contact terminals are protected and insulated to prevent short
circuit.
• Ensure that battery pack is secured against movement within packaging.
• Do not transport batteries that are cracked or leaking.
Check with forwarding company for further advice.
CAUTION! WARNING! DANGER!
Remove the battery pack before starting any work on the machine.
Please read the instructions carefully before starting the machine.
Do not swallow the coin cell battery!
Do not dispose electric tools, batteries/ rechargeable batteries together with household
waste material.
Electric tools and batteries that have reached the end of their life must be collected
seperately and returned to an environmentally compatible recycling facility.
Check with your local authority or retailer for recycling advice and collection point.
No-load speed
Volts
Direct current
European Conformity Mark
National mark of conformity Ukraine
EurAsian Conformity Mark
USER GUIDE
12
3/4” BATTERY IMPACT WRENCH

HEAD OFFICE
GRANT HOUSE
LOCKETT ROAD
ASHTON IN
MAKERFIELD
WIGAN, WN4 8DE
T: 01942 402700
ENGINEERING
CENTRE
FOUNDATION HOUSE
WALLWORK ROAD
ASTLEY, MANCHESTER
M29 7JT
T: 01942 402704
mgf.co.uk
[e-mail]
NORTH EAST  DURHAM DEPOT
Thistle Road, Littleburn Ind. Est.
Langley Moor, County Durham
DH7 8HJ
T: 01913 782100
YORKSHIRE 
CASTLEFORD DEPOT
Allerton Bywater Business Park
Newton Lane, Castleford
WF10 2AL
T: 01977 521930
NORTH WEST 
ASTLEY DEPOT
Wallwork Road
Astley, Manchester
M29 7JT
T: 01942 896282
EAST ANGLIA 
STANTON DEPOT
Unit 5, O’Brien Ind. Est.
Grove Lane, Stanton
Bury St. Edmunds
Suffolk, IP31 2BF
T: 01359 252204
LONDON 
DARTFORD DEPOT
Ray Lamb Way
Manor Road
Erith, Kent, DA8 2LB
T: 01322 344520
SOUTH EAST  TRING DEPOT
Units 21 & 22, Airfield Ind. Est.
Cheddington Lane
Long Marston, Tring
Hertfordshire, HP23 4QR
T: 01296 663250
SOUTH WEST  EXETER DEPOT
Unit 58, Greendale Business Park
Woodbury Salterton, Exeter
EX5 1EW
T: 01395 233194
SOUTH WEST 
BRISTOL DEPOT
Severn Road
Chittening
Avonmouth
Bristol, BS11 0YL
T: 01179 820706
MIDLANDS 
RUGELEY DEPOT
Redbrook Lane
Brereton, Rugeley
Staffordshire, WS15 1QU
T: 01889 574777
WEST LOTHIAN 
LIVINGSTON DEPOT
Letham Road, Houstoun Ind. Est.
Livingston, West Lothian
EH54 5BY
T: 01506 535556
NORTH WEST 
WARRINGTON DEPOT
Clayton Road, Birchwood
Warrington WA3 6PH
T: 01925 598537
EXCAVATION SAFETY
STRUCTURAL SUPPORT
SOUTH EAST  TRING DEPOT
Unit 22a, Airfield Ind. Est.
Cheddington Lane
Long Marston, Tring
Hertfordshire, HP23 4QR
T: 01925 598537
