ELTROTEC Endolight FOT Halogen 150
Contents
1. Safety ........................................................................................................................................................ 5
1.1 Symbols Used ................................................................................................................................................. 5
1.2 Warnings.......................................................................................................................................................... 5
1.3 Notes on CE Identification............................................................................................................................... 6
1.4 Proper Use....................................................................................................................................................... 7
1.5 Proper Environment......................................................................................................................................... 7
2. Functional Principle, Technical Data ....................................................................................................... 8
2.1 Short Description............................................................................................................................................. 8
2.2 Technical Data ................................................................................................................................................. 8
3. Delivery ..................................................................................................................................................... 9
3.1 Unpacking........................................................................................................................................................ 9
3.2 Storage ............................................................................................................................................................ 9
4. Mounting ................................................................................................................................................. 10
4.1 Light Source................................................................................................................................................... 10
4.2 Control Elements ........................................................................................................................................... 11
5. Operation ................................................................................................................................................ 12
5.1 Getting Ready for Operation ......................................................................................................................... 12
5.2 Commissioning.............................................................................................................................................. 12
5.3 Adjust the Input Voltage 110 / 230 V ............................................................................................................. 14
5.4 Fuse Replacement......................................................................................................................................... 15

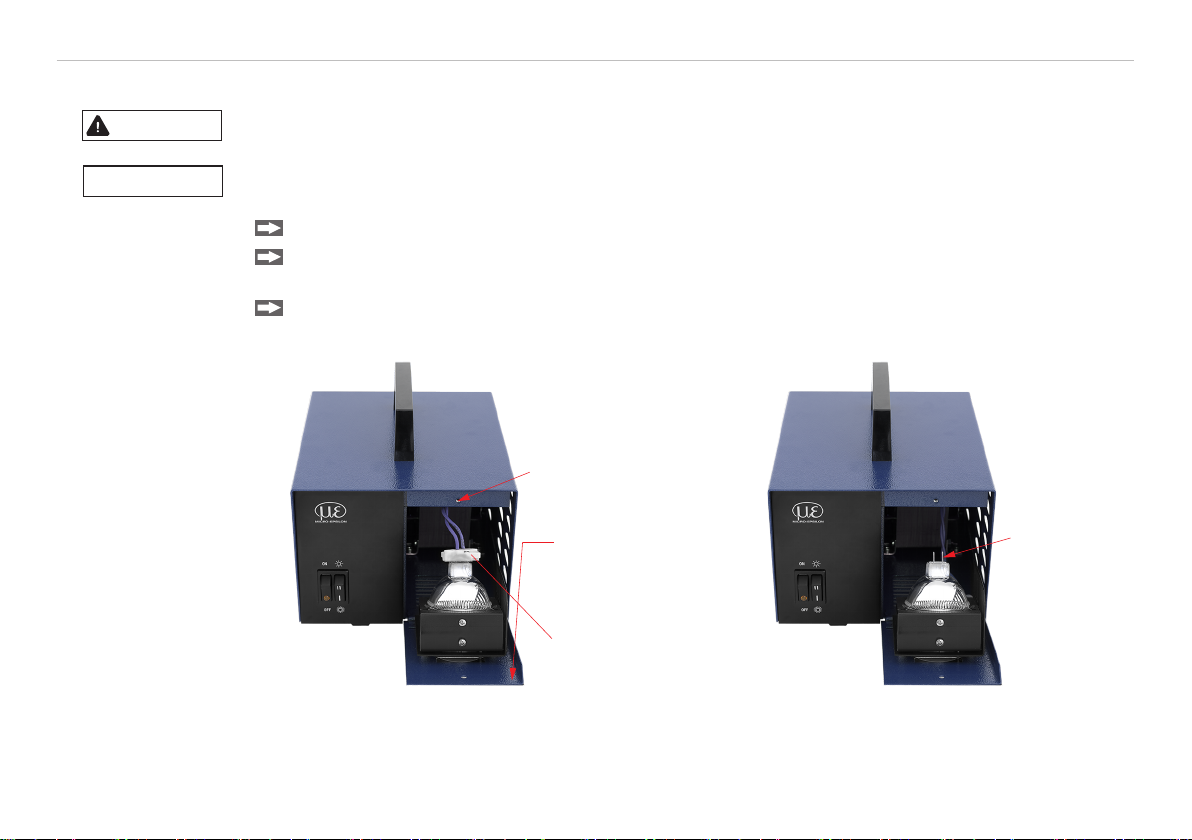

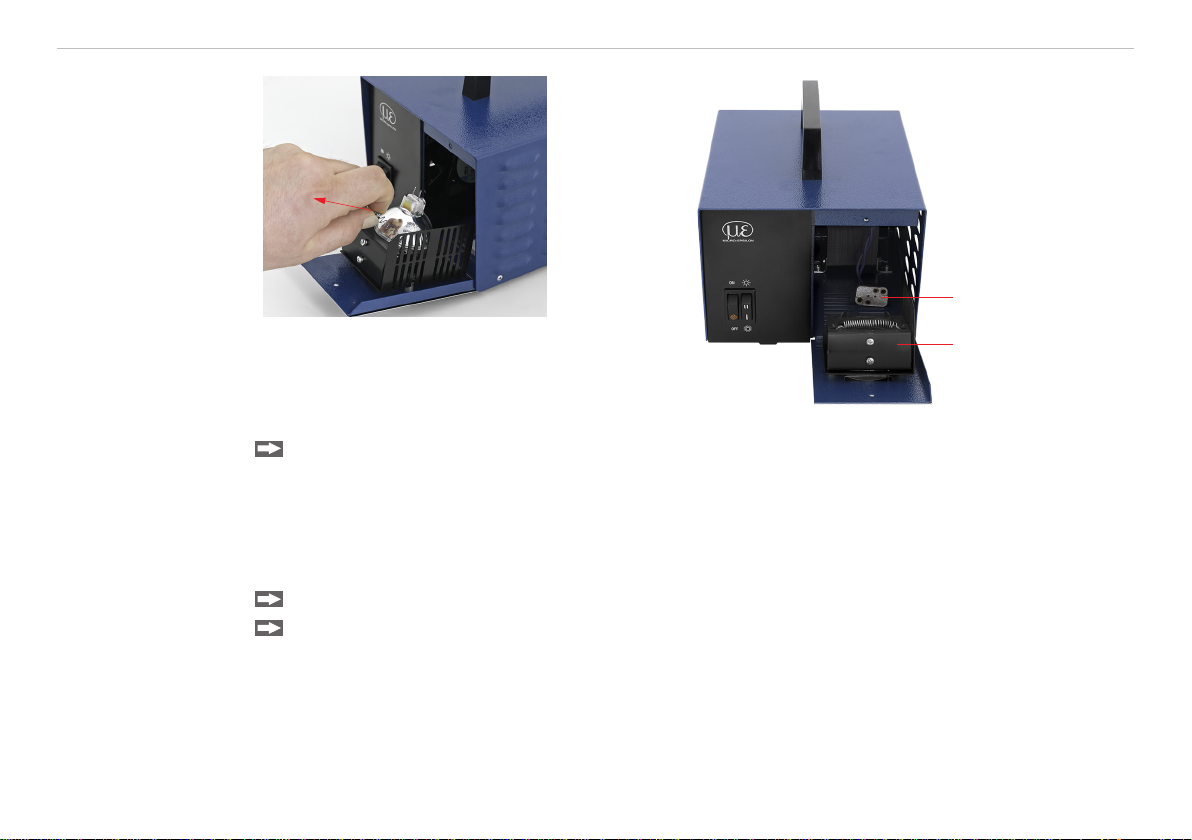

5.5 Changing the Lamp....................................................................................................................................... 16
6. Instructions for Operation...................................................................................................................... 18
6.1 General .......................................................................................................................................................... 18
6.2 Cleaning......................................................................................................................................................... 18
6.2.1 Housing and Power Supply ......................................................................................................... 18
6.2.2 Quartz Glass of Light Source ....................................................................................................... 18

ELTROTEC Endolight FOT Halogen 150
7. Warranty ................................................................................................................................................. 19
8. Service, Repair ...................................................................................................................................... 19
9. Decommissioning, Disposal ................................................................................................................. 19
Appendix
A 1 Optional Accessories ............................................................................................................................. 20
A 2 Spare Parts ............................................................................................................................................. 23
A 3 Factory Setting........................................................................................................................................ 24

Page 5
Safety
ELTROTEC Endolight FOT Halogen 150
1. Safety
The handling of the system assumes knowledge of the instruction manual.
1.1 Symbols Used
The following symbols are used in the instruction manual.
CAUTION Indicates a hazardous situation which, if not avoided, may result in minor or moder-
ate injuries.
NOTICE
Indicates a situation which, if not avoided, may lead to property damage.
Indicates a user action.
iIndicates a user tip.
Measure Indicates a hardware or a button/menu in the software.
1.2 Warnings
Connect the power supply in accordance with the safety regulations for electrical equipment.
> Danger of injury
> Damage to or destruction of the light source
Do not look directly into the light source
> Danger of injury, damage to the eyes or skin
Let the light source cool off for a few minutes before changing the lamp.
> Risk of burns by the still hot lamp
Pay attention to the hot environment when changing the lamp.
> Risk of burns
Keep the light source away from liquids and splashes of water.
> Damage to or destruction of the light source
The power supply must not exceed the specified limits.
> Damage to or destruction of the light source
CAUTION
NOTICE

Page 6
Safety
ELTROTEC Endolight FOT Halogen 150
The light source may not be operated with opened front panel or removed housing cover.
> Damage to or destruction of the light source
Do not insert foreign objects into the openings of the light source.
> Damage to or destruction of the light source
1.3 Notes on CE Identication
The following applies to the ELTROTEC Endolight FOT Halogen 150 light source:
- EU directive 2004/108/EC
- EU directive 2006/95/EC
- EU directive 2011/65/EU, “RoHS” category 11
Products which carry the CE mark satisfy the requirements of the quoted EU directives and the European
standards (EN) listed therein. The EC declaration of conformity is kept available according to EC regulation,
article 10 by the authorities responsible at
MICRO-EPSILON Eltrotec GmbH
Manfred-Wörner-Straße 101
73037 Göppingen / Germany
The ELTROTEC Endolight FOT Halogen 150 light source is designed for use in industry and satisfies the
requirements of the standards
- EN 61000-6-1: 2007
- EN 61000-6-4: 2007
The system satisfies the requirements if they comply with the regulations described in the instruction manual
for installation and operation.

Page 7
Safety
ELTROTEC Endolight FOT Halogen 150
1.4 Proper Use
- The ELTROTEC Endolight FOT Halogen 150 light source is designed for use in industrial area with various
fiber optics applications (lighting, endoscopy, etc.).
- Light output for up to 13 mm fiber diameter
- The ELTROTEC Endolight FOT Halogen 150 light source is not suitable for medical purposes.
- The system may only be operated within the limits specified in the technical data, see Chap. 2.2.
- Use the ELTROTEC Endolight FOT Halogen 150 light source in such a way that in case of malfunctions or
failure personnel or machinery are not endangered.
- Take additional precautions for safety and damage prevention for safety-related applications.
1.5 Proper Environment
- Operating temperature: -10 °C to 40 °C 1 (+14 °F to +104 °F 1)
- Storage temperature: -25 °C to 60 °C 1 (-13 °F to +140 °F 1)
- Humidity: 15 to 95 %
- Ambient pressure: Atmospheric pressure
- Electromagnetic compatibility (EMC): EN 61000-6-1: 2007
EN 61000-6-4: 2007
1) Built-in fan for lamp cooling

Page 8
Functional Principle, Technical Data
ELTROTEC Endolight FOT Halogen 150
2. Functional Principle, Technical Data
2.1 Short Description
The ELTROTEC Endolight FOT Halogen 150 light source is regarded as the universal solution when using ex-
ternal light sources in the endoscopy. The high light output and simple operation facilitate optimal inspection
results. The light intensity is adjusted steplessly with the controllable light sources by means of a mechanical
iris diaphragm without the color temperature of the light source is influenced. Different adapters and glass
fiber applications permit various uses.
2.2 Technical Data
Model ELTROTEC Endolight FOT Halogen 150
Power 150 W
Fiber diameter 13 mm
Operating life type without economy mode 100 h
with economy mode ~ 210 h
Weight 5.9 kg
Power supply 110 V 60 Hz / 230 V 50 Hz
Light source 15 V / 150 W
Osram HLX type 64634
Color temperature 3400 K
Lamp circuit Step I 100 % intensity
Step II 92 % intensity
Lamp cooling Built-in fan
Intensity control Stepless via iris diaphragm
(without affecting the color temperature)
Dimensions 240 x 180 x 180 mm (inclusive handle 40 mm)
Operating temperature -10 °C to 40 °C (+14 °F to +104 °F)
Storage temperature -25 °C to 60 °C (-13 °F to +140 °F)
Electromagnetic compatibility (EMC) EN 61000-6-1: 2007 and EN 61000-6-4: 2007

Page 9
Delivery
ELTROTEC Endolight FOT Halogen 150
3. Delivery
3.1 Unpacking
- ELTROTEC Endolight FOT Halogen 150 light source
- Halogen lamp Osram type HLX 64634 15 V / 150 W
- Power supply cable
You will nd the suitable ber optics and ber-optic lighting units under Optional Accessories, see Chap. A 1
Check the delivery for completeness and shipping damage immediately after unpacking.
In case of damage or missing parts, please contact the manufacturer or supplier immediately.
3.2 Storage
- Storage temperature: -25 °C to 60 °C (-13 °F to +140 °F 1)
- Humidity: 15 to 95 %
- Ambient pressure: Atmospheric pressure

Page 10
Mounting
ELTROTEC Endolight FOT Halogen 150
4. Mounting
4.1 Light Source
40
(1.57)
140 (5.51)
180 (7.09) 240 (9.45)

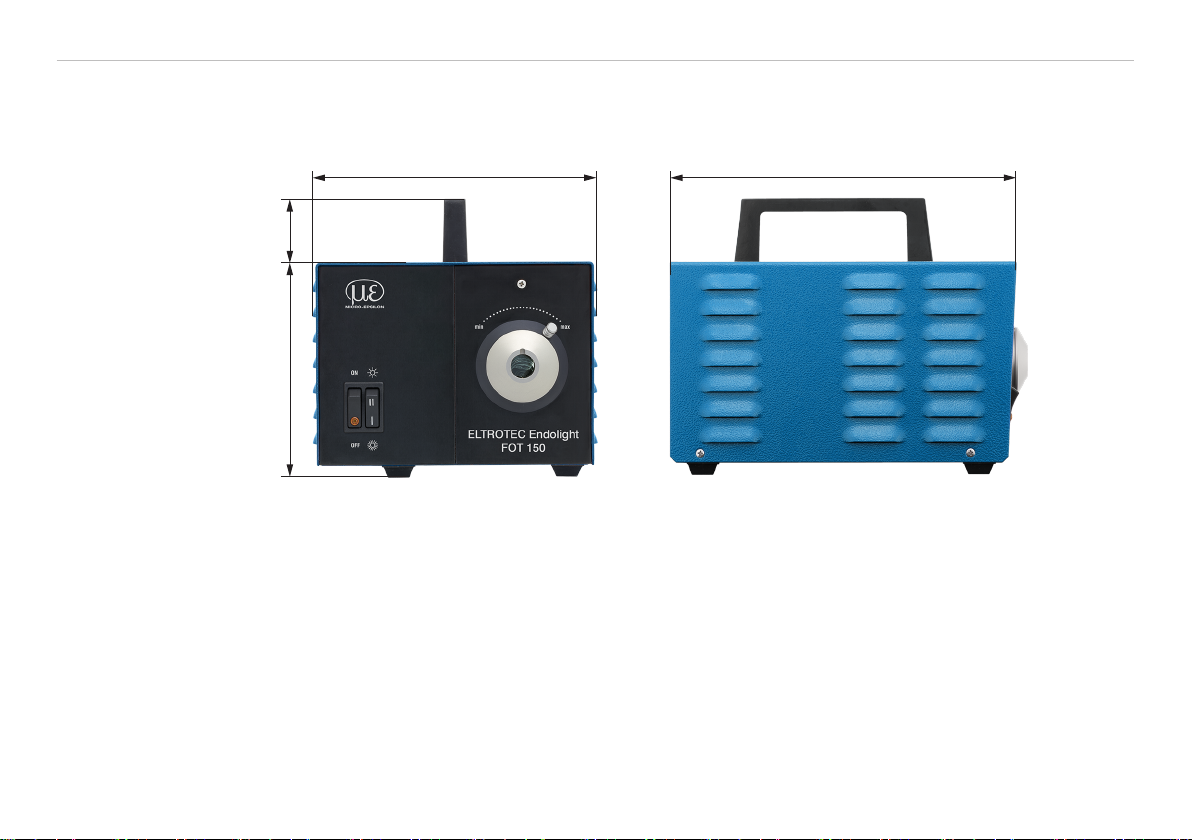

Fig. 1 Dimensions ELTROTEC Endolight FOT Halo-
gen 150 front view
Fig. 2 Dimensions ELTROTEC Endolight FOT Halogen
150 side view
Dimensions in mm (inches), not to scale

Page 11
Mounting
ELTROTEC Endolight FOT Halogen 150

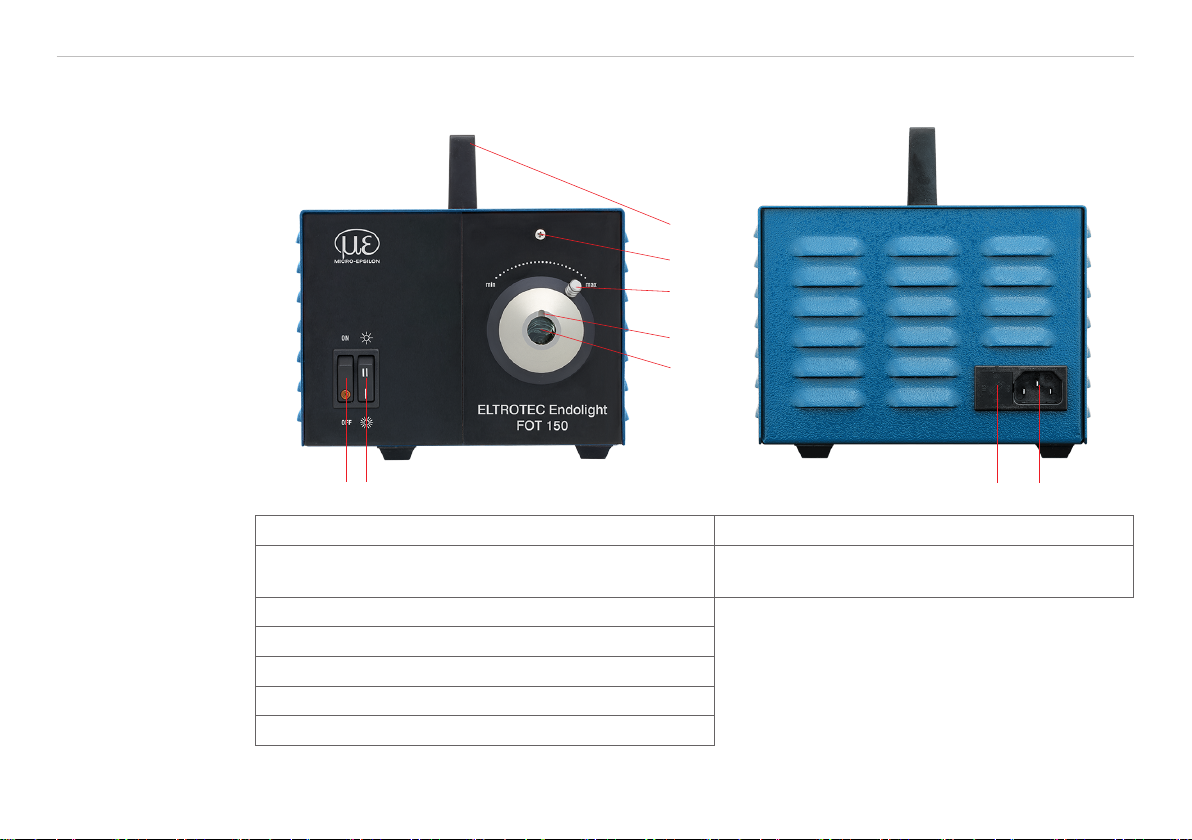

4.2 Control Elements
1
7 6
5
4
3
2
89
1 Handle 8 Voltage selector with fuse holder
2 Screw for the front door mounting
(Open for changing the lamp)
9 Power input
3 Iris diaphragm control lever Fig. 3 Control elements front side and rear side
4 Anti-rotating device keyway
5 Fiber optic connection
6 Economy switch, 2-position
7 ON/OFF switch with control lamp

Page 12
Operation
ELTROTEC Endolight FOT Halogen 150
5. Operation
5.1 Getting Ready for Operation
Check the built-in heat filter for possible break.
> Damage to the iris diaphragm and the connected fiber optics by excessive heat development
iSet the iris diaphragm control lever (3), see Chap. 4.2, initially at minimum position (left) to prevent glare.
5.2 Commissioning
The light source is supplied as standard for the connection to 230 VAC operating voltage, see Chap. A 3.
Replug the voltage selector (8) for 110 VAC operating voltage by setting the 115 to the positioning ar-
row (8), see Chap. 5.3.
iThe terminals 120 Volt (positioning arrow (2) is on 125, see Chap. 5.3.) and 240 Volt (position- ing arrow (2) is on 250, see Chap. 5.3.) are not occupied and cannot be used.
If the voltage selector has this setting, the light source can therefore not be used.
Connect the supplied power supply cable to the power input (9), see Chap. 4.2 and the power supply.
Connect the fiber optic cable to the fiber optic connection (5), see Chap. 4.2.
Some fiber optic cables (e.g. multi-armed gooseneck fiber optic cables) and adapters are fitted with a cam
(anti-rotation device), which enters the anti-rotation device keyway (4), see Chap. 4.2, to prevent rotation of
the connector.
Press the ON/ OFF switch (7), see Chap. 4.2.
The control lamp lights up. The light source is ready to operate.
Check Always after switching on whether the built-in fan runs (noise).
> Destruction of the lamp, the heat protection filter and the iris diaphragm due to excessive heating.
iIn case of a defective fan, turn the light source off immediately.
NOTICE
NOTICE

Page 13
Operation
ELTROTEC Endolight FOT Halogen 150
Let the light source cooling down still some minutes after switching off before storing in any closed room or in
the original packaging.
> Risk of fire by heat
The lamp power can be adjusted by economy switch (6), see Chap. 4.2. If there is sufficient light the switch
should be on level II (intensity 92 %). Thus, a longer lamp lifetime can be achieved.
The light intensity can be adjusted steplessly with the iris diaphragm control lever (3), see Chap. 4.2.
The light adjustment is made by a mechanical iris diaphragm (without interference of the color temperature).
CAUTION

Page 14
Operation
ELTROTEC Endolight FOT Halogen 150
5.3 Adjust the Input Voltage 110 / 230 V
Unplug the power supply cable.
The factory setting of the voltage input is set on 230 VAC operating voltage. The positioning arrow points to
230 (2), see Fig. 4.
To adjust the input voltage to 110 VAC, raise the voltage selector element at the designated cut, see Fig.
4, see Fig. 5, using a screw driver and pull it out.
231 4
1Voltage selector element
2Positioning arrow
3Cut to raise the voltage selector element
4Power supply cable connection
Fig. 4 Detail rear side of light source
Fig. 5 Raise the voltage selector element

Page 15
Operation
ELTROTEC Endolight FOT Halogen 150
Turn the element until the number 115 is on arrow position.
Insert the voltage selector element again and press on it.
Plug in again the power supply cable.
5.4 Fuse Replacement
Unplug the power supply cable from the socket and from the light source.
The fuse (5 x 20 mm, 2 AT) is in the voltage selector element (8), see Chap. 4.2.
Raise the voltage selector element, see Fig. 4, at the designated cut using a screwdriver (1) and pull it
out (2).
1 2 3
Fig. 6 Fuse replacement
Remove the defective fuse (3) and insert a new fuse (2 AT).
Please use only the fuses recommended in the appendix under optional accessories (2 AT), see Chap. A 1.
Insert the voltage selector element again and press on it.
iPay attention onto the correct position of the operating voltage.
Plug in again the power supply cable.

Page 16
Operation
ELTROTEC Endolight FOT Halogen 150
5.5 Changing the Lamp
Let the light source cool off for a few minutes before changing the lamp.
> Risk of burns by the still hot lamp
Do not touch the inside of the lamp (mirror, lamp bulb).
> Reducing the intensity and lifetime of the lamp by finger prints and dust
Switch off the ON/OFF switch, see Fig. 3 and disconnect the power supply cable from the wall socket.
Remove the screw, see Fig. 3, on the front side of the light source (1), whereupon the right front door
with the lamp unit can be folded down (2).
Loosen the lamp out of the holder carefully (3), lift the spring clip slightly (4) and pull the lamp from the
lamp socket (5).
1Remove the screw
2Fold down
lamp unit
Holder
3Remove
holder
CAUTION
NOTICE

Page 17
ELTROTEC Endolight FOT Halogen 150
4Lift the spring clip
Holder
5Lamp socket
Insert the new lamp into the lamp socket and position them into the holder.
iMake sure that the lamp coding is placed again in the designated cut.
Other settings are not required, as the holding system provides an optimum adjustment with a footprint up to
13 mm (maximum applicable fiber diameter).
Close the front door and mount it again with the screw, see Fig. 3.
Plug in the power supply cable.

Page 18
ELTROTEC Endolight FOT Halogen 150
6. Instructions for Operation
6.1 General
Except the descriptive maintenance work (change of lamp, see Chap. 5.5, fuse replacement, see Chap. 5.4,
voltage settings, see Chap. 5.3) no repairs or changes at the light source may be made, see Chap. 7., see
Chap. 8..
6.2 Cleaning
6.2.1 Housing and Power Supply
Turn off the ELTROTEC Endolight FOT Halogen 150 light source and disconnect the power supply cable
from the wall socket and from the rear side of the device.
Wipe the exterior surfaces using a damp cloth with mild soapy water.
Wipe the power supply cable using a damp cloth with mild soapy water.
6.2.2 Quartz Glass of Light Source
Remove any fingerprints using a cotton swab or isopropyl alcohol (rubbing alcohol).
NOTICE
Do not immerse
the device in water.
Do not connect the
device/power supply
cable if it is damp.
The light source
may get damaged or
destroyed.

Page 19
ELTROTEC Endolight FOT Halogen 150
7. Warranty
All components of the device have been checked and tested for perfect function in the factory. In the unlikely
event that errors should occur despite our thorough quality control, this should be reported immediately to
MICRO-EPSILON Eltrotec.
The warranty period lasts 12 months following the day of shipment. Defective parts, except wear parts, will be
repaired or replaced free of charge within this period if you return the device free of cost to MICRO-EPSILON
Eltrotec. This warranty does not apply to damage resulting from abuse of the equipment and devices, from
forceful handling or installation of the devices or from repair or modifications performed by third parties.
No other claims, except as warranted, are accepted. The terms of the purchasing contract apply in full.
MICRO-EPSILON Eltrotec will specifically not be responsible for eventual consequential damages. MICRO-
EPSILON Eltrotec always strives to supply the customers with the finest and most advanced equipment.
Development and refinement is therefore performed continuously and the right to design changes without
prior notice is accordingly reserved. For translations in other languages, the data and statements in the Ger-
man language operation manual are to be taken as authoritative.
8. Service, Repair
In the event of a defect on the ELTROTEC Endolight
FOT Halogen 150 light source or on power supply
cable please send us the effected parts for repair or
exchange.
In the case of faults the cause of which is not
clearly identifiable, the whole measuring system
must be sent back to:
MICRO-EPSILON Eltrotec GmbH
Manfred-Wörner-Straße 101
73037 Göppingen / Germany
Tel. [phone]
Fax [phone]
[email protected]
www.micro-epsilon.com
9. Decommissioning, Disposal
Disconnect the power supply cable from the light source.
The light source is produced according to the directive 2011/65/EU, „RoHS“.
Do the disposal according to the legal regulations (see directive 2002/96/EC).

Page 20
Anhang | Optional Accessories
ELTROTEC Endolight FOT Halogen 150
Appendix
A 1 Optional Accessories
Fiber optic cable
Designation Photo Description Article number
Fiber optic cable EL
1/4 1800 MEP/S with
Lemo 1 adapter
Endoscope fiber optic fibers with
high packing density,
fiber bundle diameter: 4 mm
Length: 1800 mm
Metal protective conduit with PVC
coating.
One side FOT light source
connector
One side Lemo1 connector =
cladding diameter 7.6 mm
20710831
Liquid fiber optic
cable EFL 1/4 1800
MEP with Lemo 1
adapter
Endoscope liquid fiber optic cable,
fiber bundle diameter: 4 mm
Length: 1800 mm
Cladding diameter:
Metal protective conduit with PVC
coating.
One side FOT light source connector
One side Lemo1 connector.
20710446
