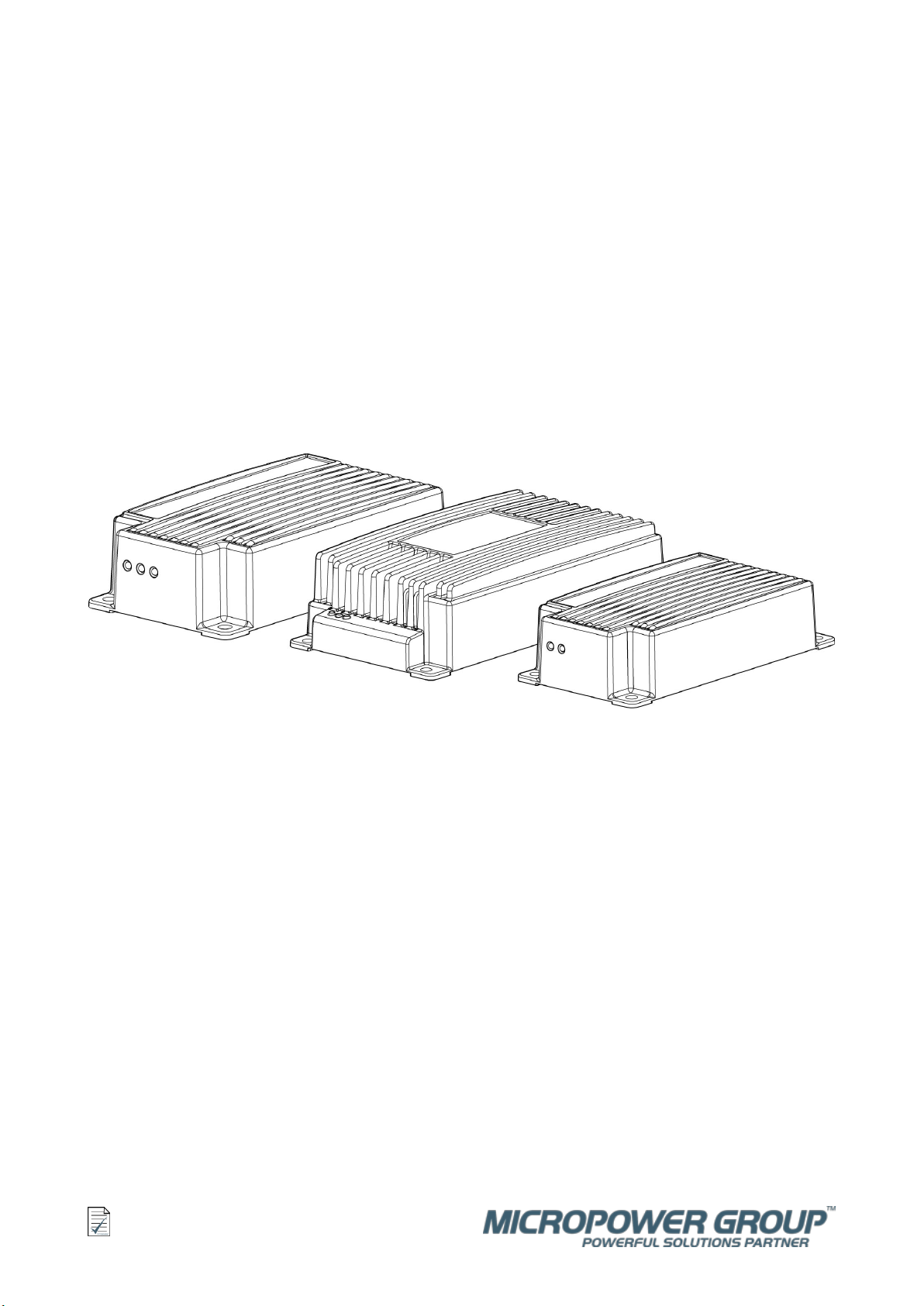

MICRO-POWER SHARP 10 User manual

SHARP 10
USER MANUAL 'ONLINE VERSION'
Battery charger
Valid for Sharp with Model Code:
1A1A2**, 2A199**, 2A1A0**, 2A1A4**

Safety.......................................................................................................................................................................... 3
Safety precautions....................................................................................................................................................... 3
Warning information..................................................................................................................................................... 4
Graphical symbols........................................................................................................................................................5
Introduction................................................................................................................................................................ 5
Description................................................................................................................................................................. 6
Receiving.................................................................................................................................................................... 6
Installation.................................................................................................................................................................. 6
Operation.................................................................................................................................................................... 6
Overview...................................................................................................................................................................... 6
Charging.......................................................................................................................................................................7
LED indication..............................................................................................................................................................7
Maintenance and troubleshooting............................................................................................................................9
Safety shut-off..............................................................................................................................................................9
Checking error messages............................................................................................................................................ 9
Checks......................................................................................................................................................................... 9
Technical data............................................................................................................................................................ 9
Recycling.................................................................................................................................................................. 10
Contact information.................................................................................................................................................10
Figures...................................................................................................................................................................... 11
P2 - fig. 1a..................................................................................................................................................................11
P3 - fig. 1b..................................................................................................................................................................11
P1 - fig. 1c.................................................................................................................................................................. 11
P2 - fig. 2....................................................................................................................................................................12
P3 - fig. 3....................................................................................................................................................................12
P1 - fig. 4....................................................................................................................................................................13
Approvals..................................................................................................................................................................14
SHARP 10 - EU Declaration of Conformity................................................................................................................14
SHARP 10 - User manual 'online version'
2

Safety
Safety precautions
Read the instructions. The manual contains important safety and operating instructions. Always keep
this manual nearby the product.
Read and understand this instruction, the battery instruction provided by your battery manufacturer, and your
employer’s safety practice, before using, installing, or servicing the product.
Only qualified personnel should install, use or service this product.
Applies to the European market, EN standard: This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
Applies to markets outside Europe, IEC standard: This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
CAUTION
Always connect the battery cables before connecting mains. Disconnect mains before disconnecting battery
cables.
Intended use
The battery charger is intended for charging lead-acid batteries.
Battery charger adjustment
The charger must be adjusted to each type of battery to be charged (Freely Ventilated FVLA or Valve regulated
VRLA). Each charger can be ordered as pre-adjusted with charging curve and parameters optimized for a specified
battery.
Before start charging
Proper installation of the battery charger and implementation of necessary safety devices and measures, including
their maintenance, is the responsibility of the operating company/customer. As a basic rule, a risk and hazard
analysis must be prepared in accordance with local requirements and best practice.
Ensure that the charger is adjusted for the battery type. Before connection, check the marking on the battery and
the battery charger.
EXPLOSIVE GASES
WARNING
RISK OF EXPLOSION! - Read and follow the precautions provided below:
WARNING, explosive gases. Lead-acid batteries generate explosive gases during charging.
SHARP 10 - User manual 'online version'
3

•Incorrect settings of the battery charger may damage the battery and generate explosive gases from the battery
during charging. Always check settings before start charging.
•Do not charge non-rechargeable batteries, damaged batteries or battery types not intended for the charger.
•Do not disconnect the battery when the charging process is in progress. Sparks may occur and cause hydrogen
explosion when charging lead-acid batteries. Arc flash may occur and damage the connector pins. Always stop
the charging process before the battery is disconnected.
No open flame. Fire, open ignition source and smoking are prohibited near battery.
•Explosive gases. Prevent flames and sparks. Provide proper ventilation during charging.
•Do not smoke, cause sparking or use open flames near battery.
•Do not keep inflammable material close to battery charger.
Well-ventilated. Always provide proper ventilation during charging.
ELECTRIC SHOCK
WARNING
RISK OF ELECTRIC CHOCK! - Read and follow the precautions provided below:
WARNING, risk of electric shock. High voltage inside. The battery charger contains voltage at a level
that can cause personal injury.
•Disconnect the battery and power supply before maintenance, servicing or dismantling.
•Check that the power supply at the site of the installation complies with the rated voltage specified on the
battery charger’s data label.
•The battery charger may only be connected to a power outlet with protective earth.
•Do not operate the charger if there is any evidence of damage.
•If the supply cord or plug is damaged:
•The manufacturer, its service agent or similarly qualified persons must carry out any replacement of the
cord / plug in order to avoid a hazard.
•Appliances with specially prepared cords must be replaced by a special cord or assembly available from the
manufacturer or its service agent.
•Other appliances that have a supply cord that cannot be replaced, should be scrapped.
•If a stationary appliance is not fitted with a supply cord and a plug, or with other means for disconnection from
the supply mains, disconnection must be incorporated in the fixed wiring in accordance with the national wiring
rules.
WARNING, risk of electric shock. High output voltage. Do not touch uninsulated battery terminals, con-
nectors or other live electrical parts.
When installing or performing work on battery, charger and battery terminals – do not risk short circuits. A short
circuit may cause personal injury and permanently damage the battery. For all work on battery chargers, batteries
and BMS, suitable insulated tools must be used.
Warning information
Hazardous situations and precautions are presented in the text as follows.
SHARP 10 - User manual 'online version'
4

WARNING
Indicates a potentially dangerous situation. Death or serious injury may occur if appropriate precautions are not
taken.
CAUTION
Indicates a situation where damage or injury could occur. If it is not avoided, minor injury and/or damage to
property may result.
NOTE
General information not connected to safety for person or the product.

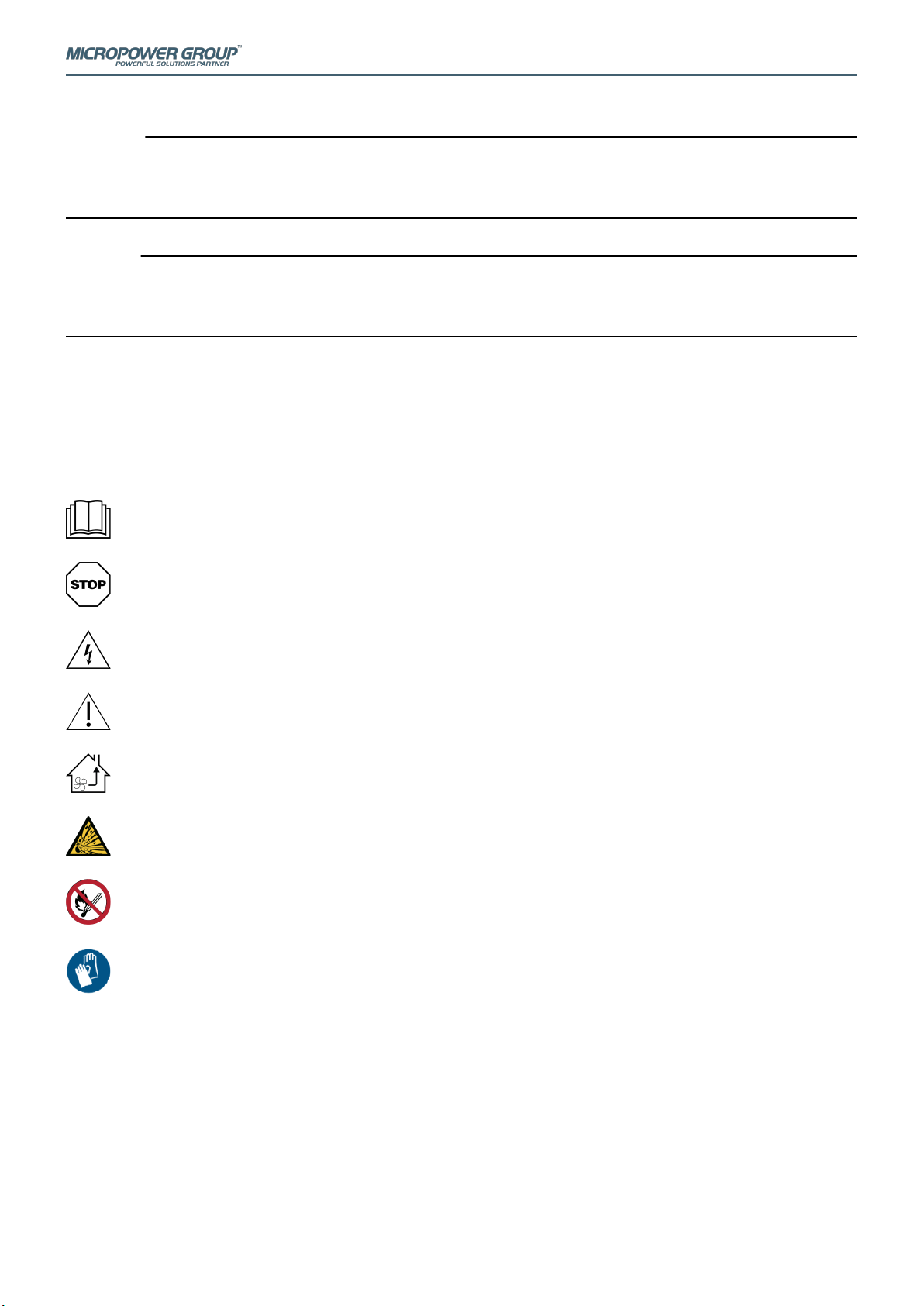

Graphical symbols
The following graphical attention symbols may appear on the products and in the documentation.
Read the instructions. The manual contains important safety and operating instructions.
Stop operation. Always stop the charging process by disconnecting the mains before disconnecting the
battery.
WARNING, risk of electric shock. High voltage inside.
CAUTION, undesirable consequences. The situation needs operator awareness or action.
Well-ventilated. Always provide proper ventilation during charging.
WARNING, explosive gases. Lead-acid batteries generate explosive gases during charging.
No open flame. Fire, open ignition source and smoking are prohibited near battery.
Wear protective gloves. The battery cables / battery connectors may become hot during charging.
Introduction
This document contains use and maintenance instructions for the intended battery charger.
This document is of relevance for the one who uses the battery charger for its purpose; charge batteries. It includes
connecting the charger to the battery, handling the charging process, and managing basic settings.
Target groups:
•Installers
SHARP 10 - User manual 'online version'
5

•Operators
•Maintenance personnel and technicians
Description
Sharp 10 is a regulated battery charger, available in different designs, for charging either flooded or valve-regulated
lead-acid batteries.
The battery charger is supplied with a pre-set charging curve adapted for the battery type specified on
order. A set charging curve can be read off the battery charger's data label.
The regulated charger controls current and voltage throughout the charging process. Charging progress is
indicated by LEDs on the battery charger panel. Charging time and the temperature of the battery charger are
monitored and charging is limited in the event of faults with cells or inadequate cooling. Throughout the charging
process, the battery charger collects data and performs calculations in order to ensure the battery is fully charged
based on the level of discharge, temperature, age, etc.
Receiving
On receipt, visually inspect the product for any physical damage. If necessary, contact the transport company.
Check the delivered parts against the delivery note. Contact your supplier if something is missing, see Contact
information.
Installation
NOTE
Installation may only be performed by qualified service partner.
•The battery charger is manufactured in different mains voltage versions. Check that the mains voltage in the
installation location matches the battery charger’s rated voltage as per the charger’s data label.
•The recommended mains fuse is specified on the battery charger’s data label.
•The battery charger should be installed on a metal base plate to ensure maximum cooling.
•The battery can have a permanent connection, or it can be connected as required.
•The battery charger is connected to the mains power using a cable with a plug inserted into an earthed wall
socket.
•Battery chargers bearing the symbol must be connected to an unearthed wall socket.
1. Install the battery charger as shown in figures P2 - fig. 1a / P3 - fig. 1b / P1 - fig. 1c.
2. Check the polarity of the battery connector and cable before connecting the battery. The charger is normally
delivered with a battery cable with the following polarity:
•Positive (+) = Red
•Negative (−) = Blue or Black
3. Connect the battery cables to the battery.
Operation
Overview
See:
P2 - fig. 2
P3 - fig. 3
P1 - fig. 4
SHARP 10 - User manual 'online version'
6

1. Fuse
2. Battery cables
3. Mains cable
4. LED indication
Charging
WARNING
High voltage!
Do not use the battery charger if it is damaged. Disconnect the mains immediately.
Do not touch damaged parts, uninsulated battery terminals, connectors, or other live electrical parts.
Contact service personnel.
Connect and start charging
1. Check that the battery charger is turned off.
2. Check the cables and connectors for visible damage.
3. Connect the battery charger to the battery.
4. Connect the mains cable.
•The battery will detect when the charger is connected to mains and charging starts when the battery
requests charging current from the charger.
•Yellow LED is lit. Charging time will vary depending on the type of battery and the degree of discharge.
•Green LED is lit when the battery is fully charged. The battery charger changes to maintenance charging.
NOTE
The green LED will not light immediately if a fully charged battery is connected. This time can vary between 0 and 2
hours.
For a detailed description, see the section LED indication.
Stop charging and disconnect
WARNING
Risk of explosion!
Do not disconnect the battery when the charging process is in progress. Sparks may occur and cause hydrogen
explosion when charging lead-acid batteries. Arc flash may occur and damage the connector pins. Always stop the
charging process before the battery is disconnected.
1. Turn off the battery charger by disconnecting the mains cable.
2. Disconnect the battery from the battery charger.
LED indication
The LEDs lights up or flashes in different patterns to indicate the condition and state of charge (SOC).
Sharp 10 P2
LED indication Off On Flashing
Yellow Green Information
SHARP 10 - User manual 'online version'
7

Mains power supply not connected.
Charging complete.
Main charging in progress.
Equalizing charge in progress.
Battery not connected. Defective battery fuse.
Battery voltage too high.
Battery voltage too low. Simultaneous flashing.
Battery charger is too hot. Alternate flashing.
Sharp 10 P3
LED indication Off On Flashing
Red Yellow Green Information
Not connected to mains power supply.
Maintenance charging (Charging complete).
Main charging.
Equalizing charge.
Charging fault, non-specific.
High battery voltage. Charging interrupted.
High battery voltage. Charging interrupted. (Option)
High battery voltage. Charging interrupted. (Option)
High charger temperature. Reduced charging current.
No battery connected.
Low battery voltage. Low current phase.
Low charging temperature or sensor fault. Charging interrupted.
Maximum number of Ah exceeded.
Battery temperature high. (Option)
Battery temp low or sensor fault. (Option)
Very low battery voltage. Lower than programmed battery voltage.
Sharp 10 P1
LED indication Off On Flashing
Yellow Green Green Information
Mains power supply not connected.
Charging complete.
Main charging in progress.
Equalizing charge in progress.
Main charging time too long.
SHARP 10 - User manual 'online version'
8

Maintenance and troubleshooting
WARNING
High voltage!
Only qualified personnel should install, use, maintain and service this product.
Disconnect the battery and power supply before maintenance, servicing or dismantling.
WARNING
High voltage!
Do not use the battery charger if it is damaged. Disconnect the mains immediately.
Do not touch damaged parts, uninsulated battery terminals, connectors, or other live electrical parts.
Contact service personnel.
Safety shut-off
Charging is terminated if:
•The recharged number of ampere-hours exceeds the preset value.
•The charging time for any of the charging phases exceeds the preset value.
•Voltage and current exceed the maximum set value.
•The battery is disconnected without the battery charger being stopped.
Charging is temporarily stopped or reduced when:
•The battery charger temperature exceeds charger limits.
Checking error messages
If the battery charger’s built-in self-testing function detects a fault, this is indicated via the status LED’s on the front
panel. Red flashing LED indicates a charging fault. Red fixed light indicates a fault in the charger.
Please make a note of any faults and send for authorised service personnel.
Checks
The following are recommended to be done regularly:
1. Check the cables and connectors for damages.
2. Check that the battery is free from defects, in good condition and is the correct type for the battery charger.
3. Check that the battery is properly connected and that the battery fuse, if any, is not broken.
4. Check that the mains voltage is correct and that there are no blown fuses.
Technical data
Operational ambient temperature: −25 to 50 °C (−13 to 122 °F)(1)
Storage temperature: −40 to 85 °C (−40 to 185 °F)
Mains voltage: See data label(2)
SHARP 10 - User manual 'online version'
9

Battery types: Lead-acid
Output voltage: See data label(2)
Recommended battery capacity:
24V/11A: 35–200 Ah
24V/8A: 30–180 Ah
24V/4A: 15–90 Ah
12V/17A: 50–220 Ah
12V/10A: 35–200 Ah
Efficiency: > 90 % at full load
Ingress protection: IP65
Approvals: CE and/or UL. See data label(2)
1) 30 to 50 °C (86 to 122 °F) with derated charging power.
2) Located on the battery charger.
Recycling
The battery charger is recycled as metal and electronics scrap. Local regulations apply and must be followed.
Contact information
Micropower Sweden AB
Idavägen 1, SE-352 46 Växjö, Sweden
Phone: [phone]
e-mail: [e-mail]
www.micropower-group.com
SHARP 10 - User manual 'online version'
10

Figures
P2 - fig. 1a
P3 - fig. 1b
P1 - fig. 1c
SHARP 10 - User manual 'online version'
11

P2 - fig. 2
P3 - fig. 3
SHARP 10 - User manual 'online version'
12

P1 - fig. 4
SHARP 10 - User manual 'online version'
13

Approvals
SHARP 10 - EU Declaration of Conformity
SHARP 10 - User manual 'online version'
14
