1 Introduction
AIRE Mate202 is a 433 Pendant which is designed as accessory for Emergency call
equipment. It works on 433 protocol .It will send 433 signal After the SOS button being
press . The LS100 device which receiver the 433 signal will dial a emergency call.
2 Product Overview
2.1 Appearance
Figure 1-1

4
2.2 Buttons Interface Description
Button /USB Interface Description
KEY/interface
Description
SOS Key
short press for 1 second then send 433 data.
long press for 10 seconds then send version number and battery voltage
data.
2.3 LED Description
Figure 1-2
There are 1 LED lights in AIRE Mate202 device, the description as following.
Light
Event
State
Normal
Dark
Solid for 4 times mean
battery voltage more then
3.1v

5
RED LED
Power on
Solid for 3 times mean
battery voltage more then
3v
Solid for 2 times mean
battery voltage more then
2.9v
Solid for 1 times mean
battery voltage less then
2.9v.need to change
battery
SOS key was short pressed for 1 second
Solid for 4 times
3 Getting Started
3.1 Parts List
Name
Remark
LS100 Base
Station
The LTE Base Station. will dial a
emergency call when receiver
the pendant 433 signal.
AIRE Mate202
Pendant
The Pendant will send 433 signal
to the base station

6
3.2 Built-in Battery
The following items are suggestion for built-in battery usage, please pay more attention.
The device is a pendant ,which is designed to be used with LS100 Base station .
There is a button battery(CR2430) integrated in device. The Pendant will
automaticly power on when the button battery is assembled .

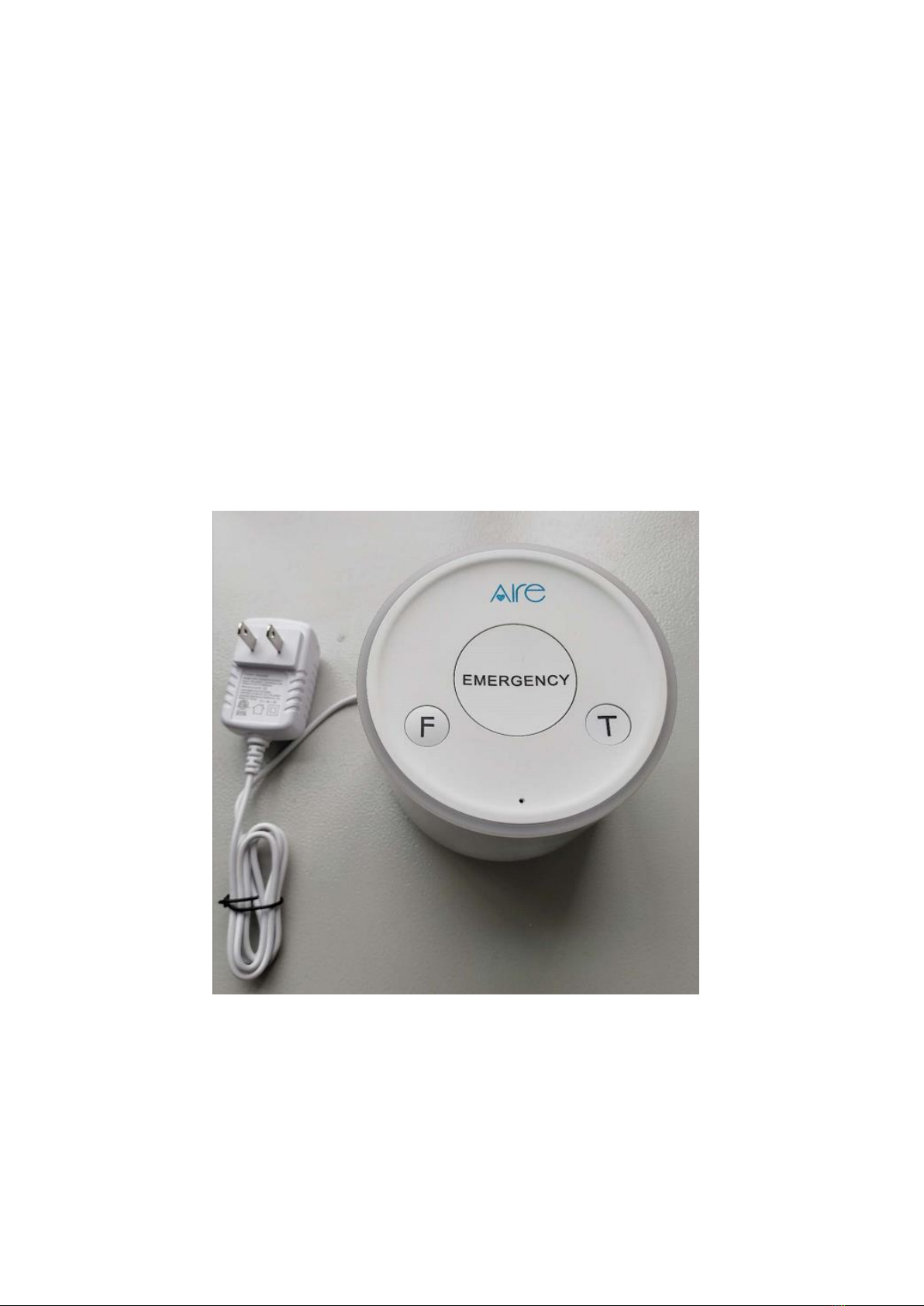

3.3 LS100 Base station
The LS100 base station is a LTE/CAT1 emergency call device which could be used to
response to the 433 data sending from the PD002 Pendant by custom protocol .
The adapter is used for device power on, built-in battery charging , which should be
plugged in power supply socket at any time ( by end user).
Figure 2-1

7
3.4 Power on/Power off
Figure 2-2
Power on:
The Pendant will automaticly power on when the button battery is assembled .
Power off:
UnPlugged the button battery.
Note: the user can change the button battery when the battery is dead.
4 Frequency
433:433.92MHz
5 Trouble shooting and Safety info
5.1 Trouble shooting
5.2 Safety info
The following items are suggestion for safety use, please pay more attention.
Please do not disassemble the device by yourself.
Trouble
Possible Reason
Solution
Unable to power
on AIRE Mate202.
The battery run out or
dead.
change the button battery(CR2430)
Beacon
broadcast data
can not be received
The PD002 is not in the
<white number list>
Add the SN of AIRE Mate202 in the
<white number list> of LS100 by custom
protocol

8
