Midea MRC-062HWN1-RC User manual

Content
Part. 1 General information........................................................2
Part. 2 Performances..................................................................5
Part. 3 Installations.................................................................104
Part. 4 Controller.....................................................................130

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
2
Part. 1 General information
1. Product lineup........................................................................3
2. External Appearance.............................................................3
3. Nomenclature .........................................................................4

Midea R410A ClimaCreator Series Rooftop Package 50Hz MCAC-RTT5-201707
3
1. Product lineup
Nominal ton
Model
Function
Air outlet
Power supply
6.25
MRC-062HWN1-R(C)
Heat pump
Side discharge
380-415V
3Ph~ 50Hz
7.5
MRC-075HWN1-R(C)
Heat pump
Side discharge
8.5
MRC-085HWN1-R(C)
Heat pump
Side discharge
10
MRC-100HWN1-R(C)
Heat pump
Side discharge
12.5
MRC-125HWN1-R(C)
Heat pump
Side discharge
15
MRC-150HWN1-R(C)
Heat pump
Side discharge
17.5
MRC-175HWN1-R(C)
Heat pump
Side discharge
20
MRC-200HWN1-R(C)
Heat pump
Side discharge
25
MRC-250HWN1-R(C)
Heat pump
Side discharge
30
MRC-300HWN1-R(C)
Heat pump
Side discharge
Notes: Please refer to specification tables for accurate cooling capacity with kW or Btu/h.

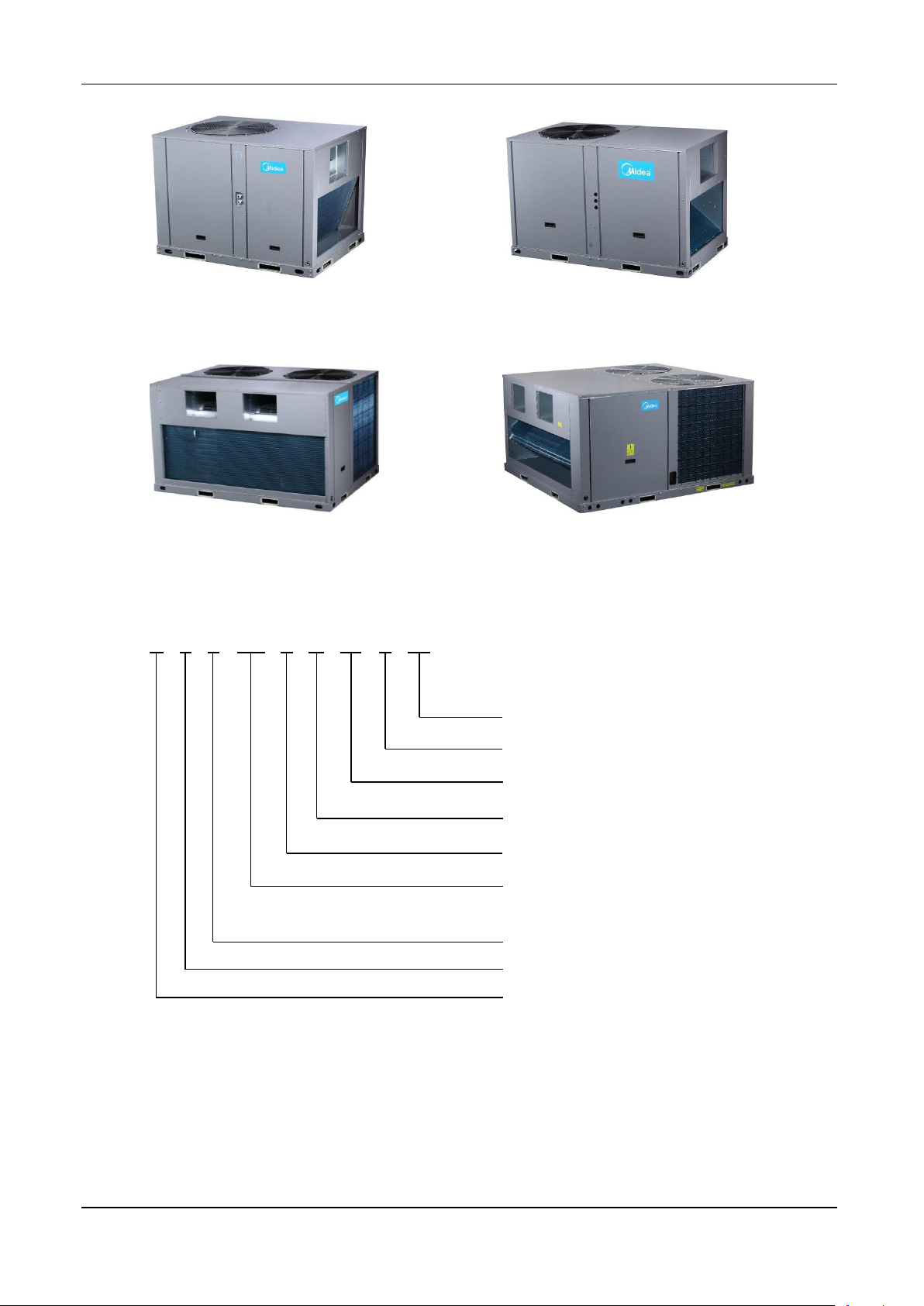

2. External Appearances
6.2&7.5ton

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
4
8.5&10ton 12.5&15ton
17.5&20ton 25&30ton
3. Nomenclatures
MRC –062 HWN1 –R(C)
Product design code
Power supply: 380-415V, 3Ph~, 50Hz
Refrigerant type: R410A
Wired controller
Heat pump type
Nominal cooling capacity
ӿӿӿ: ӿӿӿ×1ton (6.2ton)
Side discharge
Rooftop package unit
Midea

Midea R410A ClimaCreator Series Rooftop Package 50Hz MCAC-RTT5-201707
5
Part. 2 Performances
1. Features .............................................................................6
2. Specifications .....................................................................8
3. Dimensions drawings .......................................................26
4. Wiring diagrams................................................................36
5. Performance data.............................................................43
6. Electrical data...................................................................73
7. Fan performance data ......................................................74
8. Refrigerant cycle diagram.................................................95
9. Operation limits.................................................................96
10. Noise Criteria (NC) Curves..............................................98
11. Accessories....................................................................103

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
6

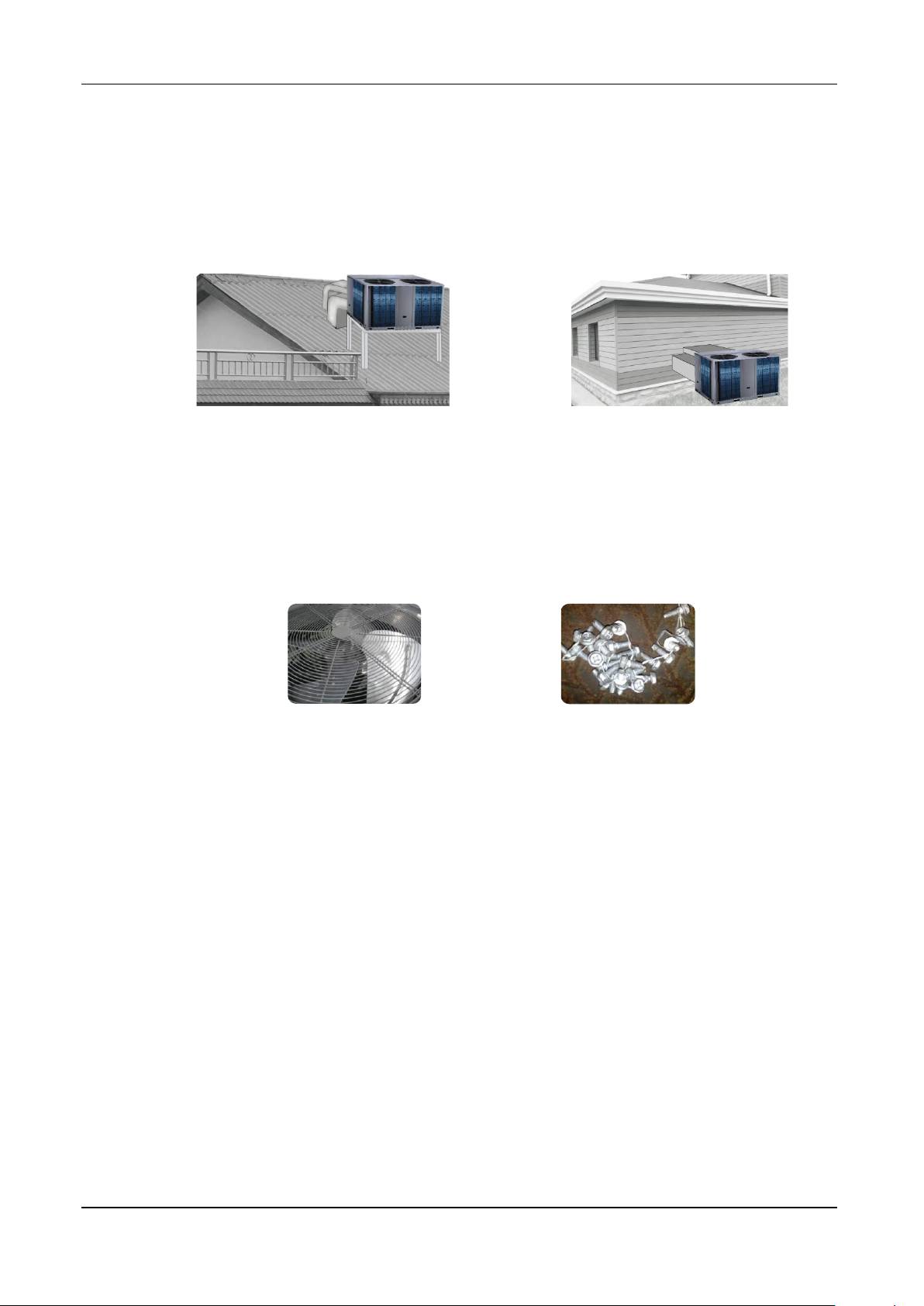

1. Features
Design flexibility.
Compact design and flanges of air flow inlet and outlet as standard. It is suitable for installation
in rooftop and ground.
Durable construction.
Pre-painted exterior cabinet panels pass 1000 hours salt spray test for durability.
Weather-resistant construction with capped steams and sloped top panels design.
The rooftop package air conditioners with special anti-corrosion treatment are suitable for
seaside areas or the areas exposed to acidic substances. (It should be customized.)
Reliable scroll compressor.
Famous brand compressor, it is more reliable. No complex internal suction and discharge
valves for quieter operation and higher reliability. Compact and light-weight design, fewer
moving parts design.
Adjustable pulley
Through changing the working pitch diameter of the pulley mounted on driver shaft, in turn the
revolutions per minute of the driven shaft will increase or decrease to change air volume.
Multi-protection design.
Multi-measurement can ensure units operate normally and reliably:
System current protection;
High/low-pressure switch protection;
Temperature sensor on/off protection, etc.
The three-phase protector can be customized.

Midea R410A ClimaCreator Series Rooftop Package 50Hz MCAC-RTT5-201707
7
Easy to installation.
Removable access door on the electric box is standard. It is easy to move the cover of the
electric box. Only connect the wires of power supply, and no need to connect any signal wires.
Reserved external drainage port, quickly and accurately connect the rubber drainage pipe.
The unit provides external pressure gauge ports for convenient and fast checking system
pressure without removing the panel.
System self-diagnostic function.
Press the Check button in Main PCB board, and the LED display of PCB board in unit will
display the normal checking code. If the unit is in running with abnormal operation, the LED
display will show the error code.
EHK (Electrical heater kits) and air intake filter as optional.
Wired controller as standard. Besides Midea controller, other brand thermostat can be matched
as optional solution.
Centralized control function can be achieved through the centralized controller as optional.
MD-NIM01 should be connected between the rooftop package units and centralized controller.

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
8
2. Specifications
Nominal ton
(Ton)
6.2
7.5
Model
MRC-062HWN1-R(C)
MRC-075HWN1-R(C)
Power supply
\
380 - 415V, 3Ph~, 50Hz
380 - 415V, 3Ph~, 50Hz
Cooling
Cooling capacity
Btu/h
75,000
89,000
kW
22.0
26.0
Power input
kW
6.6
7.9
Heating
Heating capacity
Btu/h
89,000
103,000
kW
26.0
30.0
Power input
kW
7.5
8.9
Max. input consumption
kW
8.6
12.0
Max. current
A
18.3
24.8
Performance
Indoor air flow
CFM
2,800
2,830
ESP
Pa
Default:80; 0 - 250
Default: 80; 0 - 250
EER
Btu/h.W
11.4
11.3
COP
Btu/h.W
11.9
11.6
Indoor coil
Number of rows
\
4
3
Fin spacing
mm
1.3
1.3
Fin type
\
Hydrophilic aluminum fin
Hydrophilic aluminum fin
Tube diameter
mm
Φ7
Φ7
Tube type
\
Inner grooved copper pipe
Inner grooved copper pipe
Indoor fan
Type / Quantity
\
Centrifugal / 1
Centrifugal / 1
Drive type
\
Direct
Direct
Motor quantity
\
1
1
Motor model
\
YDK750-4E
YDK750-4E
Motor capacitor
\
25µF/450V
25µF/450V
Motor input
W
1,600/1,350/1,150
1,600/1,350/1,150
Motor speed
RPM
1,090/985/895
1,090/985/895
Compressor
Type
\
Scroll / 1
Scroll / 1
Model
\
ZP72KCE-TFD-52E
HCJ106
Brand
\
Copeland
Danfoss
Capacity
W
17,200
26,100
Input
W
5,650
8,080
RLA
A
12.5
14.3
LRA
A
75
121.2
Refrigerant oil
ml
1,774
2,460
Outdoor coil
Number of rows
\
2.5
3
Fin spacing
mm
1.5
1.5
Fin type
\
Hydrophilic aluminum fin
Hydrophilic aluminum fin
Tube diameter
mm
Φ7
Φ7
Tube type
\
Inner grooved copper pipe
Inner grooved copper pipe

Midea R410A ClimaCreator Series Rooftop Package 50Hz MCAC-RTT5-201707
9
Continued:
Nominal ton
(Ton)
6.2
7.5
Model
MRC-062HN1-R(C)
MRC-075HN1-R(C)
Outdoor fan
Type
\
Axial
Axial
Quantity
\
1
1
Drive type
\
Direct
Direct
Motor quantity
\
1
1
Motor model
\
YDK450-6C
YDK580-6C
Motor capacitor
\
25µF/450V
25µF/450V
Motor input
W
757/403
820/505
Fan speed
RPM
840/550
870/640
Refrigerant
Type
\
R410A
R410A
Volume
kg
5.0
4.8
Control
\
Throttle valve
Throttle valve
Sound pressure level
dB(A)
71.0
72.1
Wired controller
\
KJR-25B
KJR-25B
Centralized controller (Optional)
\
No
No
Ambient temperature (Cooling)
°C
10 - 46
10 - 46
Ambient temperature (Heating)
°C
10 - 46
10 - 46
System stage
\
-9 - 24
-9 - 24
Dimensions
Net (W×H×D)
mm
1,475×840×1,130
1,475×840×1,130
Packing (W×H×D)
mm
1,495×870×1,150
1,495×870×1,150
Weight
Net
kg
229
244
Gross
kg
234
249
Notes:
1. Nominal ton only for reference. Cooling capacity as per specifications;
2. Cooling capacity test condition:
Outdoor ambient temperature: 35°C , indoor temperature: 26.7°CDB, 19.4°CWB;
Heating capacity test condition:
Outdoor ambient temperature: 7°C DB, 6°C WB, indoor temperature: 20°C ;
3. Units are suitable for operation to ±20% of nominal indoor air flow.
4. ESP: external static pressure;
5. Sound pressure level values are measured in a semi-anechoic room, at a position 1 meter in front of the unit
and (1 meter + Height of the unit) / 2 above the floor;
6. Specifications are subject to change without prior notice for product improvement.

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
10
Nominal ton
(Ton)
8.5
Model
MRC-085HWN1-R(C)
Power Supply
\
380 - 415V, 3Ph~, 50Hz
Cooling
Cooling capacity
Btu/h
103,000
kW
30.0
Power input
kW
9.3
Heating
Heating capacity
Btu/h
120,000
kW
35.0
Power input
kW
10.6
Max. input consumption
kW
13.6
Max. current
A
26.5
Performance
Indoor air flow
CFM
3,500
ESP
Pa
Default: 80; 0 - 200
EER
Btu/h.W
11.1
COP
Btu/h.W
11.3
Indoor coil
Number of rows
\
4
Fin spacing
mm
1.5
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7
Tube type
\
Inner grooved copper pipe
Indoor fan
Type / Quantity
\
Centrifugal / 1
Drive type
\
Belt
Motor quantity
\
1
Motor model
\
YE2-90L-4-1.5KW
Motor capacitor
\
\
Motor input
W
\
Motor speed
RPM
1,400
Compressor
Type / Quantity
\
Scroll / 2
Model
\
E604DH-59D2G
E604DH-59D2G
Brand
\
Hitachi
Hitachi
Capacity
W
15,390
15,390
Input
W
5,130
5,130
RLA
A
8.8
8.8
LRA
A
62
62
Refrigerant oil
ml
1,300
1,300
Outdoor coil
Number of rows
\
2.5
Fin spacing
mm
1.5
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7
Tube type
\
Inner grooved copper pipe

Midea R410A ClimaCreator Series Rooftop Package 50Hz MCAC-RTT5-201707
11
Continued:
Nominal ton
(Ton)
8.5
Model
MRC-085HWN1-R(C)
Outdoor fan
Type
\
Axial
Quantity
\
1
Drive type
\
Direct
Motor quantity
\
1
Motor model
\
YDK580-6C
Motor capacitor
\
25µF/450V
Motor input
W
820/505
Fan speed
RPM
870/640
Refrigerant
Type
\
R410A
Volume
kg
2.5+2.5
Control
\
Throttle valve
Sound pressure level
dB(A)
71.5
Wired controller
\
KJR-12B/dP(T)-E(B)
Centralized controller (Optional)
\
Yes
Ambient temperature (Cooling)
°C
10 - 46
Ambient temperature (Heating)
°C
-9 - 24
System stage
\
2
Dimensions
Net (W×H×D)
mm
1,483×1,231×1,138
Packing (W×H×D)
mm
1,500×1,255×1,155
Weight
Net
kg
340
Gross
kg
350
Notes:
1. Nominal ton only for reference. Cooling capacity as per specifications;
2. Cooling capacity test condition:
Outdoor ambient temperature: 35°C , indoor temperature: 26.7°CDB, 19.4°CWB;
Heating capacity test condition:
Outdoor ambient temperature: 7°C DB, 6°C WB, indoor temperature: 20°C ;
3. Units are suitable for operation to ±20% of nominal indoor air flow.
4. ESP: external static pressure;
5. Sound pressure level values are measured in a semi-anechoic room, at a position 1 meter in front of the unit
and (1 meter + Height of the unit) / 2 above the floor;
6. Specifications are subject to change without prior notice for product improvement.

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
12
Nominal ton
(Ton)
10
Model
MRC-100HWN1-R(C)
Power supply
\
380 - 415V, 3Ph~, 50Hz
Cooling
Cooling capacity
Btu/h
120,000
kW
35.0
Power input
kW
10.7
Heating
Heating capacity
Btu/h
137,000
kW
40.0
Power input
kW
11.9
Max. input consumption
kW
16.0
Max. current
A
28.8
Performance
Indoor air flow
CFM
4,100
ESP
Pa
Default: 90; 0 - 250
EER
Btu/h.W
11.2
COP
Btu/h.W
11.5
Indoor coil
Number of rows
\
4
Fin spacing
mm
1.5
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7
Tube type
\
Inner grooved copper pipe
Indoor fan
Type / Quantity
\
Centrifugal / 1
Drive type
\
Belt
Motor quantity
\
1
Motor model
\
YE2-90L-4-1.5KW
Motor capacitor
\
\
Motor input
W
\
Motor speed
RPM
1,400
Compressor
Type / Quantity
\
Scroll / 2
Model
\
E654DH-65D2G
E654DH-65D2G
Brand
\
Hitachi
Hitachi
Capacity
W
17,100
17,100
Input
W
5,700
5,700
RLA
A
9.6
9.6
LRA
A
66
66
Refrigerant oil
ml
1,300
1,300
Outdoor coil
Number of rows
\
2.5
Fin spacing
mm
1.5
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7
Tube type
\
Inner grooved copper pipe

Midea R410A ClimaCreator Series Rooftop Package 50Hz MCAC-RTT5-201707
13
Continued:
Nominal ton
(Ton)
10
Model
MRC-100HWN1-R(C)
Outdoor fan
Type
\
Axial
Quantity
\
1
Drive type
\
Direct
Motor quantity
\
1
Motor model
\
YS1100-6P
Motor capacitor
\
\
Motor input
W
\
Fan speed
RPM
1,120/965
Refrigerant
Type
\
R410A
Volume
kg
2.9+2.9
Control
\
Throttle valve
Sound pressure level
dB(A)
71.5
Wired controller
\
KJR-12B/dP(T)-E(B)
Centralized controller (Optional)
\
Yes
Ambient temperature (Cooling)
°C
10 - 46
Ambient temperature (Heating)
°C
-9 - 24
System stage
\
2
Dimensions
Net (W×H×D)
mm
1,483×1,231×1,138
Packing (W×H×D)
mm
1,500×1,255×1,155
Weight
Net
kg
343
Gross
kg
354
Notes:
1. Nominal ton only for reference. Cooling capacity as per specifications;
2. Cooling capacity test condition:
Outdoor ambient temperature: 35°C , indoor temperature: 26.7°CDB, 19.4°CWB;
Heating capacity test condition:
Outdoor ambient temperature: 7°C DB, 6°C WB, indoor temperature: 20°C ;
3. Units are suitable for operation to ±20% of nominal indoor air flow.
4. ESP: external static pressure;
5. Sound pressure level values are measured in a semi-anechoic room, at a position 1 meter in front of the unit
and (1 meter + Height of the unit) / 2 above the floor;
6. Specifications are subject to change without prior notice for product improvement.

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
14
Nominal ton
(Ton)
12.5
Model
MRC-125HWN1-R(C)
Power supply
\
380 - 415V, 3Ph~, 50Hz
Cooling
Cooling capacity
Btu/h
150,000
kW
44.0
Power input
kW
13.3
Heating
Heating capacity
Btu/h
154,000
kW
45.0
Power input
kW
13.2
Max. input consumption
kW
19.7
Max. current
A
38.2
Performance
Indoor air flow
CFM
5,500
ESP
Pa
Default: 110; 0 - 275
EER
Btu/h.W
11.3
COP
Btu/h.W
11.7
Indoor coil
Number of rows
\
4+4
Fin spacing
mm
1.3+1.3
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7+Φ7
Tube type
\
Inner grooved copper pipe
Indoor fan
Type / Quantity
\
Centrifugal / 1
Drive type
\
Belt
Motor quantity
\
1
Motor model
\
YE2-100L2-4-3KW
Motor capacitor
\
\
Motor input
W
\
Motor speed
RPM
1,420
Compressor
Type / Quantity
\
Scroll / 2
Model
\
ZP61KCE-TFD-522
ZP122KCE-TFD-522
Brand
\
Copeland
Copeland
Capacity
W
14,700
29,900
Input
W
4,750
9,190
RLA
A
10.9
18
LRA
A
64
127
Refrigerant oil
ml
1,685
2,513
Outdoor coil
Number of rows
\
3
Fin spacing
mm
1.5
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7
Tube type
\
Inner grooved copper pipe

Midea R410A ClimaCreator Series Rooftop Package 50Hz MCAC-RTT5-201707
15
Continued:
Nominal ton
(Ton)
12.5
Model
MRC-125HWN1-R(C)
Outdoor fan
Type
\
Axial
Quantity
\
1
Drive type
\
Direct
Motor quantity
\
1
Motor model
\
YS1100-6
Motor capacitor
\
\
Motor input
W
1,120/965
Fan speed
RPM
\
Refrigerant
Type
\
R410A
Volume
kg
3.4+2.1
Control
\
Throttle valve
Sound pressure level
dB(A)
71.8
Wired controller
\
KJR-12B/dP(T)-E(B)
Centralized controller (Optional)
\
Yes
Ambient temperature (Cooling)
°C
10 - 46
Ambient temperature (Heating)
°C
-9 - 24
System stage
\
2
Dimensions
Net (W×H×D)
mm
1,965×1,230×1,130
Packing (W×H×D)
mm
1,995×1,255×1,160
Weight
Net
kg
451
Gross
kg
471
Notes:
1. Nominal ton only for reference. Cooling capacity as per specifications;
2. Cooling capacity test condition:
Outdoor ambient temperature: 35°C , indoor temperature: 26.7°CDB, 19.4°CWB;
Heating capacity test condition:
Outdoor ambient temperature: 7°C DB, 6°C WB, indoor temperature: 20°C ;
3. Units are suitable for operation to ±20% of nominal indoor air flow.
4. ESP: external static pressure;
5. Sound pressure level values are measured in a semi-anechoic room, at a position 1 meter in front of the unit
and (1 meter + Height of the unit) / 2 above the floor;
6. Specifications are subject to change without prior notice for product improvement.

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
16
Nominal ton
(Ton)
15
Model
MRC-150HWN1-R(C)
Power supply
\
380 - 415V, 3Ph~, 50Hz
Cooling
Cooling capacity
Btu/h
180,000
kW
53.0
Power input
kW
16.7
Heating
Heating capacity
Btu/h
191,000
kW
56.0
Power input
kW
17.2
Max. input consumption
kW
25.0
Max. current
A
46.1
Performance
Indoor air flow
CFM
7,000
ESP
Pa
Default: 110; 0 - 325
EER
Btu/h.W
10.8
COP
Btu/h.W
11.1
Indoor coil
Number of rows
\
4+4
Fin spacing
mm
1.3+1.3
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7+Φ7
Tube type
\
Inner grooved copper pipe
Indoor fan
Type / Quantity
\
Centrifugal / 1
Drive type
\
Belt
Motor quantity
\
1
Motor model
\
YE2-112M-4-4KW
Motor capacitor
\
\
Motor input
W
\
Motor speed
RPM
1,440
Compressor
Type / Quantity
\
Scroll / 2
Model
\
ZP61KCE-TFD-522
ZP144KCE-TFD-522
Brand
\
Copeland
Copeland
Capacity
W
14,700
35,400
Input
W
4,750
10,800
RLA
A
10.9
21.1
LRA
A
64
144
Refrigerant oil
ml
1,685
3,253
Outdoor coil
Number of rows
\
3.5
Fin spacing
mm
1.6
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ8
Tube type
\
Inner grooved copper pipe

Midea R410A ClimaCreator Series Rooftop Package 50Hz MCAC-RTT5-201707
17
Nominal ton
(Ton)
15
Model
MRC-150HWN1-R(C)
Outdoor fan
Type
\
Axial
Quantity
\
1
Drive type
\
Direct
Motor quantity
\
1
Motor model
\
YS1100-6
Motor capacitor
\
\
Motor input
W
\
Fan speed
RPM
1,120/965
Refrigerant
Type
\
R410A
Volume
kg
6.1+3.0
Control
\
Throttle valve
Sound pressure level
dB(A)
76.9
Wired controller
\
KJR-12B/dP(T)-E(B)
Centralized controller (Optional)
\
Yes
Ambient temperature (Cooling)
°C
10 - 46
Ambient temperature (Heating)
°C
-9 - 24
System stage
\
2
Dimensions
Net (W×H×D)
mm
1,965×1,230×1,130
Packing (W×H×D)
mm
1,995×1,255×1,160
Weight
Net
kg
492
Gross
kg
512
Notes:
1. Nominal ton only for reference. Cooling capacity as per specifications;
2. Cooling capacity test condition:
Outdoor ambient temperature: 35°C , indoor temperature: 26.7°CDB, 19.4°CWB;
Heating capacity test condition:
Outdoor ambient temperature: 7°C DB, 6°C WB, indoor temperature: 20°C ;
3. Units are suitable for operation to ±20% of nominal indoor air flow.
4. ESP: external static pressure;
5. Sound pressure level values are measured in a semi-anechoic room, at a position 1 meter in front of the unit
and (1 meter + Height of the unit) / 2 above the floor;
6. Specifications are subject to change without prior notice for product improvement.

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
18
Nominal ton
(Ton)
17.5
Model
MRC-175HWN1-R(C)
Power supply
\
380 - 415V, 3Ph~, 50Hz
Cooling
Cooling capacity
Btu/h
208,000
kW
61.0
Power input
kW
19.1
Heating
Heating capacity
Btu/h
218,000
kW
64.0
Power input
kW
19.5
Max. input consumption
kW
27.0
Max. current
A
55.4
Performance
Indoor air flow
CFM
7,600
ESP
Pa
Default: 110; 0 - 250
EER
Btu/h.W
10.9
COP
Btu/h.W
11.2
Indoor coil
Number of rows
\
3
Fin spacing
mm
1.3
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7
Tube type
\
Inner grooved copper pipe
Indoor fan
Type / Quantity
\
Centrifugal / 2
Drive type
\
Belt
Motor quantity
\
1
Motor model
\
YE2-112M-4-4KW
Motor capacitor
\
\
Motor input
W
\
Motor speed
RPM
1,440
Compressor
Type / Quantity
\
Scroll / 2
Model
\
ZP122KCE-TFD-522
ZP122KCE-TFD-522
Brand
\
Copeland
Copeland
Capacity
W
29,900
29,900
Input
W
9,190
9,190
RLA
A
18
18
LRA
A
127
127
Refrigerant oil
ml
2,513
2,513
Outdoor coil
Number of rows
\
2.5+2.5
Fin spacing
mm
1.5+1.5
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7+Φ7
Tube type
\
Inner grooved copper pipe

Midea R410A ClimaCreator Series Rooftop Package 50Hz MCAC-RTT5-201707
19
Continued:
Nominal ton
(Ton)
17.5
Model
MRC-175HWN1-R(C)
Outdoor fan
Type
\
Axial
Quantity
\
2
Drive type
\
Direct
Motor quantity
\
2
Motor model
\
YDK550-6E
Motor capacitor
\
25µF/450V
Motor input
W
740/640
Fan speed
RPM
880/810
Refrigerant
Type
\
R410A
Volume
kg
5.8+5.8
Control
\
Throttle valve
Sound pressure level
dB(A)
76.0
Wired controller
\
KJR-12B/dP(T)-E(B)
Centralized controller (Optional)
\
Yes
Ambient temperature (Cooling)
°C
10 - 46
Ambient temperature (Heating)
°C
-9 - 24
System stage
\
2
Dimensions
Net (W×H×D)
mm
1,670×1,247×2,192
Packing (W×H×D)
mm
1,695×1,284×2,212
Weight
Net
kg
615
Gross
kg
645
Notes:
1. Nominal ton only for reference. Cooling capacity as per specifications;
2. Cooling capacity test condition:
Outdoor ambient temperature: 35°C , indoor temperature: 26.7°CDB, 19.4°CWB;
Heating capacity test condition:
Outdoor ambient temperature: 7°C DB, 6°C WB, indoor temperature: 20°C ;
3. Units are suitable for operation to ±20% of nominal indoor air flow.
4. ESP: external static pressure;
5. Sound pressure level values are measured in a semi-anechoic room, at a position 1 meter in front of the unit
and (1 meter + Height of the unit) / 2 above the floor;
6. Specifications are subject to change without prior notice for product improvement.

MCAC-RTT5-201707 Midea R410A ClimaCreator Series Rooftop Package 50Hz
20
Nominal ton
(Ton)
20
Model
MRC-200HWN1-R(C)
Power supply
\
380 - 415V, 3Ph~, 50Hz
Cooling
Cooling capacity
Btu/h
240,000
kW
70.0
Power input
kW
22.6
Heating
Heating capacity
Btu/h
260,000
kW
75.0
Power input
kW
23.6
Max. input consumption
kW
32.5
Max. current
A
63.2
Performance
Indoor air flow
CFM
8,800
ESP
Pa
Default: 120; 0 - 375
EER
Btu/h.W
10.6
COP
Btu/h.W
11.0
Indoor coil
Number of rows
\
4
Fin spacing
mm
1.3
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7
Tube type
\
Inner grooved copper pipe
Indoor fan
Type / Quantity
\
Centrifugal / 2
Drive type
\
Belt
Motor quantity
\
1
Motor model
\
YE2-132S-4-5.5KW
Motor capacitor
\
\
Motor input
W
\
Motor speed
RPM
1,440
Compressor
Type / Quantity
\
Scroll / 2
Model
\
ZP144KCE-TFD-522
ZP144KCE-TFD-522
Brand
\
Copeland
Copeland
Capacity
W
35,400
35,400
Input
W
10,800
10,800
RLA
A
21.1
21.1
LRA
A
144
144
Refrigerant oil
ml
3,253
3,253
Outdoor coil
Number of rows
\
3
Fin spacing
mm
1.5+1.5
Fin type
\
Hydrophilic aluminum fin
Tube diameter
mm
Φ7+Φ7
Tube type
\
Inner grooved copper pipe
