Midea MB-FS3018W1 User manual

Instruction Manual
Please read the manual carefully before using this
appliance and keep them for future reference.
MB-FS3018W1
MB-FS3018W2
3L SmartRice Cooker

FORBIDDEN,
MANDATORY,
ATTENTION
Safety
warning
Parts and features
Accessories list
Operation panel
Product
overview
Service
guide
Care and
Cleaning
Instructions
for use
Quick start guide
Functional description
Disassemble the lid plate
for cleaning
Steam valve cleaning
Cleaning the cooker body
Technical data of the product
Circuit principle diagram
Anomaly self-checking

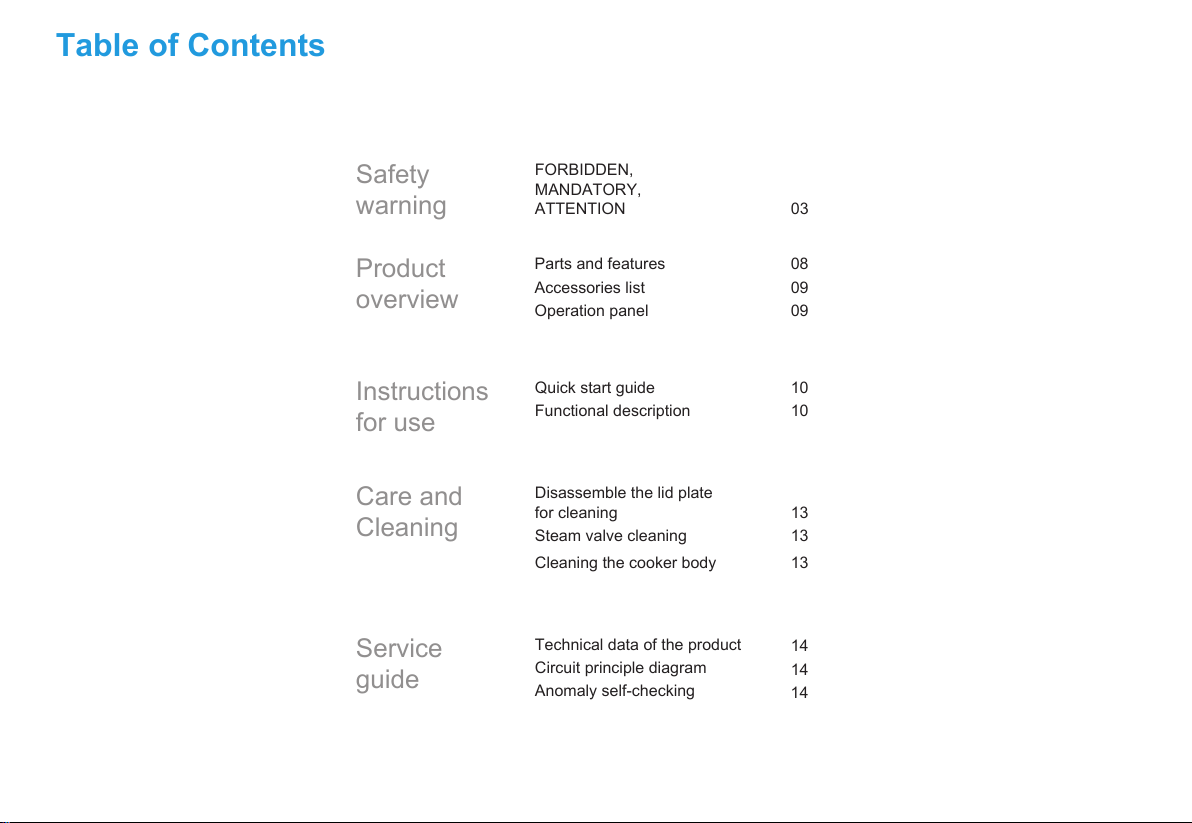

Table of Contents
30
08
09
09
10
10
13
13
13
14
14
14

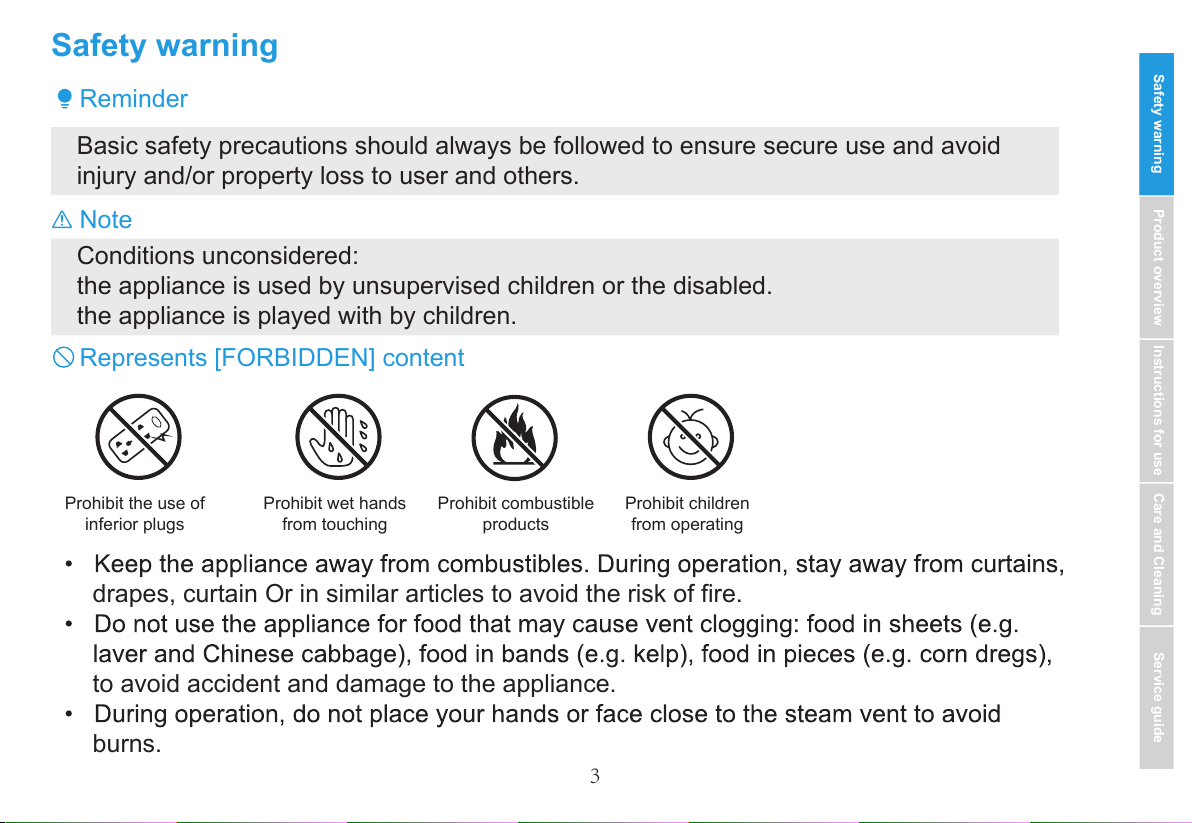

Safety warning
Reminder
Note
Represents [FORBIDDEN] content
Product overviewSafety warning Instructions for use Care and Cleaning Service guide
Basic safety precautions should always be followed to ensure secure use and avoid
injury and/or property loss to user and others.
drapes, curtain Or in similar articles to avoid the risk of fire.
to avoid accident and damage to the appliance.
burns.
Conditions unconsidered:
the appliance is used by unsupervised children or the disabled.
the appliance is played with by children.
Prohibit the use of
inferior plugs
Prohibit wet hands
from touching
Prohibit children
from operating
Prohibit combustible
products
3

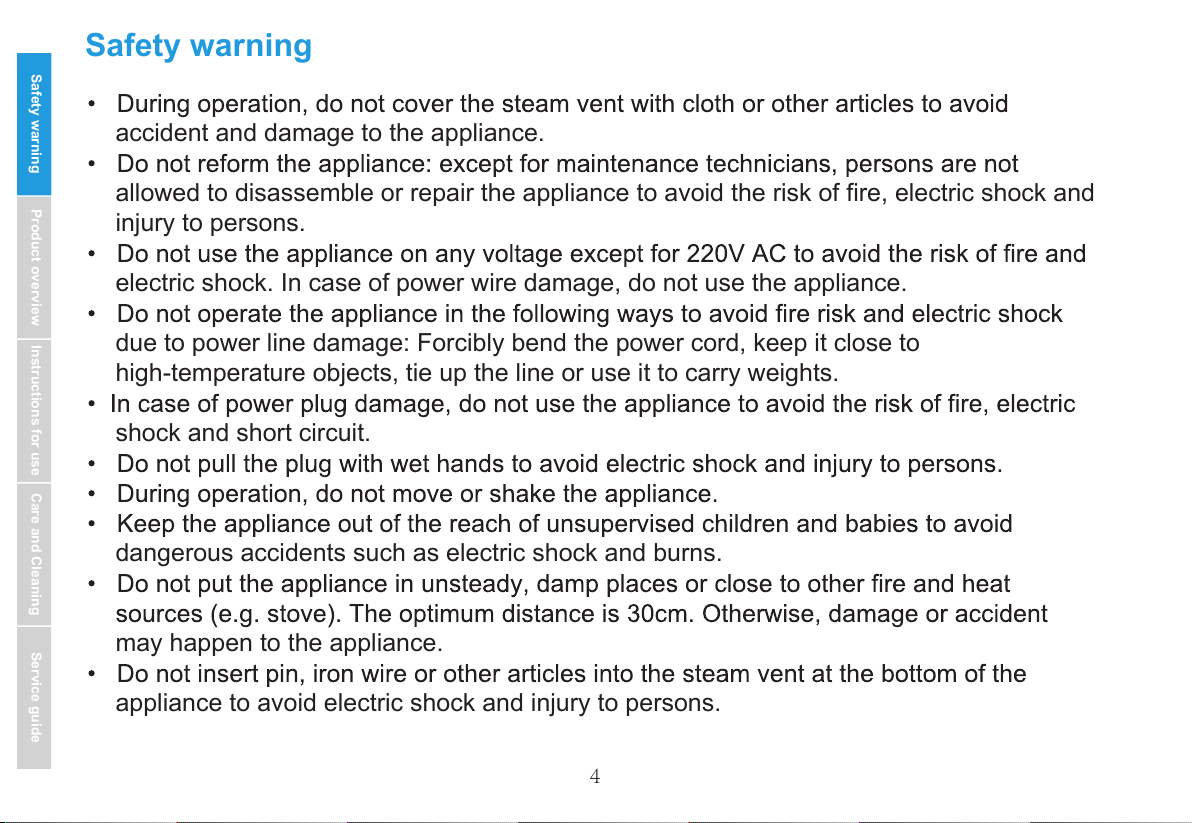

Safety warning
Product overviewSafety warning Instructions for use Care and Cleaning Service guide
accident and damage to the appliance.
allowed to disassemble or repair the appliance to avoid the risk of fire, electric shock and
injury to persons.
electric shock. In case of power wire damage, do not use the appliance.
due to power line damage: Forcibly bend the power cord, keep it close to
high-temperature objects, tie up the line or use it to carry weights.
shock and short circuit.
dangerous accidents such as electric shock and burns.
may happen to the appliance.
appliance to avoid electric shock and injury to persons.
4

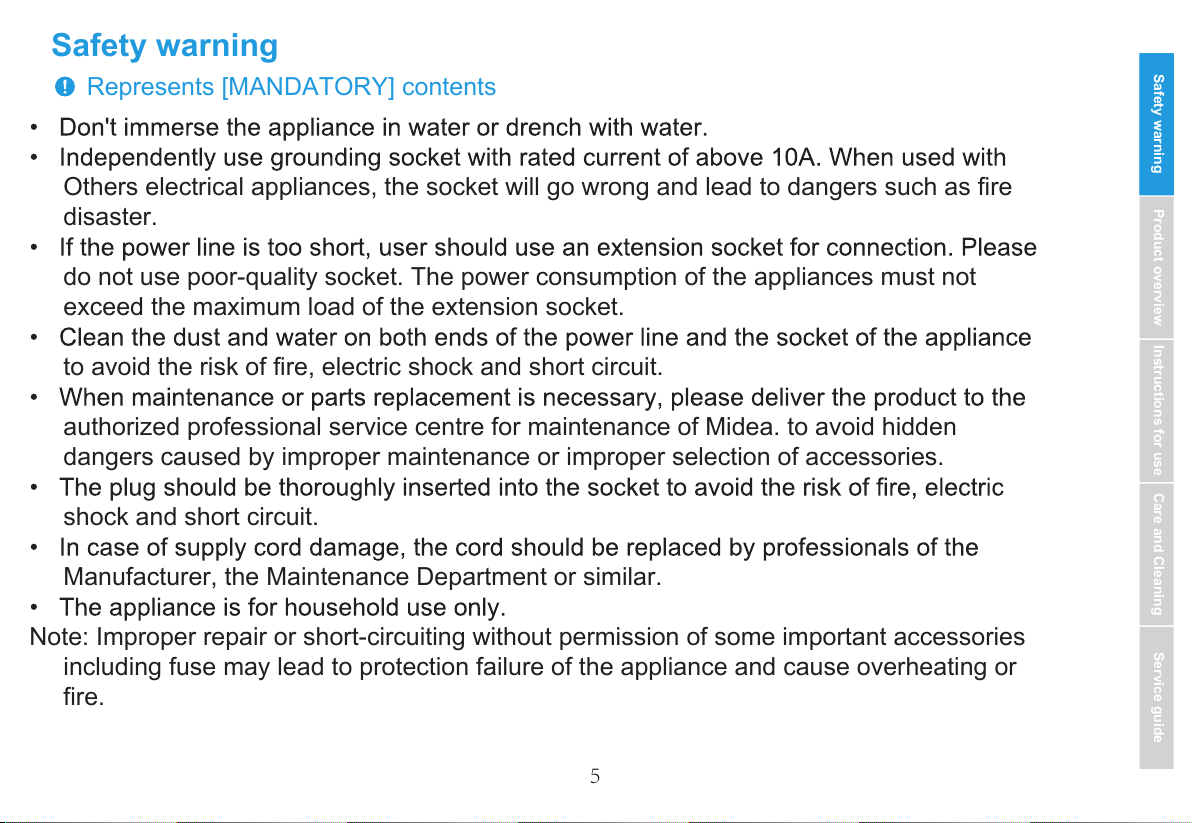

Represents [MANDATORY] contents
Safety warning
Product overviewSafety warning Instructions for use Care and Cleaning Service guide
Others electrical appliances, the socket will go wrong and lead to dangers such as fire
disaster.
do not use poor-quality socket. The power consumption of the appliances must not
exceed the maximum load of the extension socket.
to avoid the risk of fire, electric shock and short circuit.
authorized professional service centre for maintenance of Midea. to avoid hidden
dangers caused by improper maintenance or improper selection of accessories.
shock and short circuit.
Manufacturer, the Maintenance Department or similar.
Note: Improper repair or short-circuiting without permission of some important accessories
including fuse may lead to protection failure of the appliance and cause overheating or
fire.
5

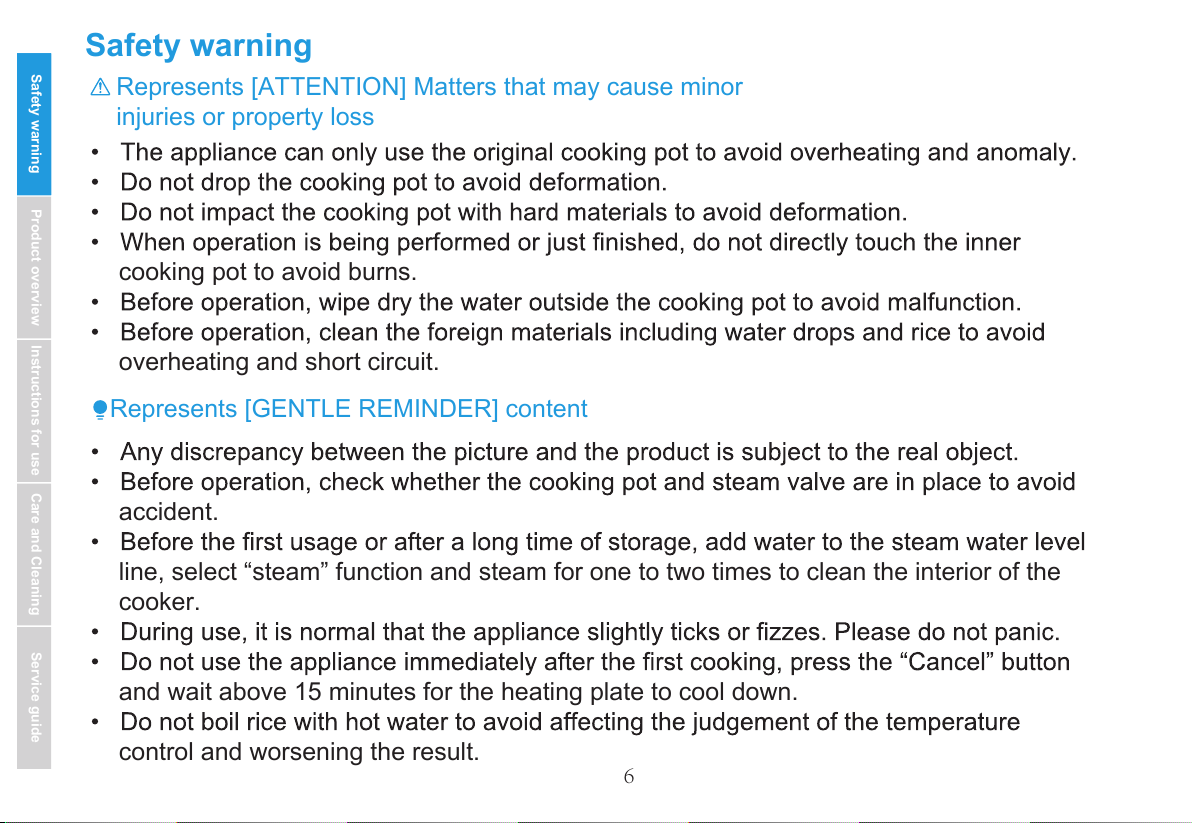

Represents [ATTENTION] Matters that may cause minor
injuries or property loss
Represents [GENTLE REMINDER] content
Safety warning
Product overviewSafety warning Instructions for use Care and Cleaning Service guide
cooking pot to avoid burns.
overheating and short circuit.
accident.
line, select “steam” function and steam for one to two times to clean the interior of the
cooker.
and wait above 15 minutes for the heating plate to cool down.
control and worsening the result. 6

Safety warning
Product overviewSafety warning Instructions for use Care and Cleaning Service guide
7
。
。
。
。

Safety warning
Product overviewSafety warning Instructions for use Care and Cleaning Service guide

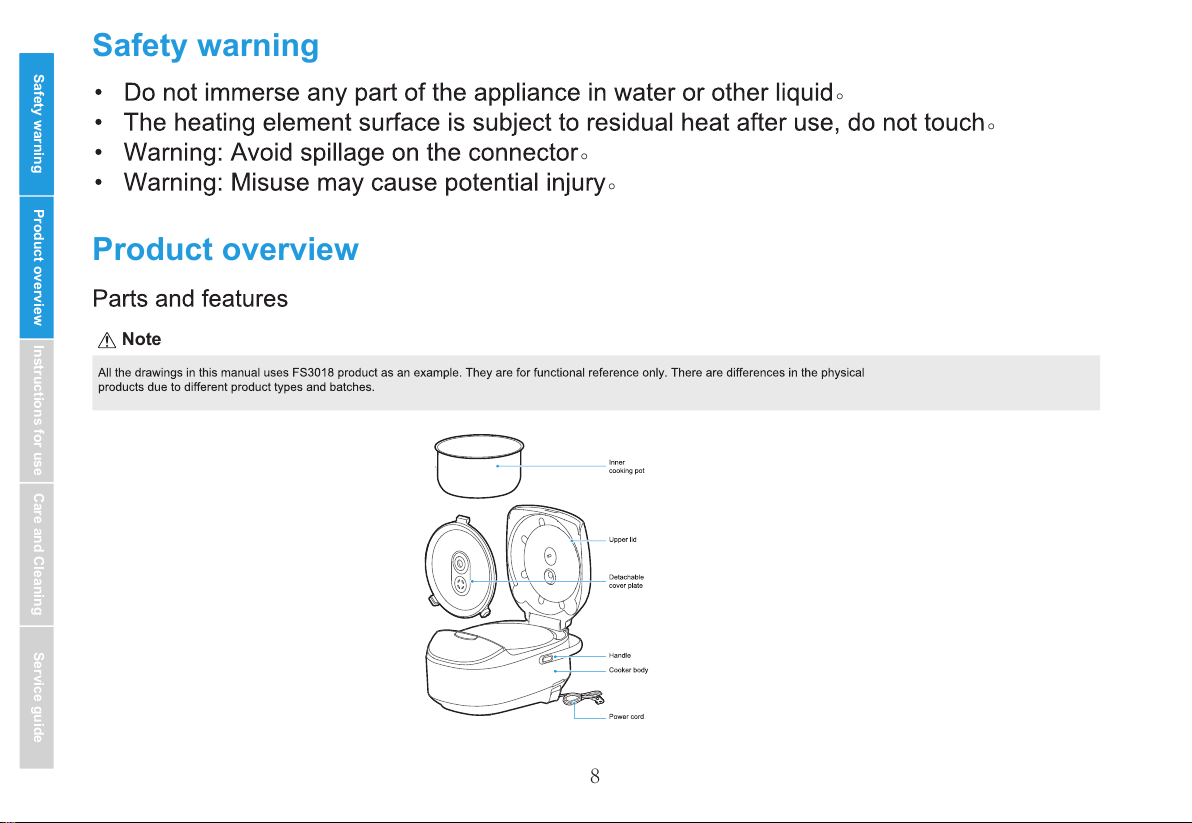

Product overview
Note
8
。
。
。
。

Product overviewSafety warning Instructions for use Care and Cleaning Service guide
Product overview

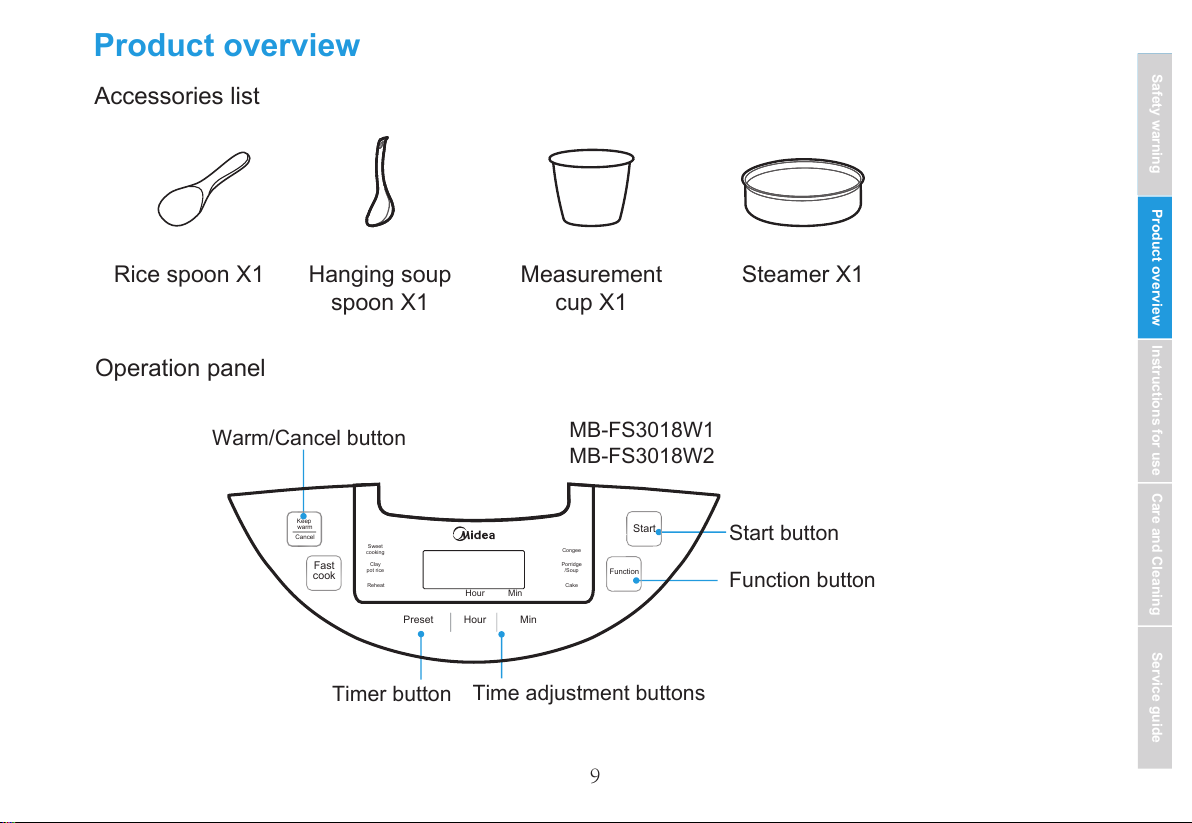

Accessories list
Hanging soup
spoon X1
Measurement
cup X1
Steamer X1 Rice spoon X1
Operation panel
Time adjustment buttons
Timer button
Start button
Function button
Warm/Cancel button MB-FS3018W1
MB-FS3018W2
9
Sweet
cooking
Fast
cook
Hour
Hour
Min
Min
Keep
warm
Cancel
Congee
Start
Function
Porridge
/Soup
Cake
Clay
pot rice
Reheat
Preset

Product overviewSafety warning Instructions for use Care and Cleaning Service guide

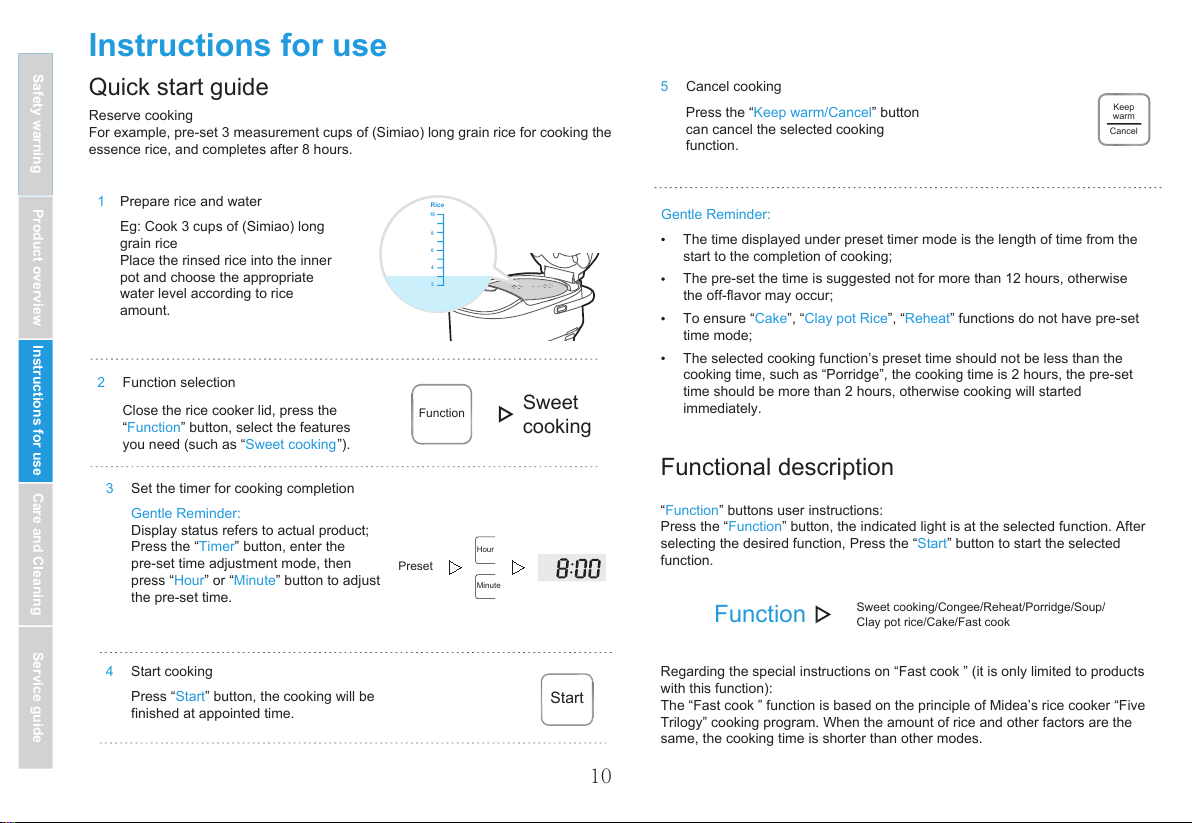

Instructions for use
Close the rice cooker lid, press the
“Function” button, select the features
you need (such as “Sweet cooking”).
Function selection
Quick start guide
Reserve cooking
For example, pre-set 3 measurement cups of (Simiao) long grain rice for cooking the
essence rice, and completes after 8 hours.
Eg: Cook 3 cups of (Simiao) long
grain rice
Place the rinsed rice into the inner
pot and choose the appropriate
water level according to rice
amount.
Prepare rice and water
Sweet
cooking
Rice
Function
2
4
6
8
10
2
1
Start cooking
Press “Start” button, the cooking will be
finished at appointed time.
Gentle Reminder:
Display status refers to actual product;
Press the “Timer” button, enter the
pre-set time adjustment mode, then
press “Hour” or “Minute” button to adjust
the pre-set time.
Set the timer for cooking completion
Preset
Hour
Minute
Start
4
3
Gentle Reminder:
The time displayed under preset timer mode is the length of time from the
start to the completion of cooking;
The pre-set the time is suggested not for more than 12 hours, otherwise
the off-flavor may occur;
To ensure “Cake”, “Clay pot Rice”, “Reheat” functions do not have pre-set
time mode;
The selected cooking function’s preset time should not be less than the
cooking time, such as “Porridge”, the cooking time is 2 hours, the pre-set
time should be more than 2 hours, otherwise cooking will started
immediately.
Cancel cooking
Press the “Keep warm/Cancel” button
can cancel the selected cooking
function.
Functional description
“Function” buttons user instructions:
Press the “Function” button, the indicated light is at the selected function. After
selecting the desired function, Press the “Start” button to start the selected
function.
Sweet cooking/Congee/Reheat/Porridge/Soup/
Clay pot rice/Cake/Fast cook
Regarding the special instructions on “Fast cook ” (it is only limited to products
with this function):
The “Fast cook ” function is based on the principle of Midea’s rice cooker “Five
Trilogy” cooking program. When the amount of rice and other factors are the
same, the cooking time is shorter than other modes.
Function
5
10
Keep
warm
Cancel

Product overviewSafety warning Instructions for use Care and Cleaning Service guide
Instructions for use
Press the “Function” button, select
the “Cake” function.
Press the “Start” button to enter the working state.
Put sugar, add in eggs, stir the eggs with the egg mixer until it foams. Add in
cake powder, stir and mix quickly, and before the foams disappears, quickly
pour it into the electric cooker to bake.
Cake
Materials preparation:
Small amount: 3 eggs, 100g caster sugar, 120g cake flour (baking
powder), 30g butter (not melted);
Large amount: 5 eggs, 180g caster sugar, 200g cake flour (baking
powder), 50g butter (not melted).
Rice
Soup
Soup
Prepare soup ingredients (such as pig bone, corn,
carrots etc.), wash all ingredients and cut into small
pieces, then put them into the inner pot, and add water
no more than maximum water line.
Close the lid, press the “Function” button to
select the “Soup”, then press the “Start” button,
and wait for cooking to end.
Press the “Function” button, select
the “Soup” Function.
Function Cake
10
4
6
8
2
Function
1
2
3
3
4
2
1
Close the rice cooker lid, press the “Start” button, and
wait patiently for the function to end.
Press “Function” button to select “Clay pot
Rice” function, and press “Start” button.
Mix and stir the ingredients (such as pork ribs)
and seasonings (such as onion, ginger, garlic
and soy sauce) evenly, and according to
individual’s taste, pickle the marinated
ingredients for a short time.
During the cooking process, when you hear
the notification sound, spread the marinated
ingredients on the rice, close the lid, and wait
patiently for the function to end.
In the measurement cup, put the washed white
rice (no more than 4 cups) into the inner pot,
add the corresponding amount of water, and
add suitable amount of peanut oil and stir with
white rice together in the inner pot.
Clay pot rice
Start
Function Clay pot rice
3
1
4
2
4
11

Product overviewSafety warning Instructions for use Care and Cleaning Service guide
Instructions for use
When using Reheat function, the maximum amount of rice cannot exceed Mark 4.
Reheat
After entering the warm-keeping
process, please loosen the rice
within 30 minutes for a better taste.
Loosen the rice; sprinkle 50-80 grams
of water on the surface of the rice (take
the amount of rice below the Mark 2 as
an example).
Press “Function” button to select the
“Reheat” function and press the
“Start” button.
Keep warm
Press “Keep warm/Cancel” button to enter
warm-keeping mode.
It is recommended that the rice should be
loosened within 30 minutes under warm-keeping
mode, the taste will be better.
Gentle Reminder:
After all functions finished cooking, it will automatically enter the
warm-keeping mode;
During the process of warm keeping, the product will be heated to
maintain the temperature above 65 degrees Celsius.
The product can achieve 24-hours water keeping function;
Function Reheat
3
1
2
1
2
Rice: Refer to the corresponding water level according to the type of
rice when adding water.
Note: Clay pot rice can cook up to 4 cups of rice only
Congee: Refer to the congee water line when adding water.
Porridge: Refer to the porridge water line when adding water.
Porridge
Congee
Rice
The use of water level lines
rice congee porridge
max
FS3018B/FS3018R Water Level Line
Specification Maximum rice
amount
5.5 cups 1 cup
Minimum rice
amount
Specification Maximum rice
amount
0.5 cups
1 cup
Minimum rice
amount
Specification Maximum rice
amount
0.5 cups 0.25 cups
Minimum rice
amount
12
Keep
warm
Cancel
Keep
warm
Cancel
MB-FS3018W1
MB-FS3018W2
MB-FS3018W1
MB-FS3018W2
MB-FS3018W1
MB-FS3018W2

Product overviewSafety warning Instructions for use Care and Cleaning Service guide
Care and Cleaning
Disassemble the lid plate for cleaning
Note
Make sure the product is not connected to power supply when cleaning.
Rinse the whole cover with water and wipe it dry with cloth;
Align top lid slot band insert the lid, press the lid near the button a,
when hears a “click” sound then the installation is complete.
Press white button a, pull outwards and remove the lid.
Steam valve cleaning
Pull it up and remove the steam valve.
Clean the cover
plate
Pull up
Open the top cover
and remove the
cover plate
Button a
2
3
1
1
Cleaning the cooker body
Wipe the inner lid with a damp cloth; do not wash directly with water.
Simply press the steam valve back in place with strength while installing.
According to the disassembly mark on the steam valve, after dismantling,
clean the steam valve inside, then install it according to the disassembly
and installation mark.
Use a clean cloth to clean the water, rice grain and other debris on the water
storage tank and heating plate.
Wipe the bottom and outer surface of the inner pot with a clean cloth.
Water storage tank
Electric hot tray
2
3
1
3
2
13

Product overviewSafety warning Instructions for use Care and Cleaning Service guide
Service guide
Rated Voltage/
Rated Frequency Rated Power Rated Capacity Weight
Circuit principle diagram
The electrical wiring is subject to change without prior notice.
Reminder
MB-FS3018W1/MB-FS3018W2 Series
Technical data of the product
Model
MB-FS3018W1
MB-FS3018W2
220V~50Hz 605W 3.0L 1-5.5 Cup 330*245*198mm 3.00Kg
Rice
amount
Producf Size Length x
Width x Height
Temperature fuse
220V~50Hz
Red
Black
Blue
Electric hot tray
Red
Bottom sensor
Display
panel
Connecting
line
Power
panel
Top lid sensor
White
Black
Yellow and green
Socket
30 37 53
*
25 36 43
Anomaly self-checking
When you think that cooking is not normal, please check the following conditions to
confirm if it is really a malfunction.
After the inspection of the above conditions, if it is confirmed that there is a malfunction,
please send it to the local maintenance network for repairing.
Keep warm
Abnormal
situation
Items to check
Too hard Too soft Not cooked Odour Rice stuck on pot Crispy/burned rice Rice soup overflow Porridge/soup/ congee too thick Not boiling Warm preservation not working Odour Discoloration Rice surface is dry Water dripping
Fast cook/
Sweet cook (rice)/clay pot rice,Reheat/
Porridge/Soup/Congee
Exceed the maximum
quantity
Correct function selection
Power outage
Stir loose rice after cooking
Whether the steam valve
installed properly
Top lid closed properly
Pre-set time too long
Rice not washed properly
Rice or foreign objects stick
on the seal ring or inner pot
edge
Warm preservation timer
set too long
Keep too long with no warm
preservation setting
The inner pot is not washed
properly
Rice spoon inside the inner pot
Water and rice is not stirred well
Rice and water quantity is
incorrect
Whether the inner pot is
deformed or uneven at the
bottom
Cooking with hot water or
continuous cooking without
cooling
Rice or foreign objects stick
on the bottom of the inner pot,
heating plate or thermostat
14
Temperature fuse
MB-FS3018W1/MB-FS3018W2

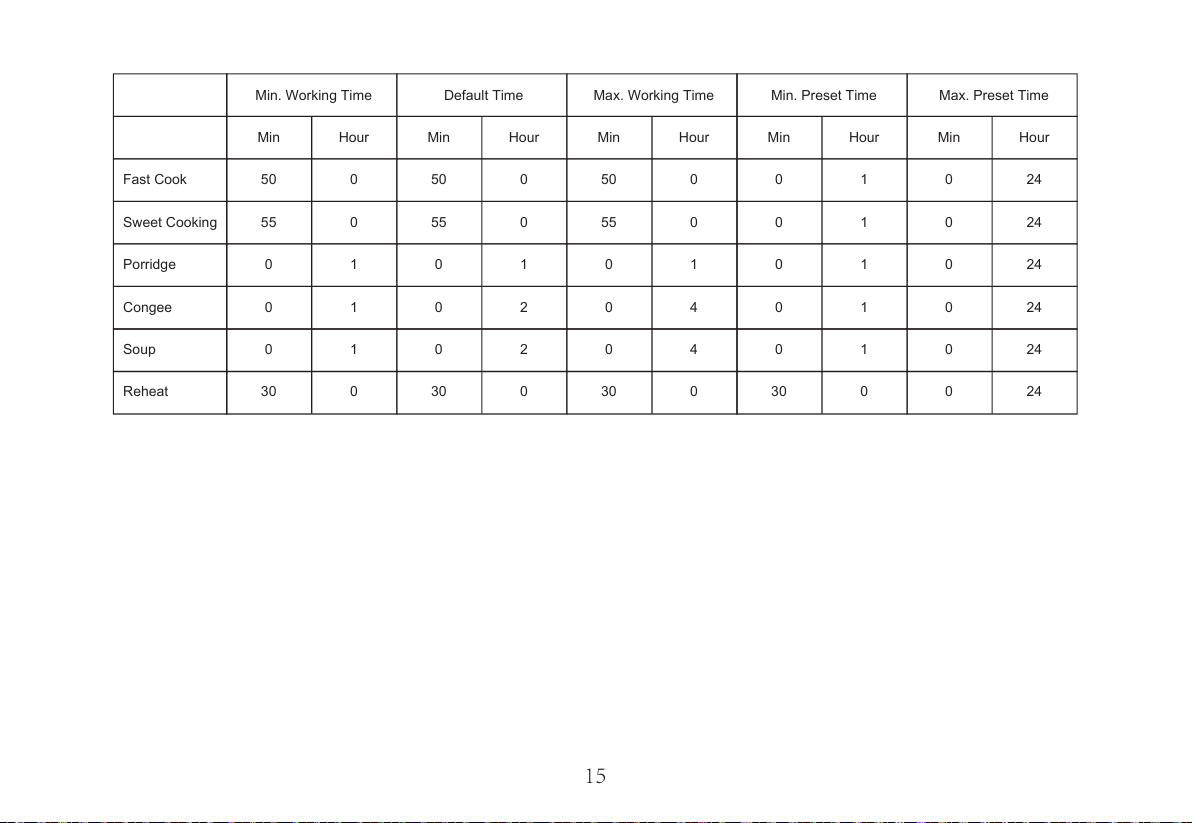

Fast Cook
Sweet Cooking
Porridge
Congee
Soup
Reheat
Min
50
55
0
0
0
30
Hour
0
0
1
1
1
0
Min. Working Time
Min
50
55
0
0
0
30
Hour
0
0
1
2
2
0
Default Time
Min
50
55
0
0
0
30
Hour
0
0
1
4
4
0
Max. Working Time
Min
0
0
0
0
0
30
Hour
1
1
1
1
1
0
Min. Preset Time
Min
0
0
0
0
0
0
Hour
24
24
24
24
24
24
Max. Preset Time
15
