DIRECT DRINKING WATER PURIFIER
User Manual
Model: JL1131S-UF
KEEP THIS MANUAL IN GOOD CONDITION, PLEASE
READ THIS MANUAL CAREFULLY BEFORE USING
THE MACHINE

1
1.PRECAUTION

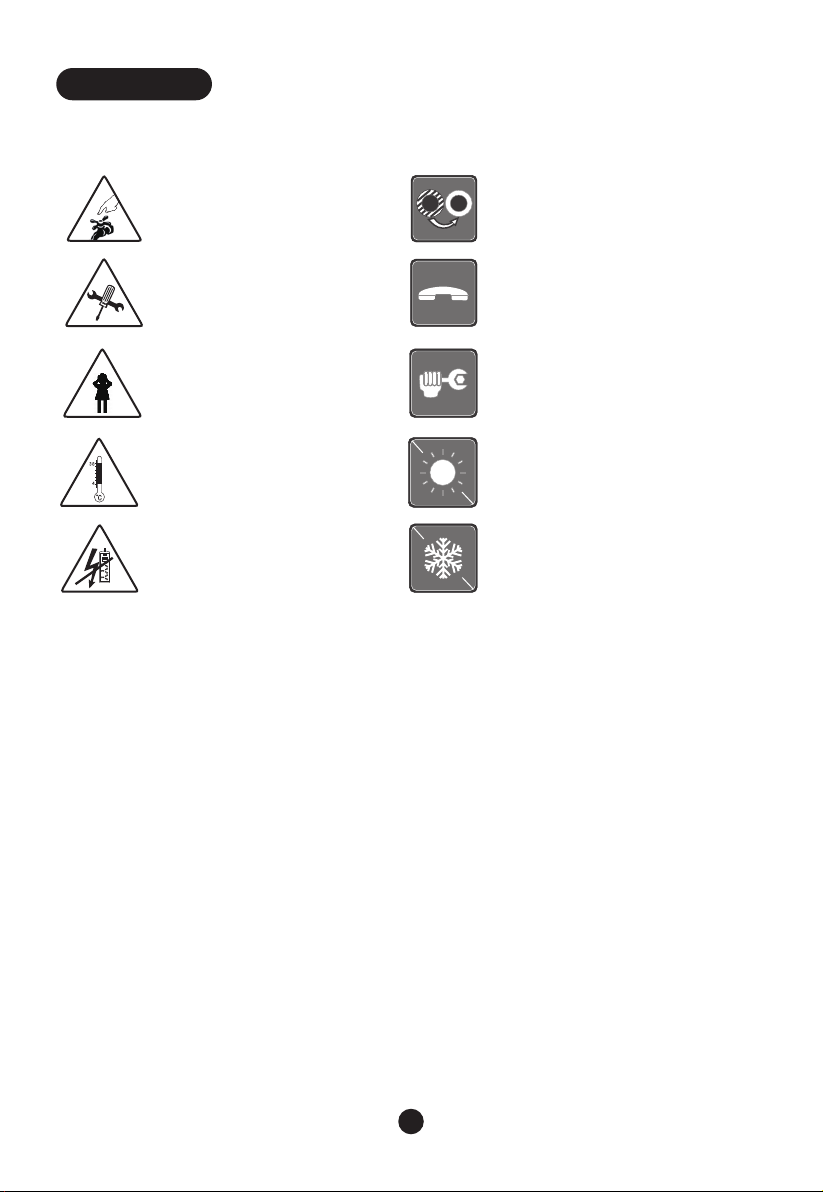

1-1 Safety Issues
Please note the following brief icons and rules for safe use of this product
Troubleshooting
When the machine fails, please
disconnect the power and water
source immediately
Maintenance
Never remove the parts on the
machine to avoid leakage or
damage
Avoid contact with children
Never have the machine
operated by a child
Temperature
Please use the product in a dry
place with the temperature of
4-43°C
Electricity prevention
To avoid leakage of electricity.
Anti-freeze
Never store or expose the product
in an environment less than 0°C
Avoid direct sunshine
Do not install the machine in a
place exposed to direct sunshine
Correct repair service
This machine can only be repaired
by qualified personnel designated
by this company
Emergency call
For any help, please call the local sale
service center or the national service
hotline
Accessories and filters
To maintain the normal operation of the
machine, be sure to use accessories
and filters supplied by original company
1.This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
2.Children should be supervised to ensure that they do not play with the appliance.
3.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
4.Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
5.This appliance is intended to be used in household and similar applications such as staff kitchen
areas in shops, offices and other working environments; farm houses and by clients in hotels,
motels and other residential type environments; bed and breakfast type environments; catering
and similar non-retail applications.
6.The appliance is suitable for indoor use only.
7.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
8.WARNING: Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
9.The appliance must not be immersed.
10.WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance
with the instructions.
11.The appliance must not be cleaned by a water jet.
12. The appliance must not be immersed.

2
Heating switch
Cooling switch
Power supply cord
Condenser
Hot water outlet
Water inlet
Front carapace
Water collector
Panal
Push button of cold water
Push button of normal water
Push button of hot water
Spout
1-2 packing list
Bracket(1pc)、1/4" PE pipe(3m)
Packing box
Materials bag
Materials bag
Filter
(FRONT) (REAR)
6/8"-2/8" connector(1pc) , Filter flushing tip(1pc)
PP fibre filter(1pc), Front active filter(1pc)、
Post active carbon filter(1pc), UF membrane filter(1pc)
User's Manual(1 copy)
2-1 Part Name of Water Purifier
2. YOUR DIRECT DRINKING WATER PURIFIER
PART NAME PART NAMENO. NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
NOTE:
Please use the product in a place with temperature of 4-43°C and relative humidity less than 90%.
TO enhance produce performance, product parts may be changed without notice.

3
1. Fresh pure water: four stage high-precision filtration to ensure effluent water quality.
2. Compressor for cooling: adopt stable, high-efficiency and low noise compressor.
3. Quadruple anti-dry burning protection: filtered water was provided to hot tank in priority,
water level control system identifies the water level automatically, double protection of thermostat,
quadruple anti-dry burning protection system.
4. Quadruple anti-dry burning protection: filtered water was provided to hot tank in priority, water
level control system identifies the water level automatically, double protection of thermostat,
quadruple anti-dry burning protection system.
5. Quick connect fitting technology: adopt Korean quick connect fitting technology which has
outstanding sealing and no water leakage.
●High-precision filtration, pure water quality
Through high-precision four stage filtration system, it filters granules, iron rust, colloids bacteria,
residential chlorine and impurities in water.
●Satisfy demand of drinking water and kitchen water
It can make water in 24 hours continuously according to needs. Ample water satisfies demand
of drinking water and kitchen water.
●Keep fresh pure water
It is connected to tap water directly, can make water continuously and keep dissolved oxygen in
water, ensuring fresh pure water for drinking and kitchen use.
●Humanized safety protection
A series of humanized designs guarantee safety of water consumption completely, like lighting
device, childproof faucet and quadruple anti-dry burning protection.
●Install the hydraulic pressure
Applicable water pressure: 0.1-0.4Mpa
Guidelines for ensuring protection of the water cooler by means of a ground- fault circuit
interrupter.
2-2 Model and Major Parameters
Rated power
Heating power
Cooling current
Rated pure water flow
Hot water capacity
Cold water capacity
Applicable environment
Applicable water pressure
Applicable water
Stage 1
Stage 2
Stage 3
Stage 4
Product size
Packing size
1.2L/min(0.3MPa)
535W
420W
JL1131S-UF
1.0A
Model
4L(≥85°C)
2L(≤10°C)
4-43°C humidity ≤90%
0.1-0.4MPa
Tap water
310(W)x360(D)x1040(H)mm
358(W)x386(D)x1205(H)mm
2-3 Product Features
2-4 Product Functions
PP fibre filter(1pc)
Front active filter(1pc)
Post active carbon filter
UF membrane filter

4
water inlet (water pressure:0.1-0.4MPa)
cold water
tank ambient water outlet
cold water outlet
hot water outlet
hot water
tank
drain water
UF
mem-
brane
filter
2-5 Working principle
1. Flowchart of water generation 2. Circuit diagram
PP
fibre
filter
reducing
valve
solenoid valve
solenoid valve 1
display board
power board
N
bimetal 1 bimetal 2
heater
compressor
N
HEAT
COOL
L
L
PE
Front
active
carbon
filter
Post
active
carbon
filter
FunctionFilterStage
Stage 1
Stage 2
Stage 3
Stage 4
3. Filter Function Introduction
PP fibre filter
UF membrane filter
Post active carbon filter
Front active carbon filter
Carry out coarse filtration of original water, and filter out
mud, sand, impurity, iron rust and suspension, etc
Absorb unusual colors and odors, Remove residual
chlorine and organic substances in water
Further absorb micro-molecules and organic substances
in water. Make water taste better
Remove bacteria, iron rust, colloids and impurities in
water
3. Use Guide and Maintenance
WARNING: Please cut off water source before replacing filters. Never plug filters in water running
state.
3.1 Guidance on Unpacking and Installation
1. Open the top of the packing case, take out the top foam and its accessories.
2. Put the accessories aside.
3. Unpack the product, install the water collector.
4. Take out the quick joint, and install it on the water pipe.
3/4" internal screw thread
1/4" PE pipe connector
PE pipe
Tap water

5
5. Use the after sale accessory—filter flushing tip, the arrow direction is the water flow direction,
insert the PE pipe in the quick joint.
6. Insert the Front active carbon filter into the filter flushing tip, and open the water tap to flush
the filter till it doesn’t discharge black water, for about 10min; Take the same step to flush the
Post active carbon filter.
7. Install the clean filter in the product, the installation order is: PP fibre filter → Front active
carbon filter → Post active carbon filter → UF membrane filter
8. Take out the pin of the quick joint at the rear of the products side plate’ s, and then take out
the white plug.
9. Insert the water inlet PE pipe in the quick joint, and tighten the pin.
10. After installing, supply power, and use it normally.
11.The water cooler plug cord into a ground fault interrupter receptacle.
12.When installing filter and replace filter please turn off the water and power supply before
installation and replacement.
Activate Heating & Cooling
To activate,push top side of power switches in to start heating and cooling water.
Tap water
PE pipe Inlet
In le t

6
3-3 The display panel is shown as below:
From the left to right: Powr, Heating, Cooling, Supplying Water
1. Requirem ents on Functions
1.1. Supply Power
After LED lights on from left to right(1s for every LED), power LED indicator lights on.
1.2. Heating Icon
The heating icon lights on when heating, and it lights off after heating or don’t heating.
1.3. Cooling Icon
The cooling icon lights on when cooling, and it lights off after cooling or don’t cooling.
1.4. Water Shortate Icon
When there isn’t water, the water shortage icon flashes, when there’s water, the icon
lights off.
3-2 Machine Installation

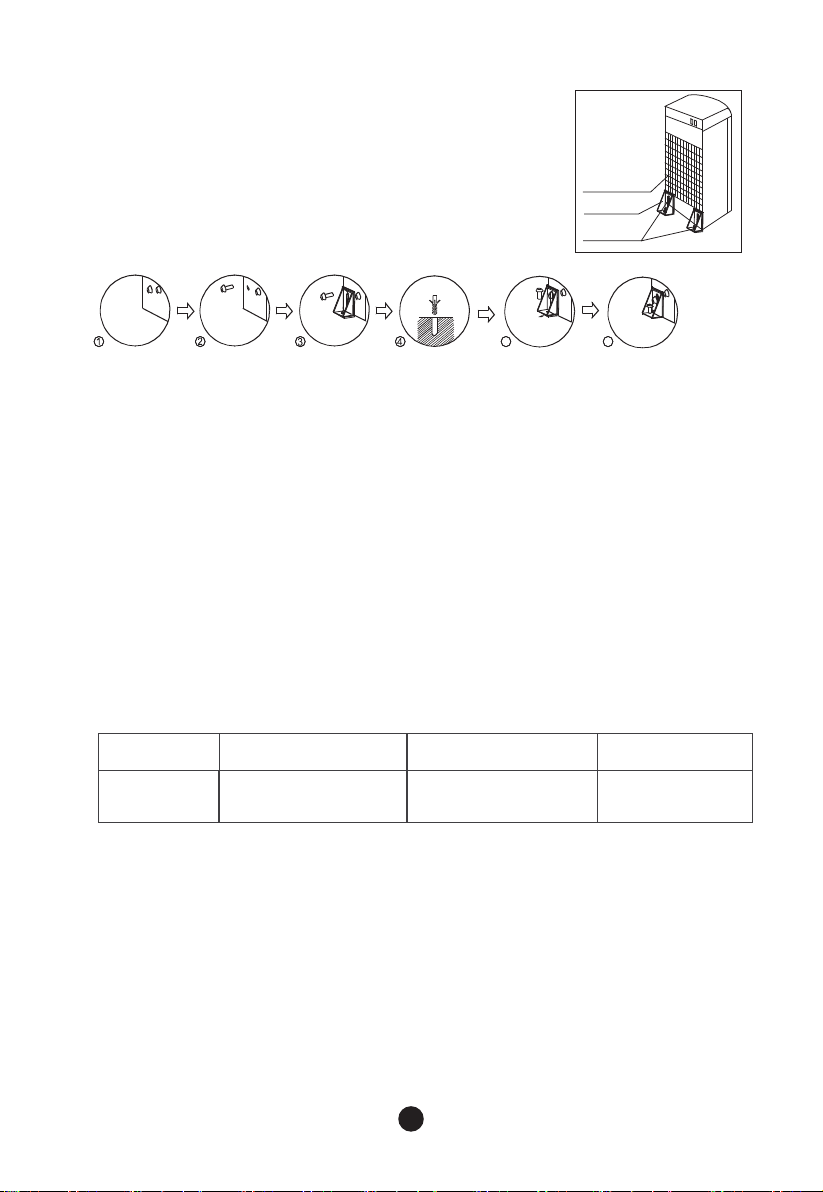

WARNING! To avoid a hazard due to instability of the appliance, it must be fixed in accordance
with the instructions.
Water dispenser
Bracket
The hole for
tighten screw
1-2. Loosen the screw of the left or right bottom angle
just as the picture shown.
3. Use the screw to fix the bracket on the left or right
bottom angle of the water dispenser.
4. Make a hole on the floor’s or the desk’s surface where
the water dispenser will be installed.
5. Fix the bracket on the floor by screw tightly.
6. Tighten the screw.
5 6
3-4. Filter Replacement Cycle
(approximately
6 months)
(approximately
6 months)
(approximately
12 months)
(approximately
18 months)
PP fibre filter Front active carbon filter Post active carbon filter UF membrane filter
Special hints:
The data above are for references only. It is based on 10L per daily drinking water.
The specific cycle for replacement of filters varies with local water quality and water amount
consumed.

7
1. Keep this machine in a dry and cool place and avoid direct sunshine. Rearward of the
machine shall be at least 20cm away from the wall. Never put the machine on paper or foam,
which may store water and then cause creepage. Never put anything flammable beside this
machine. Do not use the machine outdoors or in a place that can be splashed by water.
2. For the water purifier, the installation and replacement of filters must be carried out by
qualified personnel.
3. In case the machine is not in use for a long time, turn off the heating switch or the
refrigerating switch to save power.
4. In case the machine is not needed for a long time, please take off the plug, turn off the
copper chromeplated ball valve and drain off the remaining water through the outlet.
For another use, discharge water for 10 min. In the event that the machine is blocked by ice
due to the environment below ice point, keep the refrigerating switch closed for 4 hours and
then turn it on to continue the operation.
5. In case the water supply is cut off, please close the feed water ball valve and cut off the
power. After water re-supply, please open the other faucets to discharge sediment and then
turn on the feed water ball valve.
6. The machine must use an earthed three-pin socket and a reliable creepage protection
switch.
7. Never use organic solvents such as gasoline to clean the machine; strictly prohibit washing
the machine with water or splashing water to the machine.
8. Never turn on (off) the machine by inserting the plug into (pulling the plug out from) the
socket. Never increase the length of the supply cord to avoid fire.
9. If the supply cord is damaged, it must be replaced by the manufacturer or qualified person
so as to avoid a hazard.
10. The water source for the water purifier is civil tap water.
11. Never dismantle spare parts of the machine to avoid water leakage or damage.
3-5. Maintenance
12. Never turn the machine upside down or lean it more than 45° when moving it so as to
avoid any damage to it or any accident.
13. Limited warranty: electrical components and water system are warranted for 12 months
from date of purchasing.

8
In case of failure, please carry out inspection according to the requirements below.
If unresolved, please contact the local service agency.
Failure Cause Solution
Small water flow
Low water pressure Check the booster pump
or water inlet
Filter not replaced in time,
beyond the use time
Please contact the local service
agency to replace the filter
Unsuitable water
temperature
Over consumption of water
in a short time
Just wait a moment, and water
is available again
Power supply not put through Switch on power supply
Corresponding functions not
started
Press a corresponding function
key to start the function
Pipe not connected properly Inspect the connector to
connect the pipe properly
Water leakage
Water pipe and PE pipe
bursting Replace the water pipe and PE pipe
light flashing There should be leakage.
Check the PCB on the base plate.
Repair the machine and dry the
PCB, and then power on again.
Electric leakage Machine in poor contact
with ground
Use a three-pin socket with
earth wire, making the machine
grounded properly
Noisy operation Not installed steadily Place the machine on a steady
& solid surface
Machine fails to run Power supply not put through Switch on power supply
It is a normal state that the following circumstances occur when the water purifier is used.
1. During the heating, the heating tube may generate slight noises. This is a normal state.
2. When the heating tank is being heated without water, the anti dry-burning device will
disconnect automatically and can not reset by its own. The reset must be completed by a
professional technician. The design is in accordance with the national safety requirements.
3. When an ambient temperature is higher, the cooling capacity may be slower, which is a
normal state.
3-6. Troubleshooting
The packaging material used is recyclable; we recommend that you separate plastic,
paper and cardboard and give them to recycling companies. To help preserve the
environment, the refrigerant used in this product is R134a (Hydrofluorocarbon
-HFC), which does not affect the ozone layer and has little impact on
the greenhouse effect. According to WEEE (Waste of Electrical and
Electronic Equipment) guidelines, waste from electrical and electronic
devices should be collected separately. If you need to dispose of this
appliance in the future, do NOT throw it away with the rest of your
domestic garbage. Instead, please take the appliance to the nearest
WEEE collection point, where available.

The product is subject to change without notice.
Please keep this manual properly.
No.68 GuangLe Road, BEIJIAO, SHUNDE, FOSHAN,
GUANGDONG, R.P.CHINA
Foshan Midea Chungho Water purification
Equipment Co., Ltd
