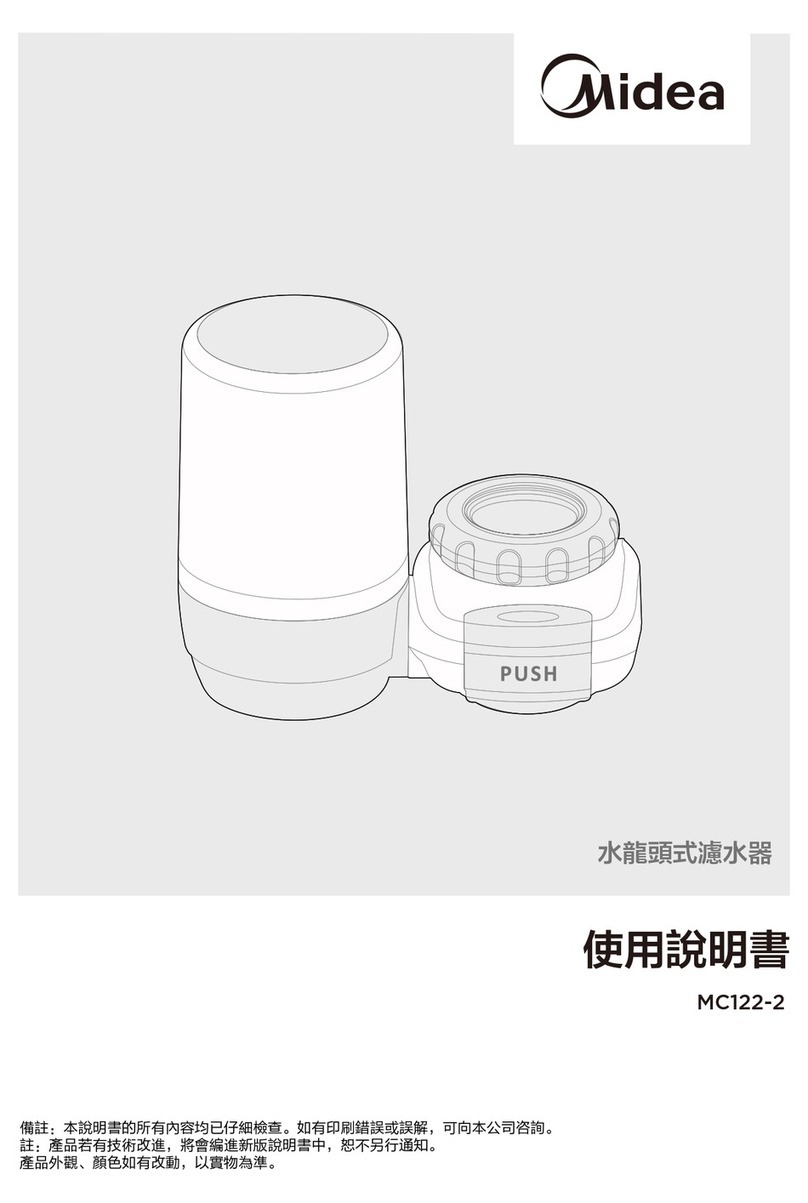

Midea MC122-2 User manual

Faucet Filtration System
MC122-2
Made in PRC
User Guide
Faucet Filtration
System

Product profile
Product components
Filter cartridge
cover
Filter base
Mounting nut
Thread adapter
Silicone washer
Stainless steel
filter screen
Watter purifier
main unit
Purified water and raw
water switch display
Key switch
List of parts
Filter cartridge x1 Universal connector x1 Adapters x6
Accessory kit x1 Teflon tape x1 Instructions for Use x1

Installation precautions
Before using the water purifier, please read this Manual carefully and keep it for future reference.
1. To avoid damage to your body, use municipal tap water;
2. During initial use, please let the purified water flow for at least 60 seconds;
3. Before use every day, please let the purified water flow for at least 10 seconds before use (to drain stagnant water);
4. When the water purifier is not used for more than two days, please let the purified water flow for at least 60 seconds before use (to keep the water outlet clean);
5. Please use “Contained Purified Water” as soon as possible. Because there is no residual chlorine in purified water, the bacteria may breed easily, put it into a clean
container with a cover and store it in the refrigerator.
6. Please do not touch the “Purified Water” outlet to avoid bacterial growth;
7. If there is a lot of turbidity in tap water (e.g. the water tank is cleaned or tap water is not used for a long time, etc.), please allow the tap water to flow for some time
before use of “purified water” to shorten the life of filter cartridge;
8. This product is a household water purifier, please never use it for any purpose other than cooking or drinking;
9. Never connect a special faucet to other machines such as gas water heaters
to avoid damage to other machines;
10. Please do not install the machine near flame or high temperature;
11. When the flow of purified water becomes less, please replace the filter. The filter shall be replaced regularly;
12. Please press slowly when adjusting the raw water and purified water buttons to avoid damage to the machine body;
13. When used in areas with high water pressure, please turn down the water flow before using. In case of large flow of water, water purification capacity may be affected,
and too high water pressure can cause damage and leakage. The conventional water pressure of the product is 0.1-0.4MPa;
14. To avoid damage to the container, never freeze the product;
15. When using “purified water”, never use hot water exceeding 38 degrees. If hot water passes through the water purifier accidentally, there may be temporary smell in
water sometimes;
16. Do not plug the water outlet, or have it connected with other device to avoid damage to the water purifier body;
17. Do not use steel balls, cleaning agents or aggressive liquids (such as gasoline or alcohol) for scrubbing. These substances may cause product rupture, scars,
discoloration or deformation;
18. Please do not disassemble the water purifier body and the filter (if there is
any abnormality, please refer to the catalog, Page 9: Abnormal condition and troubleshooting).

Precautions in use
1. Some faucets can not be installed;
Six adapters and 1 universal connector supplied with the water purifier may be easily mounted on majority of threaded faucets;
Faucets that cannot be installed are: sprinkler pull-our faucets, faucets with rectangular or elliptical outlets, sensing faucets, or faucets in diameter out of 15-24mm
with a throat depth less than 15mm;
2. The replacement period of a filter may vary with water amount consumed, water quality and water pressure;
3. It shall not be installed on a hot and cold faucet;
4. The water purifier shall not be in a position exposed to direct sunlight, as this may cause deformation and discoloration;
5. Hard water cannot be converted into soft water, and salt (sea water) or metal ions dissolved in water cannot be removed;
6. The filter cartridge shall be cleaned and replaced on a regular basis.
Installation method
Before installing the water purifier, make sure you have the required faucet mounting adapter.
Install Type A adapter for threaded faucets in diameter of
19.5mm, 21.5mm or 23.5mm.
1. Remove the mounting nut
from the main unit.
2. Remove the faucet bubbler,
and select the appropriate adapter.

3. With the mounting nut facing up,
attach the external thread adapter to the faucet.
4. Tighten the mounting nut to
secure the body. Complete.
Install Type B adapter for threaded faucets in diameter of 20.5mm, 21mm or 22.5mm.
1. Remove the mounting nut
from the main unit.
2. Remove the faucet bubbler,
and select the appropriate adapter.
3. With the mounting nut facing up,
attach the internal thread adapter to the faucet.
4. Tighten the mounting nut to secure the body. Complete.

Install the universal connector for faucets in diameter of 15-24mm.
1. Remove the faucet bubbler,
and select the appropriate adapter.
2. With the mounting nut facing up, attach the internal thread adapter to
the universal connector.
3. Put the universal connector into the
faucet and tighten the steel rim with a screwdriver.
4. Tighten the mounting nut to secure
the body. Complete.
Install the water purifying filter.
1. Open the filter cartridge cover,
peel off the filter film and reinstall the filter into the filter cartridge.
2. Align the filter cartridge connector
with the main unit interface.

3. Insert the filter cartridge into the main
unit interface and fix the filter after rotating it 90 degrees upward.
4. Complete.
Instructions for use
After installation of the faucet, the tap water is opened, and the water purifier key is switched to the water purification level, with the filtered purified
water discharged from the water outlet; after the water purifier key is switched to the raw water level, the unfiltered tap water is discharged from the raw
water outlet.
Purified water Raw water

Filter replacement
1. Rotate the filter cartridge 90 degrees
backward to remove the filter.
2. Open the filter cartridge cover,
take out the old filter, peel off the new filter film, and reinstall
the filter into the filter cartridge.
3. Insert the filter cartridge into the
main unit interface and fix the filter after rotating it 90 degrees
upward.
4. Complete.

Filter configuration
Filter name
Recommended
life expectancy
Effect Quantity
Carbon fiber
filter
6-12 months
Efficient filtration of impurities in water, heterochrome, odor and residual chlorine
1 pc
Basic parameters
Product model
Purified water flow
Rated total purified water
Applicable water quality
Appearance difference
Work pressure
MC122-2
2L/min
1200L
Municipal tap water
White body, blue trim strip
0.1-0.4MPa

Water treatment process map
MC122-2
Manifold
Raw water outlet
Purified water outlet
Carbon fiber filter
Tap water interface

Troubleshooting
Abnormal condition Possible causes Solutions
Main unit head
leaks
Is it properly installed on the faucet?
Is front end of the faucet aging?
Is the seal aging?
Repair the faucet
Change the seal
Re-install
Water pipe port
leaks
Is the water pipe firmly connected?
Reconnect correctly
Is the cartridge hose securely connected?
Reconnect correctly
Water purifier main unit machine whether there is water? Please wipe with a dry
towel
Main unit body
leaks
Main unit head
leaks
Is the head lock hose nut tight?
Is the main unit head seal washer damaged?
Change the seal
Reconnect correctly
The flow of raw
water is less and
not uniform
Is there any dirt in the filter screen?
Is raw water outlet clean?
Please rinse with a clean toothbrush disinfected in hot
water.
Flow of purified
water is less
Is the water supply hose bent?
It is possible that the filter is clogged.
Please replace the filter (the flow of water will be
reduced when water pressure is low).
Please carry out installation in the correct method.
Please replace the filter.Is the filter in place?
Is the filter in place?
Smell
Please restore the water supply hose.
