Miele KM 5753 User manual

Operating and Installation
Instructions
Ceramic Cooktop with Induction
KM 5753
KM 5758
To prevent accidents and
machine damage,
read the Operating Manual
before installation or use. M.-Nr. 06 766 201
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

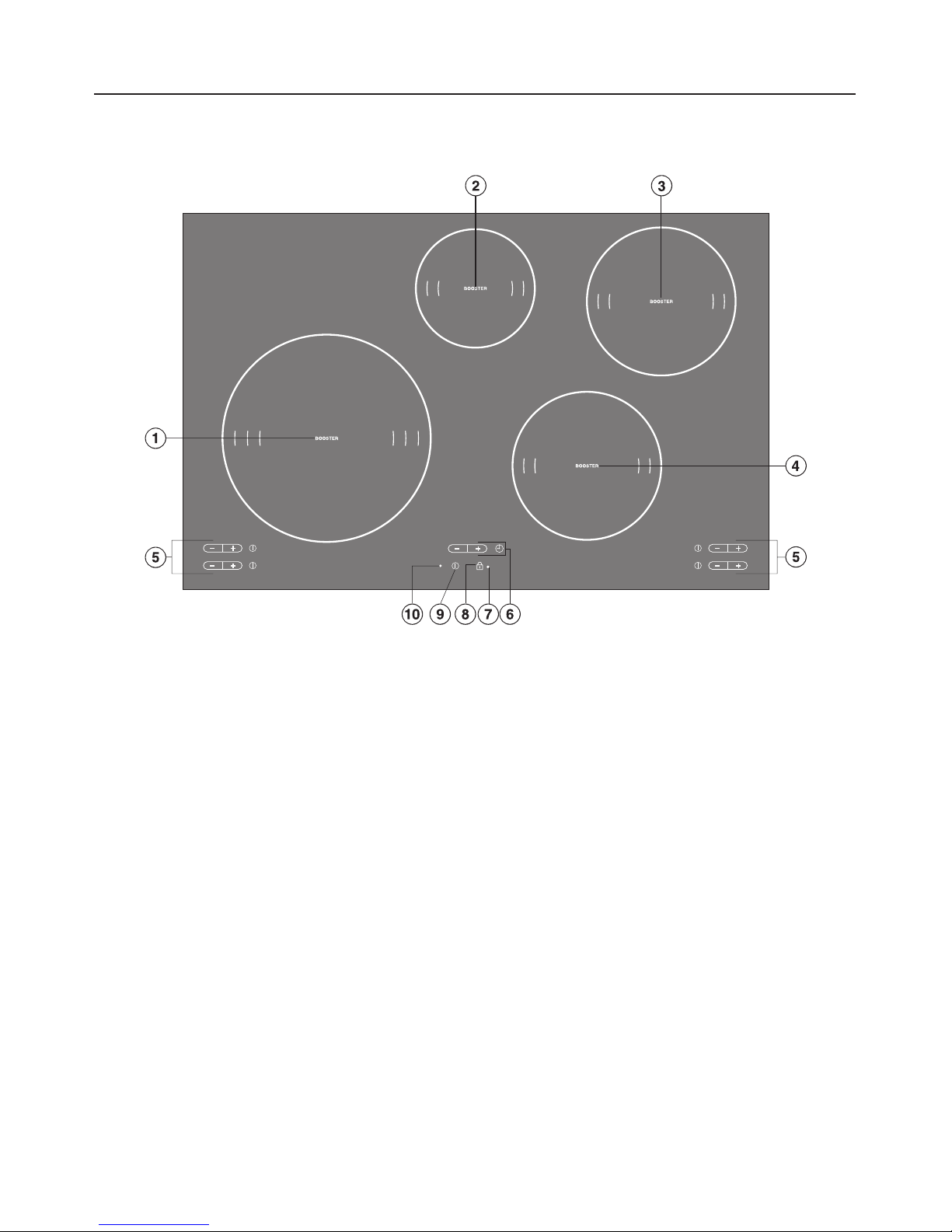

Cooktop .........................................................10
Burner controls and displays.........................................11
Timer control and display ...........................................12
Burner data ......................................................12
Induction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
How it works......................................................13
Noises ..........................................................14
Cookware........................................................15
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Heat the cooktop ..................................................16
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Touch controls ....................................................17
Turning on the cooktop .............................................17
Turning on a burner ................................................17
Settings .........................................................18
Auto-heat ........................................................19
Booster function...................................................21
Turning off a burner ................................................23
Turning off the cooktop .............................................23
Residual heat indicator .............................................23
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setting the timer...................................................24
Automatic switch-off ...............................................25
Combi mode .....................................................26
Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Child Safety Lock..................................................27
Stop and Go......................................................28
Safety cut-out feature...............................................29
Overheating protection .............................................30
Contents
2

Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Installation dimensions .............................................43
Ventilation .......................................................44
Installing the cooktop...............................................45
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Contents
3

READ THE OPERATING
INSTRUCTIONS CAREFULLY
BEFORE USING THE
COOKTOP
WARNING -
This appliance is intended for
residential cooking only. The
manufacturer cannot be held
responsible for damage or injury
caused by improper use or for uses
other than those for which this
appliance is intended.
When using your appliance follow
basic safety precautions including
the following:
Installation
~Be certain your appliance is
properly installed and grounded by a
qualified technician in accordance with
national and local safety regulations.
The manufacturer cannot be held
responsible for damage caused by
incorrect installation or connection.
~Do not connect the appliance to the
main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this
appliance.
~Before servicing, disconnect the
appliance from the main power supply.
~To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
will not be held responsible for
damages caused by the lack, or
inadequacy, of an effective grounding
system.
~Only for frame/facet cooktops:
A small gap will be visible between
cooktop and countertop for the first
days after installation. The gap will
decrease as the cooktop is used. The
electrical safety of your appliance is
warrantied despite the small gap.
IMPORTANT SAFETY INSTRUCTIONS
4

Use
~Only use the cooktop for residential
cooking, and for the purposes
described in this manual.
Other uses are not permitted and can
be dangerous. The manufacturer will
not be held liable for damage caused
by unauthorized use or improper
operation of any kind.
~Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
~Individuals with a pacemaker or
similar medical device:
Please note that an electromagnetic
field develops when the cooktop is
turned on. It is not likely that this will
affect the pacemaker or similar device.
If in doubt contact the manufacturer of
the device or your doctor.
~Keep magnetized items, e.g. credit
cards, disks, etc. away from the
cooktop while in operation. Damage
may result.
~Do not use the appliance until it has
been properly installed in the
countertop.
~This appliance is equipped with an
overheating protection feature. See
"Overheating protection" for more
information.
~Be sure to use the proper type of
cookware. Follow the manufacturer's
instructions.
~If the cooktop is installed above a
pyrolytic oven it should not be used
during the pyrolytic process. The
overheating protection feature of the
cooktop might be activated.
IMPORTANT SAFETY INSTRUCTIONS
5

Injury prevention
~Children should not be left
unattended in an area where the
cooktop is in use. Never allow children
to sit or stand on any part of the
cooktop.
Caution: Do not store items of interest
to children in cabinets above the
cooktop. Children climbing on the
cooktop to reach these items could be
injured.
~Use the Child Safety Lock to prevent
children from turning on the burners or
changing the settings. See "Child
Safety lock" for more information.
~Keep all pots and pans out of
children's reach. Danger of burning or
scalding.
~Do not touch the cooktop or the
surrounding areas during or
immediately after use. The cooktop may
be hot even though it is dark in color.
Wait until the residual heat indicators
go out.
~Protect your hands with insulated
gloves or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
~Be aware of loose fitting or hanging
clothing when operating the cooktop,
they may present a fire hazard.
~Pot and pan handles should be
turned inward and not extend over the
countertop to reduce the risk of burns,
ignition of flammable materials, and
spills.
~Never leave a cooktop unattended
at high settings or when cooking with oil
or fat. Overheated oil could ignite.
Always heat oil slowly, monitoring it as it
heats.
~Do not use water on grease fires.
Smother or use a dry chemical or
foam-type extinguisher on any fire or
flame.
~When frying food make sure that the
food is as dry as possible before
placing it in oil. Moisture can cause hot
oil to splatter and boil over. At high
settings, be cautious of splattering
grease or boiling over liquids which
may produce smoke.
~Do not flambé under an exhaust
hood. Flames could be drawn up into
the hood by the suction and the grease
filters may ignite.
~Do not heat unopened containers.
Built-up pressure may cause the
container to burst and result in injury.
IMPORTANT SAFETY INSTRUCTIONS
6

~Before removing pots and pans be
sure to turn off the burners.
~To prevent burns and breathing
difficulty, allow the cooktop to cool
before cleaning. Some cleaners may
produce toxic fumes if applied to a hot
surface.
~When wiping spills on a hot cooktop
with a wet sponge or cloth, be careful
to avoid steam burns.
~Do not let flammable materials,
i.e. cooking grease, accumulate on the
appliance.
~Never cover the cooktop with a
cloth. A fire may result.
~Do not place items other than pots
and pans on the cooktop.
~Flammable materials should not be
stored on or near the appliance.
~The cooktop is fitted with a cooling
fan. Drawers under the cooktop are not
recommended. If a drawer is fitted
directly underneath the cooktop, ensure
that there is sufficient space between
the drawer, its contents and the
underside of the appliance in order to
ensure sufficient ventilation for the
cooktop. Do not store small items or
paper in the drawer. They could get
sucked into the housing by the fan and
cause damage or impair cooling.
Ensure that no aerosols, combustible
liquids or other flammable materials are
kept in this drawer. If cutlery inserts are
to be placed in the drawer they must be
made of heat-resistant material.
IMPORTANT SAFETY INSTRUCTIONS
7

Damage protection
~Never place hot pots or pans on the
touch controls, this may damage the
electronics.
~Do not drop anything on the ceramic
surface of the cooktop. Even
lightweight objects may cause damage.
~Do not use pots or pans with
pronounced edges or ridges on the
ceramic cooktop. These could scratch
the cooktop permanently. See
"Cookware" for more information. Grains
of salt and sand can cause scratches.
Make sure that the bases of any pots
and pans are clean, free of any fat or
oils, and are dry.
~Do not allow solid or liquid sugar,
pieces of plastic or foil to fall on the
burners when they are hot. If these
residues are allowed to cool on the
ceramic surface pitting or even
cracking may occur.
~Any spills should be removed as
quickly as possible to prevent them
from burning on and becoming difficult
to remove.
~Do not use a steam cleaner to clean
this appliance. Steam could penetrate
electrical components and cause a
short circuit.
IMPORTANT SAFETY INSTRUCTIONS
8

Appliance safety
~In the event of any damage to the
appliance, it must be turned off
immediately and disconnected from the
main power supply. Contact Miele’s
Technical Service Department.
Do not use the appliance until it has
been repaired. Ensure power is not
supplied to the appliance until repair
work is completed.
~Do not cook on a damaged cooktop.
Any breakages or cracks in the ceramic
surface of the appliance are defects
and must be treated as such. If the
cooktop should break, cleaning
solutions and spills may penetrate the
broken cooktop and create a risk of
electric shock. Do not use the
appliance until it has been repaired.
~Repairs should only be performed
by qualified technicians to ensure
safety. Repairs and other work by
unqualified persons could be
dangerous. Do not open the outer
casing of the appliance under any
circumstances.
~While the appliance is under
warranty repairs should only be
performed by an authorized service
technician. Otherwise the warranty is
void.
Further safety notes
~Make certain that the power cords of
small appliances do not come in
contact with the cooktop. The insulation
of the cable could become damaged.
Danger of electric shock!
~Keep pets away from the cooktop at
all times and activate the Safety Lock. If
a pet gets on the cooktop a touch
control sensor could be activated
turning on a burner.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
9

Cooktop
aBurner with double booster
bcd Burners with single booster
eBurner controls and displays
fTimer controls and display
gChild safety lock indicator
hChild safety lock control
iCooktop On/Off control
jCooktop "On" indicator
Guide to the cooktop
10

Burner controls and displays
aPower level touch controls
bBurner On/Off touch controls
cBooster indicator
dIndicator for "Auto heat" or extended power level (see "Programming"),
e.g. front left burner
eDisplays:
-= Burner is ready for use
0= Burner is turned on
1to 9= Power level
#= Residual heat
ß= No pan on burner or pan unsuitable (see "Induction - How it works")
I= Single booster function activated
II = Double booster function activated (only front left burner)
F= Fault (see "Safety cut-out feature")
A= Auto-heat with extended power level
P0 etc. = Program (see "Programming")
S0 etc. = Status (see "Programming")
Guide to the cooktop
11

Timer control and display
aTouch control to:
- turn the timer on/off,
- switch between functions, and
- select a burner for "automatic switch-off".
bTouch control for setting the time
cTime display
dAutomatic switch-off indicator
eTimer indicator
Burner data
Burner
min to max
diameter *
Rating in watts
208 V** 240 V**
y7" - 11"
(18 cm - 28 cm)
normal:
with booster 1:
with booster 2:
2200
2700
3350
2500
3100
3850
w4"-7"
(10 cm - 16 cm)
normal:
with booster:
1250
1650
1450
1900
x5½"-8"
(14 cm - 20 cm)
normal:
with booster:
1700
2250
1950
2600
z5½"-8"
(14 cm - 20 cm)
normal:
with booster:
1700
2250
1950
2600
Total: 6700 7700
* Pans with a base diameter within the given range may be used.
** The wattage quoted may vary depending on the size and material of the pans
used.
Guide to the cooktop
12

How it works
An induction coil is located under each
burner. When a burner is switched on,
this coil creates a magnetic field which
impacts directly on the base of the pan
and heats it up. The burner itself is
heated indirectly by the heat given off
by the pan.
Induction burners only work when a
magnetic based pan is placed on it
(see "Cookware").
Induction automatically recognizes the
size of the pan, i.e. heat is only
generated in the area covered by the
base of the pan.
The burner will not work:
– if it is switched on without a pan in
place, or if the pan is unsuitable
(non-magnetic base).
– if the diameter of the pan is too small.
– if the pan is taken off the burner
when it is switched on.
If this happens, ßwill flash in the
relevant burner display alternating with
0or the last selected power level
selected.
If a suitable pan is placed on the burner
within 3 minutes, the ßwill go out and
you can continue cooking as normal.
If no pan or an unsuitable pan is placed
on the burner, the burner and the
cooktop will switch off automatically
after 3 minutes.
Be careful not to place cutlery or
other metal objects on the cooktop.
When the appliance is switched on,
or when there is residual heat
present, there is the risk of metal
objects heating up quickly.
Beware of burns.
Depending on the material, other
objects left on the cooktop could
also melt or catch fire. Switch the
burners off after use.
Induction
13

Noises
When using an induction burner, the
following noises can occur in the pan,
depending on what it is made of and
how it is constructed.
–Higher power settings may cause a
buzz. This will decrease or cease
altogether when the power setting is
reduced.
–If the pan base is made of layers of
different materials (e.g. a
sandwiched base), a cracking sound
may be heard.
– Whistling might occur if linked
burners (see "Booster function") are
being used on the highest setting at
the same time, and the pans have
bases made of layers of different
materials.
– You may hear a clicking sound from
the electronic switches, especially on
lower settings.
The appliance has a cooling fan to help
extend the life of the electronics. When
the cooktop is being used at high levels
for a long period of time, this will come
on and you will hear a whirring sound.
The fan may continue to run after the
appliance has been switched off.
Induction
14

Cookware
Suitable pans include:
–stainless steel pans with a magnetic
base
–enameled steel pans
–cast iron pans
Unsuitable pans:
–stainless steel pans without a
magnetic base
–aluminum and copper pans
–glass, ceramic or earthenware pots
and pans
To test whether a pot or pan is suitable
for use on an induction cooktop, hold a
magnet to the base of the pan. If the
magnet sticks, the pan is suitable.
Unless the pan manufacturer states
that you can do so, do not use pans
with very thin bases on this cooktop,
and never heat up empty pans. This
could damage the appliance and
cookware.
Pan size
To make optimum use of the burners,
choose cookware that fits between the
inner and outer marking of the burner. If
the base diameter of the pan is smaller
than the inner marking, the induction
heating will not work. The burner will
behave as if it had no pan on it.
Induction
15

Clean the cooktop
^Before using for the first time, clean
the appliance with a damp cloth and
dry with a soft cloth.
Heat the cooktop
Metal components of the cooktop have
a protective coating which may give off
a slight odor the first time the appliance
is heated.
The smell will dissipate after a short
time and does not indicate a faulty
connection or appliance defect.
Before using for the first time
16

Touch controls
The control panel on your ceramic
cooktop is equipped with electronic
sensors. They respond to a finger
touch.
To operate the burners, simply touch
the corresponding sensor area(s). Each
time a command is registered, a signal
will be heard.
Be sure to touch only the desired
sensor area and keep the control
panel clean and clear. Otherwise,
the touch controls may not respond,
or unintentional commands may be
given, even causing the cooktop to
switch off automatically (see the
section on "Safety cut-out feature").
NEVER place hot cookware on the
sensor areas. The electronics can
be damaged.
Turning on the cooktop
^Put a pot or pan on the desired
burner.
^Touch the ON/OFF "s" cooktop
touch control.
You will see a dash -in each of the
burner displays, and the On/Off
indicator will light. If a setting is not
chosen within a few seconds the
cooktop will turn itself off as a safety
measure.
Turning on a burner
^Touch the sOn/Off touch control for
the desired burner.
The respective burner display shows 0.
^Select a power level between 1and 9
by pressing the +or -control.
When turning on the cooktop you can
decide whether you want to cook with
auto heat or not. See "Auto-heat" for
more information.
Turn on with + to:
cook without auto-heat.
Turn on with – to:
cook with auto-heat.
Use
17

Settings
Use for
Power level*
standard
factory settings
(9 power levels)
extended
settings**
(17 power levels)
Melting butter
Dissolving gelatine
1-2 1-2.
Thickening sauces containing egg yolk and/or butter
Warming small quantities of food/liquid
Cooking rice
Thaw frozen vegetables (blocks)
3 3-3.
Warming liquid and half-set foods
Thickening sauces, e.g. Hollandaise
Making oatmeal
Preparing omelettes, lightly fried eggs
Steaming fruit
4 4-4.
Defrosting deep frozen food
Steaming vegetables, fish
Cooking broths, soups
55
Bringing large quantities of food to a boil
Cooking dumplings
6 5.-6
Gentle frying (without overheating the fat) meat, fish,
vegetables, fried eggs
7 6.-7.
Frying pancakes, etc. 8 8 - 8.
Boiling large quantities of water 9 9
* These settings are intended as guidelines only. With deep pans, larger quantities of food or when
cooking without a lid, a higher setting is required. For smaller quantities, select a lower setting.
** If you wish to fine-tune a setting, you can extend the power level range (see "Programming - P2").
The intermediate setting will be represented by an indicator next to the number.
Use
18

Auto-heat
When Auto-heat has been activated,
the burner switches on automatically at
the highest setting and then switches to
the continued power level which was
selected. The "heat-up" time depends
on which continued power level has
been chosen (see table).
Taking a pan off the zone while
Auto-heat is in operation interrupts the
function. It will resume if a pan is
placed back on the zone within
3 minutes.
Continued power
level*
Heat-up time
(approx.)
min : sec
1 0:15
1. 0:15
2 0:15
2. 0:15
3 0:25
3. 0:25
4 0:50
4. 0:50
5 2:00
5. 5:50
6 5:50
6. 2:50
7 2:50
7. 2:50
8 2:50
8. 2:50
9-
* The continued cooking settings with a dot
after the number are only available if the
power level range has been extended (see
"Programming - P2").
Use
19

Activating Auto-heat
^Press the -sensor until the desired
continued power level appears,
e.g. 6.
During the heat-up time a dot will light
to the right of the continued power
level, and go out when it is completed.
At any point during the Auto-heat time
you can use +or -to lower or increase
the continued power level. The
Auto-heat time will adjust accordingly.
In the extended range of settings (see
"Programming - P2"), Aflashes
alternately with the continued power
level until the heat-up time has
completed.
Use
20
