Miele KM 5773 Specification sheet

Operating and Installation instructions
Ceramic Cooktop with induction
KM 5773
To prevent accidents and
appliance damage,
read these instructions
before installation or use.
V
M.-Nr. 06 733 330

Guide to the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Burner indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Timer/Memory display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Burner data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Heat the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Touch controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Resetting the touch controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Induction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Sounds. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Selecting cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Using the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Turning on the cooktop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Turning on a burner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Auto-heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cooking without auto-heat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Booster function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Turning the cooktop off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Timer and Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Setting the timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Switching a burner off automatically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Timer starting value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Combi operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Contents
2

Safety features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Child Safety Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Stop and Go. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Safety cut-out feature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Overheating protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cooktop care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Technical Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Help protect our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Contents
3

Cooktop
Control panel
abcde burners
Sensors
fPower selector
gBooster
hTurning on the timer, switching
between the functions, selecting a
burner
jChild Safety Lock
kSetting the time /
Selecting the memory program
lCooktop ON/OFF
mMemory function
Indicator:
iLock
Guide to the cooktop
4

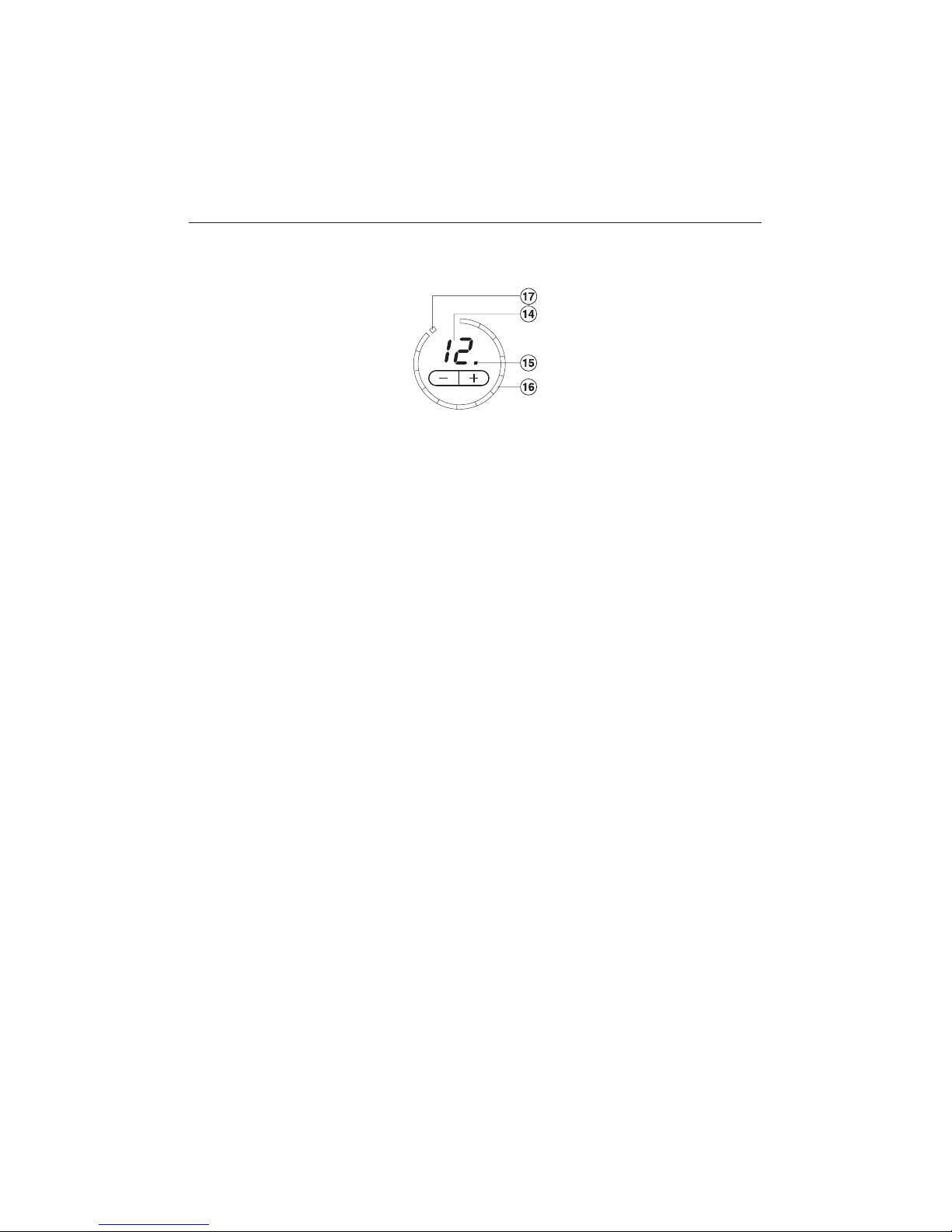

Burner indicator
nDisplay:
0= Burner is ready for use
1to 12 = Power level
#= Residual heat
ß= Missing or not suitable cookware (see "Induction")
F= Error/Fault (see "Safety turn off")
A= Auto-heat with extended power level range
P0 etc. = Program (see "Programming")
S0 etc. = Status (see "Programming")
oIndicator for extended power level (see "Programming")
pLighting circle
The number of segments lit corresponds to the selected power setting
(exception: see "Auto-heat").
qSegment for booster
Guide to the cooktop
5

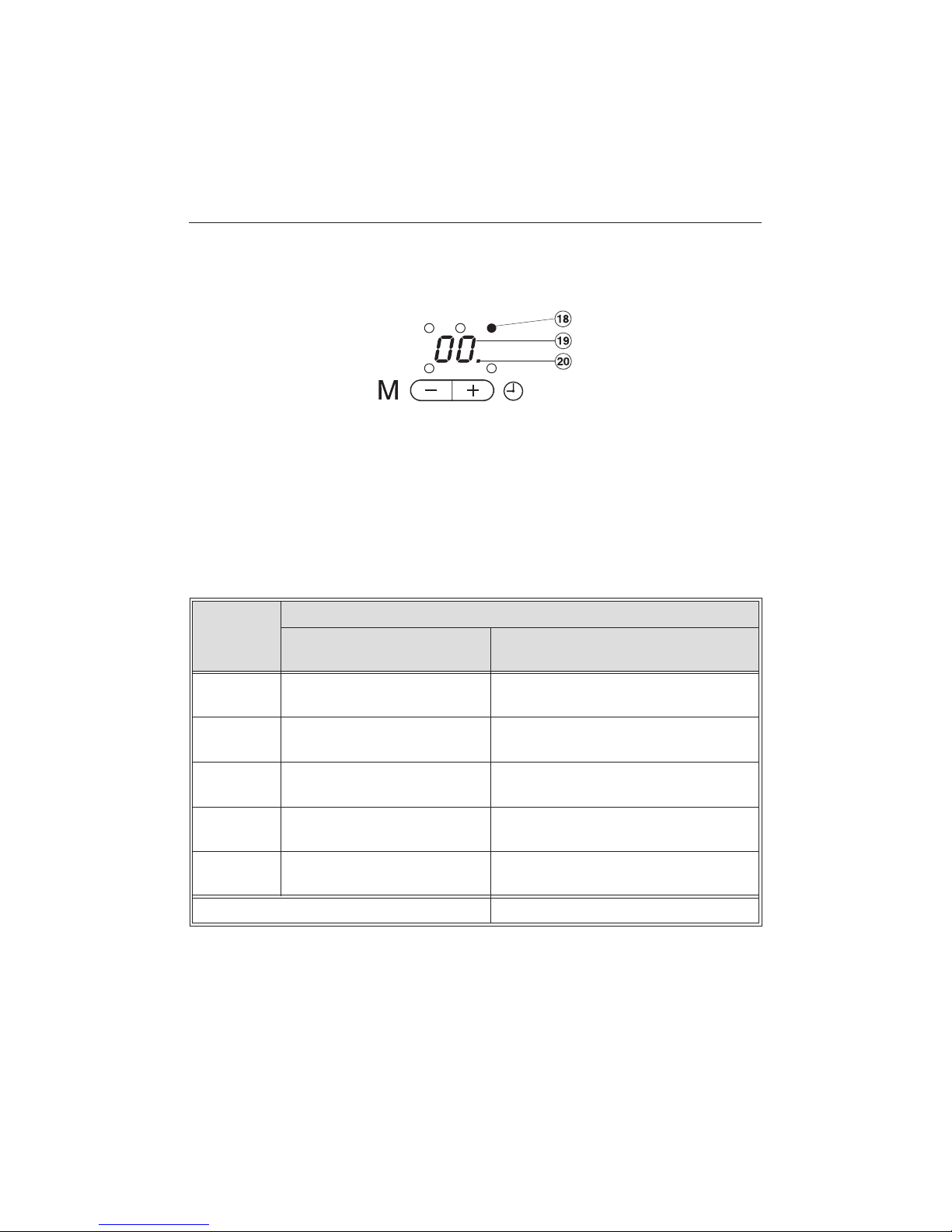

Timer/Memory display
rIndicator for burner assignment, e.g. rear right burner
sDisplay for time/memory program
00 to 99= time
P1 to P5 = memory program
tIndicator for taken memory program
Burner data
Burner KM 5773
minimum to maximum
Cin cm*
Power in watts at 230 V**
y16 -23 normal:
with booster:
2300
3200
w10 - 16 normal:
with booster:
1400
1800
b18 - 28 normal:
with booster:
2400
3200
x14 - 20 normal:
with booster:
1850
2500
z14 - 20 normal:
with booster:
1850
2500
All burners 10600
* Pots with a bottom diameter in the stated range.
** The stated power may vary depending on the size and material of the
cookware.
Guide to the cooktop
6

READ THE OPERATING
INSTRUCTIONS CAREFULLY
BEFORE USING THE
COOKTOP
WARNING -
This appliance is only intended for
residential cooking. The
manufacturer cannot be held
responsible for damage or injury
caused by improper use or for uses
other than those for which this
appliance is intended.
When using your appliance follow
basic safety precautions including
the following:
Persons which lack ability,
experience or knowledge of the
machine must be supervised or
instructed by a responsible person.
Installation
Be certain your appliance is
properly installed and grounded by
a qualified technician in accordance
with national and local safety
regulations. All electrical work should
be completed by a licensed electrician,
in strict accordance with national and
local safety regulations and standards.
The manufacturer cannot be held
responsible for damage caused by an
incorrect installation or connection.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system. It is
imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of the
house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy, of an
effective grounding system.
IMPORTANT SAFETY INSTRUCTIONS
7

Do not connect the appliance to
the main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this
appliance.
Before servicing, disconnect the
appliance from the main power
supply.
Never open the outer casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
dangerous and can cause machine
damage.
Only for frame/facet cooktops:
A small gap will be visible between
cooktop and countertop for the first
days after installation. The gap will
decrease as the cooktop is used. The
electrical safety of your appliance is
warrantied despite the small gap.
Use
Do not use the appliance until it is
properly installed in the countertop.
This is necessary to ensure that all
electrical components are shielded.
This appliance is equipped with an
overheating protection feature. See
"Overheating protection" for more
details.
If the cooktop is installed above a
pyrolytic oven it should not be
used during the pyrolytic process. The
overheating protection of the cooktop
might be activated.
IMPORTANT SAFETY INSTRUCTIONS
8

Child Safety
Use the Child Safety Lock to
prevent children from turning on
the burners or changing the settings.
See "Safety lock" for more information.
Children should not be left alone or
unattended in an area where a
cooktop is in use. Never allow children
to sit or stand on any part of the
cooktop.
Do not allow children to operate or
play with the appliance.
The burners become very hot
when in use and during the cool
down phase. Keep children away from
the cooktop.
Do not store items of interest to
children in cabinets above the
cooktop. Children climbing on the
cooktop to reach these items could be
injured. Danger of burning!
Keep all pots and pans out of
reach of children. Danger of
burning or scalding. Special
cooktop/stove guards are available
from retail outlets.
Before discarding an old
appliance, switch it off and
disconnect it from the power supply.
Cut off and render the plug useless.
Cut off the cable directly behind the
appliance to prevent misuse.
IMPORTANT SAFETY INSTRUCTIONS
9

Damage protection
Do not drop anything on the
ceramic surface of the cooktop.
Even lightweight objects could cause
damage to the ceramic glass pane.
Do not use pots or pans with
pronounced edges or ridges on
the ceramic cooktop. These could
scratch the cooktop permanently. See
"Selecting cookware" for more
information. Grains of salt and sand can
also scratch. Make sure that the bases
of any pots and pans are clean, free of
any fat or oils and are dry.
Do not allow solid or liquid sugar,
or pieces of plastic or foil to fall on
the burners when they are hot. If these
residues are allowed to cool on the
ceramic surface pitting or even
cracking could occur. If sugar, plastic
or foil gets on the ceramic surface, turn
the cooktop off. Clean the surface im-
mediately with a shielded scraper
blade while still hot.
Caution:
Danger of burns! Clean the burners
throughly when cooled.
Do not use a steam cleaner to
clean this appliance. Pressurized
steam could penetrate electrical
components and cause a short circuit.
Pressurized steam could cause
permanent damage to the surface and
to components, for which the
manufacturer cannot accept
responsibility.
Never place hot pots or pans over
the touch controls, as the
underlying electronics may be
damaged.
If a drawer is installed beneath the
cooktop, a sufficient distance
between the contents of the drawer and
the bottom of the cooktop must exist.
Otherwise the venting of the cooktop is
not guaranteed.
IMPORTANT SAFETY INSTRUCTIONS
10

Personal safety
When in use, the appliance may
become very hot and remain so for
a while after the cooktop has been
turned off. There is a danger of burning
until the residual heat indicators go out.
Use potholders when working with
a hot appliance. Use only dry, heat
resistant potholders. Moist or damp
potholders used on hot surfaces can
result in steam burns.
Do not heat unopened food cans
on the cooktop. Built-up pressure
may cause the container to burst and
result in injury.
Do not place objects other than
pots and pans on the cooktop. Be
especially careful not to place knives,
forks or spoons etc, or other metallic
items on the cokktop. If the cooktop is
switched on, or if there is residual heat
present, the metallic items can heat up
and cause burning. Remember that
metallic items can cause the burner to
heat up unintentionally! Depending on
material, other non-metallic items can
melt or burn if placed on the cooktop.
Switch the cooktop off after use.
Never cover the cooktop with a
cloth or foil. Danger of fire!
Never leave the cooktop
unattended when cooking with oil
or fat. Overheated fat or oil could ignite
and set the venting hoods on fire.
Always heat oil slowly, monitoring it as it
heats. This is a fire hazard.
Do not use water on grease fires.
Smother any fire or flame, or use a
dry chemical or foam-type extinguisher.
Do not flambé under an exhaust
hood. Flames could be drawn up
into the hood by the suction or the
grease filter may ignite.
Pot and pan handles should be
turned inward and not extend over
the countertop to reduce the risk of
burns, ignition of flammable materials,
and spills.
Be aware of loose fitting or hanging
garments when operating the
cooktop, they may present a hazard.
When frying food make sure that
the food is as dry as possible
before placing it in hot oil. Moisrture
can cause oil to splatter and boil over.
At high settings, be cautious of
splattering grease or boiling over
liquids which may produce smoke.
To prevent burns and breathing
difficulty, allow the cooktop to cool
before cleaning. Some cleaners may
produce toxic fumes if apllied to a hot
surface.
When wiping spills on a hot
cooktop with a wet sponge or
cloth, be careful to avoid steam burns.
Do not let flammable materials, i. e.
cooking grease, accumulate on the
appliance.
IMPORTANT SAFETY INSTRUCTIONS
11

Appliance safety
In the event of damage or a defect,
turn off the appliance immediately,
isolate it from the main power supply. If
the appliance has a plug, pull the plug
from the outlet. Grasp the plug not the
cord. Contact the Miele Technical Ser-
vice Department.
Ensure that power is not supplied to the
appliance during maintenance or repair
work.
Do not cook on a broken cooktop.
Any breakages or cracks in the
ceramic surface of the appliance are
defects and must be treated as such. If
the cooktop should break, cleaning
solutions and spills may penetrate the
broken cooktop and create a risk of
electric shock. Do not use the
appliance until it has been repaired.
Repairs should only be performed
by qualified technicians to ensure
safety. Repairs and other work by
unqualified persons could be
dangerous. Under no circumstances
open the outer casing of the appliance.
While the appliance is under
warranty repairs should only be
performed by an authorized service
technician. Otherwise the warranty is
void.
Further safety notes
Only for persons with a
pacemaker:
Please be advised, that in close
proximity of the turned on cooktop an
electromagnetic field exists. An
interference of the pacemaker is not
likely. However, if in doubt consult your
doctor or the pacemaker manufacturer.
Take care that the cookware is
placed in the middle of the burner
to cover the electromagnetic field.
Make certain that the power cords
of small appliances do not come in
contact with the cooktop. The insulation
on the cable could become damaged.
Danger of electric shock!
Magnetizable items like credit
cards, disks, calculators should not
be placed onto or next to the turned on
cooktop. They may be damaged.
If there is a drawer directly
underneath the appliance without
any wooden base in between, ensure
that no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer, they must be
made of a heat-resistant material.
SAVE THESE INSTRUCTIONS AND
REVIEW THEM PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
12

Clean the cooktop
^Before using for the first time, clean
the appliance with a damp cloth and
dry with a soft cloth.
Heat the cooktop
Metal components of the cooktop have
a protective coating which may give off
a slight odor the first time the appliance
is heated.
The smell will dissipate after a short
time and does not indicate a faulty
connection or appliance defect.
Touch controls
This cooktop has electronic touch
controls activated by a finger.
A tone sounds to indicate that contact
has been made with a control.
Keep the control area clean and do
not rest items on it. The touch control
sensors could mistake an item or
debris for a finger contact, turning
the cooktop on or off.
To prevent damage to the
electronics never place hot pans on
the control panel.
Before using for the first time
13

Automatic reset
To ensure the cooktop functions
properly the touch controls will
automatically reset:
–when the cooktop is connected to
the electrical supply.
–if there is an interruption to the
electrical supply, and
–during use in response to changing
light conditions.
During the automatic reset of the touch
controls the Child Safety Lock indicator
illuminates and the cooktop cannot be
turned on.
If the automatic reset could not be
completed an Awill light in the burner
displays front left and right, and a Fin
the rear left burner display. The right
rear burner display and the timer
display will show numbers.
In this case the touch controls must be
manually reset.
Manual reset
^Make sure no direct light (sun or
artificial) beams on the cooktop. The
surrounding area of the cooktop
should not be completely shaded or
brightly lit.
^Make sure the cooktop and the touch
controls are not covered. Remove all
pots and pans and clean the cooktop
if necessary.
^Trip the circuit breaker to the cooktop
or turn off the power main for 1
minute.
The touch controls will automatically
reset when the power is restored.
If the problem persists, call Miele
Technical Service.
Resetting the touch controls
14

Function
An induction coil is installed beneath
each burner. If a burner is turned on,
the coil produces a magnetic field,
which operates directly on the
cookware bottom and heats it. The
burner is indirectly heated by the heat
radiated from the pot.
Burners with induction operate only
when cookware with a magnetizable
bottom is placed on them, see
"Selecting cookware".
The induction considers automatically
the size of the placed cookware, which
means it operates only in the area of
the surface covered by the cookware
bottom.
The burner does not operate
– when turned on without or with
unsuitable cookware (cookware
without magnetizable bottom).
– when the bottom diameter of the
placed cookware is too small.
–when the cookware is removed from
a turned on burner.
The symbol ßalternating with 0or the
last set power level will flash in the
burner display.
If suitable cookware is placed on the
burner within 3 minutes, the ßsymbol
goes out.
If no or unsuitable cookware is used,
the burner and cooktop are turned off
automatically after 3 minutes.
Do not place knives, forks or spoons
etc., or other metallic items on the
cooktop. If the cooktop is switched
on, or if there is residual heat
present, the metallic items can heat
up and cause burning. Remember
that metallic items can cause the
burner to heat up unintentionally!
Switch the cooktop off after use.
Induction
15

Sounds
When operating induction burners, the
following sounds can occur depending
on the material of the cookware base:
–Buzzing can be heard at high power
levels. It will quiet down or go out,
when the power level is turned down.
–Crackling occurs when the
cookware has a base made from
several materials, e.g. sandwich
bottom.
–Whistling can occur, when
connected burners (see "Booster
function) are operated on the highest
power level and cookware with a
base made from several materials
are used.
–Clicking can occur during electronic
switching operations, especially at
lower power levels.
–Whizzing: To extend the electronic
durability, the appliance is fitted with
a cooling fan. If the cooktop is
intensively used, the fan is turned on
and a whirring sounds. The cooling
fan will continue to run after the
cooktop was turned off.
Induction
16

Suitable cookware
–Stainless steel with magnetizable
bottom
–Enameled steel
–Cast iron
Unsuitable cookware
–Stainless steel with non magnetizable
bottom
–Aluminum, copper
–Glass, ceramic, earthenware
If in doubt, whether cookware is
suitable for use on the induction, check
by holding a magnet on the cookware
bottom. If the magnet sticks, the
cookware is suitable.
To prevent damage to the cooktop
do not use pots and pans with thin
bases on this cooktop. Never heat
an empty pan unless the pan
manufacturer states that you can do
so.
Cookware size
For optimum burner use, select the size
of the cookware so it fits between the
inner and outer marking of the burner. If
the pot is smaller than the inner
marking, the induction may not operate.
The burner reacts, as if no cookware
was placed on it.
Please note that cookware diameters
given by the manufacturer are usually
the maximum/upper diameter. For use
on the burner the (usually smaller)
bottom diameter is important.
Energy saving tips
Using a lid while cooking will minimize
the loss of heat and decrease cooking
time.
Selecting cookware
17

Turning on the cooktop
The cooktop must be turned on before
any of the burners can be used.
^Touch the s"ON / OFF" touch control
for the cooktop.
A0will appear in each of the burner
displays and 00 will appear in the timer
display.
The cooktop is now on and the burners
are ready for use. The burners will not
heat until a power setting has been
chosen.
If a setting is not chosen within
30 seconds the cooktop will turn itself
off as a safety measure.
Turning on a burner
^Once the cooktop is turned on, touch
the s"ON/OFF" control of the burner
you wish to use.
A0will appear in the burner display.
^Select the desired setting between 1
and 12 by touching the -or +touch
controls.
When turning on the cooktop you can
decide whether you want to cook with
auto-heat (see, "Auto-heat" for more
information) or not:
Turn on with + to:
Cook without auto-heat
Turn on with - to:
Cook with auto-heat
To turn on another burner where 0has
gone out, touch -or +. The 0shows
again and the power level can be
selected.
Using the cooktop
18

Settings
Use for Power level*
default
(12 Power levels)
extended
(23 Power levels)
Melting butter,
dissolving gelatin
1 - 2 1 - 2.
Heating small volumes of liquid
Warming dishes, which easily burn
Cooking rice
Defrosting frozen vegetables
3 3 - 3.
Warming liquid and half-set foods
Thickening sauces, e.g. Hollandaise
Cooking rice pudding, omelette, eggs
4 - 5 4 - 5
Defrosting frozen food
Steaming vegetables, fish
6 5. - 6.
Boiling and continued cooking of large quantities of food,
e.g. stew
Cooking pasta
7 - 8 7 - 8
Gentle frying (without overheating the fat) of fish, sausages,
fried eggs, etc.
9 - 10 8. - 10.
Frying pancakes, etc. 11 11 - 11.
Boiling a large volume of water
Auto-heat
12 12
* These settings are recommendations for 4 portions. With large pots, large quantities or cooking
without the lid, a higher setting is needed. With smaller quantities select a lower setting.
** If a more defined setting of the power level is desired, the range of the power level can be
extended. See "Programming". The intermediate stage will be indicated by a dot lit next to the power
level number.
Using the cooktop
19

Auto-heat
When auto-heat has been activated, the
burner turns on automatically at the
highest setting and then changes to the
selected power level. The auto-heat
time depends on which power level has
been chosen (see table).
If the cookware is removed during
auto-heat, the auto-heat phase will be
interrupted. It will be continued, when
the cookware is replaced on the burner
(within 3 minutes).
Power level* Auto-heat time
Minutes and
seconds
1 0 : 15
1. 0 : 15
2 0 : 15
2. 0 : 15
3 0 : 25
3. 0 : 25
4 0 : 50
4. 0 : 50
5 0 : 50
5. 2 : 00
6 2 : 00
6. 2 : 00
7 5 : 50
7. 5 : 50
8 5 : 50
8. 2 : 50
9 2 : 50
9. 2 : 50
10 2 : 50
10. 2 : 50
11 2 : 50
11. 2 : 50
12 -
* The power levels with a period are
only available if the power levels
were extended. See "Programming".
Using the cooktop
20
