Miele KM 3054 User manual

Operating and installation instructions
Gas cooktops
KM 3034
KM 3054
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the
first time. M.-Nr. 09 317 810
en - AU, NZ

2

WO This appliance can be used in countries other than those specified on
the appliance. It is, however, set up for connection to the gas and electricity
supplies in the countries specified. For use in other countries please contact
the Miele spare parts or customer service department in your country.
3

Description of the appliance.........................................6
KM 3034..........................................................6
KM 3054..........................................................7
Accessories supplied ...............................................8
Warning and Safety instructions ....................................11
Caring for the environment.........................................18
Before using for the first time.......................................19
Operation .......................................................20
Rapid ignition system ..............................................20

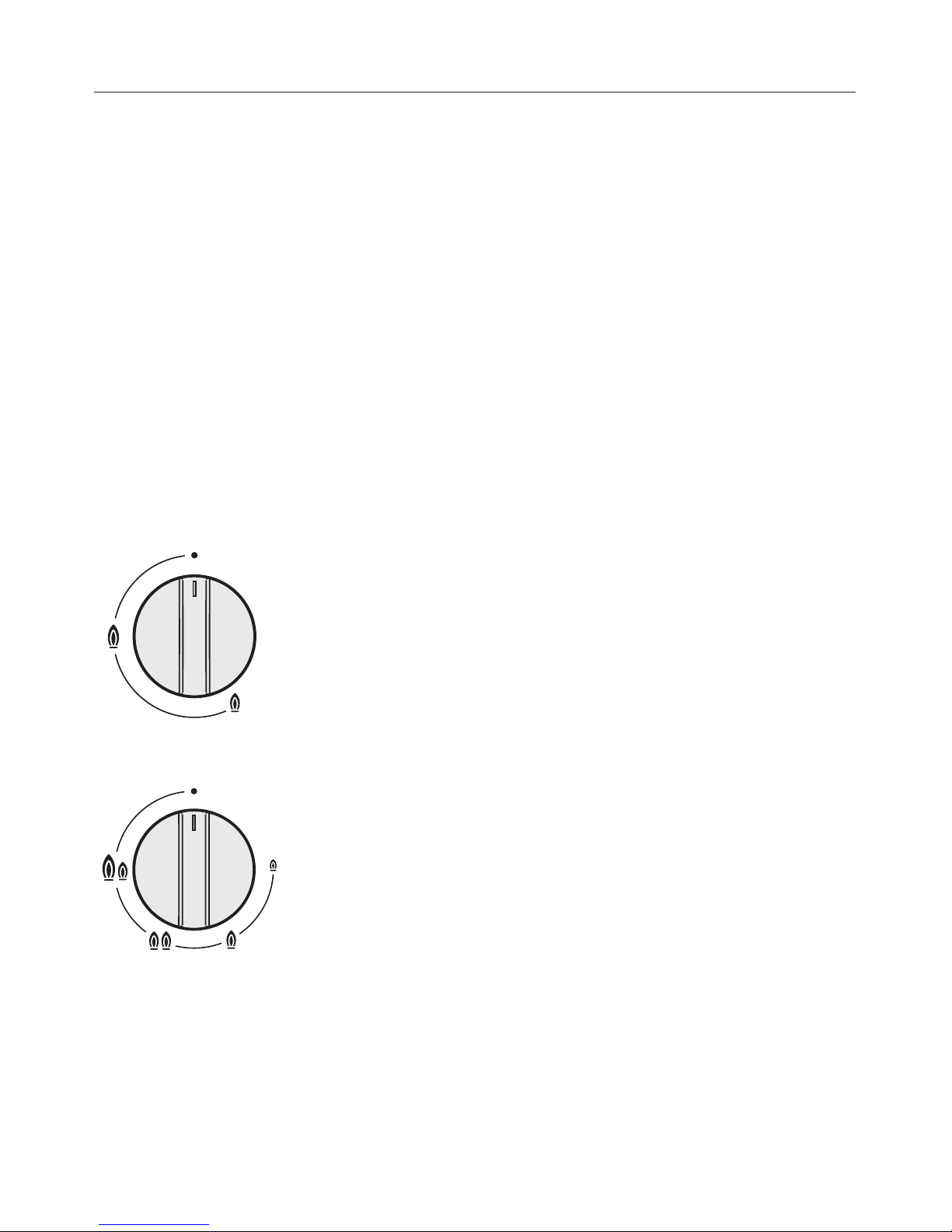

Control knobs.....................................................20
Switching on .....................................................21
Regulating the flame ...............................................22
Switching off .....................................................22
Easy switch-off function .............................................23
In-operation / Residual heat indicator light ..............................23
Minute minder ...................................................24
Setting the minute minder ...........................................24
To change the time set for the minute minder ............................24
To cancel the time set for the minute minder ............................24
To allocate the minute minder to a cooking zone .........................25
Pots & Pans .....................................................26
Combi insert ...................................................27
Wok ring ......................................................27
Energy-saving tips................................................28
Safety features ...................................................29
Thermo-electric ignition .............................................29
Safety cut-out.....................................................29
System lock ......................................................29
Cleaning and care ................................................30
Problem solving guide ............................................34
Optional accessories..............................................37
Safety instructions for installation...................................38
Safety clearances.................................................39
Building-in dimensions ...........................................41
Installation ......................................................43
Contents
4

Electrical connection..............................................45
Gas connection ..................................................46
Burner ratings ...................................................48
Conversion to another type of gas...................................49
Jet table .........................................................49
Changing the main jets .............................................50
Changing the small jets .............................................52
Checking operation ................................................53
After sales service, data plate ......................................54
Contents
5

KM 3034
aLarge burner
bSmall burner
cWok burner
de Medium burner
fPan support (for each burner)
gIn-operation / Residual heat indicator
light
hMinute minder
iEasy switch-off function
jCooking zone symbol
Controls knobs for the cooking zones
kFront right
lRear right
mMiddle
nRear left
oFront left
Description of the appliance
6

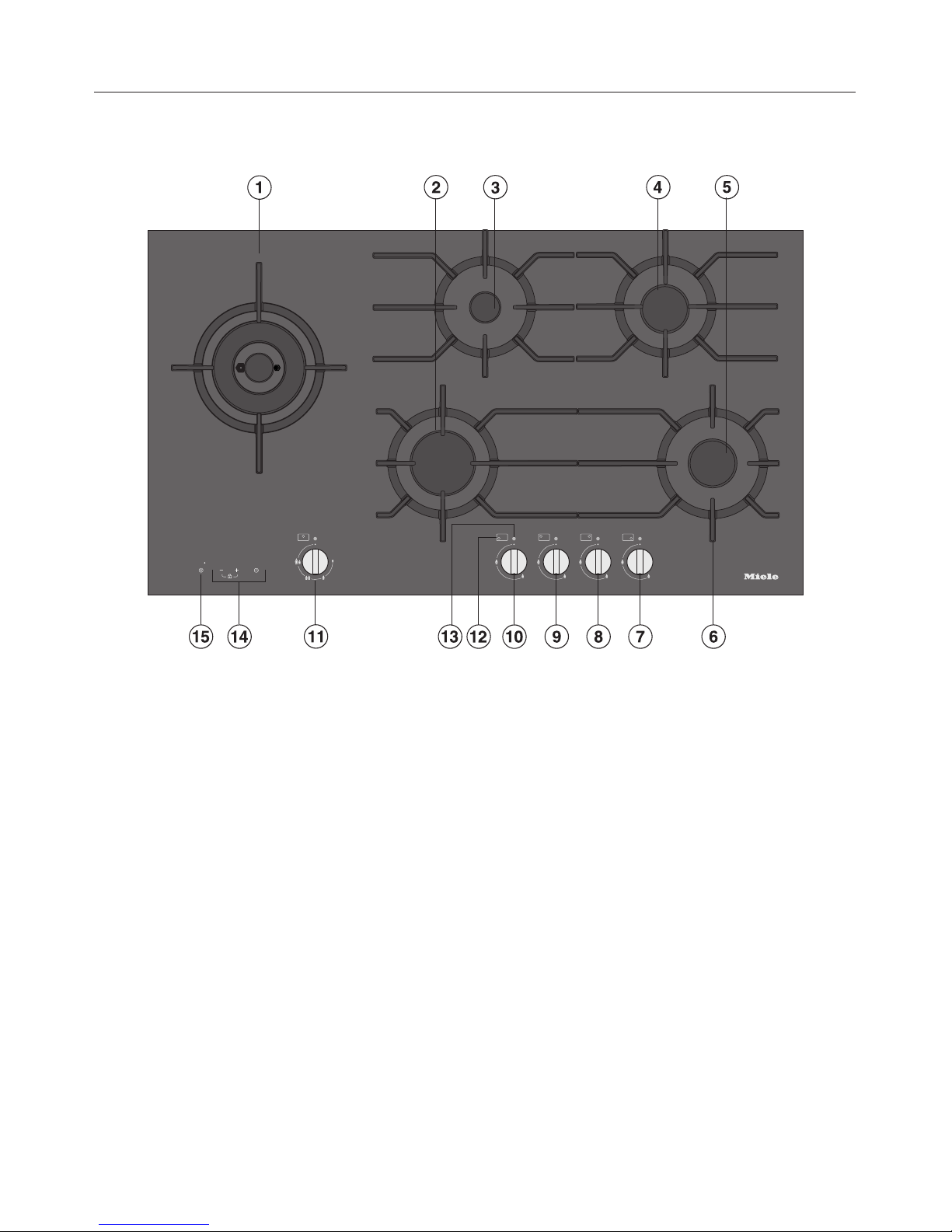

KM 3054
aWok burner
bLarge burner
cSmall burner
de Medium burner
fPan support (for each burner)
lCooking zone symbol
mIn-operation / Residual heat indicator
light
nMinute minder
oEasy switch-off function
Controls knobs for the cooking zones
gFront right
hRear right
iRear left
jFront left
kLeft
Description of the appliance
7

Accessories supplied
The accessories supplied with your appliance, as well as a
range of optional ones, are available to order from Miele (see
"Optional accessories").
Wok ring
The wok ring supplied with your appliance can be used in
instances where extra stability is required. It is particularly
suitable for woks with a rounded base.
Combi insert
(for small pots and pans)
The combi insert must be used if you wish to use a pot or pan
with a smaller diameter base than the minimum given in the
table.
Description of the appliance
8

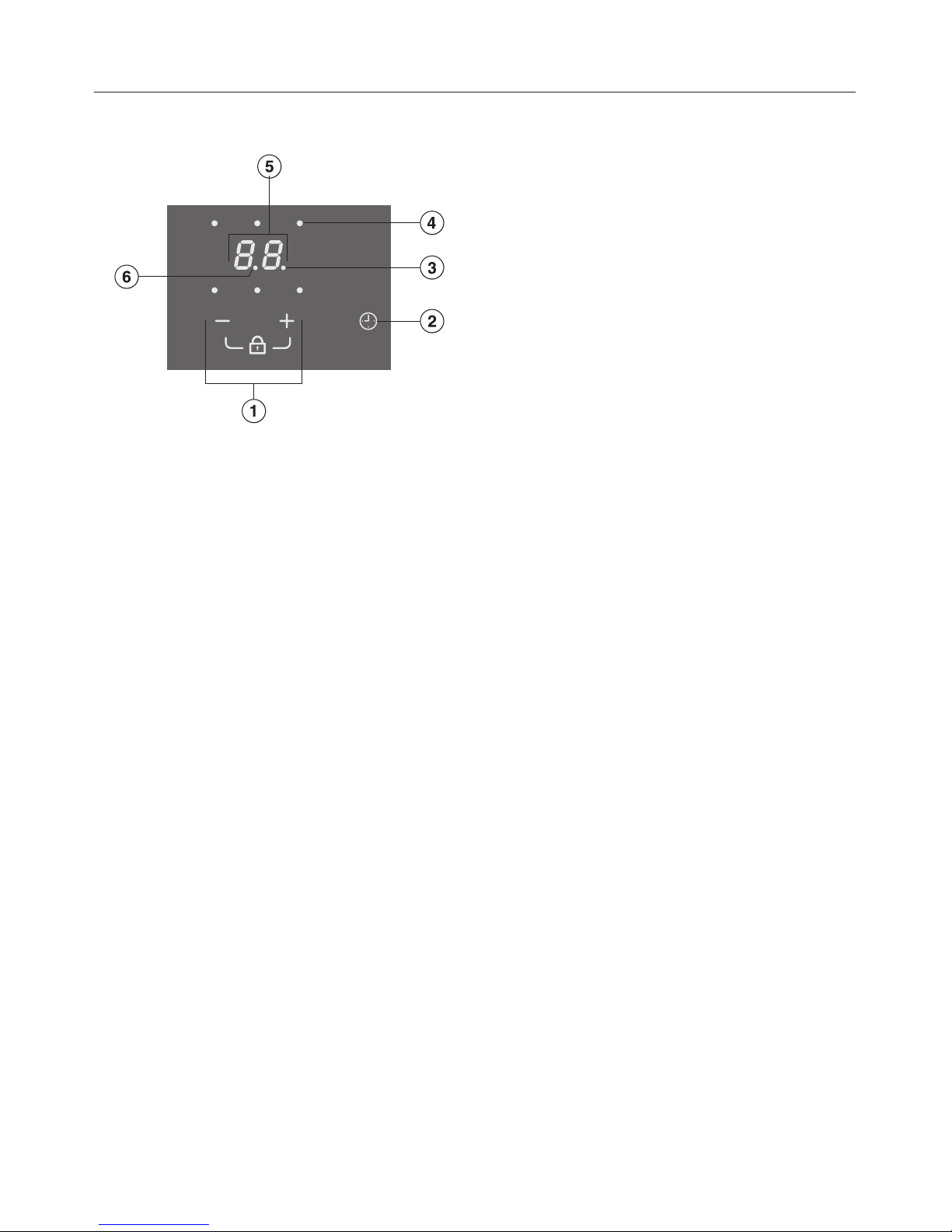

Minute minder display
aSystem lock / Setting the time
bSensor
- Selecting minute minder
- Switching between functions
- Selecting a cooking zone
cIndicator light for the minute minder
dIndicator light for relevant zone, e.g. the rear right cooking zone
eTime display
00 to 99 = Time in minutes
0.^ to 6.^ = Time in hours
fIndicator light for half hours with a minute minder time of more than 99 minutes
Description of the appliance
9

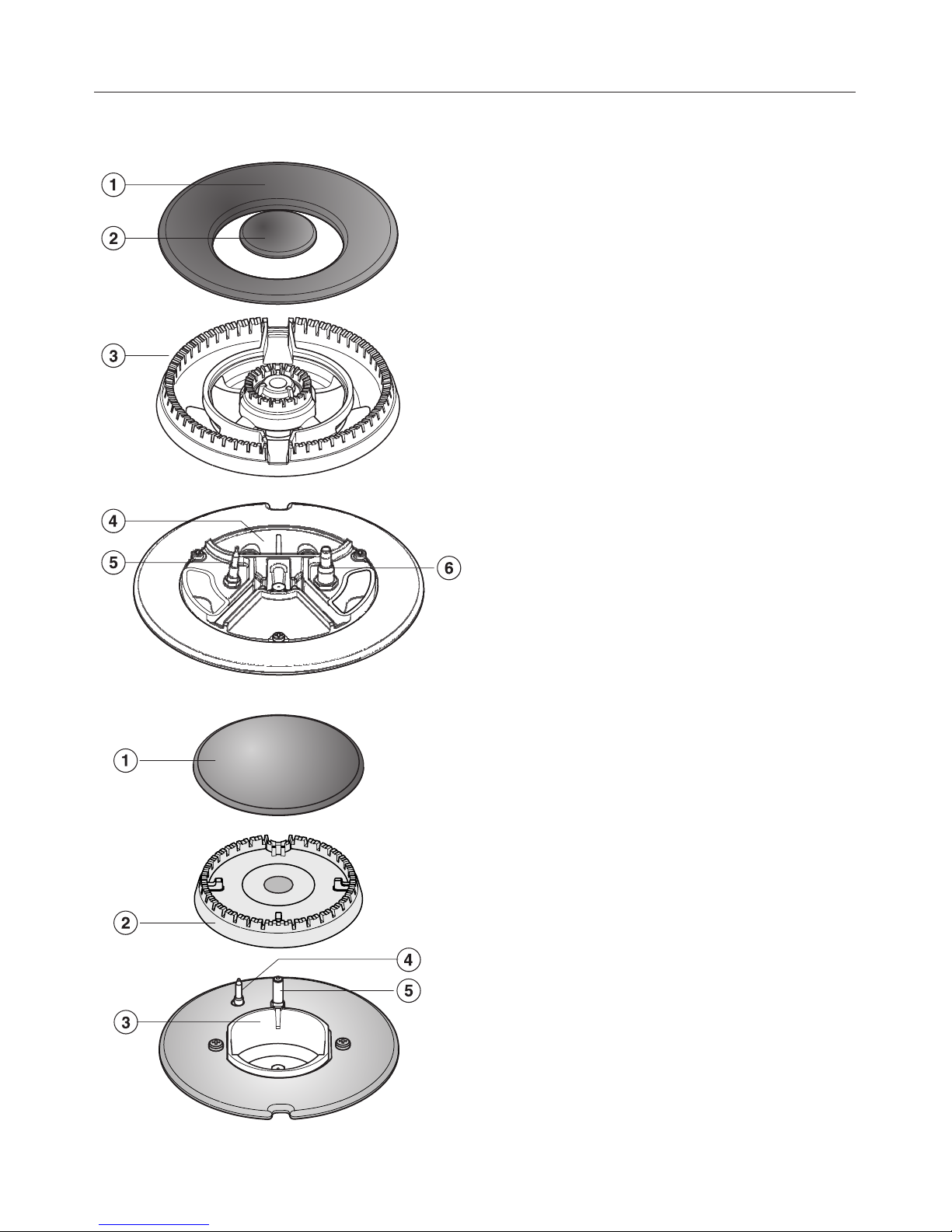

Burner
Wok burner
aOuter burner cap
bInner burner cap
cBurner head
dBurner base
eIgnition safety device
fIgnitor
Small, medium and large burners
aBurner cap
bBurner head
cBurner base
dIgnition safety device
eIgnitor
Description of the appliance
10

This appliance complies with all
relevant local and national safety
requirements. Inappropriate use
can, however, lead to personal injury
and damage to property.
To avoid the risk of accidents and
damage to the appliance, please
read these instructions carefully
before using it for the first time.
They contain important notes on
installation, safety, use and
maintenance.
Keep these instructions in a safe
place and ensure that new users are
familiar with the contents. Pass them
on to any future owner.
Do not modify this appliance.
Correct application
~This cooktop is designed for
domestic use and for use in similar
environments by guests in hotel or
motel rooms, bed & breakfasts and
other typical living quarters. This does
not include common/shared facilities or
commercial facilities within hotels,
motels or bed & breakfasts.
~This gas cooktop must only be used
as described in these instructions.
Any other usage is at the owner's risk
and could be dangerous. The
manufacturer cannot be held liable for
damage resulting from incorrect or
improper use or operation.
~The appliance is not suitable for
outdoor use.
~This gas cooktop is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless they
are supervised whilst using it or have
been given instruction concerning its
use by a person responsible for their
safety.
~This appliance must not be installed
and used in mobile installations such as
ships etc.
~Do not modify this appliance.
Warning and Safety instructions
11

Safety with children
~Activate the system lock to ensure
that children cannot switch on the
appliance inadvertently.
~This appliance is only intended for
use by adults who have read these
instructions. This appliance is not a toy!
To avoid the risk of injury, keep children
well away and do not allow them to play
with it or to use the controls. They will
not understand the potential dangers
posed by it. They should be supervised
whenever you are working in the
kitchen.
~Older children may only use the
cooktop when its operation has been
clearly explained to them and they are
able to use it safely, recognising the
dangers of misuse.
~The appliance gets hot when in use
and remains hot for quite a while after
being switched off. To safeguard
against burning, keep children well
away from the appliance at all times.
~Do not store anything which might
arouse a child's interest in storage
areas above or next to the appliance.
Otherwise they could be tempted into
climbing onto the appliance with the
risk of burning themselves.
~Keep all pots and pans out of reach
of children. Turn pan handles inwards
away from the edge of the cooktop.
Danger of burning or scalding! Special
cooktop guards are available from
good retail outlets.
~Packaging, e.g. cling film,
polystyrene and plastic wrappings,
must be kept out of the reach of babies
and young children. Danger of
suffocation! Dispose of or recycle all
packaging safely as soon as possible.
Warning and Safety instructions
12

Technical safety
~Before installation, check the
appliance for visible signs of damage.
Do not install and use a damaged
appliance. A damaged appliance is
dangerous.
~The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
tested regularly and, where there is any
doubt, the household wiring system
should be inspected by a qualified
electrician. The manufacturer cannot be
held liable for the consequences of an
inadequate earthing system (e.g.
electric shock).
~Before connecting the appliance to
the mains supply, make sure that the
voltage and frequency details given on
the data plate correspond to the on-site
electricity supply, otherwise the
appliance could be damaged. Consult
a qualified electrician if in any doubt.
~For safety reasons, this appliance
may only be used after it has been built
in.
~The connection to the gas supply
must be carried out by a suitably
qualified and competent person in
accordance with current local and
national safety regulations. If the
appliance is supplied without a plug, or
if the plug is removed, it must be
connected to the mains electricity
supply by a suitably qualified and
competent electrician in strict
accordance with current local and
national safety regulations. The
manufacturer cannot be held liable for
damage caused by incorrect
installation or connection.
~Never open the housing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
~Installation, maintenance and
repairs may only be carried out by a
Miele authorised, suitably qualified and
competent person in strict accordance
with current national and local safety
regulations.
Repairs and other work by
unauthorised and unqualified persons
could be dangerous. Miele cannot be
held liable for unauthorised work.
Warning and Safety instructions
13

~The gas cooktop must be
disconnected from the gas supply and
mains electricity before repairs and
maintenance work is carried out. It is
only completely isolated from the
electricity supply when:
–the mains fuse is disconnected,
–the screw-out fuse is removed (in
countries where this is applicable),
–it is switched off at the wall socket
and the plug is withdrawn from the
socket, or it is switched off at the
isolator.
~While the appliance is under
warranty, repairs should only be
undertaken by a service technician
authorised by Miele. Otherwise the
warranty will be invalidated.
~Faulty components must only be
replaced by genuine Miele original
spare parts. The manufacturer can only
guarantee the safety of the appliance
when Miele replacement parts are
used.
~This appliance is not intended to be
operated by means of an external timer
or separate remote control system.
~If the connection cable is damaged,
it must be replaced by a suitably
qualified electrician with a specialist
connection cable of type H 05 VV-F
(pvc insulated), available from Miele.
~Do not connect the appliance to the
mains electricity supply by a
multi-socket unit or an extension lead.
These do not guarantee the required
safety of the appliance (e.g. danger of
overheating).
~Do not use the cooktop if the
ceramic surface is cracked, chipped or
damaged in any way. Switch it off im-
mediately, disconnect it from the mains
electricity and the gas supply, and call
Miele.
~In areas which may be subject to
infestation by cockroaches or other
vermin, pay particular attention to
keeping the appliance and its
surroundings in a clean condition at all
times. Any damage caused by
cockroaches or other vermin will not be
covered by the warranty.
Warning and Safety instructions
14

Correct use
~The appliance gets hot when in use
and remains hot for quite a while after
being switched off. There is a danger of
burning until the residual heat
indicators go out.
~When using a rangehood above the
cooktop, ensure that the burner is
always covered with a pan when in use.
Otherwise flames could be drawn up by
the suction of the rangehood, parts of
which could then be damaged or even
set on fire.
~Do not leave the cooktop
unattended whilst it is being used.
Boiling fat or oil could ignite and cause
a fire.
~If oil or fat does catch fire, do not
attempt to put out the flames with water.
Use a suitable fire blanket, saucepan
lid, damp towel or similar to smother the
flames.
~Do not use the appliance to heat up
the room. Due to the high temperatures
radiated, objects near the appliance
could catch fire. The life of the
appliance could also be reduced.
~Do not flambé under a rangehood.
The flames could set the rangehood on
fire.
~For added protection, it is advisable
to use heat-resistant pot holders or
gloves when using the appliance.
Ensure that they do not come into
contact with the flames. Do not use
large cloths, tea towels or similar as the
ends could touch the flames and catch
fire.
Take care not to let these items get
damp or wet as this causes heat to
transfer through the material more
quickly with the risk of scalding or
burning yourself.
~Do not drop anything on the ceramic
surface. Even a light object could
cause damage in certain
circumstances.
~Do not use the appliance as a
resting place for anything else. The
article could melt or catch fire if
residual heat is still present or if the
appliance is switched on by mistake.
~Do not cover the appliance, e.g.
with a covering plate, a cloth, kitchen
foil, etc. If the appliance is switched on
by mistake, or if there is residual heat
present, these materials may catch fire,
shatter or melt.
~Do not use plastic or aluminium foil
containers. These melt at high
temperatures and could catch fire.
~Do not heat up unopened tins of
food on the cooktop, as pressure will
build up in the tin, causing it to
explode. This could result in injury and
scalding or damage.
Warning and Safety instructions
15

~Make sure all the components of the
gas burners have been correctly
assembled before switching on.
~Pans must be the correct size for the
burner they are used on (see "Pots &
Pans"). A pan which is too small will be
unstable on the pan support. If the pan
diameter is too large, flames can
spread out to the sides and damage or
burn the worktop, wall claddings or
surrounding units and also parts of the
cooktop. Miele will not accept liability
for any damage resulting from such
incorrect use.
~Ensure that the flames from the
burner do not spread out beyond the
base and up the sides of the pan.
~Unless the pan manufacturer states
that you can do so, do not use pans
with very thin bases on this cooktop,
and never heat up empty pans as they
could get damaged. This could also
damage the appliance.
~Always use the pan supports
supplied. Never place a pot or pan on
the burner itself.
~Do not store any inflammable
objects near the gas cooktop.
~Remove splashes of fat and other
food debris from the surface as soon as
possible. These are a fire hazard.
~Replace the pan supports carefully
to avoid scratching the surface of the
cooktop.
~Using the cooktop creates heat,
moisture and products of combustion
within the room in which it is located. It
is important to make sure the room is
sufficiently ventilated during operation
of the cooktop with natural or
mechanical means of ventilation, e.g. a
rangehood.
~If the cooktop is used for very long
periods of time, additional ventilation of
the room may be necessary, e.g. by
opening windows or doors, or running
the rangehood on the highest setting.
~While the gas cooktop is in
operation, it must be used in
conjunction with either a rangehood or
another domestic ventilation system.
~When using an electrical appliance,
e.g. a hand-held mixer, near the gas
cooktop, ensure that the connection
cable doesn't come into contact with
the hot cooktop. The insulation on the
cable could become damaged, giving
rise to an electric shock hazard.
~Do not use or store flammable
materials in the appliance storage
drawer or near this appliance. Cutlery
inserts must be heat-resistant.
~Do not spray aerosols in the vicinity
of this appliance while it is in operation.
~Do not use pans that are large
enough to cover more than one burner.
The resulting build-up of heat could
damage the appliance.
Warning and Safety instructions
16

~If the cooktop is built in behind a
furniture door, it must only be operated
when the door is open.
Close the furniture door only once the
appliance has been switched off and
the residual heat indicators have gone
out.
~If the appliance has not been used
for a long period of time, it should be
thoroughly cleaned before it is used
again. It is also advisable to have the
appliance tested by a qualified person
for safety.
Miele cannot be held liable for
damage caused by non-compliance
with these Warning and Safety
instructions.
Warning and Safety instructions
17

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
or machine
Electrical and electronic appliances /
machines often contain materials
which, if handled or disposed of
incorrectly, could be potentially
hazardous to human health and to the
environment. They are, however,
essential for the correct functioning of
your appliance or machine. Therefore,
please do not dispose of your old
machine or appliance with your
household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains electricity
supply by a competent person.
The plug must be rendered useless
and the cable cut off directly behind the
appliance or the machine to prevent
misuse.
Caring for the environment
18

Please stick the extra data plate for the appliance supplied
with this documentation in the space provided in the "After
sales service" section of this booklet.
Cleaning for the first time
^Remove any protective foil and sticky labels.
^Clean all removable parts of the burners with a solution of
warm water and a little washing-up liquid applied with a
soft sponge. Dry all parts thoroughly after cleaning and
then reassemble the burners (see "Cleaning and care").
^Before using for the first time, clean the appliance with a
damp cloth only and then wipe dry.
The metal components have a protective coating which may
give off a slight smell when heated up for the first time.
The smell and any vapours given off do not indicate a faulty
connection or appliance, and neither are they hazardous to
health.
Before using for the first time
19

Rapid ignition system
The appliance is supplied with a rapid ignition system with
the following features:
–Rapid ignition without pressing and holding in the control
knob.
–Automatic re-ignition
The burner is re-ignited if the flame is extinguished due to
a draught, for example. If re-ignition is unsuccessful, the
gas supply will be cut off (see "Thermo-electric ignition").
Control knobs
The control knob is used to ignite the burner and to regulate
the strength of the flame.
Small, medium and large burners
ßThe gas supply is turned off
&Strongest flame
/Weakest flame
Wok burner
ßThe gas supply is turned off
&/ Strongest flame:
inner and outer burners
burn on the highest setting.
&& Strong flame:
outer burner on lowest setting,
inner burner on highest setting.
&Weak flame:
outer burner is off,
inner burner on highest setting.
/Weakest flame:
outer burner is off,
inner burner on lowest setting.
Operation
20
