Miele DA279-3 User manual

Operating and installation instructions
Ventilation System
DA 279-3
To prevent accidents
and machine damage,
read these instructions
before installation or use.
UV
05 853 690
M.-Nr.

2

IMPORTANT SAFETY INSTRUCTIONS
Guide to the appliance
Functional de cription
Operation
Main power switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Turning on the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting the power level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Delayed Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning off the fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Turning the lighting on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Dimming the lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Indirect lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Checking the filter timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Reprogramming the timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cleaning and Care
Cleaning the casing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
After Sale Service
In tallation in truction
Table of Content
3

Read the e Operating In truction carefully before in talling or
u ing the Ventilation Sy tem.
This appliance is intended for
residential use only. Use the
appliance only for its intended
purpose. The manufacturer cannot
be held responsible for damages
caused by improper use of the
hood.
This appliance complies with current
safety requirements. Improper use of
the appliance can lead to personal
injury and material damage.
READ AND SAVE THESE
INSTRUCTIONS
CAUTION
For General Ventilating Use Only.
Do Not Use To Exhaust Hazardous
Or Explosive Materials And Vapors.
This appliance is designed to vent
cooking smoke and odors only.
Be certain your appliance is prop-
erly installed and grounded by a
qualified technician.
To guarantee the electrical safety of this
appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician. The manufacturer
can not be held responsible for
damages caused by the lack, or
inadequacy of, an effective grounding
system.
Before connecting the appliance to
the power supply make sure that
the voltage and frequency listed on the
data plate correspond with the house-
hold electrical supply. This data must
correspond to prevent machine
damage. Consult a qualified electrician
if in doubt.
Installation work and repairs should
only be performed by a qualified
technician in accordance with all
applicable codes and standards.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held
responsible.
IMPORTANT SAFETY INSTRUCTIONS
4

This equipment is not designed for
maritime use or for use in mobile
installations such as caravans or air-
craft. However, under certain conditions
it may be possible for an installation in
these applications. Please contact the
nearest Miele dealer or the Miele Tech-
nical Service Department with specific
requirements.
Before servicing or cleaning the
unit, switch power off at the service
panel and lock the service disconnect-
ing means to prevent power from being
switched on accidentally. When the
service disconnecting means can not
be locked, securely fasten a prominent
warning device, such as a tag, to the
service panel.
Before discarding an old
appliance, unplug it from the
power supply and remove the power
cord and any doors to prevent hazards.
U e
Do not allow children to play with
or operate the appliance or its
controls. Supervise its use by the
elderly or infirm.
Be careful when preparing a
flambé beneath the hood.
Flames may be drawn up into the hood
by the suction or grease filters may
catch fire.
Never operate gas burners without
pots.
Do not leave cooking surfaces
unattended while in use. Over-
heated food, oil and grease can catch
fire.
Do not use the hood without the
grease filters in place.
Clean the grease filters regularly.
Dirty filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. Steam could
penetrate electrical components and
cause a short circuit.
In areas subject to infestation by
cockroaches or other pest, keep
the appliance and its surroundings
clean at all times. Any damage caused
by cockroaches or other pest will not
be covered under warranty.
IMPORTANT SAFETY INSTRUCTIONS
5

,WARNING - TO REDUCE
THE RISK OF A RANGE TOP
GREASE FIRE:
Never leave surface units unat-
tended at high settings. Boilovers
cause smoking and greasy spillovers
may ignite. Heat oils slowly on low or
medium settings.
Always turn hood "ON" when cook-
ing at high heat or when cooking
flaming foods.
Clean ventilating fans frequently.
Grease should not be allowed to
accumulate on fan or filter.
Use proper pan size. Always use
cookware appropriate for the size
of the surface element.
,WARNING
TO REDUCE THE RISK OF INJURY
TO PERSONS IN THE EVENT OF A
RANGE TOP GREASE FIRE,
OBSERVE THE FOLLOWING:
SMOTHER FLAMES with a close
fitting lid, cookie sheet, or metal
tray, then turn off the burner.
BE CAREFUL TO PREVENT BURNS.
If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE
DEPARTMENT.
NEVER PICK UP A FLAMING
PAN - You may be burned.
DO NOT USE WATER, including
wet dishcloths or towels - a violent
steam explosion will result.
Use an extinguisher
ONLY IF:
– You know you have a Class ABC
extinguisher, and you already know
how to operate it.
–The fire is small and contained in the
area where it started.
–The fire department is being called.
–You can fight the fire with your back
to an exit.
IMPORTANT SAFETY INSTRUCTIONS
6

In tallation
,WARNING
To reduce the ri k of fire, only
u e metal ductwork.
When installing the hood, follow the
recommended minimum safety
distances between a Miele cooktop and
the hood:
–22" (55 cm) above electric cooktops,
–26" (65 cm) above gas cooktops,
–26" (65 cm) above an open grill.
If local building codes require a greater
safety distance, follow their require-
ment.
For non-Miele cooking appliances
maintain the safety distances recom-
mended by the appliance manufacturer
in their installation and operating
instructions.
If there is more than one appliance
beneath the hood and they have differ-
ent minimum safety distances always
select the greater distance.
Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
Do not use an extension cord to
connect the appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
Do not install this hood over
cooktops burning solid fuel.
Any fittings, sealant, or materials
used to install the ductwork must
be made of approved non-flammable
materials.
Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing,
inactive chimney or vent flue.
Ducted fans must always be
vented outdoors.
Make sure that the airflow in the
room is sufficient for combustion
and exhausting of all non-electric heat-
ing appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
backdrafts may occur. Follow the heat-
ing manufacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA), or the American Society for
Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE).
If in doubt, consult an experienced
professional.
IMPORTANT SAFETY INSTRUCTIONS
7

Guide to the appliance
8

aChimney exten ion
bChimney
cCanopy
dIndirect lighting
eGrea e filter
fOverhead lighting
gRecirculation vent
hMain power witch
iIndirect lighting witch
jLight button
This button turns the light on and off
and also dims the light.
The lighting can be used independently
of the fan.
kOn/Off button
lFan power election
Four fan speed selection
mDelayed hut down
This button activates the Delayed Shut
Down feature. The fan can be set to
turn off automatically after either 5 or 15
minutes.
nGrea e filter button
The indicator next to the grease filter
button lights when the grease filters
need to be cleaned. This button is also
used:
–to reset the grease filter timer after
cleaning the grease filters (see
"Cleaning and Care").
–to show how long the grease filters
have been in use (see "Operation /
Filter timers").
–to change the number of hours
counted by the grease filter timer
(see "Operation / Reprogramming the
filter timers").
oCharcoal filter button
The indicator next to the charcoal filter
button lights when the charcoal filter
needs to be replaced.
This button is also used:
–to reset the charcoal filter timer after
changing the filter (see "Cleaning
and care").
–to show how long the charcoal filter
has been in use (see "Operation / Fil-
ter timers")
–to change the number of hours
counted by the charcoal filter timer
(see "Operation / Reprogramming the
timers").
Guide to the appliance
9

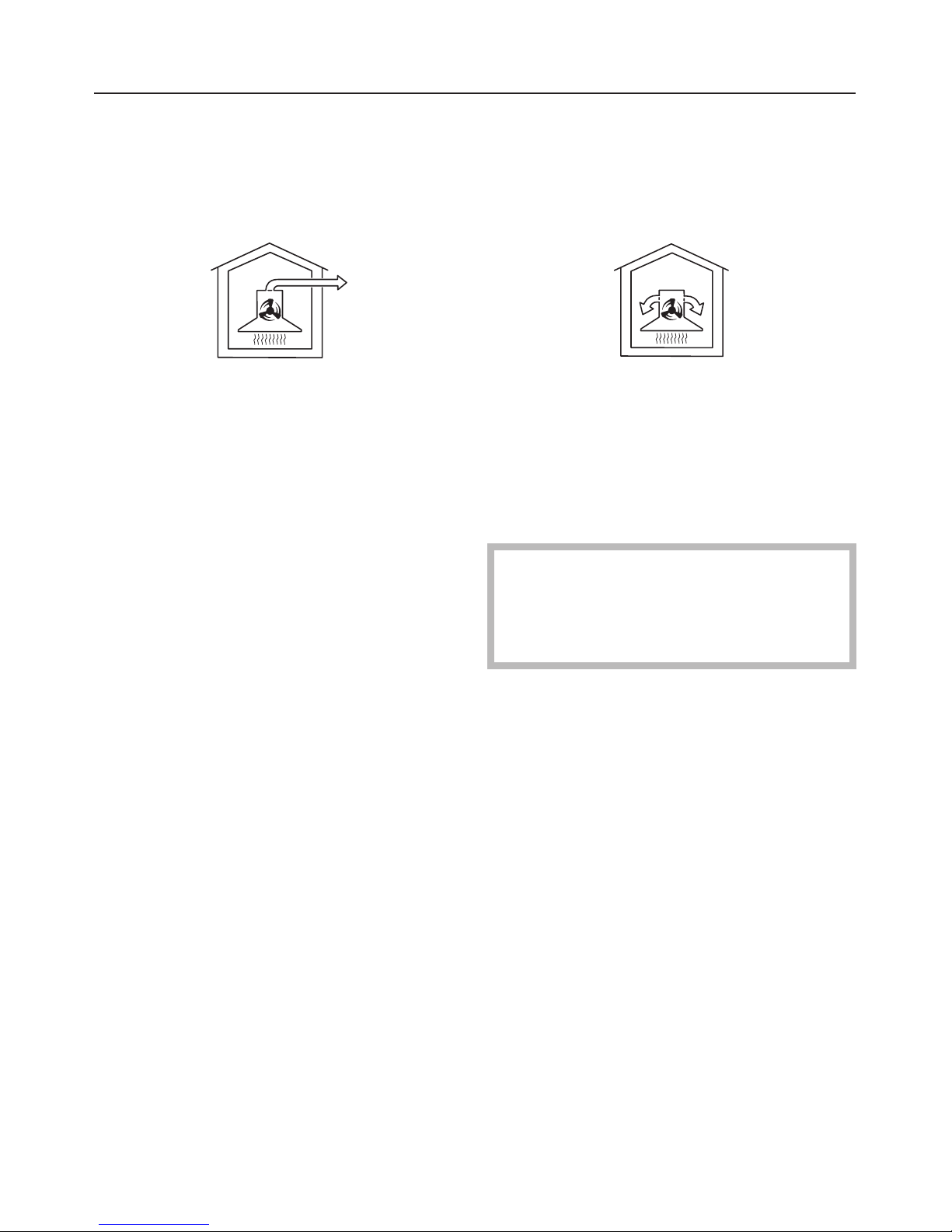

The hood offers two modes of opera-
tion:
Air extraction
The air is drawn in and cleaned by the
grease filters and directed outside.
The hood comes equipped with a
non-return flap. This flap automatically
closes when the hood is turned off so
that no exchange of outside air and
room air can occur. When the hood is
turned on, the air pressure of the ex-
haust fan automatically opens the flap
blowing the inside air and cooking
odors outside.
Recirculation mode
Air is drawn through the grease filters
and an active charcoal filter. The fil-
tered air is then recirculated back into
the kitchen through a vent at the top of
the hood’s chimney.
Before using the hood in
recirculation mode, ensure that the
active charcoal filter is in place, see
"Cleaning and care".
Functional de cription
10

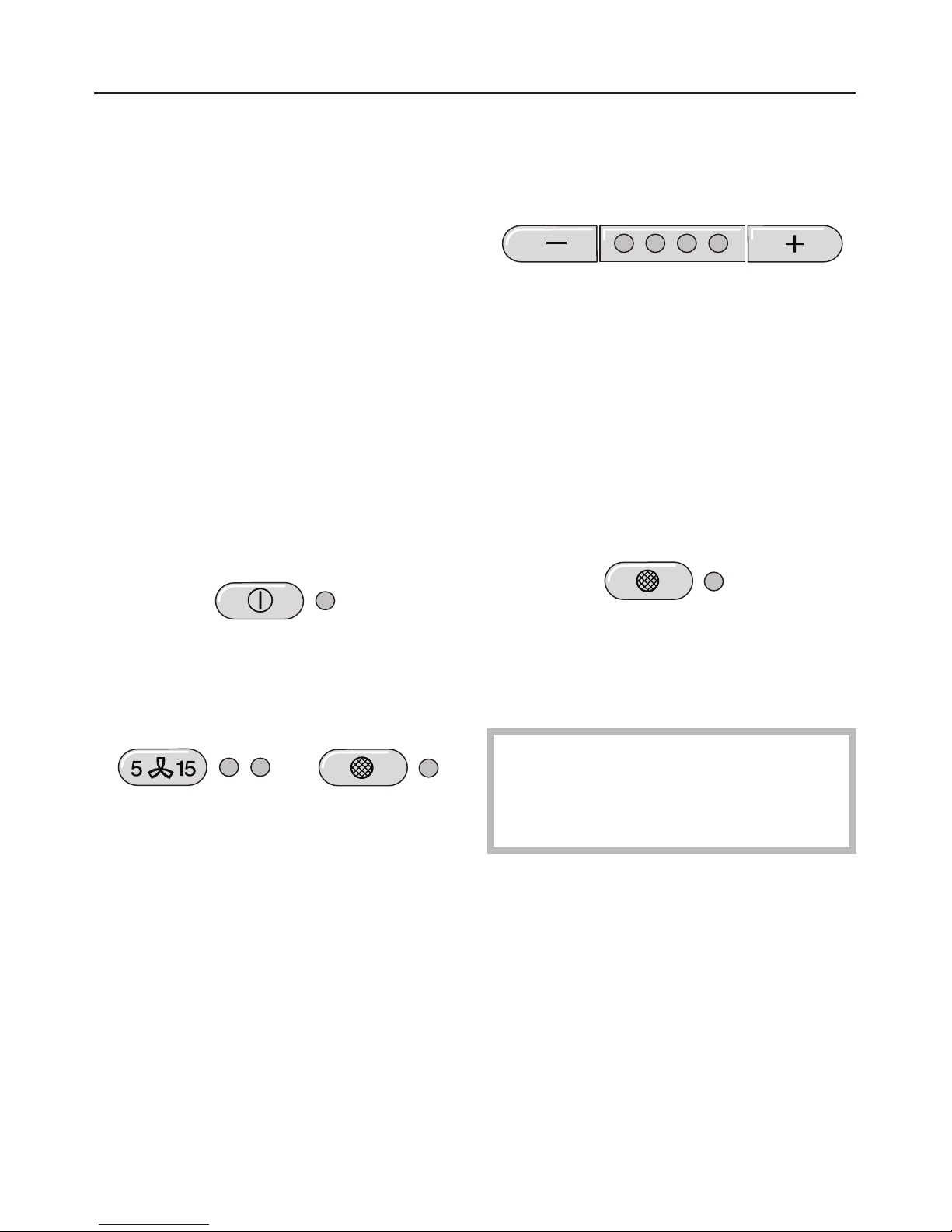

Main power witch
^Press the main power switch to "I".
The fan and lighting are ready to use.
If the appliance is not going to be used
for a long period of time (e.g. while va-
cationing) it should be turned off at the
main power switch to "0".
The next time it is turned on, the hood
will operate at the level previously used.

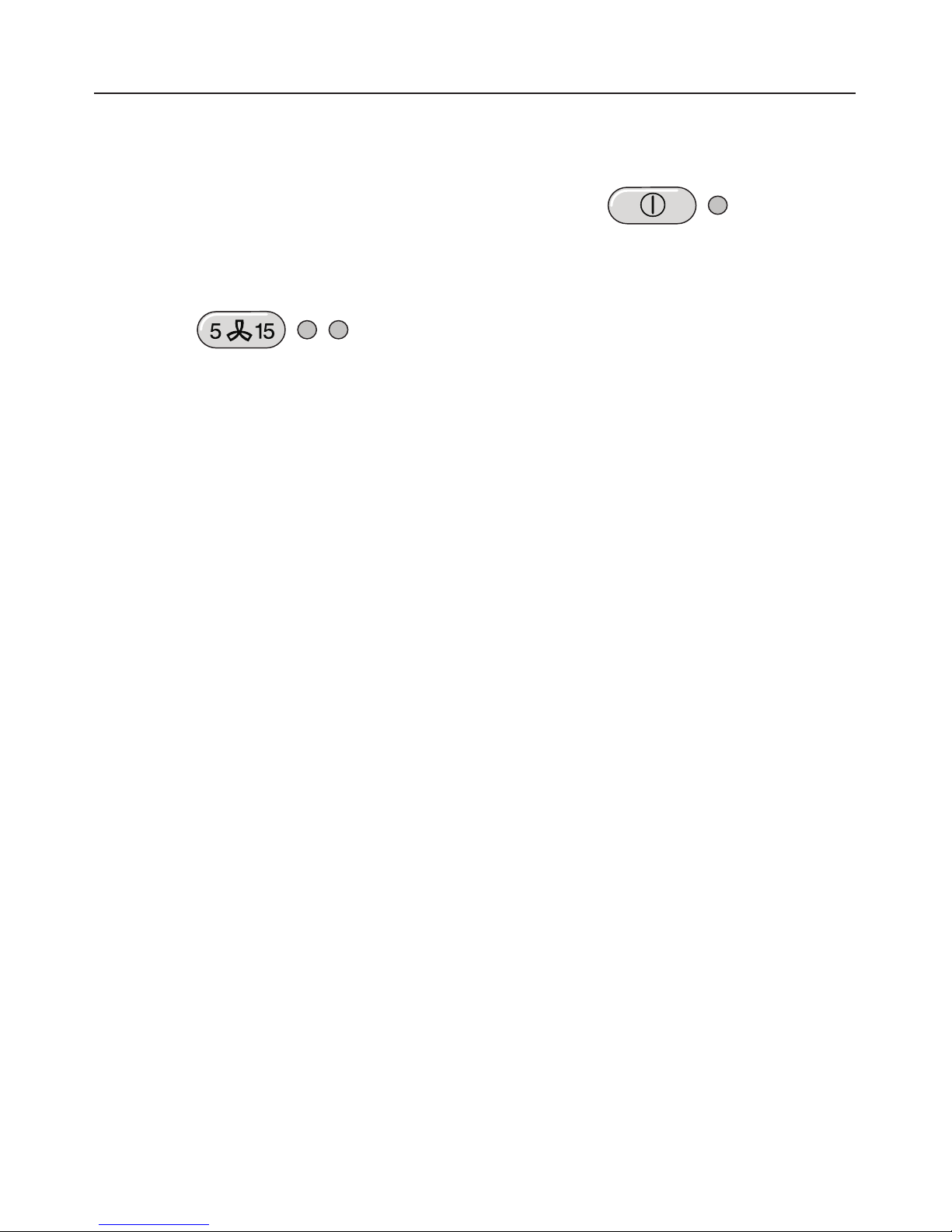

Turning on the fan
^Press the On/Off button.
Selecting the power level
^Use the _controls to select the
desired power level.
&=increases the fan speed
$=decreases the fan speed
Level "1" to "3" (green indicators) are
usually sufficient for normal cooking.
Inten ive etting
Level "4" (yellow indicator) should be
used for a short period when frying or
cooking food with a strong aroma.
Fan performance
The maximum air flow capacity is
625 cfm. Factors such as narrow duct
diameter and bends will affect this
value.
There will also be a slight decrease in
airflow for hoods operated in
recirculation mode due to the active
charcoal filter.
Level 1 operates at 40% capacity
Level 2 operates at 60% capacity
Level 3 operates at 80% capacity
Level 4 operates at 100% capacity
Operation
11

Delayed Shut Down
If odors or smoke remain in the kitchen
after cooking has been completed, the
Delayed Shut Down feature can be se-
lected to allow the hood to continue
running for either 5 or 15 minutes.
^Press the Delayed Shut Down button
while the fan is still running.
Press once = 5 minute delay
(left indicator lights)
Press twice = 15 minute delay
(right indicator lights)
To cancel the Delayed Shut Down fea-
ture press the button again.
Turning off the fan
^Press the On/Off button to turn the
fan off.
The indicator goes out.
Automatic Safety Shut Off
The fan will turn off automatically 10
hours after the last button was activated.
The lighting however will remain on.
^Press the On/Off button to turn the
fan back on again.
Operation
12

Turning the lighting on/off
The overhead lighting can be turned
on and off independently of the fan.
^Press the light button briefly to turn
on the lighting.
The light button indicator illuminates.
^Press the light button briefly again to
turn off the lighting.
The light button indicator will go out.
Dimming the lighting
The brightness of the lighting can be
adjusted.
^While the lighting is turned on, press
the light button.
The lighting will dim until the button is
released.
^If the button is pressed again, the
lighting will brighten until the button is
released.
If the button is pressed continuously,
the light will cycle between bright and
dark.
^Press the light button again to turn off
the lighting.
Indirect lighting
^Press the indirect lighting switch to
"I".
The indirect lighting can be turned on
when the main power switch is off.
Operation
13

Filter timer
Grea e filter
A timer monitors the hours of fan opera-
tion. The indicator for the grease filter
will light after 30 hours of operation. The
grease filters must then be cleaned.
After the grease filters have been
cleaned and put in place, the grease fil-
ter timer must be reset.
^To do this, press the grease filter but-
ton for about 3 seconds.
The indicator will go out.
Charcoal filter
Recirculation mode only
The timer for the charcoal filter is not
preset. Please program this timer, see
"Operation/Reprogramming the char-
coal filter timer".
The charcoal filter indicator will light
once the selected time has elapsed.
The charcoal filter must then be re-
placed and the charcoal filter timer re-
set.
^To do this, press the charcoal filter
button for about 3 seconds.
The indicator will go out.
Checking the filter timer
To check the percentage of time al-
ready used:
^Press the On/Off button to turn the
fan on.
^Press the grease or charcoal filter
button.
The number of flashing _indicators
show the percentage of programmed
hours that have been used.
1 indicator = less than 25 %
2 indicators = less than 50 %
3 indicators = less than 75 %
4 indicators = less than 100 %
This information will remain stored in
memory in the event of a power failure.
Operation
14

Reprogramming the timer
The grease filter timer is preset to 30
hours. This time can be lengthened or
shortened to 20, 30, 40 or 50 hours.
–A time of 20 hours should be pro-
grammed in kitchens with frequent
pan or deep frying.
–A time of 20 hours should also be
programmed if the kitchen is only
used occasionally to prevent grease
which has accumulated over a long
period of time from hardening on the
filters making cleaning more difficult.
Reprogramming the grea e filter
timer
^Press the On/Off button to turn off the
fan.
Press the Delayed Shut Down and
grease filter buttons at the same time.
The indicator for the grease filter and
one of the _indicators will flash.
The lit indicator shows the programmed
time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the $or &button to select the
desired time.
^Store the selection by pressing the
grease filter button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Operation
15

Reprogramming the charcoal filter
timer
The active charcoal filter can only be
used in recirculation mode and can not
be used to exhaust fumes.
The charcoal filter timer is not not pre-
et.
Before using the hood in recirculation
mode, the charcoal filter timer must be
programmed.
^Turn off the fan using the On/Off but-
ton.
^Press the Delayed Shut Down and
charcoal filter buttons at the same
time.
The indicator for the charcoal filter and
one of the _indicators will flash.
The lit indicator shows the programmed
time:
1st indicator from the left = 20 hours
2nd indicator from the left = 30 hours
3rd indicator from the left = 40 hours
4th indicator from the left = 50 hours
^Use the $or &button to select the
desired time.
^Store the selection by pressing the
charcoal filter button.
If the procedure is not stored within
4 minutes of programming, the hood
will automatically default to the "old"
data.
Operation
16

Before cleaning or servicing the
hood, disconnect it from the power
supply by either removing the fuse,
unplugging it from the outlet or man-
ually "tripping" the circuit breaker.
Cleaning the ca ing
Warning: Never use abrasive clean-
ers, scouring pads, steel wool or
caustic (oven) cleaners on the hood.
They will damage the surface.
^All external surfaces and controls can
be cleaned with warm water and liq-
uid dish soap applied with a soft
sponge.
^Wipe dry using a soft cloth.
Do not use too much water when
cleaning the controls. Water could
penetrate into the electronics and
cause damage.
^Glass surfaces can be cleaned using
glass cleaner.
Avoid:
–cleaning agents containing soda, ac-
ids or chlorides,
–abrasive cleaning agents e.g. pow-
der or cream cleansers,
–abrasive sponges, e.g. pot scourers
or sponges which have been previ-
ously used with abrasive cleaning
agents.
These will damage the surface.
Stainle teel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Stainle teel colored control
These controls may become discol-
ored or damaged if not cleaned reg-
ularly.
Do not use a stainless steel cleaner
on these controls.
Cleaning and Care
17

Grea e filter
The reusable metal grease filters re-
move solid particles from the vented
kitchen air (grease, dust, etc).
The grease filters should be cleaned
every 3 - 4 weeks or whenever the
grease filter indicator lights.
A dirty filter is a fire hazard.
^To remove the grease filters press the
locking clips in towards the middle of
the filter. Support grease filter so that
it does not fall on to the cooktop.
^Clean the filters
-by hand: use a scrub brush in
warm water with a mild detergent.
-in a di hwa her: place the filters
vertically in the lower basket, making
sure that the spray arm is not
blocked.
Depending on the detergent, clean-
ing the grease filters in a dishwasher
may cause permanent discoloration
of the filter surface. Performance of
the filter will not be affected by this
discoloration.
^After cleaning, the filters can be
placed on a towel to air dry.
^While the filters are removed, clean
any dirt or grease from the filter cas-
ing to prevent the risk of fire.
When putting the grease filters back
make sure that the locking clips are vis-
ible facing the cooking surface.
If the filters are incorrectly installed, in-
sert a small screwdriver into the slit
along its edge to disengage it from the
casing.
^After returning the grease filters,
press the grease filter button for 3
seconds to reset the timer. The indi-
cator light will go out.
^If the grease filters are cleaned be-
fore the grease filter timer has
reached its maximum, the grease fil-
ter button should be pressed for
6 seconds to reset the counter to
zero.
Cleaning and Care
18

Active charcoal filter
In recirculation mode an active char-
coal filter must be used in addition to
the grease filters. The charcoal filter is
designed to absorb cooking odors.
The active charcoal filter will be placed
in the canopy above the grease filters.
Replacement active charcoal filters
(part # 03 284 680) can be ordered
from the Miele Technical Service
Department.
USA 1-800-999-1360
CDN 1-800-565-6435
^The grease filters must be removed
to access the active charcoal filter.
See "Cleaning and Care".
^Two support angles must be installed
(see Installation manual to support
the charcoal filter.)
The active charcoal filter comes
boxed with 2 filters.
For best results, tightly seal the bag
containing the remaining filter.
^Insert the charcoal filter.
Before using:
^Program the charcoal filter timer, see
"Operation/Reprogramming the char-
coal filter timer".
Replace the active charcoal filter when
the charcoal filter indicator lights. Re-
place the filter at least every 6 months
or when it no longer absorbs odors effi-
ciently.
^After replacing the charcoal filter,
press and hold the charcoal filter but-
ton for about 3 seconds to reset the
charcoal filter timer.
The indicator light will go out.
^If the charcoal filter is replaced be-
fore the timer has reached its maxi-
mum, the charcoal filter button
should be pressed for 6 seconds to
reset the counter to zero.
Cleaning and Care
19

Changing the light bulb
Before changing the light bulbs, dis-
connect the hood from the power
supply by either removing the fuse,
unplugging it, or manually "tripping"
the circuit breaker.
When in use halogen bulbs become
extremely hot, and they can burn
your hands. Do not attempt to
change the bulbs until they have
had sufficient time to cool down.
Do not touch the bulb surface. Fin-
gerprints or body oils deposited on
the bulb will decrease the life of the
bulb.
Please follow the bulb manufac-
turer’s instructions.
^To change the halogen bulb first re-
move the lamp cover, a.
^Pull the bulb, b, out of its socket and
replace with a new one.
^Return the lamp cover, a.
Never use the lighting without the
lamp cover, a, in place. The glass is
specially made to filter harmful light
rays.
Cleaning and Care
20
