Miele EGW 2060 User manual

Operating instructions
Built-in Plate Warmer
EGW 2060
To prevent accidents and
machine damage read
these instructions
before
installation or use.
UV
M.-Nr. 06 405 620

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Guide to the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Before using the plate warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the plate warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Opening and Closing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Warming dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Selecting a temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Warming times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning the plate warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Non-slip mat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Help protect our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Installation Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

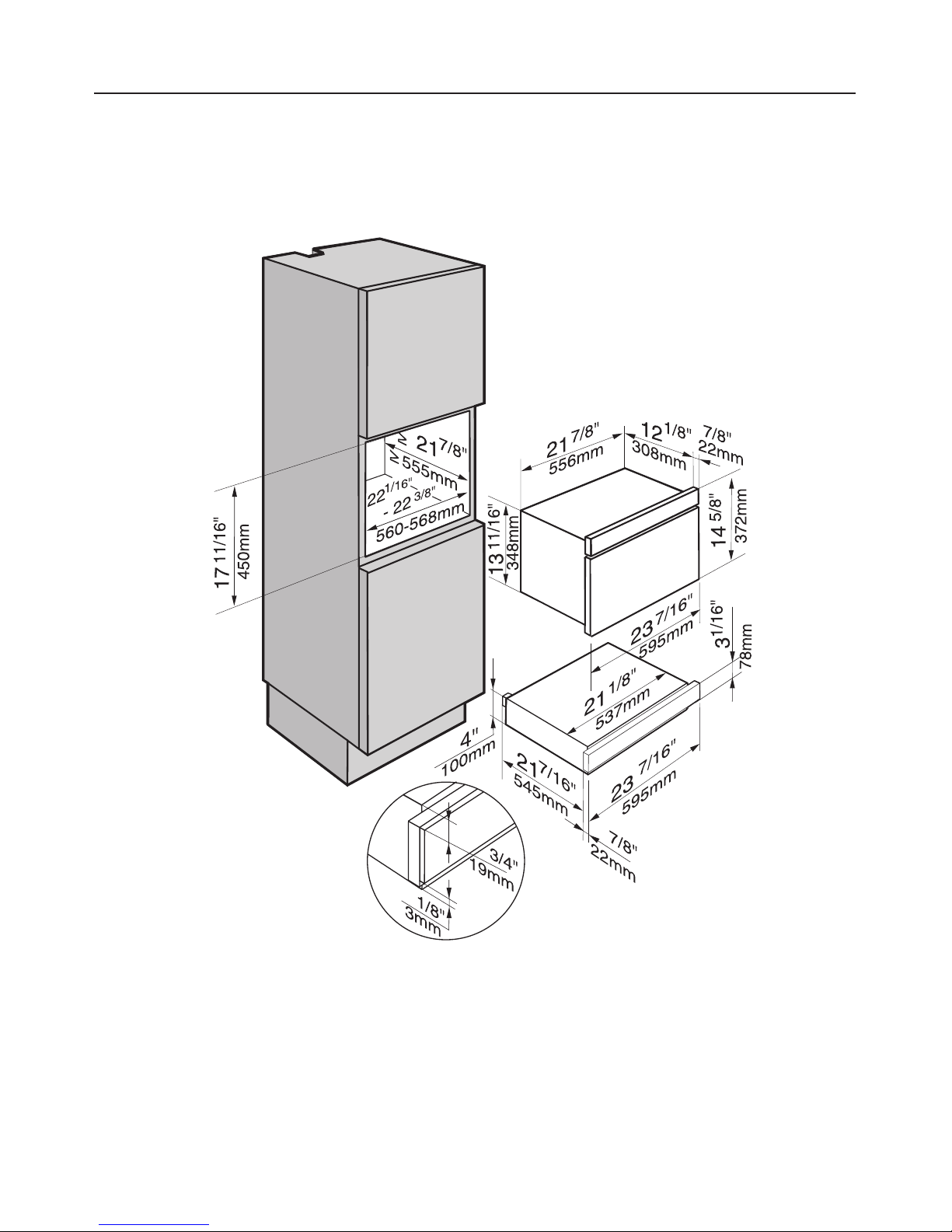

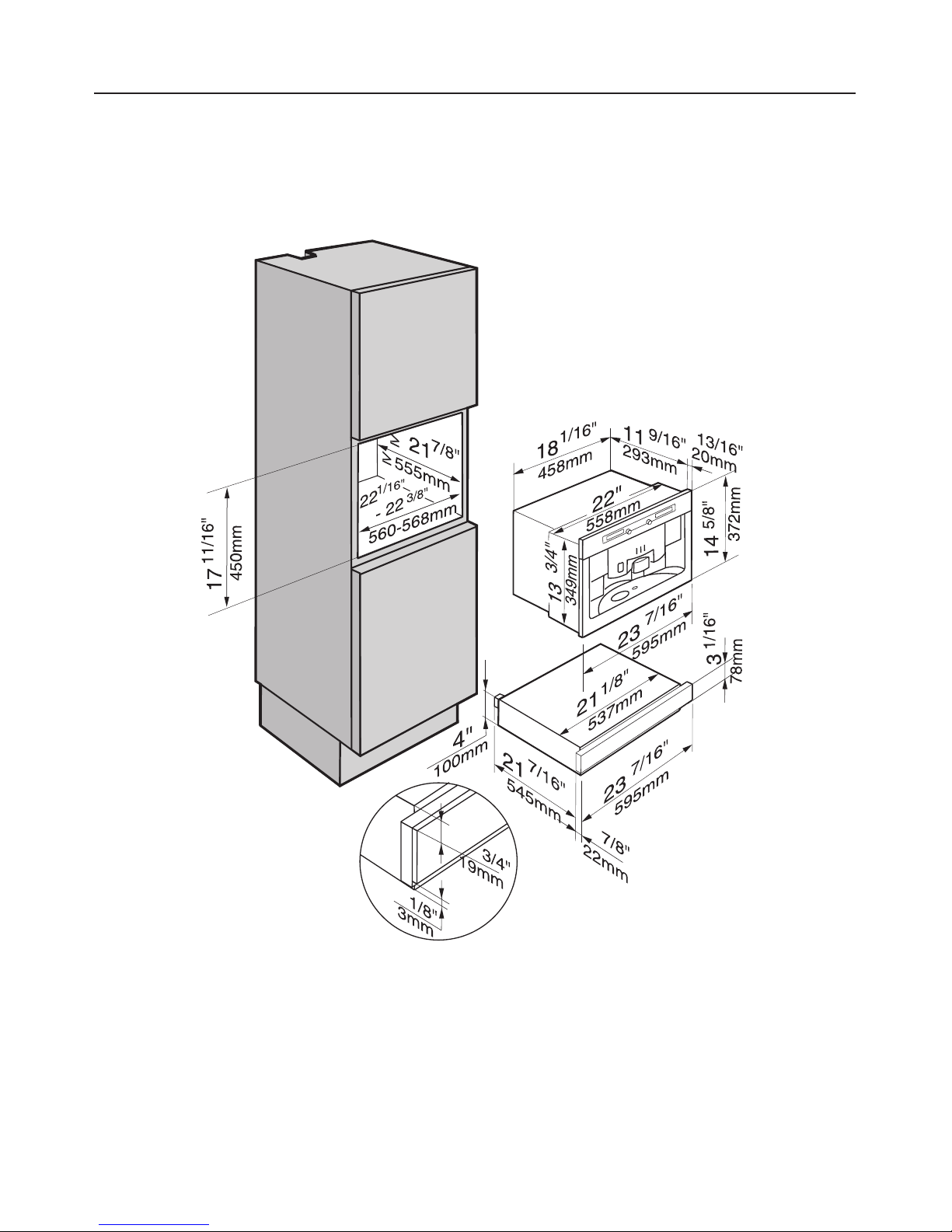

Combination possibilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

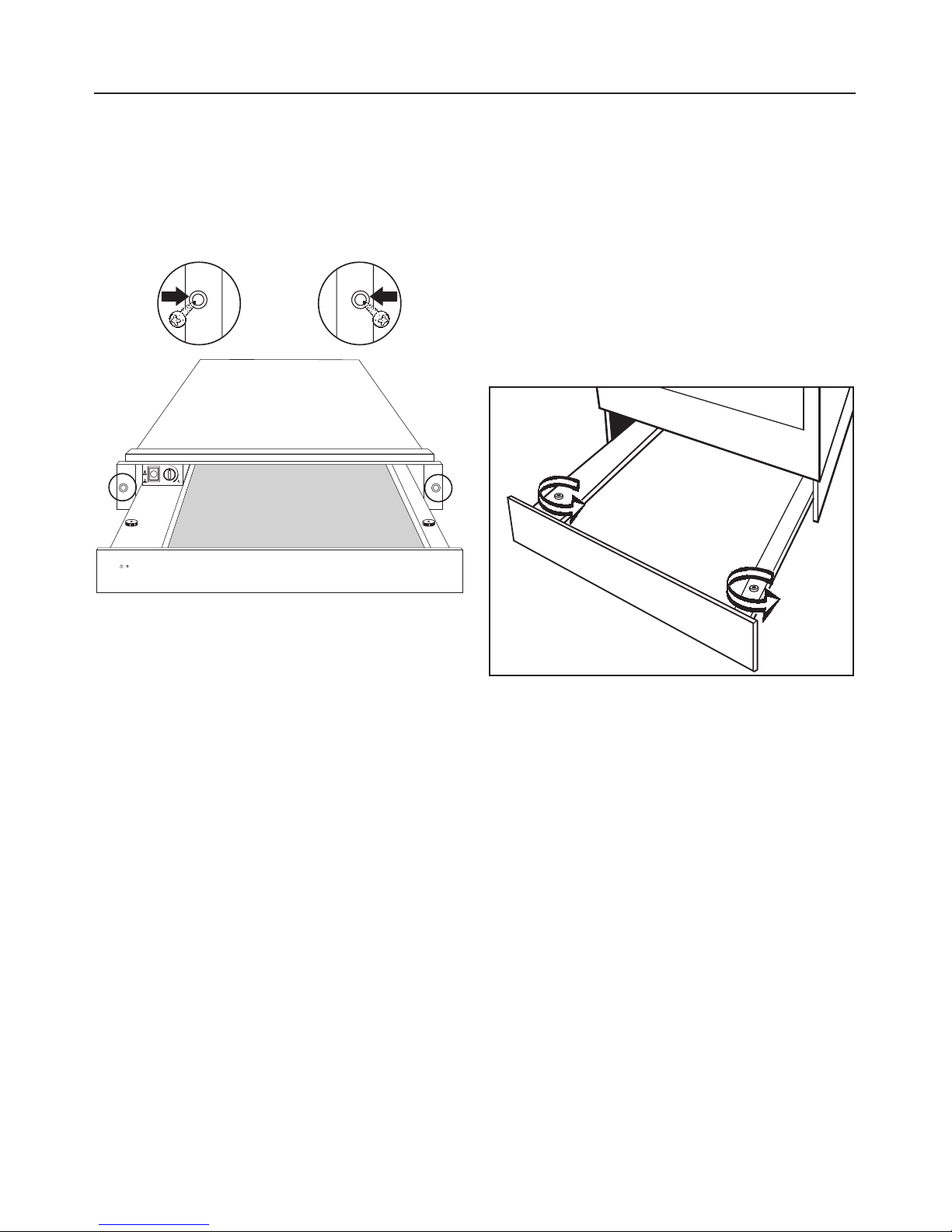

Aligning the appliance front. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Contents
2

This appliance is intended for
residential use only. Only use the
appliance for its intended purpose.
Improper use of the appliance can
lead to personal injury and material
damage. The manufacturer cannot
be held responsible for damages
caused by improper use of the plate
warmer.
This appliance complies with current
safety requirements.
Read all instructions before installing
or using for the first time.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Read all operating and installation
instructions for any other appliance
installed in combination with the
plate warmer.
READ ALL INSTRUCTIONS!
Technical safety
Before installation make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This data
must correspond in order to avoid risk
of damage to the appliance. If in doubt,
consult a qualified technician.
The electrical safety of this
appliance can only be guaranteed
when continuity exists between the
appliance and an effective grounding
system. The grounding system must
comply with local and national safety
regulations. It is imperative that this
basic safety requirement be tested by a
qualified electrician. The manufacturer
cannot be held responsible for the
damages caused by an inadequate
grounding system (e.g. electric shock).
Do not connect the appliance to
the electrical supply with an
extension cord. Extension cords do not
guarantee the required safety of the
appliance.
This appliance must only be used
once it has been properly installed
into cabinetry to ensure that all
electrical components are protected.
Never open the outer casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
dangerous and may cause machine
damage.
IMPORTANT SAFETY INSTRUCTIONS
3

Installation, repair and
maintenance work should be
performed by a Miele authorized
service technician. Work by unqualified
persons could be dangerous and may
void the warranty.
Before installation or service,
disconnect the power supply to the
work area by removing the fuse,
"tripping" the circuit breaker or
unplugging the unit. Pull the plug not
the cord.
Use
The plate warmer interior gets very
hot when in use and stays hot for a
while once turned off.
Use heat-resistant pot holders
when removing dishes. Be sure
that they are not damp or wet. Danger
of steam burns!
Pull the drawer out all the way
when removing dishes to avoid
touching hot drawer parts.
Do not let children access the
appliance or its controls. Supervise
its use by the elderly or infirm.
Do not use the plate warmer to
reheat, cook or keep food and
drinks warm. The condensation from
food or drinks could lead to moisture
damage in the appliance.
Do not lean or sit on the warming
drawer. This will damage the
drawer which can hold a maximum of
33 lbs (15 kg).
Do not store anything in the
warming drawer. Forgotten items
could melt or catch fire when the
appliance is turned on. Flammable
liquids and materials should never be
stored in, above or under the plate
warmer.
Do not use the plate warmer to
heat the room. Due to the high
temperatures radiated, objects left near
the appliance could catch fire.
Do not use a steam cleaner to
clean this appliance. Steam could
penetrate electrical components and
cause a short circuit. Pressurized
steam may cause permanent damage
to the surface and to components of
the appliance, for which the
manufacturer cannot accept
responsibility.
IMPORTANT SAFETY INSTRUCTIONS
4

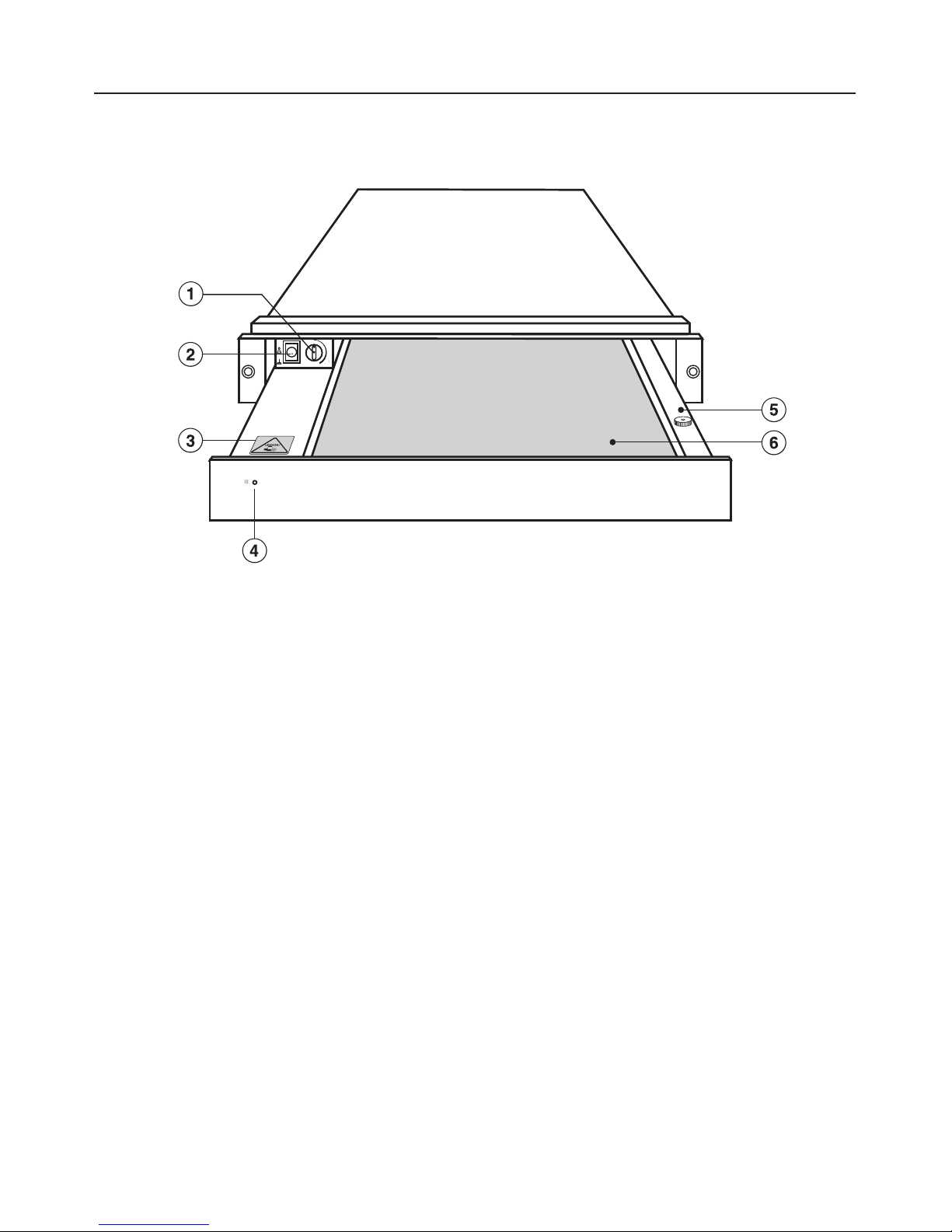

aTemperature selector
bOn/Off button
cSticker
dIndicator
eWarming drawer
fNon-slip mat
Guide to the machine
5

^Clean the plate warmer with a damp
cloth and wipe dry.
^Heat the empty plate warmer for a
minimum of 2 hours. Turn the
temperature selector to "Maximum"
(see "Selecting a temperature").
^Vent the room when heating the
drawer for the first time.
Metal components have a protective
coating which may give off a slight odor
the first time your new appliance is
heated. The smell will dissipate after a
short time and does not indicate a
faulty connection.
Before using the plate warmer
6

The plate warmer is only intended
for warming dishes.
Do not use the plate warmer to
reheat, cook or keep food and drinks
warm. Condensation from food or
drinks could cause moisture
damage to the appliance.
Use pot holders when removing
dishes.
The drawer can hold a maximum of
33 lbs (15 kg).
The floor of the warming drawer has a
non-slip mat to prevent plates and
dishes from sliding when the drawer is
opened and closed.
Opening and Closing
^To open and close the plate warmer
gently push the center of the drawer.
Controls
The controls include the temperature
selector and the On/Off button. They
are only visible when the drawer is
open.
The indicator at the front shows if the
plate warmer is turned on or off.
Using the plate warmer
7

Warming dishes
^Place the dishes in the plate warmer.
^Select a temperature.
^Turn the appliance on (j).
The button will light.
^Close the drawer.
^The indicator at the front of the
appliance lights showing that the unit
is on.
^Turn the appliance off (k), when
removing the warmed dishes.
^Pull the drawer out all the way to
remove the dishes.
Selecting a temperature
The temperature selector allows you to
select a temperature between 86 ° and
122 °F (30 ° and 50 °C).
Do not turn the knob
counterclockwise past the 12 o’clock
position or clockwise past the
6 o’clock position. Forcing it beyond
these positions will damage the
temperature selector.
When the selected temperature is
reached, the heating element will turn
off. It turns on again, when the unit
cools below the selected temperature.
The optimum temperature to preheat
cups and glassware is about 105 °F
(40 °C). When prewarming cups to this
temperature, the drinks will not cool as
fast and the cup itself is still cool
enough to touch.
Using the plate warmer
8

Warming times
Various factors will affect the warming
times:
–type and thickness of the dishes,
–quantity,
–how the dishes are arranged, and
–temperature setting.
As you use the plate warmer you will
learn which settings suit your needs
best.
As a guideline:
It will take approx. 30 - 40 minutes to
evenly warm dishes at the maximum
temperature setting of 122°F (50°C).

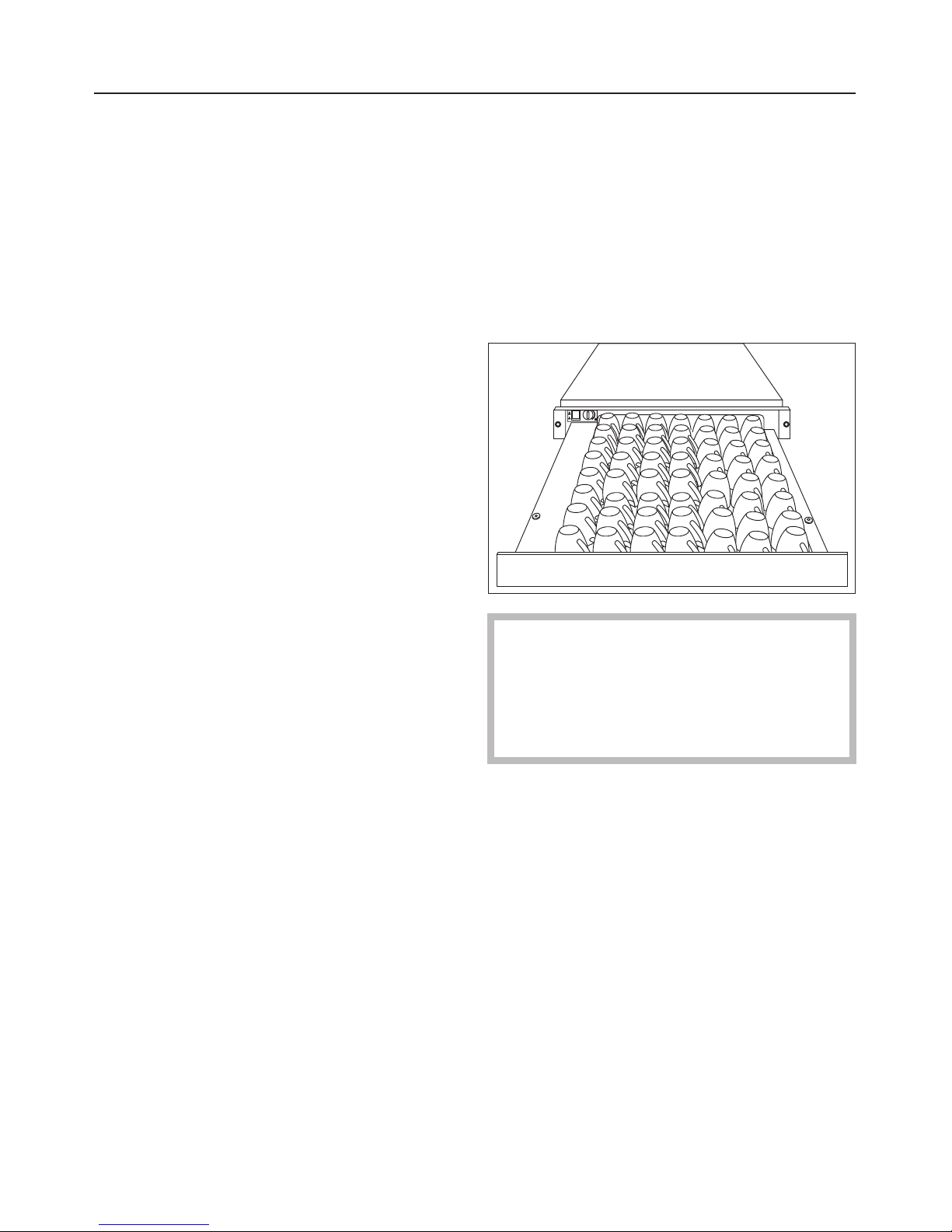

Capacity
The quantity which can be loaded will
depend on the size of your dishes.
Example:
–25 Cappuccino cups or
–56 Espresso cups
Insert the cups or glassware upside
down in the plate warmer to ensure
an even warming.
The maximum load is 33 lbs (15 kg).
Using the plate warmer
9

Cleaning the plate warmer
Let the drawer cool before cleaning.
Never use abrasive cleaners,
scouring pads, steel wool or caustic
(oven) cleaners on the plate warmer.
They will damage the surface.
The exterior of the plate warmer can be
cleaned with warm water and liquid
dish soap applied with a soft sponge.
Wipe dry using a soft cloth.
Stainless steel
Stainless steel surfaces can be cleaned
using a non-abrasive stainless steel
cleaner.
To help prevent resoiling, a conditioner
for stainless steel can also be used.
Apply sparingly with even pressure.
Non-slip mat
The mat can be removed to clean the
bottom of the drawer.
^Clean the mat by hand with warm
water and liquid dish soap.
^Dry thoroughly. Do not return the mat
until it is completely dry.
Cleaning and care
10

Repairs to electrical appliances must only be carried out by a qualified
technician in accordance with local and national safety regulations. Repairs
and other work by unqualified persons could be dangerous. The manufacturer
cannot be held responsible for unauthorized work.
Why are the dishes not warm enough?
Possible fault Fix
The appliance is turned off. Turn the appliance on with the On/Off
button.
The wrong temperature was selected. Check the temperature setting.
The dishes need more time to warm. Increase the timer setting.
Why dishes are not warm?
Possible fault Fix
The main fuse has blown. Restore power.
Why are the dishes too hot?
Possible fault Fix
The temperature control is faulty. Call Technical Service.
Why does the On/Off button not light when turned on?
Possible fault Fix
The indicator light for the On/Off button
is bad.
Call Technical Service.
Frequently asked questions
11

In the event of a fault which you cannot
correct yourself please contact the
Miele Technical Service
Department.
U1-800-999-1360
[email protected]
V1-800-565-6435
[email protected]
When contacting the Technical Service
Department, please quote the model
and serial number of your appliance
both of which are shown on the
enclosed data plate.
Adhere the data plate to the box below.
Make sure the model given on the data
plate matches that of this manual.
After sales service
12

Installation Instructions

Disposal of the packing
material
The transport and protective packing
materials are environmentally safe for
disposal and may be recycled.
Ensure that any plastic wrap is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
Please recycle.
Disposal of an old appliance
Old appliances contain materials which
can be recycled. Please contact your
local recycling center about potential
recycling.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
Help protect our environment
14

Installation Safety Instructions
Before installation make sure that
the voltage and frequency listed on
the data plate correspond with the
household electrical supply. This data
must correspond in order to avoid risk
of damage to the appliance. If in doubt,
consult a qualified technician.
The electrical outlet should be
easily accessible after the unit is
installed.
Only install the plate warmer in
combination with other built-in
appliances recommended by the
manufacturer. If installed with
appliances not recommended, the
warranty is void since the manufacturer
cannot guarantee its safety.
To install the plate warmer in
combination with another
appliance, a built-in shelf must exist in
the cabinet to support the weight of
both appliances.
When installed in combination with
another appliance, the plate
warmer must always be installed
beneath the other appliance. The
combination appliance can be set
without a base directly onto the plate
warmer. A shelf between the
appliances is not necessary.
To install the combination
appliance please read the manual
supplied with that machine.
This appliance is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
an installation in these applications.
Please contact the Miele Technical
Service Department with specific
requirements.
Installation
15

Combination possibilities
Coffee system
Installation
16

Steam oven
Installation
17

Installing the appliance
^Set the plate warmer into the niche,
push is all the way in and align it at a
right angle.
^Open the drawer and fix the
appliance with the two supplied
screws at the side panels of the
cabinet.
^Install the combination appliance
regarding the manual supplied with
that machine.
Aligning the appliance front
After installing the combination
appliance it may be necessary to align
the appliance front and/or even the gap
between the plate warmer and the
combination machine.
Flat washers are supplied beneath the
knurled nuts, which fix the drawer to the
telescopic runners.
^Loosen the knurled nuts and take the
drawer out.
^Align and even the gap with the flat
washers by changing their position
(above or below the drawer), on both
sides.
Installation
18

Electrical connection
The electrical installation instructions
for any appliance installed in
combination with the plate warmer
must be observed.
When another appliance is installed
in combination with the plate warmer
to the same circuit breaker,
operating both appliances at the
same time may cause an overload. If
in doubt consult a qualified
electrician.
All electrical work should be done
by a qualified technician, in strict
accordance with national and local
safety regulations.
Installation, repairs and other work
by unqualified persons could be
dangerous and may void the
warranty.
Make sure power is not supplied to
the appliance while installation or
repair work is being performed.
WARNING:
THIS APPLIANCE MUST BE
GROUNDED
Note to the installer
Please leave these instructions with
the consumer.
Power supply
This appliance is equipped with an
approx. 6 ft (approx. 1.8 m) long power
cord with plug ready for connection to a
120 V, 15 A, 60 Hz power supply.
Installation
19

All rights reserved/1605 M.-Nr. 06 405 620 / 01
en-US
