Operating and installation instructions
EGW 4050-14 / EGW 4050-29
EGW 4060-14 / EGW 4060-29
To avoid the risk of accidents or
damage to the appliance it is
essential to read these operating
instructions before it is installed
and used for the first time.
GHirZ
M.-Nr. 06 155 950

2

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
General notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning and heating up for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Using the drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Selecting a temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Heating up times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
E-Cloth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Appliance front, control panel and interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Anti-slip mat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
After sales service, data plate. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Safety instructions for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Niche dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Possible installation examples for EGW 40x0 - 14 . . . . . . . . . . . . . . . . . . . . . . . . 19
Possible installation examples for EGW 40x0 -29 . . . . . . . . . . . . . . . . . . . . . . . . . 22
Positioning the appliance in the housing unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Aligning the front of the plate warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Contents
3

aOn/Off switch (lights up)
bTemperature control
cWarming drawer
dNon-slip mat
eIn-operation indicator
Description of the appliance
4

To avoid the risk of accidents to the
appliance please read these
instructions carefully before using it
for the first time. They contain
important information on its
installation, safety, use and
maintenance.
The use of the appliance by the
elderly or infirm or those who have
not used the appliance before
should be supervised by a
competent and responsible person
to avoid the risk of injury.
Please stick the extra data plate for
the appliance supplied with this
documentation in the space
provided in the "After sales service"
section of this booklet.
Keep these instructions in a safe
place and pass them on to any
future user.
Technical safety
Before connecting the appliance to
the mains supply make sure that
the voltage and frequency correspond
to the rating on the data plate.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
This appliance should be
connected via a double pole fused
spur connection unit or a fused plug
and switched socket. If you wish to
connect it to an isolator switch, or if the
appliance is supplied without a plug, it
must be installed and connected by a
suitably qualified and competent
person in strict accordance with local
and national safety regulations. The
manufacturer cannot be held liable for
damage caused by incorrect
installation or connection.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national safety regulations. It is most
important that this basic safety
requirement is present and regularly
tested, and where there is any doubt
the electrical system in the house is
checked by a qualified electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
Do not connect the appliance to
the mains electrical supply by an
extension lead. Extension leads do not
guarantee the required safety of the
appliance (e.g. danger of overheating).
For safety reasons the drawer must
only be used after it has been built
in. This is necessary to ensure that all
electrical components are shielded.
Warning and Safety instructions
5

Never open the casing of the
appliance.
Tampering with electrical connections
or components is highly dangerous to
the user and can cause operational
faults.
Installation work, maintenance and
repairs may only be carried out by
suitably qualified and competent
persons in accordance with national
and local safety regulations to ensure
safety.
Repairs and other work by unqualified
persons could be dangerous and the
manufacturer will not be held liable.
While the appliance is under
guarantee, repairs should only be
undertaken by a service engineer
authorised by the manufacturer.
Otherwise the guarantee is invalidated.
During installation, maintenance
and repair work, the appliance
must be disconnected from the mains
electricity supply. The appliance is only
completely isolated from the electricity
supply when:
–the mains fuse is withdrawn,
–or the screw-out fuse is removed (in
countries where this is applicable),
–or it is switched off at the isolator or
at the wall socket and the plug
removed.
Ensure that current is not supplied to
the appliance until after maintenance or
repair work has been carried out.
Correct usage
This appliance complies with all
relevant legal safety requirements.
Incorrect use can lead to personal
injury and damage to property.
This appliance is intended for
domestic use only to warm plates,
dishes and other crockery.
Any other usage is not supported by
the manufacturer and could be
dangerous. The manufacturer cannot
be held liable for damage caused by
incorrect or improper use of the
appliance.
Depending on the temperature
selected and the length of time the
appliance is being used, the inside of
the drawer can get as hot as 80 °C.
To avoid burning or scalding yourself,
always use protective oven gloves to
remove plates and dishes from the
drawer.
A child's skin burns more easily
than an adult's.
Keep children away from the appliance,
and do not allow them to play with it or
near it.
Switching the appliance on
inadvertently causes it to heat up, with
a danger of burning.
Warning and Safety instructions
6

This appliance is not a toy! Do not
let children access the drawer or
its controls. Supervise its use by the
elderly or infirm.
Do not use the appliance to
re-heat, cook or keep food or
drinks warm, as moisture in the food or
drinks could cause corrosion damage
to the drawer.
Do not sit or lean on the opened
drawer. This can damage the
telescopic runners. The drawer has a
maximum load bearing capacity of
25 kg.
Do not store any plastic containers,
houseold foil and wraps, or any
inflammable objects in the warming
drawer. They could melt or catch fire
when the appliance is switched on.
Do not use the appliance to heat
up the room. Due to the high
temperatures radiated, objects near the
appliance could catch fire.
Do not use a steam cleaner to
clean this appliance. The steam
could reach electrical components and
cause a short circuit. Pressurised
steam could also cause permanent
damage to the surface and to other
components, for which the
manufacturer cannot accept liability.
Warning and Safety instructions
7

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Packaging, e.g. cling film, polystyrene
and plastic wrappings, must be kept
out of the reach of babies and young
children. Danger of suffocation.
Dispose of or recycle all packaging
materials safely as soon as possible.
Contact your local waste collection
centre for details of available recycling
schemes.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection/recycling
centre, and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or
disconnected from the mains
electricity supply by a competent
person. If connected by a plug, the
plug must be rendered useless and
the cable cut off directly behind the
appliance to prevent misuse.
Caring for the environment
8

General notes
The plate warmer is intended
exclusively for heating crockery.
It uses a hot air warming system. A fan
distributes heat given off by a heater
element evenly throughout the drawer.
The circulating air ensures that
crockery is heated evenly and quickly.
A protective grille protects you from
touching either the fan or the heating
elements.
The base of the drawer is fitted with a
non-slip mat which stops crockery
sliding about when the drawer is
opened and closed.
Cleaning and heating up for
the first time
Before using for the first time proceed
as follows:
^Wipe the appliance with a damp
cloth only, and then dry with a soft
cloth.
^Then heat the empty drawer for at
least two hours. Set the temperature
control to maximum (see "Selecting a
temperature").
It is important to ensure that the room is
well ventilated.
Metal components have a protective
coating which may give off a slight
smell when heated up for the first time.
The smell and any vapours will
dissipate after a short time and do not
indicate a faulty connection or
appliance defect.
Before using for the first time
9

Do not use the appliance to re-heat,
cook or keep food or drinks warm.
Condensation from the food or
drinks could lead to corrosion in the
appliance.
Always use heat-resistant gloves to
remove heated crockery from the
drawer.
The load bearing capacity of the
appliance, irrespective of its height,
is 25 kg maximum.
Controls
The controls consist of a temperature
dial and an On/Off switch. These are
only visible when the drawer is open.
When the drawer is closed, you can tell
when the appliance is switched on
because the On/Off switch illuminates
through the hole in the front of the
drawer.
Operation
10

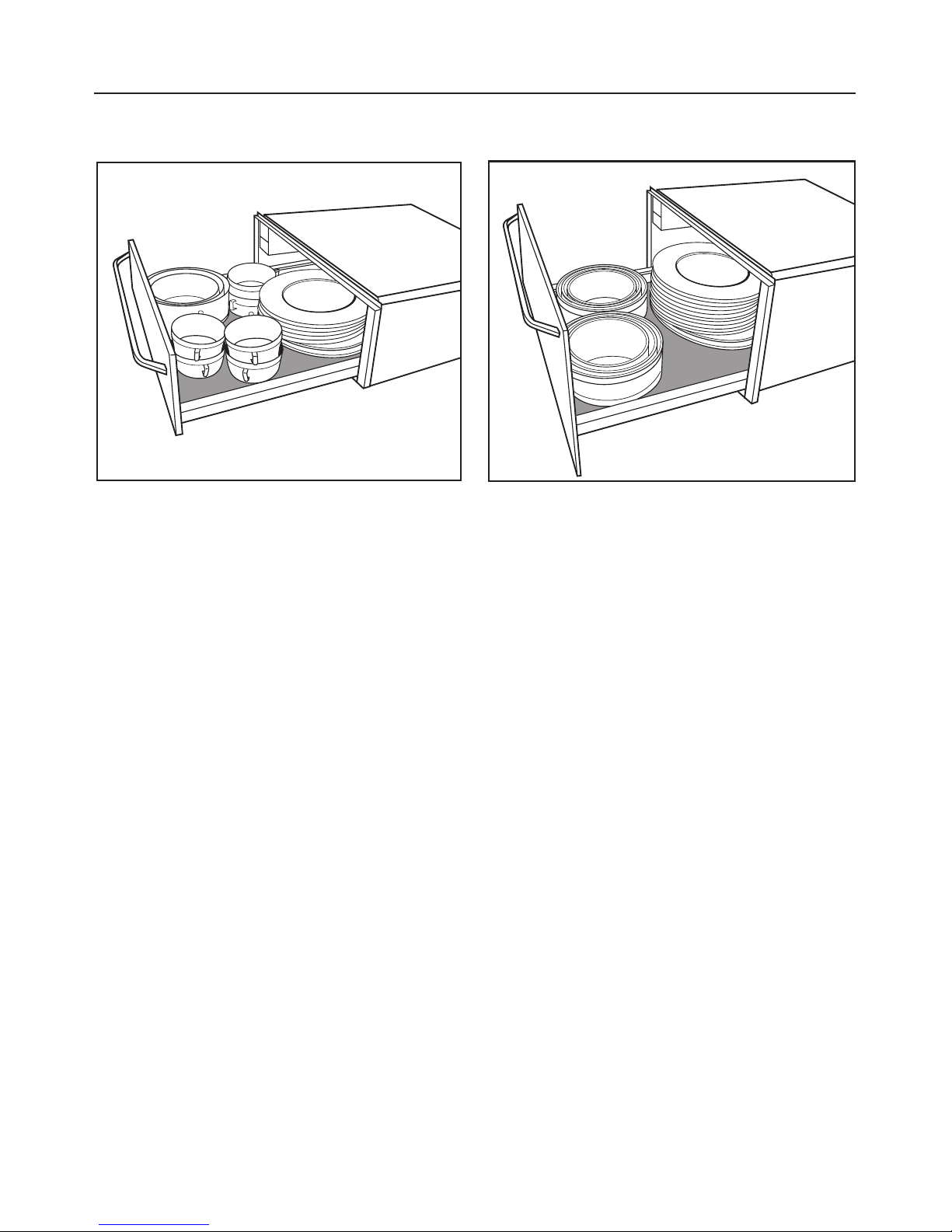

Using the drawer
^Place crockery inside the drawer.
^Select the temperature required.
^Switch on the appliance (j).
The switch lights up.
^Close the drawer gently: if you use
too much force, it can spring open
again.
^Switch the appliance off (k) before
removing the heated crockery.
Selecting a temperature
The temperature dial allows you to
select any temperature between
approx. 30 and 80 °C.
The temperature dial must only be
turned in a clockwise direction as far
as it will go and then back again.
Do not turn it too far as this will
damage it.
When the temperature is reached, the
heating element switches itself off.
When the temperature falls below that
selected, the heating element switches
on again automatically.
The temperature scale around the dial
is shown in symbols rather than in °C.
The symbols represent the most
suitable temperature for the type of
crockery depicted:
–bapprox. 40 °C
for cups or glasses.
Drinks poured into warmed cups do
not cool down so quickly. At the
same time, the cups will not get too
hot to handle.
–rapprox. 60 °C
for serving dishes and plates.
Food stays warm for longer if served
in pre-heated dishes. The dishes will
not get too hot to handle.
Operation
11

Heating up times
Various factors will affect the heating up
times:
–the material and thickness of the
crockery
–the quantity
–how the crockery is arranged
–the temperature setting.
It is therefore not possible to state
precise times.
However, the following information can
be used as a guide:
Temperature setting ris approx.
60 °C. Evenly heated crockery will take
about:
– 30 - 35 minutes
for 6 place settings.
– 40 - 45 minutes
for 12 place settings.
As you use the plate warmer, you will
get to know which setting suits your
own needs best.
Capacity
There a two different plate warming
drawers which differ in height:
–EGW 40x0 - 14: 141 mm high.
–EGW 40x0 - 29: 289 mm high.
The quantity that can be loaded will
depend to a great extent on the type
and size of your own crockery.
The maximum load bearing capacity
of the drawer is 25 kg.
The layouts shown here are
suggestions only.
Operation
12

EGW 4050 - 14 / EGW 4060 - 14
– 6 place settings:
6 dinner plates C28 cm
6 soup bowls C10 cm
1 serving dish C22 cm
1 serving dish C19 cm
1 serving dish C17 cm
2 meat platters 36 cm
or
– 20 dinner plates C28 cm
–36 soup bowls C22 cm
–30 soup bowls C10 cm
–10 dinner plates C28 cm
10 soup bowls C22 cm
–10 pizza plates C36 cm
–80 espresso cups
–40 cappuccino cups
–30 punch glasses
–18 soup bowls C22 cm
2 soup terrines 21 cm x18 cm
–. . .
–. . .
EGW 4050 - 29 / EGW 4060 - 29
– 12 place settings:
12 dinner plates C28 cm
2 serving dishes C22 cm
2 serving dishes C19 cm
2 serving dishes C17 cm
2 meat platters 36 cm
or
– 40 dinner plates C28 cm
–60 soup bowls C22 cm
–45 soup bowls C10 cm
–20 dinner plates C28 cm
20 soup bowl C22 cm
–20 pizza plates C36 cm
–120 espresso cups
–60 cappuccino cups
–30 punch glasses
–. . .
–. . .
Operation
13

E-Cloth
A microfibre “E-Cloth” is available from
the Miele UK Spare Parts Department,
which is suitable for cleaning surfaces
such as stainless steel, glass, plastic
and chrome without the use of
chemicals. It can be washed 300 times.
Appliance front, control panel
and interior
Allow the appliance to cool down to a
safe temperature before cleaning.
^All surfaces and controls should be
cleaned using a Miele E-Cloth or with
warm water and a little washing up
liquid applied with a soft sponge or
cloth.
^Wipe the surfaces dry using a soft
cloth.
To prevent the risk of scratches and
damage to the surface structure, pay
particular attention to the following
cleaning instructions for glass or metal
fronted appliances.
Glass fronts
The appliance front and controls are
susceptible to scratches and
abrasions.
Do not use:
–abrasive cleaning agents, e.g.
powder cleaners and cream
cleaners.
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents,
–sharp metal tools,
–oven sprays.
Aluminium fronts
Aluminium is affected by the way that
light falls on it, by the surrounding
environment and by the angle you
observe it from.
Aluminium surfaces may suffer
discolouration or damage if soiling is
left on them for too long. Remove
any soiling straight away.
The appliance front is susceptible to
scratches and abrasions.
Do not use:
– cleaning agents containing soda,
acids or chlorides,
– abrasive cleaning agents, e.g.
powder cleaners and cream
cleaners,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents,
–stainless steel cleaning agents,
–cleaning agents containing
descaling agents,
–dishwasher cleaner,
–oven sprays.
Cleaning and care
14

Titanium finish fronts
Titanium surfaces have a velvety finish
which does not show fingerprints.
Clean as you would glass or porcelain.
The appliance front is susceptible to
scratches and abrasions.
Do not use:
–abrasive cleaning agents, e.g.
powder cleaners and cream
cleaners.
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents,
– sharp metal tools,
– oven sprays.
Stainless steel fronts
The appliance front is susceptible to
scratches and abrasions.
Stainless steel surfaces can be cleaned
using a Miele E-Cloth or with a
proprietary non-abrasive cleaning
agent designed specifically for use on
stainless steel. N.B. Do not use
stainless steel cleaning agents on the
controls.
Do not use:
–cleaning agents containing soda,
acids or chlorides,
–abrasive cleaning agents, e.g.
powder cleaners and cream
cleaners,
–abrasive sponges, e.g. pot scourers
or sponges which have been
previously used with abrasive
cleaning agents.
To help prevent re-soiling, a
conditioning agent for stainless steel,
such as Neoblank (available from the
Miele Spare Parts Department), can
also be used.
Follow the manufacturer's instructions.
Anti-slip mat
The anti-slip mat can be removed from
the drawer for cleaning.
The mat is best cleaned by hand using
warm water with a little washing-up
liquid. Dry it thoroughly. Do not put the
anti-slip mat back into the drawer until it
is completely dry.
Never dry the anti-slip mat in the
oven. Fire hazard.
Cleaning and care
15

Installation work and repairs to
electrical components of this
appliance must only be carried out
by a suitably qualified and
competent person in accordance
with local and national safety
regulations. Repairs and other work
by unqualified persons could be
dangerous. The manufacturer
cannot be held liable for
unauthorised work.
What to do if . . .
. . . the crockery is not warm enough.
Check whether,
– the appliance has been switched on.
– the correct temperature setting has
been selected.
– Any ventilation openings have been
blocked by large plates or bowls.
– the crockery has been allowed to
heat up for a sufficiently long time.
Various factors will affect how long the
crockery will take to heat up, for
example:
–the material and thickness of the
crockery
–the quantity
–how the crockery is arranged
–the temperature setting
The times quoted are only guidelines.
As you use the plate warmer you will
get to know which setting suits your
own needs best.
If any of the following problems occur,
the advice of a qualified electrican or
the Service Department must be
sought.
. . . the crockery does not heat up.
Check whether,
–you can hear the fan.
If you can hear the fan:
There is a problem with the heater
element.
If you cannot hear the fan:
There is a problem with the fan.
– the mains fuse has blown.
. . . The crockery is too hot.
The temperature control is faulty.
. . . the On/Off switch does not light
up when the appliance is switched
on.
The indicator light for the switch is
defective.
Problem solving guide
16

In the event of any faults which you cannot remedy yourself, or if the appliance is
under guarantee, please contact:
–Your Miele dealer, or
–the Miele Service Department (see address on back cover).
When contacting the Service Department, please quote the model and serial
number of your appliance, which are given on the data plate.
Please note that telephone calls may be monitored and recorded for training
purposes.
Space in which to stick the extra data plate supplied with the appliance. Ensure
that the model number is the same as the one on the front of these instructions.
After sales service, data plate
17

Safety instructions for
installation
Before connecting the appliance to
the mains supply make sure that
the voltage and frequency correspond
to the rating on the data plate.
This data must correspond in order to
avoid the risk of damage to the
appliance. Consult a qualified
electrician if in any doubt.
The socket and on-off switch
should be easily accessible after
the appliance has been built in.
The plate warmer may only be built
in in combination with those
appliances quoted by the manufacturer
as being suitable. The manufacturer
cannot guarantee trouble-free operation
if the appliance is operated in
combination with appliances other than
those quoted by the manufacturer as
being suitable.
When building in the plate warmer
in combination with another
suitable appliance, the plate warmer
must be fitted above a fixed interim
shelf in the housing unit to ensure that
the housing unit can support both its
weight and that of the other appliance.
As the combination appliance is
placed directly on top of the plate
warmer once it is built in, an interim
shelf is not necessary between the two
appliances.
When building in the combination
appliance, it is essential to follow
the instructions given in the operating
and installation instructions supplied
with it.
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Niche dimensions
There a two different plate warming
drawers which differ in height. The
building-in dimensions for the plate
warmer must be added to the
building-in dimensions for the
combination appliance to establish the
niche size required.
All dimensions in this instruction booklet
are given in mm.
Installation
18

Possible installation examples
for EGW 40x0 - 14
Oven series H 310, H 4120,
H 4220 and above
Microwave-combi ovens
Installation
19

Steam oven Combi steam oven
aCut-out for ventilation of the combi
steam oven
Installation
20
a
555
560-568
455,5
446
549
22
0
128
22
548
141
593-595
595
522
537
595
7
6
30
