Miele EGW 604-29 Specification sheet

Operating and Installation instructions
Built-in plate warmer
EGW 601-14/EGW 601-29
EGW 602-14/EGW 602-29
EGW 604-14/EGW 604-29
It is essential to read these
instructions before
installing or using the machine,
to avoid the risk of accident,
or damage to the machine.
GZWOXHr
M.-Nr. 05 431 811

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Caring for our environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using the plate warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Control area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Selecting a temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Switching on the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
EGW 60x - 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
EGW 60x - 29 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Heating up times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Hints on using the plate warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Appliance front and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Mat with non-slip surface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Correcting minor faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

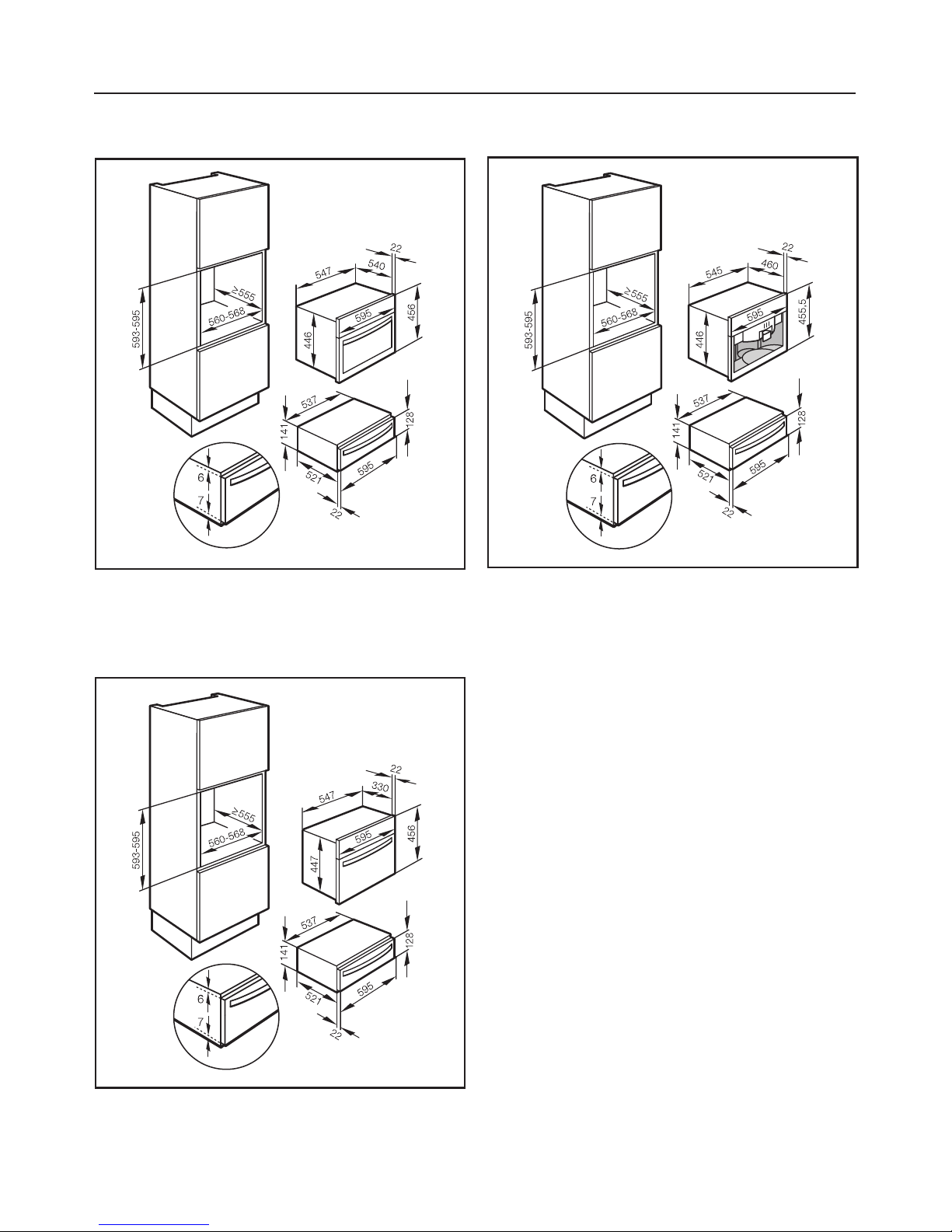

Building-in combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
EGW 60x - 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
EGW 60x - 29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Building in the plate warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Aligning the front of the plate warmer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Contents
2

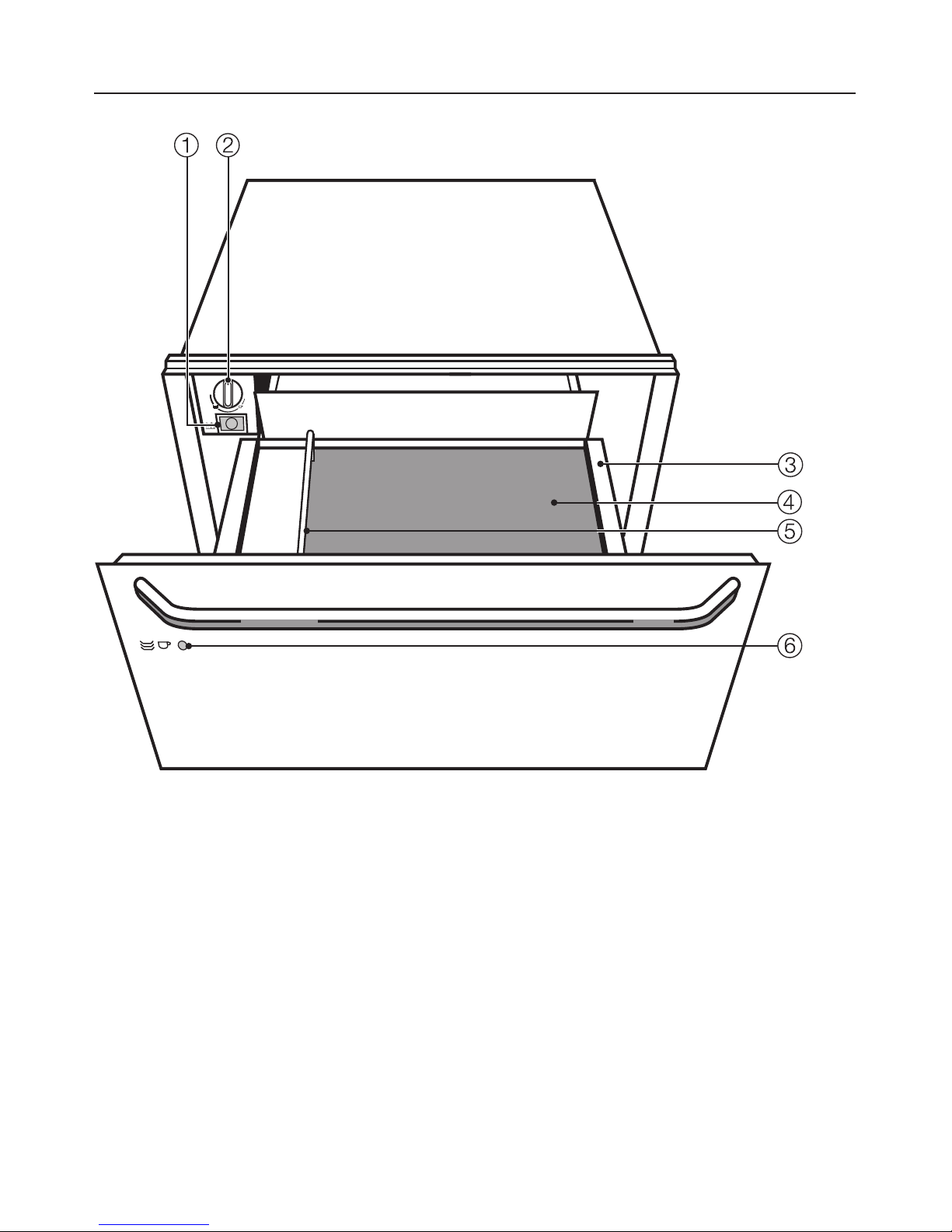

aOn/Off switch (lights up)
bTemperature control
cWarming drawer
dNon-slip mat
eRail
fIndicator light on the appliance front
Description of the appliance
3

Disposal of the pac ing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these materi-
als away, please ensure they are of-
fered for recycling.
Disposal of your old appliance
Old appliances contain materials which
can be recycled. Please contact your
dealer, your local waste collection cen-
tre or scrap merchant about potential
recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal. See the appropriate ad-
vice in the "Warning and safety instruc-
tions".
Caring for our environment
4

This appliance complies with all rele-
vant legal safety requirements. Im-
proper use of the appliance can,
however, present a risk of both per-
sonal injury and material damage.
Before installation and before using
the appliance for the first time, read
the operating instructions carefully.
They contain important notes on
safety, on the installation, operation
and care of the appliance. This way
you will avoid the risk of accidents
and damage to the appliance.
It is essential to read the operating
and installation instructions for any
other appliance which is fitted in
combination with the plate warmer.
The appliance is not intended for
use by young children or infirm per-
sons without supervision.
Young children should be super-
vised to ensure that they do not play
with the appliance.
Keep these instructions in a safe
place and pass them on to any fu-
ture user.
Correct usage
The Miele plate warmer is available
in two different heights for build-
ing-in in conjunction with Miele appli-
ances. See section "Building-in combi-
nations" for details.
The appliance is intended for do-
mestic use for heating plates,
crockery and dishes.
Any other usage is at the owner’s risk
and could be dangerous. The manufac-
turer cannot be held responsible for
damage caused by improper use of the
appliance.
Warning and Safety instructions
5

Technical safety
Before connecting the appliance to
the mains supply make sure that
the voltage and frequency correspond
to the rating on the data plate, other-
wise the appliance could be damaged.
Consult a competent person if in doubt.
The electrical safety of this appli-
ance can only be guaranteed when
continuity is complete between the ap-
pliance and an effective earthing sys-
tem, which complies with local and na-
tional safety regulations. It is most im-
portant that this basic safety require-
ment is tested by a qualified electrician.
The manufacturer cannot be held re-
sponsible for the consequences of an
inadequate earthing system (e.g. elec-
tric shock).
This appliance must only be oper-
ated as a built-in appliance. This is
necessary to ensure that all electrical
components are shielded.
Never open the casing of the appli-
ance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
Installation work and repairs may
only be carried out by a suitably
qualified and competent person in
accordance with national and local
safety regulations. Repairs and other
work by unqualified persons could be
dangerous. The manufacturer cannot
be held responsible for unauthorised
work.
The appliance is only completely
isolated from the electricity supply
when:
–it is switched off at the wall socket
– or the mains fuse is withdrawn
Ensure that current is not supplied to
the appliance while maintenance or re-
pair work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance, (e.g
danger of overheating).
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans, aircraft
etc. However, it may be suitable for
such usage subject to a risk assess-
ment of the installation being carried
out by a suitably qualified engineer.
Warning and Safety instructions
6

Use
The interior of the plate warmer
drawer can reach temperatures of
up to about 80 °C depending on the
setting selected and how long the
drawer has been switched on for. Using
heat-resistant oven gloves is recom-
mended when removing crockery.
Do not let children access the ap-
pliance or its controls. Supervise its
use by the elderly or infirm. The appli-
ance can get hot in use. Danger of
burning if the appliance were to be
switched on inadvertently.
Ensure that older children under-
stand clearly how the appliance
works before allowing them to use it.
Do not use the plate warmer to
re-heat, cook or keep food or
drinks warm.
The condensation from food / drinks
could lead to moisture damage in the
appliance.
Do not lean or sit on an open
warming drawer. This would dam-
age the telescopic runners. The drawer
can hold a maximum of 25 kg.
Do not store any plastic containers,
household foils and wraps or any
inflammable objects in the warming
drawer. They could melt or catch fire
when the appliance is switched on.
Do not use the appliance to heat
up the room. Due to the high tem-
peratures radiated, objects left near the
appliance could catch fire.
Under no circumstances use a
steam cleaner to clean this appli-
ance. The steam could attack the elec-
trical components and cause a short
circuit.
In countries which may be subject
to infestation by cockroaches or
other vermin, pay particular attention to
keeping the appliance and its sur-
roundings in a clean condition at all
times.
Any damage which might be caused by
cockroaches or other vermin will not be
covered by the appliance guarantee.
Disposal of your old appliance
Before discarding an old appliance
switch off and disconnect it from
the power supply. Cut off and render
any plug useless.
Cut off the cable directly behind the ap-
pliance to prevent misuse. This should
be done by a competent person.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
The manufacturer cannot be held lia-
ble for damage caused by non-com-
pliance with these Warning and
Safety instructions.
Warning and Safety instructions
7

Functions
The plate warmer is intended exclu-
sively for heating croc ery.
Do not use the appliance to re-heat,
cook or keep food or drinks warm.
The condensation from the food /
drinks could lead to moisture dam-
age in the appliance.
The appliance operates with a hot air
system. A fan distributes the heat
around the drawer. The hot air circu-
lated heats up all the plates quickly and
evenly.
A protective grille prevents any contact
with the heating element and fan.
The rail in the drawer separates the
control panel, heating element and fan
from the rest of the drawer. This pre-
vents plates from being placed too near
the control panel and geting damaged
when the drawer is pushed in.
The floor of the plate drawer is fitted
with a non-slip mat to prevent plates
and dishes sliding about when the
drawer is opened and closed.

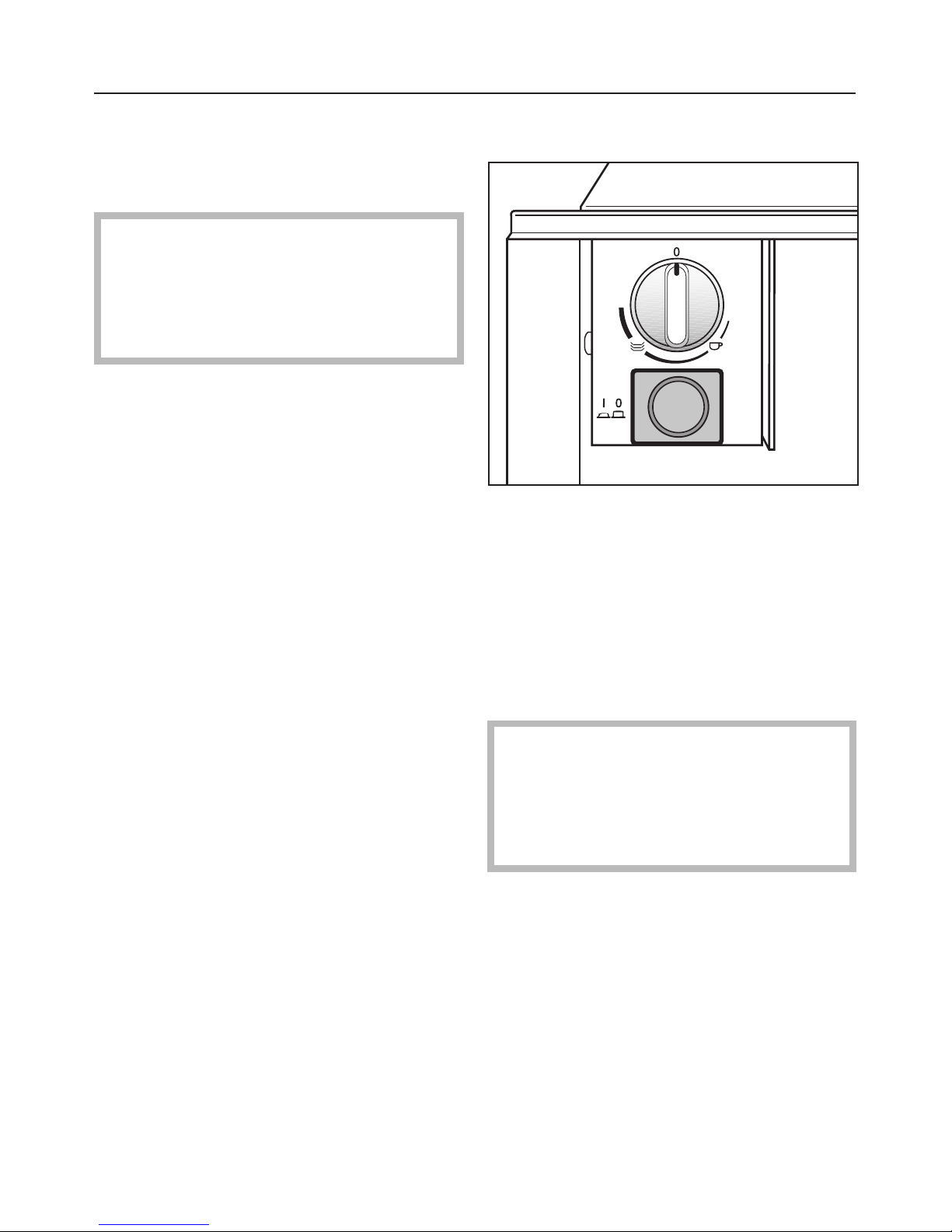

Control area
The controls consist of the temperature
control and the On / Off switch. These
are only visible when the drawer is
open.
Selecting a temperature
The temperature control is used to ad-
just the temperature setting.
Only turn the temperature control in
a clockwise direction and then back
again. Stop when you feel a resis-
tance. Forcing the control past this
point will damage it.
The heating will switch off automatically
when the temperature selected is
reached. It will switch back on again as
soon as the temperature drops below
this level.
Using the plate warmer
8

Atemperature range of between
approx. 30 and 80 °C can be set.
Items to be heated can be divided into
two general groups:
–Cups / glasses
–Serving dishes / plates
Recommended temperatures for
pre-heating:
–approx. 40 °C for cups or glasses.
A hot drink placed in a cup warmed
to this temperature will cool down
more slowly, while the cup itself can
be touched easily (i.e. it is not too
hot).
– approx. 60 °C for serving dishes or
plates.
Food will stay hot for a long time if it
is placed on plates heated to this
temperature and the plates will not
be too hot to hold when serving.
The temperatures settings are shown
as symbols rather than individual °C.
Each symbol represents the best set-
ting for the group shown:
–b: for cups and glasses
–r: for serving dishes, bowls and
plates
Switching on the appliance
The appliance is switched on using the
On / Off switch.
To switch on:
^Press the On / Off switch. The switch
will light up.
When the drawer is closed the indica-
tor on the front of the appliance lights
up to show the appliance is switched
on.
Capacity
The plate warmer is available in two
different heights:
– EGW 60x - 14: 141 mm high.
– EGW 60x - 29: 289 mm high.
The height determines the capacity of
the appliance.

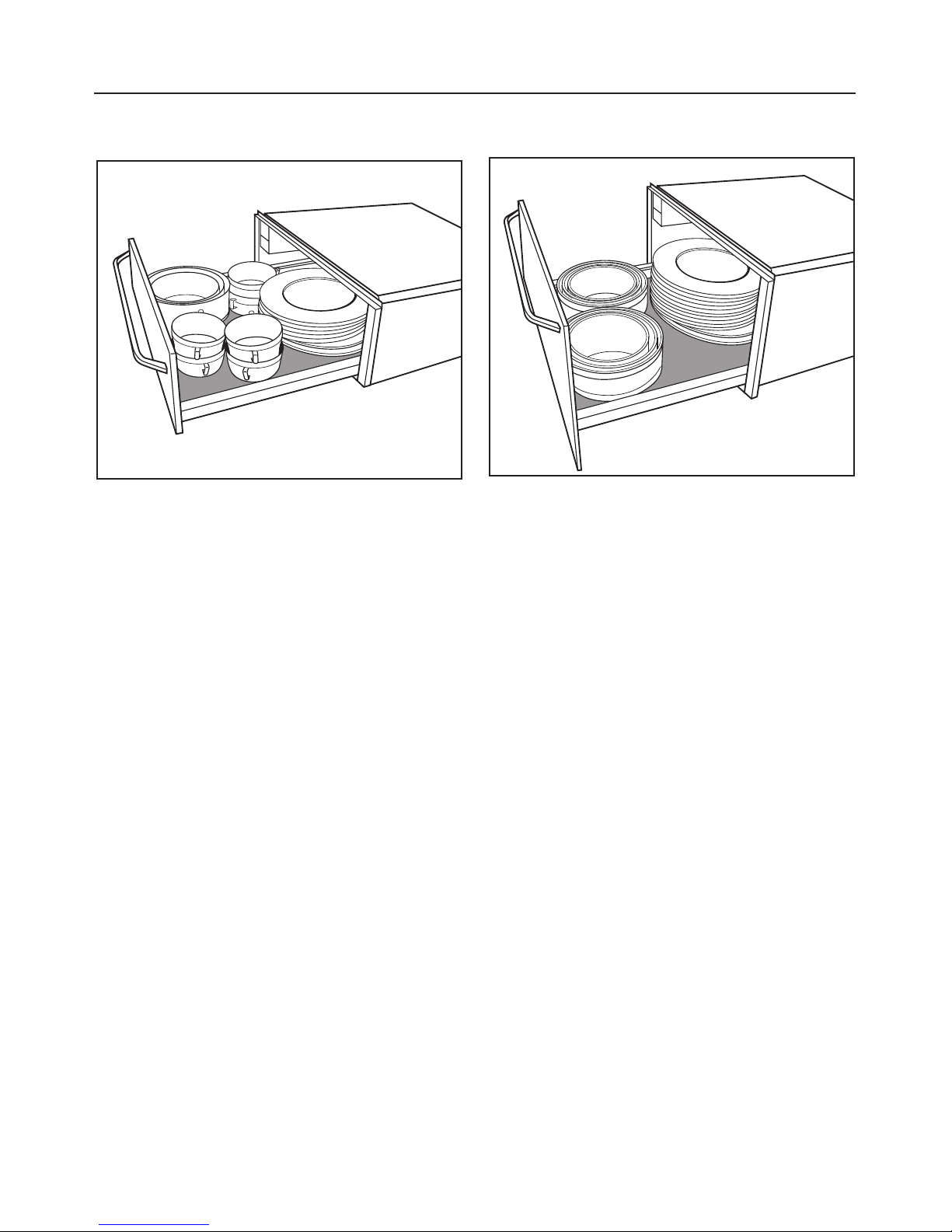

The following loading examples are
given as a guide only.
The quantity which can be loaded will
depend to a great extent on the type
and size of your own crockery.
The maximum load for both models
is 25 kg.
Using the plate warmer
9

EGW 60x - 14
– Crockery for 6 people:
6 dinner plates Ø 28 cm
6 soup bowls Ø 10 cm
1 dish Ø 22 cm
1 dish Ø 19 cm
1 dish Ø 17 cm
2 large plates 36 cm
or one of the following
– 20 dinner plates Ø 28 cm
–36 soup bowls Ø 22 cm
–30 soup bowls Ø 10 cm
–10 dinner plates Ø 28 cm
10 soup bowls Ø 22 cm
–10 pizza plates Ø 36 cm
–80 espresso cups
–40 cappucino cups
–30 punch glasses
–18 soup bowls Ø 22 cm
2 soup tureens 21 cm x 18 cm
–. . .
–. . .
EGW 60x - 29
– Crockery for 12 people:
12 dinner plates Ø 28 cm
2 dishes Ø 22 cm
2 dishes Ø 19 cm
2 dishes Ø 17 cm
2 large plates 36 cm
or one of the following
– 40 dinner plates Ø 28 cm
–60 soup bowls Ø 22 cm
–45 soup bowls Ø 10 cm
–20 dinner plates Ø 28 cm
20 soup bowls Ø 22 cm
–20 pizza plates Ø 36 cm
–120 espresso cups
–60 cappucino cups
–30 punch glasses
–. . .
–. . .
Using the plate warmer
10

Heating up times
Various factors will affect the heating up
times:
–material and thickness of the
crockery
–quantity
–how the crockery is arranged
–temperature setting
It is therefore not possible to state pre-
cise times.
However, the following information can
be used as a guide:
At temperature setting rof approx.
60 °C heating:
– the crockery listed for 6 people
will take approx. 30 - 35 minutes.
– the crockery listed for 12 people
will take approx. 40 - 45 minutes.
As you use the plate warmer you will
get to know which setting suits your
own needs best.
Hints on using the plate
warmer
Do not use the plate warmer to
re-heat, cook or keep food or drinks
warm. The condensation from the
food / drinks could lead to moisture
damage in the appliance.
Wear heat-resistant oven gloves
when handling hot crockery.
The maximum load for the drawer of
all models is 25 kg irrespective of
height.
Do not stand plates up directly in
front of the rail.
When the drawer is closed, these
will block the vents for the heated air
and prevent the crockery from heat-
ing up evenly.
To pre-heat crockery:
^Place the crockery in the drawer.
^Select the required temperature set-
ting.
^Switch on the appliance (j).
^Close the drawer.
The indicator on the front of the appli-
ance lights up to show that the appli-
ance has been switched on.
Switch the appliance off (k), before re-
moving the heated crockery.
Using the plate warmer
11

Appliance front and control
panel
^All external surfaces and controls can
be cleaned using warm water with a
little washing up liquid applied with a
soft sponge.
^Wipe the surfaces dry using a soft
cloth.
E-Cloth
A microfibre "E-Cloth" is available from
the Miele UK Spare Parts Department,
Part number 98013530, which is suit-
able for cleaning surfaces such as
stainless steel, glass, plastic and
chrome without the use of chemicals.
To prevent the risk of scratches and
damage to the surface structure of
stainless steel and aluminium fronted
appliances pay particular attention to
the following cleaning instructions.
Aluminium fronted appliances
Aluminium is affected by the way that
light falls it, by the surrounding environ-
ment and by the angle you observe it
from.
Aluminium surfaces and controls
may suffer discolouration or damage
if soiling is left on them for too long.
Remove any soiling straight away.
The appliance front and controls are
susceptible to scratches and abrasion.
Avoid:
– cleaning agents containing soda, ac-
ids or chlorides,
– abrasive cleaning agents, e.g. pow-
der cleaners and cream cleaners.
– abrasive sponges, e.g. pot scourers
or sponges which have been previ-
ously used with abrasive cleaning
agents,
–stainless steel cleaners,
–cleaning agents containing
descaling agents,
–diswasher detergent,
–oven sprays.
Cleaning and care
12

Stainless steel fronted appliances
The appliance front and controls are
susceptible to scratches and abrasion.
Stainless steel surfaces can be cleaned
using a proprietary non-abrasive clean-
ing agent designed specifically for use
on stainless steel.
Avoid:
–cleaning agents containing soda, ac-
ids or chlorides,
–abrasive cleaning agents, e.g. pow-
der cleaners and cream cleaners.
– abrasive sponges, e.g. pot scourers
or sponges which have been previ-
ously used with abrasive cleaning
agents.
To help prevent re-soiling, proprietary
conditioning agent for stainless steel
can also be used.
Apply sparingly with even pressure
using a soft cloth.
Mat with non-slip surface
The mat can be removed to clean the
bottom of the drawer.
Clean the mat by hand with a solution
of hot water and a little mild washing up
liquid. Dry thoroughly. Do not replace
the mat until it is completely dry.
Cleaning and care
13

Installation, maintenance and repairs
to the electrical components of this
appliance should only be carried out
by a suitably qualified and compe-
tent person in accordance with na-
tional and local safety regulations.
Repairs and other work by unquali-
fied persons could be dangerous.
The manufacturer cannot be held re-
sponsible for unauthorised work.
Some minor problems however can be
dealt with as follows:
What to do if . . .
. . . the croc ery is not warm enough?
Check whether,
– the appliance has been switched on.
– the correct temperature setting has
been selected.
– the vents have been covered over by
large plates or dishes.
–the crockery has been allowed to
heat up for a sufficiently long time.
Various factors can affect how long the
dishes take to heat up, for example:
–material and thickness of the
crockery
–quantity
–how the crockery is arranged
–temperature setting
The times stated are only given as a
guide. As you use the plate warmer you
will get to know which setting suits your
own needs best.
If any of the following problems occur,
the advice of a qualified electrician or
the Service Department must be
sought.
The croc ery does not heat up.
Check
–whether the noise of the fan can be
heard.
If the fan is running:
the heating element is faulty.
If the fan is not running:
the fan is faulty.
– whether the mains fuse has blown.
The croc ery is too hot.
The temperature control is faulty.
The On / Off switch does not light up
when the appliance is switched on.
The indicator light for the switch is de-
fective.
Correcting minor faults
14

In the event of faults which you cannot
easily remedy yourself, please contact:
–your Miele dealer
or
–the nearest Miele Service Depart-
ment, (see address on the back
page).
Please note that telephone calls may
be monitored and recorded to im-
prove our service.
When contacting the Service Dept.,
please quote the Model and Serial
number of your appliance both of which
are shown on the data plate which is
next to the control panel.
After sales service
15

Electrical connection U.K.
It is essential that the electrical in-
stallation instructions for any appli-
ance which is fitted in combination
with the plate warmer are also ob-
served.
Where another appliance is fitted in
combination with the plate warmer to
the same circuit, operating both ap-
pliances at the same time could
cause an overload. If in doubt con-
sult a suitably qualified electrician.
All electrical work should be carried out
by a suitably qualified and competent
person, in strict accordance with
national and local safety regulations.
Installation, repairs and other work by
unqualified persons could be
dangerous. The manufacturer cannot
be held responsible for unauthorised
work.
Ensure power is not supplied to the
appliance while installation or repair
work is being carried out.
The voltage, rated load and fusing are
given on the data plate located beside
the control panel. Ensure these match
the household mains supply.
Connection of this appliance should be
made via a fused connection point
which complies with national and local
safety regulations, and the on/off switch
should be easily accessible after the
appliance has been built in.
If the point is not accessible after instal-
lation (depending on country) an addi-
tional means of disconnection must be
provided for all poles.
For extra safety it is advisable to install
a residual current device (RCD), with a
trip current of 30 mA. (In accordance
with DIN VDE 0664, VDE 0100 Section
739).
When switched off there must be an
all-pole contact gap of 3 mm in the iso-
lator switch (including switch, fuses and
relays acc. to EN 60 335).
Electrical connection
16

Important U.K.
This appliance is supplied with a 3-core
cable (approx. 1.5 m long) for connec-
tion to a single phase 230-240 V 50 Hz
supply.
The wires in the mains lead are col-
oured in accordance with the following
code:
Green/yellow = earth
Blue = neutral
Brown = live
In other countries check these details
with your supplier.
WARNING:
THIS APPLIANCE MUST BE
EARTHED
The electrical safety of this appli-
ance can only be guaranteed when
continuity is complete between the
appliance and an effective earthing
system, which complies with local
and national regulations. It is most
important that this basic safety re-
quirement is tested by a qualified
electrician. The manufacturer cannot
be held responsible for the conse-
quences of an inadequate earthing
system (e.g. electric shock).
ZA
Data relating to electrical connection
will be found on the data plate located
beside the control panel. Make sure
that these figures comply with the main
voltage. Connection should be made
via a suitable isolator which complies
with national and local regulations.
The appliance is supplied with a 3-core
cable for connection to a 230-240 volt
50 Hz supply.
The wires are coloured in accordance
with the following code:
Green/yellow = earth
Blue = neutral
Brown = live
WARNING
THIS APPLIANCE MUST BE
EARTHED.
Electrical connection
17

All electrical work should be under-
taken by a competent person in
strict accordance with national and
local safety regulations.
The voltage and rated load are given
on the data plate located beside the
control panel. Please ensure that these
match the household mains supply.
Please quote these data, and the model
and serial number when contacting the
Miele Service dept.
Connection of this appliance should be
made via a suitable isolator which com-
plies with national and local regulations,
and which is accessible after the appli-
ance has been built in.
WARNING
THIS APPLIANCE MUST BE
EARTHED.
Test marks . . . . . . . . . . Electrical safety
. . . . . . . . . . . . . . . . . . . . . . C-Tick Mark
Electrically suppressed
according to. . . . . . . . . . . AS/NZS 1044
AUS
The Built-in plate warmer is supplied
with a mains cable for connection to an
a.c. single phase 240 V, 50 Hz electric-
ity supply.
The plug rating is 10 A.
NZ
The Built-in plate warmer is supplied
with a mains cable for connection to an
a.c. single phase 230 V, 50 Hz electric-
ity supply.
The plug rating is 10 A.
Electrical connection
18

It is essential to read the operating
and installation instructions for any
other appliance fitted in combination
with the plate warmer.
The niche dimension required will
depend on which appliance the
plate warmer is combined with.
The combination appliance is
placed directly on top of the plate
warmer once it is built-in. An interim
shelf is not necessary.
The appliances must only be oper-
ated as built-in appliances.
EGW 60x - 14
The plate warmer may only be built-in
with one of the following Miele appli-
ances:
–Built-in oven (60 cm wide)
series H 310 onwards
–Microwave combi-oven
–Steam oven
–Coffee machine

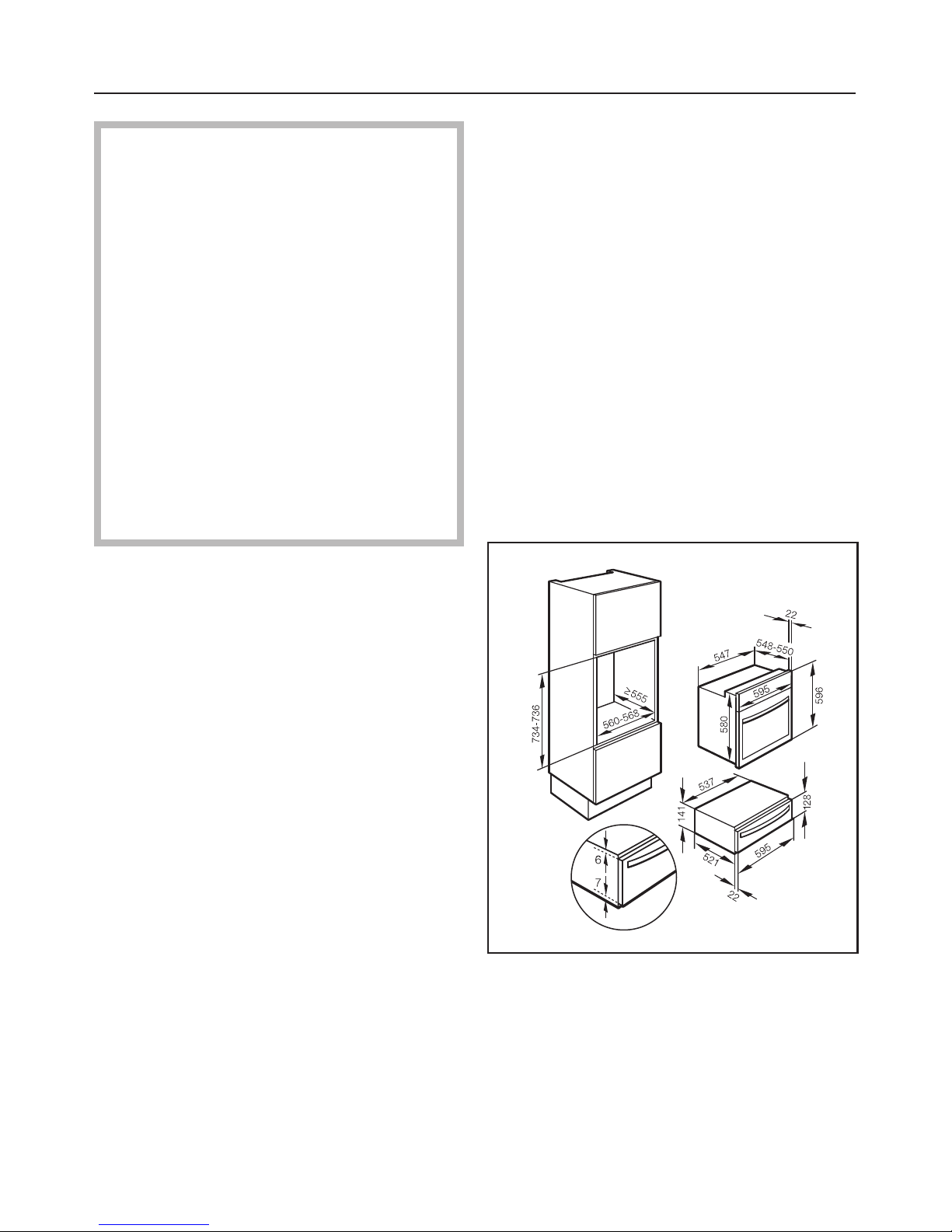

Built-in ovens (60 cm wide) series
H 310 onwards
Building-in combinations
19

Microwave combi-oven
Steam oven
Coffee machine
Building-in combinations
20
