Installation
*INSTALLATION*
Safety instructions for installation
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the SmartLine appliance.
The SmartLine appliance must only be installed by a suitably qualified and
competent person.
Risk of electric shock!
Incorrect connection to the power supply may result in an electric shock.
The SmartLine appliance must be connected to the electrical supply by a
qualified person only.
Damage from falling objects.
Take care not to damage the SmartLine appliance when fitting wall units or a
rangehood above it.
Fit the wall units and the rangehood before the SmartLine appliance.
 The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material.
 The SmartLine appliance must not be installed over a fridge,
fridge-freezer, freezer, dishwasher, washing machine, washer-dryer
or tumble dryer.
 This SmartLine appliance must not be installed above ovens
unless these have a built-in cooling fan.
 After installation, the mains connection cable of the SmartLine
appliance must not come into contact with any moving kitchen
component (e.g. a drawer) or be subject to mechanical loads which
could damage it.
 Carefully observe the safety clearances listed on the following
pages.

10878121-02
Installation
*INSTALLATION*
Safety distances

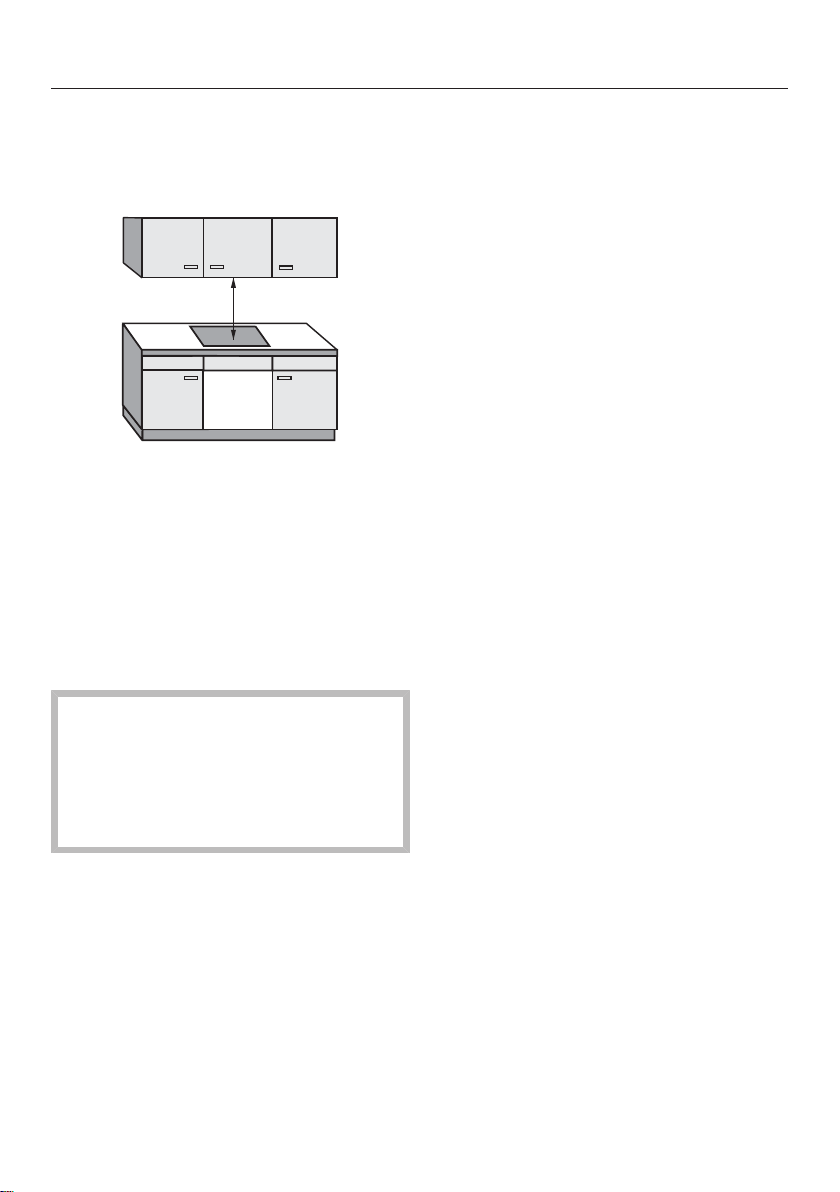

Safety distance above the SmartLine
element
The safety distance specified by the
manufacturer of the cooker hood must
be maintained between the SmartLine
element and the cooker hood above it.
If combustible objects are installed
above the SmartLine element (e.g.
cabinets, utensil rail, etc.), a minimum
safety distance of 500mm must be
maintained.
When two or more SmartLine
elements which have different safety
distances are installed together
below a cooker hood, you should
observe the greatest specified safety
distance.

10878121-02
Installation
*INSTALLATION*
Safety distances to the sides and
back of the appliance
The SmartLine appliance should
preferably be installed with plenty of
space on the right and left.
The minimum distance specified
below must be observed between the
rear of the SmartLine element and a tall
unit or room wall.
The minimum distance,  specified
below must be adhered to between one
side of the SmartLine element (right or
left) and a tall unit or room wall. A
minimum distance of 300mm must be
observed on the opposite side.
Minimum horizontal distance from the
back edge of the appliance to a
combustible surface:
50mm
Minimum distance on the right side
between the worktop cut-out and the
closest adjacent piece of furniture (e.g.
tall unit) or a room wall:
50mm.
Minimum distance on the left side
between the worktop cut-out and the
closest adjacent piece of furniture (e.g.
tall unit) or a room wall:
50mm.
Minimum safety distance underneath
the SmartLine appliance
To ensure proper ventilation of the
SmartLine appliance, a minimum safety
distance is required between the
SmartLine appliance and an oven,
interim shelf or drawer.
The minimum safety distance from the
lower edge of the SmartLine appliance
to
- the top edge of an oven: 15mm
- the top edge of an interim shelf:
15mm
- the top edge of a drawer: 5mm
- the base of a drawer: 75mm
Interim shelf
It is not necessary to fit an interim shelf
underneath the SmartLine appliance,
but one may be fitted if you wish.
Leave a gap of 10mm at the back of
the shelf to accommodate the mains
connection cable. We recommend a
gap at the front of the SmartLine
appliance of 20mm to ensure good
ventilation.

10878121-02
Installation
*INSTALLATION*
Installation notes –
surface-mounted

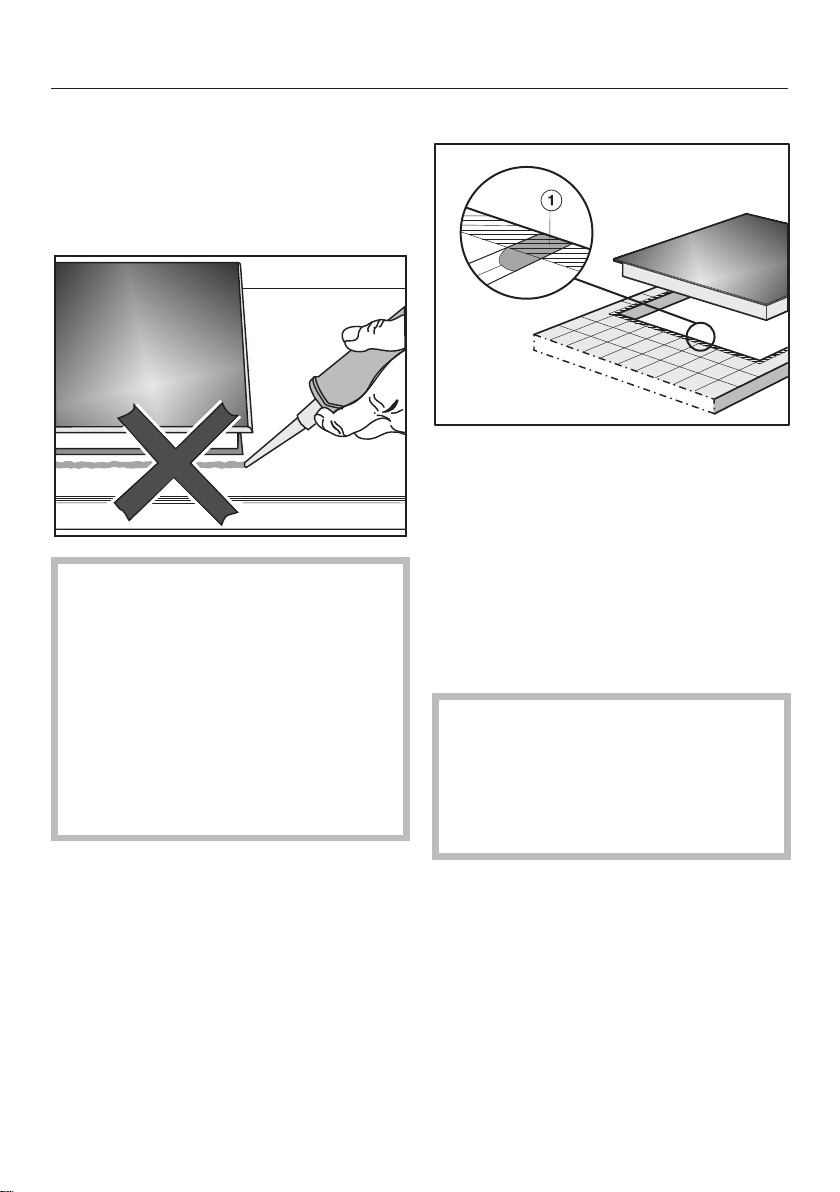

Sealing between the SmartLine
appliance and the worktop
The SmartLine appliance and
worktop may be damaged if the
appliance needs to be removed after
it has been sealed with a sealant.
Do not use any sealant between the
SmartLine appliance and the
worktop.
The sealing strip under the edge of
the top part of the appliance
provides a sufficient seal for the
worktop.
Tiled worktop
Grout lines and the hatched area
underneath the SmartLine appliance
frame must be smooth and even. If they
are not, the SmartLine appliance will
not sit flush with the worktop and the
sealing strip underneath the top part of
the appliance will not provide a good
seal between the appliance and the
worktop.
Sealing strip
Dismantling the SmartLine appliance
for service purposes may damage
the sealing strip underneath the edge
of the SmartLine appliance.
Always replace the sealing strip
before reinstalling the cooktop.

10878121-02
Installation
*INSTALLATION*
Installing several
SmartLine appliances
The gaps between the individual
SmartLine appliances must be sealed
with a silicone sealant that is heat-
resistant to at least 160°C. With flush-
fit installation, the gap between the
SmartLine appliance(s) and the worktop
must also be sealed with a silicone
sealant that is heat-resistant to at least
160°C.
After installation, the SmartLine
appliances must be easily accessible
from below, so that the bottom half of
the casing can be removed for
maintenance. If the SmartLine
appliances are not accessible from
below, the sealant must be removed so
that they can be removed.
Combination with a downdraft
extractor
If the SmartLine appliance is installed in
combination with a downdraft extractor,
the latter must be installed first.

10878121-02
Installation
*INSTALLATION*

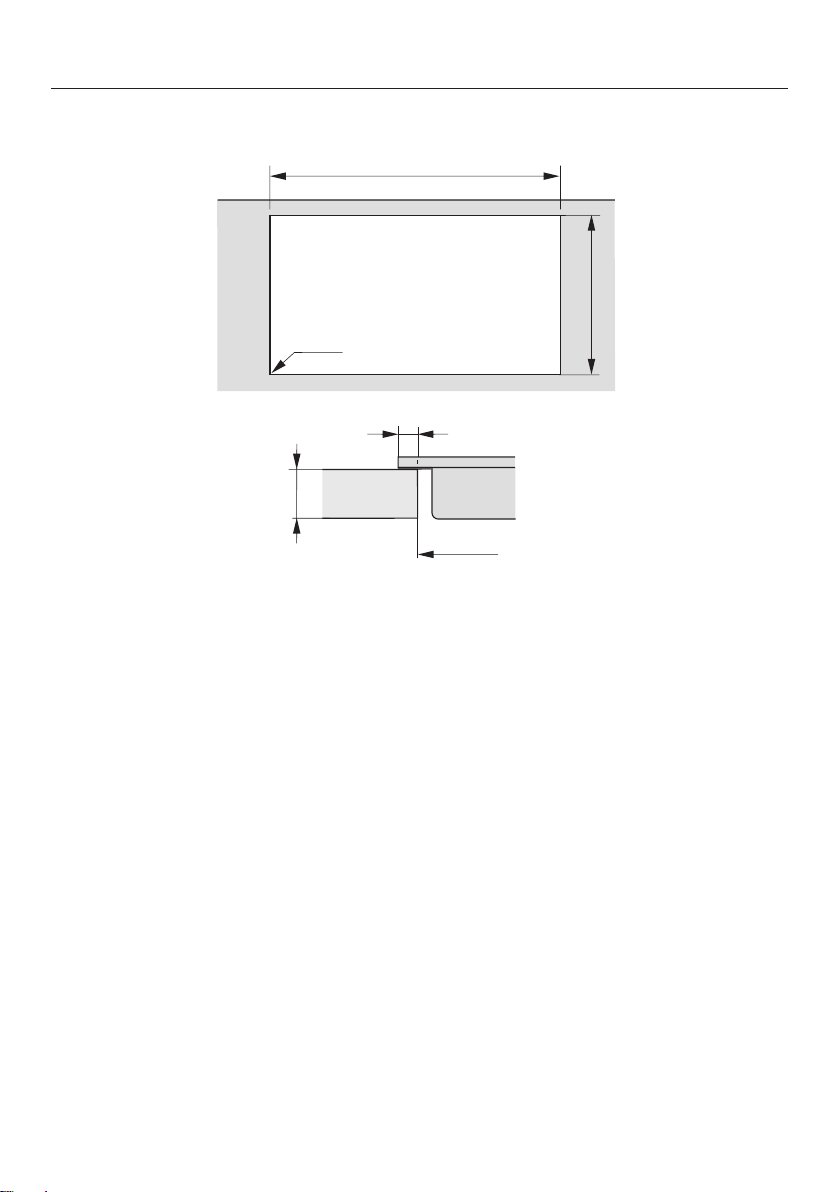

Worktop cut-out – surface-mounted
B
500 + 1
ß
R 4
B
10
0
10
+ 1
+ 1

10878121-02
Installation
*INSTALLATION*
Installation with a downdraft extractor

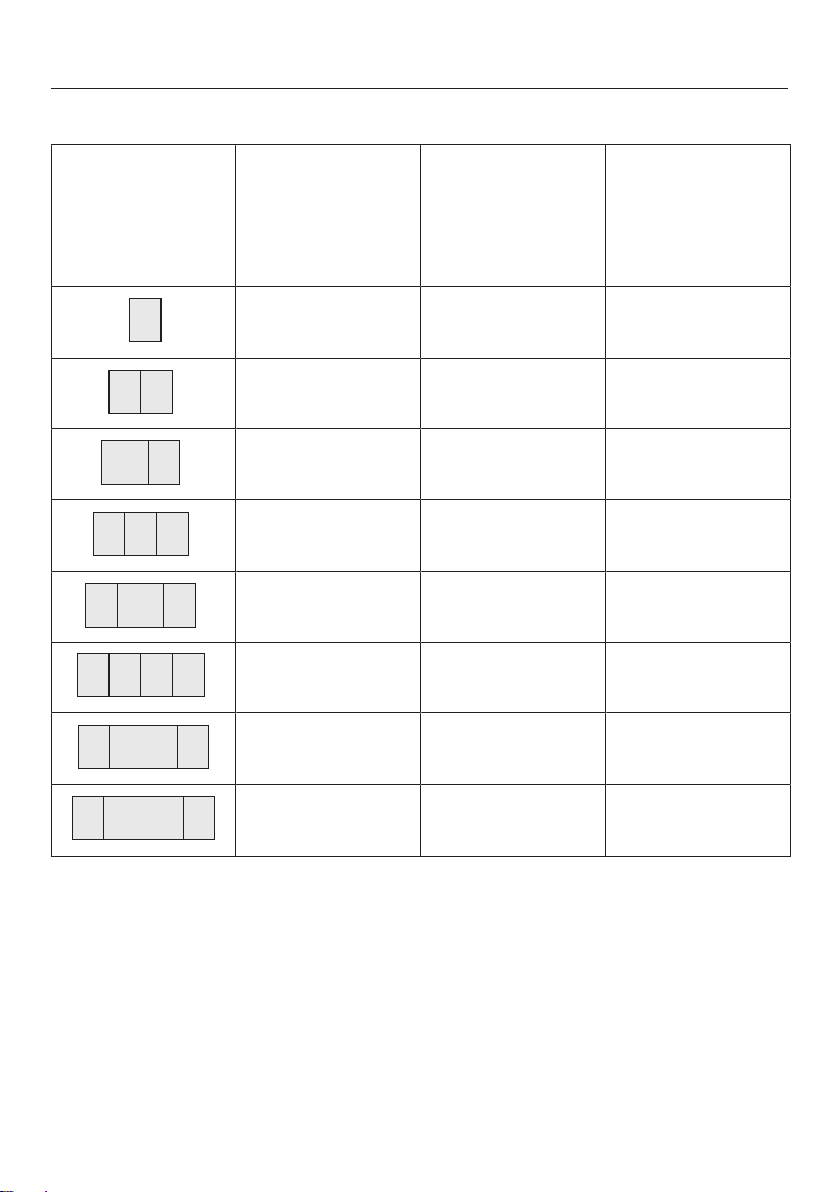

Sample combinations Numberxwidth [mm] Dimension
B
[mm]
Cooking
appliances
Downdraft
extractor
1x378 1x120 481
2x378 1x120 862
1x378
1x620
2x120 1226
3x378 2x120 1365
2x378
1x620
2x120 1607
4x378 2x120 1746
1x620 2x120 845

10878121-02
Installation
*INSTALLATION*

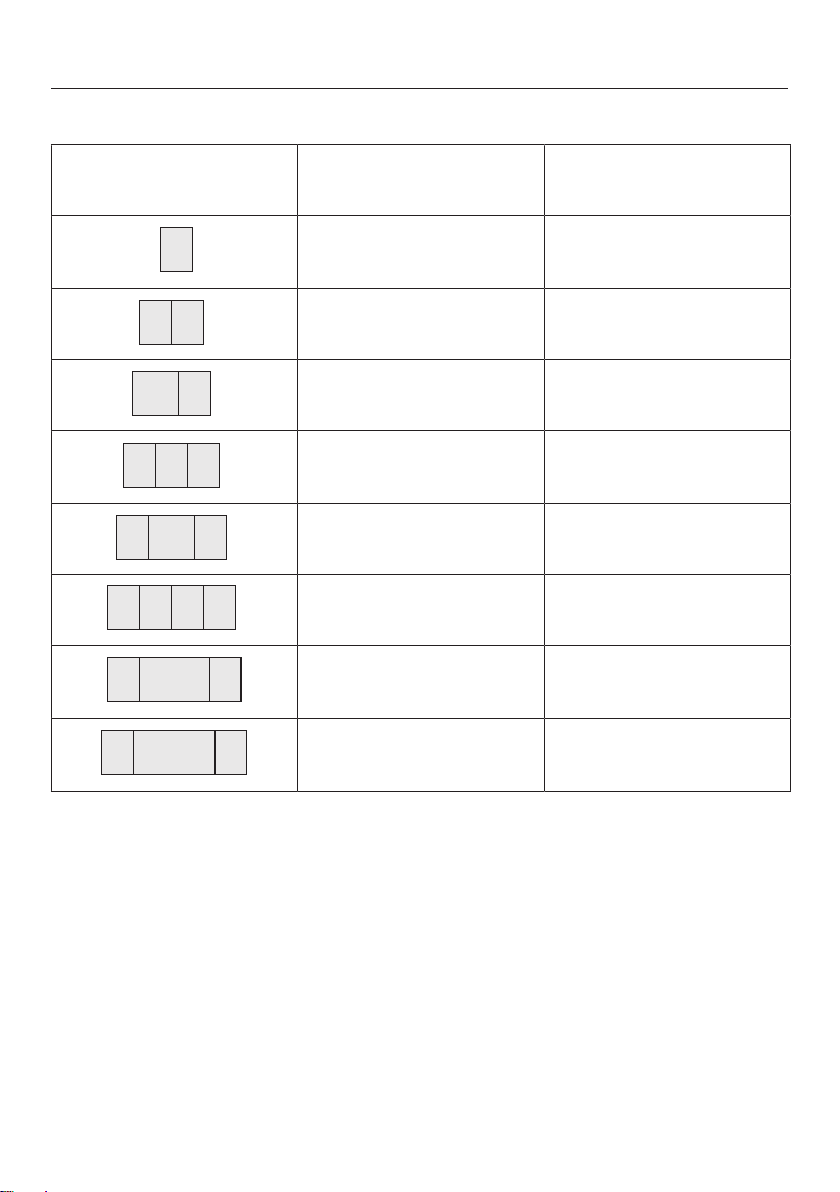

Installation without a downdraft extractor
Sample combinations Numberxwidth [mm] DimensionB
[mm]
Cooking appliances
1x378 359
2x378 740
1x378
1x620
982
3x378 1121
2x378
1x620
1363
4x378 1502
2x378
1x800
1554
2x378
1x936
1680

10878121-02
Installation
*INSTALLATION*

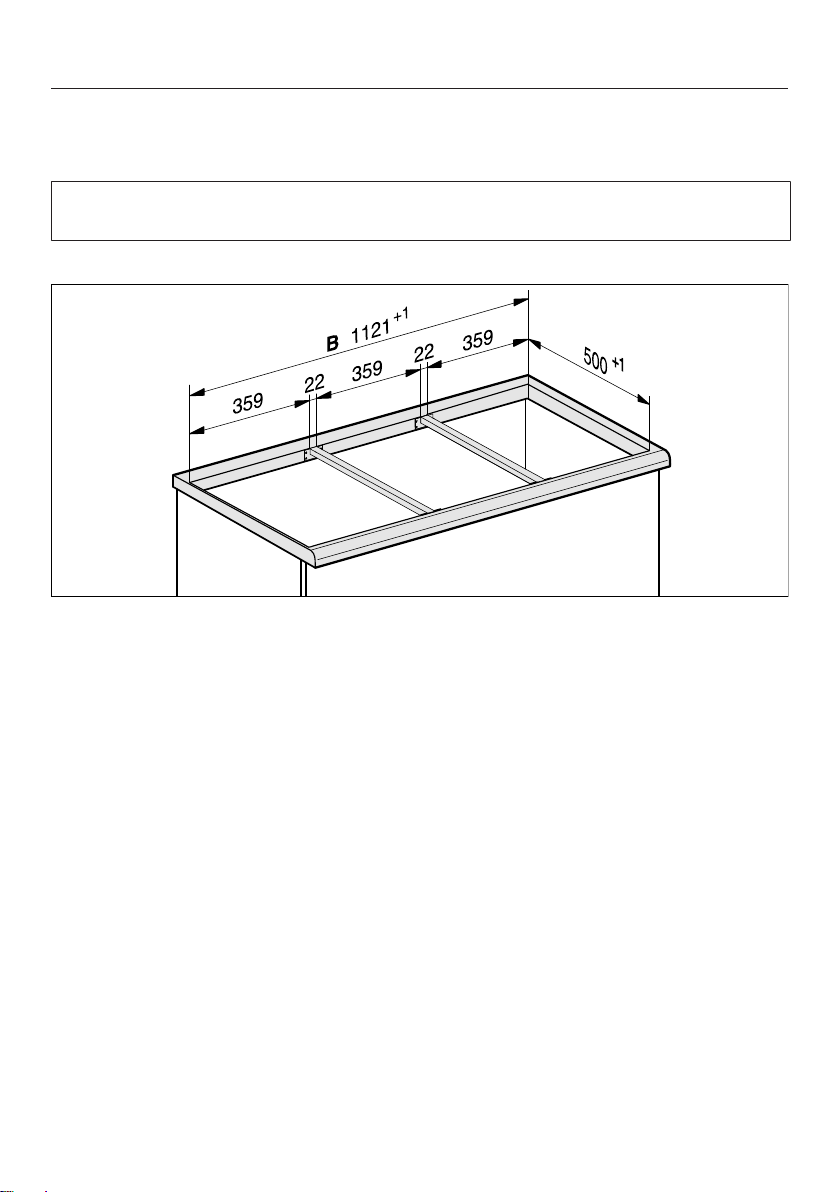

Spacer bars – surface-mounted
If you are installing several appliances, you must fit spacer bars between them.
The clips supplied with the spacer bars are only required for installing a
CSDA700xFL.
Installing 3 appliances and 2 spacer bars

10878121-02
Installation
*INSTALLATION*
Installation dimensions – Surface-mounted
All dimensions in this instruction booklet are given in mm.
aFront
bMains connection cable, L=2,000mm

10878121-02
Installation
*INSTALLATION*
Installation – surface-mounted
Preparing the worktop
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see "Installation –
Safety distances").
Seal the cut surfaces of wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.

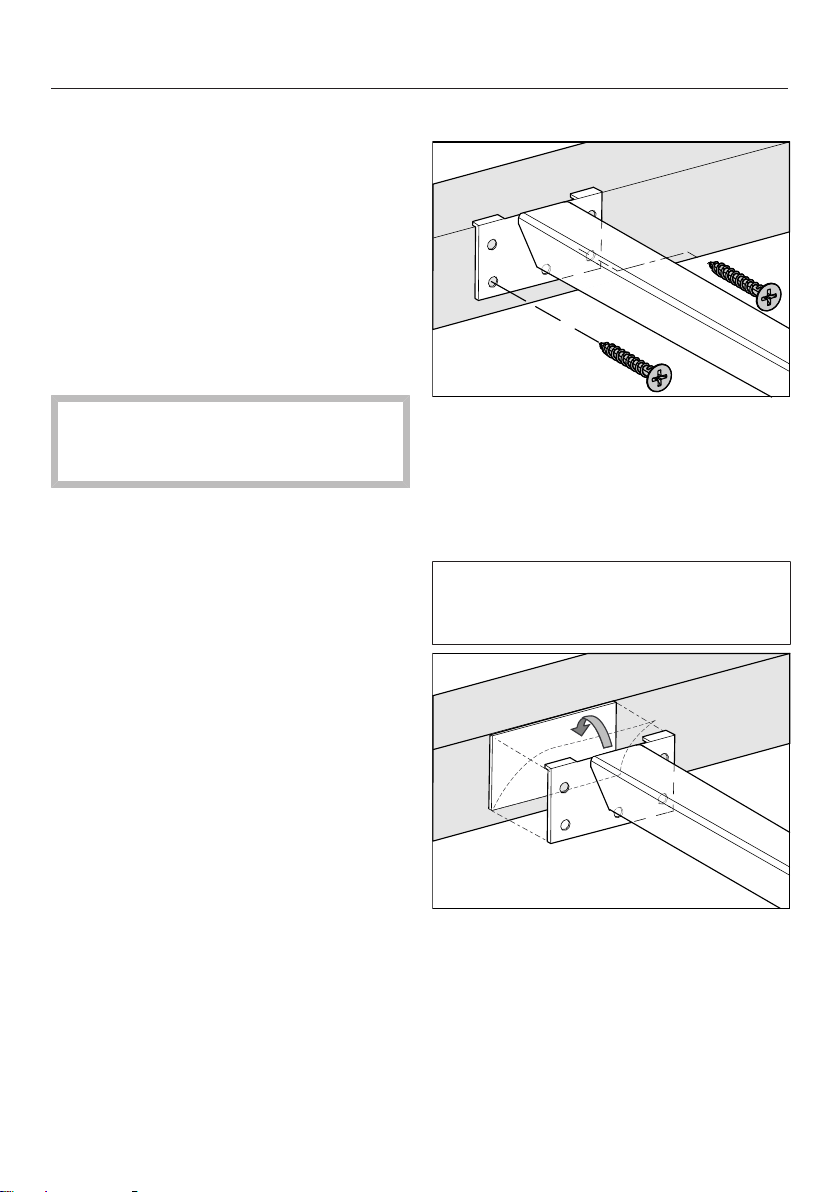

Fitting the spacer bars
Use the middle screw holes if one of the
following SmartLine appliances is
installed to the right or left of the spacer
bar: CS7611, CS 7641, CS7101(-1),
CS7102(-1)
Wooden worktops
Position the spacer bars flush onto
the upper edge of the cut-out.
Secure the spacer bars with the
3.5x25mm wood screws supplied.
Granite and marble worktops
You will need heavy-duty double-
sided tape (not supplied) to secure the
spacer bars.
Stick the tape along the top edge of
the worktop cut-out.
Position the spacer bars flush onto
the upper edge of the cut-out.
Press the spacer bars firmly into
place.

10878121-02
Installation
*INSTALLATION*
Installing the SmartLine appliance
Stick the supplied sealing strip under
the edge of the SmartLine appliance.
Do not apply the sealing strip under
tension.
Feed the mains connection cable
down through the worktop cut-out.
Position the SmartLine appliance in
the worktop cut-out. Ensure that:
- The seal of the appliance sits flush
with the worktop on all sides to
ensure an effective seal all round.
- All gap widths are uniform.
If the seal does not meet the worktop
correctly on the corners, carefully
scribe the corner radii (≤R4) with a
jigsaw.
Do not use any additional sealant
(e.g. silicone) on the SmartLine
appliance.
Connect the SmartLine appliance to
the mains electrical supply.
If required, connect the SmartLine
appliance to the gas supply (see
“Installation – Gas connection”).
Check that the SmartLine appliance
works.
Seal the gaps between the individual
appliances with a silicone sealant that
is heat-resistant to at least 160°C.
Unsuitable sealant can damage
natural stone.
For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Please follow the
manufacturer's instructions.

10878121-02
Installation
*INSTALLATION*
Installation notes –
flush-fit
Flush-fit installation is only possible in
natural stone (granite, marble), solid
wood and tiled worktops. For
installation in worktops made of other
materials, please consult the relevant
manufacturer as to whether their
worktops are suitable for flush-fit
installation.
The internal width of the base unit
underneath the appliance must be at
least as wide as the inner worktop cut-
out (see “Installation – Installation
dimensions – Flush”), so that the
SmartLine appliance is easily
accessible from underneath after
installation and the bottom half of the
casing can be removed for
maintenance. If the appliance is not
freely accessible from below after
installation, the sealant must be
removed so that the appliance can be
removed.
Natural stone worktops
The SmartLine appliance is set directly
in the cut-out.
Solid wood worktops, tiled worktops,
glass worktops
The SmartLine appliance is set on a
wooden frame inside the cut-out. The
frame must be provided on site and is
not supplied with the appliance.
Sealing strip
Dismantling the SmartLine appliance
for service purposes may damage
the sealing strip underneath the edge
of the SmartLine appliance.
Always replace the sealing strip
before reinstalling the cooktop.

10878121-02
Installation
*INSTALLATION*
Installing several
SmartLine appliances
The gaps between the individual
SmartLine appliances must be sealed
with a silicone sealant that is heat-
resistant to at least 160°C. With flush-
fit installation, the gap between the
SmartLine appliance(s) and the worktop
must also be sealed with a silicone
sealant that is heat-resistant to at least
160°C.
After installation, the SmartLine
appliances must be easily accessible
from below, so that the bottom half of
the casing can be removed for
maintenance. If the SmartLine
appliances are not accessible from
below, the sealant must be removed so
that they can be removed.
Combination with a downdraft
extractor
If the SmartLine appliance is installed in
combination with a downdraft extractor,
the latter must be installed first.

10878121-02
Installation
*INSTALLATION*
Worktop cut-out – flush-fit
B
524
500
+
1
+ 1
ß R 4
0 2
12
0
10
5,5
+
0,5 *
0 2
12
0
10
5,5
+
0,5 *
+ 1
+ 1
A
B
A
+ 1
+ 1
B
A
+ 1
+ 1
Natural stone worktop Wooden worktop
* 7+0.5mm with CS7611FL

10878121-02
Installation
*INSTALLATION*
Installation with a downdraft extractor
Sample combinations Numberxwidth [mm] DimensionA
[mm]
DimensionB
[mm]
Cooking
appliances
Downdraft
extractor
1x378 1x120 505 481
2x378 1x120 886 862
1x378
1x620
2x120 1250 1226
3x378 2x120 1389 1365
2x378
1x620
2x120 1631 1607
4x378 2x120 1770 1746
1x620 2 x 120 869 845

10878121-02
Installation
*INSTALLATION*
Installation without a downdraft extractor
Sample
combinations
Numberxwidth
[mm]
DimensionA
[mm]
DimensionB
[mm]
Cooking
appliances
1x378 383 359
2x378 764 740
1x378
1x620
1006 982
3x378 1145 1121
2x378
1x620
1387 1363
4x378 1526 1502
2x378
1x800
1567 1543
2x378
1x936
1703 1679

10878121-02
Installation
*INSTALLATION*
Spacer bars – flush-fit
If you are installing several appliances, you must fit spacer bars between them.
The clips supplied with the spacer bars are only required for installing a
CSDA700xFL.
Installing 3 appliances and 2 spacer bars

10878121-02
Installation
*INSTALLATION*
Installation dimensions–Flush-fit
All dimensions in this instruction booklet are given in mm.
aFront
bMains connection cable, L=2,000mm
cStepped cut-out (for detailed illustrations, see “Installation – Worktop cut-out –
flush-fit”)
d12mm wooden frame (not supplied, for detailed illustrations, see “Installation –
Worktop cut-out – flush-fit”)

10878121-02
Installation
*INSTALLATION*
Installation – flush-fit
Preparing the worktop
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see "Installation –
Safety distances").
Seal the cut surfaces of wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
For wooden worktops, secure the
wooden frames 5.5mm below the
upper edge of the worktop.
For CS7611FL, the wooden frame
must be secured 7mm under the
upper edge of the worktop.
Fitting the spacer bars
Use the middle screw holes if one of the
following SmartLine appliances is
installed to the right or left of the spacer
bar: CS7611, CS 7641, CS7101(-1),
CS7102(-1)
Wooden worktops
Position the spacer bars flush onto
the lower step of the stepped cut-out.
Secure the spacer bars with the
3.5x25mm wood screws supplied.
Granite and marble worktops
You will need heavy-duty double-
sided tape (not supplied) to secure the
spacer bars.
Stick the tape onto the lower step of
the stepped cut-out.
Position the spacer bars flush onto
the lower step of the stepped cut-out.
Press the spacer bars firmly into
place.
