Miele H 4740 B User manual

Operating instructions
Ovens
H 4740 B
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
before it is installed and used for the first time.
G
M.-Nr. 06 748 830

Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Baking tray, grill pan and rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Anti-splash tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the time of day for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning and heating up for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Description of the oven systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Using the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Function selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

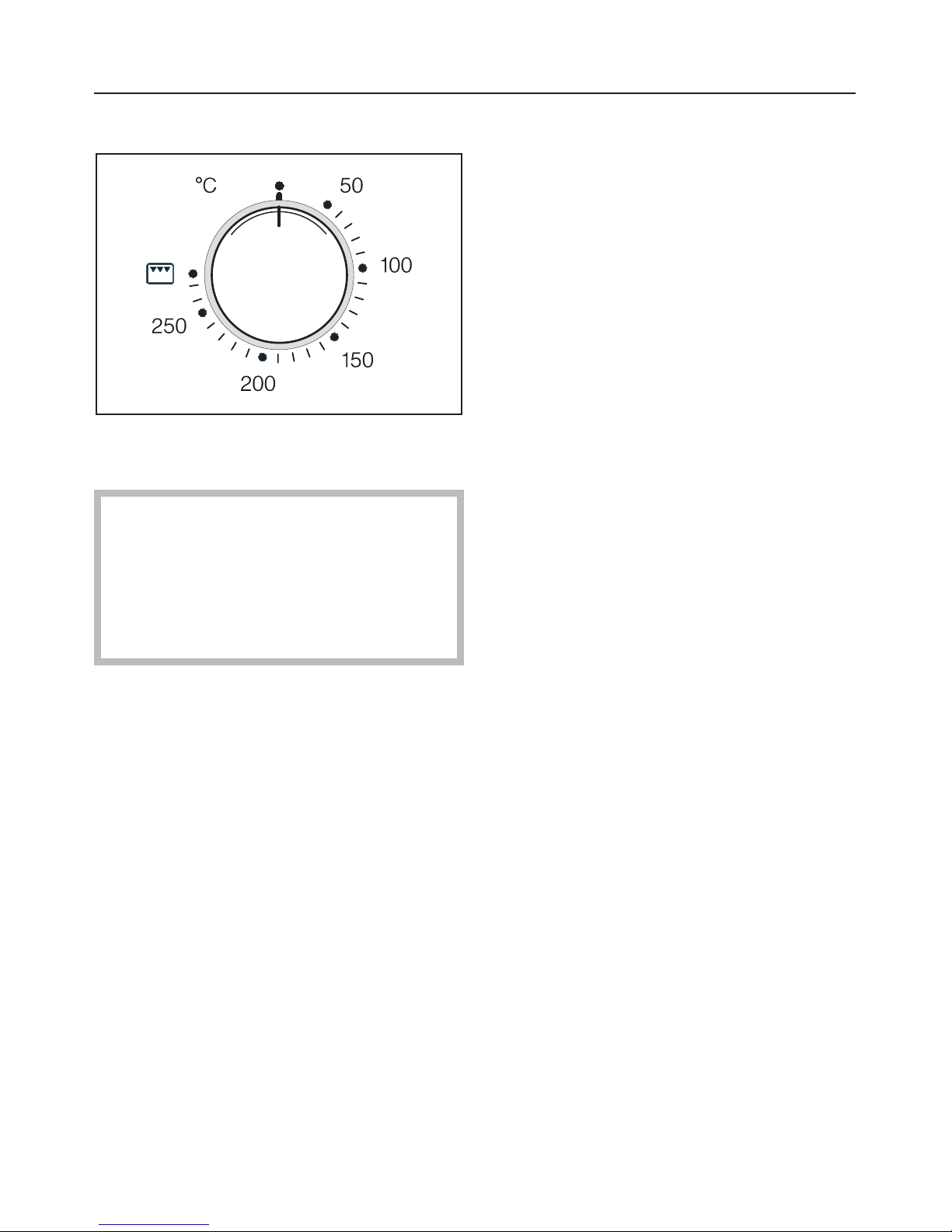

Temperature selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Rapid heat-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pre-heating the oven. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Cooking ready-meals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Clock/Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Q,Pand Obuttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
The display and triangle Vin the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Setting the time of day . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Minute minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To set the minute minder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To cancel the time set for the minute minder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Programming cooking durations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Switching the cooking programme off automatically . . . . . . . . . . . . . . . . . . . . 24
Switching the oven on and off automatically . . . . . . . . . . . . . . . . . . . . . . . . . . 25
The end of a cooking programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
To check and change an entered time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
To delete cooking times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Contents
2

Altering oven settings v. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Time of day display (P I) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Buzzer (P 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Baking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Baking chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Roasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Roasting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Grilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Grill chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Cooking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Cooking ready-meals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Examples of ready-meals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Gentle bake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Appliance front and control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Baking tray, grill pan, anti-splash tray
(if fitted), racks and runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Roasting filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
PerfectClean . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Catalytic enamel surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Oven interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
To remove the oven door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
To remove the runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
To remove the catalytic back panel, side liners (if fitted) and roof liner . . . . . . 54
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Extra accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Electrical connection UK, IRL, ZA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Installing the oven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Contents
3

Control panel
aFunction selector
bClock/timer with O,Qand P
buttons
cTemperature selector
dTemperature indicator light y
Oven interior
eHeating element for top heat and
grilling with catalytic enamelled roof
liner
fCatalytic enamelled back panel
gAir inlet for fan
hSide runners with 4 shelf levels
iOven door
Description of the appliance
4

Features
Oven controls
In addition to operating the various
cooking programmes to bake, roast
and grill, the electronic controls on
models with a clock/timer also offer the
following features:
–Clock display
–Minute minder
–Timer to automatically switch cooking
programmes off, or on and off
– Settings can be customised
Cooling system
As soon as the oven is switched on, a
cooling fan is automatically engaged.
The cooling fan mixes hot air from the
oven cavity with cool room air before
venting it out into the kitchen through
vents located between the appliance
door and the control panel.
The cooling fan will continue to run for a
while after the oven has been switched
off to prevent any humidity building up
in the oven, on the control panel or on
the oven housing unit.
When the temperature in the oven has
fallen sufficiently, the cooling fan will
switch off automatically.
PerfectClean treated surfaces
The following surfaces are all treated
with PerfectClean enamelling:
–Oven interior
–Runners
–Baking tray
–Grill pan
–Rack
PerfectClean enamelled surfaces have
very good anti-stick properties and are
much easier to keep clean than
conventional enamel, if cleaned
regularly.
See "Cleaning and care" for more
information.
Catalytic enamelled surfaces
The back panel, roof liner and side
liners (if fitted) are coated with dark
grey catalytic enamel. Soiling from oil
and fat is burnt off these surfaces when
very high temperatures are used in the
oven.
This makes it easier to keep
inaccessible areas of the oven clean.
See "Cleaning and care" for more
information.
Energy efficiency rating
according to EN 50304
These appliances are rated energy
efficiency class Cin accordance with
EN 50304. Tests were carried out using
Gentle Bake.
Description of the appliance
5

Accessories
The following accessories are supplied
with this oven.
These and other accessories are also
available to order from the Miele Spare
Parts Department or your Miele Dealer.
See "Extra accessories" further on in
this booklet for more details.

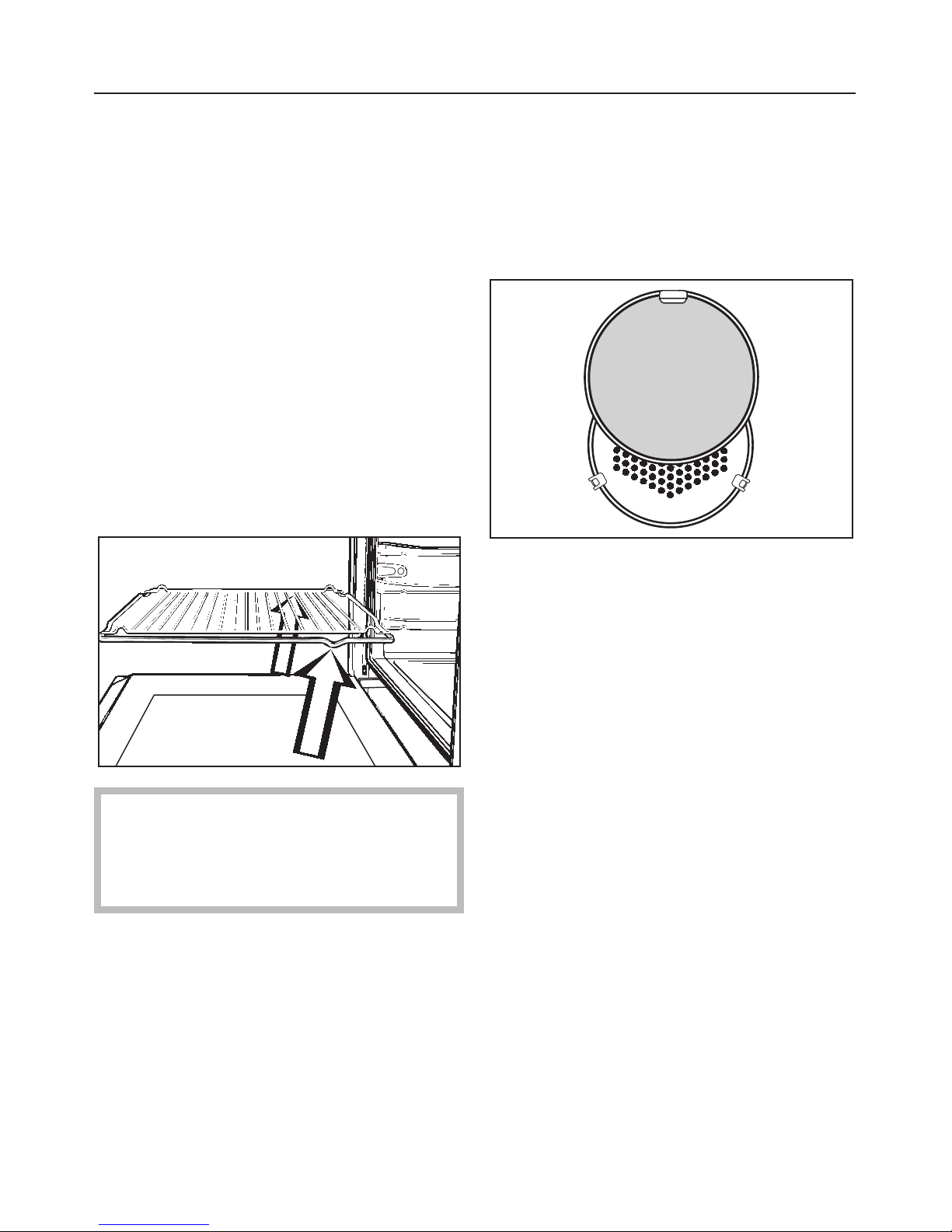

Baking tray, grill pan and rack
The baking tray, grill pan and rack are
fitted with non-tip safety notches which
prevent them being pulled right out
when they only need to be partially
pulled out.
When pushing the tray, pan and rack
back in, always ensure that the
safety notches are at the rear of the
oven (see illustration).
The tray, pan and rack can then only be
taken out of the oven by raising them
upwards and then pulling them out.
Roasting filter
The roasting filter must be fitted in front
of the fan when cooking anything fatty,
or where food is likely to splatter, e.g.
when open roasting or grilling meat.
The droplets of fat caught up in the
circulating air are deposited on the
roasting filter. This helps to keep the
oven and the area behind the interior
back panel cleaner.
Do not use the roasting filter when
baking. This would increase the times
needed for baking and give uneven
browning results.
Description of the appliance
6

Anti-splash tray
(depending on model)
The anti-splash tray should be placed
in the deep-sided grill pan when grilling
or roasting.
The juices from the food being cooked
collect under the anti-splash tray. This
prevents them from spitting and making
the oven dirty. The juices can then be
used for making gravy and sauces.
Handle
(depending on model)
The handle makes it easier to take the
baking tray, grill pan and rack out of the
oven, or to put them into it.
The two prongs at the top go inside the
pan, rack or tray and the U-shaped
supports underneath.
Description of the appliance
7

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these
materials away, please ensure they are
offered for recycling.
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre and ensure that it presents no
danger to children while being stored
for disposal.
It should be unplugged or disconnected
from the mains electricity supply by a
competent person. Any plug must be
rendered useless and the cable cut off
directly behind it to prevent misuse.
See the "Warning and Safety" section of
this booklet for further details.
Caring for the environment
8

This appliance complies with all
relevant legal safety requirements.
Improper use of the appliance can,
however, present a risk of both
personal injury and material damage.
To avoid the risk of accidents and
damage to the appliance, please
read these operating instructions
carefully before installation and
before using it for the first time.
They contain important notes on
installation, safety, operation and
care of the appliance.
Keep these instructions in a safe
place and pass them on to any
future user.
Correct usage
This appliance is intended for
domestic use to cook food, and in
particular to bake, roast, defrost, cook,
dry fruit etc, and to grill.
Any other usage is at the owner’s risk
and could be dangerous. The
manufacturer cannot be held liable for
damage caused by incorrect or
improper use of the appliance.
This appliance is not a toy! To
avoid the risk of injury, do not allow
children to play on or near it or to play
with the controls. Supervise children or
infirm persons to ensure that they can
use the appliance safely. If allowing
older children to use the appliance
without supervision, please ensure that
they are aware of how the oven works
and understand the dangers of
improper use.
Technical safety
Before connecting the appliance to
the mains supply, make sure that
the voltage and frequency correspond
to the rating on the data plate,
otherwise the appliance could be
damaged. Consult a competent person
if in doubt.
The electrical safety of this
appliance can only be guaranteed
when continuity is complete between it
and an effective earthing system which
complies with local and national safety
regulations. It is most important that this
basic safety requirement is present and
regularly tested, and where there is any
doubt the household wiring system
should be inspected by a qualified
electrician.
The manufacturer cannot be held liable
for the consequences of an inadequate
earthing system (e.g. electric shock).
The appliance must be built in
before operation to ensure that no
electrical components are accessible.
Never open the casing of the
appliance.
Tampering with electrical connections
or components and mechanical parts is
highly dangerous to the user and can
cause operational faults.
Warning and Safety instructions
9

Installation, maintenance and
repair work may only be carried out
by a suitably qualified and competent
person in accordance with national and
local safety regulations.
Repairs and other work by unqualified
persons could be dangerous. The
manufacturer cannot be held liable for
unauthorised work.
During installation, maintenance
and repair work, the appliance
must be disconnected from the mains
electricity supply. The appliance is only
completely isolated from the electricity
supply when:
– the mains fuse is withdrawn,
– or the screw-out fuse is removed (in
countries where this is applicable),
– or it is switched off at the isolator.
Ensure that current is not supplied to
the appliance until after maintenance
or repair work has been carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
This equipment may only be used
in mobile installations such as
ships, caravans, aircraft etc. if a risk
assessment of the installation has been
carried out by a suitably qualified
engineer.
Use
Caution, danger of burning.
High temperatures are produced by
the oven.
Great care should be taken to
ensure that small children do not
touch the appliance when it is being
used. Children’s skin is far more
sensitive to high temperatures than that
of adults.
External parts of the oven such as the
door glass, handle vent and control
panel can become quite hot.
Children should not be left alone or
unattended in an area where an
oven is in use. They should never be
allowed to sit or stand on any part of
the oven or play with it.
Do not store items of interest to children
in cabinets above an oven. Children
climbing on to the oven to reach these
could be seriously injured.
Use oven gloves when placing
food in the oven, turning or
removing it and when adjusting oven
shelves etc. in a hot oven.
When working with "Conventional"
heating or when grilling, the element in
the roof of the oven and the roof liner
become very hot, and there is a danger
of being burnt.
Warning and Safety instructions
10
