Miele DA 327 i Specification sheet

Operating and Installation Instructions
for cooker hoods
DA 326 i, DA 326 i EXT
DA 327 i, DA 327 i EXT
DA 329 i, DA 329 i EXT
It is essential to read these
operating and installation instructions Q\@ä}
before installing or using the machine,
to avoid the risk of accident
or damage to the machine. M.-Nr. 05 473 620

Contents
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Description of the functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Primary filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Secondary filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Fitting / replacing the active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Defective lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Installation
Fitting accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1. Non-return flap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
2. Reducing collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3. Runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4. Fit the furniture door. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5. Position the appliance in the wall unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6. Align the height of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7 a. Fitting a DFB lightshield . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7 b. Fitting a lightshield to match the kitchen furniture . . . . . . . . . . . . . . . . . . . . . 28
8. Align the depth of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
9 a. Fit side spacers at the sides of the appliance . . . . . . . . . . . . . . . . . . . . . . . . 30
9 b. Spacer strip for the rear of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
9 c. Light cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
10 a. Set up for vented extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
10 b. Set up for recirculation connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
11. Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Special fitting instructions
Fitting into wall unit with 19 mm thick carcase sides . . . . . . . . . . . . . . . . . . . . 33
Installing in a 70 or 90 cm wide wall unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Connection for air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Contents
2

Caring for the environment
Disposal of pac ing material
The transport and protective packa-
ging has been selected from materials
which are environmentally friendly for
disposal and can normally be recycled.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation!
Rather than just throwing these ma-
terials away, please ensure they are of-
fered for recycling.
Disposal of your old appliance
Old appliances contain materials which
can be reclaimed or recycled. Please
contact your dealer, your waste collec-
tion centre or scrap merchant about
potential recycling schemes.
Ensure that the appliance presents no
danger to children while being stored
for disposal.
See the appropriate section in the
Warning and Safety instructions.
Caring for the environment
3

Warning and Safety instructions
This appliance conforms to current
safety requirements. Inappropriate
use could, however lead to risk of
accidents to the user and damage
to the appliance.
Before using this appliance for the
first time read the operating instruc-
tions carefully. They contain import-
ant information on safety, use and
maintenance of the appliance. This
way you will avoid the risk of acci-
dents and damage to the appliance.
Keep these operating instructions in
a safe place and ensure that new
users are familiar with the content.
Pass them on to any future owner.
Appropriate use
The appliance is intended for do-
mestic use only.
The manufacturer cannot be held re-
sponsible for any damage caused by
improper use or by non-observance of
these instructions.
Technical safety
Before connecting the cooker
hood to the mains supply make
sure that the voltage and frequency de-
tails given on the data plate corre-
spond with the on-site electricity sup-
ply, otherwise the appliance could be
damaged. If in doubt consult a quali-
fied electrician.
The electrical safety of this ap-
pliance can only be guaranteed
when continuity is complete between
the appliance and an effective earthing
system which complies with local and
national regulations. It is most import-
ant that this basic safety requirement is
tested by a qualified electrician.
The manufacturer cannot be held re-
sponsible for the consequences of an
inadequate earthing system (e.g. elec-
tric shock).
Installation work and repairs may
only be carried out by suitably
qualified and competent persons to en-
sure safety. Repairs and other work by
unqualified persons could be dan-
gerous and the manufacturer will not
be held responsible.
Warning and Safety instructions
4

The appliance is only completely
isolated from the mains supply
when:
– it is switched off at the fused spur
connection, or
– it is switched off at the wall socket
and the plug has been withdrawn
(do not pull on the cable, only on the
plug), or
– the mains fuse is withdrawn.
Ensure current is not supplied to the ap-
pliance while maintenance or repair
work is being carried out.
Do not connect the appliance to
the mains electricity supply by an
extension lead.
Extension leads do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
Use of the appliance
Do not let small children play with
the appliance or its controls. Super-
vise its use by the elderly or infirm.
When fitted above an open grill the
cooker hood must not be used in
recirculation mode.
Never use an open flame beneath
the cooker hood. To avoid the
danger of fire do not flambé or grill over
an open flame. When switched on the
cooker hood could draw flames into the
filters. Fat particles drawn into the
cooker hood present a fire hazard.
When using the cooker hood over
a gas hob ensure that any burners
in use are always covered by a pan.
Otherwise flames could be drawn up
by the suction of the cooker hood,
parts of which could then be damaged.
Always switch the cooker hood on
when a cooking zone is in use,
otherwise condensation may collect in
the hood, which could cause corrosion.
When cooking with oil or fat, chip
pans and deep fat fryers etc, do
not leave the pans unattended. Never
leave an open grill unattended when
grilling. Overheated oil and fat can ig-
nite and could set the cooker hood on
fire.
Do not use the cooker hood with-
out the grease filter in place.
This way you will avoid the risk of
grease and dirt getting into the ap-
pliance and hindering its smooth oper-
ation.
Clean or change the filter regularly.
An over-greasy filter is a fire ha-
zard.
Under no circumstances use a
steam cleaner to clean this ap-
pliance. Pressurised steam could
reach the electrical components and
cause a short circuit.
Warning and Safety instructions
5

Installation
– The distance between the top of the
cooker/hob and the bottom of the
cooker hood must measure at least:
– 45 cm above electric cookers/hobs,
– 65 cm above gas cookers/hobs,
– 65 cm above a Miele or Imperial
electric open grill.
For other manufacturer’s cooking ap-
pliances maintain the safety distance
as recommended in their Installation
and Operating instructions.
If more than one appliance is fitted be-
neath the cooker hood and they have
different minimum safety distances to
the cooker hood, select the higher dis-
tance.
Safety regulations prohibit the fit-
ting of a cooker hood over solid
fuel stoves.
All ducting, pipework and fittings
must be of non-flammable ma-
terial. These can be obtained from the
Miele Spare Parts department or from
builders’ merchants.
The appliance must not be con-
nected to a chimney or vent flue
which is in use. Neither should it be
connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into
a chimney or ventilation duct no
longer used for other purposes, take
professional advice.
Warning and Safety instructions
6

When using the cooker hood at the
same time as another heating ap-
pliance which depends on the air in the
room, (e.g. gas, oil or coal fired
heaters, continuous flow or other water
heaters, gas cooker, gas hob or gas
oven) special care must be taken, as
the action of the cooker hood extracts
air from the room, which these types of
heater need for combustion.
In order to ensure safe operation, and
to prevent the gases given off by the
heating appliances from being drawn
back into the room when the extractor
and the heater are in operation simulta-
neously, an underpressure in the room
of 0.04 mbar (4 pa) is the maximum
permissible.
Ventilation can be maintained by air in-
lets which cannot be blocked, in win-
dows, doors and outside wall vents, or
by other technical measures, such as
ensuring that the extractor can only be
switched on when the heating ap-
pliance is switched off or vice-versa.
N.B.: The overall ventilation condition of
the dwelling must be taken into ac-
count.
If in any doubt, the advice of a compe-
tent builder or, for gas, a “Corgi” instal-
ler (gas installer) must be sought.
If the cooker hood is used in recircula-
tion mode (with active charcoal filters) ,
there are no restrictions.
In countries where there are areas
which may be subject to infesta-
tion by cockroaches or other vermin,
pay particular attention to keeping the
appliance and its surroundings in a
clean condition at all times. Any dam-
age which might be caused by cock-
roaches or other vermin will not be
covered by the appliance guarantee.
Appliances with external fans
For appliances with an external fan
motor fitted (EX models) the connection
of the two units must be made using
the connection cable and the plug con-
nectors. Make sure the correct combi-
nation of the two appliances has been
selected.
Separate instructions are supplied with
the external fan.
Disposal of your old appliance
Before discarding an old ap-
pliance switch off and disconnect
it from the power supply. Cut off and
render any plug useless. Cut off the
cable directly behind the appliance to
prevent misuse. This should be done
by a competent person.
The manufacturer cannot be held re-
sponsible for any damage caused
by non-observance of these instruc-
tions.
Warning and Safety instructions
7

Guide to the appliance
Guide to the appliance
8

bExhaust stub ø 150 mm
cActive charcoal filter slot

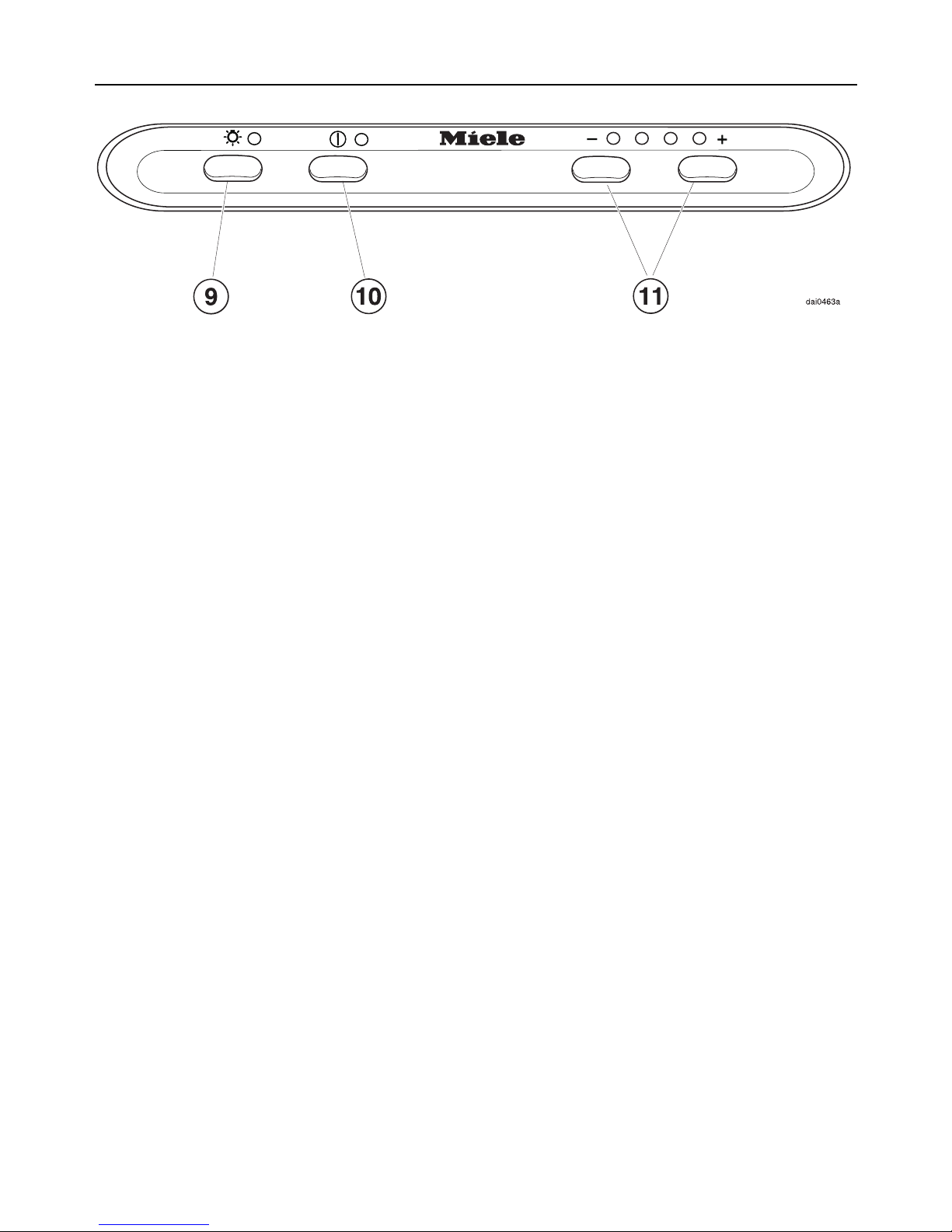

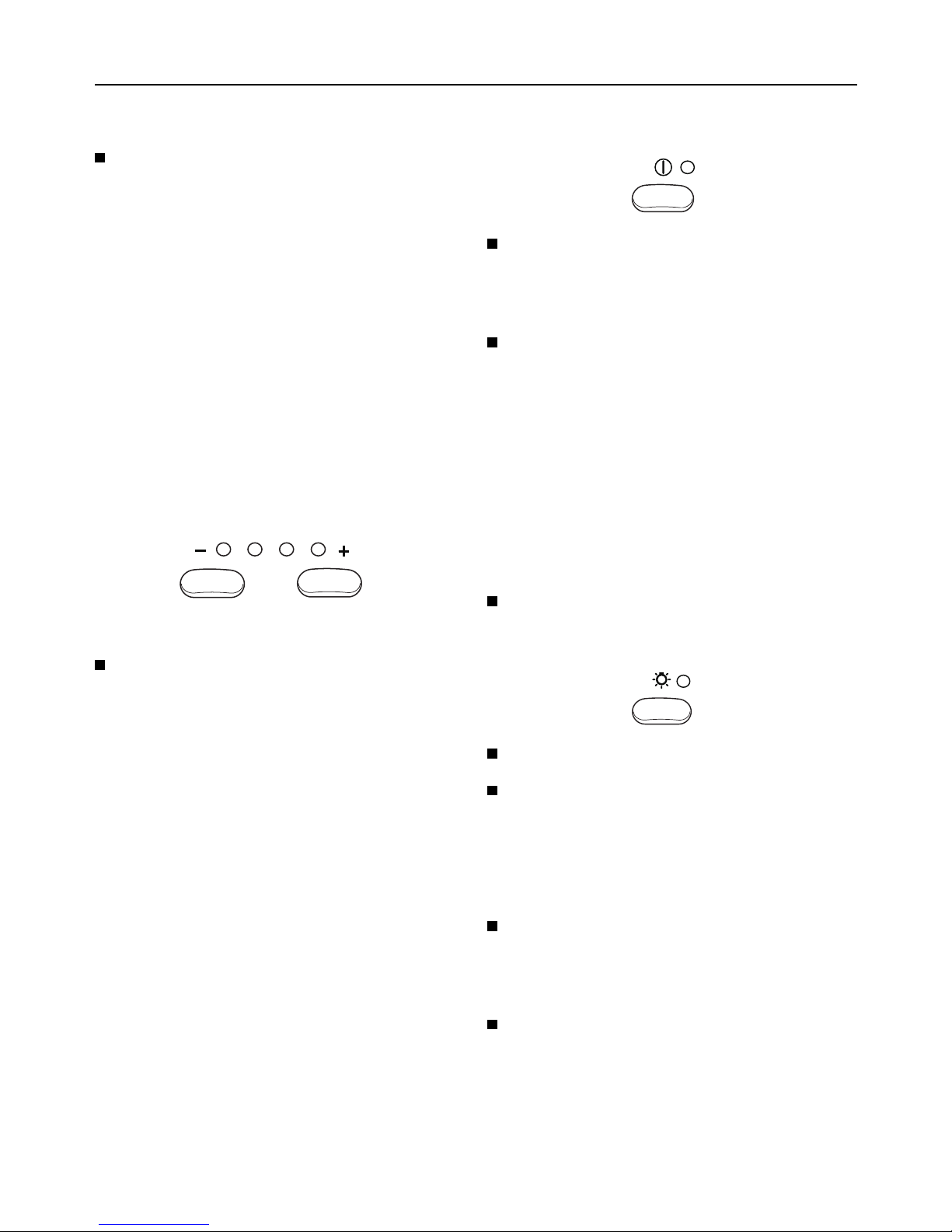

dControl panel
ePull-out
deflector plate
fDFB lightshield
(Special accessory; supplied as
standard in Australia)
gSecondary grease filter
hHob illumination
iPrimary grease filter
jLight switch for hob
illumination
kOn/Off switch for the
fan
lPower level
switches
You can select one of three power le-
vels or an intensive level, depending on
how much the air needs to be filtered.
Guide to the appliance
9

Description of the functions
The cooker hood works
. . . by air extraction:
The air is drawn in, cleaned by a pri-
mary filter and then passed through a
secondary filter before being directed
outside.
The cooker hood is fitted with a non-
return flap .
This flap is closed when the cooker
hood is switched off. No exchange of
room air and outside air can take
place. When the cooker hood is
switched on the non-return flap opens
for the cooking smells to be blown di-
rectly outside.
. . . by air recirculation:
The air is drawn in and cleaned first by
the primary filter, then the secondary fil-
ter before passing through an active
charcoal filter. The cleaned air is then
recirculated back into the kitchen
through a vent in the top of the cooker
hood.

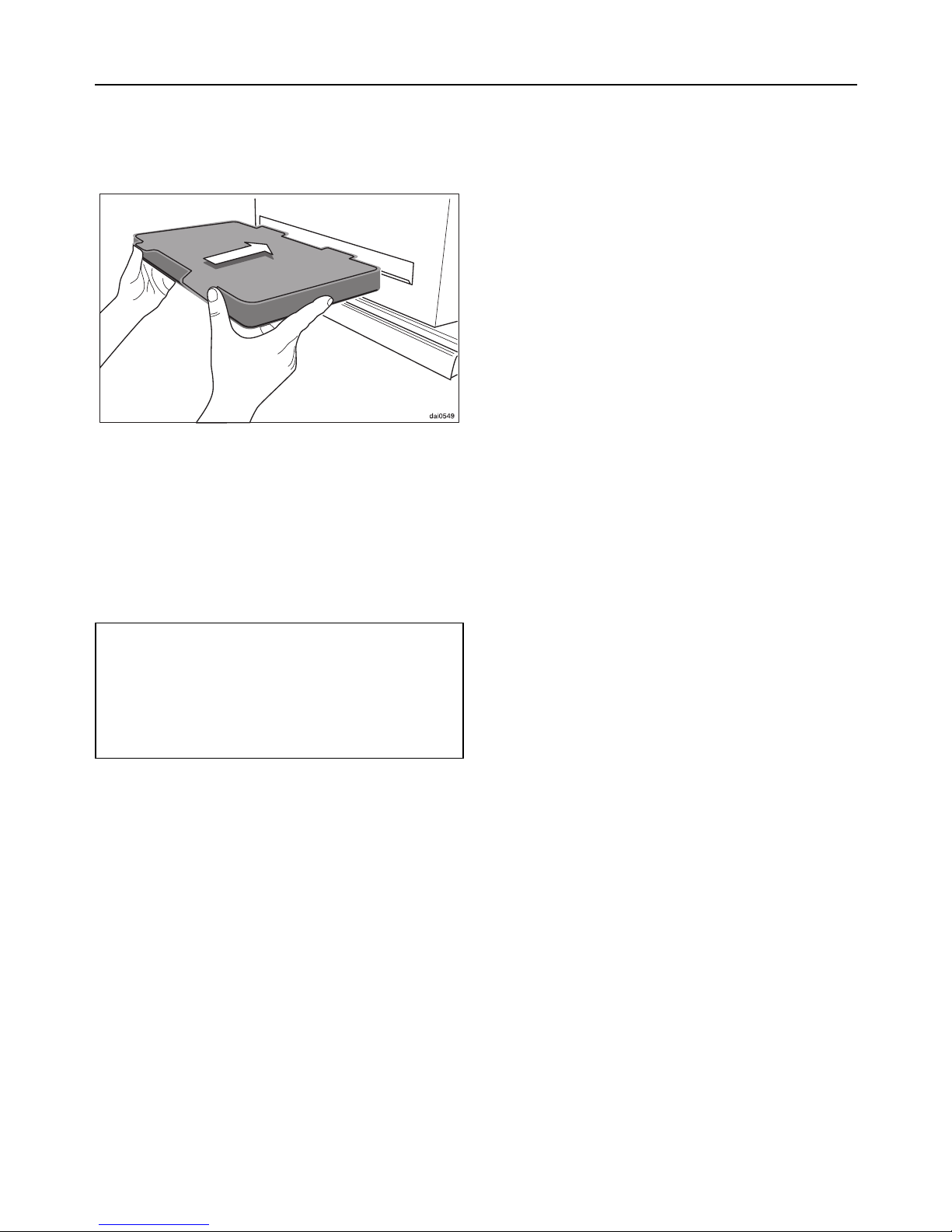

Before using the cooker hood for
the first time in recirculation mode,
ensure that the active charcoal filter
is in place. See Section on "Clean-
ing and care".
. . . with an external fan
The EX models are designed to be con-
nected to an external fan located out-
side the room.
The external fan is connected to the
cooker hood by a control cable and is
operated by the control panel on the
cooker hood.
Description of the functions
10
