Miele DA 337 I User manual

Operating Instructions
for the
DA 337 i
Ventilation System
To prevent accidents
and machine damage, ö]
read these Operating Instructions
before installation or use. M.-Nr. 05 473 690

Contents
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Warning and Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Description of the functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Cleaning and care
Housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Grease filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Inserting / replacing the active charcoal filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

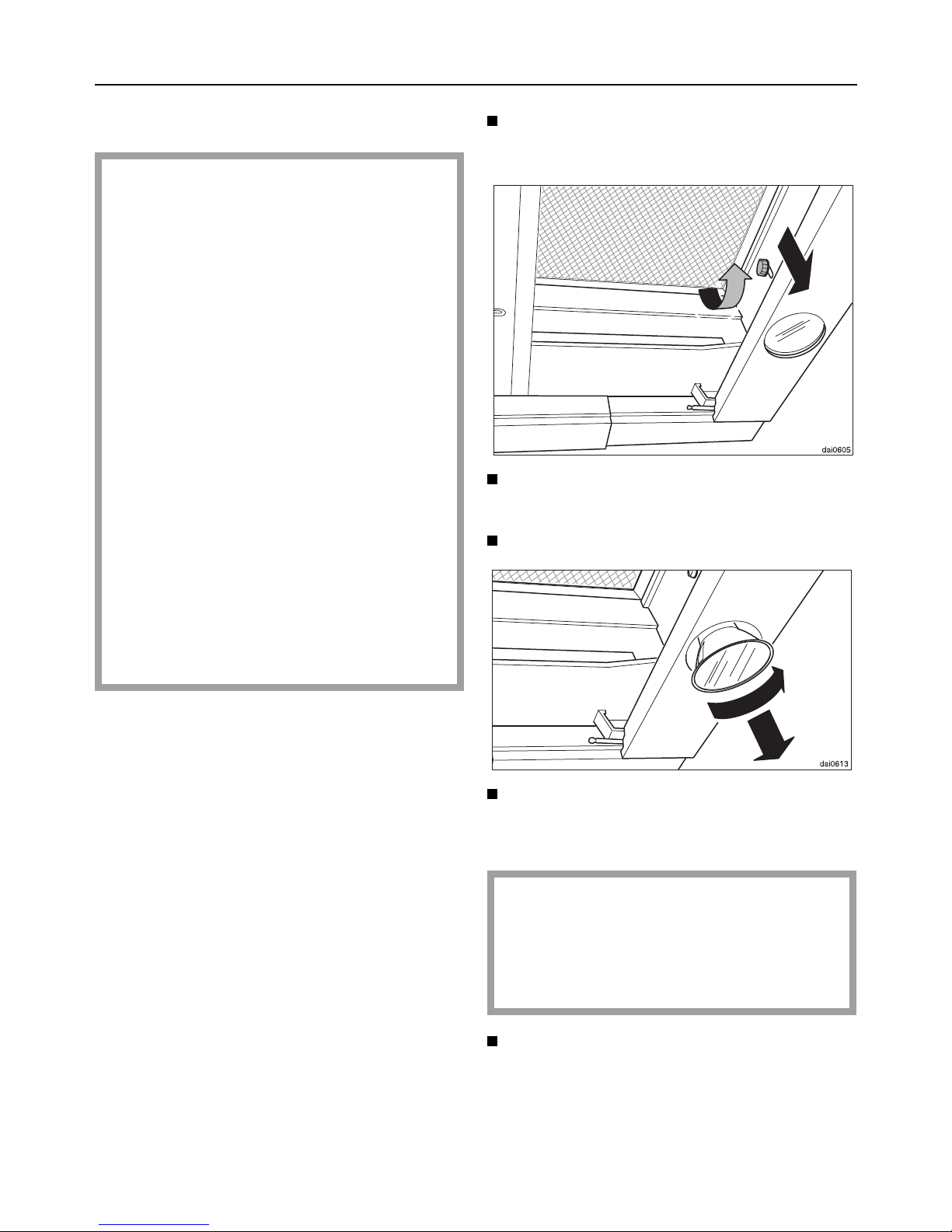

Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
After Sales Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Appliance dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Installation
Installation accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1. Non-return flap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2. Reducing collar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3. Runners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4. Hang the cabinet door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5. Position the appliance in the cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
6. Align the height of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7. Align the depth of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
8 a. Fit side spacers at the sides of the appliance . . . . . . . . . . . . . . . . . . . . . . . . 32
8 b. Spacer strip for the rear of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9 a. Set up for vented extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
9 b. Set up for recirculation mode connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10. Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Special installation instructions
Installation in to a cabinet with 19 mm thick walls . . . . . . . . . . . . . . . . . . . . . . 35
Installing in a 27 9/16” (70 cm) wide cabinet: . . . . . . . . . . . . . . . . . . . . . . . . . 35
Air extraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
echnical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Contents
2

Caring for the environment
Disposal of packing material
The transport and protective packing
are environmentally friendly for dispo-
sal and can normally be recycled.
Please recycle.
Disposal of an old appliance
Old appliances contain materials that
can be recycled. Please contact your
local recycling center about the possi-
bility of recycling these materials.
Make sure that the appliance presents
no danger to children while waiting for
disposal by removing the power cord
and any doors.
See the appropriate section in the
Warning and Safety instructions.
Caring for the environment
3

Warning and Safety Instructions
Read these Operating Instructions carefully before installing or
using the Ventilation System.
This appliance is intended for
residential use only. Use the ap-
pliance only for its intended pur-
pose. The manufacturer cannot be
held responsible for damages
caused by improper use of the
hood.
Read all the instructions before in-
stalling or using for the first time.
SAVE HESE INS RUC IONS AND
REVIEW HEM PERIODICALLY
CAUTION
For General Ventilating Use Only.
Do Not Use To Exhaust Hazardous
Or Explosive Materials And Vapors.
This appliance is designed to vent
cooking smoke \ odors only.
Be certain your appliance is
properly installed and grounded
by a qualified technician.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system. It is impera-
tive that this basic safety requirement
be met. If there is any doubt, have the
electrical system of the house checked
by a qualified electrician. The manufac-
turer cannot be held responsible for
damages caused by the lack, or inade-
quacy of, an effective grounding system.
Do not connect the appliance to
the main electrical supply using an
extension cord. Extension cords do not
meet the safety requirements of this ap-
pliance.
Do not turn on the hood until it has
been properly installed.
Repairs on electric appliances
should only be performed by quali-
fied technician. Do not repair or re-
place any part of the appliance unless
specifically recommended in this ma-
nual.
Before servicing, disconnect the
power supply by either removing
the fuse or unplugging the unit or ma-
nually “tripping” the circuit breaker.
When installing the hood, make
sure that the minimum safety
distances between cooktops and the
hood are maintained.
– For electric cooktops: 18" (45 cm)
– For gas cooktops: 26" (65 cm)
– For a Miele open grill: 26" (65 cm)
Do not install this exhaust hood
over cooktops burning solid fuel.
Warning and Safety Instructions
4

WARNING
o reduce the risk of fire, use only
metal ductwork.
Any fittings, sealant, or materials used
to install the ductwork must be made of
approved non-flammable materials.
Never connect an exhaust hood to
an active chimney, dryer vent, vent
flue, or room ventilating ductwork. Seek
professional advice before connecting
an exhaust hood vent to an existing, in-
active chimney or vent flue.
Never operate gas burners without
pots. Heat generated by pro-
longed operation of gas burners with-
out pots could damage the hood.
Do not flambébeneath the exhaust
hood. Flames could be drawn up
into the hood by the suction or the
grease filters may ignite.
Do not allow children to play with
the hood or its controls.
Do not leave cooking surfaces un-
attended while in use. Overheated
food can ignite.
Do not use the exhaust hood with-
out the grease filters in place.
Clean the grease filters regularly.
Dirty filters are a fire hazard.
Do not use a steam cleaner to
clean the hood. The steam could
penetrate to electrical components and
cause a short circuit.
WARNING
O REDUCE HE RISK OF A RANGE
OP GREASE FIRE:
Keep the fan, filters and grease
laden surfaces clean.
Always turn hood "ON" when cook-
ing at high heat.
Use high range settings on range
only when necessary. Heat oil
slowly on low to medium setting.
Don’t leave range unattended
when cooking.
Always use cookware and utensils
appropriate for the type and
amount of food being prepared.
Warning and Safety Instructions
5

WARNING
O REDUCE HE RISK OF INJURY
O PERSONS IN HE EVEN OF A
RANGE OP GREASE FIRE,
OBSERVE HE FOLLLOWING:
Smother flames with a close fit-
ting lid, cookie sheet, or metal tray,
then turn off the burner.
Be careful to prevent burns.
If the flames do not go out immediately,
evacuate and call the fire department.
Never pick up a flaming pan -
You may be burned.
Do not use water, including wet
dishcloths or towels - a violent
steam explosion will occur.
Use an extinguisher
only if:
–You know you have a Class ABC ex-
tinguisher, and you already know
how to operate it.
–The fire is small and contained in the
area where it started.
–The fire department is being called.
–You can fight the fire with your back
to an exit.
WARNING
O REDUCE HE RISK OF FIRE,
ELEC RIC SHOCK, OR INJURY O
PERSONS,
OBSERVE HE FOLLOWING:
Use this unit only in the manner in-
tended by the manufacturer. If you
have questions, contact the manufacturer.
Before servicing or cleaning the
unit, turn power off at circuit
breaker and lock the service discon-
necting means to prevent power from
being turned on accidentally. When the
service disconnecting means cannot
be locked, securely fasten a prominent
warning device, such as a tag, to the
service panel.
Installation and electrical work
must be performed by qualified
technicians in accordance with all ap-
plicable codes and standards.
Make sure that the airflow in the
room is sufficient for combustion
and exhausting of all non-electric heat-
ing appliances (water heaters, gas
cooktops, gas ovens, etc.), otherwise
back drafts may occur. Follow the heat-
ing maunfacturer’s guidelines and
safety standards or those published by
the National Fire Protection Association
(NFPA), or the American Society for
Heating, Refrigeration and Air Condi-
tioning Engineers (ASHRAE).
If in doubt, consult an experienced pro-
fessional.
Be careful not to damage hidden
electrical wiring or plumbing when
cutting or drilling into the wall or ceiling.
Ducted fans must always be
vented outdoors.
Warning and Safety Instructions
6

When connecting the hood to an ex-
ternal vent, make sure that there is
adequate ventilation in the room
where the exhaust hood is to be
used.
When using the hood in the same area
as other appliances requiring room air
(e.g. non-electric water heaters, gas
cooktops, gas ovens, etc.) make cer-
tain that the air extracted by the hood
does not hinder their operation. These
appliances need air for combustion.
Adequate ventilation can be main-
tained by installing air vents in windows
or walls or by ensuring that the hood
can only be turned on when the other
appliances are off, or vice versa.
To prevent combustion gases being
drawn back into the room by the ex-
haust hood, the underpressure in the
room must be no greater than 0.0006 psi
(0.04 mbar) when the hood and these
appliances are running simultaneously.
If there are any doubts as to whether
there is adequate ventilation, consult
an experienced professional.
Disposal of old appliances
Before discarding an old appliance,
remove its power cord and any doors
to prevent it from becoming a hazard.
SAVE HESE INS RUC IONS AND
REVIEW HEM PERIODICALLY
Throughout the manual, important
safety items will be highlighted in
boxes and should be read in con-
junction with these “Warning and
Safety instructions”.
Warning and Safety Instructions
7

Guide to the appliance
Guide to the appliance
8

bVent connection
cActive charcoal filter slot
dControl panel
ePull-out
deflector plate
fInternal grease filter
gOver head cooktop light
hExternal grease filter

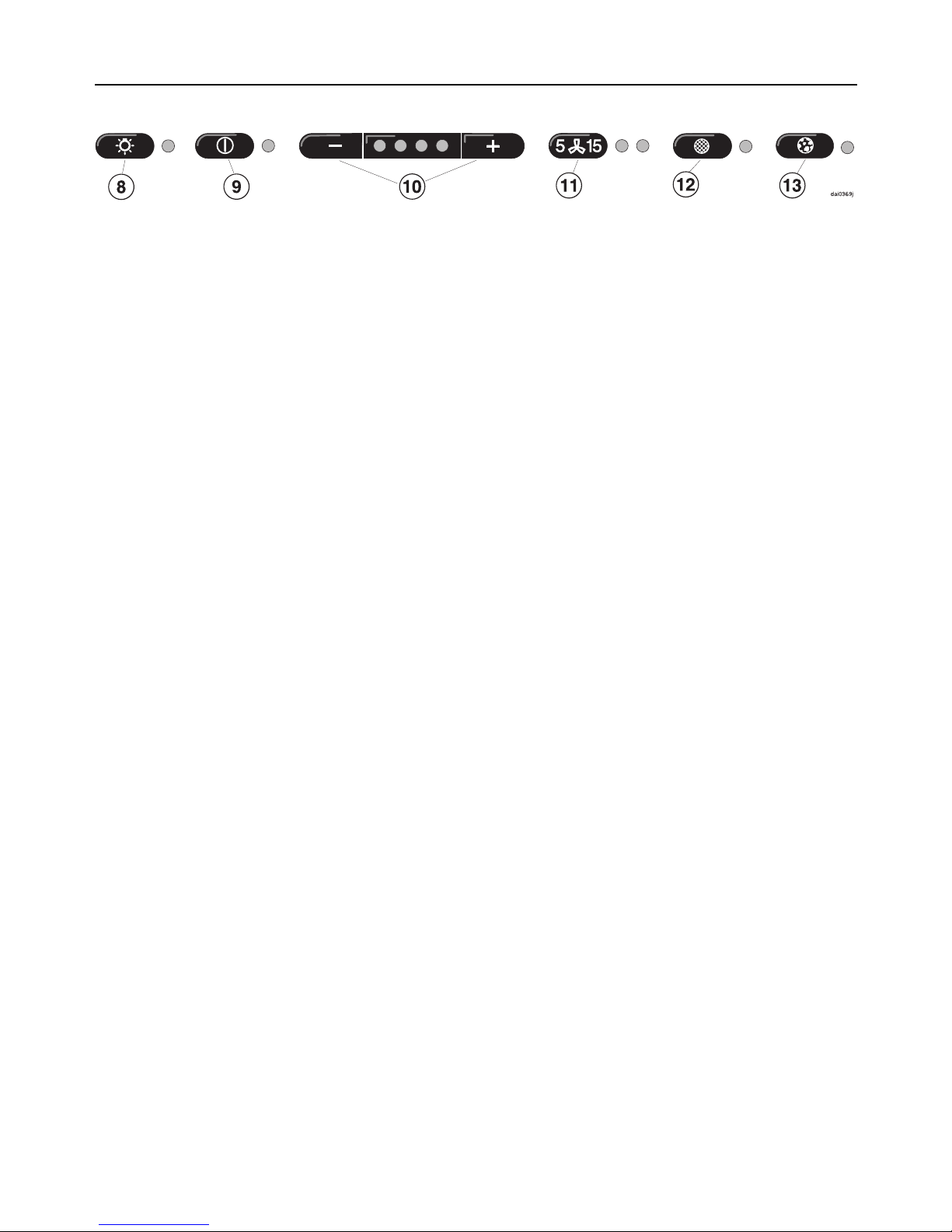

iLight button
jOn/Off button
k– / + Power level buttons
(Four fan speed selection)
lDelayed Shut Down button
This control activates the Delayed Shut
Down feature. The fan turns off auto-
matically after either 5 or 15 minutes.
m Grease filter button
The indicator next to the grease filter
button lights up when the grease filter
needs to be cleaned.
Use this button to:
–display how long the grease filter
has been in use (see ”Operation/ Fil-
ter timer”).
–change or reset the number of hours
registered by the timer (see ”Oper-
ation/ Reprogramming the timer”).
nActive charcoal filter button
The indicator next to the active char-
coal filter button lights when the active
charcoal filter used in recirculation
mode needs to be replaced.
Use this button to:
–display how long the Active Char-
coal Filter has been in use (see
”Operation/ Filter timer”).
–change or reset the number of hours
registered by the timer (see ”Oper-
ation/ Reprogramming the timer”).
Guide to the appliance
9

Description of the functions
The hood works
. . . by air extraction:
The air is drawn in, cleaned by an exter-
nal filter and then passed through an in-
ternal filter before being directed out-
side.
The hood has a non-return flap , (see
"Installation").
This flap is closed when the hood is
off. No exchange of room air and out-
side air can take place. When the
hood is turned on the non-return flap
opens for the cooking odors to be
blown outside.
. . . by air recirculaton:
The air is drawn in and cleaned first by
the external filter, then by the internal fil-
ter before passing through an active
charcoal filter. The cleaned air is then
recirculated back into the kitchen
through a vent in the top of the hood.
Before using the hood for the first
time in recirculation mode, make
sure that the active charcoal filter is
in place. See Section on "Cleaning
and care".
Description of the functions
10

Operation
urning on the exhaust fan
Pull the deflector plate out about 2”
(5 cm).
The hood will then begin to operate
at power level ”II”.
Selecting the power level
Depending on how much the air needs
to be filtered, there are four power le-
vels available. For normal cooking a
low to medium level is usually suffi-
cient. For frying or cooking food with a
strong aroma the highest level is recom-
mended.
Lower level Higher level
Use the –/+ buttons to select a fan
power level.
The indicators show which power level
has been chosen.
Delayed Shut Down feature
If the air still needs to be vented after
cooking, the hood can be set to con-
tinue running.
The fan motor will then turn off automati-
cally after 5 or 15 minutes.
During operation, press the Delayed
Shut Down button.
once = for an additional 5 minutes
of venting
(the left indicator will light)
twice = for an additional 15 minutes
of venting
(the right indicator will light).
The Delayed Shut Down can be can-
celled at any time by pressing the but-
ton a third time.
Operation
11

urning off the exhaust fan
Use the On/Off button to turn the fan
off
or
Push the deflector plate back in.
The next time the deflector plate is
pulled out the hood will operate at
power level ”II”.
urning the lights on or off
The overhead lighting for the cooktop
can be turned on or off independently
of the fan.
Pull the deflector plate out approxi-
mately 1”(3 cm).
Press the light button.
When the light is turned on the indi-
cator next to the light button glows.
To turn it off
Press the light button again
or
Push the deflector plate back in.
The next time the deflector plate is
pulled out the light will come back on.
Safety shut off feature
If the hood is left running for 10 hours
without any buttons being pressed, it
will automatically shut off. The over-
head lighting will remain lit even though
the fan has been shut off.
To turn the fan back on press the
On/Off button.
Operation
12

Grease filter timer
The timer for the grease filters is preset
for 30 hours of use.
After 30 hours the grease filter indicator
will light.
The grease filters must be cleaned at
this time, and reset as follows:
Hold the grease filter button for 4
seconds.
The indicator light will go out.
Active Charcoal Filter timer
The filter timer for the Active Charcoal
Filter can be programmed to suit your
cooking style.
After the programmed time has
elapsed, the Active Charcoal Filter indi-
cator will light. The Active Charcoal Fil-
ter must be replaced at this time, and
reset as follows:
Press the Active Charcoal Filter but-
ton for 4 seconds.
The indicator light will go out.
Reading the filter timer
To check the percentage of the time
set already used:
Pull the deflector plate out about 2”
(5 cm). The fan turns on.
Press the grease filter / active char-
coal filter button.
One or several of the indicators be-
tween the –/+touch controls will flash.
The number of flashing lights indicates
the percentage of operating time al-
ready used.
1 indicator = 25%
2 indicators = 50%
3 indicators = 75%
4 indicators = 100%
The number of operating hours used re-
mains in memory, even when the ap-
pliance is turned off or there is a power
failure.
Operation
13

Changing the filter timer
You can set the filter timer to suit the
type of cooking you do.
–Select a short time if you grill or fry
frequently.
–Select a longer time if you do not grill
or fry often.
–if you only cook occasionally, pro-
gram a shorter time so the filters will
be cleaned more often. Otherwise
accumulated grease will harden on
the filters and make cleaning diffi-
cult.

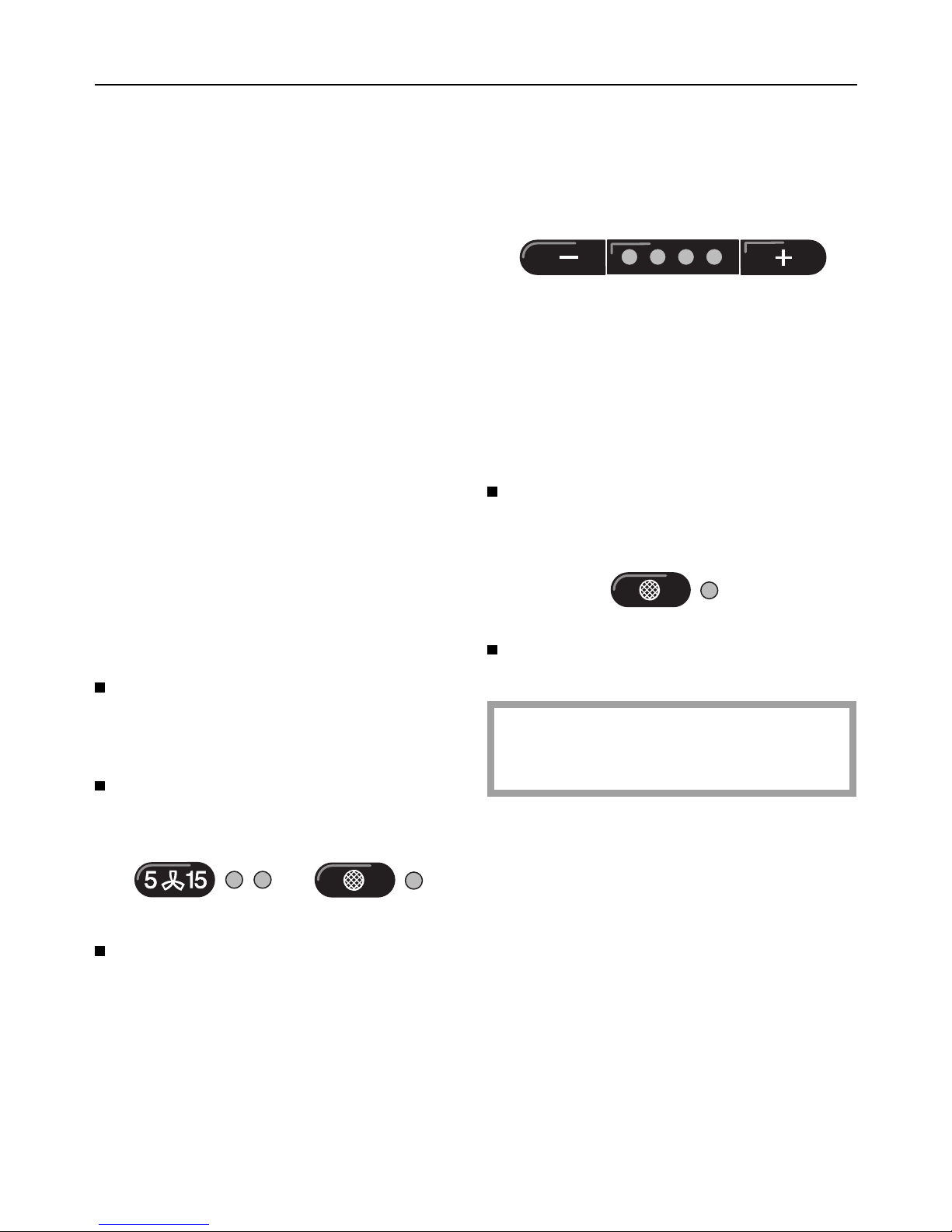

Changing the hours preset in the
grease filter timer
The filter timer for the grease filters is
set to 30 hours. This time can be leng-
thened or shortened. You can choose
from 20, 30, 40 or 50 hours.
Use the On/Off button to turn the fan
off.
or
Push the deflector plate in.
Press the Delayed Shut Down button
and the grease filter button at the
same time.
The indicator for the grease filter button
and one of the indicators between the
–/+buttons will flash.
The indicators between the –/+buttons
show the time which has been set:
1st indicator from left = 20 hours
2nd indicator from left = 30 hours
3rd indicator from left = 40 hours
4th indicator from left = 50 hours
Use the –/+buttons to select the
desired time.
Confirm the programming by press-
ing the grease filter button.
If the programming is not confirmed
within 4 minutes the hood will auto-
matically revert to the ”old”data.
Operation
14

Active charcoal filter
The active charcoal filter is needed for
recirculation mode. It is not used for
vented extraction.
The hood is preset for vented extrac-
tion, the filter hour counter for the ac-
tive charcoal filter is set to ”unlimited”.
For recirculation mode the filter timer
needs to be set to the required time:
Use the On/Off button to turn the fan
off.
or
Push the deflector plate in.
Press the Delayed Shut Down button
and the active charcoal filter button
simultaneously.
The indicator for the active charcoal fil-
ter button and one of the indicators be-
tween the –/+buttons will flash.
The indicators between the –/+buttons
show the time which has been set:
1st indicator from left = 120 hours
2nd indicator from left = 180 hours
3rd indicator from left = 240 hours
4th indicator from left = unlimited
Use the –/+buttons to select the
desired time.
Confirm the programming by press-
ing the active charcoal filter button.
If the programming is not confirmed
within 4 minutes the hood will auto-
matically revert to the ”old”data.
Operation
15

Cleaning and care
Before servicing or cleaning the
hood, disconnect it from the power
supply by either removing the fuse,
unplugging it, or manually ”tripping”
the circuit breaker.
Ensure current is not supplied to the
appliance while maintenance or re-
pair work is performed.
Housing
Lacquered surfaces can be cleaned
using a solution of hot water and liquid
dish soap and dried with a soft cloth.
For stainless steel surfaces a mild non-
abrasive stainless steel cleaner can be
used.
Never use abrasive cleaners, scour-
ing pads, steel wool or caustic
(oven) cleaners on the hood. They
will damage the surface.
Grease filters
The re-usable metal filters catch any
grease, dust or other solid particles
that are pulled into it by the fan.
The hood has an external filter which is
visible on the underside of the ap-
pliance. An internal filter is situated
above it in the appliance.
The filters should be cleaned when the
grease filter indicator illuminates.
To prevent grease build up, both filters
should be cleaned every 3 to 4 weeks,
regardless of use.
Important! Always clean both filters.
A dirty filter is a fire hazard.
Cleaning and care
16

External filter
To remove the external filter pull the
deflector plate out slightly.
Turn the fan off.
Holding the external filter at the front
tilt it approximately 1”(3 cm) down-
wards and then pull it towards you to
remove it.
Internal filter
Pull the deflector plate out to its full
extension.
The internal filter will now be visible.
Holding it by the handle pull it down-
wards to remove it.
Clean the filters –
–by hand: with a nylon brush in a
mild solution of warm water and dish
soap.
–in a dishwasher: place the filters
with the short side upright in the
lower basket, checking that the
spray arm is not blocked.
The external grease filter can be folded
and cleaned in the dishwasher by twist-
ing the latches as shown.
Depending on the detergent used,
cleaning the grease filters in a dish-
washer may cause permanent dis-
coloration of the filter surface. How-
ever, performance of the filter will
not be affected.
After cleaning, leave the filters to dry
on a towel before putting them back
in place.
While the filters are removed, clean
any dirt or grease from the filter cas-
ing to prevent fires.
Cleaning and care
17

Return the filters
Internal filter:
Insert the filter into the hood so that it
hooks into position at the back, then
push it upwards at the front and
make sure it engages in position on
the left and right hand sides.
Twist the grease filter catch as
shown.
Unfold the grease filter and lock the
catch.
External filter:
Open the filter out.
Make sure that the red plastic
guides are at the front and facing up-
wards.
Fit it over the locating pins at the rear
and push it in until a resistance is felt.
Once the grease filters have been re-
turned, press the grease filter button
for approximately 4 seconds to re-
set the filter timer.
Cleaning and care
18

Inserting / replacing the active
charcoal filter
For recirculation mode an active char-
coal filter must be used in addition to
the grease filters. It is designed to ab-
sorb cooking odors.
The active charcoal filter is inserted into
a slot on the front of the appliance
housing.
Replacement active charcoal filters
can be ordered from the Miele Tech-
nical Service Department at
1-800-999-1360.
Please quote
part number 28 9961 34
Follow the instructions supplied with
the active charcoal filter when inserting
it.
When inserting the active charcoal filter
for the first time:
Set the filter hour counter according
to your cooking needs, (see ”Oper-
ation - Changing the filter timer”).
Replace the filter immediately when
the active charcoal filter indicator
lights, or if it is no longer effective in
absorbing kitchen odors. It should,
however, be replaced at least every
6 months.
After inserting the new filter, press
the active charcoal filter button for
approximately 4 seconds to re-set
the filter timer.
Cleaning and care
19

Changing the light bulb
Before changing the light bulbs, dis-
connect the hood from the power
supply by either removing the fuse,
unplugging it, or manually ”tripping”
the circuit breaker.
Make sure that power is not re-
stored to the appliance while main-
tenance or repair work is performed.
When in use the halogen bulbs
become extremely hot and can
cause burns. Do not attempt to
change bulbs until they have had
enough time to cool.
Do not touch the surface of a ha-
logen bulb, fingerprints or body oils
deposited on the bulb will decrease
the life of the bulb. Please follow the
manufacturer’s instructions.
Remove the external filter, (see
”Cleaning and Care”).
Loosen the halogen lamp fixing
screw and push it downwards.
Tighten the fixing screw up.
Turn the halogen bulb half way to the
left and pull it downwards to remove
it.
It is advisable to use the following
specification halogen bulb in this
appliance:
OSRAM Halopar 16 Cool Beam,
120 V, 50 W, GZ 10, Typ-Nr. 64827.
Insert the new halogen bulb by re-
versing the above procedure.
Cleaning and care
20
