Milestone pro MP-SC-41BYOD User manual

MP-SC-41BYOD
18G 4x1 Presentation Switcher with
Soft Codec & Wireless BYOD
All Rights Reserved
Version: MP-SC-41BYOD_2020V1.0
User Manual

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
Preface
Read this user manual carefully before using the product. Pictures shown in this
manual are for reference only. Different models and specifications are subject to real
product.
This manual is only for operation instruction, please contact the local distributor for
maintenance assistance. The functions described in this version were updated till
March, 2020. In the constant effort to improve the product, we reserve the right to
make functions or parameters changes without notice or obligation. Please refer to the
dealers for the latest details.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever measures
may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
SAFETY PRECAUTIONS
To ensure the best from the product, please read all instructions carefully before using
the device. Save this manual for further reference.
Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
Using supplies or parts not meeting the specifications of product may cause damage,
deterioration or malfunction.
Refer all servicing to qualified service personnel.
To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this
product near water.
Do not put any heavy items on the extension cable in case of extrusion.
Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
Install the device in a place with fine ventilation to avoid damage caused by
overheat.
Keep the module away from liquids.
Spillage into the housing may result in fire, electrical shock, or equipment damage. If
an object or liquid falls or spills on to the housing, unplug the module immediately.
Do not twist or pull by force ends of the optical cable. It can cause malfunction.
Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
Unplug the power cord when left unused for a long period of time.
Information on disposal for scrapped devices: do not burn or mix with general
household waste, and please treat them as normal electrical wastes.

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
Table of Contents
1. Product Introduction....................................................................................................1
1.1 Features ............................................................................................................1
1.2 Package List ......................................................................................................2
2. Specification ...............................................................................................................3
3. Panel Description........................................................................................................5
3.1 Front Panel ........................................................................................................5
3.2 Rear Panel.........................................................................................................6
4. System Connection.....................................................................................................7
4.1 Usage Precaution ..............................................................................................7

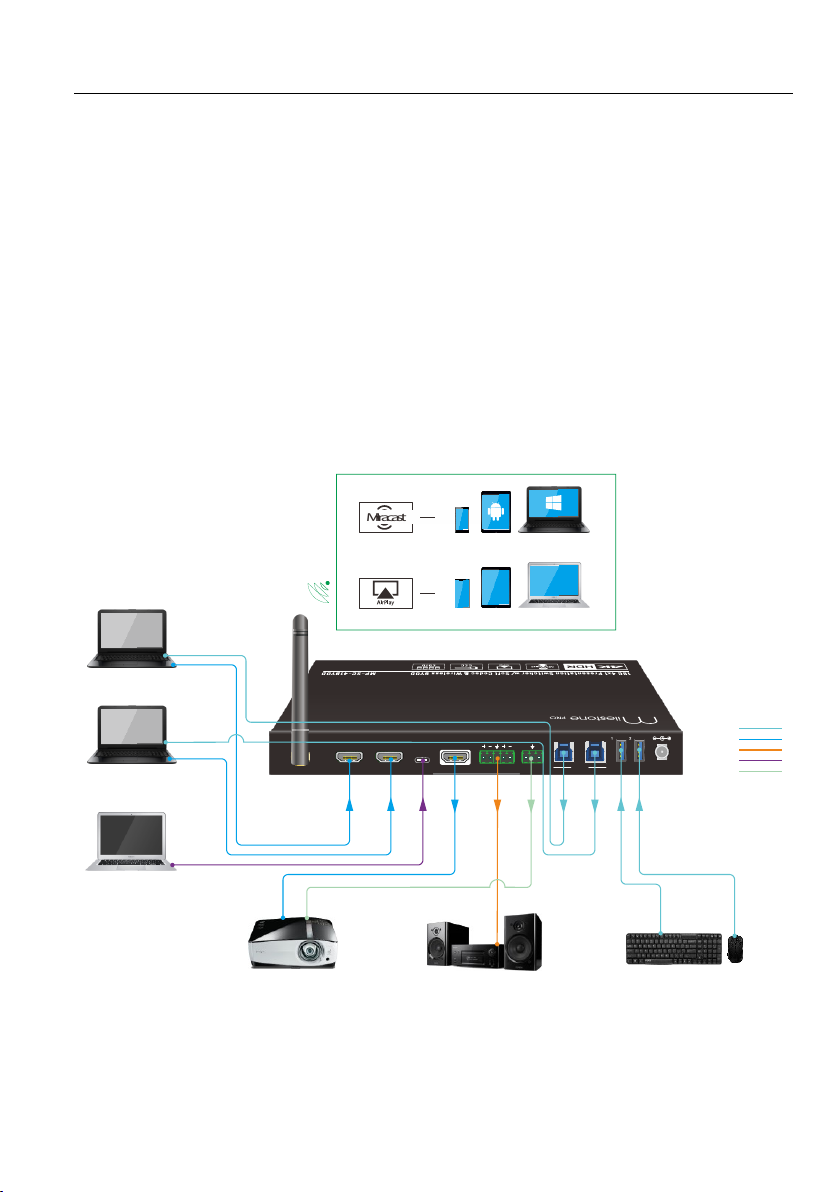

4.2 System Diagram ................................................................................................7

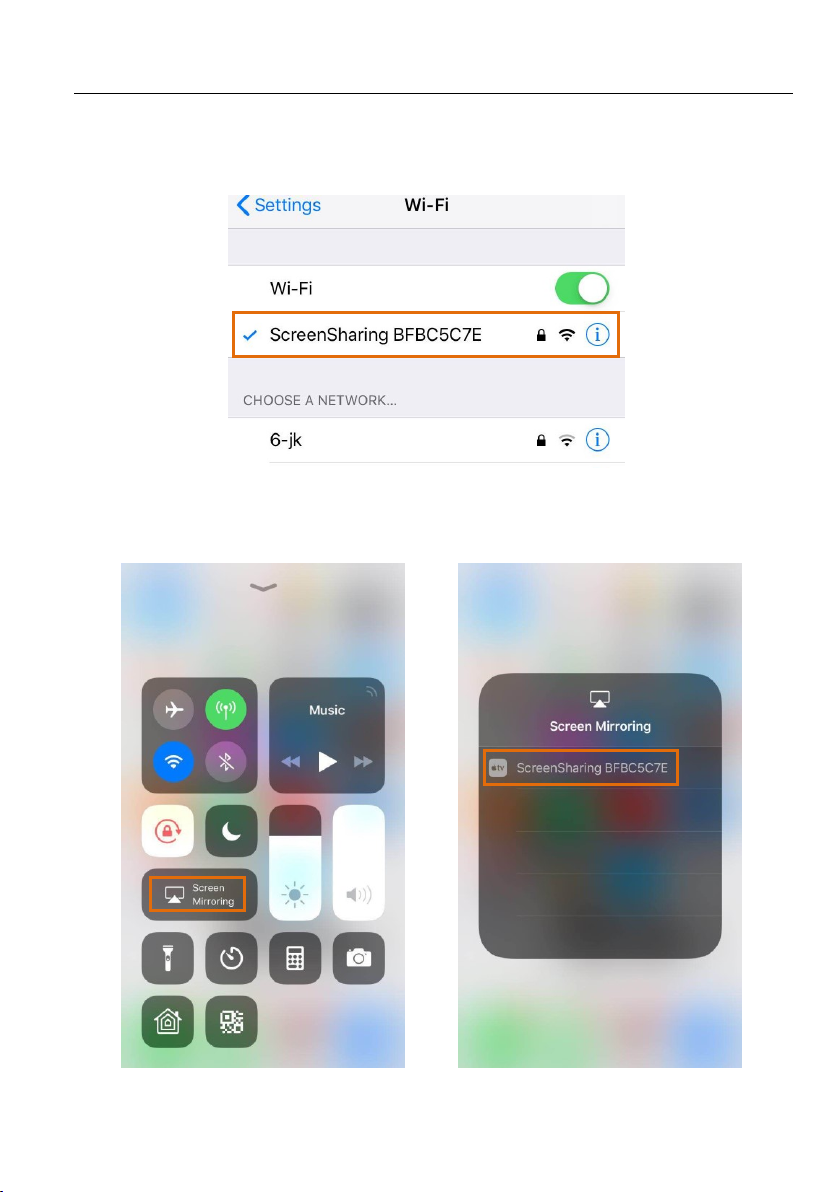

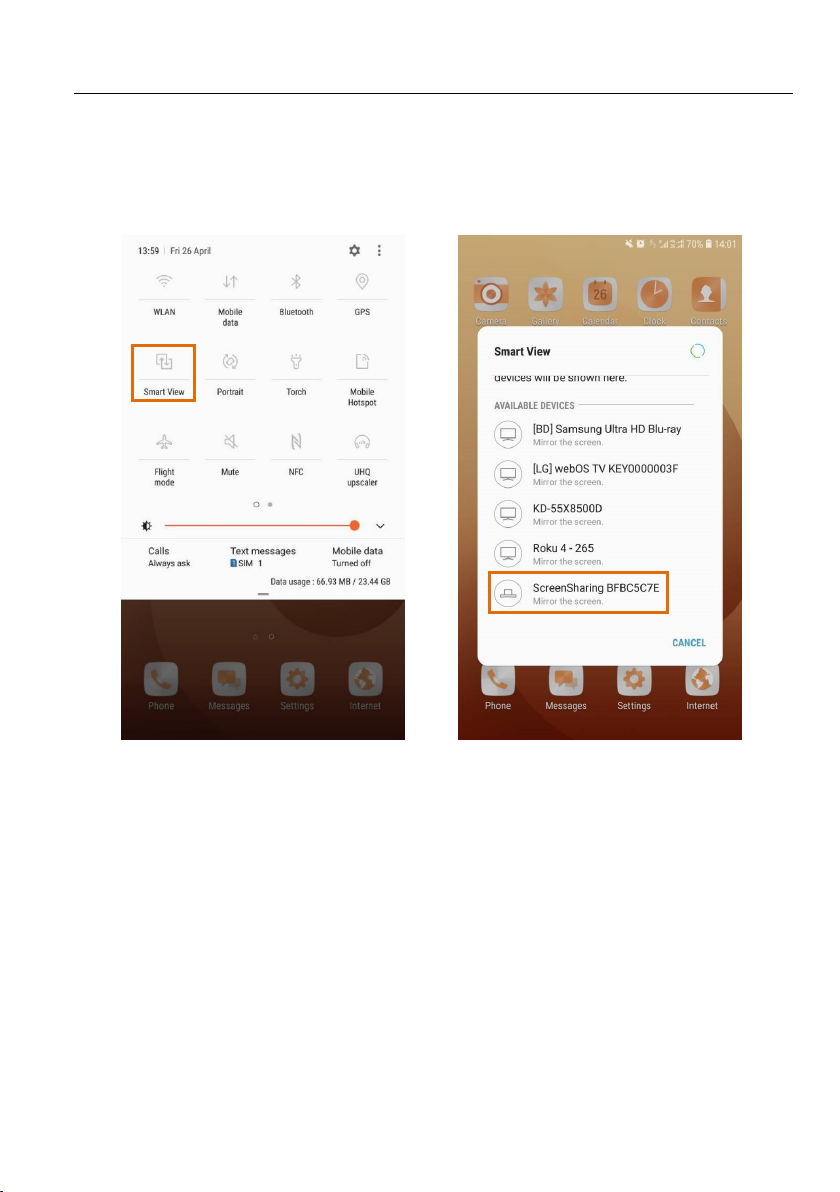

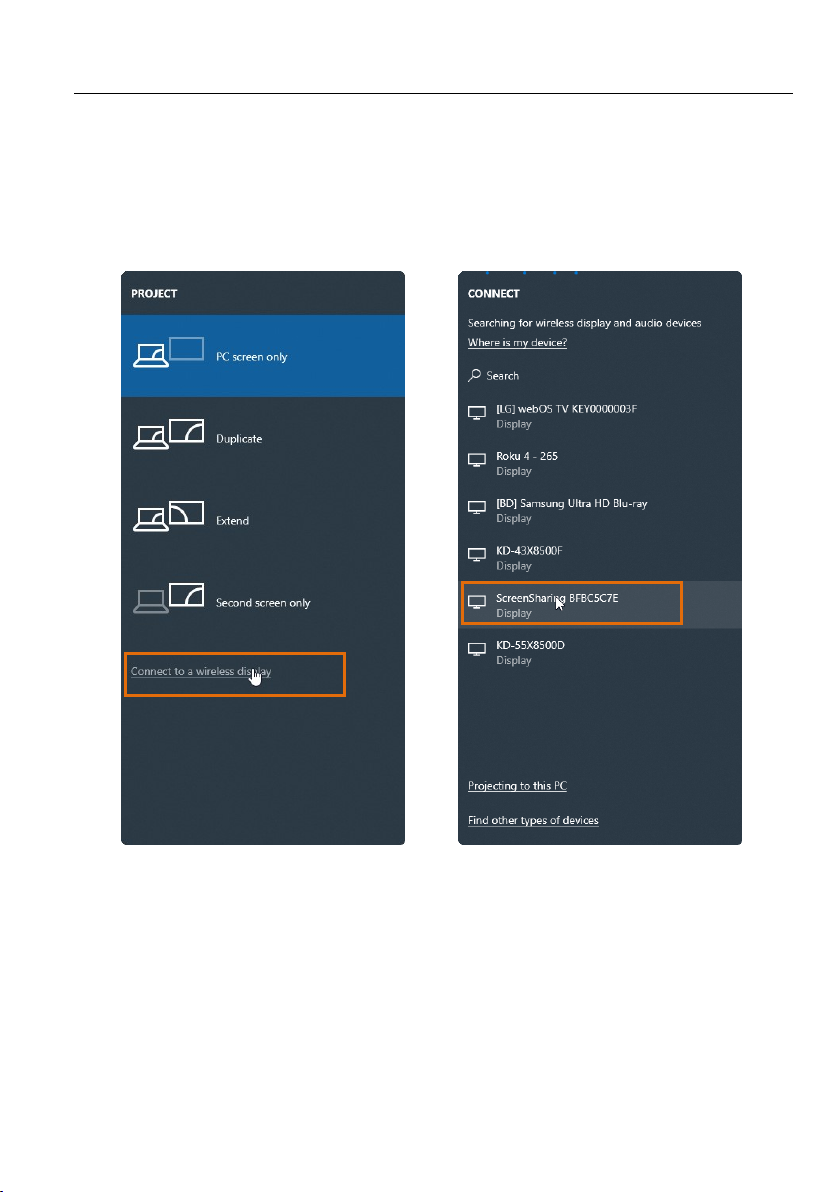

4.3 Miracast/Airplay Connection ..............................................................................8
5. Front Panel Control...................................................................................................12
5.1 Manual-Switching ............................................................................................12
5.2 Auto-Switching.................................................................................................12
5.3 Display Control ................................................................................................12
5.4 EDID Setting....................................................................................................13
6. RS232 Control ..........................................................................................................14
6.1 RS232 Control Software ..................................................................................14
6.2 RS232 Command ............................................................................................16
6.2.1 System Control ......................................................................................16
6.2.2 Source Switching...................................................................................16
6.2.3 CEC/RS232 Function Setting ................................................................17
6.2.4 Function Setting.....................................................................................18
6.2.5 Special Commands ...............................................................................19
7. Firmware Upgrade ....................................................................................................22
8. Troubleshooting & Maintenance ...............................................................................23
9. Customer Service .....................................................................................................24

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
1
1. Product Introduction
Thanks for choosing the 18G 4x1 Presentation Switcher. The switcher is designed with
one wireless Miracast/Airplay input, two HDMI inputs, one USB-C input and one HDMI
output. It supports HDMI 2.0b, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision, and HDCP
2.2. In addition, there is smart built-in EDID setting can be selected by the 4-pin DIP
switch on the front panel.
The switcher supports HDMI audio de-embedding. It also supports USB device
extension by providing two type-B USB ports for host connection, and two type-A USB
ports for USB devices such as camera, microphone, keyboard etc.
The switcher features multiple methods of control. When at the AUTO mode, the
switcher will automatically switch to the first detected source device. The switcher can
be manually controlled by the front panel buttons and RS232 command. CEC allows
the display device can be controlled by the front panel buttons and RS232 and CEC
commands.
1.1 Features
18G 4x1 presentation switcher with soft codec & wireless BYOD.
Supports HDMI 2.0b, 4Kx2K@60Hz 4:4:4, HDR 10, Dolby Vision and HDCP 2.2.
Wireless BYOD (Bring Your Own Device) capability via AirPlay and Miracast.
Provide up to 60w charging, USB data (USB 3.0/2.0) and 4K video transmission on
USB-C port.
HDMI output audio can be de-embedded out via balanced analog audio port.
Two type-B USB ports for host connection, and two type-A USB ports for USB
devices like webcam, mic and keyboard.
Supports video source auto-switching.
Smart EDID management.
Front panel buttons trigger both CEC and RS232 commands for display control.

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
2
1.2 Package List
1x MP-SC-41BYOD 18G 4x1 Presentation Switcher
2x Mounting Ears with 4 Mounting Screws
4x Plastic Cushions
1x 5-pin Terminal Block
1x RS232 Cable (3-pin terminal block to DB9)
1x External Antenna
1x Power Adapter (24V DC 5A)
1x User Manual
Note: Please contact your distributor immediately if any damage or defect in the
components is found.

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
3
2. Specification
Video
Video Input
(1) AirPlay/Miracast, (2) HDMI, (1) USB-C
Video Input Connector
(1) External antenna connector, (2) Type-A female HDMI,
(1) Type-C USB 3.0
AirPlay/Miracast Input Resolution
Up to 4K@30Hz 4:4:4
HDMI Input Resolution
Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision
USB-C Input Resolution
Up to 4K@30Hz 4:4:4
Video Output
(1) HDMI
Video Output Connector
(1) Type-A female HDMI
HDMI Output Resolution
Up to 4Kx2K@60Hz 4:4:4 HDR10, Dolby Vision
HDMI Standard
Up to HDMI 2.0b
HDCP Version
Up to HDCP 2.2
Audio
HDMI Embedded Audio Format
Supports Dolby Atmos, Dolby TrueHD, Dolby Digital Plus,
Dolby Digital, DTS-X, DTS-HD Master Audio, DTS 5.1, 2 - 8Ch
PCM 32-192kHz 16-24 bits; 2-8Ch PCM 32-192kHz 16-24 bits
Balanced Analog Audio Output
(1) AUDIO OUT
Balanced Analog Audio Output
Connector
(1) 5-pin terminal block
Frequency Response
20Hz–20KHz, ±3dB
Max Output Level
2.0Vrms ±0.5dB
THD+N
< 0.05%, 20Hz –20KHz bandwidth, 1KHz sine at 0dBFS level
(or max level)
SNR
>80dB, 20Hz - 20KHz bandwidth
Crosstalk Isolation
<-80dB, 10KHz sine at 0dBFS level (or max level before
clipping)
L-R Level Deviation
<0.05dB, 1KHz sine at 0dBFS level (or max level before
clipping)
Output Load Capability
1KΩ and higher (Supports 10x paralleled 10KΩ loads)
Noise Level
-80dB
Control
Control port
(1) 4-pin DIP switch, (1) FW, (2) HOST (PC1&PC2),
(2) DEVICES, (1) RS232
Control Connector
(1) Micro-USB, (2) Type-B USB 3.0, (2) Type-A USB 3.0,

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
4
(1) 3-pin terminal block
Network Connectivity
WLAN Standards
IEEE 802.11ac
Band
2.4 and 5GHz
Max. Wireless Coverage
≤5m, environment dependent, reduce disturbance to increase
transmission distance up to 10m
Max. Output Resolution
4K/30Hz
Version
iOS 7 or above, MacOS, Android 4.0 or above,Windows8.1 or
above.
General
Operation Temperature
-5 ~ +55℃
Storage Temperature
-25 ~ +70℃
Relative Humidity
10% ~ 90%
External Power Supply
Input: AC 100~240V, 50/60Hz; Output: 24V DC 5A.
Power Consumption
85w (Max)
USB-C Power Charging
60w (Max)
Dimension (W*H*D)
238mm x 24.5mm x 135mm
Net Weight
825g

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
5
3. Panel Description
3.1 Front Panel
①POWER LED: The LED illuminates red when power is applied.
②Four Input LEDs: The LED illuminates orange when there is video signal on its
corresponding input channel and it will be off when there is no signal detected. It
will illuminates green when the video signal is chosen as input source.
③AUTO LED: The LED illuminates green when the switcher is in auto-switching
mode, and it will be off when exit the auto-switching mode.
④SELECT AUTO/3s: Press the button to select input source, or press and hold it at
least 3 seconds to enable auto-switching mode. Please refer to the 5. Button
Control for more details about switch rules.
⑤DISPLAY ON:Press the button to send Display On command to turn on the
display. Note that the RS232 command needs to be set by user. If an exception
occurs at the AirPlay/Miracast input, press and hold the button at least 3 seconds
to reset it.
⑥DISPLAY OFF: Press the button to send Display Off command to turn off the
display. Note that the RS232 command needs to be set by user.

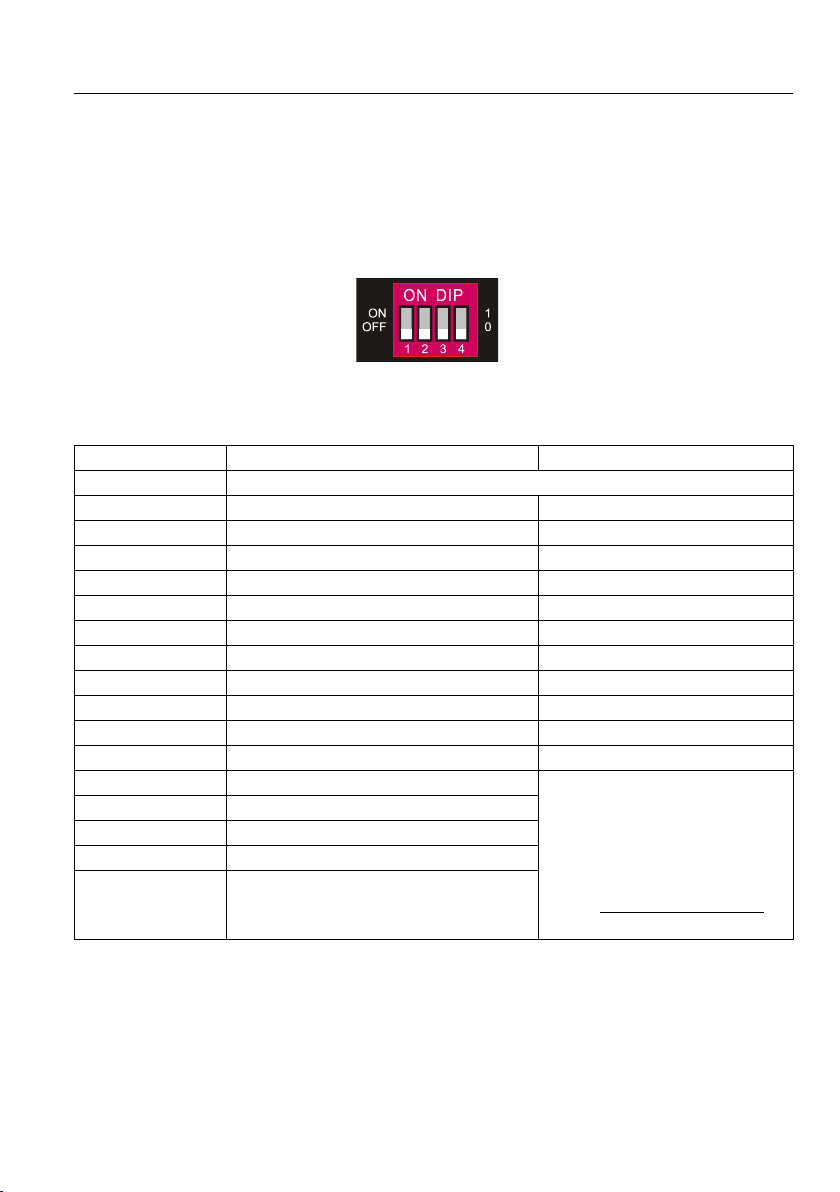

⑦EDID: 4-pin DIP switch for EDID setting.
⑧FW: Micro USB port for firmware upgrade.
12345678

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
6

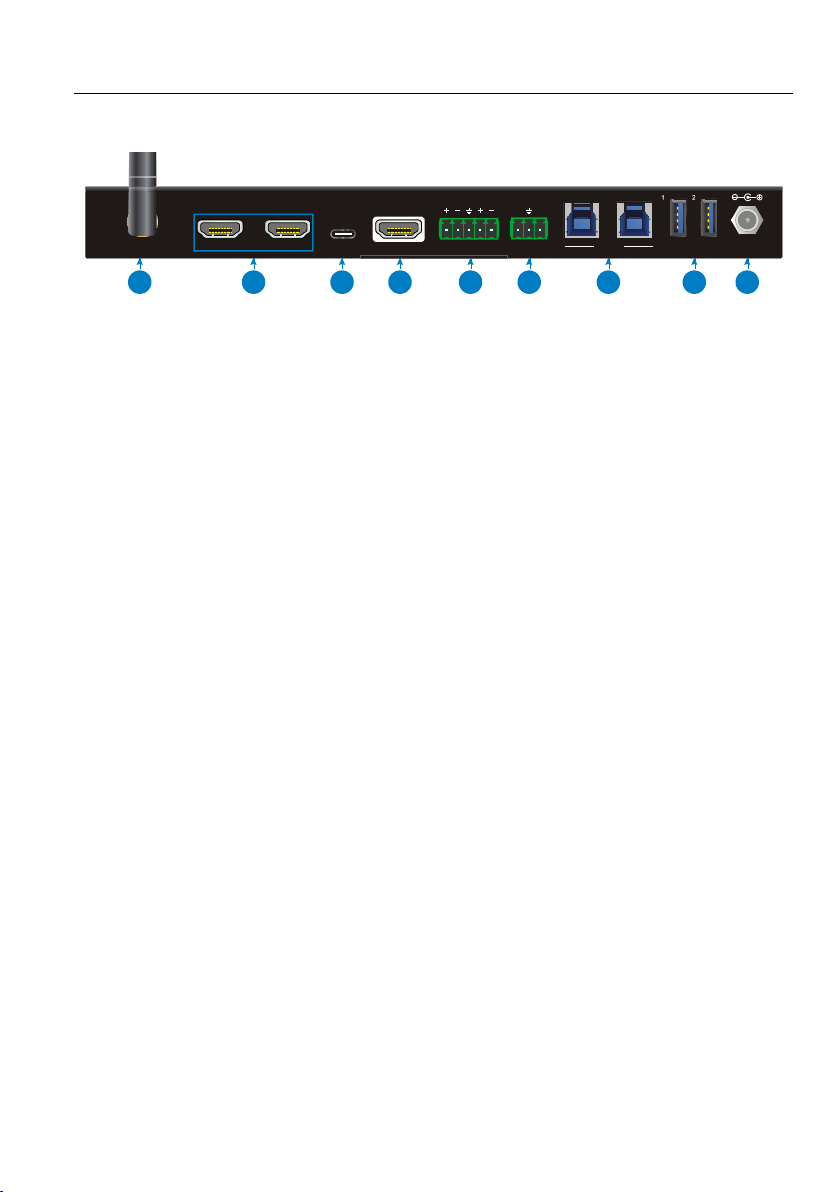

3.2 Rear Panel
①Miracast/Airplay Input: Connect to the external antenna.
②PC1~PC2: Two type-A female HDMI input ports to connect HDMI source devices.
③PC3: Type-C USB with charging capability to connect the Macbook or other
device with SlimPort output.
Note: The USB 3.0 cable is recommended to be used to ensure optimal machine
performance.
④HDMI OUT: Type-A female HDMI output port to connect display device.
⑤AUDIO OUT: 5-pin terminal block for audio de-embedding from HDMI output.
⑥RS232: 3-pin terminal block to connect the RS232 control device (e.g. PC) or a
third-party device to be controlled by RS232 commands.
⑦HOST (PC1&PC2): Two type-B USB ports to connect HDMI PC1 and PC2 source
devices individually.
⑧DEVICE (1&2): Two type-A USB ports to connect USB devices.
When the HDMI PC1 is selected as video input source, the USB devices are
switched to control the PC1 host.
When the HDMI PC2 is selected as video input source, the USB devices are
switched to control the PC2 host.
When the USB-C PC3 is selected as video input source, the USB devices are
switched to control the USB-C PC3.
⑨DC 24V: DC connector for power adapter connection.
DC 24VDEVICES
HOST
RS232
AUDIO OUT
HDMI OUT
PC 3
PC 2PC 1
PC 1 PC 2
L R
Tx Rx
123456789

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
7
4. System Connection
4.1 Usage Precaution
Make sure all components and accessories included before installation.
System should be installed in a clean environment with proper temperature and
humidity.
All of the power switches, plugs, sockets, and power cords should be insulated and
safe.
All devices should be connected before power on.
4.2 System Diagram
DC 24VDEVICES
HOST
RS232
AUDIO OUT
HDMI OUT
PC 3
PC 2
PC 1
PC 1 PC 2
L R
Tx Rx
Amplifier
Projector
HDMI:
RS232:
USB:
Audio:
USB-C:
Laptop
Laptop
MacBook
MouseKeyboard
Android / Windows 8.1 or later version
MacOS / iOS
macOS
iOS
Input

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
8
4.3 Miracast/Airplay Connection
The device (e.g. MacOS/iOS, Android, Windows 8.1 or later Version) that support
AirPlay/Miracast can be used as input source.
Here take iPhone, Samsung Android and Win10 Notebook as examples to introduce
the connection of wireless projection.
When switch to the Miracast/Airplay input by pressing the SELECT AUTO/3s button,
the Wi-Fi SSID and password will be showed on the display device.
SSID:
ScreenSharing XXXXXX
Password:
12345678

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
9
Take iPhone as an example:
1) Connect the Apple iPhone to the Wi-Fi.
2) Slide the iPhone screen to enter Control Center, and click the Screen Mirroring,
and then click the SSID for screen mirroring.

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
10
Take Samsung Android as an example:
Slide down the Android screen and click Smart View, then click the SSID for screen
mirroring.

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
11
Take Win10 Notebook as an example:
1) Press Winkey + Pon keyboard, and then click Connect to a wireless display in
the pop-up window.
2) Click the SSID for screen mirroring.

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
12
5. Front Panel Control
5.1 Manual-Switching
When the switcher is in the manual switching mode, press the SELECT AUTO/3s
button repeatedly to cycle through the four video inputs, and the corresponding source
LED illuminates green immediately.
5.2 Auto-Switching
Press and hold the SELECT AUTO/3s button at least three seconds to enable
auto-switching, and the AUTO LED turns green.
When in the AUTO mode, the switcher will switch according to the following rules:
The switcher will switch to the first active input starting at AirPlay/Miracast to PC3.
New input: The switcher will automatically select the new input once detecting a
new input.
Reboot: If power is restored to the switcher, it will automatically reconnect the input
before shutdown.
Source removed: When an active source is removed, the switcher will switch to the
first active input starting at AirPlay/Miracast input to PC3.
In auto mode, the input source also can be switched by the manual switching
steps.
Press and hold the SELECT AUTO/3s button at least three seconds again can exit
AUTO mode, but the input source will not be changed.
Note that the AirPlay/Miracast is not an active input when there is no screen sharing
device connection.
5.3 Display Control
Manual Control: Press the DISPLAY ON/OFF buttons on the front panel to
simultaneously send RS232 and CEC commands to turn on/off the display device.
Auto Control: When detecting a video input signal (5V or TMDS), automatically
send CEC and RS232 commands to turn on the display device. When not detecting
any video signal within the setting time (default 10mins), automatically send RS232
and CEC commands to turn off the display device.
The RS232 command can be set by sending commands, please refer to the 6.2.5
Special Comamnds for more details.

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
13
5.4 EDID Setting
The Extended Display Identification Data (EDID) is used by the source device to
match its video resolution with the connected display. The DIP switch on the front
panel can be used to set the EDID to a fixed value to ensure the compatibility in video
resolution. The switch represents “0” when in the lower (OFF) position, and it
represents “1” while putting the switch in the upper (ON) position.
Note: The EDID DIP switch only used for setting the EDID of HDMI source device, and
the USB-C source device will automatically gains the EDID of display device.
Switch Status
Video Resolution
Audio Format
0000
EDID Pass-through
0001
1280x720@60Hz
Stereo
0010
1920x1080@60Hz DVI
-
0011
1920x1080@60Hz 8bit
Stereo
0100
1920x1080@60Hz 8bit
High Definition
0101
1920x1200@60Hz 8bit
Stereo
0110
3840x2160@30Hz 8bit
Stereo
0111
3840x2160@30Hz 8bit
High Definition
1000
3840x2160@30Hz 8bit HDR
Stereo
1001
3840x2160@60Hz Deep Color
Stereo
1010
3840x2160@60Hz Deep Color HDR
High Definition
Switch Status
EDID
Note
1011
User-defined EDID 1
The five user-defined EDID can be
uploaded by sending RS232
command
“#UPLOAD_USER_EDID
[PARAM]”, please refer to the
chapter 6.2.4 Function Setting for
more details.
1100
User-defined EDID 2
1101
User-defined EDID 3
1110
User-defined EDID 4
1111
User-defined EDID 5
Stereo: LPCM 2CH.
High Definition Audio: LPCM 8Ch, AC-3 6Ch, DTS 5.1, Dolby Digital5.1,
DTS-HD7.1, Dolby TrueHD 7.1
Deep Color: 8bit, 10bit, 12bit

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
14
6. RS232 Control
Connect the RS232 port to control device (e.g. PC) with RS232 cable. The switcher
can be controlled by sending RS232 commands.
6.1 RS232 Control Software
Installation: Copy the control software file to the control PC.
Uninstallation: Delete all the control software files in corresponding file path.
Basic Settings:
Connect the switcher with all input devices and output devices needed, then to
connect it with a PC which is installed with RS232 control software. Double-click the
software icon to run this software.
Here take the software CommWatch.exe as example:

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
15
The main view is shown as below:
Please set the parameters of COM number, bound rate, data bit, stop bit and the parity
bit correctly, and then you are able to send command in command sending area.
Parameter configuration area
Monitoring area, show the commands
and its feedback information.
Command sending area

18G 4x1 Presentation Switcher with Soft Codec & Wireless BYOD
16
6.2 RS232 Command
Communication protocol: RS232 Communication Protocol
Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none
6.2.1 System Control
The ending mark of command is “<CR><LF>”.
Command
Description
Command & Feedback
Example
#GET_FIRMWARE_VER
SION
Get the firmware version.
@V1.0.0
#FACTORY_RESET
Restore to factory defaults.
@FACTORY_RESET
#REBOOT
System reboot.
@REBOOT
#HELP [PARAM]
Get the command details.
[PARAM]=Null; Get all command
list.
[PARAM]=Any command; Get the
English description and usage of
the command.
#HELP SET_AV
@SELECT VIDEO AND AUDIO
INPUT PORT
#SET_AV PARAM1
PARAM=A,PC1,PC2,PC3
A - Airplay/Miracast
PC1 - HDMI1
PC2 - HDMI2
PC3 - TYPE-C
#SET_RST_WIRELESS
Reset Airplay/Miracast power
@RESET WIRELESS DEVICE
#SET_KEYPAD_LOCK 1
Lock front panel buttons.
#SET_KEYPAD_LOCK 1
#SET_KEYPAD_LOCK 0
Unlock front panel buttons (Default).
#SET_KEYPAD_LOCK 0
#GET_KEYPAD_LOCK
Get the locking status of the front panel
buttons.
@KEYPAD_LOCK 1
6.2.2 Source Switching
Command
Description
Command & Feedback
Example
#SET_AV A
Select the input source:
Airplay/Miracast (Default).
@AV Airplay/Miracast
#SET_AV PC1
Select the input source: PC1.
@AV PC1
#SET_AV PC2
Select the input source: PC2.
@AV PC2
#SET_AV PC3
Select the input source: PC3.
@AV PC3
