Milestone MacroVIEW User manual

MacroVIEW
Macro Imaging System for anatomy/forensic studies
Operator Manual - MM179
MILESTONE
HELPING
PATIENTS

MacroVIEW
MM179-001 - Operator Manual
3
Thank you for choosing one of our systems and welcome to the increasingly crowded club of Milestone
laboratory instrumentation users.
We feel confident that you will be fully satisfied adding this new device to your laboratory.
We recommend you read this operator manual carefully and always keep it within reach for convenient and
quick referencing.
For any clarification or request for assistance, please contact our representative in your country:
You can also contact us directly at:
Milestone s.r.l.
Via Fatebenefratelli, 1/5
24010 Sorisole (BG) Italy
Tel. +39.035.412 8264
Fax [phone]
Website www.milestonemed.com
e-mail [e-mail]
Read this manual carefully before using the instrument.
MM179-001– MacroVIEW - Operator Manual
2021-03

MacroVIEW
MM179-001 - Operator Manual
4
CONTENTS
CONTENTS ....................................................................................................................................................... 4
1. INTRODUCTION ........................................................................................................................................ 6
1.1. Symbols used .................................................................................................................................... 6
1.2. Designated use .................................................................................................................................. 7
1.3. Technical specifications ..................................................................................................................... 8
1.4. Transport and storage conditions .................................................................................................... 10
1.5. Warning information ......................................................................................................................... 10
1.5.1. Personal data safety ................................................................................................................ 11
1.6. Antivirus ........................................................................................................................................... 11
1.7. Backup of MacroVIEW data ............................................................................................................. 11

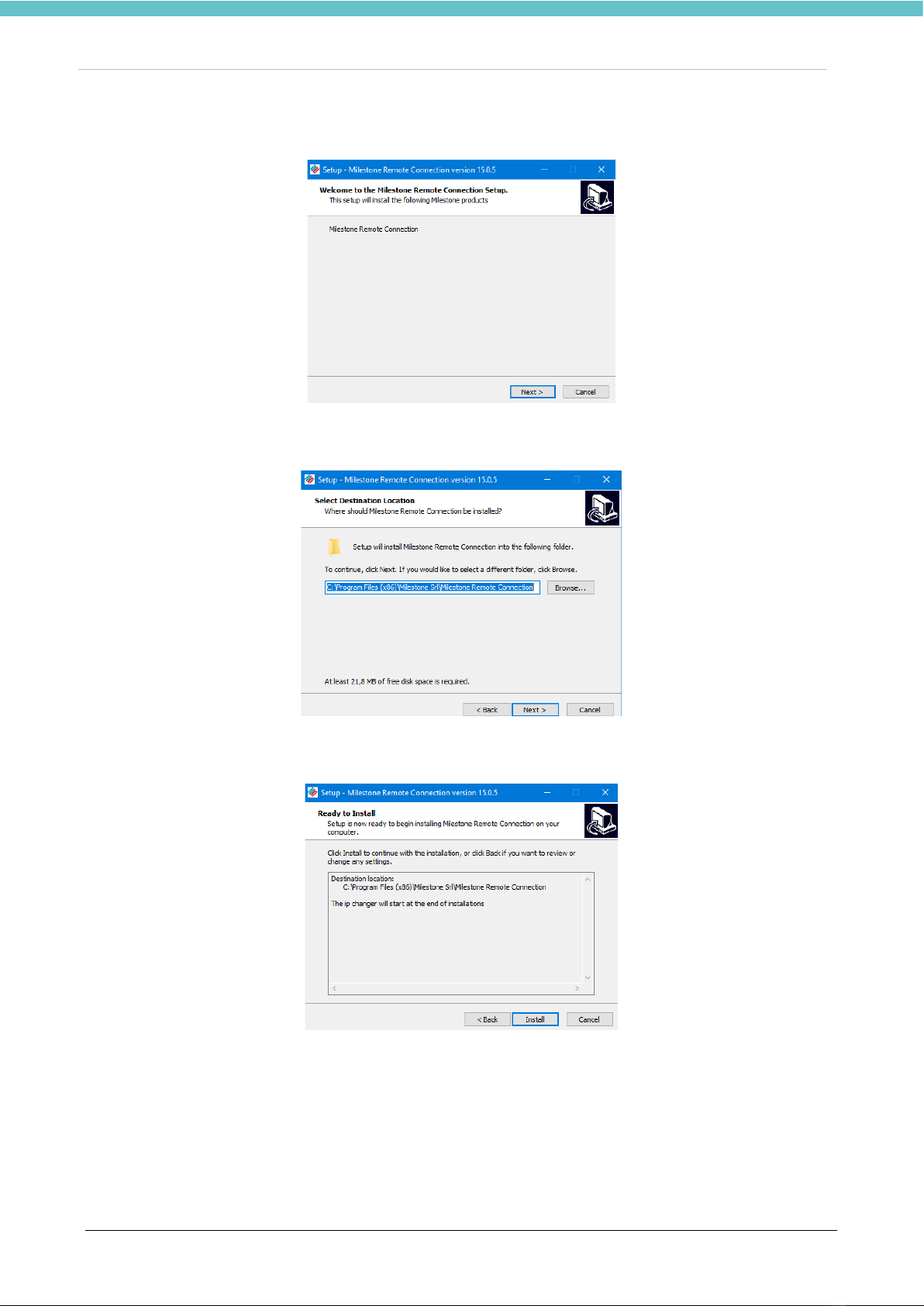

1.8. Milestone remote connection ........................................................................................................... 12
1.9. Labelling for MacroVIEW ................................................................................................................. 18
2. INSTALLATION of MacroVIEW ................................................................................................................ 19
2.1. Space requirements ......................................................................................................................... 19
2.2. Unpacking and checking the components ....................................................................................... 21
2.3. Installation ........................................................................................................................................ 23
2.3.1. Installing the PC, keyboard and barcode reader ..................................................................... 23
2.3.2. Connecting the battery ............................................................................................................. 25
2.3.3. Camera lens setup ................................................................................................................... 27
2.4. How to change the language of the Operating System and of the Keyboard ................................. 29
3. USE OF MacroVIEW ................................................................................................................................ 31
3.1. Start MacroVIEW ............................................................................................................................. 31
3.2. Log in and Log out ........................................................................................................................... 32
3.3. How to operate ................................................................................................................................ 32
3.3.1. Create a case........................................................................................................................... 32
3.3.2. Edit a case ............................................................................................................................... 33
3.4. Overview of the main functions........................................................................................................ 34
3.4.1. Shortcut Keys........................................................................................................................... 35
3.4.2. Multifunctional buttons ............................................................................................................. 36
3.5. Saved files area functions ................................................................................................................ 37
3.6. LIVE functions .................................................................................................................................. 41
3.6.1. Create/retrieve a case ............................................................................................................. 41
3.6.2. Save Image/Video/Audio ......................................................................................................... 41
3.6.3. Thumbnails .............................................................................................................................. 44
3.6.4. Extra camera settings .............................................................................................................. 45
3.7. EDIT functions ................................................................................................................................. 48
3.7.1. Selection Tool .......................................................................................................................... 49
3.7.2. Sizing Tool ............................................................................................................................... 49
3.7.3. Line Tool .................................................................................................................................. 51
3.7.4. Text Tool .................................................................................................................................. 52
3.7.5. Section Tool ............................................................................................................................. 52
3.7.6. Quadrant Tool .......................................................................................................................... 53
3.7.7. Cassettes Tool ......................................................................................................................... 53
3.7.8. Digital Zoom tool ...................................................................................................................... 54
3.7.9. Grid Tool .................................................................................................................................. 55
3.7.10. View the previews .................................................................................................................... 55
3.7.11. Utility functions in edit mode .................................................................................................... 57
3.8. Check the battery status .................................................................................................................. 59
3.9. Settings ............................................................................................................................................ 60
3.9.1. General settings ....................................................................................................................... 60
3.9.2. User settings ............................................................................................................................ 61
3.9.3. Licensing settings .................................................................................................................... 63
3.9.4. Data storage settings ............................................................................................................... 64
3.9.5. Camera settings ....................................................................................................................... 66
3.9.6. Third-party settings .................................................................................................................. 67
3.9.7. Localization (language, date and unit of measurement) settings ............................................ 70
3.9.8. Appearance settings ................................................................................................................ 71
3.9.9. Tools settings ........................................................................................................................... 74
3.9.10. Preferences settings ................................................................................................................ 75

MacroVIEW
MM179-001 - Operator Manual
5
4. MacroVIEW AS VIEWER MULTISTATIONS ........................................................................................... 77
4.1. How to install MacroVIEW as Viewer .............................................................................................. 77
4.2. Integrating MacroVIEW with LIS systems ....................................................................................... 78
5. OPTIONAL AND SPARE PARTS ............................................................................................................ 82
5.1. Mouse wireless optical in silicone .................................................................................................... 82
5.2. Licenses ........................................................................................................................................... 83
6. MAINTENANCE ....................................................................................................................................... 84
6.1. Safety precautions ........................................................................................................................... 84
6.2. Cleaning MacroVIEW ...................................................................................................................... 84
6.2.1. Keyboard and mouse ............................................................................................................... 85
6.2.2. Touch-Pen ............................................................................................................................... 85
6.2.3. Operating procedure ................................................................................................................ 85
6.3. Battery replacement ......................................................................................................................... 86
7. TROUBLESHOOTING THE MacroVIEW ................................................................................................. 87
7.1. Camera malfunctions ....................................................................................................................... 87
7.2. The Touch Pen is not working ......................................................................................................... 87
7.3. Touch-Pen and Touch Screen calibration ....................................................................................... 88
7.4. PC Recovery Software .................................................................................................................... 93
7.5. Return for repair to the manufacturer ............................................................................................ 101
8. WASTE DISPOSAL ................................................................................................................................ 102
8.1. Waste disposal of the equipment .................................................................................................. 102
8.2. Waste disposal of battery .............................................................................................................. 102
The manufacturer reserves the right to change and/or improve specifications without
notice and without incurring in any obligation.

MacroVIEW
MM179-001 - Operator Manual
6
1. INTRODUCTION
1.1. Symbols used
The instructions marked with this symbol are important and must be read carefully.
An instruction accompanied by this WARNING symbol means you need to proceed
with caution. Failure to follow the instruction may endanger the user or cause damage
to the instrument.
When an instruction comes with this symbol, take great care as there is the risk of an
electric shock. Carefully follow the instruction in order to avoid this kind of accident.
Biological hazard: pay attention when performing a procedure marked with this
symbol, as there is a biological contamination hazard.
CE Logo: this device complies with European Community directives.
Specifies the manufacturer’s serial number.
Temperature limits.
Symbol of the European WEEE directive (2002/96/EC):
electric/electronic material – do not disperse in the environment.
Fragile.
Manufacturer.
Hand crushing symbol.
Replaceable fuse

MacroVIEW
MM179-001 - Operator Manual
7
1.2. Designated use
The purpose of MacroVIEW and its optional parts is to capture and store digital images, audio comments
and short videos of the whole body, body parts and organs examined at autopsy, grossing room and forensic
pathology.
The system has been designed for laboratory use and can therefore withstand the harshest laboratory
conditions. The instrument is intended for laboratory use (indoor use) only.
MacroVIEW is a system that must be operated by trained personnel, such as: laboratory technicians and
pathologists.
Read this manual carefully before using MacroVIEW.
A camera is installed on the unit with MacroVIEW software, which is designed to capture images of the
whole body and to have a complete, safe and reliable manipulation of them.
MacroVIEW measurement function is strictly linked to the calibration performed by the
operator and is not controlled by the unit's software. This is why the measurements
obtained with MacroVIEW CANNOT be taken into account for diagnostic purposes. These
values are purely indicative.
In fact, it is necessary to position a ruler near the sample (see picture below) or use a gauge to get
a diagnostic value.
Every picture taken by the manipulator must be calibrated, as described in chapter 3.7.2.

MacroVIEW
MM179-001 - Operator Manual
8
1.3. Technical specifications
- MacroVIEW complete system
- CODE 372751: MacroVIEW 100V~ 50/60Hz
- CODE 372750: MacroVIEW 110-120V~ 50/60Hz
- CODE 372700: MacroVIEW 220-240V~ 50/60Hz
- Footprint (minimum): 800 mm (31.5”) x 900 mm (35.4”)
- The fully extended arm can extend 1220 mm (48”) beyond the unit footprint
- Minimum overall height of the unit (fully lowered stand): 1910 mm (75.2”)
- Maximum overall height of the unit (stand raised to the maximum and manipulator raised to the maximum):
2630 mm (103.5”)
- Height of stand raised to the maximum: 2300 mm (90.5”)
- Weight: 219kg (482lb) complete with battery
The complete system includes:
- Hardware (PC)
- CPU: Intel® Core™ i7 Processor 2.6 GHz
- RAM: 8GB DDR-4
- Hard disk: 500GB (SSD)
- Touch-pen: USB cable, tip of 1.5 mm diameter
there are two small black buttons on the touch-pen for the enter command and
right click of the mouse
- Screen: 19" TFT LCD 1280X1024 16.7M Colour
IP 65 front panel
- Fanless
- Wi-Fi 802.11 A/B/G with Bluetooth v4.1 (*)
(*) subject to restrictions of use according to local radio frequency regulations to be checked before enabling
this function.
- Available I/O:
• 2x RS-232/422/485 Serial ports
• 2x Gigabit Ethernet LAN ports (RJ-45)
• 6x USB 2.0 ports
• 2x USB 3.0 ports
• 1x HDMI (max resolution 4096x2304@24Hz)
• 1x DP Display port (max resolution 4096x2304@60Hz)
• 2 X built-in 2W speakers
• Audio Mic-in 3.5mm jack input
• Audio 3.5mm jack output
- Dimensions: LxHxD 470.5 x 415.2 x 75.6 mm (18.52” x 16.34” x 2.97”)
- Weight: 7.4kg (16.3lb)
- Panel PC power supply (built in) 18V DC 5.55A MAX
- Power supply inlet: 100-240V 47/63Hz, 1.35-0.5A
- MacroView 5 proprietary license and software
- Operating System: Windows 10 Enterprise 64 bit
- Software: MacroView 5 including the pre-activated Milestone license
- image capture in JPEG format
- video capture in AVI format (4k resolution and 60 f/s)
- Streaming video capability 1280x720 15fp
- voice recording in mp3 format
- Microsoft Windows 10 and Microsoft Word are registered Trademarks of Microsoft Corporation
- MacroView 5 software: Installed (complete with FULL license)
- 1x 80cm (31”) sizing ruler
- 3x 15cm (6”) sizing rulers

MacroVIEW
MM179-001 - Operator Manual
9
- Imaging unit (manipulator)
- Camera with splash case
- Resolution: up to 20 MPixels
- Optical Zoom: 12x
- Focus: Automatic
- White balance: Automatic
- Close-up lens: +2
- Neutral lens
Built-in microphone
- LED light
- Keyboard for manual control of the camera: zoom, save image, video and audio recording, LED activation,
- Display monitor 5” - LCD - Resolution 800x480
- Mobile support for imaging unit (trolley)
- Wheeled trolley with battery for up to 8 hours of autonomous operation, depending on the conditions of use
- 2xUSB 2.0
- Spring arm with maximum extension of 1460 mm (57.5”) and rotation lock
- The minimum height at which the manipulator can be set is 730 mm (28.7”) - to the lens
- The maximum height at which the manipulator can be set is 2180 mm (85.8”) - to the lens
- Waterproof disinfectable keyboard with Touchpad
- IP68 protection.
- USB Barcode reader
2D (includes holder).

MacroVIEW
MM179-001 - Operator Manual
10
Environmental Conditions:
- Operating temperature: 15°C (59°F) – 30°C (86°F)
- Relative humidity: 10% - 80% without condensation
- Altitude: up to 2000m
1.4. Transport and storage conditions
- Temperature: –20°C up to +60°C (-4°F up to 140°F)
- Humidity: up to 80% (up to 50% at 40°C (104°F)) non-condensing
1.5. Warning information
REACH regulation (EC) N. 1907/2006 - Information on Substances of Very High Concern (SVHC).
The battery in the device contains SVHC substances:
- Lead, Number: CAS 7439-92-1, EC Number: 231-100-4.
The MacroVIEW system must only be connected to a 3-pole earthed main socket outlet (ground connection
protection must be provided).
Disconnect the main plug from the socket and turn off the system with the appropriate button (see chapter
3.8) before assembling the system, connecting the optional parts and cleaning.
Equipment must be connected to the main socket outlet, which is accessible and visible by the operator.
The use of naked flames that can cause accidental sparks in the areas adjacent to the unit is prohibited.
The instrument is supplied with replaceable fuses, but their replacement must be effected by trained and
authorized SERVICE personnel. If the system is still not properly working, contact the local authorized and
trained SERVICE representative or the manufacturer.
If the system is not working properly, contact your local representative or the manufacturer (always provide
the serial number of the unit, see label at the back of the unit).
All parts of the equipment and all the optional parts shall be exclusively supplied by the manufacturer.
In case of malfunction, shutdown the camera, the PC and the entire unit, then restart them again. If the
system is still not working properly, contact your local representative or the manufacturer.
In the event of malfunction and return:
1. Turn the camera off.
2. Turn off the PC.
3. Turn off the system with the ON/OFF button on the trolley (chapter 3.8).
4. Unplug the power supply cable from the main socket.
5. Disconnect the keyboard, barcode reader and anything else, if present.
6. Disconnect the battery (chapter 2.3.2).
7. Clean and disinfect all parts of the unit as described in chapter 6.
8. Disconnect the PC and place it in the appropriate packaging.
9. Put all parts of the equipment into the package supplied by the manufacturer (original package).
10. Send the unit to the manufacturer for repair (see chapter 7.5).
Using the equipment in ways other than those specified may void the warranty provided
by the manufacturer.
DO NOT open the camera box. If you do, this shall void the warranty.
It is very important to turn OFF the camera and the MacroVIEW PC before disconnecting
the equipment.
Milestone provides two USB keys for every unit, containing the MacroView 5 software in
digital format, the operating system and the relevant drivers. We strongly recommend
storing the USB keys in a safe place, as Milestone is not in a position to supply other USB
keys or copies thereof.

MacroVIEW
MM179-001 - Operator Manual
11
1.5.1. Personal data safety
The Device described herein is not intended for managing personal data of natural persons. Personal data of
natural persons shall not be inserted into the Device during the use of the Device. The organization that uses
the Device shall implement appropriate measures to ensure that no personal data of natural persons are
inserted into the Device. All the data referred to a person and inserted into the device shall use, at least, the
“pseudonymization”, in such a manner that the personal data can no longer be attributed to a specific data
subject without the use of additional information, provided that such additional information is kept separately
and is subject to technical and organizational measures to ensure that the personal data are not attributed to
an identified or identifiable natural person.
1.6. Antivirus
Milestone recommends installing an antivirus software. As Milestone does not install antivirus software, the
user can choose the preferred version according to their needs.
Pay attention when setting the Antivirus so that the data flow on the USB protocols and accesses to the hard
disk are not limited.
1.7. Backup of MacroVIEW data
Milestone strongly recommends storing all cases with relevant images on a server
with a backup procedure, as explained in chapter 3.9.4.
Contact your local network/IT manager.
The size of images with the recommended settings is approx. 500Kb/image (refer to chapter 3.6.4).
The size of a 1-minute video is approx. 40 MB.

MacroVIEW
MM179-001 - Operator Manual
12
1.8. Milestone remote connection
MacroVIEW is provided with software to connect to the Milestone Customer Service. Access it by connecting
the PC to the internet and launching Milestone Remote Connection using the button on the desktop .
The following window opens (the ID and password shown are an example):
Contact the Customer Service at the following e-mail address: [e-mail] and
communicate the ID and password that appear in the previous window.
The connection can only be established if the GREEN icon, in the circle in the previous picture, appears.
If Milestone Remote Connection is not found on the PC, install it by following the instructions below:
• Uninstall TeamViewer from the PC and the old version of Milestone remote connection, if present.
• Run the following exe (provided with the MacroView 5 software) as Administrator (right click).

MacroVIEW
MM179-001 - Operator Manual
13
• Click “Next”.
• Click “Next”.
• Click “Install”.

MacroVIEW
MM179-001 - Operator Manual
14
• Click “Next”.
• Select “Personal/Non-commercial use”, then click “Next”.
• Select the two boxes in the picture, then click “Next”.
• Click “Finish”.

MacroVIEW
MM179-001 - Operator Manual
15
• Click “Cancel”.
• Click “Allow and finish”.
• The Milestone Remote Connection will launch automatically.

MacroVIEW
MM179-001 - Operator Manual
16
Two buttons will appear on the desktop:
1) The Milestone Remote connection button.
2) The TeamViewer host button (this actually does not exist; it disappears when the desktop is first
refreshed or when the PC is first restarted).
Should you wish to uninstall it, two programs must be uninstalled from the Control panel: Milestone remote
connection and Team Viewer Host.
• Then enter the settings by clicking as follows:
• Click “Advanced” – “Show advanced options”.

MacroVIEW
MM179-001 - Operator Manual
17
• Set up as shown below:
-Check for new version: Never
-Install new versions automatically: No automatic updates
• Click OK to save the changes.
• Lastly, enter the Windows services and disable the program from starting automatically every time the PC
is turned on, as follows:
- With Remote connection enabled, right-click the TeamViewer icon on the status bar at the bottom right.
- Select “Exit TeamViewer”.
- Open the start menu of Windows and search for “Services”.
- Open the Windows Services Manager.
- Right-click “TeamViewer”.
- Select the “Properties” option.
- In “Startup type”, select “manual” from the drop-down menu.
- Click “Apply” and then “ok”.
- Reboot the PC.
The Milestone Remote Connection can now be used.

MacroVIEW
MM179-001 - Operator Manual
18
1.9. Labelling for MacroVIEW
For explanation of symbols see chapter 1.1.

MacroVIEW
MM179-001 - Operator Manual
19
2. INSTALLATION of MacroVIEW
This section describes the installation procedures and preliminary operations. Read the following chapters
carefully before operating the MacroVIEW.
2.1. Space requirements
MacroVIEW is shipped in a wooden crate with an overall weight of 360kg (793.7lb) with the following
dimensions:
Width: 920mm (36.2”)
Depth: 1180mm (46.4’’)
Height: 2110mm (83.1”)
The following figure depicts the MacroVIEW unit. Provide adequate clearance space according to its
dimensions. Unpacking and check list
P: 800mm (31,5’’)
P: 900mm (35,4’’)
Maximum stand height: 2300
mm (90.5”)
Floor
Maximum
manipulator
height - to the
lens: 2180 mm
(85.8”)

MacroVIEW
MM179-001 - Operator Manual
20
Unit dimensions:
Width:
800 mm (31.5”)
Maximum overall height of the
unit (stand raised to the
maximum and manipulator raised
to the maximum): 2630 mm
(103.5”)
Depth:
900 mm (35.4”)
Weight: 219kg (482lb) complete with battery
The floor must be level (not sloped).
Indoor use only.
Avoid vibrations, direct light and high temperature variations.
When the instrument is in its final position, the trolley can be blocked by using the wheel brakes.
When the manipulator arm is fully extended and the trolley wheel brakes are engaged,
avoid sudden movements of the manipulator to prevent tipping over.
Never pull the equipment. Move it by pushing it only from the two side handles. The
following picture shows the left handle, there is another handle on the right side.
The camera can be blocked with the hooks on the left side of the stands when the system is moved.
