Congratulations on the purchase of your
Milwaukee LM 60.
The safety instructions and the user
manual should be read through
carefully before you use the
product for the first time. The
person responsible for the product must ensure that
all users understand these directions and adhere to
them.
Symbols used in this manual
The symbols used have the following meaning:
WARNING
Indicates a potentially hazardous situation or
an unintended use which, if not avoided, could result
in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation or
an unintended use which, if not avoided, may result
in minor injury and/or in appreciable material, finan-
cial and environmental damage.
)Important paragraphs which must be adhered
to in practice, as they enable the product to be used
in a technically correct and efficient manner.
Intended Use
Permitted uses
• Measuring distances
• Computing functions, e.g. areas and volumes
Adverse uses
• Using the instrument without instructions
• Using outside the stated limits
• Deactivation of safety systems and removal of
explanatory and hazard labels
• Opening of the equipment by using tools (screw-
drivers etc.)
• Carrying out modification or conversion of the
product
• Use of accessories from other manufacturers
without the express approval of Milwaukee.
• Deliberate or irresponsible behaviour on scaf-
folding, when using ladders, when measuring
near machines which are running, or near parts of
machines or installations which are unprotected
• Aiming directly into the sun
• Deliberate dazzling of third parties; even in the
dark
• Inadequate safeguards at the surveying site (e.g
when measuring on roads, construction sites,
etc.)

2
Overview Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
Limits of use
)Also see section "Technical data".
The Milwaukee LM 60 is designed for use in areas
permanently habitable by humans, do not use the
product in explosion hazardous areas or in aggressive
environments.
Responsibilities
Responsibilities of the manufacturer
Milwaukee Electric Tool,
D-71364 Winnenden, Germany:
Milwaukee is responsible for supplying the product,
including the User Manual and original accessories, in
a completely safe condition.
Responsibilities of the person in charge of the
instrument:
WARNING
The person responsible for the instrument
must ensure that the equipment is used in accord-
ance with the instructions. This person is also
accountable for the deployment of personnel and for
their training and for the safety of the equipment
when in use.The person in charge of the product has
the following duties:
• To understand the safety instructions on the
product and the instructions in the user manual.
• To be familiar with local safety regulations
relating to accident prevention.
• To inform Milwaukee immediately if the equip-
ment becomes unsafe.
Overview
Keyboard
See drawing :
1ON (ON/MEAS) - button
2PLUS [+] - button
3FUNCTION - button
4HISTORICAL MEMORY - button
5ILLUMINATION - button
6CLEAR/OFF - button
7TIMER/UNITS - button
8REFERENCE - button
9MINUS [-] - button

3Start up
Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
Display
See drawing
1 Laser "ON"
2 Reference (front/rear/end piece)
3 Pythagoras
4 Timer (self-triggering)
5 Historical memory
6 Area/volume
7 Battery status
8 Units with exponents (2/3)
9 Intermediate line 2
10 Intermediate line 1
11 Main targets
12 min / max display
13 Info symbol
Start up
Inserting / Replacing Batteries
1 Remove battery compartment lid.
See drawing .
2 Insert batteries, observing correct polarity.
3 Close the battery compartment.
• Replace the batteries when the symbol flashes
permanently in the display.
)Only use alkaline batteries.
)If the instrument will not be used for a long
time, remove the batteries as a protection against
corrosion.
Operation
Measuring Conditions
Range
Range is limited to 60 m.
At night or dusk and if the target is in shadow the
measuring range without target plate is increased.
Use a target plate to increase the measurement
range during daylight, or if the target has poor reflec-
tion properties!
Target Surfaces
CAUTION:
Measuring errors can occur when measuring
toward colourless liquids (e.g. water) or dust free
glass, Styrofoam or similar semi-permeable surfaces.
Aiming at high gloss surfaces may deflect the laser-
beam and lead to measurement errors.
Hazards of Use
CAUTION:
Watch out for erroneous distance measure-
ments if the instrument is defective or if it has been
dropped or has been misused or modified.
Precautions:
Carry out periodic test measurements.
Particularly after the instrument has been subject to

4
Operation Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
abnormal use, and before, during and after important
measurements.
Make sure the Milwaukee LM 60 optic is kept clean
and that there is no mechanical damage to the
bumpers.
CAUTION:
In using the instrument for distance measure-
ments or for positioning moving objects (e.g. cranes,
building equipment, platforms, etc.) unforeseen
events may cause erroneous measurements.
Precautions:
Only use this product as a measuring sensor, not as
a control device. Your system must be configured and
operated in such a way, that in case of an erroneous
measurement, malfunction of the device or power
failure due to installed safety measures (e.g. safety
limit switch), it is assured that no damage will occur.
Switching on/off
1x briefly: the instrument and the laser are
switched on.
The display shows the battery symbol until
the next button is pressed.
Pressing this button for longer switches the
instrument off.
The instrument switches off automatically after
three minutes of inactivity.
Setting the instrument
Press long until the desired unit is displayed.
Possible units:
CLEAR-Key
1x briefly: the last action is cancelled.
Illumination
1x briefly: the display illumination is switched on
or off.
Distance Area Volume
1. 0.000 m 0.000 m² 0.000 m³
2. 0'0'' 1/16 0.00 ft² 0.00 ft³
3. 0 in 1/16 0.00 ft² 0.00 ft³
4. 0.00 ft 0.00 ft² 0.00 ft³

5Measuring
Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
Reference Setting
Default reference setting is from the rear of the
instrument.
The instrument can be set for the following measure-
ments:
• To measure from an edge (see drawing ), fold
out the stop bracket until it snaps in for the first
time. See drawing .
• To measure out of a corner (see drawing ),
fold out the stop bracket until it snaps in, push
the stop bracket with a little force to the right
side; the stop bracket can now be completely
unfolded. See drawing .
CAUTION:
Make sure that when measuring from the
unfolded endpiece, the measuring reference is set to
"End piece"!
1x briefly: the next measurement is taken from
the front edge.
2x briefly: the measurement is taken from the
unfolded end piece.
After one measurement, the reference returns auto-
matically to the default setting (rear reference).
1x long: the measurements are taken with the
front as reference until a new measuring refer-
ence is set
2x long: the measurements are taken from the
unfolded end piece until a new measuring refer-
ence is set.
See drawing .
Measuring
Single Distance Measurement
1x briefly: the laser is activated.
1x briefly: a distance measurement is taken.
The result is displayed immediately.
Continuous measurement
Distances can be measured with this function
1x long: a "beep" is sounded.A continuous
measurement is started.
1x briefly: the continuous measurement is
stopped.
The last measured value is displayed in the summary
line.
Minimum-/Maximum-Measuring
This function enables determining the minimum or
maximum distance from a specific measuring point,
e.g. the determination of room diagonals (maximum
value) or horizontal distance (minimum value).

6
Functions Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
Switching on continuous measurement (see above).
The corresponding maximum and minimum values are
displayed.
Functions
Addition / Subtraction
Distance Measurement.
1x briefly: the next measurement is added to
the previous one.
1x briefly: the next measurement is subtracted
from the previous one.
Repeat this procedure for as many times as required.
The result is displayed in the summary row, the previ-
ously measured value is displayed in intermediate line
2, the value to be added in intermediate line 1.
1x briefly: the last step is cancelled.
Area function
1x briefly: The symbol is displayed.
1x briefly: takes first distance measurement
(e.g. length)
1x briefly: takes second distance measurement
(e.g. width)
The result of the area measurement is displayed in
the summary row, the individually measured values
are displayed in intermediate lines 1 and 2.
Adding and subtracting areas
Calling up the area function and measuring areas.
Press or .
1x briefly: takes first distance measurement
(e.g. length)
1x briefly: takes second distance measurement
(e.g. width)
The result of the second area measurement, "+"
flashes.
1x briefly: confirms the addition; the added area
results are displayed in the summary row.
Volume function
2x briefly: the symbol is displayed.
1x briefly: takes first distance measurement
(e.g. length)
1x briefly: takes second distance measurement
(e.g. width)
The result of the area measurement from the values
already measured is displayed in the summary row.
1x briefly: takes the third distance measure-
ment (e.g. height). The value is displayed in
intermediate line 1.

7Functions
Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
The result of the area measurement is displayed in
the summary row, the two previously measured
values in intermediate lines 1 and 2.
Indirect Measurement
The instrument can measure distances with the
Pythagorean method. This procedure facilitates in
measuring distances that are difficult to access.
)Adhere to the prescribed sequence of meas-
urements:
• All target points must be vertical or horizontal on
the surface of the wall.
• The best results are achieved when the intrument
is rotated around a fixed point (e.g. the stop
bracket is fully extended and the instrument is
placed against a wall).
• To take the measurement, the minimum/
maximum function can be called up. The minimum
value is used for measurements that must be at
right-angles to the target; the maximum distance
is used for all other measurements.
)Make sure that the first measurement and the
distance to be measured are at right angles. Use the
minimum/maximum function.
Indirect measurement - determining a
distance using 2 auxilliary measurements
See drawing
3x briefly: the symbol is displayed.
The distance to be measured flashes in the symbol.
1x briefly: takes a measurement of the distance
The second distance to be measured flashes in the
symbol
1x briefly: takes a measurement of the hori-
zontal distance
The result of the function is displayed in the summary
row.
If the button is pressed for along time while
measuring a distance, maximum or minimum contin-
uous measuring is activated.
Indirect measurement - determining a
distance using 3 auxilliary measurements
See drawing
4x briefly: the symbol is displayed.
The distance to be measured flashes in the symbol.
1x briefly: takes a distance measuement
The second distance to be measured flashes in the
symbol
1x briefly: takes a horizontal measurement.
The third distance to be measured flashes in the
symbol
1x briefly: takes a measurement of the distance
The result of the function is displayed in the summary
row.

8
Functions Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
If the button is pressed for along time while
measuring a distance, maximum or minimum contin-
uous measuring is activated.
Stake out function
This function is helpful when staking out equal
distances, e.g in the erection of wooden substruc-
tures. See drawing
5x briefly: the symbol is displayed.
A value is displayed in the summary row (default
value 1.000 m). This value can be adjusted to the
desired stake out distance.
The value is increased.
The value is reduced.
Holding the button down accelerates the speed at
which the value changes.
1x briefly: starts continuous measurement.
In intermediate line 1, the set distance or the next
appropriate multiple thereof is displayed.
In the summary row, the distance to the next appro-
priate stake out point is displayed.
When approaching a stakeout point (to less than
0,10 m), the instrument starts to beep. When the
point is reached, the beep sound changes and inter-
mediate line 1 starts to flash.
1x briefly: distance measurement is interrupted
and the instrument switches back to individual
distance measuring mode.
Historical memory
1x briefly: the symbol and the last measured
value are displayed.
Use the "+" or "-" buttons to navigate through the
last 10 values. The values can also be used in func-
tions.
Using stored values in functions
Using added distances in area functions (e.g. wall
surfaces or painters):
Adding distances (see additions / subtractions)
Call up area function to e.g. measure the height
of a room.
1x briefly: calls up the historical memory and to
possibly search for the correct value.
1x long: the value is entered into the function
and the result of the function (e.g. area) is
displayed.
Timer (self-triggering)
1x briefly: The symbol is displayed.
The timer is preset to 5 seconds.
The value is increased.
The value is reduced.

9Appendix
Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
Holding the buttons down increases the rate of
change of the values.
The countdown starts automatically (if the laser is
activated) and then triggers the measurement.
Switching off the beep
Press and hold simultaneously for 5
seconds:
The beep is switched off.
To reactivate it, press and hold for 5 seconds.
Appendix
Display Notices
All display notices are either displayed with or
"Error". The following errors can be corrected.
Technical Specifications
Cause Correction
204 Calculation error Repeat procedure
252 Temperature too
high Let device cool down.
253 Temperature too
low Warm device up
255 Received signal too
weak, time for a
measurement too
long.
Use a target plate
256 Received signal too
strong Use target plate (gray side)
257 Faulty measure-
ment, too much
background light
Use target plate (brown
side)
258 Outside of the range
of measurement Select measurement distance within the
range of measurement
Error Cause Correction
Error Hardware error Should this message
remain active after
switching the instru-
ment off and on several
times, please contact
the dealerhip.
Range 0.05 m to 60 m*
Measuring accuracy (2 σ ) typically ± 1.5 mm**
Smallest unit displayed 1 mm
Laser class 2
Laser type 635 nm, < 1 mW
Protection against
splashes and dust IP 54, dust-proof, splash-proof
Autom. power off:
Laser
Instrument after 60 s after 180 s
Illumination
9
Folding out endpiece 9
Battery life,
Type 2 x AAA/Micro up to 5 000 measurements
Cause Correction

10
Appendix Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
* Use a target plate to increase the measurement range
during daylight or if the target has poor reflection properties!
** in favourable conditions (good target surface properties,
room temperature) up to 10 m. In unfavourable conditions,
such as intense sunshine, poorly reflecting target surface or
high temperature variations, the deviation over distances
above 10 m can increase by ± 0.15 mm/m.
Electromagnetic Compatibility
(EMC)
The term "electromagnetic compatibility" is taken to
mean the capability of the product to function
smoothly in an environment where electromagnetic
radiation and electrostatic discharges are present,
and without causing electromagnetic interference to
other equipment.
WARNING
The Milwaukee LM 60 conforms to the most
stringent requirements of the relevant standards and
regulations.
Yet. the possibility of the product causing interfer-
ence in other equipment cannot be fully excluded.

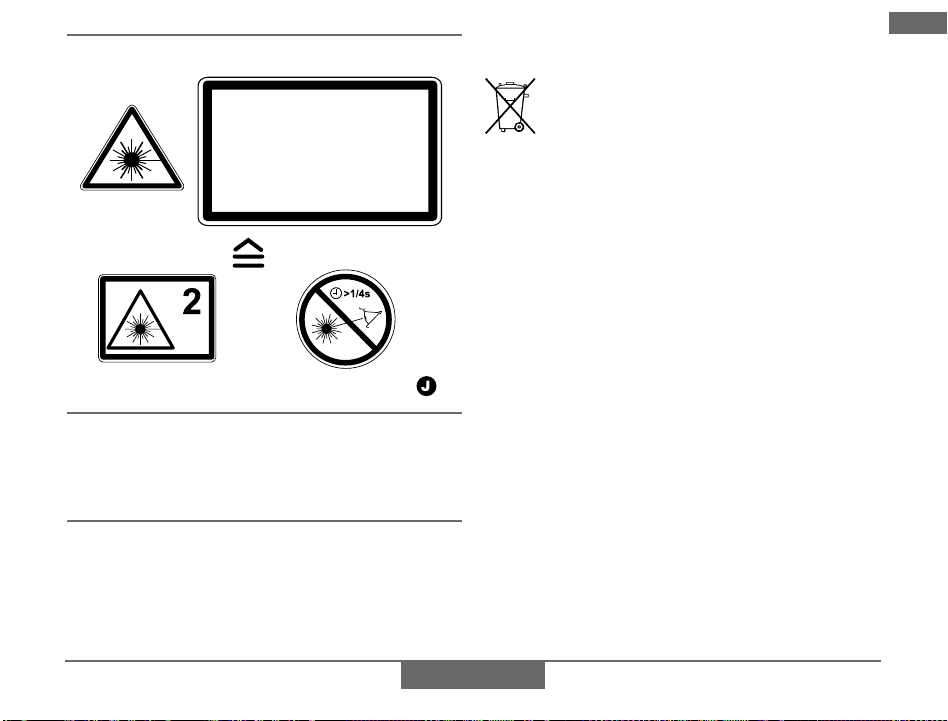

Laser classification
The Milwaukee LM 60 produces a visible laser beam
which emerges from the front of the instrument.
See drawing .
The product is a Class 2 Laser Product in accordance
with:
• IEC60825-1 : 2007 "Radiation safety of laser
products"
Class 2 Laser Products:
Do not stare into the beam or direct it unnecessarily
at other persons. Eye protection is normally afforded
by aversion responses including the blink reflex.
WARNING
Looking directly into the laser beam with
optical aids (e.g. binoculars, telescopes) can be
hazardous.
Precautions:
Do not look directly into the beam with optical aids.
CAUTION:
Looking into the laser beam may be hazardous
to the eyes.
Precautions:
Do not stare into beam. Do not look into the laser
beam. Make sure the laser is aimed above or below
eye level (particularly with fixed installations, in
machines, etc.).
Dimension 114 x 51 x 27mm
Weight 120 g
Temperature range:
Storage
Operation -25°C to +70°C 0°C to +40°C

11 Appendix
Milwaukee LM 60
GB
D
F
I
E
P
NL
DK
NO
S
FIN
GR
TR
CZ
SK
PL
HU
SLO
HR
LV
LT
ET
RU
BG
RO
MK
CN
Labelling
For the position of the type plate see drawing .
Care
Wipe off dirt with a damp, soft cloth. Do not immerse
the instrument in water. Do not use aggressive
cleaning agents or solutions.
Disposal
CAUTION:
Flat batteries must not be disposed of with
household waste. Care for the environment and take
them to the collection points provided in accordance
with national or local regulations.
The product must not be disposed with
household waste.
Dispose of the product appropriately in
accordance with the national regulations in
force in your country.
Adhere to the national and country specific
regulations.
All right reserved for changes (drawings, descriptions
and technical specifications).
Laser Radiation
Do not stare into the beam
Laser class 2
acc. IEC 60825-1:2007
Maximum radiant power *: <1mW
Emitted wavelength: 620-690nm
Beam divergence 0.16 x 0.6 mrad
Impulse duration 1 x 10 -9 s
