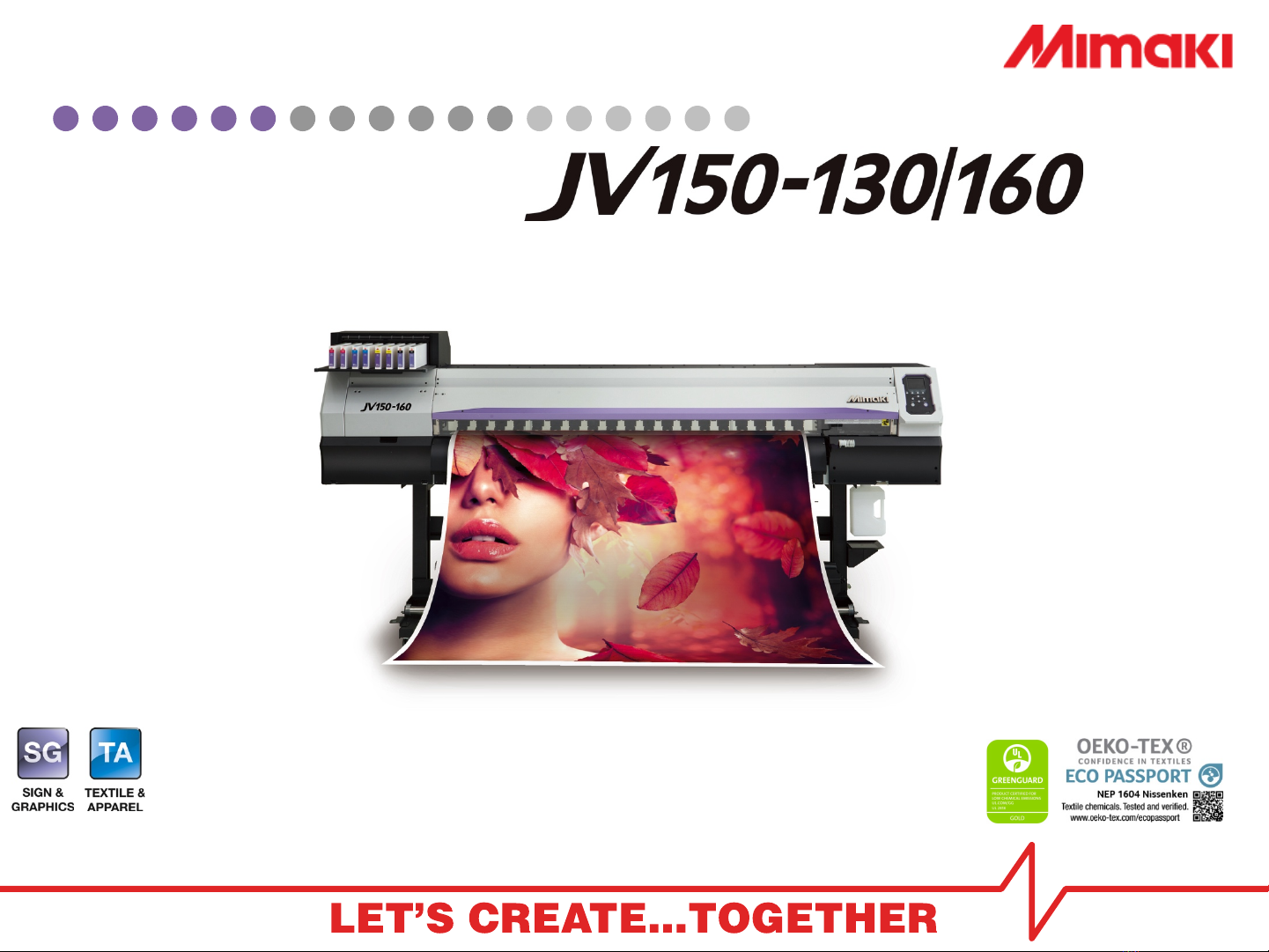

MIMAKI JV150-130 User manual

Mimaki Europe B.V.
Sign Graphics Products
Product Guide
The information in this document is subject to change without notice.
07-03-2019
V1.61EU
Engineering excellence and creative innovation
Affordable, high-spec, high-performance printer

Mimaki Europe B.V.
Sign Graphics Products
Terms of use
•The contents of this presentation are intended only for Mimaki authorized
resellers. Authorized persons are not permitted to distribute, copy or change
this presentation without explicit approval of Mimaki Europe B.V.
•Contents and technical explanations in this presentation are based on the
test results achieved at Mimaki at the time of testing and are not a guarantee
for performance. Substrates should be tested beforehand.
•In addition, the contents in this presentation do not lead to any legal
obligations from Mimaki and Mimaki does not take any responsibility. Please
verify in advance whether your intended prints will result in sufficient
quality.
•Contents of this presentation are subject to change without prior notice for
improvement. Compositors errors reserved.
2

Mimaki Europe B.V.
Sign Graphics Products
Features
•High quality printing by Mimaki’s original technologies
•Smooth image quality by waveform control and precise dot placement
technology
•Mimaki’s proprietary 3-way intelligent heater for optimization of the
dot gain
•MAPS3 eliminates banding and delivers smooth print densities
•Unattended operation support package
•Nozzle Check Unit for delivering a continuous high printing quality
•Uninterrupted Ink Supply System for large amount of productions
•Strong media feeding system, max weight of 40kg and up to a
diameter of 250mm
3

Mimaki Europe B.V.
Sign Graphics Products
Features
•High quality printing and high printing speeds of 56 m ²/ h
•High quality printing with a resolution of 1440dpi with a 4pl drop size
•High densities at the maximum print speed of 56m²/h with the 35pl
drop size
•More applications with Orange and Light Black ink
•Printing with orange ink gives a larger color gamut for printing more
corporate colors
•Accurate gray scale printing with light black ink without color shifts
4

Mimaki Europe B.V.
Sign Graphics Products
PC
System configuration
Works also with:
USB 2 0
5m(15ft) cable is recommended
Connection
Including Rip software
AMF Kit
MBIS3
Drying Fan
Air exhaust unit
Anti-static sheet
Additional Pinch roller
8x Eco-cartridge for BS3/BS4 inks
Options
5
Recommended PC configuration
CPU: Core i5 3.5GHz
Memory: 8GB
HDD: 500GB
I/F : USB2.0, 4 ports or more
ODD: DVD-ROM
Network: 1000BASE-T
Compatible OS: Windows Vista(32/64bit)
Windows 7(32/64bit)
Windows 8(32/64bit)
Windows 10(32/64bit)
Monitor: 1366x768

Mimaki Europe B.V.
Sign Graphics Products
Ink type SS21 ES3 BS3 / BS4 Sb53 Sb54
Colors
6C 4C 6C
*K is also available
4C
Ink set
4C: High speed printing 4C: High speed printing 4C: High speed printing 4C: High speed printing 4C: High speed printing
8C: Smooth result &
vibrant expression
6C: Smooth Result 6C: Smooth Result
Ink
capacity
C,M,Y,K,Lc,Lm,Lk,Or:
-440ml cartridge
-2L Ink pack (for MBIS3)
C,M,Y,K,Lc,Lm:
-440ml cartridge
C,M,Y,K:
-600ml Ink pack
(with Eco-cartridge)
-2L Ink pack (for MBIS3)
B,M,Y,Dk(K),Lb,Lm:
-440ml cartridge
-2L Ink pack (for MBIS3)
KT,BLT,MT,YT:
-2L Ink pack (for MBIS3)
MC Y KKY C M
M C YKLc Lm Lk Or
M B YDk Dk Y B M
M B Y Dk Lb Lm B M
M C Y KKY C M
M C Y KKY C M
6
M C Y KLc Lm Lk Or
M B Y Dk Lb Lm
MCYK
M C Y KLc Lm
Ink type / Ink set
6

Mimaki Europe B.V.
Sign Graphics Products
Head layout
•1 Print head is incorporated
•Capable of ejecting 7 different drop sizes from 4pl/7pl/8pl/14pl/16pl/24pl/35pl
•Prints both high quality mode and high speed mode
(3 drop sizes are automatically selected depending on print modes)

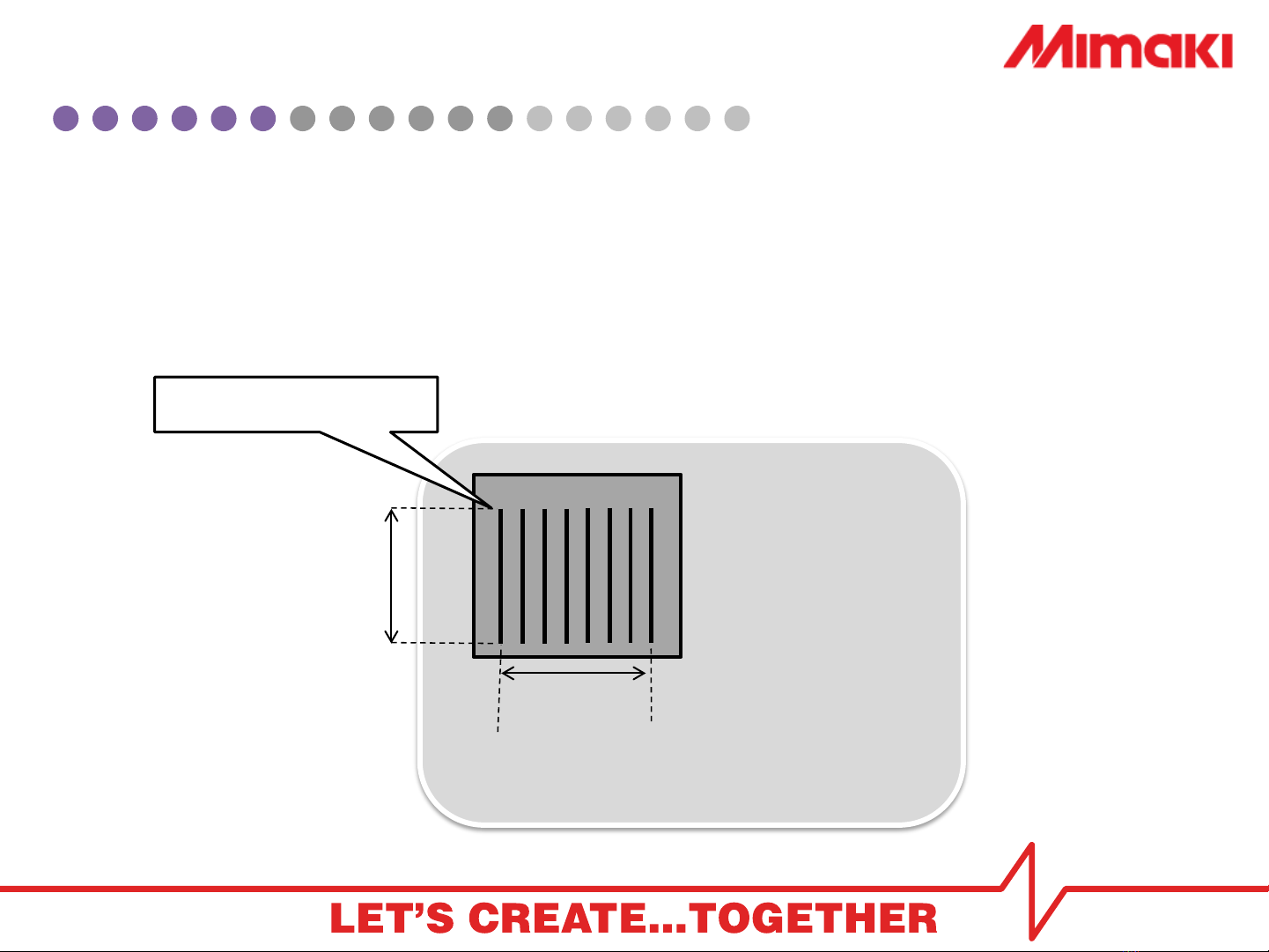

Nozzle row length
Approx.25.4mm
(1 inch)
Nozzle width
Approx.31mm
(1.2 inch)
1-head:1440-nozzle
(180-nozzle x 8-lines)
123 4 5 6 7 8
7

Mimaki Europe B.V.
Sign Graphics Products
Highly versatile printer
•Larger ink drop
•3 different drop sizes are automatically selected from 7drop sizes, depending
on the selected print quality (profile)
•When working with SS21, the 7 drop sizes are 4pl,7pl,8pl,14pl,16pl,24pl, and 35pl
•For high speed printing with high densities, the variable dot technology with a maximum
dot size of 35pl is used (56.2m²/h with SS21/BS3/BS4, and 58m²/h with Sb53/SB54)
•This gives the printer a wide coverage from high resolutions, to low resolution printing
with higher densities

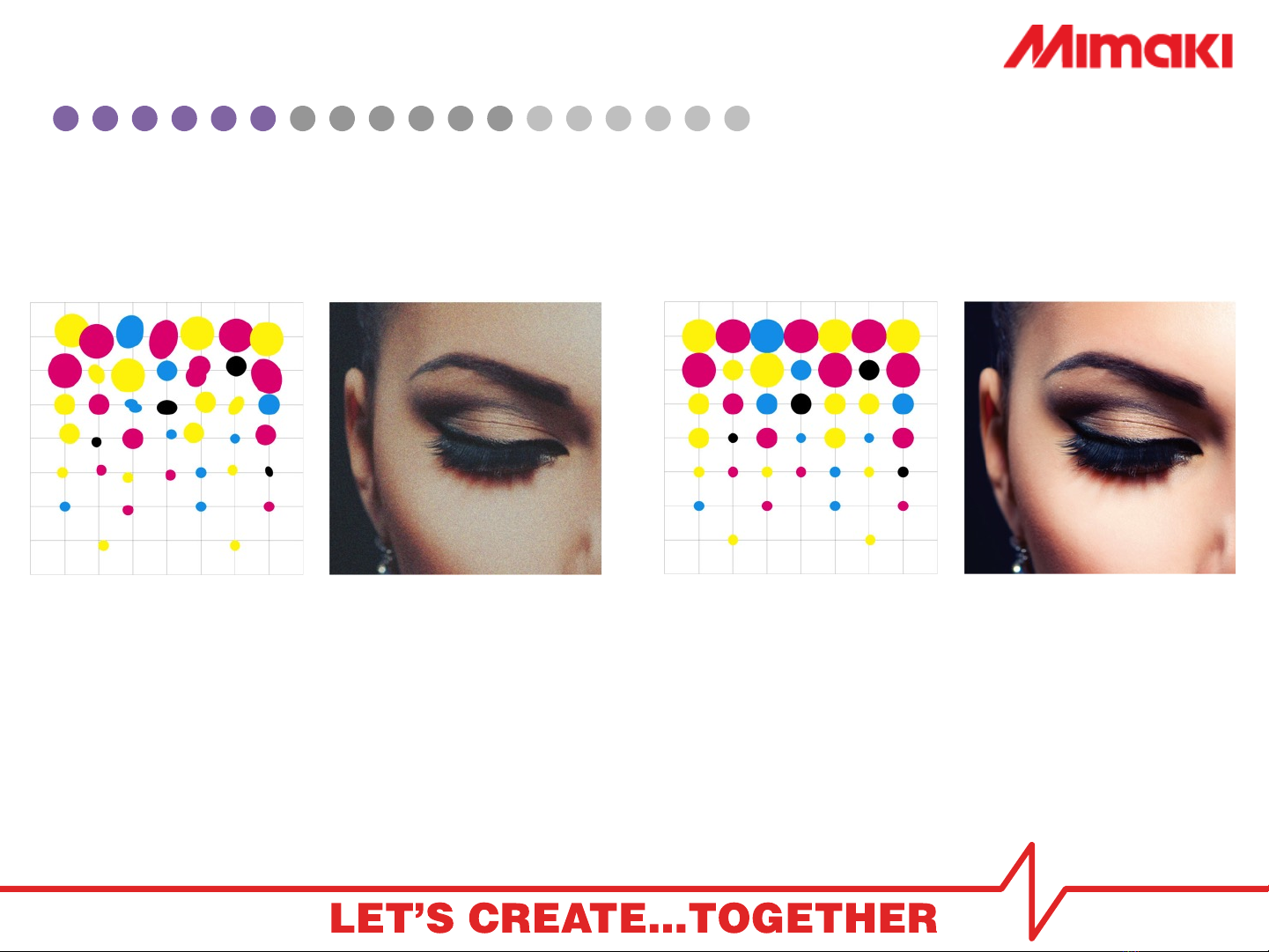

Case 1 : Maximum dot size =21pl Case 2 : Maximum dot size =35pl
Large
21ｐｌ
Middle
14ｐｌ
Small
4ｐｌ
1 /360 inch
1 /360
inch
Large
35ｐｌ
Middle
14ｐｌ
Small
4ｐｌ
1 /360 inch
1 /360
inch
Low density due to a gap between the dots
↓
Not suitable for high speed mode (low resolution)
High density with no gap between the dots
↓
Suitable for High speed mode
8

Mimaki Europe B.V.
Sign Graphics Products

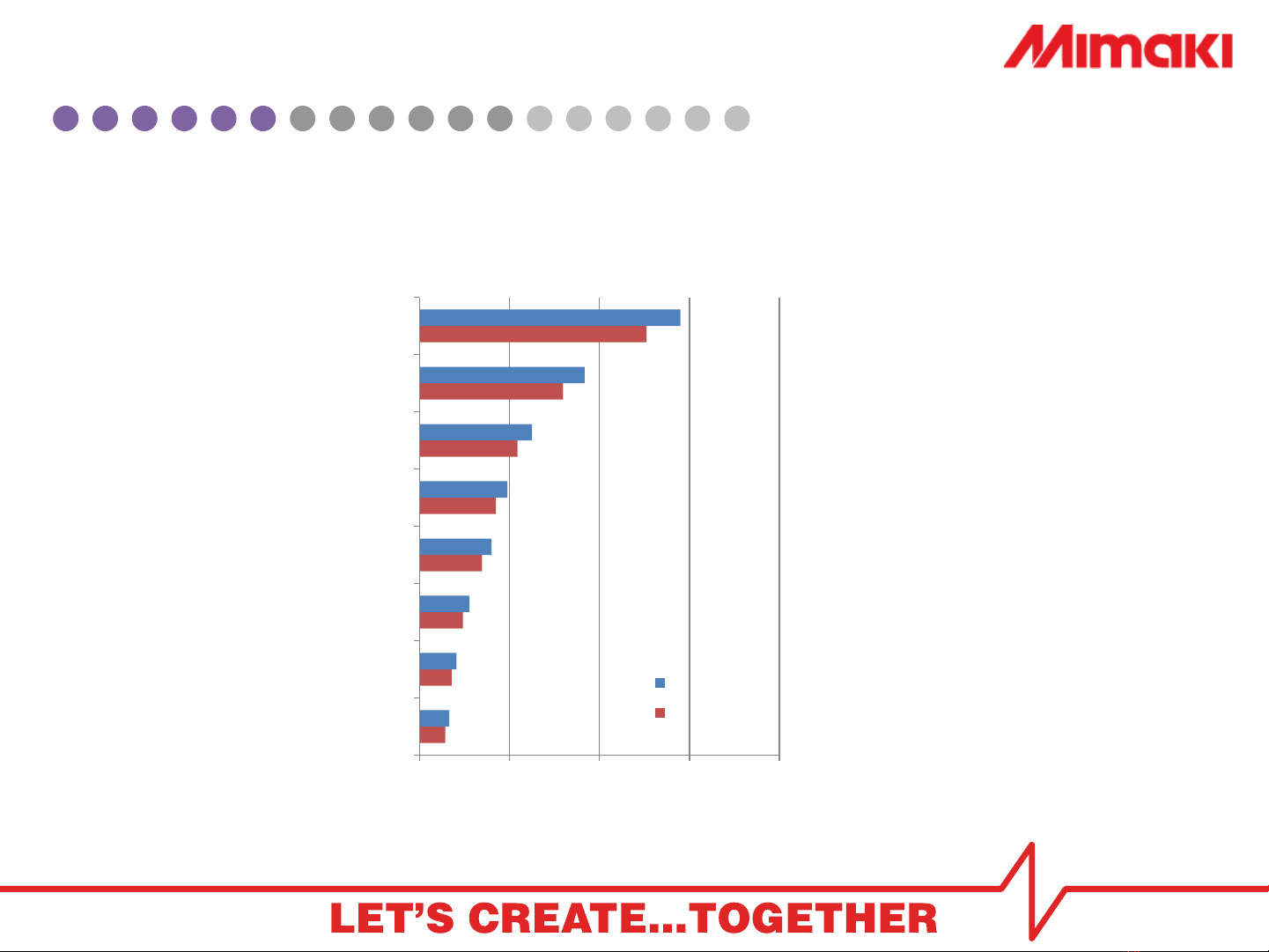

1,9
4,9
6,3
9,7
11,4
13,9
17,0
2,2
5,6
7,2
11,1
13,1
16
19,5
010 20 30
Super Smooth
1440x1440,16P,Bi
High Quality②
720x1440,12P,Bi
High Quality①
720x1080,8P,Bi
Standard②
720x720,6P,Bi
Standard①
720x720,5P,Bi
High Speed
720x720,4P,Bi
Draft
540x720,4P,Bi
JV150-160
JV150-130 5,7
9,7
13,9
17,0
31,3
48,9
6,6
11,1
16
19,5
36
56,2
020 40 60
High Quality
720x1440,10P,Bi
Standard②
720x1080,6P,Bi
Standard①
720x720,4P,Bi
High Speed
540x720,4P,Bi
Draft
540x360,2P,Bi
Super Draft
360x360,1P,Bi
JV150-160
JV150-130
**
**
Print speed (SS21/BS3/BS4)
•4C ink set, CMYK
PVC
Banner
m²/h
m²/h
9
The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type.
When the profile is not available, use MPM-3 to create the profile for the media.
* MAPS works with “Quality priority” setting in RasterLink6
** MAPS does not work
*
**
*
*
*

Mimaki Europe B.V.
Sign Graphics Products
3,1
4,1
5,7
7,1
8,5
15,5
24,4
3,6
4,7
6,6
8,2
9,8
17,8
28,1
010 20 30
Super Smooth
720x1440,18P,Bi
High Quality
720x1080,14P,Bi
Standard②
720x720,10P,Bi
Standard①
720x720,8P,Bi
High Speed
540x720,8P,Bi
Draft
540x360,4P,Bi
Super Draft
360x360,2P,Bi
JV150-160
JV150-130
*
*
*MAPS works with “Quality priority” setting in RasterLink6
** MAPS does not work
Print speed (SS21)
•8C: CMYKLcLmLkOr
m2/h
1,5
3,1
3,7
4,9
5,7
7,1
1,7
3,6
4,3
5,6
6,6
8,2
0 5 10 15 20
Super Smooth
1440x1440,20P,Bi
High Quality
720x1440,18P,Bi
Standard②
720x1080,16P,Bi
Standard①
720x1080,12P,Bi
High Speed
720x720,10P,Bi
Draft
720x720,8P,Bi
JV150-160
JV150-130
PVC Banner
10
**
**
**
*
The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type.
When the profile is not available, use MPM-3 to create the profile for the media.
m2/h

Mimaki Europe B.V.
Sign Graphics Products

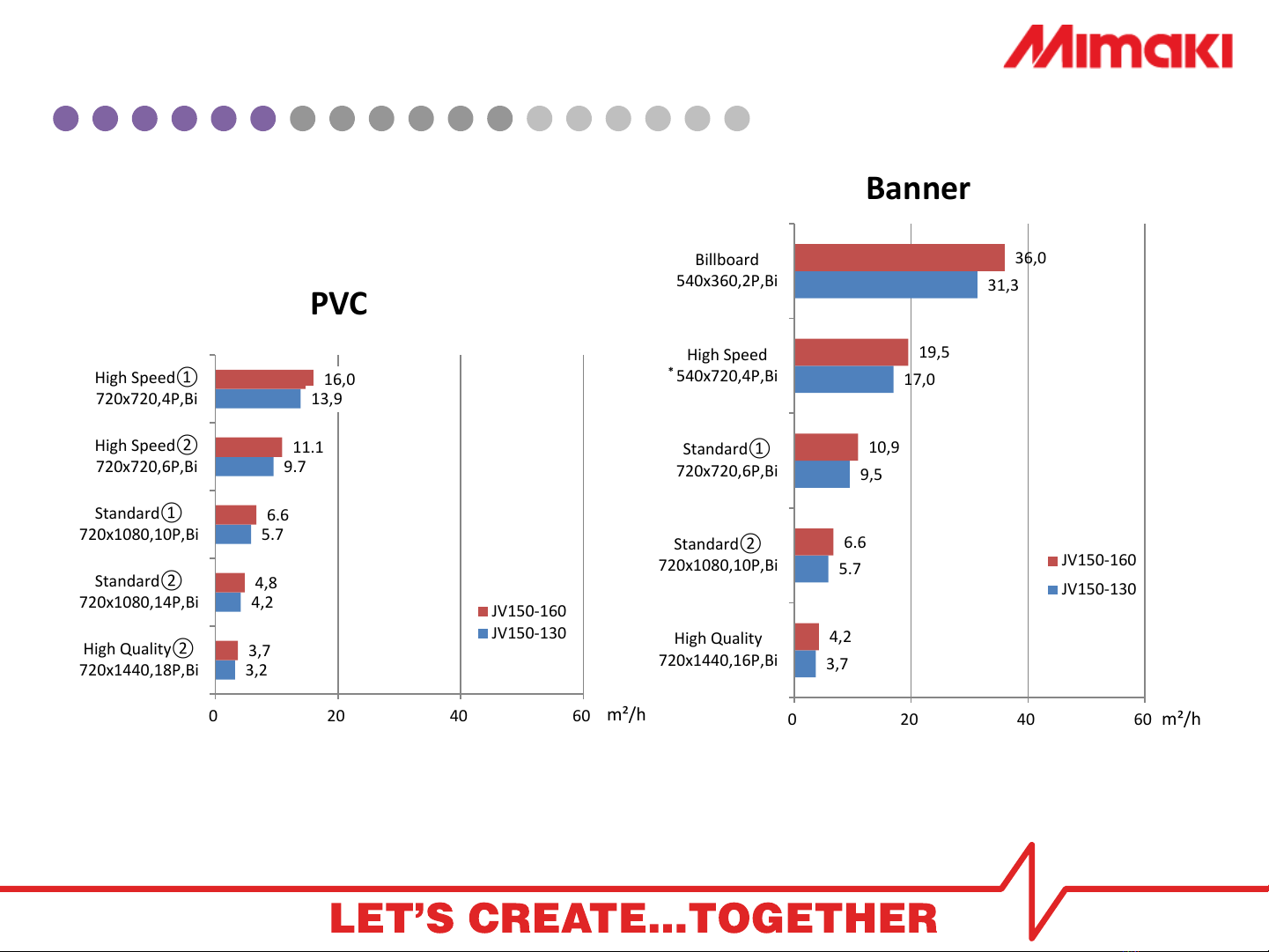

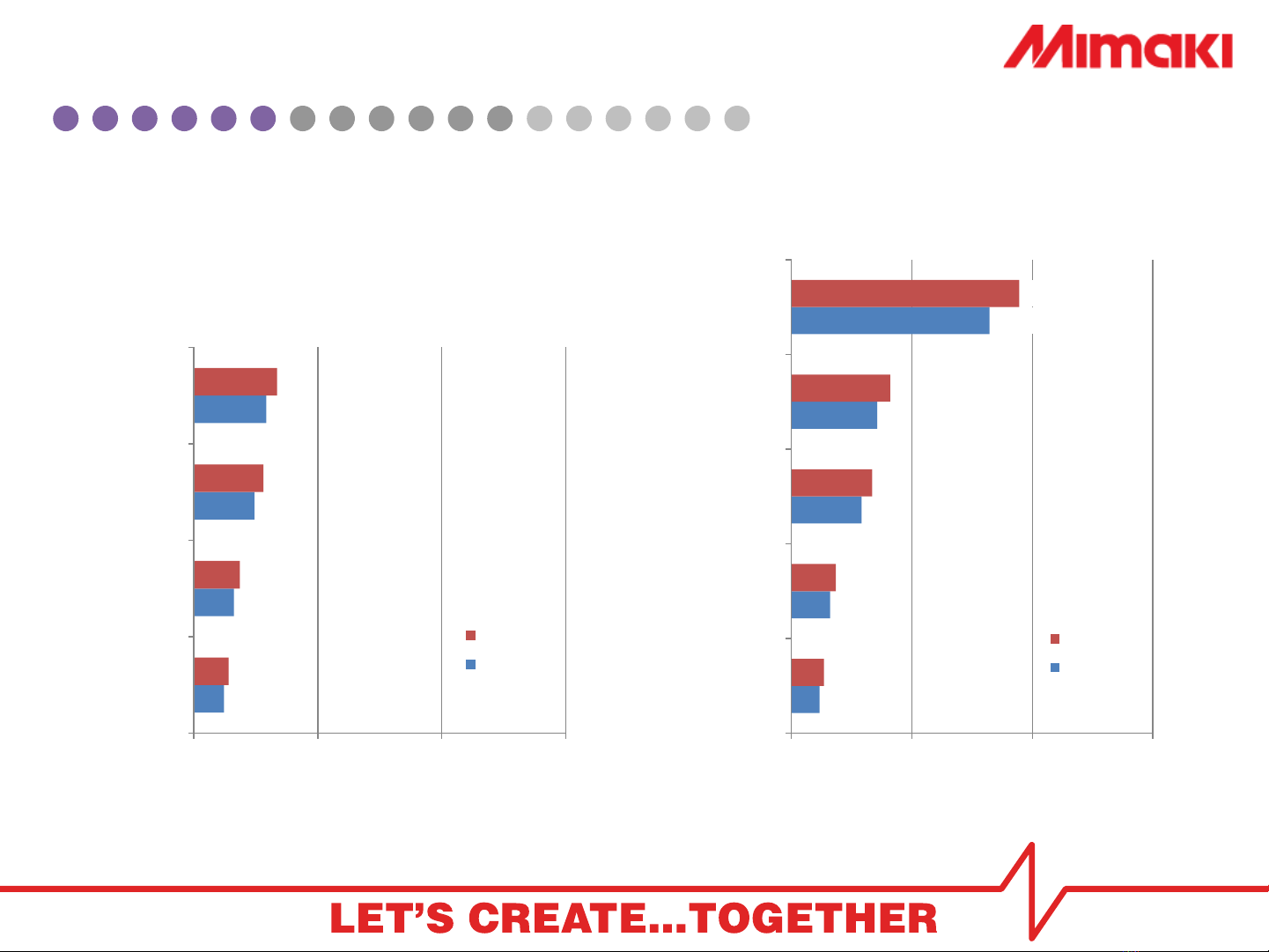

Print speed (ES3)
3,2
4,2
5.7
9.7
13,9
3,7
4,8
6.6
11.1
16,0
020 40 60
High Quality②
720x1440,18P,Bi
Standard②
720x1080,14P,Bi
Standard①
720x1080,10P,Bi
High Speed②
720x720,6P,Bi
High Speed①
720x720,4P,Bi
JV150-160
JV150-130
3,7
5.7
9,5
17,0
31,3
4,2
6.6
10,9
19,5
36,0
020 40 60
High Quality
720x1440,16P,Bi
Standard②
720x1080,10P,Bi
Standard①
720x720,6P,Bi
High Speed
540x720,4P,Bi
Billboard
540x360,2P,Bi
JV150-160
JV150-130
*
PVC
Banner
m²/h m²/h
•4C ink set, CMYK
11
**
*
*MAPS works with “Quality priority” setting in RasterLink6
** MAPS does not work
The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type.
When the profile is not available, use MPM-3 to create the profile for the media.

Mimaki Europe B.V.
Sign Graphics Products
Print speed (ES3)
•6C: CMYKLcLm
2.3
3.1
4,9
5.7
2.7
3.6
5,6
6.6
010 20 30
High Quality①
720x1440,24P,Bi
Standard②
720x1080,18P,Bi
High Speed②
720x720,12P,Bi
High Speed①
720x720,10P,Bi
JV150-160
JV150-130
2,3
3.1
5.7
7,1
15.5
2,7
3.6
6.6
8,2
17.3
010 20 30
High Quality
720x1440,24P,Bi
Standard②
720x1080,18P,Bi
Standard①
720x720,10P,Bi
High Speed②
540x720,10P,Bi
High Speed①
540x360,4P,Bi
JV150-160
JV150-130
PVC
Banner
m²/h m²/h
12
*MAPS works with “Quality priority” setting in RasterLink6
The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type.
When the profile is not available, use MPM-3 to create the profile for the media.
*

Mimaki Europe B.V.
Sign Graphics Products
Outstanding speed, Sb53 inks
•Sb53 4C and 6C printing speeds
BMYDk(K) BMYDk(K)LbLm
m²/h m²/h
3,1
4,1
5,7
7,1
8,9
16,3
25,7
3,6
4,7
6,6
8,2
10,2
18,7
29,5
010 20 30 40
Super Smooth
720x1440,18P,Bi
High Quality
720x1080,14P,Bi
Standard②
720x720,10P,Bi
Standard①
720x720,8P,Bi
High Speed
540x720,8P,Bi
Draft
540x360,4P,Bi
Super Draft
360x360,2P,Bi
JV150-160
JV150-130
**
*
*
*
5,7
7,1
9,7
13,9
17,0
21,8
31,9
50,5
6,6
8,2
11,1
16
19,5
25
36,7
58
020 40 60 80
Super Smooth
720x1440,10P,Bi
High Quality
720x1440,8P,Bi
Standard②
720x1080,6P,Bi
Standard①
720x720,4P,Bi
High Speed②
540x720,4P,Bi
High Speed①
540x360,3P,Bi
Draft
540x360,2P,Bi
Super Draft
360x360,1P,Bi
JV150-160
JV150-130
*
**
**
**
13
*
*
*MAPS works with “Quality priority” setting in RasterLink6
** MAPS does not work
The print modes shown in this document are the performance of the printer itself. The profiles are created selectively depending on the media type.
When the profile is not available, use MPM-3 to create the profile for the media.

Mimaki Europe B.V.
Sign Graphics Products
Sb53 inks
•2 different types of black ink
•2 types of black ink are offered to meet customers’ demand
Type Advantage Disadvantage
Sb53-K
•Less smoke generation during heat
transfer
•Less grainy results can be seen at
the low gradation areas
•When printing with 100%, the density is
the same as Dk ink, but the density is
lower in the areas with low gradations
Sb53-DK •Reflection density is higher at the
low gradation part
•Grainy results can be seen at the low
gradation areas
•More smoke generation during heat
transfer, compared to the K ink
14

Mimaki Europe B.V.
Sign Graphics Products
Outstanding speed with Sb54 inks
•Sb54, 4C printing speeds
KT,BLT,MT,YT
m²/h
5,7
7,1
9,7
13,9
17,0
21,8
31,9
50,5
6,6
8,2
11,1
16
19,5
25
36,7
58
020 40 60 80
Super Smooth
720x1440,10P,Bi
High Quality
720x1440,8P,Bi
Standard②
720x1080,6P,Bi
Standard①
720x720,4P,Bi
High Speed②
540x720,4P,Bi
High Speed①
540x360,3P,Bi
Draft
540x360,2P,Bi
Super Draft
360x360,1P,Bi
JV150-160
JV150-130
15

Mimaki Europe B.V.
Sign Graphics Products
Stunning quality

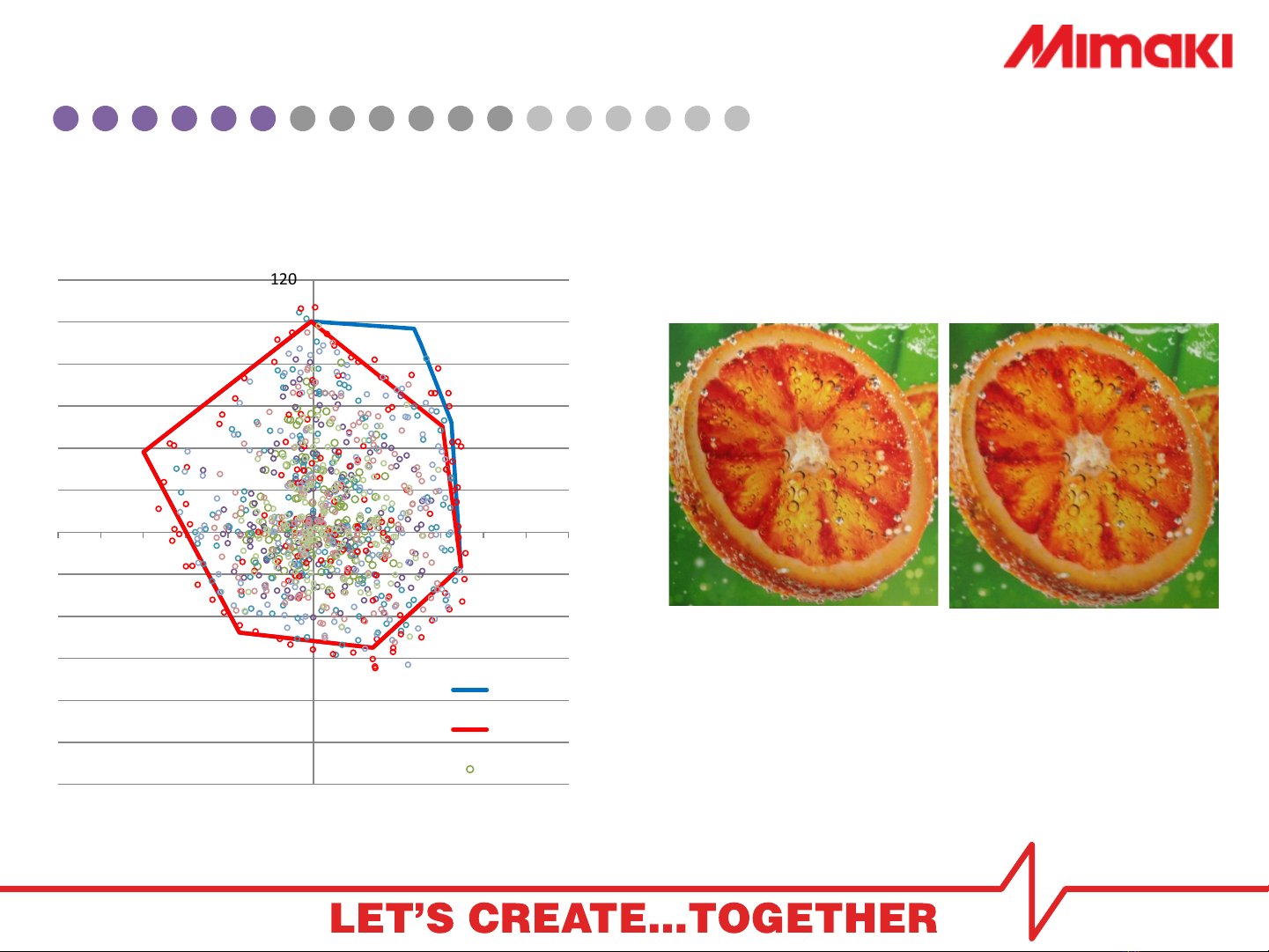

•Wider color gamut with the new SS21 Orange ink
•Orange ink is added as a process color
•Covering approx. 94.8% of the PANTONE coated color chart, 7% more
than only with 4C
•The large color gamut makes it easy to reproduce corporate colors, etc.
M C Y KLc Lm Lk Or
16

Mimaki Europe B.V.
Sign Graphics Products
-120
-100
-80
-60
-40
-20
0
20
40
60
80
100
120
-120 -100 -80 -60 -40 -20 020 40 60 80 100 120
CMYKLcLmLkOr
CMYK
PANTONE近似色
Stunning quality
•SS21 with Orange ink
High reproducibility
with brighter orange
color
Less bright orange
color
CMYKLcLmLk+OrCMYKLcLm
Gamut comparison Comparing print results
*PANTONE solid chips coated(1085 colors)
Colors of PANTONE
17

Mimaki Europe B.V.
Sign Graphics Products
Stunning quality
•SS21 with Light Black ink
•High quality monochrome color reproduction with the Light Black ink
•Smooth color balance without color shifting, reproducing high quality,
smooth gray output
CMYKLcLmLkOr
CMYKLcLm
•Smooth skin tone
•Reddish gray
•Skin with grainy
appearance
•Reddish gray •No color shift and
smooth gradation
CMYKLcLmLkOr
CMYKLcLm
18

Mimaki Europe B.V.
Sign Graphics Products
Stunning quality
•Waveform Control Technology for high quality printing
•High accuracy dot placement, jetting ink drops in straight lines, with almost
perfect round dots
•Generating less mist, printing clear and sharp letters, lines, edges, and etc.
•Waveform is optimized to reduce the risk of missing nozzles
19

Mimaki Europe B.V.
Sign Graphics Products
Stunning quality
Ink dots do not overlap and gives
an accurate dot placement
↓
No grainy appearance
JV150 ejects ink drops in straight lines
with a near-perfect circle
If ink drops are not ejected straight and
if they do not form perfect circles
Ink dots overlap and no accurate dot placement
↓
Grainy appearance and uneven density
20
