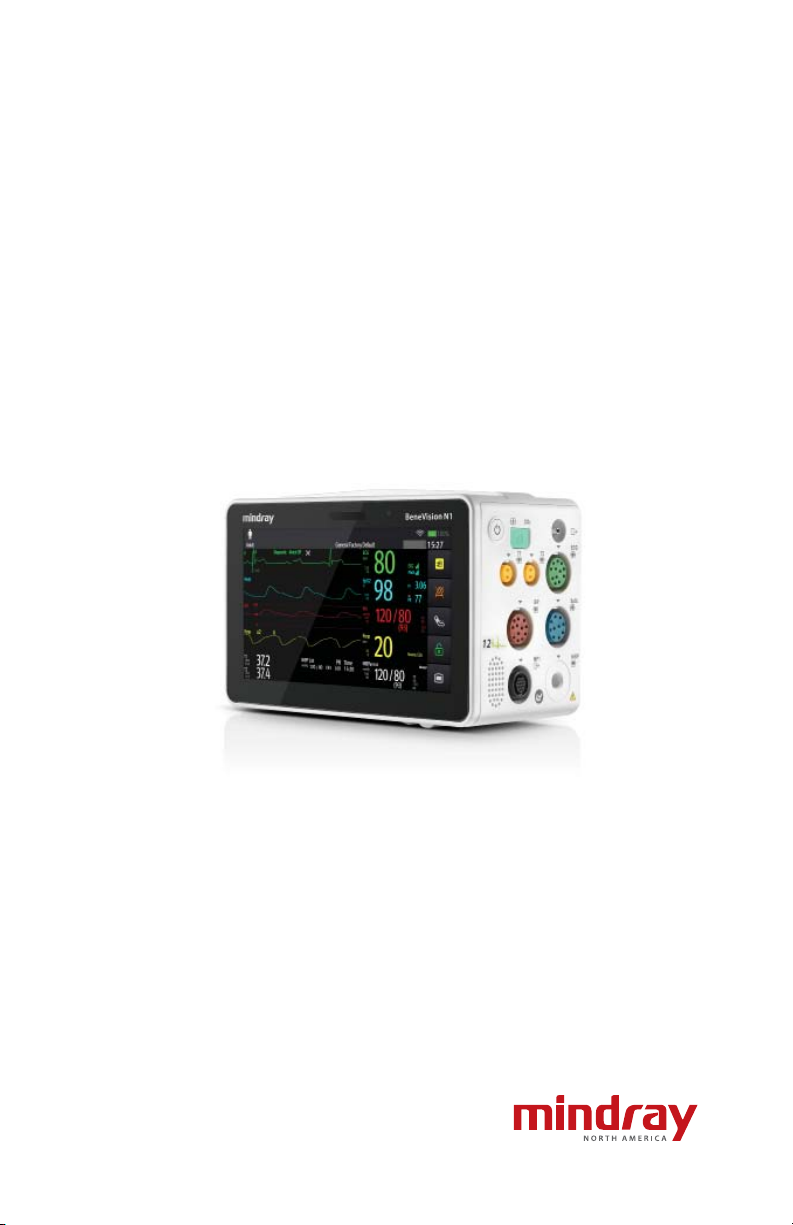

Mindray BeneVision N1 User manual

BeneVision N1
Quick Reference Guide

Note: The BeneVision N1 Quick Reference Guide is not
intended as a replacement to the Operating Instructions.
This document is a guideline only to be used as an aid to
comprehensive Inservice Training.

Table of Contents
QUICK KEYS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
GESTURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PATIENT SETUP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Admit Patient And Enter Demographics (Manual Entry) . . . . . . . . . . . . . . . . . . . .2
Enter Demographics from the CMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Enter Demographics from the ADT Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Discharge a Patient . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
STANDBY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Enter Standby. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Resume Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PRINT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Realtime Waveforms (Laser printer connection required) . . . . . . . . . . . . . . . . . . .5
Adjust Printed Waveforms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
End Case Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ECG. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjust ECG Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Enable Pacemaker Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Initiate ECG Relearn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Initiate ST Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Initiate QT Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Selecting Leads for QT Calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Initiate and Print a 12-lead ECG Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
NIBP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Initiate A Non-Invasive Blood Pressure Measurement (NIBP) . . . . . . . . . . . . . . . . 8
Stop Non-Invasive Blood Pressure Measurement (NIBP) . . . . . . . . . . . . . . . . . . . .8
Table of Contents

Set A Non-Invasive Blood Pressure Measurement Interval . . . . . . . . . . . . . . . . . .9
Configure A Custom Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Factors that Affect Blood Pressure Measurement Accuracy. . . . . . . . . . . . . . . . .10
INVASIVE BLOOD PRESSURES (OPTIONAL) . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adjust Invasive Blood Pressure Label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Zero Invasive Blood Pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
ALARMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting Parameter Alarm Properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Changing Arrhythmia Alarm Settings(Arrhythmia Option Required) . . . . . . .13
Disable Non-Lethal Arrhythmia Alarms (Arrhythmia Option Required). . . . . .14
Accessing Help When Technical Alarms Occur . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
RESET ALARMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
PAUSE ALARMS/PAUSE ALARM TONES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SCREEN DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
REVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Tabular Trends . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Arrhythmia and Alarm Events. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Full Disclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
VOLUMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Alarm Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Key Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Beat Tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
DATE AND TIME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
PARAMETER COLORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
LOAD DEFAULT (PRESET) SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
LOCK/UNLOCK TOUCHSCREEN DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Table of Contents (cont'd)

Cleaning the Equipment and Mounting Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Disinfecting the Equipment and Mounting Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Cleaning and Disinfecting the Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
STERILIZATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Changes made from the N1 monitor effecting the BeneVision Central Monitoring
System and changes made from the BeneVision Central Monitoring System
effecting N1 monitor are indicated with the symbol.
Table of Contents (cont'd)

1
BeneVision N1 Quick Reference Guide
QUICK KEYS
Alarm Reset
Acknowledges alarms.
Screen Setup
Opens the Screen Setup
dialog.
Alarm Pause
Pauses the current
and future alarms for a
preconfigured time.
Print
Initiates a real-time
report.
Audio Pause
Pauses alarm tone.
Standby
Opens Standby mode.
NIBP Start/Stop
Starts an NIBP
measurement or
stops the current NIBP
measurement.
Manual Event
Triggers a manual event.
Lock
Selects and operates as
instructed to unlock the
touchscreen.
NIBP Measure
Opens the NIBP Measure
dialog.
Unlock
Selects and operates as
instructed to lock the
touchscreen.
Main Menu
Opens the main menu.

2
BeneVision N1 Quick Reference Guide
GESTURES
Swipe down the touchscreen with two fingers to access the
Discharge Patient dialog box.
PATIENT SETUP
Admit Patient And Enter Demographics (Manual Entry)
The Patient Management dialog allows the clinician to admit a patient and enter
patient demographics. Admitting also restores default (preconfigured) settings
and clears the previous patient’s information.
After a patient is manually discharged, the monitor automatically admit a new
patient. To manually admit a patient on the N1 monitor:
a. The monitor prompts to admit a new patient in the following situations:
• After being switched off for the selected time period*, the monitor
automatically discharge the previous patient and admit a new patient at
startup.
• If the monitor has not detected certain patient vital signs (ECG, SpO2, PR,
RR, NIBP) for 30 minutes, the clinician will be prompted to admit a new
patient once continuous monitoring is detected.
*Time period configurable.
b. To open the Patient Management dialog:
• Select the patient information area at the top left corner of the screen.
• Select the Main Menu quick key, and select Patient Management
from the Patient Management column.
• Select Patient Management from the discharge screen.
c. Select Patient Category and select OK to confirm.
d. Select patient field(s) and enter patient information as required using the
onscreen keyboard.
e. Select button to accept the information.
f. Select OK to confirm and return to the main screen.
Note: If the patient’s barcode is scanned, the medical number and associated

3
BeneVision N1 Quick Reference Guide
information is entered into the monitor.
Enter Demographics from the Central Monitoring System (CMS)
If the N1 monitor is connected to the CMS, entering patient information at
the CMS will enter the patient information into the N1 monitor. In addition,
entering demographic information into the N1 monitor will automatically enter
information into the CMS.
Enter Demographics from the ADT Database
If the N1 monitor is connected to a hospital’s ADT server the patient
demographic information can be imported into the N1 monitor. To import
patient information from the Hospital’s ADT server:
a. Enter the Find Patient dialog in either of the following ways:
• Select the Main Menu quick key, and select Find Patient from the
Patient Management column.
• From the Patient Management dialog select Find Patient.
b. Verify the ADT tab is selected.
c. Enter search field such as patient ID.
d. Select Search to display a list of the search results.
e. Select a patient from the patient list.
f. Select adjacent to the patient information N1 monitor to import that
patient’s information and return to patient management.
g. Select OK to confirm and return to the main screen.
Note: Find patient from the ADT server is only enabled if ADT Query is
supported.
Note: Loading patient information from the ADT server updates only patient
information in the N1 monitor. The patient’s monitoring data is unaffected.
Discharge a Patient
The Discharge function clears all patient information and restores default
(preconfigured) settings.
• Swipe down the touchscreen with two fingers, and select Discharge to
confirm.

4
BeneVision N1 Quick Reference Guide
• Select the Main Menu quick key, and select Discharge from the
Patient Management column.
• Select Discharge patient from the standby screen.
And select Discharge to confirm.
STANDBY
Enter Standby
The Standby function allows the clinician to suspend monitoring on a patient.
While in standby, the patient is not being monitored; however, all data and
settings are preserved.
To place a patient into Standby on the N1 monitor:
a. Select the Standby quick key.
Or
a. Select the Main Menu quick key, and select Standby from the Patient
Management column.
b. Set Location from the drop down list to define where the patient is when
the monitor enters the standby mode.
c. Select OK to confirm.
Resume Monitoring
To remove a patient from Standby and resume monitoring on the N1 monitor,
select Resume Monitor.
Once a patient is discharged the monitor automatically enters the Standby mode.
To resume monitoring select Monitor.
PRINT
Realtime Waveforms (Laser printer connection required)
To print a real time report for a patient on the N1 monitor:
a. Select quick key.
Or
a. Select Report Setup from Main Menu quick key.
b. Select Realtime Reports tab.

5
BeneVision N1 Quick Reference Guide
c. Select Print.
Adjust Printed Waveforms
To adjust the waveforms printed for a patient on the N1 monitor:
a. Select the Main Menu quick key, and select Report Setup from the
Report column.
b. Select Realtime Reports tab.
c. Select Current Waveforms.
d. Select Print.
To print selected waveforms for a patient on the N1 monitor:
a. Select the Main Menu quick key, and select Report Setup from the
Report column.
b. Select Realtime Reports tab.
c. Select Selected Waveforms.
d. Select the desired waveforms to add/delete from the selected list.
e. Select to return to the previous page
f. Select Print.
End Case Report
The following reports can be set as end case reports:
• ECG Report
• Realtime Report
• Tabular Trends Report
• Graphic Trend Report
If Print End Case Report are enabled, the N1 monitor will automatically print the
selected reports when a patient is discharged.
To set reports to print as an End Case Report:
a. Select the Main Menu quick key, and select End Case Report from
the Report column.
b. Select the desired report tab.

6
BeneVision N1 Quick Reference Guide
c. Enable Set As End Case Report.
d. Select the Main Menu quick key or to return to the main display.
ECG
Adjust ECG Lead
The N1 monitor allow the clinician to adjust the leads being viewed on the main
display. To adjust the ECG Lead:
a. Select the ECG numeric area or waveform area to enter the ECG dialog.
b. Select the Setup tab.
c. Set Lead Set according to the lead type you will be used.
d. Select ECG1 to adjust first lead.
e. Repeat step d or remaining displayed leads.
f. Select the Main Menu quick key or to return to the main display.
Enable Pacemaker Detection
The N1 monitor allow the clinician to enable pacemaker detection. The
symbol is displayed when the pacemaker detection is enabled.
To enable the pacemaker detection on the N1 monitor:
a. Select the ECG numeric area or waveform area to enter the ECG dialog.
b. Select the Pacer tab.
c. Set Paced to Yes .
d. Select the Main Menu quick key or to return to the main display.
Initiate ECG Relearn
To initiate ECG relearning manually on the N1 monitor:
a. Select the ECG numeric area or waveform area to enter the ECG dialog.
b. Select Relearn at the bottom left corner of the dialog.
c. Select the Main Menu quick key or to return to the main display.
Initiate ST Analysis
To initiate ST analysis on the N1 monitor:
a. Select the ECG numeric area or waveform area to enter the ECG dialog.

7
BeneVision N1 Quick Reference Guide
b. Select the ST tab.
c. Select the Setup tab.
d. Enable ST Analysis.
e. Select the Main Menu quick key or to return to the main display.
Initiate QT Analysis
To enable the QT monitoring on the N1 monitor:
a. Select the ECG numeric area or waveform area to enter the ECG dialog.
b. Select the QT tab.
c. Select the Setup tab.
d. Enable QT Analysis.
e. Select the Main Menu quick key or to return to the main display.
Selecting Leads for QT Calculation
To select one lead or all leads for QT calculation:
a. Select the QT numerics area, ECG numeric area, or ECG waveform area to
enter the ECG dialog.
b. Select the QT tab.
c. Select the Setup tab.
d. Set QT Leads.
e. Select the Main Menu quick key or to return to the main display.
Initiate and Print a 12-lead ECG Report
To perform a Resting 12-lead ECG Analysis on the N1 monitor:
a. Select the ECG numeric area or waveform area to enter the ECG dialog.
b. Select the Setup tab.
c. Verify Lead Set to 12-Lead.
d. Select 12-Lead button.
e. Select Setup to enter patient information or adjust Report options.
f. Select Analyze.
g. Select Print to print out the 12-lead ECG report.

8
BeneVision N1 Quick Reference Guide
NIBP
Initiate A Non-Invasive Blood Pressure Measurement (NIBP)
To initiate a NIBP measurement:
a. Press the NIBP Start/Stop quick key.
Or
a. Select NIBP tile on the main screen to access the NIBP dialog.
b. Select Start NIBP.
c. Select the Main Menu quick key or to return to the main display.
Stop Non-Invasive Blood Pressure Measurement (NIBP)
To stop the current NIBP measurements,
a. Press the NIBP Start/Stop quick key during the NIBP measurement.
Or
a. Select NIBP tile on the main screen to access the NIBP dialog.
b. Select Stop NIBP.
c. Select the Main Menu quick key or to return to the main display.
To stop all NIBP measurements on a patient on the N1 monitor:
a. Select NIBP parameter area to access the NIBP dialog.
b. Select Stop All.
c. Select the Main Menu quick key or to return to the main display.
Select NIBP Start Mode
Start mode defines how NIBP auto mode works. To set the start mode,
a. Select the NIBP tile on the main screen to enter the NIBP dialog.
b. Set Start Mode.
• Clock: after the first measurement, the monitor automatically
synchronizes NIBP automatic measurements with the real time clock.
• Interval: after the first measurement, the monitor automatically repeats
measurements at set interval.
c. Select the Main Menu quick key or to return to the main display.

9
BeneVision N1 Quick Reference Guide
Set A Non-Invasive Blood Pressure Measurement Interval
The N1 monitor allows the clinician to set a pre-configured interval for a NIBP
measurement to be obtained automatically. To set an automatic interval on the
N1 monitor:
a. Select the NIBP Measure quick key.
b. Select the desired interval.
Or
a. Select NIBP tile on the main screen to access the NIBP dialog.
b. Select Interval to select the desired interval from the dropdown list.
• Intervals include: 1 min, 2 min, 2.5 min, 3 min, 5 min, 10 min, 15 min,
20 min, 30 min, 1 h, 1.5 h, 2h, 3h, 4h, 8h: The monitor automatically
measures NIBP based on the specified time interval.
• Select Sequence to automatically measure NIBP based on the sequence
customized by the user in the Sequence tab.
c. Select the Main Menu quick key or to return to the main display.
Configure A Custom Sequence
To configure a custom sequence:
a. Select NIBP tile on the main screen to access the NIBP dialog.
b. Set Interval to Sequence.
c. Select Sequence tab.
d. Set Duration and Interval for each phase in the measurement cycle.
e. Select the Main Menu quick key or to return to the main display.
Factors that Affect Blood Pressure Measurement Accuracy
The accuracy of non-invasive blood pressure (BP) measurement has been shown
to be affected by numerous factors. Some of the more important aspects (based
on published literature) to consider while measuring BP are:
• The cuff should fit snugly, but with enough room for two fingers to be
placed between the cuff and the patient’s arm (on adults), and loosely on
neonates with little or no air present within the cuff.
• Use the Guidance Table provided to select the proper size cuff. Too small

10
BeneVision N1 Quick Reference Guide
a cuff has been shown to result in the overestimation of BP (systolic and
diastolic) while too large a cuff results in the underestimation of BP.
Ensure that the cuff is wrapped directly over the patient’s skin. BP measurement
could be 10 to 40 mmHg higher or lower than actual when the cuff is applied
over clothing.
• The cuff should be applied so that the center of the bladder in the cuff is
over the brachial artery. Use the reference marker for ver.
• For best results, the cuff should be placed on the arm at heart level and
the lower arm supported passively. Published data indicates that BP can
increase about 2 mmHg for every inch that the cuff is below heart level and
decrease by the same amount if above heart level.
• Avoid compression or restriction of the pressure hose. Do not place the
NIBP cuff on a limb that is being utilized for any other medical procedure,
for example, an I.V. catheter.
• Have the patient sit quietly for several minutes before BP measurement and
remain still during measurement to avoid unnecessary motion artifact. If
the patient has not rested before measurement, BP could be elevated by 10
to 20 mmHg.
• Do not talk to the patient during BP measurement as talking has been
shown to result in a 10 to 15 mmHg overestimation of BP.
• The patient’s back and feet should be properly supported with the legs
kept uncrossed. Unsupported back and feet could increase BP by up to 15
mmHg, while crossed legs could result in a 4 to 12 mmHg increase.
• Other factors that have been shown to result in an overestimation of BP are
labored breathing (5 to 8 mmHg), full bladder (10 to 15 mmHg), pain (10 to
30 mmHg).
Guidance Table
Cuff Description Limb Circumference
Child 10 - 19 cm
Small Adult 18 - 26 cm
Adult 25 - 35 cm
Large Adult 33 - 47 cm
Thigh 46 - 66 cm

11
BeneVision N1 Quick Reference Guide
Cuff Description Limb Circumference
Adult Long 25 - 35 cm
Large Adult Long 33 - 47 cm
References:
1. American Association on Critical-Care Nurses (AACN): Practice Alert,
Non-Invasive Blood Pressure Monitoring (April 2010)- http://www.
aacn.org/wd/practice/docs/practicealerts/non-invasive-bp-monitoring.
pdf?menu=aboutus
2. Pickering Thomas G, Hall John E, Appel Lawrence J, Falkner Bonita E, Graves
John, Hill Martha N, Jones Daniel W, Kurtz Theodore, Sheps Sheldon G,
Roccella Edward J. Recommendations for blood pressure measurement in
humans and experimental animals: Part 1: Blood pressure measurement
in humans: A statement for professionals from the Subcommittee of
Professional and Public Education of the American Heart Association
Council on High Blood Pressure Research. J Hypertens 2005; 45: 142-161.
3. O’Brien Eoin, Asmar Roland, Beilin Lawrie, Imai Yutaka, Mallion Jean-
Michel, Mancia Giuseppe, Mengden Thomas, Myers Martin, Padfield
Paul, Palatini Paolo, Parati Gianfranco, Pickering Thomas, Redon Josep,
Staessen Jan, Stergiou George, Verdecchia Paolo. European Society of
Hypertension recommendations for conventional, ambulatory and
home blood pressure measurement. J Hypertens 2003; 21: 821-848.
INVASIVE BLOOD PRESSURES (OPTIONAL)
The N1 monitor allows a clinician to monitor up to 2 invasive blood pressures
(IBP) simultaneously.
Adjust Invasive Blood Pressure Label
To adjust the label on an invasive blood pressure:
a. Select the IBP parameter by:
• Main Menu
-Select the Main Menu quick key and select Setup from the
Parameters column.
-Select the Invasive Blood Pressure (ART, CVP, etc.).

12
BeneVision N1 Quick Reference Guide
• Waveform/Numeric tile
-Select the IBP waveform/numeric tile.
-Select the Setup tab.
b. Select IBP Label and adjust the label.
c. Select the Main Menu quick key or to return to the main display.
Zero Invasive Blood Pressure
To zero an invasive blood pressure transducer on the N1 monitor:
a. Connect the invasive blood pressure cable to the invasive blood pressure
transducer set.
b. Position transducer and open the invasive line in accordance with hospital
policy.
c. Select IBP waveform or numeric tile to open IBP dialog and select Zero.
d. Select the Main Menu quick key or to return to the main display.
ALARMS
Setting Parameter Alarm Properties
The Alarm dialog allows the clinician to configure alarm properties on the N1
monitor.
To adjust the alarm properties of parameters on the N1 monitor:
a. Select the Main Menu quick key, and select Limits from the Alarm
column.
b. Select parameter and select
• On/Off – to enable or disable parameter's alarm responses.
• Select High or Low limit and adjust value using the drop down value list
• Priority– to adjust the audio and visual alarm indicators. Level options
include High (Red), Medium (Yellow), Low (Yellow) and Prompt (audio
absent).
• Alarm Output – to activate an automatic recording/printing when the
alarm occurs.
c. Select the Main Menu quick key or to return to the main display.

13
BeneVision N1 Quick Reference Guide
Changing Arrhythmia Alarm Settings
To adjust a patient’s arrhythmia alarm on the N1 monitor:
a. Select ECG waveform/numeric tile or Main Menu quick key.
b. Select Arrhythmia tab.
c. Scroll and select individual arrhythmia.
d. Select
• On/Off – to enable or disable arrhythmia's alarm responses.
• Priority– to adjust the audio and visual alarm indicators. Level options
include High (Red), Medium (Yellow), Low (Yellow) and Prompt (audio
absent).
Note: If alarm is locked, alarm cannot be turned off or priority altered.
• Alarm Output – to activate an automatic recording when the alarm
occurs.
e. Select the Main Dialog quick key or to return to the main display.
To adjust a patient arrhythmia threshold setting on the N1 monitor:
a. Select ECG waveform/numeric tile or Main Menu quick key.
b. Select Arrhythmia tab.
c. Select Threshold tab.
d. Select arrhythmia threshold and adjust value using the drop down value list.
e. Select the Main Menu quick key or to return to the main display.
Disable Non-Lethal Arrhythmia Alarms
To disable all arrhythmia alarms except lethal arrhythmias on the N1 monitor:
a. Select ECG waveform/numeric tile or Main Menu quick key.
b. Select Arrhythmia tab.
c. Select Lethals Only.
d. Select the Main Menu quick key or to return to the main display.
Accessing Help When Technical Alarms Occur
In the technical alarm list, alarm messages followed by Detail includes help
information.

14
BeneVision N1 Quick Reference Guide
a. Select the technical alarm information area to enter the Alarms dialog.
b. Select the Technical Alarms tab.
c. Select the desired alarm.
d. Select the Main Menu quick key or to return to the main display.
RESET ALARMS
To reset an alarm for the duration of the alarm on the N1 monitor, select the
Alarm Reset quick key.
PAUSE ALARMS/PAUSE ALARM TONES
To pause alarms or alarm tones on the N1 monitor, select Alarm Pause quick
key to pause all the alarms, or select Audio Pause quick key to pause audible
alarm tones.
WARNING: Selecting alarm pause or audio pause may affect current and future
alarms, including arrhythmias, depending on your department’s configuration.
SCREEN DISPLAY
To enter the screen selection dialog and adjust the main screen’s layout on the N1
monitor:
a. Select the Screen Setup quick key.
Or
a. Select the Main Menu quick key, and select Choose Screen from the
Display column.
b. Select the desired screen.
• Normal Screen: Real time waveforms and numeric parameters on the
main display (Configurable).
• Big Numerics: Up to 6 waveforms and numeric parameters in an
expandable view on the main display (Configurable).
• ECG Full Screen: (5, 6, or 12 lead wire set): 7 leads or 8 leads of ECG with
numeric parameters on the main display.
• ECG 12-Lead (Optional): 12 leads of ECG with numeric parameters on the
main display.
c. Select the Main Menu quick key or to return to the main display.

15
BeneVision N1 Quick Reference Guide
Note1: The first waveform is always an ECG lead and HR is always located in the
first digital tile in the Normal Screen selection.
Note2: Digital and waveform display seelctions on the N1 monitor and Central
Monitoring System are independent.
REVIEW
Tabular Trends
To display Tabular trends on a patient:
a. Select the Main Menu quick key.
b. Select Tabular Trends tab from the Review column.
c. Select Trend Group and specify trend category or select Custom for user
defined parameters to be displayed.
d. Select Interval to specify the time interval tabular trends are to be
displayed.
e. Select the Main Menu quick key or to return to the main display.
To print Tabular trends on a patient on the N1 monitor to the printer:
a. Select the Main Menu quick key.
b. Select Tabular Trends tab from the Review column.
c. Select and confirm specified settings.
d. Select Print to the independent printer.
e. Select the Main Menu quick key or to return to the main display.
Arrhythmia and Alarm Events
The Events page stores 1000 physiological and arrhythmia events on a patient
based on the Alarm Setup dialog.
To view and print an alarm event on a patient on the N1 monitor:
a. Select the Main Menu quick key.
b. Select Events tab from the Review column.
c. Scroll and select event.
d. Select Detail to view the details of selected events.
e. Select to print to the independent printer.
