BP10 NIBP Module
Quick Reference Guide
BP10

Note: The BP10 NIBP Module Quick Reference Guide is not
intended as a replacement to the Operating Instructions.
Prior to operating equipment, the user must be familiar
with the Operating Instructions Manual contents. This
document is a guideline only to be used as an aid to
comprehensive Inservice Training.

P/N: H-046-011009-00 Rev 2.0
Table of Contents
PHYSICAL VIEW ................................................1
MAIN SCREEN ..................................................3
MAIN MENU....................................................5
SELECT AND CONFIGURE AN OPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PATIENT SETUP.................................................6
Adjust Patient Category ................................................6
Discharge ........................................................7
STANDBY ......................................................7
Enter Standby .........................................................7
Exit Standby ...........................................................7
NIBP MEASUREMENT ...........................................8
Measurement Mode ...................................................8
Start and Stop Measurements ..........................................8
PAIRING A BP10 WITH TD60/TM80...............................8
SWITCH ON/OFF THE AUDIO ....................................9
CLEAN/DISINFECT THE BP10 ....................................9
Clean the BP10 ........................................................9
Disinfect the BP10 ....................................................13
CLEAN/DISINFECT REUSABLE NIBP CUFF ...................... 13
Clean the Reusable NIBP Cuff..........................................13
Disinfect the Reusable NIBP Cuff ......................................14
STERILIZATION ............................................... 14

P/N: H-046-011009-00 Rev 2.0

P/N: H-046-011009-00 Rev 2.0 1
BP10 NIBP Module Quick Reference Guide

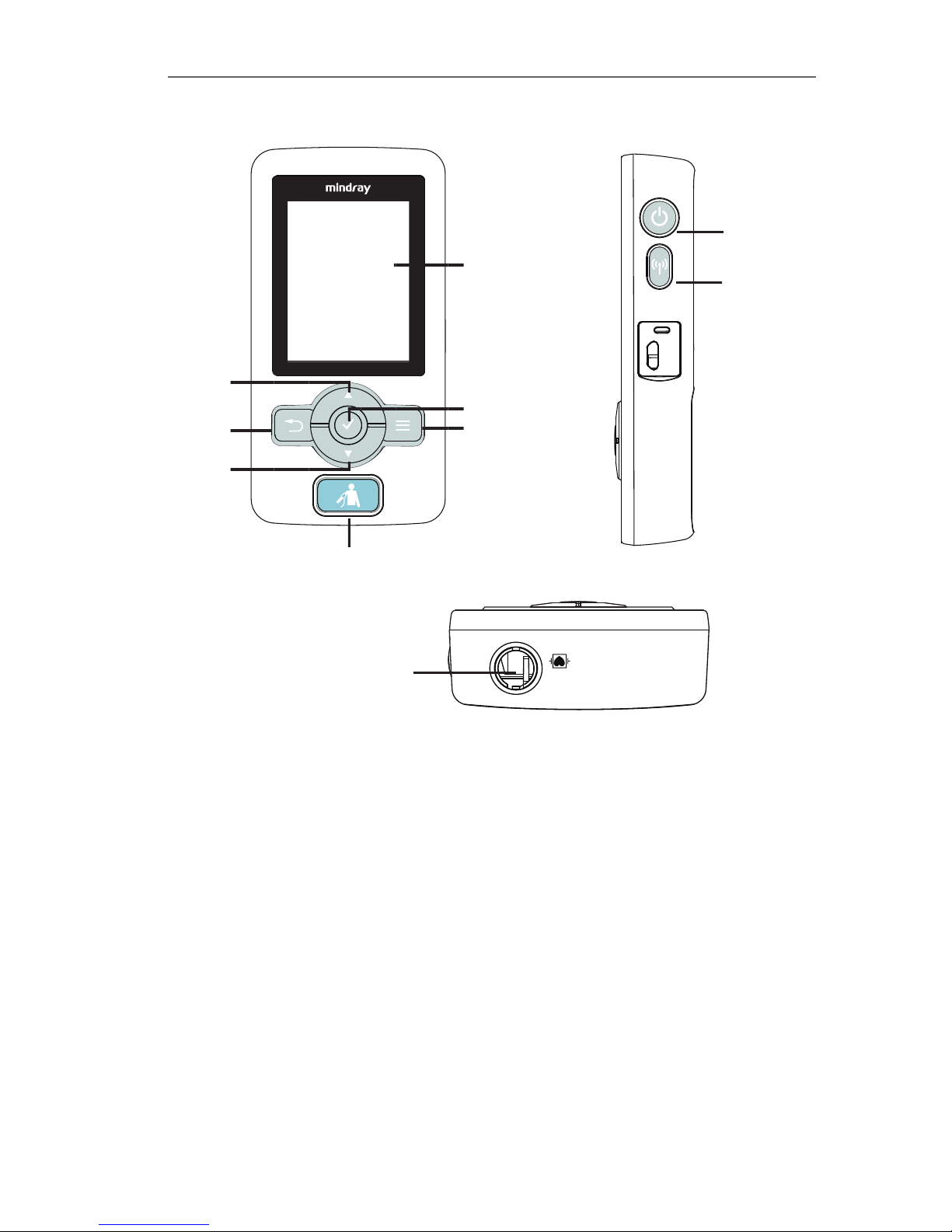

PHYSICAL VIEW
BP10
NIBP
1. Display
2. Confirmation key
When the desired option is highlighted, press this key to select or
activate the corresponding function.
3. Main Menu key
Press this key to turn to the main menu.
4. NIBP start/stop key
• When NIBP is being measured in process, press this key to stop the
NIBP measurement.
• When NIBP is not being measured idle, press this key to start an NIBP
measurement.
1
2
3
4
5
6
7
9
8
10

P/N: H-046-011009-00 Rev 2.0 2
BP10 NIBP Module Quick Reference Guide
5. Down key
Press this key to move down along the column of menu options or
configuration choices.
6. Return key
• Press this key to return to the previous menu and save the settings.
• Press this key to switch between two main screens.
7. Up key
Press this key to move up along the column of menu options or
configuration choices.
8. Power On/Off key
• When BP10 is powered off, press this key to turn BP10 on.
• When BP10 is powered on, press and hold this key to display the
power off confirmation menu.
• If the screen display is on, press this key to turn the display off.
9. MPAN (Mindray Patient Area Network) key
• When BP10 is disconnected from the MPAN, press this key to begin the
bluetooth pairing process.
• When BP10 is connected with the MPAN, press this key to unpair any
connected bluetooth devices.
10. NIBP cuff connector
Connect the NIBP hose.

P/N: H-046-011009-00 Rev 2.0 3
BP10 NIBP Module Quick Reference Guide

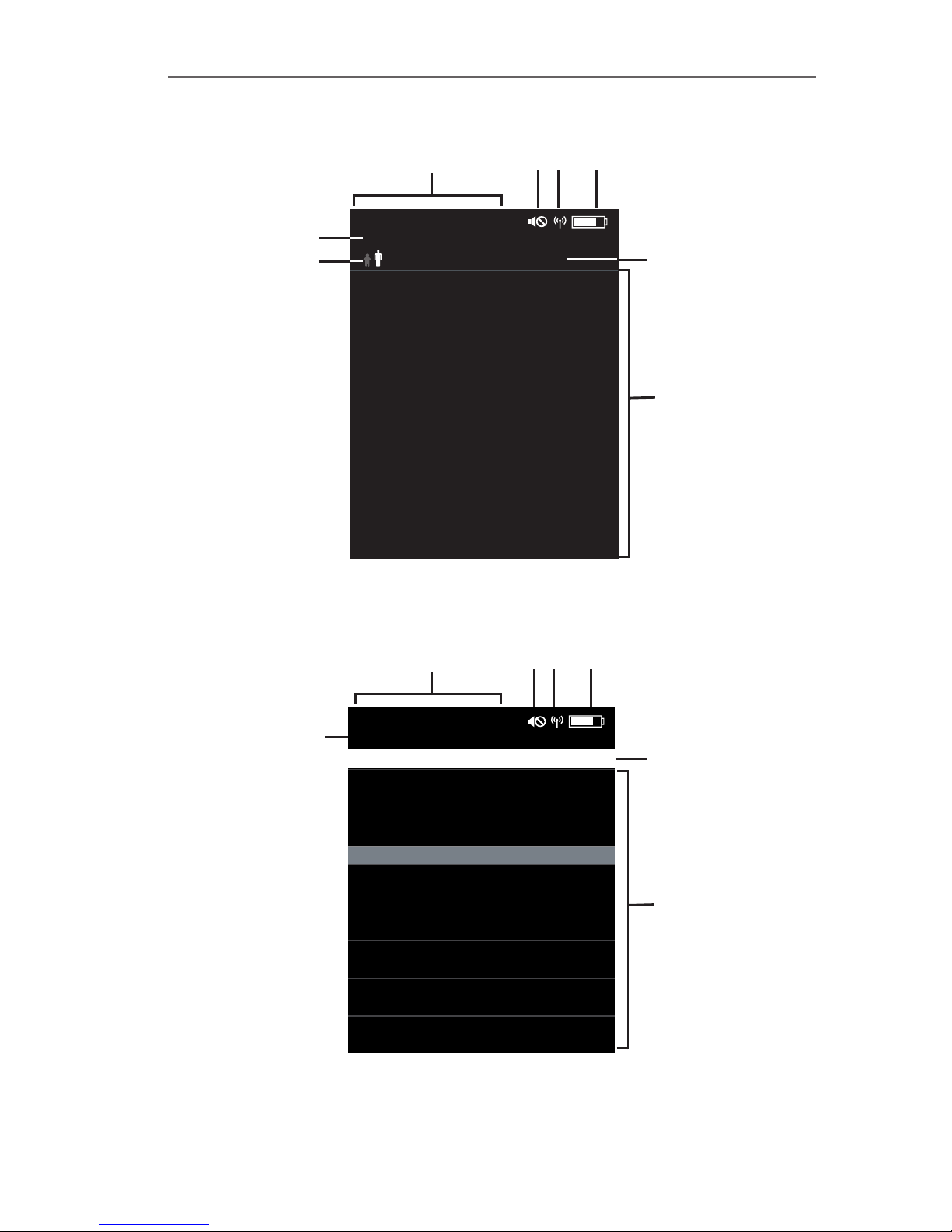

MAIN SCREEN
mmHg 120
80
72 (84)
SYS
DIA
MAPPR
BPM
@ 10:00 PM 00:00:05
2015/08/08
NIBP-001
Sequence:P1
10:03 PM
DIA
1
36
45
2
7
8
8
9
36
45
2
mmHg
SYS/DIA PRMAP
@ 10:00 PM 00:00:05
120/80 (94) 60
09:35 PM
116/78 (94) 61
PR BPM
09:40 PM
118/82 (92) 60
09:45 PM
120/80 (94) 59
09:50 PM
126/86 (96) 61
09:55 PM
120/80 (94) 60
2015/08/08
NIBP-001
10:03 PM

P/N: H-046-011009-00 Rev 2.0 4
BP10 NIBP Module Quick Reference Guide
1. Patient category
The current patient category setting is shown in white.
2. Device name
3. Date and time
This area displays the date and time.
4. Audio off symbol
The audio off symbol displays when the technical audio is turned off.
5. MPAN (Mindray Patient Area Network) symbol
The MPAN symbol displays when the MPAN is turned on.
6. Battery symbol
This symbol indicates the battery charge status.
7. Operation mode
8. NIBP measurement area
This area shows the current values or measurement list.
• When the NIBP is measuring, this area shows the real-time
measurement values.
• When more than 30 seconds elapses after an NIBP measurement ends,
this area automatically displays the measurement list.
9. Message area
The message area shares the same position as patient category and
operation mode.

P/N: H-046-011009-00 Rev 2.0 5
BP10 NIBP Module Quick Reference Guide

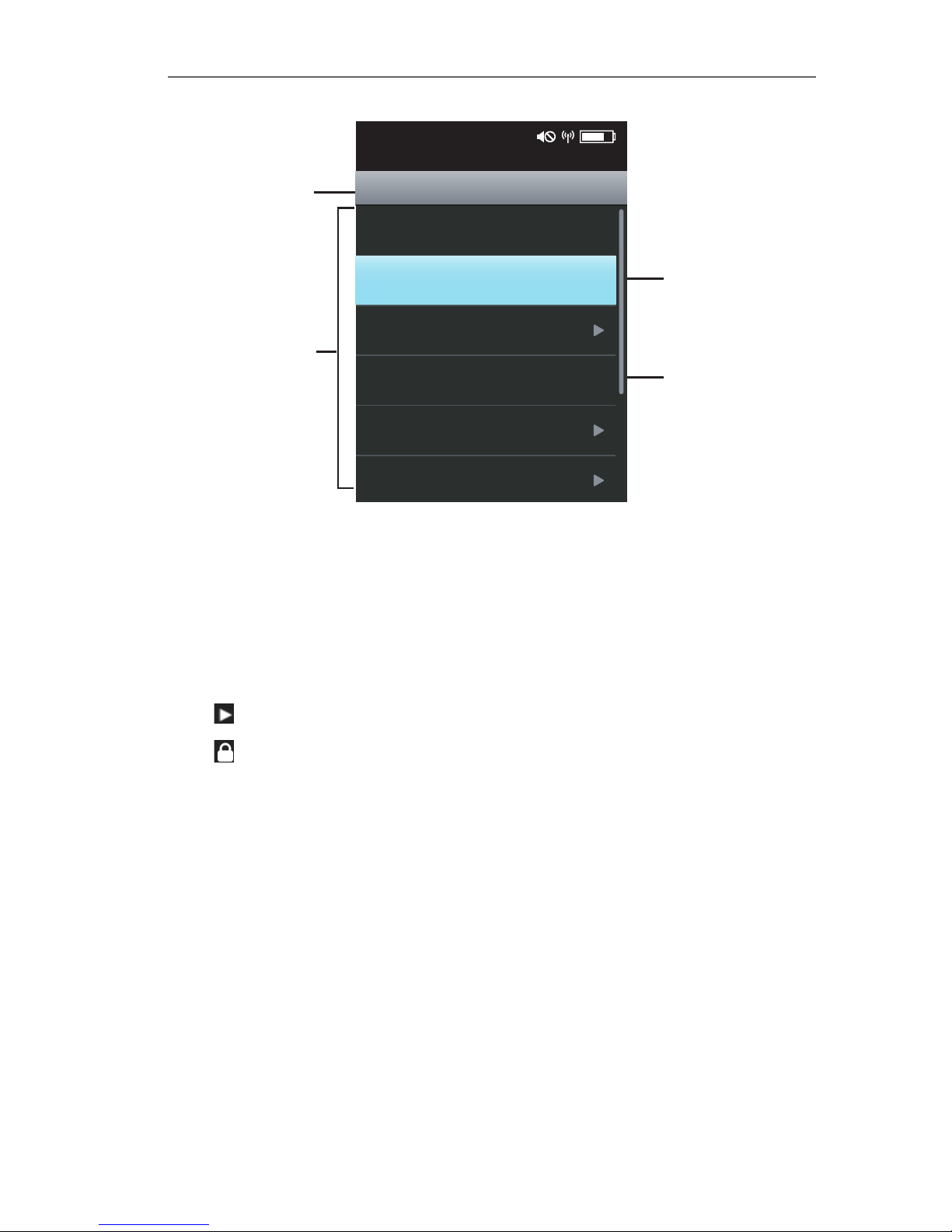

MAIN MENU
PatientPatient Info
4
1
3
2
10-13-2013
Cad... Rajagopalan 41059080
10:03 PM
Clear Prompt
History
NIBP STAT
Mode Manual
Venipuncture
Menu
Stop All
Patient
01-13-2015
NIBP-001
10:03 PM
Clear Prompt
History
NIBP STAT
Mode Manual
Venipuncture
Menu
Stop All
Patient Info
1. Heading: displays the current menu title.
2. Highlighted bar: indicates the current cursor position.
3. Scroll bar: shows the current position in a menu.
4. Main body: contains menu options and other controls to configure and
operate the device.
• accesses a submenu to reveal more options or information.
• indicates that a password is required.

P/N: H-046-011009-00 Rev 2.0 6
BP10 NIBP Module Quick Reference Guide
SELECT AND CONFIGURE AN OPTION
1. Use the and keys to move the highlighted bar to an
appropriate position.
2. Press the key to select the option where the highlighted bar
locates.
If an option can be configured, the choice place will have up and down
arrows, as indicated in the following figure.
Up arrow
Down arrow
00
1. Use the and keys to scroll the choices.
2. Press the key to select the appropriate choice when it displays.
3. Press the key to save the setting.
4. Press the key to exit the menu.
PATIENT SETUP
Adjust Patient Category
The Patient Info menu allows the clinician to adjust the patient category.
Note: Ensure the patient category selection is appropriate for the patient
before taking a measurement.
To adjust the patient category:
1. Press the key to enter the main menu
2. Select Patient Info
3. Select Patient Category to select the patient category
4. Select to confirm that the patient category
5. Press the key to exit the menu
Note: Adjusting patient category restores the BP10 to the default (preset)
settings but does not clear patient information.

P/N: H-046-011009-00 Rev 2.0 7
BP10 NIBP Module Quick Reference Guide
Discharge
Discharging the patient will stop monitoring, clear patient information, and
restore patient category and default (preset) settings at the BP10.
A patient can be discharged by selecting the Discharge Patient in the main
menu.
STANDBY
Enter Standby
Placing a device into Standby:
• Stops all NIBP measurements.
• Clears all current technical messages.
• Displays Standby and remaining battery charge icon on the screen.
To enter the Standby mode:
1. Press the key to enter the main menu
2. Select Standby
3. Select to confirm the selection
Exit Standby
Exiting a device from Standby:
• Restores monitoring.
• Resumes the ability to provide the technical messages.
To exit the Standby mode:
Press any hard key to exit Standby mode.
Note: If a NIBP measurement is enabled, it should be resumed by pressing
the key.

P/N: H-046-011009-00 Rev 2.0 8
BP10 NIBP Module Quick Reference Guide
NIBP MEASUREMENT
Measurement Mode
Configure the measurement mode by entering Mode in the main menu.
Mode Description
Manual Take one measurement by a manual initiation.
Automatic The measurements are automatically taken on the
configured interval.
Sequence The measurements are automatically taken in the user-
defined sequence, which allow you to set different
measurements in consecutive five phases.
Continuous The measurements are taken one after another in a five-
minute period.
Start and Stop Measurements
Mode Tasks Actions
Manual To start or stop a
measurement. Press the key.
Continuous To start the series
measurement.
Select NIBP STAT in the main
menu.
To cancel the series
measurement. Press the key or select
Stop All in the main menu.
PAIRING A BP10 WITH TD60/TM80
The BP10 can be paired with a TD60/TM80. After pairing, TD60/TM80 can
display the NIBP related data and messages, and enable various BP10
functions.
Refer to BeneVision TM80 Telemetry Monitor Quick Reference Guide (P/N:
046-011071-00) or BeneVision TD60 Display Telepack Quick Reference Guide
(046-007060-00) for details on the paring process.

P/N: H-046-011009-00 Rev 2.0 9
BP10 NIBP Module Quick Reference Guide
SWITCH ON/OFF THE AUDIO
The clinician is able to switch on/off the technical message and keypad
audio on the BP10.
To switch on/off the audio:
1. Press to enter the main menu
2. Select Audio Volume
3. Select On or Off respectively for the Prompt Volume or Keypad
Volume option.
4. Press the key to save the setting and exit the menu
PARAMETER COLOR
The BP10 provides the ability to adjust the parameter's numeric color.
To adjust the parameter's color at the BP10:
1. Press to enter the main menu
2. Select System
3. Select NIBP Color
CLEAN/DISINFECT THE BP10
Clean the BP10
Clean your equipment on a regular basis. Before cleaning the equipment,
consult your hospital’s regulations for cleaning the equipment.
Warning: Never allow the cleaning solutions to spill or enter the connector
and battery compartment.
Before cleaning your BP10, do the following preparations:
• Install the battery pack or battery tray to firmly close the battery
compartment.
• Insert the NIBP hose into the NIBP cuff connector.

P/N: H-046-011009-00 Rev 2.0 10
BP10 NIBP Module Quick Reference Guide
The following table lists approved cleaning and disinfecting agents.
Product Name Product Type Ingredients
Sodium hypochlorite
bleach*
Liquid Sodium hypochlorite bleach 10%
Hydrogen peroxide* Hydrogen peroxide 3%
Isopropanol* Isopropanol 70%
1-Propanol* 1-Propanol 50%
CIDEX OPA Solution Ortho-Phthalaldehyde 0.55%
Metrex CaviCide1™ Diisobutylphenoxyethoxyethyl
dimethyl benzyl ammonium
chloride 0.28%,
Isopropanol 17.2%
Virex® II 256 Didecyl dimethyl ammonium
chloride 8.704%,
n-Alkydimethyl benzyl
ammonium chloride 8.190%
Virex®TB n-Alkyl dimethyl benzyl
ammonium chlorides 0.105%,
n-Alkyl dimethyl ethylbenzyl
ammonium chlorides 0.105%
Rely+On™
Virkon®Powder *(Used
as 1% solution)
Powder Used as 1% solution
Biocidal active:
Pentapotassium bis
(peroxymonosulphate) bis
(sulphate)(500g/kg),
Contains dipotassium
peroxodisulphate.

P/N: H-046-011009-00 Rev 2.0 11
BP10 NIBP Module Quick Reference Guide
Product Name Product Type Ingredients
Alpet® D2 Surface
Sanitizing Wipes
Wipes Isopropyl Alcohol 58.6000%®
Octyl Decyl Dimethyl Ammonium
chloride 0.0075%,
Dioctyl Dimethyl Ammonium
Chloride 0.0030%
Clorox Dispatch®
Hospital Cleaner
Disinfectant Towels
with Bleach
Sodium Hypochlorite 0.65%
Clorox
Healthcare®Bleach
Germicidal Wipes
Sodium Hypochlorite 0.55%
Clorox Healthcare®
Hydrogen Peroxide
Cleaner Disinfectant
Wipes
Hydrogen Peroxide 1.4%
Diversey Oxivir®TB
Wipes
Hydrogen Peroxide 0.5%
Metrex CaviWipes™ Diisobutylphenoxyethoxyethyl
dimethyl benzyl ammonium
chloride 0.28%,
Isopropanol 17.2%
PDI Sani-Cloth® AF3
Germicidal Disposable
Wipe
n-Alkyl dimethyl ethylbenzyl
ammonium chlorides 0.14%,
n-Alkyl dimethyl benzyl
ammonium chlorides 0.14%
PDI Sani-Cloth®Bleach
Germicidal Disposable
Wipe
Sodium Hypochlorite 0.63%,other
ingredients 99.37%
PDI Sani-Cloth® HB
Germicidal Disposable
Wipe
n-Alkyl dimethyl ethylbenzyl
ammonium chlorides 0.07%,
n-Alkyl dimethyl benzyl
ammonium chlorides 0.07%

P/N: H-046-011009-00 Rev 2.0 12
BP10 NIBP Module Quick Reference Guide
Product Name Product Type Ingredients
PDI Sani-Cloth® Plus
Germicidal Disposable
Cloth
Wipes n-Alkyl dimethyl ethylbenzyl
ammonium chlorides 0.125%,
n-Alky dimethyl benzyl
ammonium chlorides 0.125%
PDI Super Sani-
Cloth®Germicidal
Disposable Wipe*
n-Alkyl dimethyl ethylbenzyl
ammonium chlorides 0.25%,
n-Alkyl dimethyl benzyl
ammonium chlorides 0.25%,
Isopropyl Alcohol 55.0%,
VIRAGUARD Hospital
Surface Disinfectants
Isopropanol 70%,Other
ingredients 30%
Note: For equipment with the symbol , all the listed cleaning and
disinfecting agents are available for use. For equipment without the symbol
, only the cleaning and disinfecting agents marked with “*” are available
for use.
To clean the equipment:
1. Shut down the device.
2. Clean the display screen with wipes or a soft cloth moistened with one
of the cleaning agents listed in the table above.
3. Clean the exterior surface of the BP10 main unit and lithium-ion
battery pack with wipes or a soft cloth moistened with one of the
cleaning agents listed in the table above.
4. Wipe off all the residue with a dry cloth.
5. Dry your equipment in a ventilated, cool place.
Disinfect the BP10
Disinfect your equipment as required in your hospital’s servicing schedule.
Cleaning the equipment before disinfecting is recommended.

P/N: H-046-011009-00 Rev 2.0 13
BP10 NIBP Module Quick Reference Guide
CLEAN/DISINFECT THE REUSABLE NIBP Cuff
To clean and disinfect the reusable NIBP cuff, refer to the instructions for use
delivered with the accessory.
STERILIZATION
Sterilization is not recommended for this equipment, related products,
accessories or supplies unless otherwise indicated in the Operating
Instructions that accompany the product, accessories or supplies.

Mindray DS USA, Inc.
800 MacArthur Boulevard, Mahwah, New Jersey 07430 USA
Tel: [phone]
www.mindray.com
0 4 6 - 0 1 1 0 0 9 - 0 0 ( 2 . 0 )
