Mindray DC-8 EXP User manual

1. Power on
2. P1,P2: User-defined key
3. Advanced function key
Elasto
iScape
TDI
Contrast
4. Exam procedure
Patient: Patient information
Probe: Probe select
End Exam: End exam & start a new
patient
5. Function key on the key board（F1-F12）
iStation: Patient management
iZoom: Image enlargement
6. Imaging Mode & Measurement
Update: Initiate or Refresh M/PW/CW
image; Start/Stop image acquisition in
iScape or 3D/4D mode.
7. 3D/4D: Enter/Exit 3D/4D
8. Parameter adjustment
Depth: Depth adjustment in real-time
imaging
Zoom: Rotate to enter pan zoom;
Presstoenterspotzoom.
Scale
Baseline
Focus: Change the focus position.
9. Optimize the image
iTouch: Auto optimization for B/Color/PW
Multi-functional knob
10. Control center
Trackball & Set button (The left/right
kidneyshapedkey)
The left& right bottom small key：Set up
beginning and ending frame in cine
loop.
11. Annotation
Body mark
Text
Clear
Arrow
12. Save image
Save 1; Save 2
13. Touch screen & Parameter knobs
1. Getting Started
New Patient
1. Press [Patient], fill in the basic patient information via Touch screen or Keyboard.
2. Press [Probe], select probe and exam mode via Touch screen.
2. Scanning
B/M Mode
1. Adjust the interested parameters via Touch screen.
2. Rotate the [B]/ [M] knob to adjust the gains.
CDFI/Power Mode
1. Press [Color]/ [Power] to enter Color/Power mode.
2. Move [Trackball] to change the position of ROI.
3. Press [Set] (No.10 button), and then move [Trackball] to
change the size of ROI, press [Set].
DC-8 EXP Quick Guide

3
4
2
3
1
PW/CW Mode
1. Press [PW]/ [CW] to enter PW/CW mode.
2. Move [Trackball] to change the position of sample volume.
3. Change the size and angle of sample volume via Touch screen or its relative knob. Press [Update] or [PW]/ [CW] to get the
Pulse Wave Doppler.

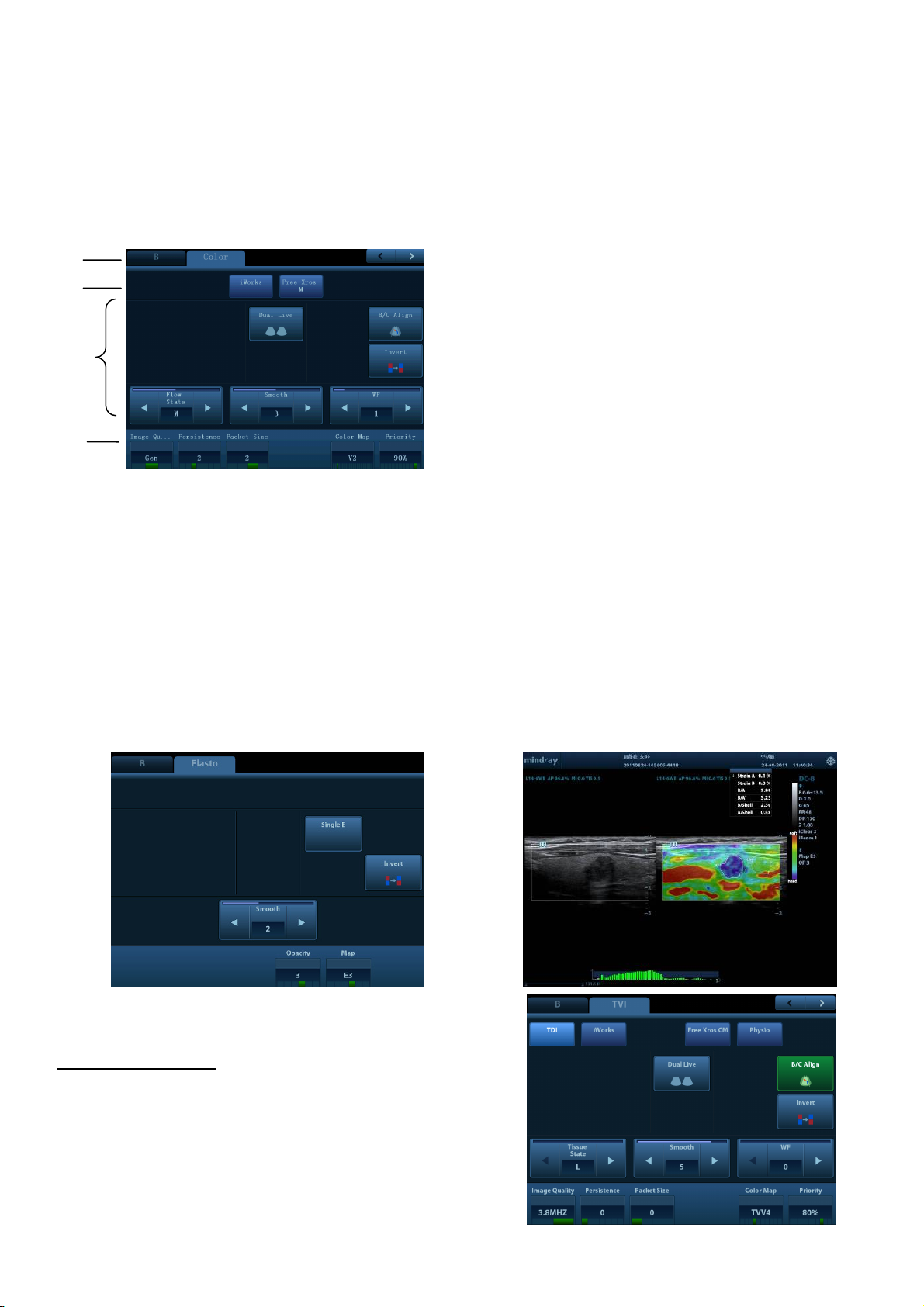

Image Adjustment
1. Mode displaying areas: switches the active imaging mode.
2. Special modes available under current condition.
3. Parameter adjusting areas: Displays parameters in the current
imaging mode.
4. Knob adjusting areas: Parameters displayed on the bottom of
Touch screen can be adjusted by the knobs under the Touch screen.
Press [B] knob to return to B mode.
Parameters in B mode: Depth, TGC, Gain, iTouch, Focus Position, Steer, Image Quality, Tint Map, U/D (L/R) Flip, Rotation, FOV,
ExFOV, Image Merge, Dynamic Range, Gray Map, Line Density, Focus Number, iClear, TSI, Persistence, iBeam, HScale, Dual Live,
LGC, A. power.
Parameters in Color mode: Gain, Depth, iTouch, Steer, Scale, Baseline, Invert, B/C Align, Dual Live, Image Quality, Flow State,
Priority, Packet Size, Color Map, Wall Filter, Line Density, Smooth, Persistence, Velocity Tag.
Parameters might be displayed on different pages.
Special Imaging Mode (Optional)
Elastography
1. Select the exam mode (general application for Breast or Thyroid) via Touch screen with any linear probe.
2. Press [Elasto] on the control panel to activate the function and press the probe on the target organ.
[Note]: There is a pressure indicator on the bottom of the screen, make sure the pressure you applied is appropriate so that the
pressure bar is indicated in green; otherwise the pressure bar is indicated in gray.
Tissue Doppler Imaging
1. Press [TDI] to enter the corresponding TVI mode, parameters will be
displayed on the Touch screen.
2 Press [M] button to enter TVM mode; press [PW] button to enter TVD
mode; press [Power] to enter TEI mode.

iNeedle
One button to show automatically the needle more clear with beam steer during the biopsy process.
1. Press [iNeedle] to enter the function mode via Touch screen, parameters will be displayed on the Touch screen.
2. Press [B/iNeedle] to switch B+iNeedle image or only iNeedle image displayed.
3. Press [Needle Steer] to adjust steer angle.
3D/ 4D
1. Press [Probe], select the volume probe and the exam mode via Touch screen.
2. Press [3D]/ [4D] to enter and adjust the ROI and curved VOI.
3. Press [Update] to enter the 4D image real-time status.
4. Rotate X/Y/Z knobs to adjust the axis of 3D/4D image.
5. Adjust rendering method/ layout/ parameters via Touch screen.
Free Xros M
1. In real-time B mode or M mode, adjust the probe and image to obtain the
desired plane, or select the B mode cine file to observe.
2. Click [Free Xros M] on the Touch screen to enter Free Xros M Mode.
3. Adjust the sampling line to obtain optimized images and necessary
information.
4. Move the [Trackball] to change the sample line position and rotate the
[Nav.] Knob to change the angle. Shift the different line with [Set] button.
iScape
1. Connect an appropriate iScape-compatible probe.
2. Press [iScape] to enter iScape mode.
3. Click [Start Capture] on [iScape] page tab on Touch screen or press [Update]
on the control panel to begin the capture.
4. Click [Stop Capture] on [iScape] page tab on Touch screen or press [Update]
on the control panel to stop.
Contrast Imaging (Not available in FDA and Canada region)
1. Select an appropriate probe, and perform 2D imaging to obtain the target

image, and then fix the probe.
2. Press [Contrast] button on the control panel to enter the contrast imaging mode.
3. Inject the contrast agent, and set [Timer 1] to start the contrast timing. When the timer begins to work, the time will be
displayed on the screen.
4. Observe the image, using the Touch screen button of [Pro Capture] and [Retro Capture] or the user-defined key (usually
[Save1] and [Save2]) to save the images.
5. Press [Freeze] to end the live capture.
3. Measurement
1. Press [Measure] to enter the application measurement status.
2. Press [Caliper] to enter general measurement.
3. Move the cursor or via Touch screen to choose the measurement tool, and then go to the desired position to measure.
4. Post Scanning
Comments and Body Marks
Comment
Input words directly.
Or press [Text] to change the comment setting position and
add the comment to the image.
Body Mark
1. Press [Body Mark] and choose the desired one via Touch
screen.
2. Move [Trackball] to place the probe marker and rotate
the [Multi-functional Knob] to adjust the orientation of
the probe.
Save Images or Cine
1. Press [Save1] or [Save2] to save a single-frame image or
cine to the system.
Report and Print
1. Press [Report], move the cursor to the comment text box
and type the text.
2. Click [Image Select] on the [Report] page to add images,
and then click [Print View] to preview, click [Print] to
print.
End Exam
Press [End Exam] to end one examination. You may start a
new exam by repeating the instructions above.
5. Image Management
Image Transfer
1. Press [iStation] to enter image management and select the image to send to USB or DICOM, etc.
2. Or, Press [Review] and select the image to send to USB or DICOM, etc.
Note: For detailed information, please refer to the operator’s manual.
SHENZHEN MINDRAY BIO-MEDICAL ELECTRONICS CO., LTD
Address: Mindray Building, Keji 12th Road South, High-tech Industrial
Park, Nanshan, Shenzhen 518057, P.R. China
Email: [email protected]
P/N: 046-006768-00 (V 1.0)
